USER MANUAL B365 Pro4 ASROCK

Published January 2019

Copyright©2019 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^® and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

Motherboard Layout

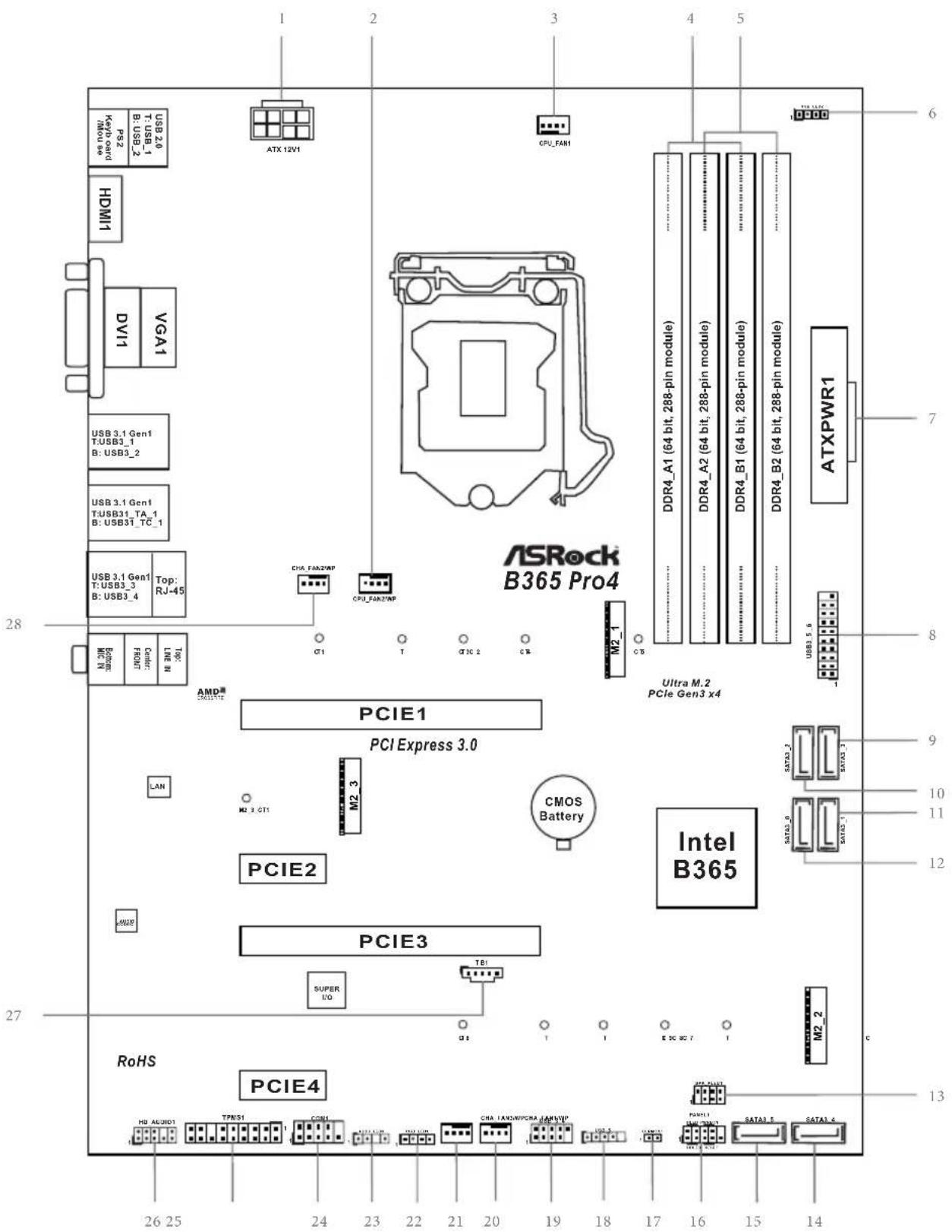

ASRock B365 Pro4 CPU_FAN1 ATX 12V1 CPU_FAN2/WP AMD PCI Express 3.0 PCIE1 Ultra M.2 PCIe Gen3 x4 PCIE2 CMOS Battery Intel B365 PCIE3 Super I/O RoHS PCIE4 HD ALGID1 TPRS1 COM1 CHA FAN/WPCHA (FAN/WP) TBI M2_3 M2_1 C1 T CTC 2 CB USB 3.1 Gen1 T:USB3_1 B:USB3_2 USB 3.1 Gen1 T:USB31_TA_1 B:USB31_TC_1 DVI1 VGA1 HDMI1 USB 2.0 P S2 USB3_1 USB3_2 USB 3.1 Gen1 T:USB3_3 B:USB3_4 Top: RJ-45 AMD 5.6 USB 5.6 ATXPWR1 Ultra M.2 PCIe Gen3 x4

No. Description

1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

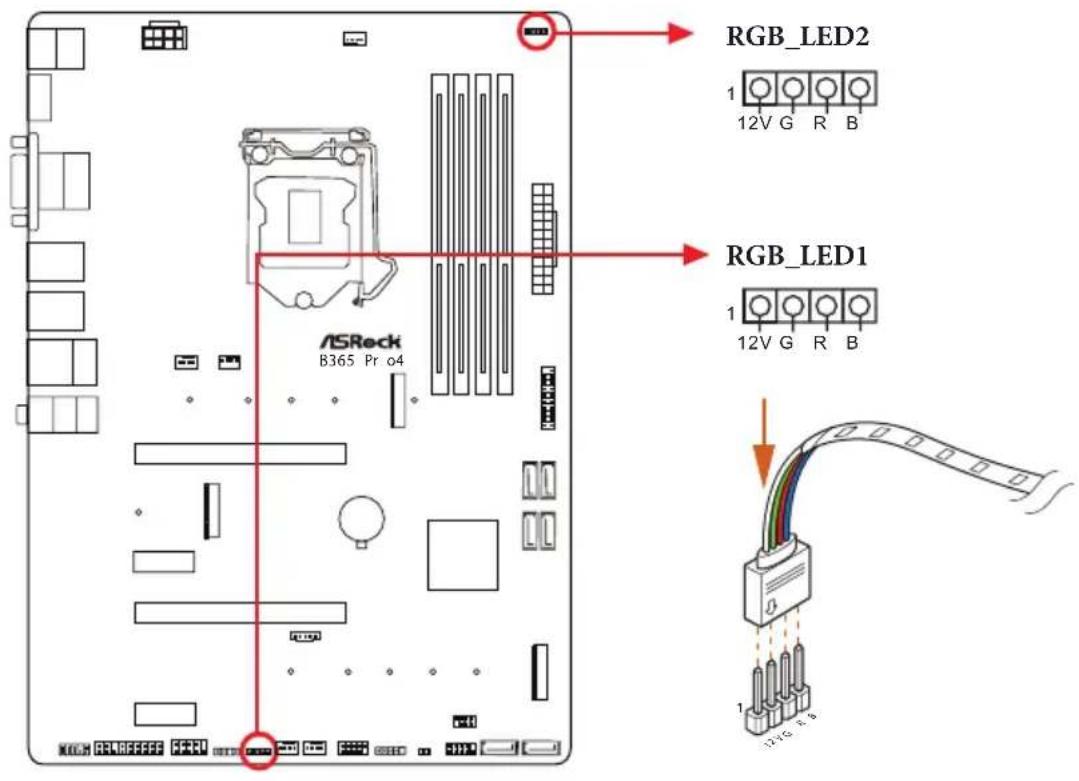

6 RGB LED Header (RGB_LED2)
7 ATX Power Connector (ATXPWR1)
8 USB 3.1 Gen1 Header (USB3_5_6)
9 SATA3 Connector (SATA3_3)
10 SATA3 Connector (SATA3_2)
11 SATA3 Connector (SATA3_1)
12 SATA3 Connector (SATA3_0)
13 Power LED and Speaker Header (SPK_PLED1)
14 SATA3 Connector (SATA3_4)
15 SATA3 Connector (SATA3_5)
16 System Panel Header (PANEL1)
17 Clear CMOS Jumper (CLRMOS1)
18 USB 2.0 Header (USB_5)
19 USB 2.0 Header (USB_3_4)
20 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)
21 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)
22 RGB LED Header (RGB_LED1)
23 Addressable LED Header (ADDR_LED1)
24 COM Port Header (COM1)
25 TPM Header (TPMS1)
26 Front Panel Audio Header (HD_AUDIO1)
27 Thunderbolt AIC Connector (TB1)
28 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)

I/O Panel

Diagram showing labeled electronic device ports and connectors, including server, VGA, and ports with numbered labels 1 to 7.

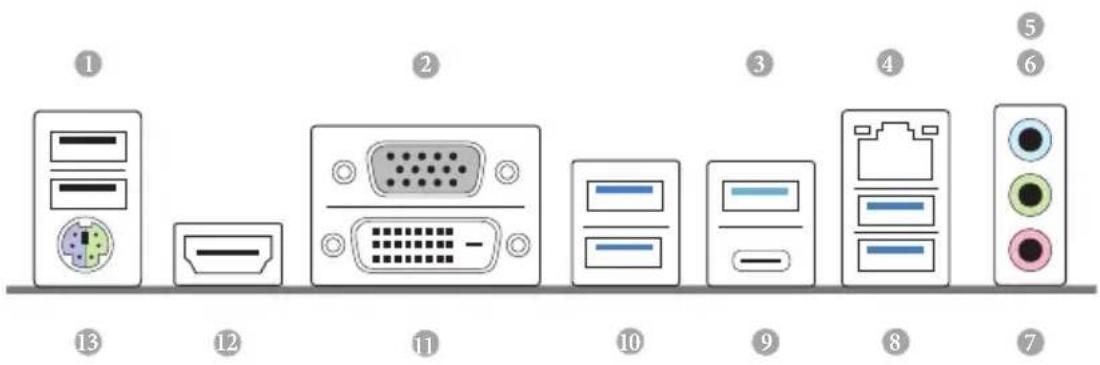

No.	Description No.	Description
1	USB 2.0 Ports (USB_1_2)*
2	D-Sub Port
3	USB 3.1 Gen1 Type-A Port (USB31_TA_1)
4	LAN RJ-45 Port**
5	Line In (Light Blue)***
6	Front Speaker (Lime)***
7	Microphone (Pink)***

8	USB 3.1 Gen1 Ports (USB3_3_4)
9	USB 3.1 Gen1 Type-C Port (USB31_TC_1)
10	USB 3.1 Gen1 Ports (USB3_1_2)
11	DVI-D Port
12	HDMI Port
13	PS/2 Mouse/Keyboard Port

* Please note that the USB1 consumes auxiliary power (+5VSB) while the other USB ports consume DUAL Power (+5VDUAL). The USB1 is optimal for connecting the USB Type speaker and headset.
** There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On Link Green	Gbps connection

*** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

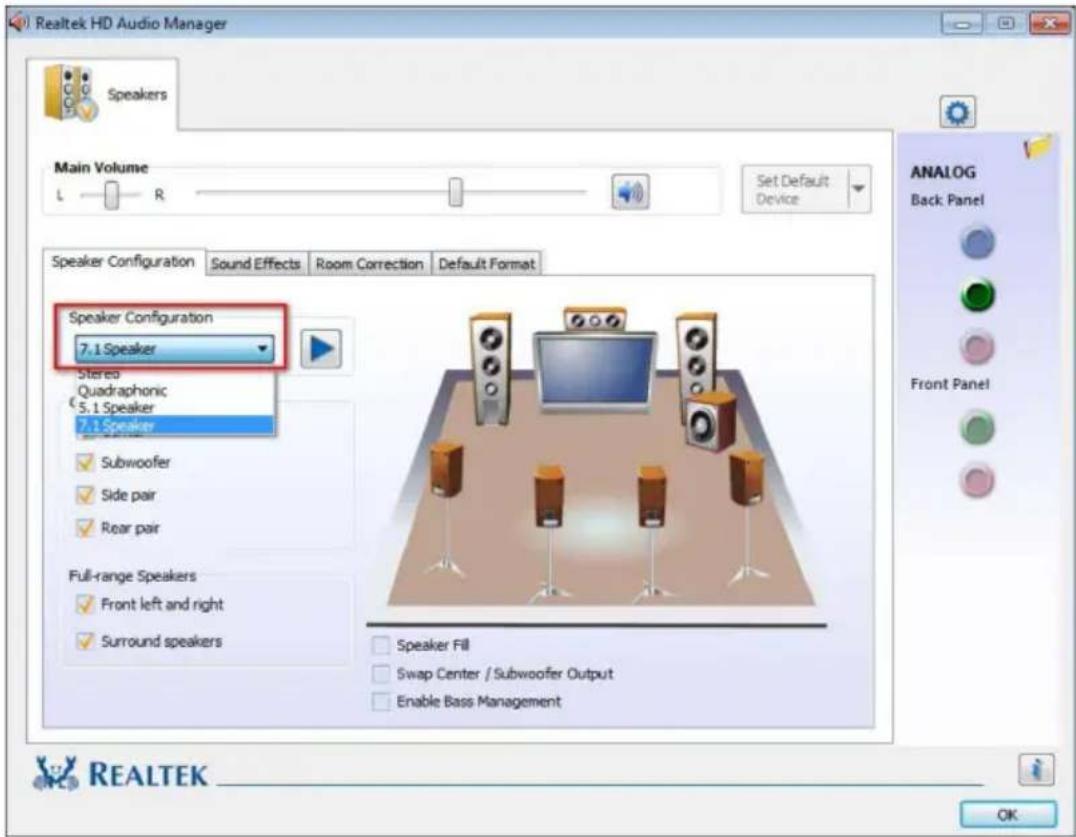

Please set Speaker Configuration to "7.1 Speaker" in the Realtek HD Audio Manager.

Realtek HD Audio Manager Speakers Main Volume L R Set Default Device Speaker Configuration Sound Effects Room Correction Default Format Speaker Configuration 7.1 Speaker Stereo Quadraphonic 5.1 Speaker 7.1 Speaker ✓ Subwoofer ✓ Side pair ✓ Rear pair Full-range Speakers ✓ Front left and right ✓ Surround speakers ANALOG Back Panel Front Panel Speaker Fill Swap Center / Subwoofer Output Enable Bass Management OK

Function of the Audio Ports in 7.1-channel Configuration:

Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock B365 Pro4 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock B365 Pro4 Motherboard (ATX Form Factor)

ASRock B365 Pro4 Quick Installation Guide

ASRock B365 Pro4 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

3 x Screws for M.2 Sockets (Optional)

1 x Standoff for M.2 Socket (Optional)

1.2 Specifications

Platform	ATX Form FactorSolid Capacitor design
CPU	Supports 9^th and 8^th Gen Intel* CoreTM Processors (Socket 1151)Supports CPU up to 95WDigi Power design8 Power Phase designSupports Intel® Turbo Boost 2.0 Technology
Chipset	Intel® B365
Memory	Dual Channel DDR4 Memory Technology4 x DDR4 DIMM SlotsSupports DDR4 2666/2400/2133 non-ECC, un-buffered memorySupports ECC UDIMM memory modules (operate in non-ECC mode)Supports Intel® Extreme Memory Profile (XMP) 2.015μ Gold Contact in DIMM Slots
Expansion Slot	2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* Supports NVMe SSD as boot disks2 x PCI Express 3.0 x1 Slots (Flexible PCIe)Supports AMD Quad CrossFireXTM and CrossFireXTM1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Graphics	* Intel* UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics DirectX 12 HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Premium Blu-ray Audio support Supports Surge Protection ELNA Audio Caps

LAN

Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE

Rear PanelI/O	1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x DVI-D Port1 x HDMI Port2 x USB 2.0 Ports (Supports ESD Protection)1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)5 x USB 3.1 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone
Storage	6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.1 x Ultra M.2 Socket (M2_1), supports M Key type2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**1 x Ultra M.2 Socket (M2_2), supports M Key type2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**** Supports Intel® OptaneTM Technology** Supports NVMe SSD as boot disks** Supports ASRock U.2 Kit
Connector	1 x COM Port Header1 x TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers* Support in total up to 12V/3A, 36W LED Strip1 x Addressable LED Header* Supports in total up to 5V/3A, 15W LED Strip1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

BIOS

Feature

AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

Hardware

Monitor

Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST

os

Microsoft ^® Windows ^® 10 64-bit

Certifica-

FCC, CE

tions

ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

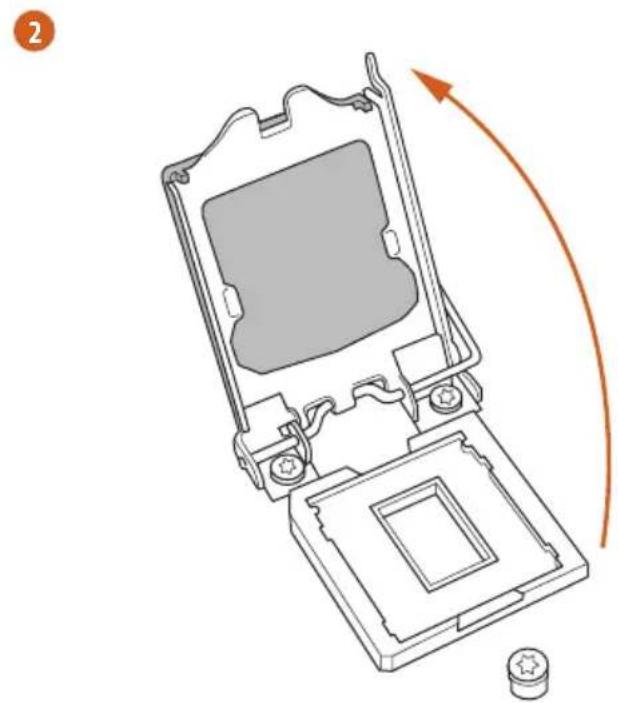

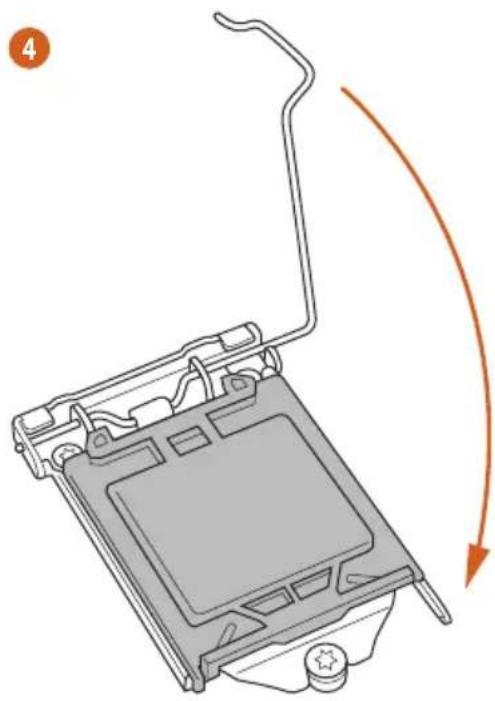

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

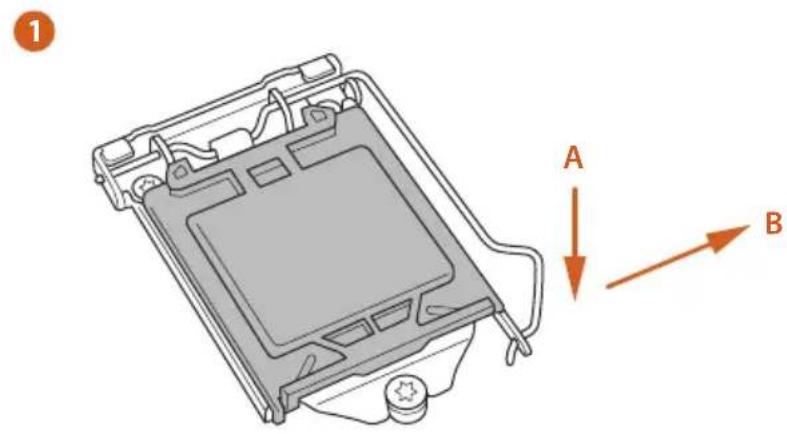

1 A B

Technical line drawing of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

3

Technical diagram of a computer processor internal structure showing mounting holes and internal compartments (no text or labels)

Diagram of a computer monitor with an orange curved arrow indicating motion or rotation (no text or symbols present)

5

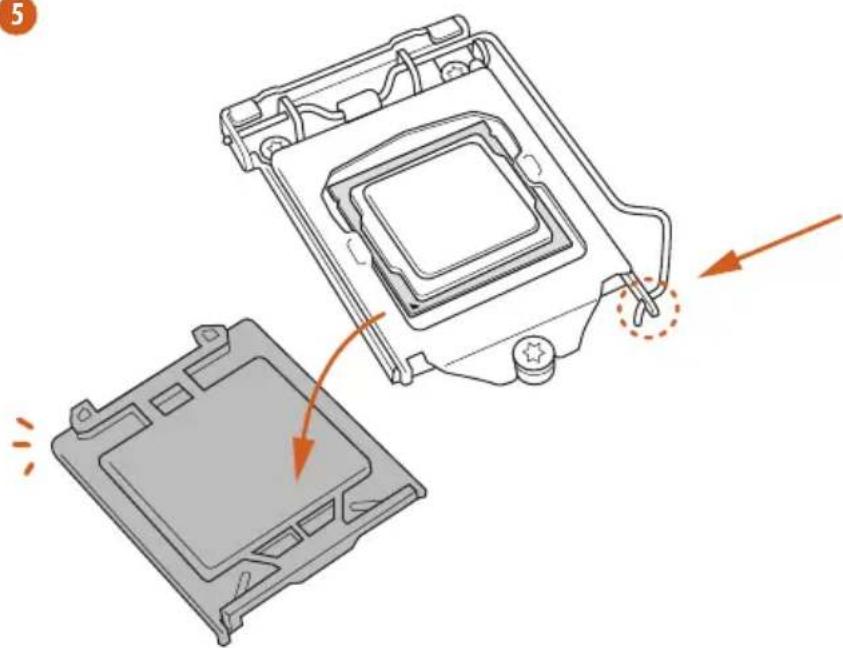

Diagram showing a computer processor casing with an open lid and a highlighted internal component, illustrating the process of assembly or cleaning (no text or symbols present)

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

2.2 Installing the CPU Fan and Heatsink

Line drawing of a pipette dispensing liquid into a container with a droplet inside (no text or symbols)

Technical diagram showing cooling fan installation and CPU socket assembly with directional arrows indicating rotation

2 COS EPS

2.3 Installing Memory Modules (DIMM)

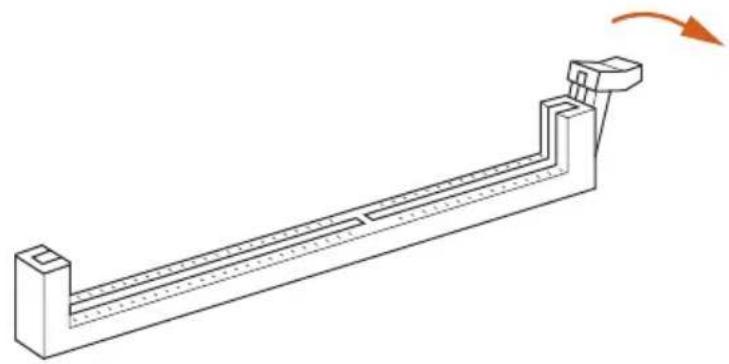

This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated Populated Populated

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

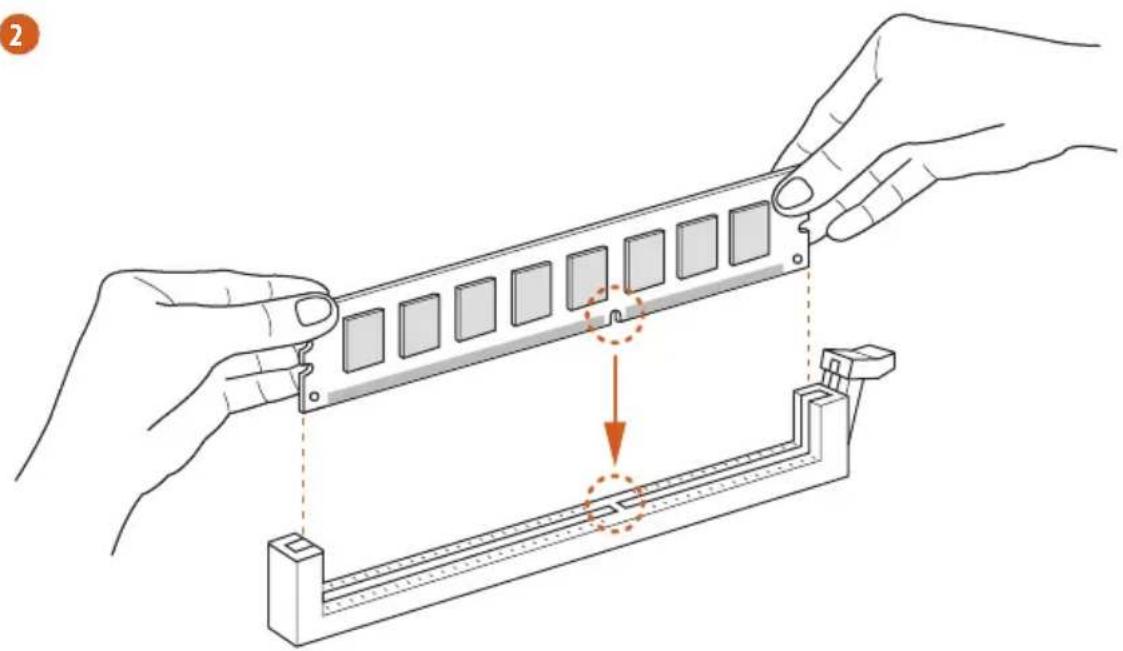

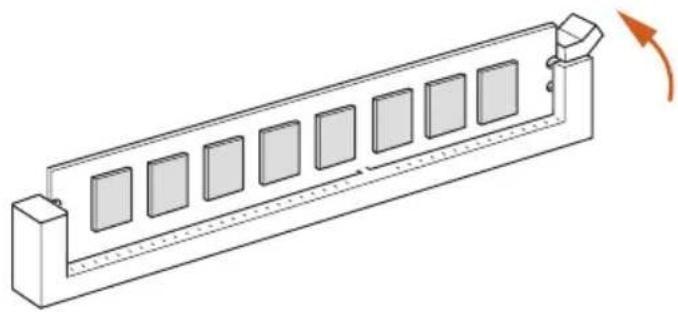

1

Technical line drawing of a mechanical support structure with an orange arrow indicating rotation (no text or symbols)

2

Illustration of hands installing a component into a mechanical bracket with a highlighted circular detail (no text or symbols)

3

Isometric line drawing of a rectangular device with multiple square panels and a curved arrow indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI Express Slots)

There are 4 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIE4 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIe Slot Configurations

PCIE1 PCIE3

Single Graphics Card x16 N/A

Two Graphics Cards in CrossFireX™ Mode

x16 x4

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP or CHA_FAN3/WP) when using multiple graphics cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".

Short

Open

Clear CMOS Jumper (CLRMOS1)

(see p.1, No. 17)

2-pin Jumper

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember to remove the jumper cap after clearing the CMOS.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1, No. 16)

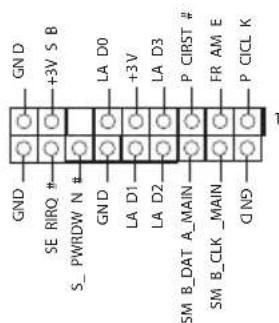

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Button):

Connect to the power button on the chassis front panel. You may configure the way to turn off your system using the power button.

RESET (Reset Button):

Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Power LED and Speaker Header

(7-pin SPK_PLED1)

(see p.1, No. 13)

Please connect the chassis power LED and the chassis speaker to this header.

Serial ATA3 Connectors

(SATA3_0:

see p.1, No. 12)

(SATA3_1:

see p.1, No. 11)

(SATA3_2:

see p.1, No. 10)

(SATA3_3:

see p.1, No. 9)

(SATA3_4:

see p.1, No. 14)

(SATA3_5:

see p.1, No. 15)

SATA3 5 SATA3_4

These six SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

USB 2.0 Headers

(9-pin USB_3_4)

(see p.1, No. 19)

USB_PWR P- P+ GND DUMMY 1 P- P+ GND USB_PWR

There are two USB 2.0 headers on this motherboard.

(4-pin USB_5)

(see p.1, No. 18)

USB 3.1 Gen1 Header

(19-pin USB3_5_6)

(see p.1, No. 8)

VbusVbus Vbus IntA_PB_SSRX- IntA_PB_SSRX+ GND IntA_PB_SSTX- IntA_PB_SSTX+ GND IntA_PB_D- IntA_PB_D+ Dummy 1

There is one header on this motherboard. This USB 3.1 Gen1 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, No. 26)

GND PRESENCE# MIC_RET OUT_RET 1 J_SENSE OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L

This header is for

connecting audio devices

to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Fan / Waterpump

Fan Connectors

(4-pin CHA_FAN1/WP)

(see p.1, No. 21)

(4-pin CHA_FAN2/WP)

(see p.1, No. 28)

(4-pin CHA_FAN3/WP)

(see p.1, No. 20)

4 3 2 1 FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

CPU Fan / Waterpump

Fan Connector

(4-pin CPU_FAN2/WP)

(see p.1, No. 2)

This motherboard pro-

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 3)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 7)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)

This motherboard provides an 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

Serial Port Header (9-pin COM1) (see p.1, No. 24)

This COM1 header supports a serial port module.

TPM Header (17-pin TPMS1) (see p.1, No. 25)

GND SE RIRQ # S_PWRDW N # GN D LA D0 +3V S B LA D1 LA D2 LA D3 P CIRST # FR AM E P CICL K SM B_DAT A_MAIN SM B_CLK _MAIN Q ND 1

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Thunderbolt AIC Connector (5-pin TB1) (see p.1, No. 27)

Please connect a Thunderbolt™ add-in card (AIC) to the Thunderbolt AIC connector via the GPIO cable. *Please install the Thunderbolt™ AIC card to PCIE3 (default slot).

RGB LED Headers (4-pin RGB_LED1) (see p.1, No. 22) (4-pin RGB_LED2) (see p.1, No. 6)

RGB header is used to connect RGB LED extension cable which allows users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. *Please refer to page 35 for further instructions on this header.

Addressable LED Header (3-pin ADDR_LED1) (see p.1, No. 23)

This header is used to connect Addressable LED extension cable which allows users to choose from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged. *Please refer to page 36 for further instructions on this header.

2.7 M.2 WiFi/BT Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT module.

* The M.2 socket does not support SATA M.2 SSDs.

Installing the WiFi/BT module

Pure technical line drawing of a mechanical component with no text or symbols

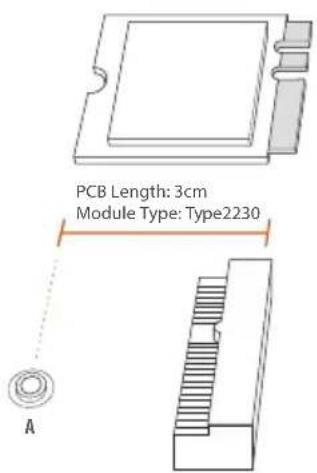

Step 1

Prepare a type 2230 WiFi/BT module and the screw.

PCB Length: 3cm Module Type: Type2230 A

Step 2

Find the nut location to be used.

A A 20°

Step 3

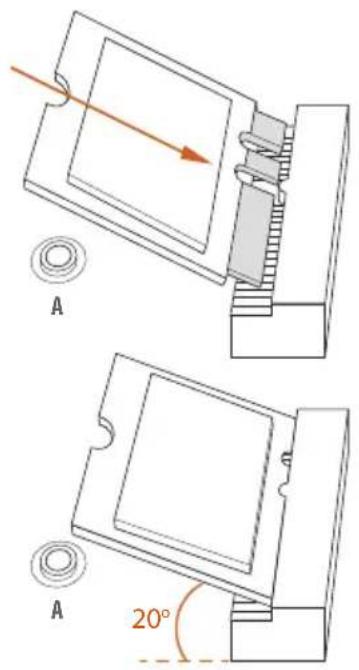

Gently insert the WiFi/BT module into the M.2 slot. Please be aware that the module only fits in one orientation.

Diagram of a mechanical setup with a rotating component and directional arrows (no text or symbols)

Step 4

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

2.8 M.2\_SSD (NGFF) Module Installation Guide (M2\_1)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

Installing the M.2\_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with cutouts and mounting holes (no text or symbols)

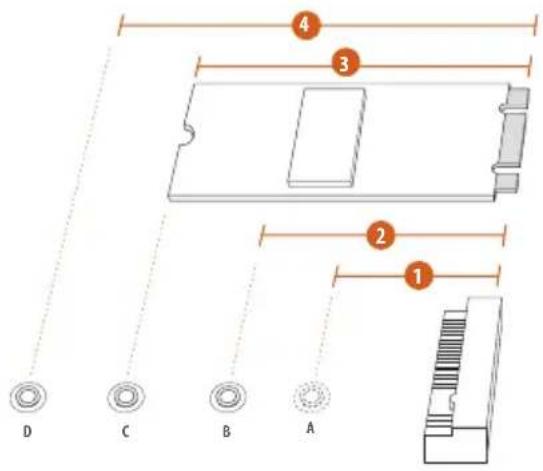

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

4 3 2 1 D C B A

Step 2

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.1234

Nut Location A B C D
PCB Length	3cm	4.2cm	6cm	8cm
Module Type	Type2230	Type 2242	Type2260	Type 2280

Diagram showing a mechanical assembly with labeled components and directional arrows, including parts numbered 1 and 2.

Step 3

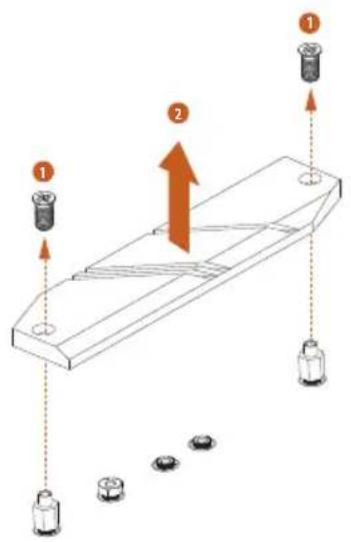

Before installing a M.2 (NGFF) SSD module, please loosen the screws to remove the M.2 heatsink.

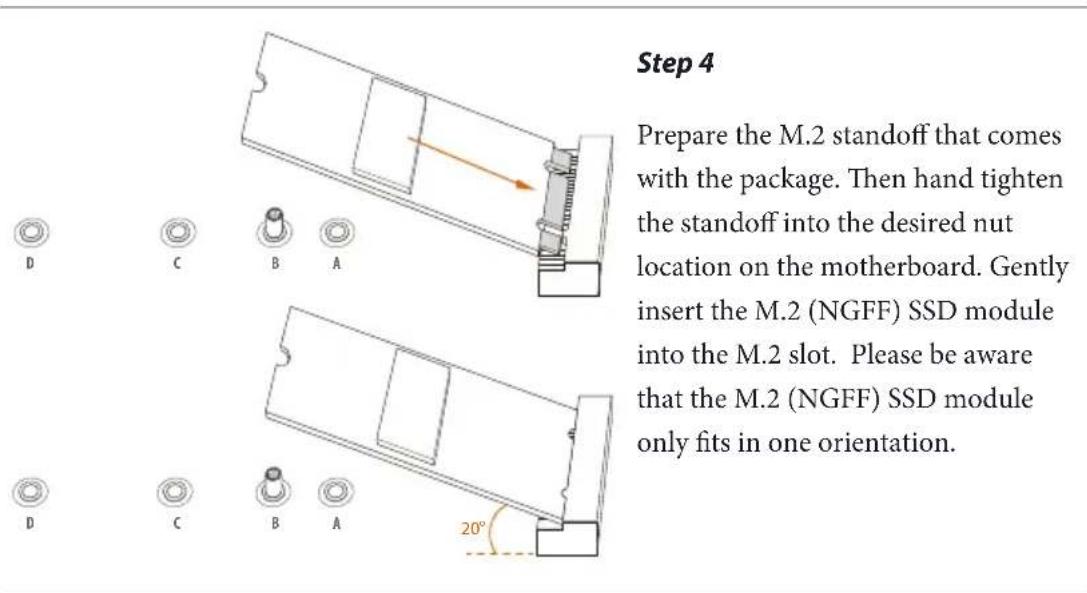

Step 4 Prepare the M.2 standoff that comes with the package. Then hand tighten the standoff into the desired nut location on the motherboard. Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

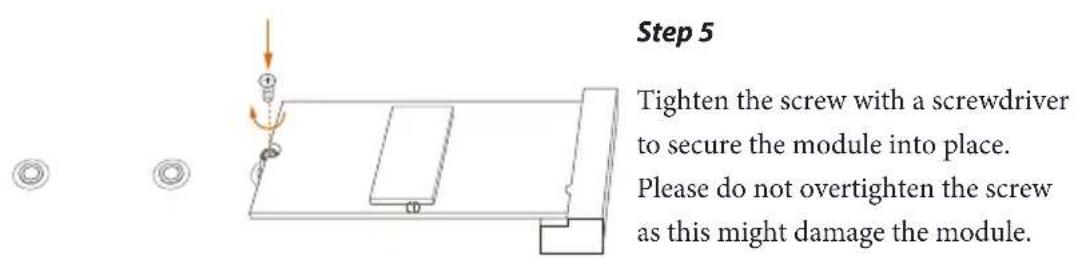

Step 5 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

M.2\_SSD (NGFF) Module Support List (M2\_1)

Vendor Interface P/N

ADATA SATA3 AXNS330E-32GM-B

ADATA SATA3 AXNS381E-128GM-B

ADATA SATA3 AXNS381E-256GM-B

ADATA SATA3 ASU800NS38-256GT-C

ADATA SATA3 ASU800NS38-512GT-C

ADATA PCIe3 x4 ASX7000NP-128GT-C

ADATA PCIe3 x4 ASX8000NP-256GM-C

ADATA PCIe3 x4 ASX7000NP-256GT-C

ADATA PCIe3 x4 ASX8000NP-512GM-C

ADATA PCIe3 x4 ASX7000NP-512GT-C

Apacer PCIe3 x4 AP240GZ280

Corsair PCIe3 x4 CSSD-F240GBMP500

Crucial SATA3 CT120M500SSD4

Crucial SATA3 CT240M500SSD4

Intel SATA3 Intel SSDSCKGW080A401/80G

Intel PCIe3 x4 SSDPEKKF256G7

Intel PCIe3 x4 SSDPEKKF512G7

Kingston SATA3 SM2280S3

Kingston PCIe3 x4 SKC1000/480G

Kingston PCIe2 x4 SH2280S3/480G

OCZ PCIe3 x4 RVD400 -M2280-512G (NVME)

PATRIOT PCIe3 x4 PH240GPM280SSDR NVME

Plextor PCIe3 x4 PX-128M8PeG

Plextor PCIe3 x4 PX-1TM8PeG

Plextor PCIe3 x4 PX-256M8PeG

Plextor PCIe3 x4 PX-512M8PeG

Plextor PCIe PX-G256M6e

Plextor PCIe PX-G512M6e

Samsung PCIe3 x4 SM961 MZVPW128HEGM (NVM)

Samsung PCIe3 x4 PM961 MZVLW128HEGR (NVME)

Samsung PCIe3 x4 960 EVO (MZ-V6E250) (NVME)

Samsung PCIe3 x4 960 EVO (MZ-V6E250BW) (NVME)

Samsung PCIe3 x4 SM951 (NVME)

Samsung PCIe3 x4 SM951 (MZHPV256HDGL)

Samsung PCIe3 x4 SM951 (MZHPV512HDGL)

Samsung PCIe3 x4 SM951 (NVME)

Samsung PCIe x4 XP941-512G (MZHPU512HCGL)

SanDisk PCIe SD6PP4M-128G

SanDisk PCIe SD6PP4M-256G

Team SATA3 TM4PS4128GMC105

Team SATA3 TM4PS4256GMC105

Team SATA3 TM8PS4128GMC105

Team SATA3 TM8PS4256GMC105
TEAM PCIe3 x4 TM8FP2240G0C101
TEAM PCIe3 x4 TM8FP2480GC110
Transcend SATA3 TS256GMTS400
Transcend SATA3 TS512GMTS600
Transcend SATA3 TS512GMTS800
V-Color SATA3 VLM100-120G-2280B-RD
V-Color SATA3 VLM100-240G-2280RGB
V-Color SATA3 VSM100-240G-2280
V-Color SATA3 VLM100-240G-2280B-RD
WD SATA3 WDS100T1B0B-00AS40
WD SATA3 WDS240G1G0B-00RC30
WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME)
WD PCIe3 x4 WDS512G1X0C-00ENX0 (NVME)

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

2.9 M.2\_SSD (NGFF) Module Installation Guide (M2\_2)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_2) supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

Installing the M.2\_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with cutouts and side brackets (no text or symbols)

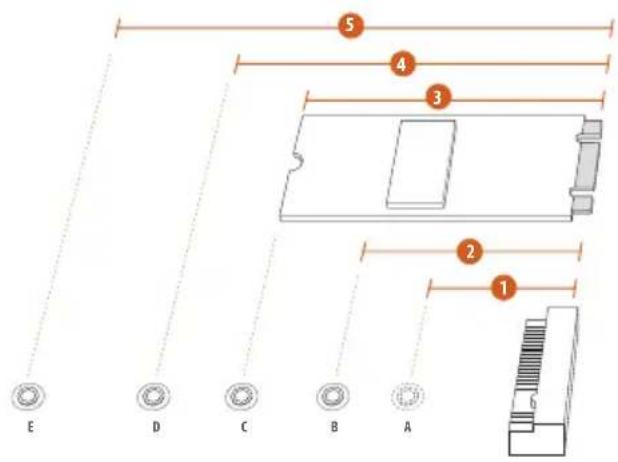

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

E D C B A 1 2 3 4 5

Step 2

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.12345

Nut Location A B C D E
PCB Length	3cm	4.2cm	6cm	8cm	11cm
Module Type	Type2230	Type 2242	Type2260	Type 2280	Type 22110

E D C B A

Step 3

Move the standoff based on the module type and length.

The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.

Otherwise, release the standoff by hand.

Step 4

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

ABCDE

Step 5

Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

ABCDE 20°

DE

Step 6

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

M.2\_SSD (NGFF) Module Support List

Vendor Interface P/N
ADATA PCIe3 x4 ASX7000NP-128GT-C
ADATA PCIe3 x4 ASX8000NP-256GM-C
ADATA PCIe3 x4 ASX7000NP-256GT-C
ADATA PCIe3 x4 ASX8000NP-512GM-C
ADATA PCIe3 x4 ASX7000NP-512GT-C
Apacer PCIe3 x4 AP240GZ280
Corsair PCIe3 x4 CSSD-F240GBMP500
Intel PCIe3 x4 SSDPEKKF256G7
Intel PCIe3 x4 SSDPEKKF512G7
Kingston PCIe3 x4 SKC1000/480G
OCZ PCIe3 x4 RVD400 -M2280-512G (NVME)
PATRIOT PCIe3 x4 PH240GPM280SSDR NVME
Plextor PCIe3 x4 PX-128M8PeG
Plextor PCIe3 x4 PX-1TM8PeG
Plextor PCIe3 x4 PX-256M8PeG
Plextor PCIe3 x4 PX-512M8PeG
Samsung PCIe3 x4 SM961 MZVPW128HEGM (NVM)
Samsung PCIe3 x4 PM961 MZVLW128HEGR (NVME)
Samsung PCIe3 x4 960 EVO (MZ-V6E250) (NVME)
Samsung PCIe3 x4 960 EVO (MZ-V6E250BW) (NVME)
Samsung PCIe3 x4 SM951 (NVME)
Samsung PCIe3 x4 SM951 (MZHPV256HDGL)
Samsung PCIe3 x4 SM951 (MZHPV512HDGL)
Samsung PCIe3 x4 SM951 (NVME)
TEAM PCIe3 x4 TM8FP2240G0C101
TEAM PCIe3 x4 TM8FP2480GC110
WD	PCIe3 x4 WDS256G1X0C-00ENX0 (NVME)
WD	PCIe3 x4 WDS512G1X0C-00ENX0 (NVME)
Kingston PCIe2 x4 SH2280S3/480G
Samsung PCIe x4 XP941-512G (MZHPU512HCGL)
SanDisk	PCIe SD6PP4M-128G
SanDisk	PCIe SD6PP4M-256G
Plextor PCIe	PX-G256M6e
Plextor PCIe	PX-G512M6e

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

2.10 ASRock Polychrome RGB

ASRock RGB LED is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.

Connecting the LED Strip

Connect your RGB LED strips to the RGB LED Header (RGB_LED1 / RGB_LED2) on the motherboard.

RGB_LED2 1 12V G R B RGB_LED1 1 12V G R B ASRock B365 Pr o4

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.
2. The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Connecting the Addressable RGB LED Strip

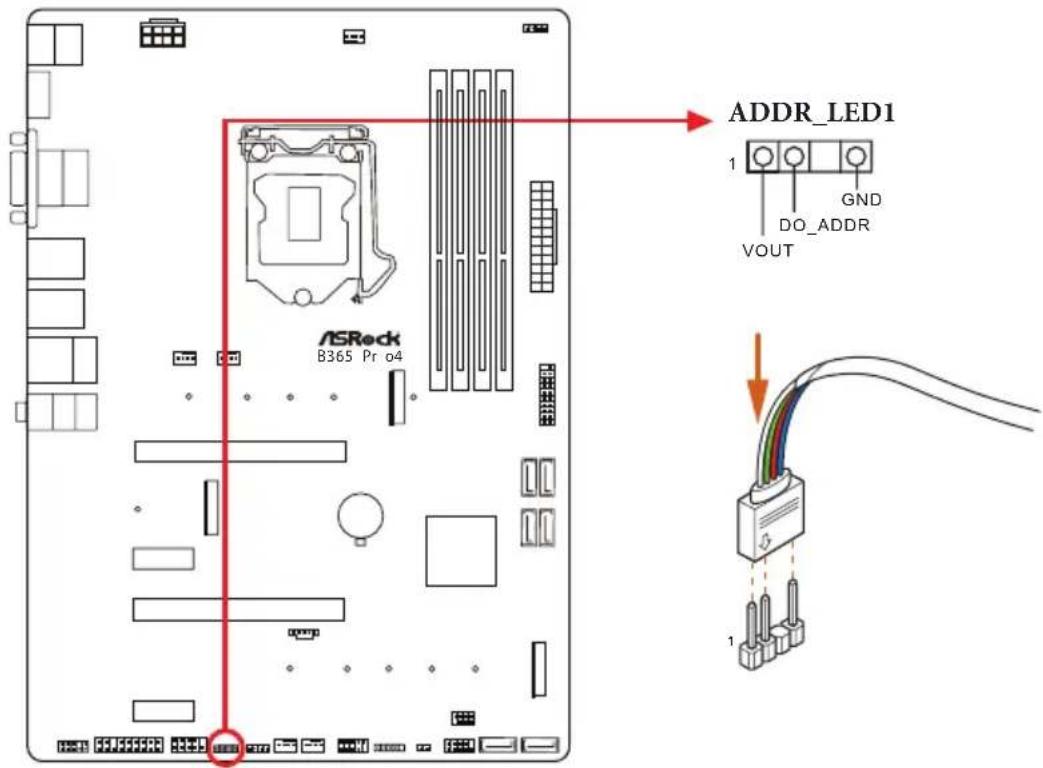

Connect your Addressable RGB LED strip to the Addressable LED Header (ADDR_LED1) on the motherboard.

ASRock B365 Pr o4 ADDR_LED1 1 GND DO_ADDR VOUT 1

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.
2. The RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and length within 2 meters.

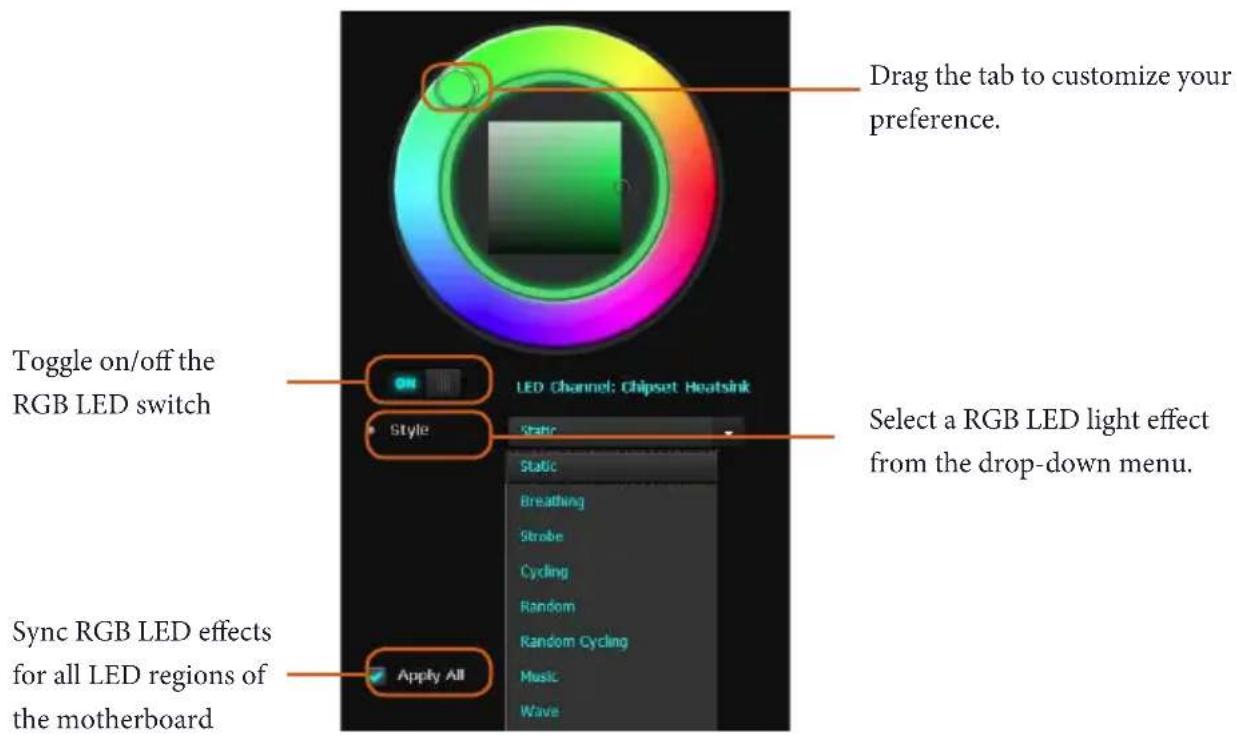

ASRock Polychrome LED Utility

Now you can adjust the RGB LED color through the ASRock Polychrome LED utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way!

Drag the tab to customize your preference. LED Channel: Chipset Heatsink Select a RGB LED light effect from the drop-down menu. Toggle on/off the RGB LED switch Style Static Static Breathing Stroke Cycling Random Random Cycling Music Wave Sync RGB LED effects for all LED regions of the motherboard Apply All

1 Einleitung

Serial-ATA-III-Anschlüsse

(4-polig, CHA_FAN1/WP)

(4-polig, CHA_FAN2/WP)

(4-polig, CHA_FAN3/WP)

(4-polig, CPU_FAN2/WP)

(siehe S. 1, Nr. 2)

(3-polig, ADDR_LED1)

Cavalier Clear CMOS (CLRMOS1)

(voir p.1, No. 17)

2-pin Jumper

Supporto WOL (Wake-On-LAN)

Supporto Energy Efficient Ethernet 802.3az

Supporto PXE

Apagar o Jumper CMOS (CLRMOS1)

(ver p.1, N.° 17)

2-pin Jumper

(3-pinowe ADDR_LED1)

PCH 1.0V, VCCSA, VCCST

os

인증

Blank white image with no visible content, text, or symbols

TM TM

TM

TM

(4096x2160) @ 30Hz

LAN

** Intel* Optane ^TM

os

Short

Open

(CLRMOS1)

2-pin Jumper

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

(Voltage Multi-adjustment)

CPU、CPU/水泵、机箱 / 水泵风扇

VPPM、PCH 1.0V、VCCSA、VCCST

Gen3 x4 (32 Gb/s) **

**支援Intel®Optane™技術

**支援NVMe SSD作為開機磁碟

**支持華擎 U.2 套件

接頭

Encode/Decode HWA: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (hanya Decode), MPEG2, MJPEG, VC-1 (hanya Decode)

Tiga pilihan output grafis: D-Sub, DVI-D, dan HDMI

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax N o: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : B365 Pro4

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: James

Signature :

Date : May 12, 2017

EU Declaration of Conformity

ASRock®

For the following equipment:

Motherboard

(Product Name)

B365 Pro4 / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

EMC — Directive 2014/30/EU (from April 20th, 2016)

□ EN 55022:2010/AC:2011 Class B

EN 55024:2010/A1:2015

EN 61000-3-3:2013

☐ LVD —Directive 2014/35/EU (from April 20th, 2016)

□ EN 60950-1:2011+A2:2013

□ EN 60950-1:2006/A12:2011

— Directive 2011/65/EU

(EU conformity marking)

CE

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

January 25, 2019

(Date)

P/N: 15G062149000AK V1.0
