Product Type	Compact electret microphone
Brand	Mackie
Model	EM-99B
Category	Microphone for smartphone, camera, streaming
Polar Pattern	Cardioid
Frequency Response	20 Hz - 20 kHz
Sensitivity	-40 dBV/Pa (typical)
Signal to Noise Ratio	70 dB (typical)
Impedance	200 Ω (typical)
Dimensions (H × L)	79 × 23 mm
Weight	50 g (estimation)
Power	Phantom power (plug-in power) via TRS/TRRS jack
Accessories Included	Shock mount, windscreen (foam), TRS cable (black) for camera, TRRS cable (green) for smartphone/tablet
Recommended Use	Mobile video recording, streaming, interviews, outdoor recordings
Maintenance	Clean the exterior with a dry cloth. Store in a dry, dust-free place.
Cleaning	Wipe gently with a lint-free cloth. Do not use chemicals.
Safety	Do not expose to water, extreme heat, or excessive dust. Do not disassemble.
Warranty	Limited warranty by LOUD Audio, LLC. Keep proof of purchase.
Support Service	www.mackie.com, Tech support: 1-800-898-3211 (US/Canada)
Compatibility	Smartphones, tablets, cameras, video cameras, computers with microphone input

Frequently Asked Questions - EM-99B MACKIE

How to assemble the microphone with the shock mount?

Slide the microphone into the shock mount without forcing. Then screw the mount onto the base of your camera or smartphone.

Which cable to use for a smartphone?

Use the green connector cable (TRRS) provided. It is compatible with smartphones, tablets, and computers.

Which cable to use for a camera?

Use the black connector cable (TRS) to connect to the audio input of a camera, camcorder, or recorder.

How to reduce wind noise outdoors?

Place the provided foam windscreen over the microphone. This significantly reduces wind noise and background noise.

Can I use this microphone without the windscreen?

Yes, but the windscreen is highly recommended to attenuate breath and handling noise, especially indoors.

How to clean the microphone?

Wipe the exterior with a dry, lint-free cloth. Do not use liquid or abrasive products.

Does the microphone need a battery?

No, power is supplied by your device via the cable (plug-in power phantom power).

What to do if the microphone produces no sound?

Check that the cable is properly plugged in, the device volume is turned on, and the microphone input is selected. Try another cable if necessary.

Where to find additional information about the microphone?

Visit www.mackie.com, Support section, for FAQs, manuals, and tech assistance. You can also call 1-800-898-3211.

What is the warranty period?

The limited warranty is offered by LOUD Audio, LLC. The exact duration is indicated on the website www.mackie.com. Keep your receipt.

USER MANUAL EM-99B MACKIE

Illustration of a person using a camera to observe a robot (no text or symbols present)

Vlogging

Vlogging

Vlog

Vlogging

Line drawing of a person holding a smartphone with a live streamer (no text or symbols)

Mobile Journalist (MoJo)

Mobiler Journalist (MoJo)

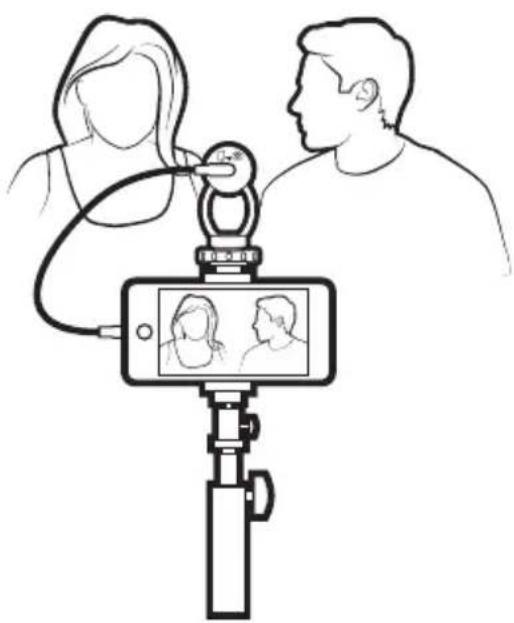

Line drawing of a person using a selfie stick to interact with another person, both looking at a smartphone displaying two facial images (no text or symbols present)

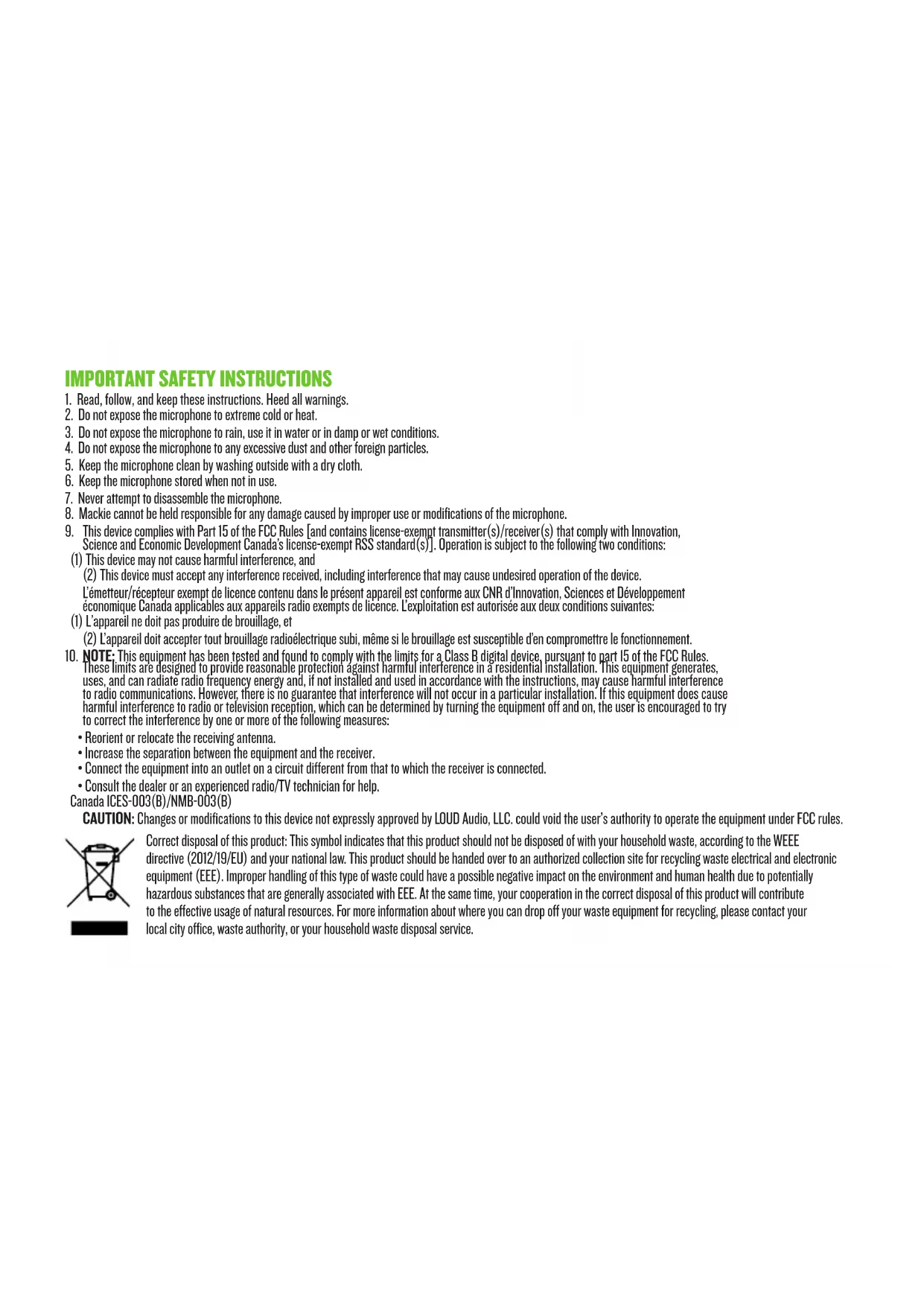

IMPORTANT SAFETY INSTRUCTIONS

1. Read, follow, and keep these instructions. Heed all warnings.
2. Do not expose the microphone to extreme cold or heat.
3. Do not expose the microphone to rain, use it in water or in damp or wet conditions.
4. Do not expose the microphone to any excessive dust and other foreign particles.
5. Keep the microphone clean by washing outside with a dry cloth.
6. Keep the microphone stored when not in use.
7. Never attempt to disassemble the microphone.
8. Mackie cannot be held responsible for any damage caused by improper use or modifications of the microphone.
9. This device complies with Part 15 of the FCC Rules [and contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS standard(s)]. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

1. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part I5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and the receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult the dealer or an experienced radio/TV technician for help.

Canada ICES-003(B)/NMB-003(B)

CAUTION: Changes or modifications to this device not expressly approved by LOUD Audio, LLC. could void the user's authority to operate the equipment under FCC rules.

Correct disposal of this product: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (2012/19/EU) and your national law. This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, or your household waste disposal service.

INTRODUCTION

EM-93M is the ultra-compact microphone upgrade for your smartphone or DSLR that you need to step up your mobile audio game.

Unlike other compact mics out there, EM-93M is built with professional-grade components that deliver clearer, more defined sound that is crucial for mobile productions.

With cables for both smartphones and DSLRs, you are ready to connect right out of the box, plus included mounting hardware makes setting up a snap.

So, get the talent ready, build your sets, line up those interviews, or whatever your creativity has in store for you, because your audio is good to go.

FEATURES

PREMIUM COMPACT CONDENSER MICROPHONE

GREAT FOR MOBILE VIDEO PRODUCTION AND LIVE STREAMING

INCLUDED SHOCKMOUNT REDUCES HANDLING NOISE

FURRY WINDSCREEN DRAMATICALLY REDUCES WIND NOISE OUTDOORS

SPONGE FOAM WINDSCREEN IS PERFECT FOR INDOOR/ GENERAL USE

Connect the EM-93M and camera-shoe adaptor shock mount (A) by "snapping" it into place. Do not force it! Next, hand-tighten (clockwise) the camera-shoe adaptor shock mount to the shoe mount on top of the audio/video recording device (B). [Loosen if it doesn't fit at first].

The stickers on the included cables determine if it's for DSLR (TRS, black jack) or phone (TRRS, green jack). Plug the green connector into a phone, tablet or laptop OR plug the black connector into the "audio in" of a camera, camcorder, audio recorder or other audio/video recording device. The other end of the cable connects to the EM-93M (C).

Slide the furry windscreen or sponge foam over the mic (D) to minimize wind and other environmental noises for crystal clear indoor or outdoor recording.

Technical Specifications EM-93M

Element
Polar Pattern
Frequency Response	-20 kHz
Sensitivity
Signal-to-Noise Ratio
Output Impedance
Size (H × W)	3.1" × 0.9"79 × 23 mm
Weight	kg
	All specifications subject to change

NEED HELP WITH THE MICROPHONE?

• Visit www.mackie.com and click Support to find: FAQs, manuals, and addendums.
• Telephone [phone] to speak with one of our splendid technical support chaps (Monday through Friday, normal business hours, Pacific Time).

FREQUENCY RESPONSE GRAPHCARDIOID

LIMITED WARRANTY Please keep your sales receipt in a safe place.

This Limited Product Warranty (“Product Warranty”) is provided by LOUD Audio, LLC. (“LOUD”) and is applicable to products purchased in the United States or Canada through a LOUD-authorized reseller or dealer. The Product Warranty will not extend to anyone other than the original purchaser of the product (hereinafter, “Customer,” “you” or “your”).

For products purchased outside the U.S. or Canada, please visit www.mackie.com to find contact information for your local distributor, and information on any warranty coverage provided by the distributor in your local market.

LOUD warrants to Customer that the product will be free from defects in materials and workmanship under normal use during the Warranty Period. If the product fails to conform to the warranty then LOUD or its authorized service representative will at its option, either repair or replace any such nonconforming product, provided that Customer gives notice of the noncompliance within the Warranty Period to the Company at: www.mackie.com or by calling LOUD technical support at 1.800.898.3211 (toll-free in the U.S. and Canada) during normal business hours Pacific Time, excluding weekends or LOUD holidays. Please retain the original dated sales receipt as evidence of the date of purchase. You will need it to obtain any warranty service.

For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com.

The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Product Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.

Symbolic icon of a running person inside a circle, no text or numbers present

19820 North Creek Parkway #201 • Bothell, WA 98011 • USA

Phone: [phone] • Toll-free: 800.898.3211

Fax: [phone] • www.mackie.com

Part No. 2055285 Rev. A 08/22 ©2022 LOUD Audio, LLC. All Rights Reserved.
