USER MANUAL PGE29BYTFS GE

ESPAÑOL Write the model and serial numbers here: Model # _________________ Serial # _________________ Find these numbers on a label on the left side, near the middle of the refrigerator compartment. 49-1000713 Rev. 3 02-24 PGD, PGE and PAD

Replacing the Lights p. 21
INSTALLATION INSTRUCTIONS Preparing to Install the Refrigerator p. 22
Installing the Refrigerator p. 26
Installing the Water Line p. 38
TROUBLESHOOTING p. 41
Normal Operating Conditions p. 41
Troubleshooting Tips p. 42
Truth or Myth p. 44
LIMITED WARRANTY p. 46
CONSUMER SUPPORT XWFE Water Filter Cartridge Limited Warranty p. 47
Performance Data Sheet p. 48

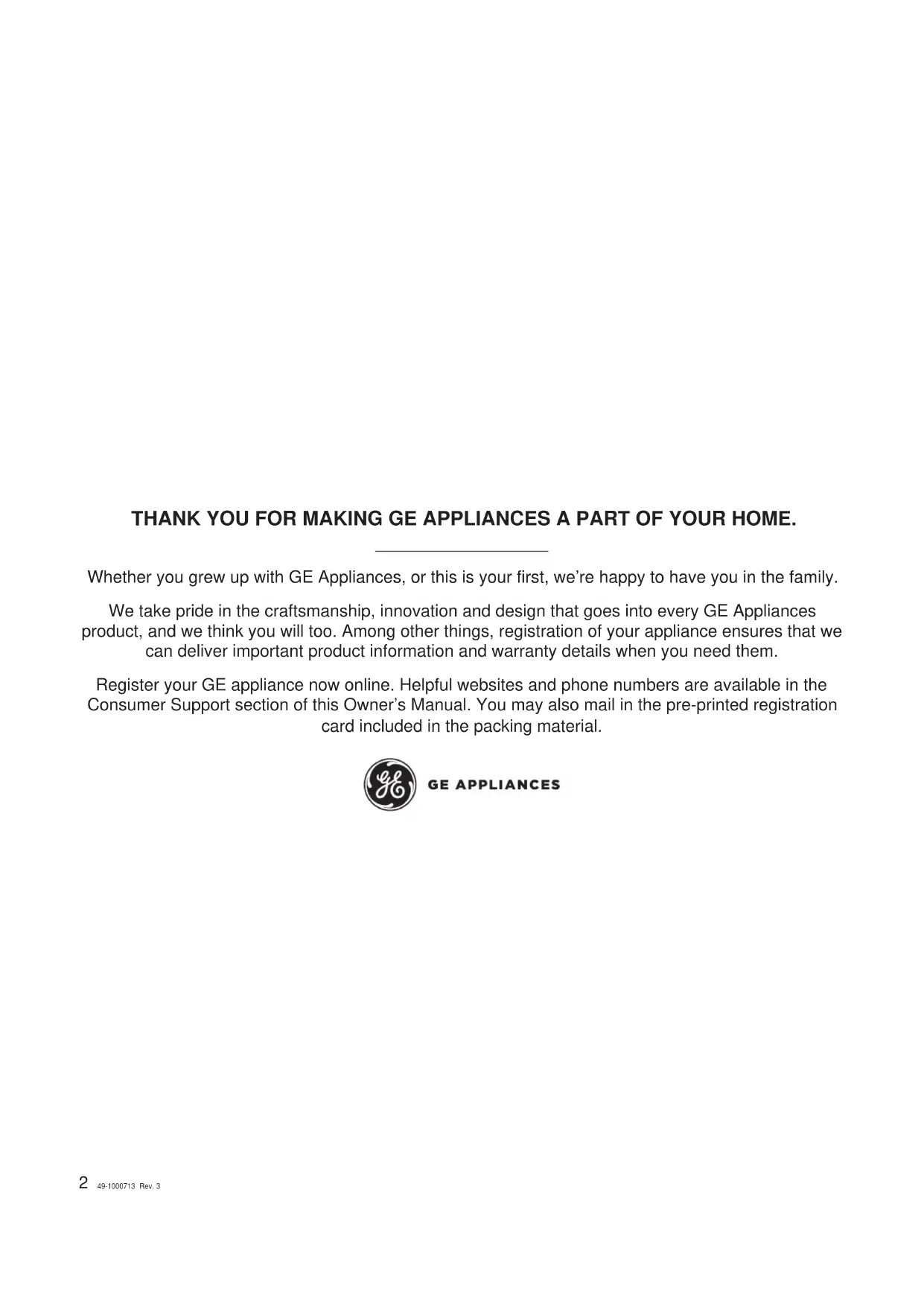

Consumer Support 49-1000713 Rev. 3 THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME. Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family. We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them. Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the packing material.49-1000713 Rev. 3 3 SAFETY INFORMATION p. 522

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions:Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHGand located in accordance with the Installation Instructions before it is used.Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUVRUcleaning. NOTE: Power to the refrigerator cannot be disconnected by any setting on the cont rol panel. NOTE: Repairs must be performed by a qualified Service Professional.Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJŶ 'RQRWXVHDQH[WHQVLRQFRUGŶ .HHSIODPPDEOHPDWHULDOVDQGYDSRUVDZD\IURPWKHrefrigerator.Ŷ 'RQRWVWRUHH[SORVLYHVXEVWDQFHVVXFKDVDHURVROcans with a flammable propellant in this appliance.Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGVWRFKLOGUHQUHPRYHWKHUHIULJHUDWRUDQGIUHH]HUdoors from any refrigerator before disposing of it or discontinuing its use.Ŷ 7RDYRLGVHULRXVLQMXU\RUGHDWKFKLOGUHQVKRXOGQRWstand on, or play in or with the appliance.Ŷ &KLOGUHQDQGSHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe XVHDQGXQGHUVWDQGWKHKD]DUGVLQYROYHGŶ 7KLVDSSOLDQFHLVLQWHQGHGWREHXVHGLQKRXVHKROGand similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments; catering and similar non-retail applications.Ŷ &RQQHFWWRSRWDEOHZDWHUVXSSO\RQO\$FROGZDWHUsupply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).Ŷ 'RQRWDSSO\KDUVKFOHDQHUVWRWKHUHIULJHUDWRUCertain cleaners will damage plastic which may cause parts such as the door or door handles to detach unexpectedly. See the Care and Cleaning section in your Owner’s Manual for detailed instructions. CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions: Ŷ'RQRWFOHDQJODVVVKHOYHVRUFRYHUVZLWKZDUPZDWHUwhen they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.Ŷ.HHSILQJHUVRXWRIWKH³SLQFKSRLQW´DUHDVFOHDUDQFHVbetween the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.Ŷ'RQRWUHIUHH]HIUR]HQIRRGVZKLFKKDYHWKDZHGcompletely.Ŷ'RQRWWRXFKWKHFROGVXUIDFHVLQWKHIUHH]HUcompartment when hands are damp or wet, skin may stick to these extremely cold surfaces.Ŷ,QIUHH]HUVZLWKDXWRPDWLFLFHPDNHUVDYRLGFRQWDFWwith the moving parts of the ejector mechanism, or ZLWKWKHKHDWLQJHOHPHQWWKDWUHOHDVHVWKHFXEHV'Rnot place fingers or hands on the automatic ice making PHFKDQLVPZKLOHWKHIUHH]HULVSOXJJHGLQŶ8VHDVWXUG\JODVVZKHQGLVSHQVLQJLFHRQPRGHOVwith ice dispenser).Ŷ,QVWDOOWKH$XWR)LOO3LWFKHUIXOO\LQLWVEDVHWRSUHYHQWLWfrom falling out when the refrigerator door is opened. The pitcher is heavy when full of water and could cause injury if it falls out or is dropped. WARNING

READ AND SAVE THESE INSTRUCTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.ŶThe power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a VWDQGDUGSURQJJURXQGLQJZDOORXWOHWWRPLQLPL]HWKHSRVVLELOLW\RIHOHFWULFVKRFNKD]DUGIURPWKLVappliance.ŶHave the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.ŶWhere a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly JURXQGHGSURQJZDOORXWOHW'RQRWXVHDQadapter.ŶThe refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.Ŷ$9ROW$&+]RUDPSIXVHGgrounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire KD]DUGIURPRYHUKHDWHGZLUHVŶNever unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.ŶImmediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must be replaced by a qualified service professional with an DXWKRUL]HGVHUYLFHSDUWIURPWKHPDQXIDFWXUHUŶWhen moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. CONNECTING ELECTRICITY WARNING ELECTRICAL SHOCK HAZARDPlug into a grounded 3-prong outlet'RQRWUHPRYHWKHJURXQGSURQJ'RQRWXVHDQDGDSWHU'RQRWXVHDQH[WHQVLRQFRUG)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVFDQUHVXOWLQdeath, fire, or electrical shock WARNING FIRE OR EXPLOSION HAZARD Flammable RefrigerantThis appliance contains isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage. Ŷ When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.

Ŷ 6HUYLFHVKDOORQO\EHSHUIRUPHGE\DXWKRUL]HGVHUYLFH

SHUVRQQHO8VHRQO\PDQXIDFWXUHUDXWKRUL]HGVHUYLFHparts. Ŷ 'LVSRVHRIUHIULJHUDWRULQDFFRUGDQFHZLWK)HGHUDODQG /RFDO5HJXODWLRQV)ODPPDEOHUHIULJHUDQWDQGLQVXODWLRQmaterial used require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator. Ŷ .HHSYHQWLODWLRQRSHQLQJVLQWKHDSSOLDQFHHQFORVXUHV or in the built-in structure clear of obstruction. Ŷ To remove frost,scrape with a plastic or wood spatula or VFUDSHU'RQRWXVHDQLFHSLFNPHWDORUVKDUSHGJHGLQVWUXPHQWDVLWPD\SXQFWXUHWKHIUHH]HUOLQHUDQGWKHQthe flammable refrigerant tubing behind it. Ŷ 'RQRWXVHHOHFWULFDODSSOLDQFHVLQVLGHWKHIRRGVWRUDJH compartment of the appliance.

IUHH]HU WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product.49-1000713 Rev. 3 5

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

)DLOXUHWRIROORZWKHVHGLVSRVDOLQVWUXFWLRQVFDQUHVXOWLQGHDWKRUVHULRXVLQMXU\IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit IRU³MXVWDIHZGD\V´,I\RXDUHJHWWLQJULGRI\RXUROGrefrigerator, please follow the instructions below to help prevent accidents.Before You Throw Away Your Old ApplianceŶ7DNHRIIWKHIUHVKIRRGDQGIUHH]HUGRRUVŶ Leave the shelves in place so that children may not easily climb inside. REFRIGERANT AND FOAM DISPOSAL: 'LVSRVHRIRUUHF\FOH\RXUDSSOLDQFHLQDFFRUGDQFHZLWK)HGHUDODQG/RFDO5HJXODWLRQV)ODPPDEOHUHIULJHUDQWand insulation material used requires special disposal procedures. Contact your local authorities for the environmentally safe disposal or recyling of your refrigerator.6 49-1000713 Rev. 3 Features

USING THE REFRIGERATOR:)HDWXUHV

Autofill Pitcher 'HVLJQHGIRUKDQGVIUHHUHILOOLQJWRSURYLGHFRQVWDQWO\ available chilled filtered water. Showcase LED lighting /('OLJKWLQJLVSRVLWLRQHGWKURXJKRXWWKHLQWHULRUWR VSRWOLJKWDUHDVLQWKHUHIULJHUDWRU/('VDUHORFDWHG under the refrigerator door to light the convertible GUDZHUDQG/('VDUHXQGHUWKHFRQYHUWLEOHGUDZHUWR OLJKWWKHIUHH]HUGUDZHU QuickSpace™ shelf )XQFWLRQVDVDQRUPDOIXOOVL]HGVKHOIZKHQQHHGHG and easily slides back to store tall items below. Spillproof shelves 'HVLJQHGWRFDSWXUH\RXUVSLOOVIRUHDVLHUFOHDQXS Removable door bin Can be removed for those with a wall limiting the door opening. Climate zone bin Separate bins for produce storage. Water filter )LOWHUVZDWHUDQGLFH&HUWLILHGWRUHGXFHFKORULQH resistant cysts, lead, select pharmaceuticals, and

PRUH)RUHDV\ILOWHUUHSODFHPHQWLQVWUXFWLRQVVHH

page 13. Rotating Bin (on some models) Can be rotated out for easy access. Door in Door Latch (on some models) 6TXHH]HWKHODWFKRQWKHXQGHUVLGHRIWKHKDQGOHWR open the outer door. Convertible drawer Select the best temperature to store your food. Icemaker

,FHVWRUDJHLQWKHXSSHUOHIW)UHH]HUFRPSDUWPHQW

drawer. Profile Models PGD and PGE49-1000713 Rev. 3 7 Features

USING THE REFRIGERATOR:)HDWXUHV

Autofill Pitcher 'HVLJQHGIRUKDQGVIUHHUHILOOLQJWRSURYLGHFRQVWDQWO\ available chilled filtered water. Showcase LED lighting /('OLJKWLQJLVSRVLWLRQHGWKURXJKRXWWKHLQWHULRUWR spotlight areas in the refrigerator. QuickSpace™ shelf )XQFWLRQVDVDQRUPDOIXOOVL]HGVKHOIZKHQQHHGHG and easily slides back to store tall items below. Spillproof shelves 'HVLJQHGWRFDSWXUH\RXUVSLOOVIRUHDVLHUFOHDQXS Removable door bin Can be removed for those with a wall limiting the door opening. Climate zone bin Separate bins for produce storage. Water filter )LOWHUVZDWHUDQGLFH&HUWLILHGWRUHGXFHFKORULQH resistant cysts, lead, select pharmaceuticals, and

PRUH)RUHDV\ILOWHUUHSODFHPHQWLQVWUXFWLRQVVHH

page 13. Rotating Bin (on some models) Can be rotated out for easy access. Door in Door Latch (on some models) 6TXHH]HWKHODWFKRQWKHXQGHUVLGHRIWKHKDQGOHWR open the outer door. Convertible Zone Select the best temperature to store your food. Icemaker

,FHVWRUDJHLQWKHXSSHUOHIW)UHH]HUFRPSDUWPHQW

drawer. Profile Models PAD8 49-1000713 Rev. 3 Controls NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now. The temperature controls are preset in the factory at )&IRUWKHUHIULJHUDWRUFRPSDUWPHQWDQG)

temperature settings -6°)°C) to 5°)°C). Note the set temp will loop back to the lowest setting upon indexing the Freezer button at the highest setting. The cooling system can be turned off without shutting off electrical power to the refrigerator. Press Fridge, Freezer and Ice Maker buttons for 3 seconds to toggle cooling system on/off. CS followed by OFF or ON will be displayed. Control Settings

DQG³2II´ Sabbath Mode: 3UHVVDQGKROG)UHH]HU,FH0DNHUDQG$XWR)LOO3LWFKHU buttons for 3 seconds to toggle Sabbath Mode on/off. All Models We are continuously updating our software. Please reference the full owner's manual online for the latest functionality at GEAppliances.com. In Canada, visit GEAppliances.ca.

7KHUHFRPPHQGHGWHPSHUDWXUHVHWWLQJVSUHVHWIURPWKHIDFWRU\DUH)&IRUWKHUHIULJHUDWRUDQG)&

IRUWKHIUHH]HU Sabbath Mode OU (Orthodox Union) and CRC (Central Rabbinical Congress)

7KLVUHIULJHUDWRURIIHUVDQ28DQG&5&6DEEDWKPRGH

that complies with standards set forth by Orthodox

8QLRQWKH&HQWUDO5DEELQLFDO&RQJUHVVDQG+DODFKD

Tech, and is 100% certified to the highest halacha

and CRC Sabbath mode is with the purchase of the

6KDEERV.HHSHUIRU5HIULJHUDWRUV7KH6KDEERV.HHSHU

connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday. The appropriate mode will automatically activate based on the Jewish calendar date for your location.

Leak Detected when water is detected at filter indicating a leak is present.

Expired Filter when the filter has been in use for 6 months

Err when no filter is present or the wrong filter is installed

)RUDOOFRQGLWLRQVWKHGLVSOD\ZLOODXWRPDWLFDOO\UHVHWZKHQIDXOWFRQGLWLRQLVFRUUHFWHG

Model PGD and PGE Convertible Drawer 7HPSHUDWXUHLQWKH&RQYHUWLEOH'UDZHULV selected by pressing the food item to be kept in the drawer. 0HDW )°C) %HYHUDJHV )°C) 6QDFNV )°C) :LQH )°C) The temperature setting is locked by default. Button must be pressed for 3 seconds to unlock. Model PAD Convertible Zone The Convertible Zone control panel is in the top of the lower right-hand door and is used to adjust the temperature

RIWKHFRQYHUWLEOH]RQH6HOHFW\RXUGHVLUHG

temperature for this convertible compartment. )UHH]HU )°C) 5HIULJHUDWRU )°C) &KLOOHU )°C) The temperature setting is locked by default. Button must be pressed for 3 seconds to unlock. The Warmer (+) and Cooler (-) buttons can be used to adjust the temperature of each setting. Convertible Zone Temp Select10 49-1000713 Rev. 3

USING THE REFRIGERATOR: 'LVSHQVHU

Dispenser AutoFill Pitcher Place the lid onto the pitcher so that it fits securely. Align the raised portion of the lid with the slot on the door and slide the pitcher into the door until it fully drops down into the pitcher tray. The pitcher will automatically fill with water approximately 5 seconds after the door is closed. The pitcher will QRWILOOZLWKZDWHUZKLOHWKHOHIWKDQG))GRRULVRSHQ The pitcher will turn off automatically after filling to approximately 60 ounces. 7KHSLWFKHULVGHVLJQHGWRPLQLPL]HVORVKLQJEXWEH careful not to open or close door with excessive force to avoid some water sloshing out of the pitcher spout. The easiest method to remove the lid is to push up on the back overhanging edge of the lid near the handle. To Clean the AutoFill Pitcher

7KH$XWR)LOOSLWFKHUDQGOLGDUHGLVKZDVKHUVDIH7KH

lid should be placed in the top rack only and the pitcher in the bottom rack of the dishwasher. Run on normal wash.

7RPD[LPL]HSHUIRUPDQFHRI\RXU$XWR)LOOSLWFKHULWLV

recommended that you rinse it thoroughly after washing to remove all soap residue.

,I\RXU$XWR)LOOSLWFKHUKDVEHHQLQFRQWDFWZLWKIRRG

that is likely to cause discoloration (e.g. tomato ketchup, mustard), clean your pitcher promptly. This is to avoid possible discoloration of your pitcher.

,I\RXZRXOGOLNHWRRUGHUDVHFRQGDU\$XWR)LOOSLWFKHUJR

to www.geapplianceparts.com49-1000713 Rev. 3 11

USING THE REFRIGERATOR::L)L

WiFi (on some models) (for customers in the United States, its territories, and Canada) REGULATORY INFORMATION FCC/IC Compliance Statement: 7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

RIWKH)&&5XOHV7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQD

residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/television technician for help. Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. If your refrigerator has a Connected Appliance Information ODEHOWKHQLWFDQEHFRQQHFWHGWR\RXU:L)LQHWZRUN allowing it to communicate with your mobile device for remote monitoring, control and notifications. Please visit GEAppliances.com/connect to learn more about connected appliance features and learn what connected appliance apps work with your mobile device.12 49-1000713 Rev. 3 Demand Response (some models)

USING THE REFRIGERATOR:'HPDQG5HVSRQVH

7KLV3URGXFWKDV:L)LFDSDELOLW\DQGUHTXLUHVInternet connectivity and a wireless router to enable interconnection with an Energy Management System, and/or with other external devices, systems or applications. What is Demand Response? Some utilities vary their electricity rates based on the WLPHRIGD\6RPHXWLOLWLHVRIIHU'HPDQG5HVSRQVHprograms to reduce energy usage during certain times of the day. Some utilities may do both things. This UHIULJHUDWRUKDVD'HPDQG5HVSRQVHIHDWXUHWRKHOScontrol energy usage. Using Demand Response without a Utility Program 7KH'HPDQG5HVSRQVHIHDWXUHDOORZVWKHXVHUWRVKLIWhigh energy features, like defrost, for a 4-hour window. This window corresponds to the average peak energy usage. This feature is enabled or disabled with the SmartHQ and requires the SmartHQ to operate. It does not depend on the local utility, or whether it varies the electricity rates. Demand Response with your Utility ,I\RXUXWLOLW\KDVDFRPSDWLEOH'HPDQG5HVSRQVHprogram, and you are signed up with the utility, this refrigerator can modify its energy usage based on commands received from the utility. The SmartHQ can EHXVHGWRRYHUULGHWKH'HPDQG5HVSRQVHSURJUDPif desired. Please note that there are many different 'HPDQG5HVSRQVHSURJUDPVDQGPDQ\DUHQRWcompatible with kitchen appliances. Please check with your local utility.The demand response level is displayed in the mobile DSS'HOD\DSSOLDQFHORDGPRGH'$/UHGXFHVSRZHUconsumption by delaying defrost and ice production for 4 hours. Temporary appliance load reduction (TALR) reduces the power consumption by delaying defrost, ice production, and stopping cooling for 10 minutes.Estimated energy consumption in Watt-hour(Wh) is reported in the mobile app. Installing Demand Response Install the SmartHQ per the instructions on the previous SDJH6HOHFWWKH'HPDQG5HVSRQVHSDJHDQGFKRRVHIURPWKHDYDLODEOH'HPDQG5HVSRQVHRSWLRQV7KHapp provides more information on the operation of each 'HPDQG5HVSRQVHRSWLRQ Demand Response Communication Protocols 7KLVUHIULJHUDWRUXVHVWKHIROORZLQJ,(7)RSHQVWDQGDUGSURWRFROVIRUWKH:L)LFRPPXQLFDWLRQ&RQVXOWWKHRQOLQHuser manual for the latest protocol updates:Ŷhttps://mqtt.org/mqtt-specification/Ŷhttp://docs.oasis-open.org/mqtt/mqtt/v3.1.1/os/mqtt-v3.1.1-os.htmlGE Appliances API for demand response:Ŷ:ULWHGHPDQGUHVSRQGVWDWXV,QDFWLYH'$/DQGTALR)Ŷ*HWGHPDQGUHVSRQVHVWDWXV,QDFWLYH'$/7$/5RU'HOD\'HIURVWŶ*HWHVWLPDWHGHQHUJ\FRQVXPSWLRQLQ:DWWKRXUŶ*HWHYHQWIRU'RRU2SHQŶ*HWHYHQWIRU+LJKWHPSHUDWXUHDOHUWŶ:ULWHGHPDQGUHVSRQVH'$/RU7$/5VWDUWWLPHDQGduration time period.Ŷ*HWGHPDQGUHVSRQVH'$/RU7$/5VWDUWWLPHDQGduration time period.Ŷ'HOHWHGHPDQGUHVSRQVH'$/RU7$/5VFKHGXOH49-1000713 Rev. 3 13

USING THE REFRIGERATOR: ;:)(:DWHU)LOWHU

XWFE Water Filter Water Filter Cartridge The water filter cartridge is located in the left-hand refrigerator door behind the rectangular access panel. When to Replace the Filter Cartridge The Replace Filter message on the control panel will illuminate when the water filter cartridge needs to be replaced soon. The Filter Expired message will illuminate when the water filter cartridge needs to be replaced. The water filter can be replaced earlier if the flow of water to the dispenser or icemaker decreases.

If you are replacing the filter, first remove the previous one by gently grasping the filter and slowly turning it to the left, about a ¼ turn. The filter should automatically release itself when you have rotated it far enough to the left. A small amount of water may drip down. CAUTION If air has been trapped in the system, the filter cartridge PD\EHHMHFWHGDVLWLVUHPRYHG8VHFDXWLRQZKHQremoving.

To reduce the risk of property damage due to water OHDNDJH\RX0867XVHWKHILOWHUE\SDVVSOXJZKHQDreplacement filter cartridge is not available. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.GECARES and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. The dispenser and icemaker will not operate without either the filter or bypass plug installed. The bypass plug is installed in the same way as a filter cartridge.

INSTALLING THE FILTER IN A BOTTOM

FREEZER REFRIGERATOR 1. Open the filter cartridge housing by pulling the door open. 2. Line up the ports on the filter with the ports on the filter cartridge holder, and gently insert the filter.6ORZO\WXUQWKHILOWHUWRWKHULJKWXQWLOLWVWRSV'2NOT OVERTIGHTEN. As you turn the filter, it will automatically adjust itself into position. The filter will move about a ¼ turn or 90 degrees, until the filter cannot be turned, and the label faces outward.4. Slowly push the filter up into the clips.5. Close the filter cartridge housing by gently pushing the door closed until the tabs lock into place. 6. Confirm that filter fault condition is no longer present on the controls display.7. Immediately after filter change, allow the pitcher to autofill and empty pitcher into sink four times. This will purge the new filter of normal black carbon dust that is discharged during the initial use. Application Guidelines/Water Supply WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.)RUWKHPD[LPXPEHQHILWRI\RXUILOWUDWLRQV\VWHP*($SSOLDQFHVUHFRPPHQGVWKHXVHRI*($SSOLDQFHVEUDQGHGILOWHUVRQO\8VLQJ*($SSOLDQFHVEUDQGHGILOWHUVLQ*($SSOLDQFHVUHIULJHUDWRUVSURYLGHVRSWLPDOSHUIRUPDQFHDQGUHOLDELOLW\*($SSOLDQFHVILOWHUVPHHWULJRURXVLQGXVWU\16)VWDQGDUGVIRUVDIHW\DQGTXDOLW\WKDWDUHLPSRUWDQWIRUproducts that are filtering your water. GE Appliances and Hotpoint has not qualified non-GE Appliances-branded filters for use in GE Appliances refrigerators and there is no assurance that non-GE Appliances-branded filters meet GE Appliances standards for quality, performance and reliability.If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com. or callGE Appliances Parts and Accessories, 877-959-8688.Customers in Canada should consult the yellow pages for the nearest Camco Service Center.6HUYLFH)ORZ 0.5 gpm (1.89 lpm)Water Supply Potable WaterWater Pressure 25-120 psi (172-827 kPa)Water Temperature ))&&Capacity 170 gallons (643.5 liters)Sign-up for TEXT REMINDERS by texting REPLACE to 70543.14 49-1000713 Rev. 3 Refrigerator Storage Options Rearranging the Shelves Shelves in the refrigerator compartment are adjustable. To remove: Remove all items from the shelf. Tilt the shelf up at the front. Lift the shelf up at the back and bring the shelf out. To replace: While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track. Lower the front of the shelf until the bottom of the shelf locks into place. Spillproof Shelves Spillproof shelves have special edges to help prevent spills from dripping to lower shelves. Quick Space Shelf This shelf splits in half and slides under itself for storage of tall items on the shelf below. This shelf can be removed and replaced or relocated (just like spillproof shelves). NOTE: The back half of the Quick Space Shelf is not adjustable. USING THE REFRIGERATOR: Refrigerator Storage Options49-1000713 Rev. 3 15 USING THE REFRIGERATOR: Refrigerator Storage Options Refrigerator Storage Options Left Door Bins FIXED BIN To remove: Lift the bin straight up, then pull out. The ice maker door bins are not interchangeable, note the location upon removal and replace the bin in its proper location. Right Door Bins (on some models) FIXED BINS can easily be carried from refrigerator to work area. To remove: Lift bin straight up, then pull out. ROTATING BIN: To remove: Rotate bin outward then lift straight up. To remove Place hand under metal base and lift up. To remove Metal Base: Place hand under metal base and lift up.

Remove Metal Base16 49-1000713 Rev. 3 How to Remove and Replace Drawer Organizer To remove:

1. Pull the drawer out to the stop position.

1. Place the back of the divider on the rear wall of the drawer.

5RWDWHWKHRUJDQL]HULQWRWKHGHVLUHGSRVLWLRQ How to Remove and Replace Drawer To remove:

1. Pull the drawer out to the stop position.

2. Remove the convertible drawer basket by lifting while

rotating the basket upward. To replace:

1. Place drawer back in first and rotate drawer front down to

2. Push the drawer in to closed position.

Convertible drawer basket will be loose if re-installed

Convertible Drawer Climate Zone .HHSIUXLWVDQGYHJHWDEOHVRUJDQL]HGLQVHSDUDWH compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry.49-1000713 Rev. 3 17 Freezer Basket and Drawer Basket. 'UDZHU Ice Bucket Tilt-Out Bin in the Freezer To remove: Press the tab on the right side bracket to remove the IUHH]HUGUDZHUELQ To replace: Slide bin into location until it locks into place. Basket Removal To remove: 3XOOWKHWRSIUHH]HUGUDZHUEDVNHWIRUZDUGXQWLOLWLV

RXWRIWKHWUDFNLQWKHIUHH]HUFRPSDUWPHQW/LIWZKLOH

rotating the basket upward to remove.

then up and out of the drawer. To replace, reverse removal steps. Baskets, Drawers, and Bins USING THE FREEZER:%DVNHWV'UDZHUVDQG%LQV18 49-1000713 Rev. 3

USING THE FREEZER:%DVNHWV'UDZHUVDQG%LQV

0LGGOHDQGERWWRPELQVRQWKHIUHH]HUGRRU can be tilted out for easy access. Freezer Door Bin Select Zone Baskets and Door Bins Basket or Shelf Removal To remove:

1. Pull basket or shelf out all the way.

2. Slightly lift front of basket or shelf and pull out.

1. Reverse the removal steps.

Refrigerator Storage Options BASKETS, SHELF, AND BINS - Model PAD Only49-1000713 Rev. 3 19 USING THE FREEZER: Automatic Icemaker Automatic Icemaker A newly installed refrigerator may take 12 to 24 hours to begin making ice. Automatic Icemaker The icemaker will produce seven cubes per cycle approximately 100–130 cubes in a 24-hour period, GHSHQGLQJRQIUHH]HUFRPSDUWPHQWWHPSHUDWXUHURRPtemperature, number of door openings and other use conditions.7KHLFHPDNHUZLOOILOOZLWKZDWHUZKHQLWFRROVWR)(-10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.If the refrigerator is operated before the water line connection is made to the unit or if the water supply to an operating refrigerator is turned off, make sure that the icemaker is turned off. Once the water has been connected to the refrigerator, the icemaker may be turned on using the controls.<RXPD\KHDUDEX]]LQJVRXQGHDFKWLPHWKHLFHPDNHUfills with water.Allow 1-2 days for the bucket to completly fill with ice.Throw away the first few batches of ice to allow the water line to clear.Be sure nothing interferes with the sweep of the feeler arm. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice. CAUTION 7RPLQLPL]HWKHULVNRISHUVRQDOLQMXU\avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases WKHFXEHV'RQRWSODFHILQJHUVRUKDQGVRQWKHautomatic ice making mechanism while the refrigerator is plugged in. To turn the icemaker ON/OFF, press the Ice Maker button on the top control panel. WARNING Connect to potable water supply only.A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).20 49-1000713 Rev. 3 Care and Cleaning To Clean the AutoFill Pitcher 7KH$XWR)LOO3LWFKHUDQGOLGDUHGLVKZDVKHUVDIH7KHOLGshould be placed in the top rack only and the pitcher in the bottom rack of the dishwasher. Run on normal wash.7RPD[LPL]HSHUIRUPDQFHRI\RXU$XWR)LOOSLWFKHULWLVrecommended that you rinse it thoroughly after washing to remove all soap residue.,I\RXU$XWR)LOO3LWFKHUKDVEHHQLQFRQWDFWZLWKIRRGWKDWLVlikely to cause discoloration (e.g. tomato ketchup, mustard), clean your pitcher promptly. This is to avoid possible discoloration of your pitcher.,I\RXZRXOGOLNHWRRUGHUDVHFRQGDU\$XWR)LOO3LWFKHUJRWRwww.geapplianceparts.com.DO USE DO NOT USESoft, clean cloth or spongeMicrofiber clothAbrasive cloths, paper towels, scrubbing sponges (with or without soap), scouring or steel wool padsMild detergent mixed with warm waterAbrasive powders, liquids, or spraysWindow sprays, ammonia, or bleachCitrus or plant oil-based cleanersAcidic or vinegar-based cleanersOven cleanersAlkaline cleanersStainless steel cleaners DO NOT use Stainless Steel cleaners on the door surfaces.

Behind the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Raise the leveling legs located at the bottom front of the refrigerator.Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.Lower the leveling legs until they touch the floor. WARNING

ELECTRICAL SHOCK HAZARD

When pushing the refrigerator back, make sure you don’t roll over the power cord or water supply line. Shutting down and restarting your refrigerator for prolonged periods )RUORQJYDFDWLRQVRUDEVHQFHVUHPRYHIRRGDQGunplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.,IWKHWHPSHUDWXUHFDQGURSEHORZIUHH]LQJKDYHDqualified service technician drain the water supply system to prevent serious property damage due to flooding.1. Turn refrigerator off (see CONTROLS, page 8) or unplug the refrigerator.2. Empty ice bucket3. Turn water supply offIf you cut the water supply off, turn off the ice maker.8SRQUHWXUQLQJIURPYDFDWLRQ1. Replace the water filter.2. Throw away the first few batches of ice to allow the water line to clear. Preparing to Move Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.Be sure the refrigerator stays in an upright position during moving. Care and Cleaning Replacing the Lights Refrigerator Lights (LEDs) Appearance may vary by model.7KHUHLV/('OLJKWLQJLQWKHUHIULJHUDWRUFRPSDUWPHQWWKHbottom of the left-hand refrigerator door, and the bottom of the convertible drawer.$QDXWKRUL]HGWHFKQLFLDQZLOOQHHGWRUHSODFHWKH/('light.If this assembly needs to be replaced, visit GEAppliances.com/service or call 800.GE.CARES. In Canada, visit GEAppliances.ca/service or call 800.561.3344.22 49-1000713 Rev. 3

Read these instructions completely and carefully.

IMPORTANT — Observe all governing codes and ordinances. Save these instructions for local inspector’s use.• Note to Installer – Be sure to leave these instructions with the Consumer.• Note to Consumer –.HHSWKHVHLQVWUXFWLRQVIRUfuture reference.• Skill level – Installation of this appliance requires basic mechanical skills.• Completion time – Refrigerator Installation can vary Water Line Installation 30 minutes• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty. PREPARATION MOVING THE REFRIGERATOR INDOORSIf the refrigerator will not fit through a doorway, WKHUHIULJHUDWRUGRRUVDQGIUHH]HUGUDZHUFDQEHremoved.• To remove the refrigerator doors, see the Installing the Refrigerator section. 7RUHPRYHWKHIUHH]HUGUDZHUVHHWKH5HPRYLQJWKH)UHH]HU'UDZHUVHFWLRQWATER SUPPLY TO THE ICEMAKER AND DISPENSERIf the refrigerator has an ice maker, it will have to be connected to a cold water line. A GE Appliances water supply line kit (containing tubing, fittings and instructions) is available at extra cost from your dealer, by visiting our website at GEAppliances.com (in Canada at GEAppliances.ca) or from Parts and Accessories, 888.959.8688 (in Canada 1.800.661.1616).Adjustable Wrench1/4´2XWHU'LDPHWHUCompression Nut DQG)HUUXOHVOHHYHPhillips-Head Screwdriver Ǫ´6RFNHW5DWFKHW'ULYHU 1/8´´1/4´& ´Allen (Hex) WrenchesPencil1/8´'ULOO%LWDQG (OHFWULFRU+DQG'ULOOTape Measure1/4´1XW'ULYHUPliersLevel)ODW+HDG6FUHZGULYHUTorx T20, T25 Installation Instructions Refrigerator Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com In Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca INSTALLATION INSTRUCTIONS49-1000713 Rev. 3 23 INSTALLATION INSTRUCTIONS DIMENSIONS Installation Instructions NOTE: It is recommended that the floor be protected with a plastic covering throughout the installation process. NOTE: Not recommended for installation on carpeted flooring.

F49-1000713 Rev. 3 25

refrigerator. Ensure you have clearance to prevent damage to the refrigerator before safely moving it to the final location.

If passageways are large enough to accommodate the refrigerator without removing the handles skip to Step 6. Leave tape, film and all packaging on doors until the refrigerator is in the final location.

NOTE: Use a padded hand truck or moving straps to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that two people move and complete this installation. Installation Instructions If your opening is less than the following dimensions, remove door parts in order until dimension is less than the opening.

Remove Handles ´PP 5HPRYH'RRUV ´PP Remove Center Hinge ´PP REFRIGERATOR LOCATION Ŷ'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKH WHPSHUDWXUHZLOOJREHORZ)&EHFDXVH it will not run often enough to maintain proper temperatures. Ŷ'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKH WHPSHUDWXUHZLOOJRDERYH)&EHFDXVH it will not perform properly. Ŷ 'RQRWLQVWDOOWKHUHIULJHUDWRULQDORFDWLRQH[SRVHG to water (rain, etc.) or direct sunlight. Ŷ Install it on a floor strong enough to support it fully loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections. 6LGHV ´PP

(943 mm) deep (refer to chart on previous page). 'RRUVDQGSDVVDJHZD\VOHDGLQJWRWKHLQVWDOODWLRQ ORFDWLRQPXVWEHDWOHDVW´PPZLGH in order to leave the doors and handles attached to the refrigerator while transporting it into the installation location. If passageways are less WKDQ´PPWKHUHIULJHUDWRUGRRUVDQG handles can easily be scratched and damaged. The top cap and doors can be removed to allow the refrigerator to be safely moved indoors. If

SDVVDJHZD\VDUHOHVVWKDQ´PP

start with Step 1. Ŷ If it is not necessary to remove doors, skip to Step

11. Leave tape and all packaging on doors until the

refrigerator is in the final location. Ŷ NOTE:8VHDSDGGHGKDQGWUXFNWRPRYHWKLV refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that TWO PEOPLE move and complete this installation. INSTALLATION INSTRUCTIONS26 49-1000713 Rev. 3 Installation Instructions

REFRIGERATOR AND FREEZER HANDLE INSTALLATION Before You Start…. Ŷ To avoid injury, wear closed-toe shoes when installing the handles. Ŷ While installing the handle, grasp the handle firmly to ensure it does not fall or scratch the appliance’s finish. Ŷ IMPORTANT: To make sure the handles are accurately installed, please review the instructions and graphics before you begin installation. Ŷ IMPORTANT:'RQRWXVHSRZHUWRROVWRWLJKWHQ set screws. Tools Provided: Ŷ´KH[NH\ Handle appearance may vary based on model; however, the installation process is the same.

1. Remove any protective film from the door

or drawer fronts before installing handles (if applicable).

2. Remove handle from packaging and locate the

3. Place the handle over the mounting fasteners

until it is flush against the surface of the door.

4. Tighten both set screws in the handle end

FDSVE\WXUQLQJWKH´KH[NH\FORFNZLVHXQWLO

the handle will not hang loose or fall from its

Hold the handle firmly against the door, make sure there are no gaps between the handle end caps and the door, and fully tighten the set screws. To remove the handles, reverse the installation process.

Handle appearance may vary based on model; however, the installation process is the same.

1. Remove any protective film from the door

or drawer fronts before installing handles (if applicable). Do not remove the tape that secures the inner door to the outer door until after the handle is installed.

2. Remove handle from packaging and locate the

3. Align the lever with the opening on the outer door.

Make sure the hook is pointed up.

4. Insert the latch lever into the opening and place

the handle over the mounting fasteners until it is flush against the surface of the door.

5. Tighten both set screws in the handle end caps by

6. IMPORTANT: Hold the handle firmly against the

door, make sure there are no gaps between the handle end caps and the door, and fully tighten the set screws. To remove the handles, reverse the installation process. Latch Lever with Hook pointed up 'RRULQ 'RRU Latch INSTALLATION INSTRUCTIONS49-1000713 Rev. 3 27 INSTALLATION INSTRUCTIONS Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

WARNING )ROORZDOOVWHSVIRUUHPRYLQJDQGUHLQVWDOOLQJWKHGRRU)DLOXUHWRIROORZWKHVHinstructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.1. Remove the two water tubes from the connectors on the back of the case.Ɣ/RRVHQDQGUHPRYHWKHWXELQJFODPSVZKLFKholds the water supply tube to the back of the refrigerator. Ɣ5HPRYHWKHEODFNFROODUIURPZDWHUVXSSO\WXEHconnector at the top right back of the refrigerator.Ɣ3UHVVWKHZKLWHIODQJHGRZQDQGVHSDUDWHWKHwater supply line from the connector.2. Remove the left hinge cover by removing 2 hinge cover screws with a Phillips head screwdriver DQGOLIWLQJIURPWKHOHIWVLGH'LVFRQQHFWHOHFWULFDOconnectors and pull the water supply tube through the case.3. Securely tape the door shut with masking tape or have a second person support the door.5HPRYHVFUHZVKROGLQJKLQJHZLWKD´VRFNHWLift hinge from refrigerator and door.CollarConnectorWater Supply TubesTubing ClampElectrical ConnectionsHinge ScrewsGround Screws

(cont.) For proper installation later, please follow these next steps carefully: Ŷ Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.

Ŷ Remove right hinge cover.Ŷ Securely tape the door shut with masking tape or have a second person support the door.Ŷ5HPRYHVFUHZVKROGLQJKLQJHZLWKD´VRFNHWLift hinge from refrigerator and door.For proper installation later, please follow these next steps carefully: Ŷ Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.To reassemble doors, reverse removal steps.

1. Reinstall center hinge first and

WRUTXHWKHó´VFUHZWRLQOEV (7.34 N-m) and small screw to 25 in-lbs (2.82 N-m). Rotating the screw by 1/3 turn after it is flush with mating surface will achieve these torques.

2. Lower the refrigerator door onto the center hinge.

3. Securely tape the door shut with masking tape

or have a second person support the door.

4. Reinstallation is the reverse of the removal

5. Be sure to reinstall the ground wire and strain relief

6. Reinstall hinge cover. NOTE: Ensure wires are not

pinched or under screw bosses before tightening screws.

REMOVING CONVERTIBLE DRAWER

1. Remove the convertible drawer basket by lifting

while rotating the basket upward. 'LVFRQQHFWWKHFRQWUROFRQQHFWLRQIRUWKH convertible drawer. Ɣ8VLQJDIODWKHDGVFUHZGULYHUUHPRYHFRYHU over electric connectors on inside right of the drawer frame. The cover hooks through the drawer frame toward the inside of the refrigerator. Ɣ3UHVVWKHWDELQWKHFHQWHURIWKHFRQQHFWRUWR separate.

3. Remove 2 screws from each side of the frame with

4. Remove door by lifting off hooks.

2. Remove two screw from each side of the frame

ZLWKD´VRFNHW CAUTION Lifting Hazard Freezer door is heavy Use both hands to secure the door before lifting.

3. Remove the door by lifting off hooks.30 49-1000713 Rev. 3

REMOVE LOWER LEFT-HAND

DOOR (on some models) WARNING )ROORZDOOVWHSVIRUUHPRYLQJDQGUHLQVWDOOLQJWKHGRRU)DLOXUHWRIROORZWKHVHinstructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.1. Securely tape the door shut with masking tape or have a second person support the door.5HPRYHWKHFHQWHUKLQJHZLWKD´VRFNHWDQGPhillips head screwdriver.3. Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.

DOOR (on some models) 1. Open lower right-hand door 90°.2. Remove lower hinge cover by removing Phillips head screw and unsnapping cover from hinge.'LVFRQQHFWKDUQHVVHV4. Securely tape the door shut with masking tape or have a second person support the door.5HPRYHWKHFHQWHUKLQJHZLWKD´VRFNHWDQGPhillips head screwdriver.6. Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting HazardFreezer door is heavy Use both hands to secure the door before lifting.1. Pull the lower basket slide mechanism to full extension with both hands./LIWWKHIUHH]HUGRRUDQGDOLJQWKHKRRNVZLWKWKHnotches on the slide mechanisms. NOTE: Place one side in first, then align the other side.3. Replace the attachment screws and torque the screws to 65 in-lb (7.34 N-m).To reassemble doors, reverse removal steps. Be careful wires pass through bottom hight-hand hinge.

CAUTION Lifting HazardFreezer door is heavy Use both hands to secure the door before lifting.1. Pull the lower basket slide mechanism to full extension with both hands./LIWWKHIUHH]HUGRRUDQGDOLJQWKHKRRNVZLWKWKHnotches on the slide mechanisms. NOTE: Place one side in first, then align the other side.3. Replace the attachment screws and torque the screws to 65 in-lb (7.34 N-m). )UHH]HUGRRUhook and slide mechanism notch

(if necessary) (on some models) Remove screws that secure hinge to the cabinet. ,QQHUVFUHZVQHHGD´VRFNHW2XWHUVFUHZQHHGVD3KLOOLSV´

RIGHT-HAND DOORS (on some models) WARNING )ROORZDOOVWHSVIRUUHPRYLQJDQGUHLQVWDOOLQJWKHGRRU)DLOXUHWRIROORZWKHVHinstructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage. CAUTION Lifting HazardA single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.1. Reinstall lower hinges first (if necessary) and torque WKH´VFUHZVWRLQOE1PDQGVPDOOscrew to 25 in-lbs (2.82 N-m). Rotating the screw by 1/3 turn after it is flush with mating surface will achieve these torques.2. With the door at 90° to the front of the case, lower the refrigerator door onto the lower hinge, carefully pulling the harness through the right-hand hinge. Close the door and tape closed.3. Reinstall the center hinge per step #1 above.4. Remove the tape.5. Open the lower right-hand door 90°.6. Connect the two harnesses.7. Replace both lower hinge covers (if necessary).32 49-1000713 Rev. 3

CONNECTING THE REFRIGERATOR TO THE HOUSE WATER LINE A cold water supply is required for automatic ice maker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section.NOTES:• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using SmartConnect

5HIULJHUDWRU7XELQJ.LW\RXZLOOQHHGDQadditional tube (WX08X10002) to connect the ILOWHU'RQRWFXWSODVWLFWXEHWRLQVWDOOILOWHU• Before connecting the water line to the house, purge the house line for at least 2 minutes.If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply.If you are using the SmartConnect tubing, the nuts are already assembled to the tubing.If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.If you are using SmartConnect tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Over tightening may cause leaks.)DVWHQWKHWXELQJLQWRWKHFODPSSURYLGHGWRhold it in position. You may need to pry open the clamp.

Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) WARNING Electrical Shock Hazard.$WWDFKWXELQJFODPSXVLQJH[LVWLQJKROHRQO\'2NOT drill into the refrigerator. WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)SmartConnect

TubingRefrigerator Connection´&RPSUHVVLRQ1XW)HUUXOH (sleeve) INSTALLATION INSTRUCTIONS49-1000713 Rev. 3 33 INSTALLATION INSTRUCTIONS

TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

See the grounding information attached to the power cord.

The leveling legs have 2 purposes:

1. Leveling legs adjust so the refrigerator is

firmly positioned on the floor and does not wobble. /HYHOLQJOHJVVHUYHDVDVWDELOL]LQJEUDNH to hold the refrigerator securely in position during operation and cleaning. The leveling legs also prevent the refrigerator from tipping. ŶTurn the leveling legs clockwise to raise the refrigerator, counterclockwise to lower it. NOTICE: To avoid possible property damage, the leveling legs must be firmly touching the floor.

Remember a level refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. For 2 drawer models:

1. Access the hinge screws by opening the

convertible drawer. ,QVHUW´$OOHQZUHQFKLQWRWKHVKDIWRIWKHFHQWHU hinge.

3. Adjust the height by turning clockwise

or counterclockwise. When you turn counterclockwise, the door will move up. For 4 door models: 8VLQJDó´RSHQHQGZUHQFKRUIODWKHDGVFUHZGULYHU turn the slotted wheel to adjust doors up or down. To adjust the height of the lower doors: Ŷ5HPRYHWKHOHIWKDQGDQGULJKWKDQGKLQJHFRYHUV with a Phillips head screwdriver, then use a 14mm open end wrench to adjust the doors up or down.

Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) When the left door is lower than the right door.When the left door is higher than the right door. Adjustment points INSTALLATION INSTRUCTIONS Adjustment points49-1000713 Rev. 3 35 INSTALLATION INSTRUCTIONS INSTALLING THE REFRIGERATOR (Cont.) Installation Instructions To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position. Four Door Models36 49-1000713 Rev. 3 INSTALLING THE REFRIGERATOR (Cont.) Installation Instructions To place adjustable bins into door: Position the bins over the bin locators and push down until locked in position. To place rotating bin into door:

1. Slide bin base assembly onto the

bracket on the door.

2. Slide the bin onto the bin base

Bin Bin locators Bin Bin base Install metal base Profile Four Door, Door-in-Door Models INSTALLATION INSTRUCTIONS49-1000713 Rev. 3 37 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) PAD Models To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position. INSTALLATION INSTRUCTIONS38 49-1000713 Rev. 3 Installation Instructions

INSTALLING THE WATER LINE

WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are SmartConnect

Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025). When connecting your refrigerator to a GE Appliances Reverse Osmosis Water System, the only approved installation is with a GE Appliances

59.LW)RURWKHUUHYHUVHRVPRVLVZDWHUV\VWHPV

follow the manufacturer’s recommendations. If the water supply to the refrigerator is from a

5HYHUVH2VPRVLV52:DWHU)LOWUDWLRQ6\VWHP

refrigerator’s water filtration cartridge in conjunction with the RO water filter can result in hollow ice cubes. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call

1.800.GECARES and request WR17X33825 filter

bypass plug. In Canada, call 800.561.3344. This water line installation is not warranted by the UHIULJHUDWRURULFHPDNHUPDQXIDFWXUHU)ROORZ

WKHVHLQVWUXFWLRQVFDUHIXOO\WRPLQLPL]HWKHULVNRI

expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. If the refrigerator is operated before the water connection is made to the ice maker, see Controls section on page 8 to turn ice maker off. 'RQRWLQVWDOOWKHLFHPDNHUWXELQJLQDUHDVZKHUH WHPSHUDWXUHVIDOOEHORZIUHH]LQJ When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the

KD]DUGRIHOHFWULFVKRFNRULVEDWWHU\SRZHUHG

All installations must be in accordance with local plumbing code requirements.

Refrigerator Tubing NLW´RXWHUGLDPHWHUWRFRQQHFWWKHUHIULJHUDWRU to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation. SmartConnect

available in the following lengths: 8’ (2.4 m) – WX08X10006 15’ (4.6 m) – WX08X10015 25’ (7.6 m) – WX08X10025 INSTALLATION INSTRUCTIONS49-1000713 Rev. 3 39 INSTALLATION INSTRUCTIONS NOTE: The only Café approved plastic tubing is that supplied in SmartConnect

because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

A GE Appliances water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 877-959-8688 (in Canada

A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

Power drill. ´RUDGMXVWDEOHZUHQFK

Straight and Phillips blade screwdriver. 7ZR´RXWHUGLDPHWHUFRPSUHVVLRQQXWV and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

If you are using a SmartConnect

Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a FRPSUHVVLRQILWWLQJ'RQRWFXWIRUPHGHQGIURP SmartConnect

Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet ZLWKDPLQLPXPLQVLGHGLDPHWHURI´DWWKH SRLQWRIFRQQHFWLRQWRWKH&2/':$7(5/,1( Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Install the shutoff valve on the nearest frequently used drinking water line. Installation Instructions INSTALLING THE WATER LINE (Cont.) WHAT YOU WILL NEED (Cont.)

SHUT OFF THE MAIN WATER

SUPPLY Turn on the nearest faucet long enough to clear the line of water.

LOCATION Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to FRQQHFWLQWRDKRUL]RQWDOZDWHUSLSH make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

VALVE 'ULOOD´KROHLQWKHZDWHUSLSHHYHQLIXVLQJD self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill.

)DLOXUHWRGULOOD´KROHPD\UHVXOWLQUHGXFHGLFH

production or smaller cubes.40 49-1000713 Rev. 3 INSTALLATION INSTRUCTIONS Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Over tightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Tighten the clamp screws until the sealing washer begins to swell.

NOTE:'RQRWRYHUWLJKWHQRU\RXPD\FUXVK

the tubing. WasherInlet EndPipe ClampClamp Screw

)DVWHQWKHVKXWRIIYDOYHWRWKHFROGZDWHUSLSH with the pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible. Pipe ClampVertical Cold Water PipeSaddle-Type Shutoff Valve

Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter), or 2 minutes, of water has been flushed through the tubing. To complete the installation of the refrigerator, go back to Step 12 in Installing the Refrigerator.49-1000713 Rev. 3 41 TROUBLESHOOTING: Normal Operating Conditions Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. HUMMM... WHOOSH... Ŷ The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.Ŷ <RXPD\KHDUDZKRRVKLQJVRXQGZKHQWKHGRRUVFORVH7KLVLVGXHWRSUHVVXUHHTXDOL]LQJZLWKLQWKHrefrigerator.Ŷ $IWHUGLVSHQVLQJLFHDPRWRUZLOOFORVHWKHLFHFKXWHto keep warn room air from entering the ice bucket, PDLQWDLQLQJLFHDWDIUHH]LQJWHPSHUDWXUH The hum of the motor closing the ice chute is normal, shortly after dispensing ice.

You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator RUIUHH]HUFRPSDUWPHQWV7KHIDQVDUHKHOSLQJWRmaintain the correct temperatures.

The fans change speeds in order to provide optimal cooling and energy savings. CLICKS, POPS, CRACKS and SNAPS Ŷ You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.Ŷ The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).Ŷ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.Ŷ On models with an icemaker, after an ice making cycle, you may hear the ice cubes dropping into the ice bucket.Ŷ After dispensing ice, a motor will close the ice chute to keep warm room air from entering the ice bucket, PDLQWDLQLQJLFHDWDIUHH]LQJWHPSHUDWXUH WATER SOUNDS Ŷ The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.Ŷ Water dropping on the defrost heater can cause DVL]]OLQJSRSSLQJRUEX]]LQJVRXQGGXULQJWKHdefrost cycle.Ŷ A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.Ŷ Closing the door may cause a gurgling sound due to SUHVVXUHHTXDOL]DWLRQŶ ,IWKH$XWR)LOOSLWFKHULVQRWIXOOLWILOOVDXWRPDWLFDOO\approximately 5 seconds after the door is closed. It is normal to hear water rushing for up to several minutes while the pitcher is filling. Do you hear what I hear? These conditions are normal.

It can take up to 24 hours for the refrigerator WHPSHUDWXUHVWRUHDFKWKHVHWWHPSHUDWXUHV'XULQJWKDWWLPHUHIULJHUDWRUDQGIUHH]HUGRRURSHQLQJVVKRXOGEHPLQLPL]HG Normal Operating Conditions.42 49-1000713 Rev. 3 Problem Possible Causes What to Do Not filtering )LOWHUE\SDVVLQVWDOOHG Install correct water filter. Leak Detected at Filter Water filter leaking or needs replacing. Replace water filter or install filter bypass plug. Water filter indicator light remains lit after replacing filter Water filter or bypass plug installed backward or wrong filter installed. Remove filter or bypass plug, rotate it 180 degrees and reinstall. Handle is loose/handle has a gap. Handle needs adjusting See Installing the Refrigerator section for detailed instructions. Refrigerator beeping The door alarm is beeping from a door being ajar or open. Close the door to turn off the alarm, or to disable the door alarm simultaneously

KROGWKH)ULGJHDQG,FH0DNHUEXWWRQVIRU

three seconds. The refrigerator has detected conditions that could indicate a water leak has occurred.

&KHFNWKH$XWR)LOOSLWFKHUIRUZDWHUOHDNV

Removing and reinstalling the pitcher will reset the alarm. Refrigerator lights off and “SA” shown in display 8QLWLVLQ6DEEDWKPRGH Simultaneously hold the Freezer, Ice Maker and AutoFill buttons for three seconds to exit Sabbath mode. Not cooling The cooling system is off See Controls. Freezer or Refrigerator temperature not changing 8VHULQWHUIDFHRQFRQYHUWLEOHGRRULV IRUFRQYHUWLEOH]RQHRQO\ 8VHXVHULQWHUIDFHRQWRSRIUHIULJHUDWRU WRVHOHFWGHVLUHGIUHH]HURUUHIULJHUDWRU temperatures No water or ice cube production Supply line or shutoff valve is clogged Call a plumber Water filter is clogged Replace filter cartridge or remove filter and install bypass plug* )LOWHUFDUWULGJHQRWSURSHUO\LQVWDOOHG Remove and reinstall filter cartridge, being certain that it locks in place. Icemaker is turned off Check that the icemaker is turned on. See Controls *Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 1.800.GECARES and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. Troubleshooting Tips... Before you call for service Save time and money! Review the charts on the following pages first and you may not need to schedule service. TROUBLE SHOOTING49-1000713 Rev. 3 43 TROUBLESHOOTING Problem Possible Causes What to Do Freezer cooling, refrigerator not cooling Normal, when refrigerator first plugged in or after extended power outage Wait 24 hours for temperature in both compartments to reach selected temperatures. My refrigerator door squeaks 'LPLQLVKHGOXEULFDQWEHFDXVHRI accidental cleaning of the lubricant on the hinge It is best to order GE Appliances lubricant service part number WR97X166 and apply on the hinge at specified location. It is possible to spray some non-toxic lubricant such as silicone based non- stick cooking spray, petroleum jelly or 16)DSSURYHGIRRGJUDGHOXEULFDQWV

IMPORTANT: 'RQRWXVH:'DVLW

will remove any remaining grease in or around the hinge Improper leveling Make sure the unit is leveled If doors were removed and re- assembled during installation process, waterline and/harness under Top Hinge cover may get out of position and rub against door while door swivels. Remove the Top Hinge cover and make sure the waterline and harness that passes through the hinge pin has been properly seated and does not touch the any of the door parts during rotation. Applying some food grade lubricant around door thimble area will also help. Troubleshooting Tips... Before you call for service44 49-1000713 Rev. 3 Truth or Myth? Answer ExplanationThe refrigerator water filter may require replacement, even though the filter indicator KDVQRWWXUQHGUHGRUUHDGV³)LOWHU([SLUHG´758( The water filter indicator will indicate the need to replace the water filter every six months. Water quality varies from city to city; if water flow from the dispenser slows, or ice production decreases, the water filter should be replaced, even though the filter indicator may not indicate the need for replacement.The automatic ice maker in my refrigerator will produce ice when the refrigerator is plugged in to a power receptacle.MYTH The refrigerator must be connected to water, and the ice maker must be turned on. Make sure the ice maker is turned on, only after the water line is connected and water is turned on. The ice maker can be turned on/off from the controls and ensure the ice maker is on, as indicated on the refrigerator control panel. See Automatic Ice Maker section in the full owner’s manual available online.,ZLOOQHYHUVHHIURVWLQVLGHWKHIUHH]HUcompartment.MYTH )URVWLQVLGHWKHIUHH]HUW\SLFDOO\LQGLFDWHVWKDWWKHGRRULVQRWproperly sealed, or has been left open. If frost is found, clear the frost using a plastic spatula and towel, then check to ensure that no IRRGSDFNDJHVRUFRQWDLQHUVDUHSUHYHQWLQJWKHIUHH]HUGRRUIURPclosing. Check the refrigerator control panel to ensure the door alarm is on.I can use the water filter bypass plug to determine if the filter requires replacement.758( 'HFUHDVHLQIORZIURPWKHZDWHUGLVSHQVHURUGHFUHDVHGLFHproduction, may indicate the need to replace the water filter. Install the water filter bypass plug (provided with the refrigerator on some models*), and check flow from the dispenser. If water flow returns to normal with the bypass plug in place, replace the water filter.The top of the refrigerator doors will always be aligned.MYTH Several things can affect the refrigerator door alignment, including the floor the refrigerator is installed on and loading of doors. If the WRSRIWKHUHIULJHUDWRUGRRUVDUHQRWDOLJQHGXVHD´DOOHQZUHQFKto adjust the right/left hand door. The adjustment screw is located on the bottom right or left hand side of the door. Refrigerator doors VKRXOGEHRSHQGXULQJKHLJKWDGMXVWPHQW2SHQWKHIUHH]HUGRRUWRaccess the screw. See Step 15.Refrigerator door handles can be easily tightened.758( If door handles are loose or have a gap, the handle can be adjusted XVLQJD´DOOHQZUHQFKRQVHWVFUHZVORFDWHGRQWKHHQGVRIWKHhandles.There may be odor and taste problems with your ice.758( After starting the ice maker throw away 24 hours of ice production to avoid odor and taste problems.I can make fine adjustments to the refrigerator doors to align them. 758( ,IWKHUHIULJHUDWRUGRRUVDUHQRWDOLJQHGXVHD´$OOHQZUHQFKWRadjust the right hand door. The adjustment screw is located on the ERWWRPRIWKHULJKWGRRU2SHQWKHIUHH]HUGRRUWRDFFHVV6HHVWHS Truth or Myth Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. TROUBLESHOOTING/TRUTH OR MYTH49-1000713 Rev. 3 45

TROUBLE SHOOTING/TRUTH OR MYTH

Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. Truth or Myth? Answer Explanation'RRUKDQGOHVVKRXOGDOZD\VEHUHPRYHGIRUinstallation.MYTH Check chart on reverse side of this instruction. If the doors must be removed do not remove the handles, or if the refrigerator will fit easily through the passage way opening. Adjust handles that are loose or have a gap, E\DGMXVWLQJ´VHWVFUHZVRQHLWKHUHQGRIKDQGOHV'RRUUHPRYDOLVDOZD\VUHTXLUHGIRUinstallation.MYTH &KHFNFKDUWRQUHYHUVHVLGHRIWKLVLQVWUXFWLRQ'RRUVshould only be removed when necessary to prevent damage from passage way or access to final location. Refrigerator doors will self-close if left open.MYTH Refrigerator doors need to be closed by consumer. A gentle bounce back is a designed feature on some models that gives a positive feedback to the user so that they can initiate and complete the door closing action. There is an adjustment to rear wheels. MYTH )URQWOHYHOLQJOHJVDUHDGMXVWDEOHDQGVKRXOGEHXVHGWR balance the refrigerator. Leveling legs are used to make initial refrigerator door adjustment.Check for leaks after all water connections are made.758( While purging the air from the water system, check all water line connections for leaks. Check the connection to the household water supply at back of refrigerator, and door water line connect.Any packaging residue can be cleaned off the refrigerator using any cleaner.MYTH 'RQRWXVHZD[SROLVKEOHDFKRURWKHUSURGXFWVcontaining chlorine on Stainless Steel panels, door KDQGOHVDQGWULP&KHFNWKLVLQVWUXFWLRQXQGHU³&OHDQLQJWKH2XWVLGH´IRUIXOOGHWDLOV *Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 1.800.GECARES and request WR17X33825 filter bypass plug. In Canada, call 1.800.561.3344. Truth or Myth46 49-1000713 Rev. 3 LIMITED WARRANTY Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. Ŷ Service trips to your home to teach you how to use the product. Ŷ,PSURSHULQVWDOODWLRQGHOLYHU\RUPDLQWHQDQFH Ŷ)DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGRU used for other than the intended purpose or used commercially. Ŷ/RVVRIIRRGGXHWRVSRLODJH Ŷ5HSODFHPHQWRIKRXVHIXVHVRUUHVHWWLQJRIFLUFXLW breakers. Ŷ'DPDJHWRILQLVKVXFKDVVXUIDFHUXVWWDUQLVKRU small blemishes not reported within 48 hours of delivery. Ŷ5HSODFHPHQWRIWKHZDWHUILOWHUFDUWULGJHLI included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. Ŷ5HSODFHPHQWRIWKHOLJKWEXOEVLILQFOXGHGRU water filter cartridge, if included, other than as noted above. Ŷ'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUH floods or acts of God. Ŷ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\ possible defects with this appliance. Ŷ3URGXFWQRWDFFHVVLEOHWRSURYLGHUHTXLUHGVHUYLFH

Ŷ'DPDJHFDXVHGE\DQRQ*($SSOLDQFHV%UDQG

water filter. What GE Appliances Will Not Cover: For the Period of: GE Appliances Will Replace One Year )URPWKHGDWHRIWKH original purchase Any part of the refrigerator which fails due to a defect in materials or workmanship. 'XULQJWKHlimited one-year warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part. Thirty Days (Water filter, if included) )URPWKHRULJLQDOSXUFKDVH date of the refrigerator Any part of the water filter cartridge which fails due to a defect in materials or ZRUNPDQVKLS'XULQJWKLV limited thirty-day warranty, GE Appliances will also provide, free of charge, a replacement water filter cartridge.

GE PROFILE™ MODELS ONLY

Five Years )URPWKHGDWHRIWKH purchase Any part of the sealed refrigerating system (the compressor, condenser, evaporator an all connecting tubing) which fails due to a defect in materials or workmanship. 'XULQJWKLVOimited five-year sealed refrigerating system warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part in the sealed refrigerating system. GEAppliances.com For US Customers, DOOZDUUDQW\VHUYLFHLVSURYLGHGE\RXU)DFWRU\6HUYLFH&HQWHUVRUDQDXWKRUL]HG&XVWRPHU Care

technician. To schedule service online, visit us at geappliances.com, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service. In Canada, call 800.661.1616. GE Appliances Refrigerator Limited Warranty

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products

SXUFKDVHGIRUKRPHXVHZLWKLQWKH86$,IWKHSURGXFWLVORFDWHGLQDQDUHDZKHUHVHUYLFHE\D*($SSOLDQFHV$XWKRUL]HG

Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an $XWKRUL]HG*($SSOLDQFHV6HUYLFHORFDWLRQIRUVHUYLFH,Q$ODVNDWKHOLPLWHGZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRU service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: GE Appliances, a Haier company Louisville, KY 40225 For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Warrantor Canada: MC Commercial, Inc., Burlington, Ontario, L7R 5B6 Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a GE Appliances Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician NOT to submit the data to GE Appliances at the time of service.49-1000713 Rev. 3 47

If your GE Appliances part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a FRS\RIWKH³SURRIRISXUFKDVH´IRUWKHSDUW,IWKHSDUWLVGHIHFWLYHDQGVKRZVQRVLJQVRIDEXVHLWZLOOEHH[FKDQJHG7KHZDUUDQW\GRHVQRW cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in commercial use except in the case of air conditioning equipment. In no event shall GE Appliances be liable for consequential damages. Warrantor: GE Appliances, a Haier company Seller: Name AddressCity State ZipSignature 'DWH Buyer: Name AddressCity State ZipSignature 'DWH What GE Appliances will not cover: Ŷ Service trips to your home to teach you how to use the product. Ŷ Improper installation. Ŷ )DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGXVHGIRURWKHUWKDQWKHLQWHQGHGSXUSRVHRUXVHGFRPPHUFLDOO\ Ŷ Replacement of house fuses or resetting of circuit breakers.

Ŷ 'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUHIORRGVRUDFWVRI*RG

Ŷ Incidental or consequential damage caused by possible defects with this appliance. XWFE Water Filter Cartridge Limited Warranty This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use

ZLWKLQWKH86$,Q$ODVNDWKHZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRUVHUYLFHFDOOVWR\RXUKRPH

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years. For the period of GE Appliances will replace Thirty Days )URPWKHGDWH of the original purchase Any part of the water filter cartridge which fails due to a defect in materials or workmanship during this limited thirty-day warranty.* Contact us at geapplianceparts.com, or call 800.GE.CARES.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.48 49-1000713 Rev. 3 Performance Data Sheet Model: GE Appliances XWFE

Ŷ6\VWHPFHUWLILHGE\,$30257DJDLQVW16)$16,6WDQGDUGVDQG3IRUWKHUHGXFWLRQRIFODLPVVSHFLILHGRQWKH

performance data sheet and at iapmort.org.

of replacement elements please visit our website at gewaterfilters.com. WARNING To reduce the risk associated with ingestion of contaminants:

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. NOTICE To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

Read and follow use instructions before installation and use of this system.

Installation and use MUST comply with all state and local plumbing codes.

Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi (552 kPa), you must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.

Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.

Do not install on hot water supply lines. The maximum RSHUDWLQJZDWHUWHPSHUDWXUHRIWKLVILOWHUV\VWHPLV) (38º C).

Protect filter from freezing. 'UDLQILOWHUZKHQWHPSHUDWXUHV GURSEHORZ)&

Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate. )DLOXUHWRUHSODFHWKHGLVSRVDEOHILOWHUFDUWULGJHDW recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding. 7KLV6\VWHPKDVEHHQWHVWHGDFFRUGLQJWR16)$16, 53, 401, and P473 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving

WKHV\VWHPDVVSHFLILHGLQ16)$16,DQG3

XWFE System is certified by IAPMO R&T against NSF/ANSI Standards 42, 53, 401, and P473 for the reduction of claims specified on the performance data sheet and at iapmort.org.49-1000713 Rev. 3 49 NOTES Notes50 49-1000713 Rev. 3 Notes NOTES49-1000713 Rev. 3 51 NOTES Notes52 49-1000713 Rev. 3

3ULQWHGLQ8QLWHG6WDWHV

CONSUMER SUPPORT Consumer Support GE Appliances Website Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for \RXUFRQYHQLHQFH,QWKH86GEAppliances.com In Canada: GEAppliances.ca Register Your Appliance Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. ,QWKH86GEAppliances.com/register In Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx Schedule Service Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your FRQYHQLHQFHDQ\GD\RIWKH\HDU,QWKH86GEAppliances.com/service or call 800.432.2737 during normal business hours. In Canada: GEAppliances.ca/en/support/service-request or call 800.561.3344 Extended Warranties Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still LQHIIHFW<RXFDQSXUFKDVHLWRQOLQHDQ\WLPH*($SSOLDQFHV6HUYLFHVZLOOVWLOOEHWKHUHDIWHU\RXUZDUUDQW\H[SLUHV,QWKH86 GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours. In Canada: GEAppliances.ca/en/support/purchase-extended-warranty or call 866.277.9842. Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

9,6$0DVWHU&DUGDQG'LVFRYHUFDUGVDUHDFFHSWHG2UGHURQOLQHWRGD\KRXUVHYHU\GD\

,QWKH86GEApplianceparts.com or by phone at 877.959.8688 during normal business hours. Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Mabe service center, visit our website at GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616. Contact Us If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to: ,QWKH86*HQHUDO0DQDJHU&XVWRPHU5HODWLRQV_*($SSOLDQFHV$SSOLDQFH3DUN_/RXLVYLOOH.< GEAppliances.com/contact ,Q&DQDGD'LUHFWRU&XVWRPHU5HODWLRQV_0&&RPPHUFLDO,QF_6XLWH1RUWK6HUYLFH5RDG_%XUOLQJWRQ21//& GEAppliances.ca/contact-us*Modèles sélectionnés seulement FRANÇAIS 49-1000713 Rev. 3 02-24 Modèles PGD, PGE et PAD Manuel d’utilisation et d’installation

5HIULJHUDWRU7XELQJ:;;:;;HW

F49-1000713 Rev. 3 25

4. Reinstallation is the reverse of the removal instructions.

Ŷ5HWLUHODVWDSDVGHOODGRL]TXLHUGR\GHOODGRGHUHFKRFRQ

IMPORTANTE: 1RXVH:'\DTXHHVWH

Ŷ 5HHPSOD]RGHOFDUWXFKRGHOILOWURGHDJXDVLVHLQFOX\H

Manual assistant

Waiting for your message

Product information

Brand : GE

Model : PGE29BYTFS

Category : Fridge
