USER MANUAL BIVPI 090 BEKO

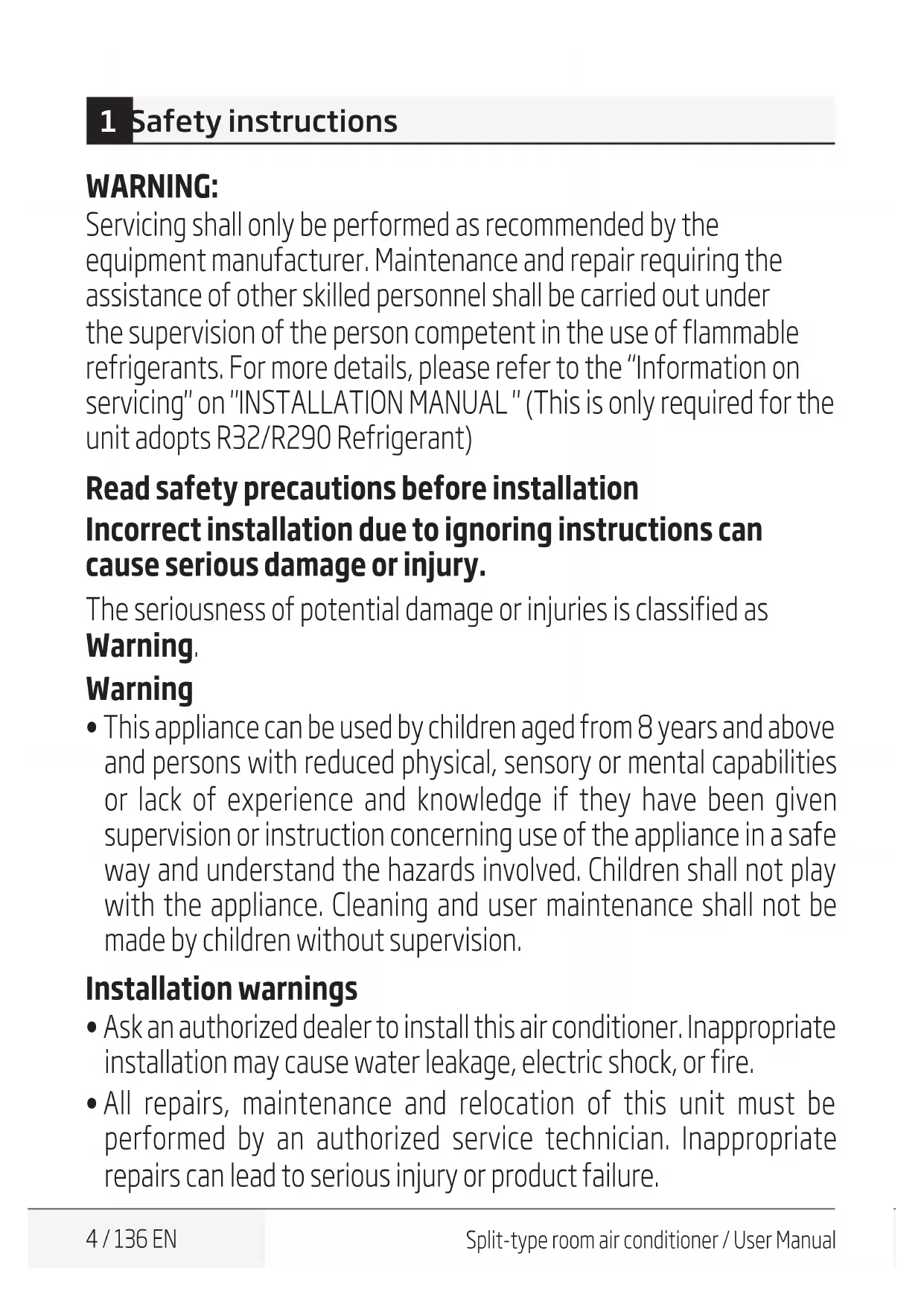

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. For more details, please refer to the “Information on servicing" on "INSTALLATION MANUAL " (This is only required for the unit adopts R32/R290 Refrigerant) Read safety precautions before installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as Warning. Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Installation warnings

• Ask an authorized dealer to install this air conditioner. Inappropriate installation may cause water leakage, electric shock, or fire.

• All repairs, maintenance and relocation of this unit must be performed by an authorized service technician. Inappropriate repairs can lead to serious injury or product failure.Split-type room air conditioner / User Manual 5 / 136 EN Warnings for product use

• If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the power plug. Call your dealer for instructions to avoid electric shock, fire or injury.

• Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may be rotating at high speeds.

• Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or combustion.

• Do not operate the air conditioner in places near or around combustible gases. Emitted gas may collect around the unit and cause explosion.

• Do not operate the air conditioner in a wet room (e.g., bathroom or laundry room). This can cause electrical shock and cause the product to deteriorate.

• Do not expose your body directly to cool air for a prolonged period of time. Electrical warnings

• Only use the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer or certified service agent.

• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty plugs can cause fire or electric shock.

• Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling directly on the cord can damage it, which can lead to fire or electric shock. 1 Safety instructions6 / 136 EN Split-type room air conditioner / User Manual

• Do not use an extension cord, manually extend the power cord, or connect other appliances to the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufficient voltage can cause fire. Cleaning and maintenance warnings

• Turn off the device and pull the plug before cleaning. Failure to do so can cause electrical shock.

• Do not clean the air conditioner with excessive amounts of water.

• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents can cause fire or deformation. Warning

• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to avoid oxygen deficiency.

• Turn off the air conditioner and unplug the unit if you are not going to use it for a long time.

• Turn off and unplug the unit during storms.

• Make sure that water condensation can drain unhindered from the unit.

• Do not operate the air conditioner with wet hands. This may cause electric shock.

• Do not use device for any other purpose than its intended use.

• Do not climb onto or place objects on top of the outdoor unit.

• Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high. 1 Safety instructionsSplit-type room air conditioner / User Manual 7 / 136 EN

6. Functional Filter (On Front of Main Filter - Some Units)

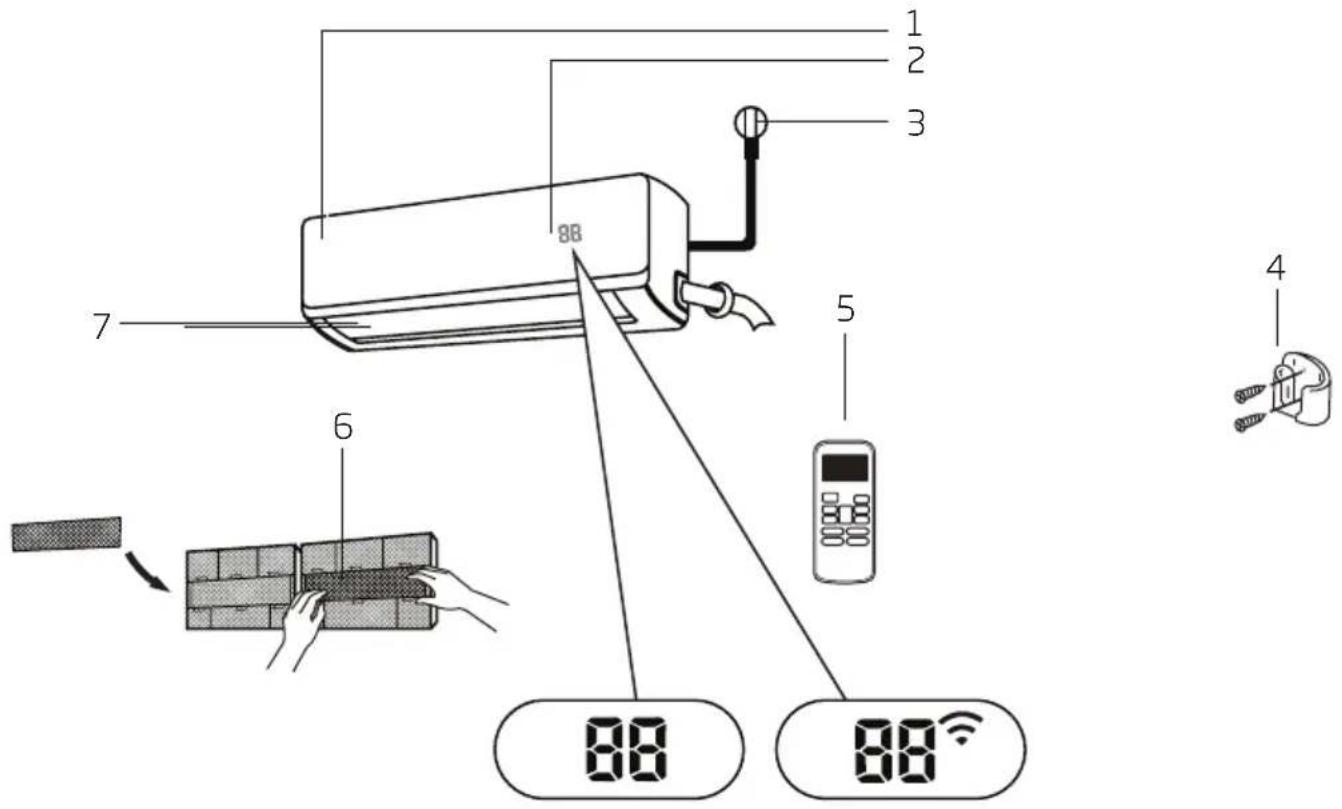

Display code meanings “ ” for 3 seconds when:

• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned on “ ” for 3 seconds when:

• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned off “ ” when anti-cold air feature is turned on “ ” when defrosting “ ” when unit is self-cleaning “ ” when freeze protection is turned on 2 Unit specifications and features8 / 136 EN Split-type room air conditioner / User Manual 2 Unit specifications and features " " when wireless Control feature is activated (some units) " " When ECO function(optional) is activated, the ' ' illuminates gradually one by one as -- -- --set temperature-- ...... in one second interval. In Fan mode, the unit will display the room temperature. In other modes, the unit will display your temperature setting.

Note: A guide on using the infrared remote is not included in this literature package.

2.2 Achieving optimal performance

Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following temperature ranges. When your air conditioner is used outside of these ranges, certain safety protection features will activate and cause the unit to perform less than optimally.

• Keep doors and windows closed.

• Limit energy usage by using TIMER ON and TIMER OFF functions.

• Do not block air inlets or outlets.

• Regularly inspect and clean air filters. For a detailed explanation of each function, refer to the Remote Control Manual.

• Auto-restart If the unit loses power, it will automatically restart with the prior settings once power has been restored.

• Anti-mildew (some units) When turning off the unit from COOL, AUTO (COOL), or DRY modes, the air conditioner will continue operate at very low power to dry up condensed water and prevent mildew growth.

• Wireless control (some units) Wireless control allows you to control your air conditioner using your mobile phone and a Wireless connection.

• Louver angle memory (some units) When turning on your unit, the louver will automatically resume its former angle.

• Refrigerant leakage detection (some units) The indoor unit will automatically display “EC” when it detects refrigerant leakage. For a detailed explanation of your unit’s advanced functionality (such as TURBO mode and its self- cleaning functions), refer to the Remote Control Manual. 2 Unit specifications and features10 / 136 EN Split-type room air conditioner / User Manual

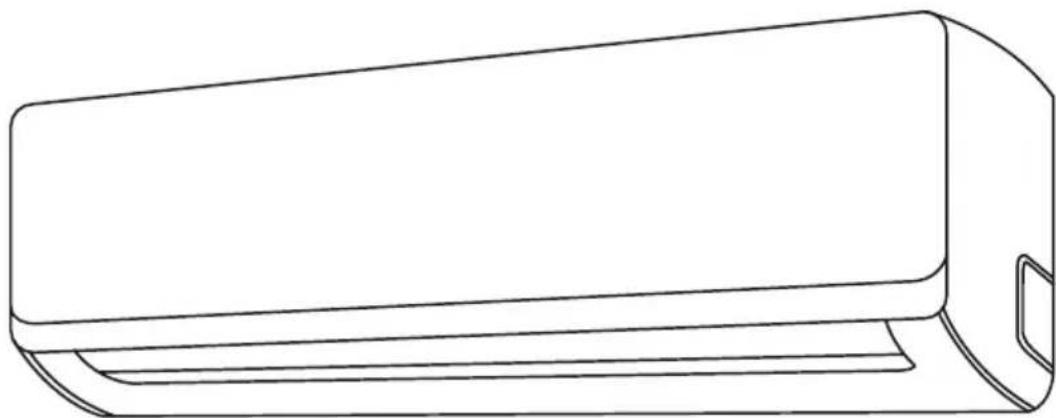

Note: Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

• Setting angle of air flow Setting vertical angle of air flow While the unit is on, use the SWING/DIRECT button to set the direction (vertical angle) of airflow.

1. Press the SWING/DIRECT button once to activate the louver. Each time you press the button, it

will adjust the louver by 6°. Press the button until the direction you prefer is reached.

2. To make the louver swing up and down continuously, press and hold the SWING/DIRECT button

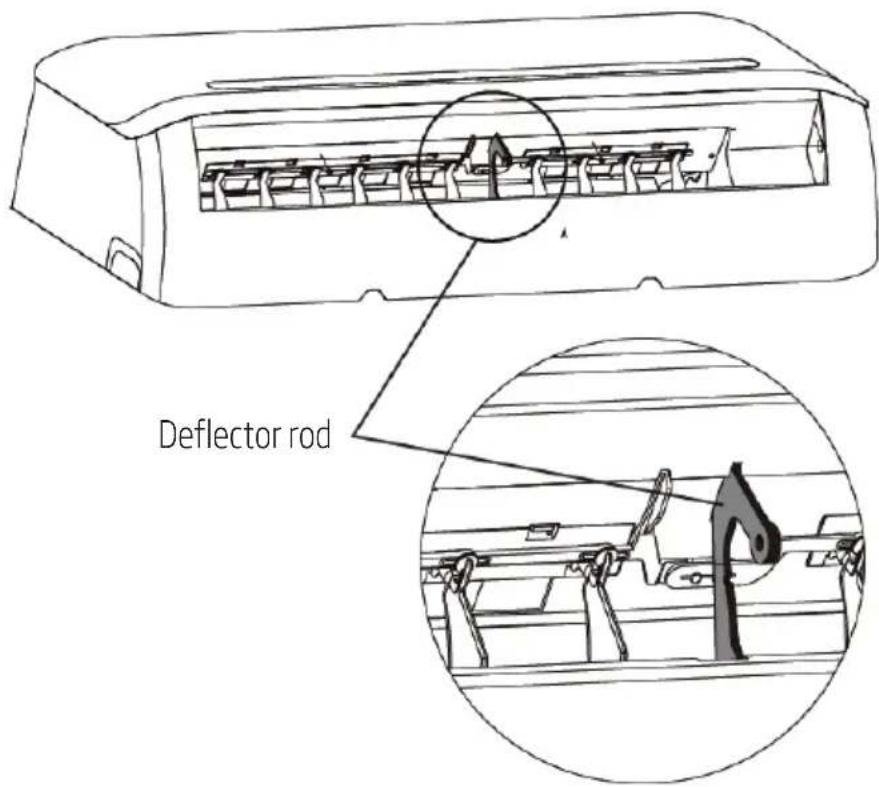

for 3 seconds. Press it again to stop the automatic function. Setting horizontal angle of air flow The horizontal angle of the airflow must be set manually. Grip the deflector rod (See Fig.B) and manually adjust it to your preferred direction. For some units, the horizontal angle of the airflow can be set by remote control, please refer to the Remote Control Manual.

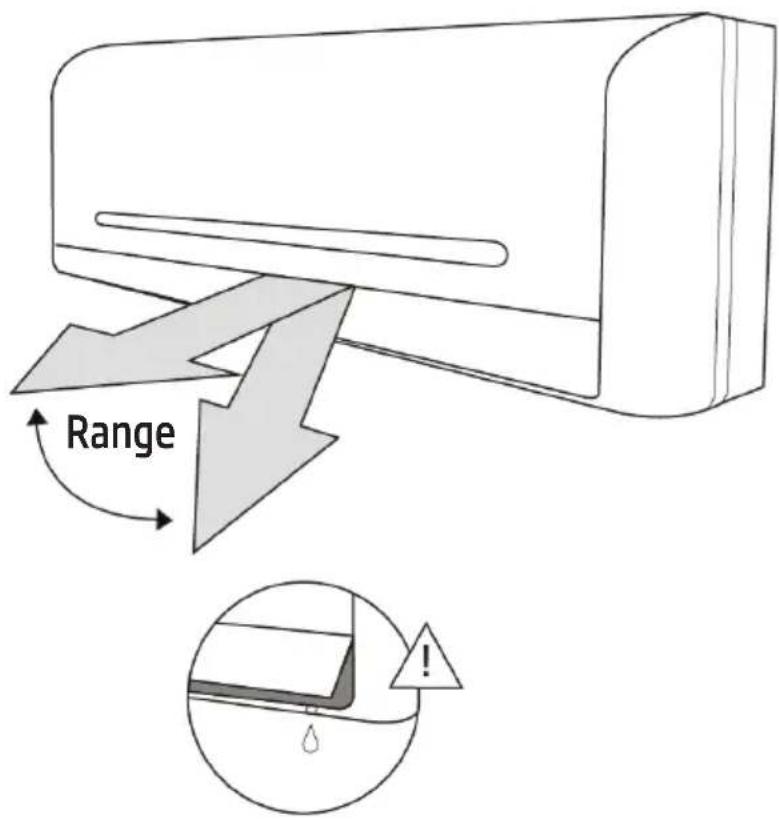

Note on louver angles: When using COOL or DRY mode, do not set louver at too vertical an angle for long periods of time. This can cause water to condense on the louver blade, which will drop on your floor or furnishings. (See Fig.A) When using COOL or HEAT mode, setting the louver at too vertical an angle can reduce the performance of the unit due to restricted air flow. Do not move louver by hand. This will cause the louver to become out of sync. If this occurs, turn off the unit and unplug it for a few seconds, then restart the unit. This will reset the louver. 2 Unit specifications and featuresSplt-type room ar condtoner / User Manual 11 / 136 EN Range Fig. A

Warning Do not keep louver at too vertcal an angle for long perods of tme. Ths can cause water condensaton to drp on yur furnshngs.

Warning Do not put your fingers in or near the blower and suction side of the unit. The high-speed fan inside the unit may cause injury. 2 Unit specifications and features12 / 136 EN Split-type room air conditioner / User Manual Deflector rod Fig. B 2 Unit specifications and featuresSplt-type room ar condtoner / User Manual 13 / 136 EN

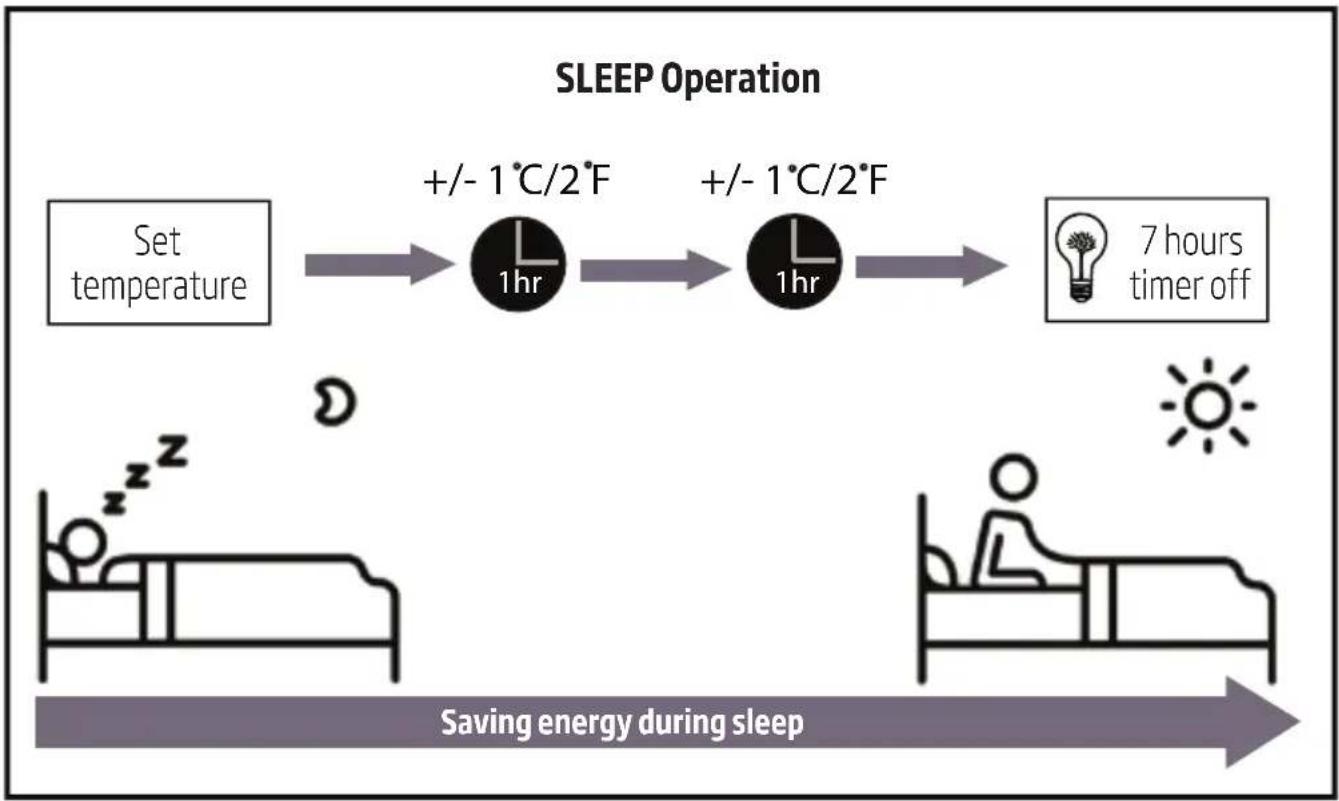

• Sleep operationThe SLEEP functon s used to decrease energy use whle you sleep (and don’t need the same temperature settngs to stay comfortable). Ths functon can only be actvated va remote control. Press the SLEEP button when you are ready to go to sleep. When n COOL mode, the unt wll ncrease the temperature by 1°C (2°F) after 1 hour, and wll ncrease an addtonal 1°C (2°F) after another hour. When n HEAT mode, the unt wll decrease the temperature by 1°C (2°F) after 1 hour, and wll decrease an addtonal 1°C (2°F) after another hour.It wll hold the new temperature for 5 hours, then the unt wll turn off automatcally. Note: The SLEEP function is not available in FAN or DRY mode. 1hr 1hr +/- 1 C/2 F +/- 1 C/2 F SLEEP Operation Set temperature7 hours tmer offSaving energy during sleep 2 Unit specifications and features14 / 136 EN Splt-type room ar condtoner / User Manual

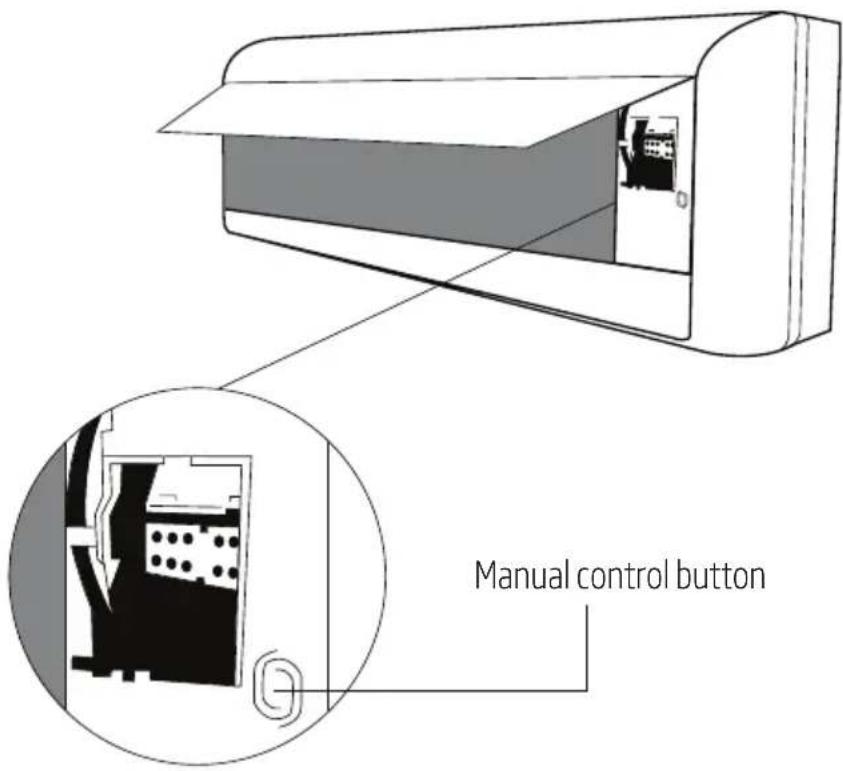

3.1 How to operate your unit without the remote control

In the event that your remote control fals to work, your unt can be operated manually wth the MANUAL CONTROL button located on the ndoor unt. Note that manual operaton s not a long-term soluton, and that operatng the unt wth your remote control s strongly recommended. Before manual operation Unt must be turned off before manual operaton. To operate your unt manually:

1. Open the front panel of the ndoor unt.

5. Press the MANUAL CONTROL button a thrd tme to turn the unt off.

6. Close the front panel.

Warning The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless the remote is lost and it is absolutely necessary. To restore regular operation, use the remote control to activate the unit. Manual control button 3 Manual operation (without remote)Split-type room air conditioner / User Manual 15 / 136 EN

4.1 Cleaning your indoor unit

Before cleaning or maintenance Always turn off your air conditioner system and disconnect its power supply before cleaning or maintenance.

Warning Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean.

• Do not use chemicals or chemically treated cloths to clean the unit.

• Do not use benzene, paint thinner, polishing powder or other solvents to clean the unit. They can cause the plastic surface to crack or deform.

• Do not use water hotter than 40°C (104°F) to clean the front panel. This can cause the panel to deform or become discolored.

4.2 Cleaning your air filter

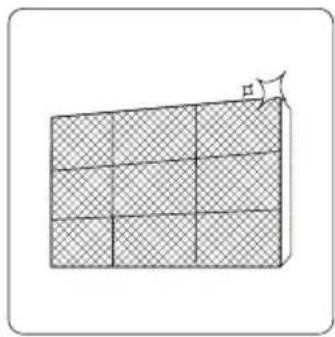

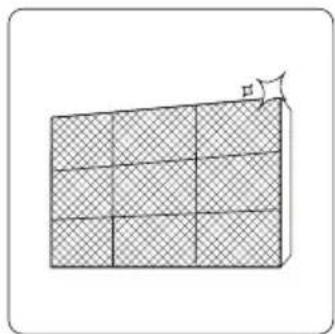

A clogged air conditioner can reduce the cooling efficiency of your unit, and can also be bad for your health. Make sure to clean the filter once every two weeks.

1. Lift the front panel of the indoor unit.

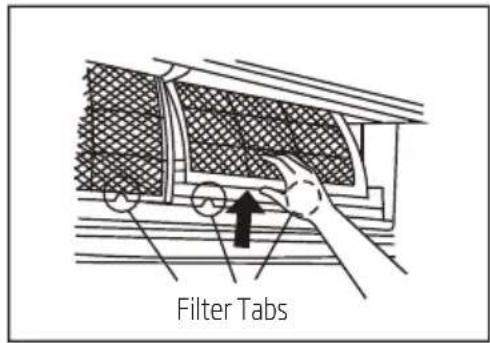

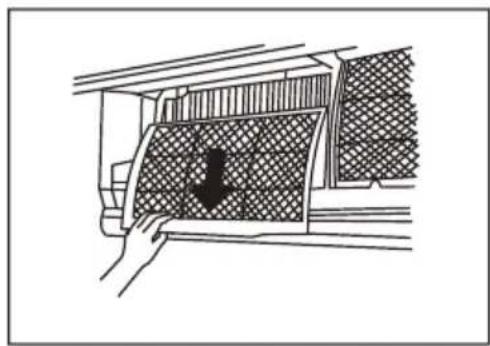

2. Grip the tab on the end of the filter, lift it up,then pull it towards yourself.

3. Now pull the filter out.

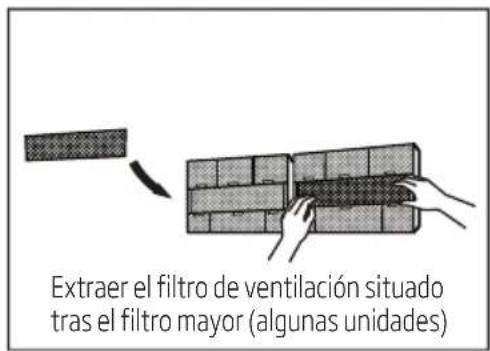

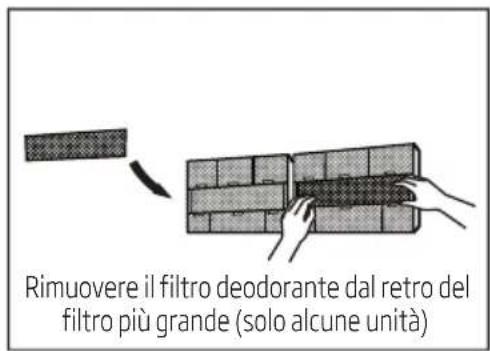

4. If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air freshening

filter with a hand-held vacuum.

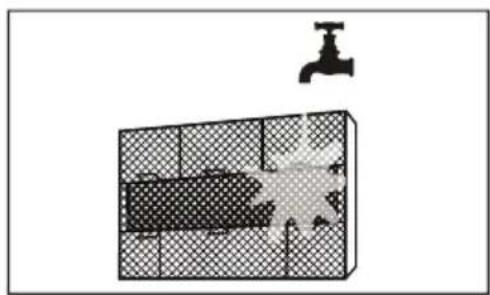

5. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent.

6. Rinse the filter with fresh water, then shake off excess water.

7. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.

8. When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor unit.

9. Close the front panel of the indoor unit.

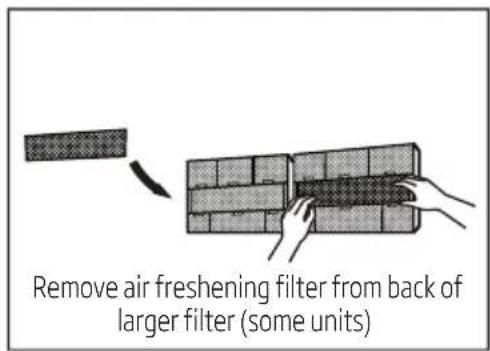

4 Care and maintenance16 / 136 EN Split-type room air conditioner / User Manual Filter TabsRemove air freshening filter from back of larger filter (some units)

Warning Do not touch air freshening (Plasma) filter for at least 10 minutes after turning off the unit. 4 Care and maintenanceSplit-type room air conditioner / User Manual 17 / 136 EN

• Before changing the filter or cleaning, turn off the unit and disconnect its power supply.
• When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you.•Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock.•Do not expose filter to direct sunlight when drying. This can shrink the filter.

4.3 Air filter reminders (optional)

After 240 hours of use, the display window on the indoor unit will flash “CL.” This is a reminder to clean your filter. After 15 seconds, the unit will revert to its previous display. To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL CONTROL button 3 times. If you don’t reset the reminder, the “CL” indicator will flash again when you restart the unit.

4.3.2 Air filter replacement reminder

After 2,880 hours of use, the display window on the indoor unit will flash “nF.” This is a reminder to replace your filter. After 15 seconds, the unit will revert to its previous display. To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL CONTROL button 3 times. If you don’t reset the reminder, the “nF” indicator will flash again when you restart the unit. Warning•Any maintenance and cleaning of outdoor unit should be performed by an authorized dealer or licensed service provider.•Any unit repairs should be performed by authorized dealer or licensed service provider. 4 Care and maintenance18 / 136 EN Split-type room air conditioner / User Manual

4.4 Maintenance – long periods of non-use

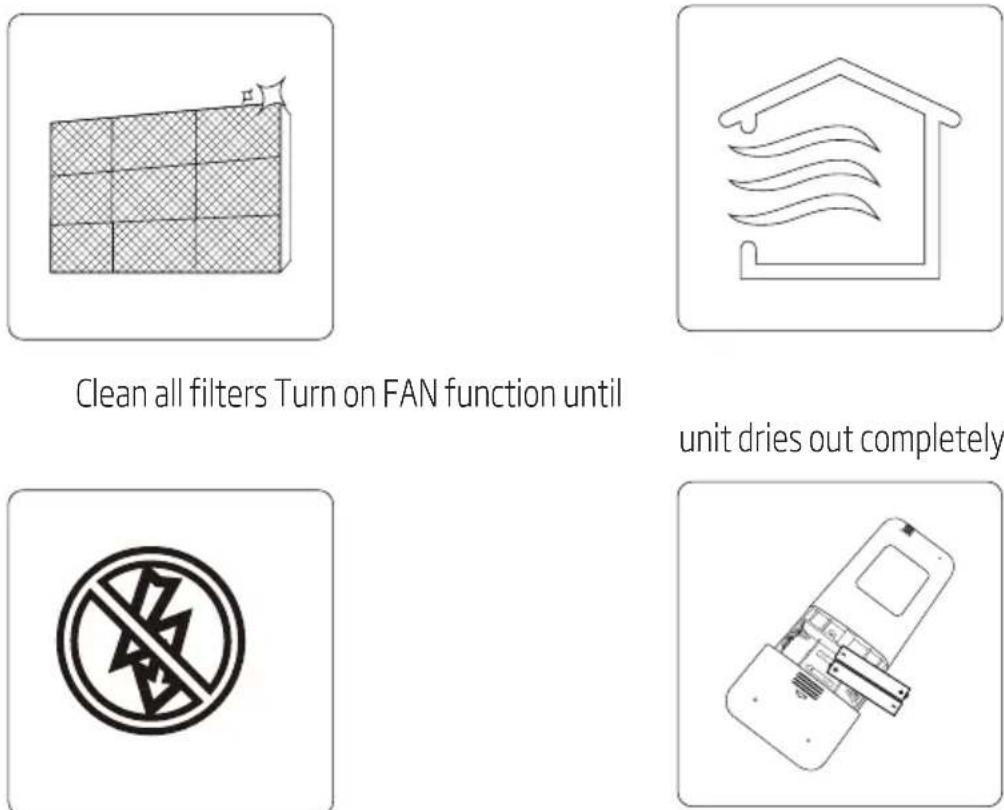

If you plan not to use your air conditioner for an extended period of time, do the following: Clean all filters Turn on FAN function until unit dries out completely Turn off the unit and disconnect the power Remove batteries from remote control 4 Care and maintenanceSplit-type room air conditioner / User Manual 19 / 136 EN

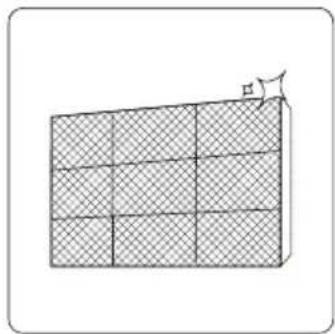

4.5 Maintenance – pre-season inspection

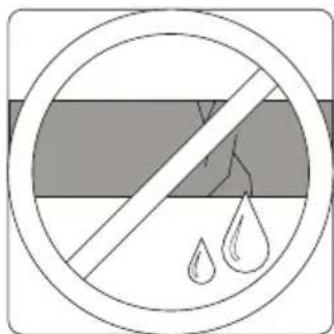

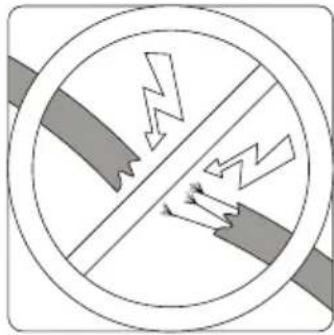

After long periods of non-use, or before periods of frequent use, do the following: Check for damaged wires Clean all filters Check for leaks Replace batteries Make sure nothing is blocking all air inlets and outlets 4 Care and maintenance20 / 136 EN Split-type room air conditioner / User Manual

Safety precautions If ANY of the following conditions occurs, turn off your unit immediately!

• The power cord is damaged or abnormally warm

• You smell a burning odor

• The unit emits loud or abnormal sounds

• A power fuse blows or the circuit breaker frequently trips

• Water or other objects fall into or out of the unit Do not attempt to fix these yourself! Contact authorized service provider immediately!

The following problems are not a malfunction and in most situations will not require repairs. Issue Possible causes Unit does not turn on when pressing ON/ OFF button The Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three minutes of being turned off. The unit changes from COOL/HEAT mode to FAN mode The unit may change its setting to prevent frost from forming on the unit. Once the temperature increases, the unit will start operating in the previously selected mode again. The set temperature has been reached, at which point the unit turns off the compressor. The unit will continue operating when the temperature fluctuates again. The indoor unit emits white mist In humid regions, a large temperature difference between the room’s air and the conditioned air can cause white mist. Both the indoor and outdoor units emit white mist When the unit restarts in HEAT mode after defrosting, white mist may be emitted due to moisture generated from the defrosting process. The indoor unit makes noises A rushing air sound may occur when the louver resets its position. A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts. 5 TroubleshootingSplt-type room ar condtoner / User Manual 21 / 136 EN Issue Possible causes Both the indoor unit and outdoor unit make noises Low hssng sound durng operaton: Ths s normal and s caused by refrgerant gas flowng through both ndoor and outdoor unts. Low hssng sound when the system starts, has just stopped runnng, or s defrostng: Ths nose s normal and s caused by the refrgerant gas stoppng or changng drecton. Squeakng sound: Normal expanson and contracton of plastc and metal parts caused by temperature changes durng operaton can cause squeakng noses. The outdoor unit makes noises The unt wll make dfferent sounds based on ts current operatng mode. Dust is emitted from either the indoor or outdoor unit The unt may accumulate dust durng extended perods of non-use, whch wll be emtted when the unt s turned on. Ths can be mtgated by coverng the unt durng long perods of nactvty. The unit emits a bad odor The unt may absorb odors from the envronment (such as furnture, cookng, cgarettes, etc.) whch wll be emtted durng operatons. The unt’s flters have become moldy and should be cleaned. The fan of the outdoor unit does not operate Durng operaton, the fan speed s controlled to optmze product operaton. Operation is erratic, unpredictable, or unit is unresponsive Interference from cell phone towers and remote boosters may cause the unt to malfuncton. In ths case, try the followng:

• Dsconnect the power, then reconnect.

Note: If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number. 5 Troubleshooting22 / 136 EN Split-type room air conditioner / User Manual

When troubles occur, please check the following points before contacting a repair company. Problem Possible causes solution Poor cooling performance Temperature setting may be higher than ambient room temperature Lower the temperature setting The heat exchanger on the indoor or outdoor unit is dirty Clean the affected heat exchanger The air filter is dirty Remove the filter and clean it according to instructions The air inlet or outlet of either unit is blocked Turn the unit off, remove the obstruction and turn it back on Doors and windows are open Make sure that all doors and windows are closed while operating the unit Excessive heat is generated by sunlight Close windows and curtains during periods of high heat or bright sunshine Too many sources of heat in the room (people, computers, electronics, etc.) Reduce amount of heat sources Low refrigerant due to leak or long-term use Check for leaks, re-seal if necessary and top off refrigerant SILENCE function is activated (optional function) SILENCE function can lower product performance by reducing operating frequency. Turn off SILENCE function. The unit is not working Power failure Wait for the power to be restored The power is turned off Turn on the power The fuse is burned out Replace the fuse Remote control batteries are dead Replace batteries The Unit’s 3-minute protection has been activated Wait three minutes after restarting the unit Timer is activated Turn timer off 5 TroubleshootingSplt-type room ar condtoner / User Manual 23 / 136 EN Problem Possible causes solution The unit starts and stops frequently There’s too much or too lttle refrgerant n the system Check for leaks and recharge the system wth refrgerant. Incompressble gas or mosture has entered the system. Evacuate and recharge the system wth refrgerant The compressor s broken Replace the compressor The voltage s too hgh or too low Install a manostat to regulate the voltage Poor heating performance The outdoor temperature s exetremtly low Use auxlary heatng devce Cold ar s enterng through doors and wndows Make sure that all doors and wndows are closed durng use Low refrgerant due to leak or long-term use Check for leaks, re-seal f necessary and top off refrgerant Indicator lamps continue flashing The unt may stop operaton or contnue to run safely. If the ndcator lamps contnue to flash or error codes appear, wat for about 10 mnutes. The problem may resolve tself. If not, dsconnect the power, then connect t agan. Turn the unt on. If the problem perssts, dsconnect the power and contact your nearest customer servce center. Error code appears in the window display of indoor unit:

Note: If your problem persists after performing the checks and diagnostics above, turn off your unit immediately and contact an authorized service center. 5 Troubleshooting24 / 136 EN Split-type room air conditioner / User Manual 6 European disposal guidelines This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options:

• Dispose of the appliance at designated municipal electronic waste collection facility.

• When buying a new appliance, the retailer will take back the old appliance free of charge.

• The manufacturer will take back the old appliance free of charge.

• Sell the appliance to certified scrap metal dealers.

Special notice Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain. This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to ocial collection point for recycling of electrical and electronic devices. To nd these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.Split-type room air conditioner / User Manual 25 / 136 EN 7 Installation instructions

7.1 F-Gas instruction

This product contains fluorinated greenhouse gases covered by the Kyoto protocol. The fluorinated greehouse gases are contained in hermetically sealed equipment. Installs, services, maintains, repairs, checks for leaks or decommissions equipment and product recycling should be carried out by natural persons that hold relevant certificates. If the system has a leakage detection system installed, leakage checks should be performed at least every 12 months, make sure system operate properly. If product must be performed leakage checks, it should specify Inspection cycle, establish and save records of leakage checks.
