USER MANUAL CDB800 Ewbank

Ewbank® Cleaning homes since 1880

NIFFTEE – CORDLESS MOP & DUSTER

Care & Use Instructions

Thank you for purchasing this Ewbank product. We have been manufacturing cleaning products since 1880 and we want to ensure that you get the best from this Cordless Mop and Duster so please read these instructions carefully and retain for reference in the future

Ewbank LLC

6801 Northpark Boulevard

Suite D, Charlotte, NC 28216, USA

Telephone: [phone]

Email: [e-mail]

www.ewbankus.com

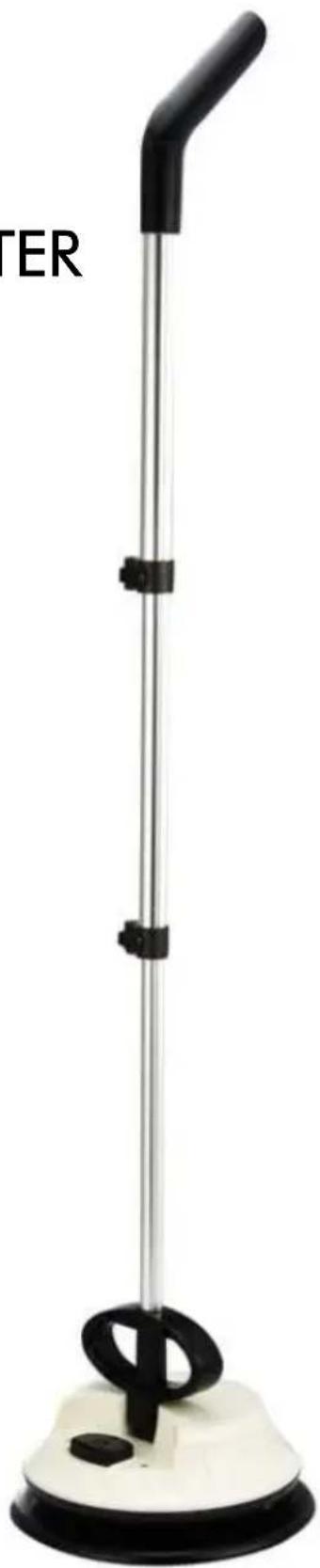

Vertical scientific instrument with black handle and scale, labeled 'TER' on the left (no other text or symbols visible)

Pack contents: Part No.

1. NIFFTEE handheld unit CDB800

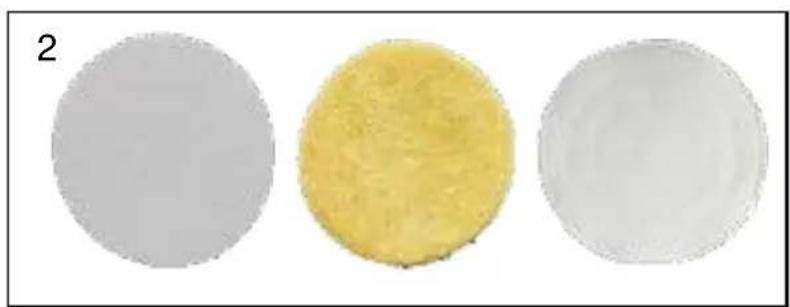

2. Three cleaning pads White Buffing pad EB0699 Yellow Dusting pad EB0700 White Scouring pad EB1085
3. Charging inlet plug and Transit plug EB0171 a. Inlet Plug in Soft Silicon.

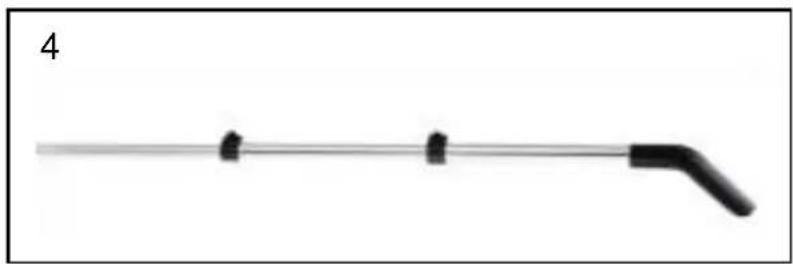

4. Extension handle EB0670
5. Lithium-ion battery 7.4V (2000mAh) EB1091 (Enclosed in Unit)
6. Battery charger EB1093 Input: 100-240VAC, 50/60 Hz Output: 9VDC MAX, 800mA

Three circular objects: two gray and one yellow, arranged horizontally (no text or symbols)

Two black plastic pushpins on a white background, no text or symbols visible

Simple line drawing of a tool with three small protrusions and a curved handle, labeled '4' in the top-left corner (no other text or symbols)

Black electronic device with attached cable and connector (no visible text or symbols)

Read the instruction book before using the Ewbank NIFFTEE and make sure that:

• The battery charging cable is in perfect condition.
- All packaging materials are removed from the product

Close-up of a black and white object with a stylized symbol on top, resembling a logo or emblem (no text or symbols present)

Safety Instructions - CAUTION

- Keep plastic packing bags away from children (danger of suffocation).

Do not expose the NIFFTEE, battery or charger to extreme temperatures or moisture.

✦ Store in a cool dry place.

Only operate the NIFFTEE with the enclosed rechargeable battery.

Do not attempt to remove the rechargeable battery from the NIFFTEE when charging.

♦ Disconnect the battery charger once the battery is completely charged (indicated by a green light on the battery charging unit).

- Never throw the rechargeable battery into open flames or burn it.

◆ Ensure the NIFFTEE is switched off at the on/off push button switch with the transit bung in place before removing the cleaning pads.

Do not operate the NIFFTEE without cleaning pad in place.

Before use, ensure that the pad to be used is clean and free from dirt or other hard particles which may cause damage to polished surfaces.

✦ NIFFTEE is for domestic purpose only and should not be used outside if raining.

Do not use the product on uneven surfaces.

Do not clean the polisher during the charging process.

This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the NIFFTEE in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenances must not be made by children without supervision.

◆ Ensure fingers, hair, jewellery, etc. are kept away from the rotating parts.

To protect the NIFFTEE from overheating do not block rotation of the unit.
Do not use on burning or smoking objects such as cigarettes, matches or hot ash.
Before transporting the NIFFTEE, the transit plug should be reinserted in the charging inlet.
Please only use the NIFFTEE for indicated purpose.

NIFFTEE product overview

The Ewbank NIFFTEE is a new cleaning system with an innovative design that makes it the perfect multifunction cleaning tool. It effectively cleans and dusts any smooth surface such as glass surfaces, windows, stairs, furniture, and all kind of hard floor materials. You can use it to clean all the rooms in your house and even those hard-to-reach areas. The revolving powerful cleaning pads pick up dirt and dust easily. The NIFFTEE is very easy to use and with its cordless rechargeable design, is suitable for use anywhere in the home.

Product Description

The rechargeable cordless NIFFTEE allows you to clean and polish any smooth surface.

It is powered by a 7.4v rechargeable battery that gives you up to 150 minutes of continuous cleaning. The entire unit weighs only 2.86lbs. The 150 rpm rotating head can easily glide across any surface for effortless cleaning. The ergonomic telescopic extension handle reduces the effort needed for a through clean.

Assembly

Protect all surfaces with a cover before commencing assembly.

Take all parts out of the packing and put them on an even surface. Check that all parts listed are included and complete.

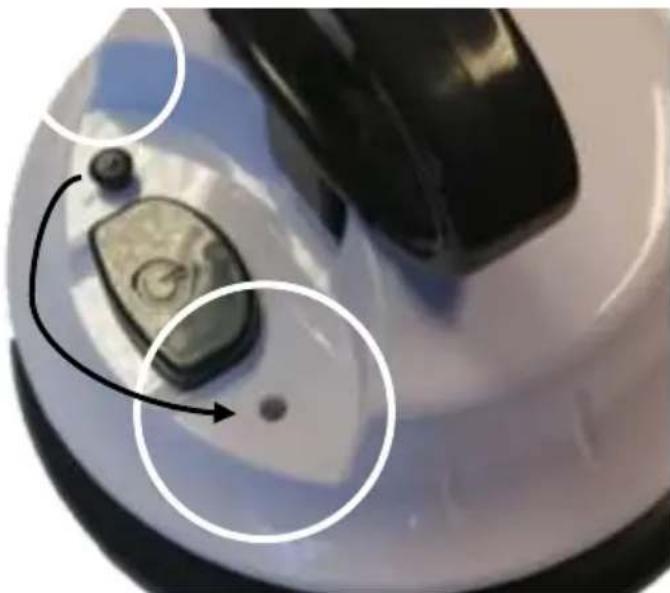

1. Remove the small transit plug from the left had side of the operating switch by gently pulling out (this plug is just a temporary part to prevent the unit from switching on when in transit but can be stored in the aperture on the left-hand side of the switch when this bung is removed)

Close-up of a car's front wheel with a small illuminated component and two circled areas of interest (no text or symbols visible)

1. Lengthen the extension pole to the height you want, using the two plastic clips on the pole.

Two laboratory glassware items: a long rod with black bands and a side view showing a transparent tube with black connectors (no text or symbols visible)

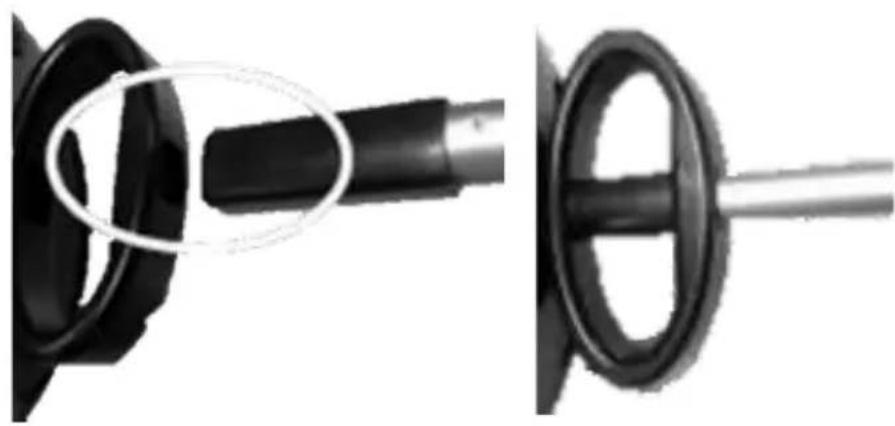

1. Insert the extension pole into the hole of the body handle until it "clicks" in place.

Close-up of a black mechanical component with a circular inset highlighting a specific part (no text or symbols visible)

Close-up of a mechanical component with a circular opening and a small inset showing a close-up of a textured surface (no visible text or symbols)

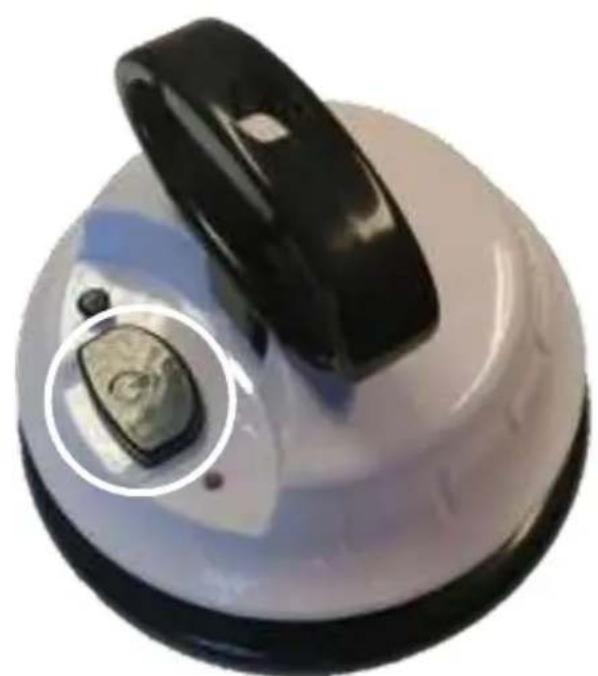

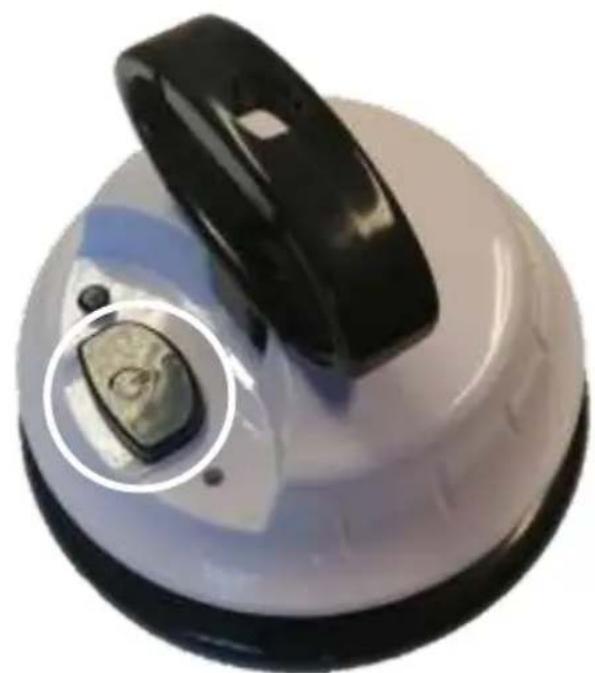

1. Turn the unit on to begin cleaning/polishing.

To use in handheld mode

a) Lock the handle in an upright position.
b) Remove the extension pole.
c) The unit can now be used by hand.

Ensure the handle remains locked for your safety while operating in hand-held mode.

Charging the battery

Before charging/first use Remove and store the small transit plug in the charging port.

Transit Plug

Close-up of a white and blue robotic device with circular white highlights (no text or symbols visible)

The battery must be fully charged before the NIFFTEE is used for the very first time.

a) Plug the battery charger into the charging port on the unit.

b) Plug the battery charger into the power supply. Charging time needed is about 3 hours.

c) The charger light will turn green when the battery is fully charged and ready for use

Using your NIFFTEE

CAUTION – DO NOT USE THIS PRODUCT ON CARPET

• Place the scouring, buffing, or polishing pad onto the grips located on the bottom of the rotating head, ensuring the pad is central to the head.
• Push the on/off button to begin rotating head motion.
  • To stop the head from rotating press the on/off button.
• The NIFFTEE is suitable to be used on may surfaces including laminate, wood and vinyl plus worktops, mirrors, windows, and ceramic tiles.
• When cleaning / polishing keep the rotating head moving across the surface at a gentle speed, allowing the NIFFTEE to glide over dirty surfaces.

- When cleaning sensitive surfaces apply the polisher in the first instance to a small, less obvious area, i.e. the corner of a room.

- Only use dedicated cleaning products, for floors the recommended cleaner is Ewbank Floor Polish and Reviver available from Ewbank stockists. Detergent cleaners are best for mopping

- Always follow the manufacturer's instructions for floor cleaning products and do not over-wet the surface.

- Take care to ensure that no grit or sharp particles are stuck to the pad as these may cause damage to the surface.

Caution: As protection against overheating the unit, please do not block the rotating head from revolving.

Nifftee, a single product with a multitude of uses

To get the best results from your Niftee we recommend the following;

- The white scouring pad is recommended for use on floors where you need extra help to remove stains and clean the surface prior to adding a finish – such as polish. When using in conjunction with water, always be careful not to use too much liquid on the floor – especially when working on laminate floor as this could cause permanent damage

- The white textured buffing pad is recommended for light cleaning and polishing of surfaces including floors throughout the home. The pad can be used with a light spraying of liquid detergent for cleaning or polish to deliver a light sheen. Take care not to over wet the surface.

- The yellow textured pad is recommended for general dusting and polishing of floors and other hard surfaces around the

home. It is recommended that the pad is used dry but may be used with a light spray of liquid polish.

- All cloth pads are suitable for machine washing on a cool (30°C / 85°F) cycle or handwashing with a mild detergent. Do not tumble dry.

Cleaning and caring for your Nifftee

1. Ensure the charger unit is unplugged before cleaning the NIFFTEE.
2. The NIFFTEE can be wiped clean with a damp cloth and mild detergent.
3. Do not immerse the unit in water.
4. Dry the NIFFTEE with a dry cloth.
5. The soft cloth cleaning pads are machine-washable; we recommend a cool water wash (30°C / 85°F) with a mild detergent and allow the cloths to dry naturally. Do not tumble dry.

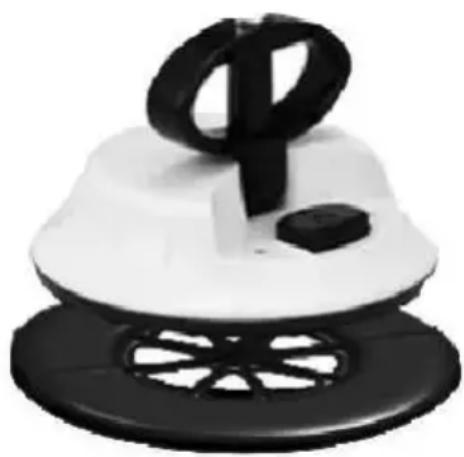

Tip: If debris enters the gap between the rotating head and the main body, ensure the unit is switched off, gently flex the rotating head and discard any debris.

Close-up of a black and white plastic object with a large black symbol on top, resembling a stylized letter 'P' or coin (no text or symbols present)

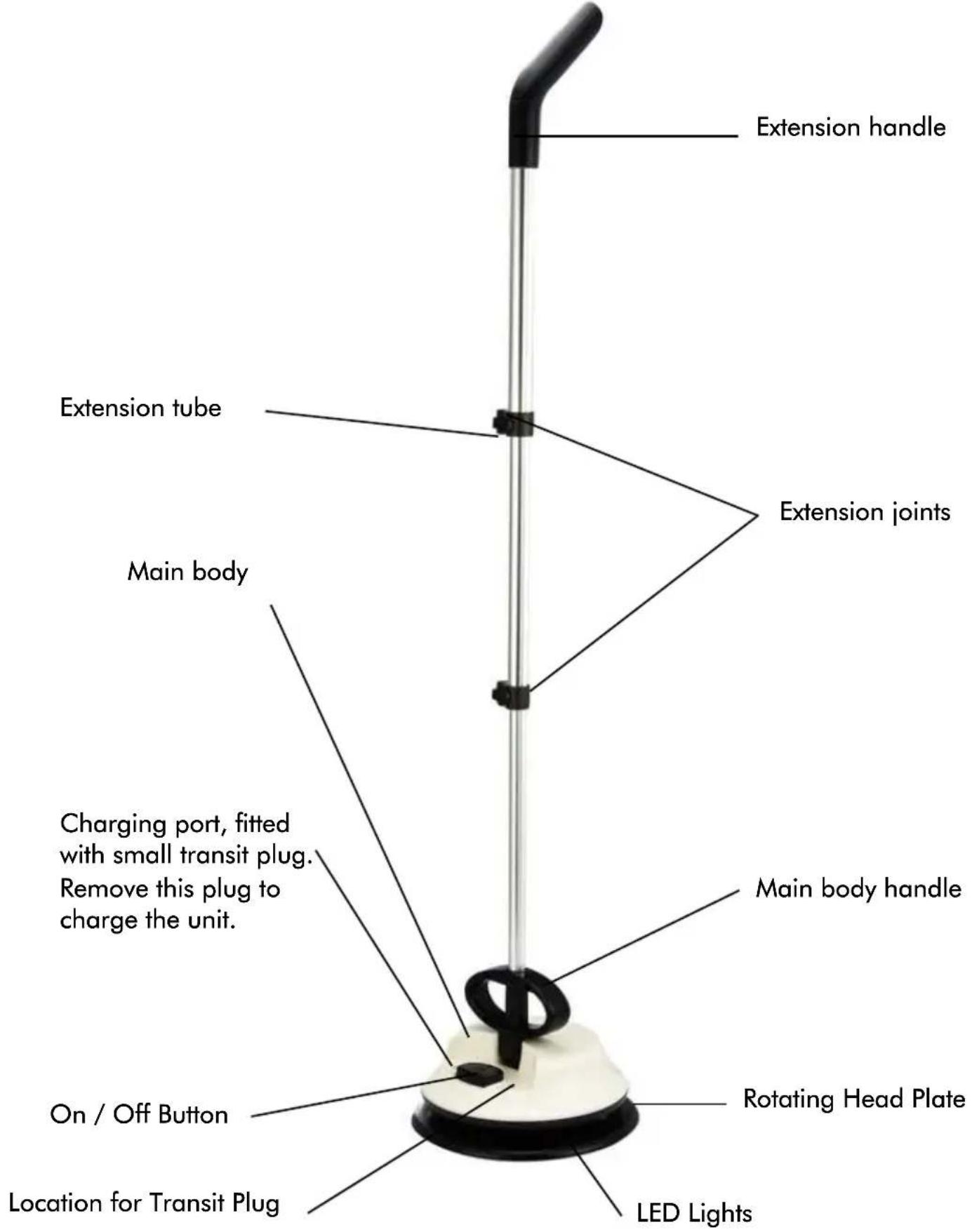

Assembled NIFFTEE Mop and Duster

Extension handle Extension tube Extension joints Main body Charging port, fitted with small transit plug. Remove this plug to charge the unit. On / Off Button Location for Transit Plug Main body handle Rotating Head Plate LED Lights

Electrical Connection

This unit is a Class III battery-powered appliance which means it operates at SELV (Safety Extra Low Voltage).

This unit is supplied with a LVD approved Class II plug-in battery charger.

If the output lead is damaged DO NOT USE for charging your Niftee. Instead, replace only with a new plug-in charger, Ewbank Part No; EB1235.

Your Warranty

This product is covered by a 12 month limited warranty. This product is guaranteed for domestic use only and not for trade, commercial or rental usage. This does not cover normal wear and tear or abuse.

For warranty purposes please retain your original receipt as proof of purchase. After 30 days since purchase and in the event of a warranty claim do not return this product to the store. If you discover

you have a part missing in this package, please telephone, 704-827-9385 and our service department will resolve your issue.

Ewbank LLC,

6801 Northpark Boulevard

Suite D, Charlotte, NC 28216, USA
