USER MANUAL Rustica Seenergy

This equipment can be used by children aged 8 or more, people with physical, mental and sensory disabilities or inexperienced users it they were instructed under proper supervision or trained on the safe use of the equipment and if they are fully aware of the related risks. Children shall not play with the equipment. The cleaning and maintenance are at user's expense and shall not be performed by unsupervised children.

• As soon as the equipment is delivered, remove the package immediately. Verify its overall aspect and, should any type of anomaly be found, nofy it immediately to the sales point or the installer.
• Its equipment is intended for domesc use. It shall not be employed for industrial or professional purposes nor for any other purpose than that for which it has been designed.
• The supplier will not provide any warranty for the consequences and damages caused by an improper installaon or a misuse of the equipment.
• Do not aempt to modify the characteriscs of this equipment, that would represent a hazard. Repairs shall be exclusively made by a specialized and authorized technician. To avoid risks, the manipulaon of the equipment is strictly forbidden so is the replacement of the power cable.
• If the fume hood is not supplied with a power cable and a pin or any other means for the disconncon of the mains power supply, with a separaon of the contact between all poles that provides the total disconncon under conditions of overvoltage category III, shall be incorporated to disconnectng means to the xed system, according to the installaon rules (two-pole switch directly connected to power supply terminals which shall have a separaon of the contact between poles so as to interrupt the supply of electricity in case of overvoltage category III).
• Once the equipment has been installed, the disconncon of the equipment from the power supply shall be allowed. Disconncon can be done by keeping the jack accessible or adding a switch to the electric system in accordance with the installaon rules.
• If the power cord is damaged, it shall be replaced either by the producer, its customer service or qualified personnel in order to avoid risks.

• It is of vital importance to place particular aenon as to where the wall or ceiling will be perforated so as to verify the presence of hidden electrical cables, pipes or iron beams, etc. This may cause serious breakdowns, electrical derivaons or the transmission of noises and vibraons.

• IMPORTANT: During the installaon phase, before electrically connecng the equipment, always disconnect the power panel that will supply it (dierenal or thermal-magnec of the general house switchboard).

• WARNINGS: Always disconnect the exhaust hood from the electrical outlet before proceeding to cleaning and maintenance operaons by plugging o the electrical outlet, dierenal or thermal-magnec of the general home switchboard. To clean the exhaust hood, never use steam or high-pressure devices (rules regarding electric safety).
• It is forbidden to cook directly on the ame or operate the gas stoves with no container to cook on the same ame (aspirated ames may damage the equipment and the warranty will be cancelled accordingly). The use of the equipment on a fuel stove is not authorized (wood, coal,...).
• Frying under the equipment shall be constantly monitored since oils and fats being subjected to high temperatures may ignite. Do not ame under the exhaust hood.
• Precauon: burns of accessible parts are likely to occur as they can get hot when using cooking appliances.
• Follow the cleaning frequency and Iter substuon. The accrual of fat deposits may provoke res. Never use the exhaust hood without the an-fat iter.
• The equipment shall abide by the exisng rules on the venlaon of closed spaces. Technically, the air expelled shall not pass through the duct used for the discharge of smokes from appliances using gas or any other fuel (central heang systems, etc...).
• Venlate the environment appropriately in case of a simultaneous operation of the exhaust hood and any other equipment supplied by an energy source other than electricity so that the exhaust hood will not draw gas compounds.
• Aenon! During the simultaneous operaon of a sucon-ltraon exhaust hood and a heang system independent of air (gas heaters, oil, coal, chimney, etc...), great aenon has to be placed so as to avoid that the exhaust hood does not absorb part of the air intended for the combuston process since dangerous amounts of carbon monoxide may surge within the premises, that would represent a life-threatening danger. When installing an exhaust hood joined or connected to a fuel element such as a heater, chimney or local heang system, it is mandatory to contact the producer or installer of such elements to obtain an opmal and risk-free operaon.

• It is necessary to maintain a depressurized environment of maximum 0.04 mbar. Such conditions allow an excellent working of the exhaust hood. In order to achieve such environment a permanent air intake is necessary in order to avoid air stagnation (it is advised to use a ventilation grid for this purpose). Windows or doors shall not be used.

• The electrical supply of the power network shall be stable and cope with the indicated electrical standards, 220/240v AC, 50Hz. Should it be not stable and receive voltage variaons in the supply, intensity or frequency such as armonici, transistor, voltage dips, overloads, electrical storms, etc..., the hood may show malfuncons or even breakdowns, and the repair would not be covered by the warranty. In that case, the exhaust hood shall be disconnected and the company must contact an electrician or electrical company in order to solve the supply problem.

• The exhaust hood is a household appliance t to a un elerodomesco ao all'estrazione di fumi, non può essere ulizzata come elemento di sostegno di ogge o utensili.
• In the constant eort to to improve our products, we reserve the right to make changes following their enhancement to their technical, functional and aesthetic characteristics.

Declaraon of Conformity CE

This appliance is in compliance with the following European Directves: 93/68/CE : General regulaons - 2006/95/CE : Concerning low tensions - 89/336/CE : Electromagnec compatibility - CE Regulaon n° 1935/2004: this appliance is suitable to come in contact with food products.

Electrical Connecon

• Before connecng the appliance to the electricity supply, check that the voltage corresponds to that on the data plate and that the power supply cable is suitable for the appliance load also stated on the data place.
• If the appliance is connected directly to the mains, t an all-pole disconnect switch with minimum contact gap of 3 mm, adequate for the appliance load and complying to regulaons.
• The plug used must support the power of work of the appliance.

- Do not use reducers, adapters or switches for conneccon to the mains, since these could overheat and cause burns

- Earth conneccon is required by law

If the power cable must be replaced, use a cable having identical characteriscs to the original supplied by the manufacturer, suitable for the load and temperature. This is available from Aer-sales service.

Important!

The enre installaon process is exclusively reserved for qualified workers, installers or authorized technical service.

Before proceeding with the installaon, make sure that all components are in perfect conditions. Otherwise, contact the vendor and do not proceed with the installaon.

Once installed, the likely imperfecons of the equipment such as scratches, impacts, etc..., will not be covered by under warranty.

Scrapping

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domesc waste, but should be delivered to a suitable electric and electronic appliance recycling collecon point.

Follow local guidelines when disposing of waste. For more informaon on the treatment, re-use and recycling of this product, please contact your local authority, domesc waste collecon service or the shop where the appliance was purchased.

Sicurezza

I. Dimensional drawing

II. 2/C Draw the points highlighted on the wall and drill the 6 holes indicated:

○ A-A' : Holes for temporary xing
○ B-B' : Holes for derive xing
○ C-C' : Holes for xing the tube support

III. Fix the hood in A-A'; then level using the xing points in B-B'; ghten the hose to the bracket C-C' 1/B

Connecng and fing

Before connecng the appliance, check the household installaon.

Appliance without power cable: Only connect as per the conneccon diagram. If necessary, t the copper bridge supplied. Mains power cable: Type H05 VV-F or a higher grade, min. wire cross-secon 1.5 mm2.

Appliance with pretted power cable: The power cable must only be replaced by a trained aer-sales engineer.

Installing: Do not trap the power cable and do not route it over sharp edges. If the oven is a built-under type, route the cable on the rear corners of the oven to the socket.

Electrical Connecon

Connect the device to the mains and check the operaon.

• voltage, see the rang plate.
- Connect adhering strictly to the relevant diagram.

1. Brown
2. Blue
3. Yellow and green

Wiring Diagram

	Push this buon and the motor starts on the 1° speed, push it again to switch of the coke hood.
	Push this buon and the motor starts on the 2° speed, push it again to switch o the coke hood.
	Push this buon and the motor starts on the 3° speed, push it again to switch o the coke hood.
	Push this buon to set up the mer of 5 minutes. Aer 5 minutes the cooker hood will be switched o automacally (motor and lighng). When the mer is acvated the LED ashes with the same color of the speed preseed. To reset the mer change the speed while it is acvated.
	Push This buon to switch on/o the light.

Maintenance

• Use only a damp doth with neutral liquid detergent.
• Do not use wet sponges or cloths, water jets, thinners, solvents, hydrochloric acid, bleach, alcohol or abrasive substances.
• Unplug the appliance or switch o the circuit breaker before carrying out maintenance operaons.

LED Replacement

- Disconnect the connector and replace the part

Filters Replacement

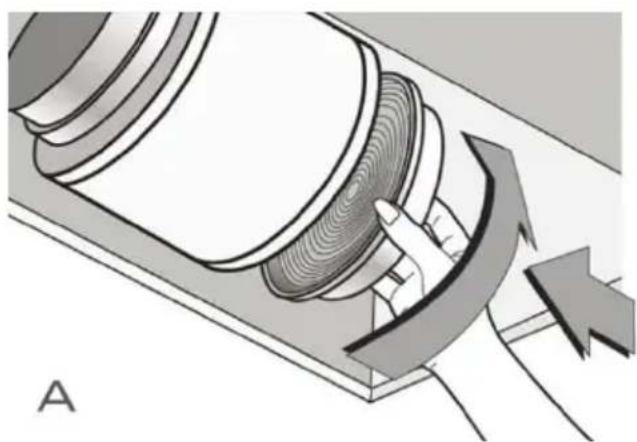

• A. ACTIVATED CARBON FILTERS (Only Itering types):
- The Iter assembly can not be regenerated and must be replaced at least every two months.

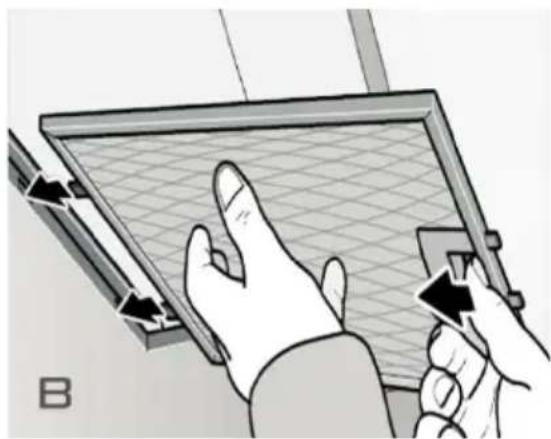

• B. METALLIC ANTI-GREASE FILTERS:
- The Iters must be washed at least one a month with hot water and detergent.
- It can also be washed in the dishwasher.
- Open by means of the handle.

Tips for Energy Saving

• Always use the cover corresponding to each pot. When cooking without a lid, the energy consumpon is somewhat greater.
• Use a glass lid to see inside without having to li it.
  • Use containers atbed. If the base is not flat, the energy consumpon is greater.
  • For small amounts, use small pans. A large bowl and lled just needs a lot of energy.
• For cooking, use a lile water. Thus, it saves energy and preserves all the vitamins and minerals in vegetables.

Quadro Comandi MR

Diagram of a device with an attached cable and two connector blocks inside, no text or symbols present.

4/H

Mechanical diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to interact with a grid-patterned screen (no text or symbols visible)

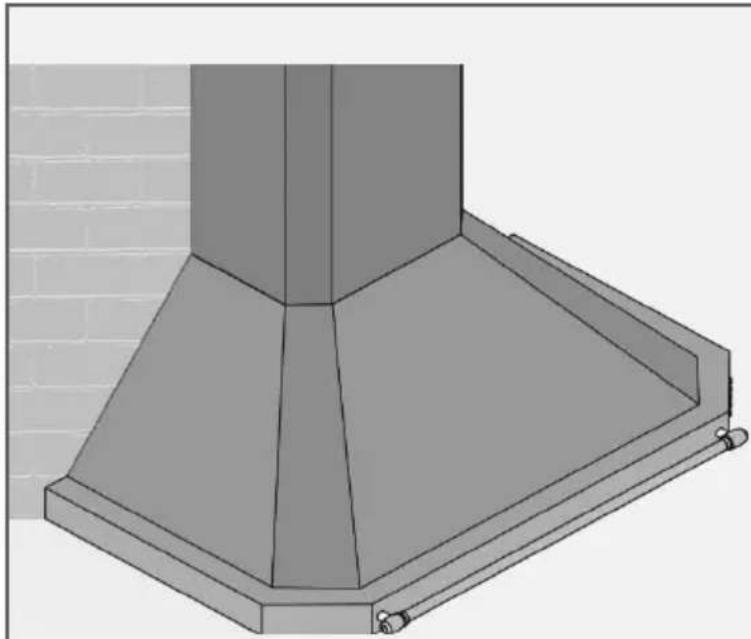

3D rendering of a metal chimney with hexagonal base and mounting bracket (no text or symbols)

SeeNERGY
