B2I HD524 AS - Dishwasher BAUKNECHT - Free user manual and instructions

Product type	Integrated dishwasher
Brand	Bauknecht
Model	B2I HD524 AS
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	About 50 kg
Power supply	220-240 V, 10 A
Power consumption	1900 W
Rated capacity	14 place settings
Number of programs	9
Available programs	Eco 50°, Intensive 65°, Mixed 55°, Wash & Dry Rapid 50°, Rapid 28', Silent 50°, Hygiene 65°, Prewash, Self-Cleaning
Options	Half load, Delay (1-12h), Tablet
Water consumption (Eco cycle)	9,5 L
Energy consumption (Eco cycle)	0,95 kWh
Duration of Eco cycle	3 h 35 min
Noise level	About 44 dB(A)
Recommended detergent type	Powder, liquid or tablets (with Tablet option)
Anti-scale system	Water softener with regeneration salt reservoir
Visual indicators	Indicators for salt, rinse aid, tablet, half load, digital display
Regular maintenance	Cleaning of filter, spray arms and salt reservoir
Available spare parts	Up to 10 years according to regulations
Energy class	Not specified (estimated class A)
Country of origin	Not specified

Frequently Asked Questions - B2I HD524 AS BAUKNECHT

How to fill the regeneration salt reservoir?

Remove the lower basket, unscrew the reservoir cap (counterclockwise). Fill with water the first time, then add about 1 kg of special dishwasher salt. Wipe off residues, close tightly and immediately start a wash cycle.

What to do if the salt indicator stays on after refilling?

The indicator may stay on for a few cycles after refilling. If the problem persists, check the water hardness setting (see manual).

How to adjust the rinse aid dosage?

Turn the appliance on then off. Press P button 3 times, then turn on. The current level flashes. Use P button to select a level (1-5). Turn off to confirm. In case of blue stains, reduce the level; if water droplets, increase.

Why does my dishwasher not start?

Check that the door is properly closed (click), the plug is connected, there is no power outage, and the water tap is open. If necessary, press Start/Pause and close the door within 4 seconds.

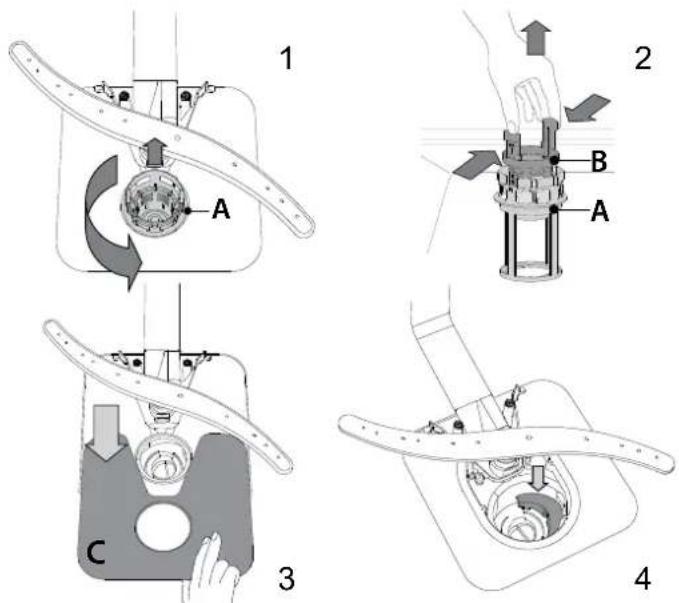

How to clean the filters?

Turn the cylindrical filter (A) counterclockwise and remove it. Remove the filter basket (B) by pressing the flaps. Remove the stainless steel plate (C). Clean under running water with a non-metallic brush. Reassemble in reverse order.

What does error code 'H' on the display mean?

Code H indicates a water inlet problem. Check that the tap is open, the inlet hose is not kinked, and the inlet mesh is not clogged. After correction, turn off and on the appliance.

Can I use all-in-one tablets?

Yes, activate the Tablet option by pressing the Start/Pause button for 3 seconds. This optimizes the program for tablets combining salt, rinse aid and detergent.

How to correctly load the upper basket?

Place glasses, cups, saucers and low bowls. Use foldable flaps for stemware. Adjust the height by lifting the basket sideways (high position) or by pressing the levers (low position).

The dishwasher makes an abnormal noise, what to do?

Check that dishes are not knocking together (reposition them) and that the spray arms rotate freely. Excessive foam can also cause noise; reduce the detergent dose.

How to run a self-cleaning program?

Empty the dishwasher completely. Select program 9 (Self-Cleaning) and add a specific maintenance product. Start the cycle. This program cleans the interior without dishes.

USER MANUAL B2I HD524 AS BAUKNECHT

THANK YOU FOR BUYING A BAUKNECHT PRODUCT.

In order to receive a more complete assistance, please

register your appliance on: www.bauknecht.eu/register

www

You can download the Safety Instructions and the User

Manual, by visiting our website docs.bauknecht.eu and following the Instructions on the back of this booklet.

Before using the appliance carefully read Safety Instructions guide.

PRODUCT DESCRIPTION

APPLIANCE

Diagram of a refrigerator interior with numbered parts and labeled items including a logo, battery, and product labels.

1. Upper rack
2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel

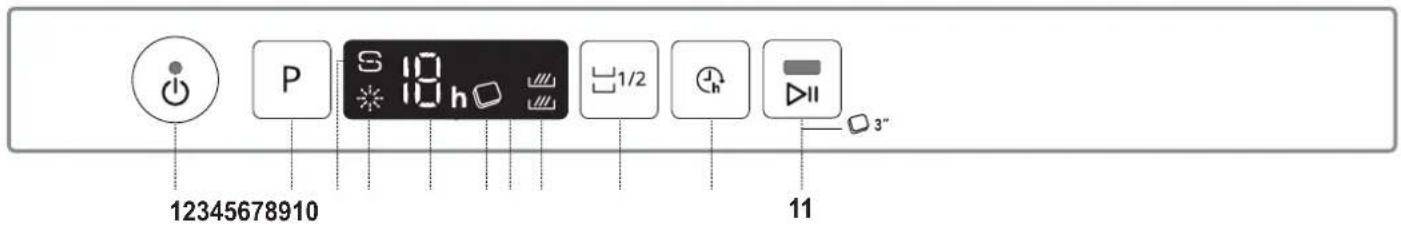

CONTROL PANEL

12345678910 S 18 h 1/2 3" 11

1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator

6. Tablet indicator light

7. Display

8. Half Load indicator lights
9. Half Load button
10. Delay button
11. START/Pause button with indicator light / Tablet (Tab)

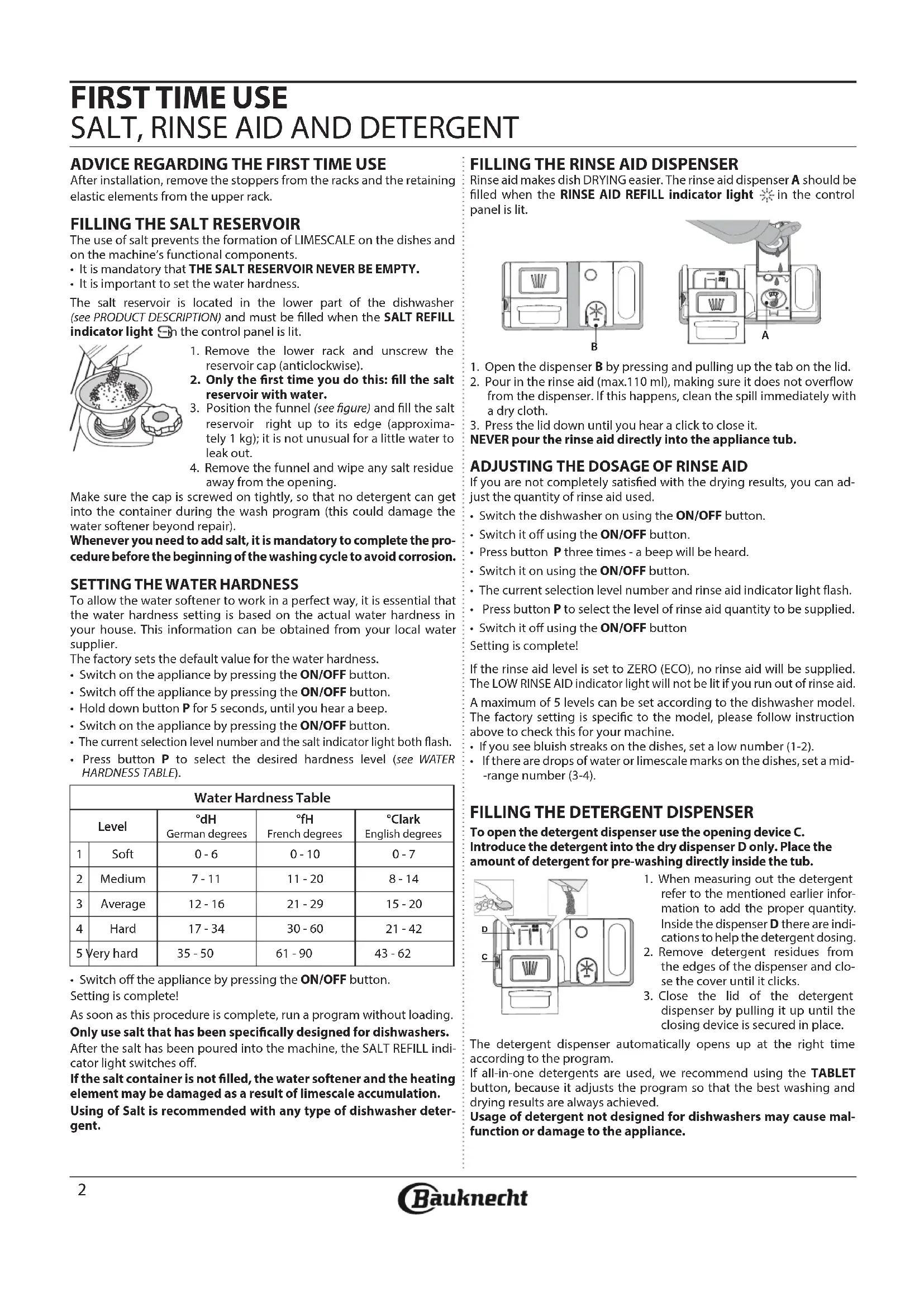

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

- It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.

- It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light in the control panel is lit.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate rose (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
• The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button. Setting is complete!

As soon as this procedure is complete, run a program without loading. Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

Diagram showing two labeled views (A and B) of a household air conditioner unit with internal compartments and fixtures.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
   NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
  • The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

- If you see bluish streaks on the dishes, set a low number (1-2).

- If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

Diagram of a device with labeled parts and an inset showing hand cleaning and cleaning steps

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program		Drying phase	Available options *)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco 50°		√		3:35 9.5 0.95
2. Intensive 65°		√		2:40 18.0 1.60
3. Mixed 55°		√		2:15 16.0 1.40
4. Fast Wash&Dry 50°		√		1:30 11.5 1.30
5. Rapid 28' 50°		-		0:28 9.0 0.50
6. Silent	50°	√		3:35 16.6 1.30
7. Hygiene	65°	√		2:00 12.0 1.50
8. Prewash	-	-		0:12 4.7 0.01
9. Self-Clean	65°	-		0:50 10.0 0.80

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

** Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

3 MIXED

Mixed soil. For normally soiled dishes with dried food residues.

4 FAST WASH&DRY

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.

5 RAPID 28'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

6 SILENT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

7 HYGIENE

Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher.

8 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

9 SELF-CLEAN

Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance.

Notes:

Please note that cycle Rapid 28' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

HALF LOAD

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the program and press the HALF LOAD button: the indicator light will light up. Press the HALF LOAD button to deselect this option. Remember to halve the amount of detergent.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/Pause button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches off. The DELAY function cannot be set once a wash cycle has been started

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used.

Press the START/PAUSE button for 3 seconds (the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

LOADING THE RACKS

UPPER RACK

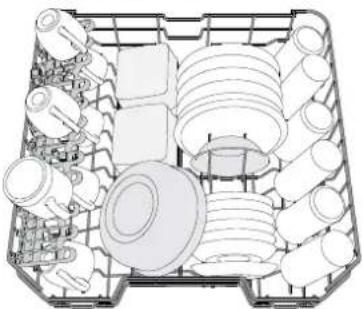

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

(loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper basket can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up compartments by creating more space upwards.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers (A) at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

Technical diagram showing labeled components or structures with letters A and B, likely from an engineering or mechanical drawing.

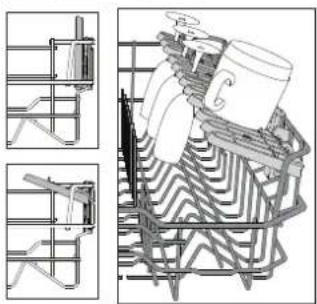

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model:

• to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down.

- to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Technical line drawing of a mechanical assembly with internal components and structural details (no text or symbols)

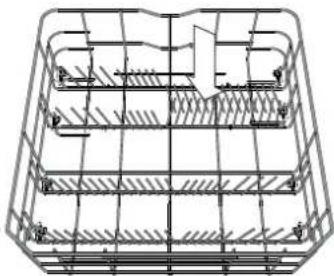

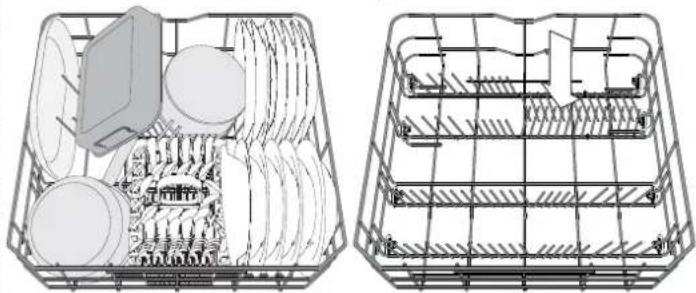

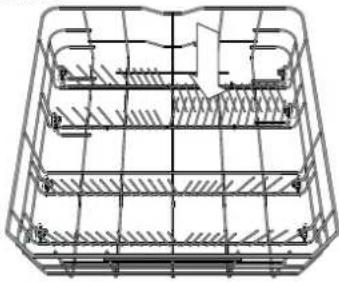

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

Technical line drawing of a multi-compartment kitchen drawer with cutouts and compartments (no text or symbols)

(loading example for the lower rack)

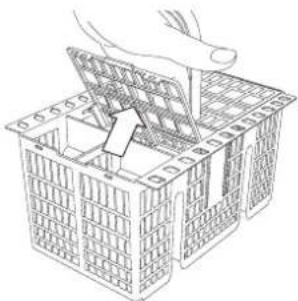

CUTLERY BASKET

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

1. LOAD THE RACKS (see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
  The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

- When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.

- In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.

- Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

1 2 A B A 3 4

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

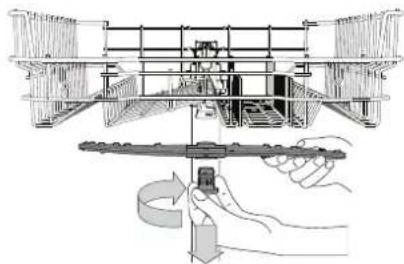

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Illustration of a hand using a tool to press or install a mechanical component on a stovetop (no text or symbols present)

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements..

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty. (After refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness - see table, page 2.
Rinse aid indicator is lit	Rinse aid dispenser is empty. (After refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns.Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The dishwasher door is not closed. Vigorously push	the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows:9 or12and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows:3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is	not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain	pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).
	There is no salt.	Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water. Display shows:H,6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows:15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.

Policy and standard documentation and additional product information can be found by:

• Visiting our website: docs.bauknecht.eu and parts-selfservice.whirlpool.com
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet).
  When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

400011659454B

03/2023 ks - Xerox Fabriano

BEDIENUNGSANLEITUNG

GUIDE

DANKE, DASS SIE SICH FÜR EIN BAUKNECHT PRODUKT ENTSCHIEDEN HABEN.

Illustration of a hand pouring granular material into a bowl with a side dish (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand operating controls and a water level indicator.

Diagram of a cleaning or cleaning device with labeled parts and hand actions, including hand spraying and cleaning steps.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing labeled components A and E with directional arrows and grid lines, likely illustrating a mechanical or electrical assembly.

KLAPPBARE KLAPPEN MIT VERSTELLBARER POSITION

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

UNTERKORB

Diagram of a shopping basket with circular items and a tray, no text or symbols present

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

TÄGLICHER GEBRAUCH

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols visible)

Diagram of a refrigerator interior with numbered parts and labeled items including washing machine, refrigerator, and washing cabinet.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate food item nearby (no text or symbols)

Diagram showing two views of a passenger seat with labeled compartments and hand gestures, including section B and section A.

Diagram of a food processing machine with labeled components and directional arrows indicating processing steps

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

Technical line drawing of a mechanical component with layered structure (no text or symbols)

CESTO INFERIOR

Technical line drawing of a multi-compartment basket with internal compartments and storage (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

USO DIARIO

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a stovetop (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and labeled items including a food item, washing machine, and product labels.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate food item nearby (no text or symbols)

Diagram of a refrigerator interior with labeled compartments and fixtures, showing front and side views with Chinese labels.

Diagram of a device interior with labeled parts and components, including hand, cloth, and fan elements

OPTIONS ET FONCTIONS

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows

VOLETS PLIABLES AVEC POSITIONS AJUSTABLES

Technical line drawing of a mechanical assembly with no visible text or symbols

PANIER INFÉRIEUR

Diagram of a shopping basket with coins and a tray, showing interior compartments (no text or symbols)

Technical line drawing of a multi-level mechanical or architectural structure with hatched shading (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

UTILISATION QUOTIDIENNE

1. VÉRIFIER LE BRANCHEMENT DE L'EAU

INTERRUPTIONS IMPRÉVUES

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a workbench (no text or symbols visible)

WingHaf Print 1000000x 2024.06.2019 2024.06.2018 TWO 7500000x SINEMA 3000000x SINEMA 3000000x SINEMA 3000000x SINEMA 3000000x SINEMA 3000000x SINEMA 3000000x SINEMA 3000000x SINEMA 3000000x SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.5 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP 12.6 SIP

400011659454B

03/2023 ks - Xerox Fabriano

GUIDA RAPIDA

GUASTI

GRAZIE PER AVER ACQUISTATO UN PRODOTTO

Diagram of a kitchen appliance with numbered parts and labeled icons, including a battery, refrigerator, and control panel.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate rose-shaped object nearby (no text or symbols)

Diagram of a two-part air conditioner unit with labeled components A and B, showing internal compartments and airflow indicators.

Diagram of a food processing machine with labeled components and hand actions, including hand pouring and feeding into a container.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing labeled components A and B with directional arrows and grid lines, likely illustrating a mechanical or electrical system.

SPONDE RIBALTABILI CON POSIZIONE REGOLABILE

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a multi-compartment storage unit with internal compartments and housing (no text or symbols)

Line drawing of a hand placing a plastic basket into a grid-patterned crate (no text or symbols)

USO QUOTIDIANO

1. VERIFICA DEL COLLEGAMENTO ALLA RETE IDRICA

Technical line drawing of a mechanical assembly with a hand operating a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Diagram of a refrigerator interior with numbered components and labeled parts, including washing machine, refrigerator, and control panel.

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced onion (no text or symbols)

Diagram showing two views of a passenger seat with labeled parts A and B, including hand positioning and interior compartments.

Diagram of a food processing machine with labeled components and hand actions, including feed, drying, and packaging steps.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

OPVOUWBARE KLEPPEN MET VERSTELBARE STAND

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a multi-compartment kitchen appliance with internal compartments and storage racks (no text or symbols)

Line drawing of a hand placing a component into a wireframe basket (no text or symbols)

DAGELIJKS GEBRUIK

1. WATERAANSLUITING CONTROLEREN

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols visible)
