Brand	NACON
Model	RIG M100HS
Product type	Cardioid microphone for streaming and commentary
Category	Audio system / Microphone
Dimensions (approx.)	Height 28 cm, base diameter 10 cm
Weight (approx.)	400 g
Power supply	Via USB port (3m cable included)
ADC resolution	16 bits / 48 kHz
Directional pattern	Cardioid (unidirectional)
Backlight	Blue (mute indicator red)
Control button	Touch mute with indicator light
Stand	Adjustable tripod included
Connectivity	USB-A (integrated 3m cable)
Package contents	Microphone, stand, tripod, USB cable, windscreen, manual
Compatibility	PC, PlayStation 5, PlayStation 4 (plug and play)
Maintenance	Clean with a soft, damp cloth (no detergent)
Precautions	Indoor use only, keep away from water and dust
Spare parts / accessories	Protective foam, USB cable (spare available)
Warranty	2 years (subject to proof of purchase)
Customer service	Email: [e-mail], Tel: [phone]
Manufacturer	NACON - 396-466 Rue de la Voyette, CRT2 - 59273 Fretin, France

Frequently Asked Questions - RIG M100HS Nacon

What is the directional pattern of the RIG M100HS microphone?

The microphone is cardioid, meaning it mainly captures sound from the front, reducing side and rear noise.

How to activate mute mode?

Press the mute button on the microphone. The indicator light turns red when muted. Press again to unmute.

Is the microphone compatible with PlayStation 5 and PlayStation 4?

Yes, it is plug and play on PS5 and PS4. Plug it into a free USB port, the console recognizes it in about 5 seconds. You can adjust the volume in the sound settings.

What is the ideal distance between the mouth and the microphone?

For standard use, place your mouth at 20-30 cm. For singing or commentary (close field), use a distance of 10-40 cm with the windscreen.

How to clean the microphone?

Use a soft, clean, damp cloth (no detergent). Never immerse the microphone in water and avoid abrasive products.

What to do if the microphone is not recognized by the computer or console?

Try unplugging and replugging into another USB port. Check that the cable is not damaged. If the problem persists, contact NACON support.

Does the microphone work without additional software?

Yes, it is a plug and play device (USB audio class). No driver needed on Windows, macOS, or compatible consoles.

What is the audio resolution of the microphone?

The built-in analog-to-digital converter offers a resolution of 16 bits / 48 kHz, ideal for streaming and voice communications.

Is the tripod included? Is it adjustable?

Yes, an adjustable tripod is included in the package. It allows you to position the microphone at the desired height and angle.

How to contact NACON customer service in France?

You can reach support by email at [e-mail] or by phone at 09 69 37 03 08 (non-premium call) Monday to Friday from 10am to 6pm.

USER MANUAL RIG M100HS Nacon

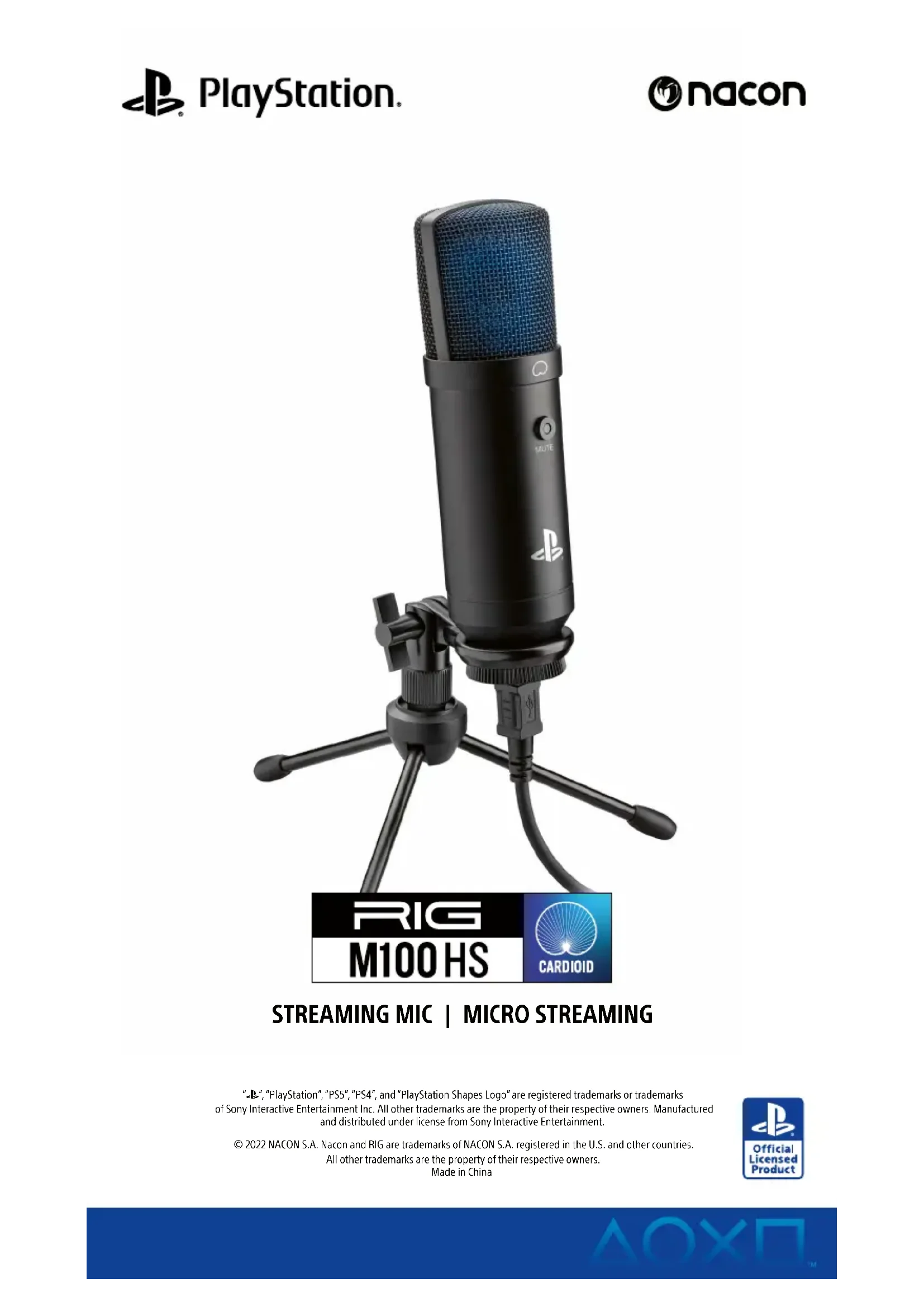

Black vinyl record studio microphone on tripod stand, no visible text or symbols on device body

RIG M100 HS CARDIOID

STREAMING MIC | MICRO STREAMING

"B", "PlayStation", "PS5", "PS4", and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment.

© 2022 NACON S.A. Nacon and RIG are trademarks of NACON S.A. registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Made in China

Line drawing of a microphone with sound waves, showing front panel and cable connections (no text or symbols)

REMARQUES :

I Informations relatives au support technique

Email : [e-mail]

Site Internet : www.nacongaming.com

Adresse : Bigben Interactive Belgium s.a./n.v. Waterloo Office Park / Bâtiment H Drève Richelle 161 bte 15, 1410 Waterloo, Belgium

EMAIL US/CANADA

EN

Email: [e-mail]

SP

Email: [e-mail]

I UK Declaration of Conformity

Product: RIG M100HS

Manufacturer: Nacon

Nacon declares that this product is in compliance with the United Kingdom

legislation:

• Electromagnetic Compatibility Regulations 2016
• The restriction of the use of certain hazardous substances in electrical
and electronic equipment regulations 2012

The full text, of the UK Declaration of Conformity, is available at the following website: my.nacongaming.com/en-GB/support

I FCC: Declaration of Conformity

United states

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

ICES

1124 8TH Street, Kirkland, WA

98033 USA

SUPPORT :

UK, [e-mail]

Tel.: [phone]

[e-mail]

NEDERLAND,

[e-mail]

ESPAÑA,

[e-mail]

Tel.: [phone]

ITALIA.

[e-mail]

Tel.:[phone]

UNITED STATES,

[e-mail]

Black vinyl record studio microphone on tripod stand, no visible text or symbols on device body

RIG M100 HS CARDIOID

STREAMING MIC | MICRO STREAMING

"B", "PlayStation", "PS5", "PS4", and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment.

© 2022 NACON S.A. Nacon and RIG are trademarks of NACON S.A. registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Made in China

Thank you for purchasing this M100 RIG product

In case of a malfunction please refer to the support information at the end of this manual. We highly appreciate any feedback which helps us to improve our products. Please keep this instruction manual for the period of the warranty.

I Warranty

WARRANTY: this product is guaranteed by Nacon for a period of 2 years from date of purchase, except in countries of the European Economic Area which offer a longer warranty period and 1 year (for LATAM markets), and will, during this period be replaced with the same or a similar model, at our option, free of charge, if there is a defect due to faulty material, or workmanship. This guarantee does not cover defects arising from accidental damage, misuse or wear and tear, and is available only to the original purchaser of the product. This does not affect your statutory rights.

To access the declaration of conformity, please visit: my.nacongaming.com/en-GB/support

I Product specifications

• Cardioid pattern microphone for streaming and other applications
• Integrated Analogue-Digital converter with 16bit/48kHz resolution
• Blue backlight
• Mute function
• Adjustable tripod
• USB connection (3m cable included)

I Contents of the package

1 x Microphone
1 x Microphone holder
1 x Tripod stand
1 x USB cable
1 x Foam windscreen
1 x Quick instruction booklet

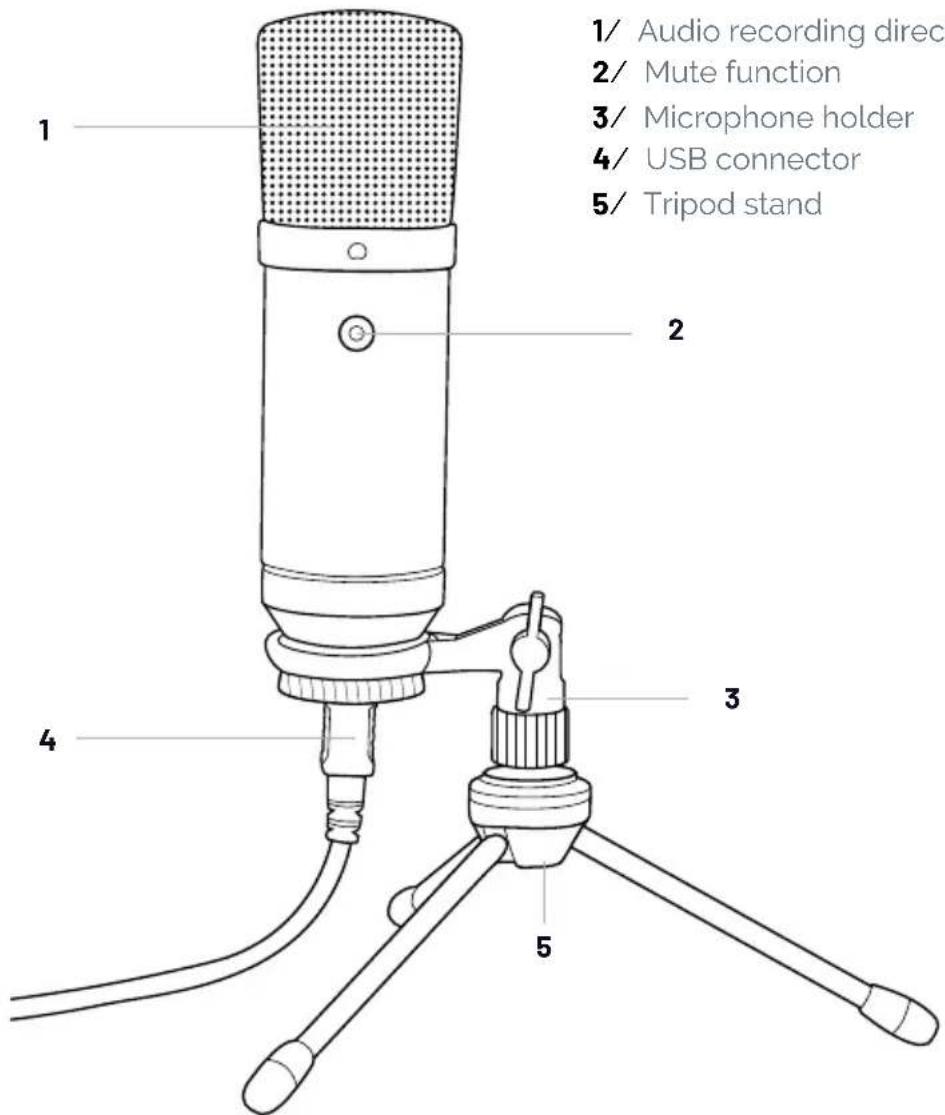

I Control elements

1/ Audio recording direc 2/ Mute function 3/ Microphone holder 4/ USB connector 5/ Tripod stand

I First-time connection with PlayStation®5 consoles or PlayStation®4 consoles

This microphone is a Plug'n'Play device. Simply connect it to one of the free USB ports on your console. It should be recognized by the console after a period of time (approx. 5 seconds). If this is not the case, then please unplug the microphone and use a different USB port. You can check the microphone's status and adjust the volume level by checking the following:

• From the PlayStation®5 console's home screen, go to "Settings" > "Sound" > "Microphone".
• From the PlayStation®4 console's home screen, go to "Settings" > "Devices" > "Audio Devices" > "Adjust Microphone Level".

Using the microphone

Please note that this is a cardioid pattern microphone, which means it only records audio signals coming from one specific direction.

This direction is indicated by the Ⓞ symbol on the casing. For optimal recording results, please make sure this direction faces towards the audio signal.

I Normal use

We recommend that your mouth is no more than 20-30cm away from the microphone. As everyone's voice is different, you should experiment to find the best location and performance set-up.

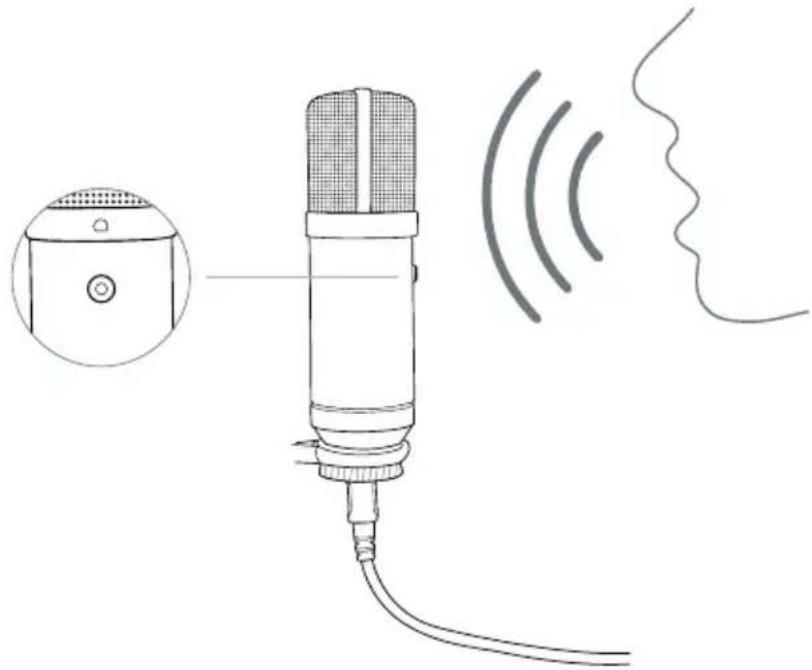

Near field use

When you are singing or giving commentary, the microphone should be 10-40cm from your mouth and directly in front of you.

We also recommend that you use the foam windscreen to dampen pop sounds.

Please keep the microphone away from any audio source to avoid any other interference.

Line drawing of a microphone with sound waves and an inset device (no text or symbols)

NOTES:

• To activate the mute function, press the button and the LED light will turn Red to show it is active.
• To deactivate the mute function, press the mute button again and the LED light will switch off.

Recycling

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring that this equipment is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more information please contact your local council or waste disposal service. EU, UK and Turkey only.

Turkey

If you require further information about this legislation please click on the link http://www.tukcev.org.tr/assets/yonetmelikler/AEEEYonetmeligi.pdf

I Important Safeguards & Precautions

1/ This Unit is for indoor use only. Never expose to direct sunlight or wet weather conditions.
2/ Do not expose the unit, to splashing, dripping, rain or moisture. Do not immerse in liquid.
3/ Do not expose to dust, high humidity, high temperatures or mechanical shock.
4/ Do not use if the equipment is damaged.
5/ Do not disassemble; there are no serviceable parts inside.
6/ For external cleaning, use a soft, clean, damp cloth only. Use of detergents may damage the finish and leak inside.

I Technical Support

UK

Email: [e-mail]

Tel.:[phone]

Australia

Email: [e-mail]

Tel.:[phone]

Europe

Email: [e-mail]

US/Canada E-mail

English

Email: [e-mail]

Spanish

Email: [e-mail]

US/Canada Phone Support

(English/French/Spanish)

Tel.: [phone]

I EU Declaration of Conformity

Product: RIG M100HS Streaming Microphone

Manufacturer: Nacon

Nacon declares that this product is in compliance with the Union harmonisation legislation:

• Directive 2014/30/EU for Electromagnetic Compatibility
- Directive 2011/65/EU the restriction of the use of certain hazardous substances in electrical and electronic equipment

The full text, of the EU Declaration of Conformity, is available at the following website: my.nacongaming.com/en-GB/support

I UK Declaration of Conformity

Product: RIG M100HS Streaming Microphone

Manufacturer: Nacon

Nacon declares that this product is in compliance with the United Kingdom legislation:

• Electromagnetic Compatibility Regulations 2016
- The restriction of the use of certain hazardous substances in electrical and electronic equipment regulations 2012

The full text, of the UK Declaration of Conformity, is available at the following website: my.nacongaming.com/en-GB/support

I FCC: Declaration of Conformity

United States

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ICES

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

ICES statement: This device complies with Industry Canada's license - exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation."

MANUFACTURER / FABRICANT :

NACON - 396 - 466 Rue de la Voyette, CRT2 - 59273 Fretin, France

1124 8TH Street, Kirkland, WA

98033 USA

SUPPORT :

UK, [e-mail]

Tel.: [phone]

[e-mail]

NEDERLAND,

[e-mail]

ESPAÑA,

[e-mail]

Tel.: [phone]

ITALIA.

[e-mail]

Tel:[phone]

UNITED STATES,

[e-mail]

Black vinyl record studio microphone on tripod stand, no visible text or symbols on device body

RIG M100 HS CARDIOID

STREAMING MIC | MICRO STREAMING

"B", "PlayStation", "PS5", "PS4", and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment.

© 2022 NACON S.A. Nacon and RIG are trademarks of NACON S.A. registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Made in China

Line drawing of a microphone with sound waves, showing front and side views (no text or symbols)

HINWEISE:

• Electromagnetic Compatibility Regulations 2016
- The restriction of the use of certain hazardous substances in electrical and electronic equipment regulations 2012

1124 8TH Street, Kirkland, WA

98033 USA

SUPPORT :

UK, [e-mail]

Tel.: [phone]

[e-mail]

NEDERLAND,

[e-mail]

ESPAÑA,

[e-mail]

Tel.: [phone]

ITALIA.

[e-mail]

Tel.:[phone]

UNITED STATES,

[e-mail]

Black vinyl record studio microphone on tripod stand, no visible text or symbols on device body

RIG M100 HS CARDIOID

STREAMING MIC | MICRO STREAMING

"B", "PlayStation", "PS5", "PS4", and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment.

© 2022 NACON S.A. Nacon and RIG are trademarks of NACON S.A. registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Made in China

Line drawing of a microphone with sound waves, showing front panel and microphone (no text or symbols)

ATENCIÓN:

Company Name: S2G Mexico LLC

Address: Av. Antonio Dovali Jaime 70, Torre C Piso 2, Santa Fe, Alvaro

Obregon, CDMX.C.P. 01210

Tax ID or RFC (for Mexico) : SML 150205M61

1124 8TH Street, Kirkland, WA

98033 USA

SUPPORT :

UK, [e-mail]

Tel.: [phone]

[e-mail]

NEDERLAND,

[e-mail]

ESPAÑA,

[e-mail]

Tel.: [phone]

ITALIA.

[e-mail]

Tel.:[phone]

UNITED STATES,

[e-mail]

RIG

RIG GAMING.COM

Licensed for sale in the European Union, United Kingdom, Australia, New Zealand, United States, Canada. Manufactured by Nacon. - Licencié pour la vente en Union européenne. Royaume-Uni, Australie, Nouvelle-Zelande, États-Unis, Canada. Fabriqué par Nacon. - Lizenziert für den Verkauf in der Europäischen Union, Großbritannien, Australien, Neuseeland, den USA und Kanada. Hergestellt von Nacon. - Verkoopvergunning voor de Europese Unie. het Verenigd Koninkrijk, Australië, Nieuw-Zeeland, de Verenigde Staten en Canada. Vervaardigd door Nacon. - Autorizado para la venta en la Unión Europea, Reino Unido, Australia, Nueva Zelanda, Estados Unidos y Canadá. Fabricado por Nacon. - Autorizzato alla vendita in Unione Europea, Regno Unito. Australia. Nuova Zelanda, Stati Uniti e Canada. Prodotto da Nacon. - Licenciado para venda na União Europeia, Reino Unido, Austrália. Nova Zelândia, Estados Unidos, Canadá. Fabricado pela Nacon.

Black vinyl record studio microphone on tripod stand, no visible text or symbols on device body

RIG M100 HS CARDIOID

STREAMING MIC | MICRO STREAMING

"B", "PlayStation", "PS5", "PS4", and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment.

© 2022 NACON S.A. Nacon and RIG are trademarks of NACON S.A. registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Made in China

Line drawing of a microphone with sound waves, showing front and side views (no text or symbols)

NOTE:

1124 8TH Street, Kirkland, WA

98033 USA

SUPPORT :

UK, [e-mail]

Tel.: [phone]

[e-mail]

NEDERLAND,

[e-mail]

ESPAÑA,

[e-mail]

Tel.: [phone]

ITALIA.

[e-mail]

Tel.:[phone]

UNITED STATES,

[e-mail]

RIG

RIG GAMING.COM

Licensed for sale in the European Union, United Kingdom, Australia, New Zealand, United States, Canada. Manufactured by Nacon. - Licencié pour la vente en Union européenne. Royaume-Uni, Australie, Nouvelle-Zelande, États-Unis, Canada. Fabriqué par Nacon. - Lizenziert für den Verkauf in der Europäischen Union, Großbritannien, Australien, Neuseeland, den USA und Kanada. Hergestellt von Nacon. - Verkoopvergunning voor de Europese Unie. het Verenigd Koninkrijk, Australië, Nieuw-Zeeland, de Verenigde Staten en Canada. Vervaardigd door Nacon. - Autorizado para la venta en la Unión Europea, Reino Unido, Australia, Nueva Zelanda, Estados Unidos y Canadá. Fabricado por Nacon. - Autorizzato alla vendita in Unione Europea, Regno Unito. Australia. Nuova Zelanda, Stati Uniti e Canada. Prodotto da Nacon. - Licenciado para venda na União Europeia, Reino Unido, Austrália. Nova Zelândia, Estados Unidos, Canadá. Fabricado pela Nacon.

Black vinyl record studio microphone on tripod stand, no visible text or symbols on device body

RIG M100 HS CARDIOID

STREAMING MIC | MICRO STREAMING

"B", "PlayStation", "PS5", "PS4", and "PlayStation Shapes Logo" are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment.

© 2022 NACON S.A. Nacon and RIG are trademarks of NACON S.A. registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Made in China

I Productspecificaties

Line drawing of a microphone with sound waves, showing front and side views (no text or symbols)

OPMERKINGEN:

1124 8TH Street, Kirkland, WA

98033 USA

SUPPORT :

UK, [e-mail]

Tel.: [phone]

[e-mail]

NEDERLAND,

[e-mail]

ESPAÑA,

[e-mail]

Tel.: [phone]

ITALIA.

[e-mail]

Tel:[phone]

UNITED STATES,

[e-mail]
