USER MANUAL AX2523 Armani

1. Pull crown out to position 2.
2. Turn crown to set hour and minute hands to desired time.
3. Return crown to position 1.

DATE MODELS

Date Setting

1. Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day. The direction that moves the date varies on different watch models.

Time Setting

1. Pull crown out to position 3.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.

Do not change the date between the hours of 10pm and 2am. This is the time when the movement is in position to carry out the automatic date change, and any interference may cause damage to the movement.

2 EYE DAY/DATE MULTI-FUNCTION VX36

Date Setting

1. Pull crown out to position 2.
2. Turn clockwise to advance date hand.
3. Push crown back to position 1.

Date and Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands.

The hand showing days of the week will also move with the hour and minute hands.

Keep turning until you have reached the desired day.

MULTIFUNCTION 6P23

Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands. 24-hour hand will move with hour and minute hands. Keep turning to reach desired time.
3. Return crown to position 1.

Date Setting

1. Pull crown out to position 2.
2. Turn crown counter-clockwise to set date.
3. Return crown to position 1.

THREE EYE MULTI-FUNCTION 6P29/6P79

Date Setting

1. Pull crown out to position 2.
2. Turn clockwise to advance the date hand.
3. Push crown back to position 1.

Day and Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands. The hand showing days of the week will also move with the hour and minute hands. Keep turning until you have reached the desired day.

24-Hour Sub-Dial Setting

The 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.

CHRONOGRAPH STOPWATCH VD55 (with date-VD57)

Time and Date Setting

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.

2. Pull crown out to position 2 and turn crown clockwise to set date to the previous day.

3. Pull crown out to position 3 when the second hand is at the 12:00 position, and turn clockwise until the present date is displayed. Continue turning crown to set the correct a.m./p.m. time.

4. Return crown to position 1.
   NOTE: When crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.
   NOTE: To ensure accuracy, do not set the date between 9:00 p.m. and 1:00 a.m.

Chronograph Functions

Basic Function

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

Interval Timing

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

Adjusting the Chronograph Hands to Zero Position

If one or more chronograph hands are not in their correct zero (12:00) positions after pressing B (for example, following a battery change):

1.Pull crown out to position 3.
2. Press A to move the chronograph 1/10 second counter one increment; press and hold A for fast advance.
3. Press B to reset the second and minute counters one increment; press and hold B for fast advance.
4. Return crown to position 1.

CHRONOGRAPH STOPWATCH JS25/VD54 (with date-VD53)

Time and Date Setting

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
   4.Pull crown out to position 3 when the second hand is at the 12:00 position.
3. Turn crown to set time.

NOTE: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.
6. Return crown to position 1
NOTE: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

Chronograph

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

Split Time (VD53/VD54)

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

Chronograph Zero Reset

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1.

AUTOMATIC 82SO/2189

1. Pull crown out to position 2.
2. Turn crown clockwise to advance hour and minute hands.
3. Push crown back to position 1.

NOTE: A timepiece with an automatic winding movement obtains the power to wind itself by the movement of your wrist, there is no battery. Therefore, not wearing the timepiece for several consecutive days could exhaust the power reserve. If your watch stops, it is recommended that you manually wind the movement by rotating the crown clockwise at position 1 to achieve the necessary power reserve.

It is important your timepiece is adjusted to match the size of your wrist. A loose fit may result in a loss in capacity of the timepiece to wind itself. When fully wound, your timepiece has a power reserve of approximately 36 hours.

DIGITAL LED - BJ-3470

Normal Time Display

1. Press B to display time; press B again to change display mode. Mode sequence is time, date and seconds.
2. LED automatically turns off after 5 seconds.

Time / Calendar Setting

1. In time display mode, press and hold A for 2 seconds to enter setting mode. 12/24-hour format will begin flashing.
2. Press B to choose 12 or 24-hour format. For 12-hour setting, "P" will be displayed for afternoon/evening hours. For 24-hour setting, no symbol will be displayed.
3. Press A to advance to hour
4. Press B to increase digits; press and hold B for fast advance.
5. Press A to advance to next setting value.
6. Setting sequence is: 12/24-hour format, hour, minutes, seconds, year, month, date, and
   exit setting mode.
   NOTE: In setting mode, if no pusher is operated for 5 seconds, all changes will be saved and the watch will automatically turn off.

DIGITALUPCR-992A

Time Mode

1. Press B to change modes.
2. Press A for EL.
3. Press C to select 12/24 hour format.
4. Press D to enable/disable hourly chime.

Time Setting

1. In time mode, press and hold A for 2 seconds to enter time setting.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to enter next setting field
4. Press pusher A to exit setting mode.

Alarm Mode

1. Press B to enter alarm mode.
2. Press A for EL.
3. Press C to select alarm 1 or alarm 2.
4. Press D to enable/disable alarm.

Alarm Setting

1. Press and hold A for 2 seconds to enter alarm setting.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to enter next setting field.
4. Repeat steps 2 and 3 until desired time is selected.
5. Press A to exit setting mode.
   NOTE: Alarm turns on automatically when exiting setting mode.

Chrono Mode

1. Press B to enter chrono mode.
2. Press C to start chrono.
3. Press D to stop chrono.
4. Press and hold D for 2 seconds to reset chrono.

NOTE: Maximum chrono time is 23 hours, 59 minutes and 59 seconds. When chrono

reaches maximum time, it will stop running. Press and hold D to reset value to

run chrono. 1/00s resolution for first 59 minutes and 59.99 seconds.

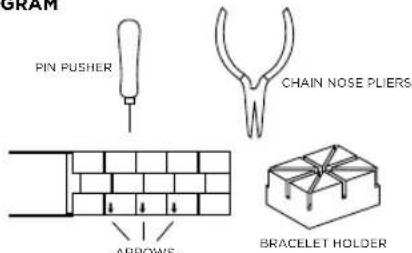

PIN LINK DIAGRAM

Link Removal

To remove a link from a pin link bracelet, you will need the bracelet holder, pin pusher, and chain nose piers (see pin link diagram).

1. Open the clasp on the bracelet.
2. Look on the inside of the bracelet and locate the arrows near the clasp (see diagram).
3. Place the band into the appropriate size slot of the bracelet holder with the arrows pointing down (see diagram).
4. Center the desired pin to be removed over one of the holes in the bottom of the bracelet holder.
5. With the pin pusher, push the pin, as far as possible, through the link
6. Remove the watch from the bracelet holder and simply finish pulling out the pin with the chain nose pliers.

NOTE: Two pins hold each link in place and must be taken out before a link can be removed. Please note that the pins are partially split down the center.

USE PRECAUTIONS - RESISTANCE TO WATER

Water Resistance Water		related Use
Caseback Marking	Depth	5	8	20	7
		Washing Hands	Shower, Bathing	Swimming, Snorkeling	Scuba diving
-	-	X	X	X	X
WR	-	✓	X	X	X
3 ATM	3 Bar, 30 Meters	✓	X	X	X
5 ATM	5 Bar, 50 Meters	✓	✓	X	X
10 ATM	10 Bar, 100 Meters	✓	✓	✓	X
20 ATM	20 Bar, 200 Meters	✓	✓	✓	✓
30 ATM	30 Bar, 300 Meters	✓	✓	✓	✓
50 ATM	50 Bar, 500 Meters	✓	✓	✓	✓
Always set the crown in closed position (the normal position). Tighten screw-lock crown completely.

DEUTSCH

Your ARMANI EXCHANGE watch is warranted by Armani Exchange Watches for a period two (2) years from the original date of purchase under the terms and conditions of this warranty. The Armani Exchange warranty covers materials and manufacturing defects. A copy of the receipt or dealer stamp in the warranty booklet is required for proof of purchase.

During the warranty period the watch movement, hands and dial are the only components covered under this warranty. A covered component will be repaired or the watch will be replaced free of repair charges, if it proves to be defective in material or workmanship under normal use.

In case of replacement, Armani Exchange cannot guarantee that you will receive the same model watch if your model is not available, a watch of equal value and similar style will be provided. The warranty for the replacement watch ends two (2) years from the date the replacement watch is received.

This Warranty Does Not Cover:

Any defects in materials and workmanship of battery, case, crystal, strap or bracelet.

• Damage resulting from improper handling, lack of care, accidents, or normal wear and tear.
• Water damage unless marked water-resistant.

This warranty is void if the watch has been damaged by accident, negligence of persons other than authorized Armani Exchange sales or services agents, unauthorized service, or other factors not due to defects in materials or workmanship.

The foregoing warranties and remedies are exclusive and in lieu of all other warrants, terms or conditions, express, implied or statutory, as to any matter whatsoever, including, without limitation, warranties of merchant liability, fitness for a particular purpose, accuracy, satisfactory quality, title, and non-infringement, all of which are expressly disclaimed by Armani Exchange. Armani Exchange shall not be liable for incidental, consequential, indirect, special or punitive damages or liabilities of any kind arising out of or in connection with the sale or use of this product, whether based in contract, tort (including negligence), strict product liability or any other theory, even if Armani Exchange has been advised of the possibility of such damages and even if any limited remedy specified herein is deemed to have failed of its essential purpose. Armani Exchange's entire liability shall be limited to 16/6/7

replacement or repair of the purchase price paid, at Armani Exchange's sole option.

Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages so the above limitations and exclusions may be limited in their application to you. When implied warranties may not be excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty gives you specific legal rights; you may have other rights that may vary depending on local law. Your statutory rights are not affected.

FOR AUSTRALIAN CUSTOMERS: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonable foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Requesting Warranty and Other Watch Repair

Should you recure work under warranty, please send in your watch, a copy of your sales receipt and/or the warranty booklet with dealer stamp and a description to the authorized international watch service center closest to you (see enclosed list of address).

For service work that is not covered under this warranty, the service contract may perform those services you request for a charge dependent on watch style and type of work requested. These charges are subject to change.

Do not send original packaging, as it will not be returned. Armani Exchange highly recommends you insure your parcel and adequately protect the watch during shipment. Armani Exchange is not responsible for product lost or damaged during shipment.

For repairs of your ARMANI EXCHANGE watch we recommend that you contact an authorized Armani Exchange dealer or the authorized international watch service center closest to you (see enclosed list of addresses).

In the U.S., there is a (8.50 handling charge to cover return shipping, insurance and handling to U.S. addresses. International addresses will have a higher shipping charge.

*901 South Central Expressway, Richardson, Texas 75080 USA

DEUTSCH

INTERNATIONALE ZWEI (2)-JAHRES-GARANTIE

*901 South Central Expressway, Richardson, Texas 75080 USA

FRANÇAIS

GARANTIE INTERNATIONALE DE DEUX (2) ANS

*901 South Central Expressway, Richardson, Texas 75080 USA

ESPANOL

GARANTÍA SOLO PARA ESPaña

*901 South Central Expressway, Richardson, Texas 75080 USA

PORTUGUES

GARANTIA VÁLIDA APENAS PARA PORTUGAL

*901 South Central Expressway, Richardson, Texas 75080 USA

BAHASA INDONESIA

JAMINAN INTERNASIONAL 2 TAHUN

*901 South Central Expressway, Richardson, Texas 75080 USA

POLSKI

901 South Central Expressway, Richardson, Texas 75080 USA

PYCCKN

MEXKNYHAPODHAR TAPAHTHA HA 2 (DBA) TODA

CorIaHO yOIOBIMn IIOJOKEHMIHN HACOTIOHn rapAHTNn, KOMIIAHNA ARmani EXCHANGE Wachs" npOcctABINETRAPAHTMn Ha BAAM Nacb ARMANI EXCHANGE cpoKOM h DaBa (2) rOda C npeBocahauhno daTbN oKNYkN. HAcTOBAPAAHNTPApOcPcTbAHTeRc Hn deEeKbTI MATEBAPHA mIROTOBHeHH. B KaIECTe NoDTHBcKDeHn NOKYNkN Heo6XoDmO npDEyABtB KOIIKN KBITAHm NmN 380JONHEHHRAPaHTNbn TANOH.

B TceHHO rapAHTHHORO capaocMOXaHMM, CTEKINK UcDpe6nAT RABRIOTC DmHCTBBHMOMKHTOHENTMOK, NOKPbHAARMAHMMJrAHOHAPHTBEK, NOKpBHAAEBMcTAPAHTHMQKOMHTOHNTQNIXKT BecnHtAHOMy PEOHMTY HwSyET CzUHNAE SEcuaTHAH ZAMEAH cHACN pRn OHAPKHYEKHHNDEKCTA MATePNA hnn PPOV330dTeHHORO DEKCTA pRn CNOBHN PRAbIbHO RCONBO30SAHNI.

B Cnya 3A mEHNbM, Mbl He MOXeM rapaHTIOPOBaT bpeOCTABNEHm YACOB TOI XMe moNEM. PnO TCYTCBIM BauoM MoENB Ma BydyT peNOxHOHb XcBy, paBOHOOHHe NO CTMOCTIN NO XOKNXII NO CTNIIO. RAPAHNTBI cPCK ZAMEHHHb YACOB INKTAEIT Hpe32 (Jba) RoDA c DaTHNIOYHNNHm 3A mEHNHbHXs ACOS.

Hactoaa rapaHTHa pacnpocTpaHReTaHa:

• DepeKthMaTePnaIOB N npOK3BOcTBeHHbIe DepeKTh BApTaE, Kopnyca, cTeKIIa, pEmHr mnn OpaCeta.
  NIOEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNEHNHNE
  POBpeKdENHBOO,ecn YacbHe ABNIAKTCA BOOyCToHBOMdoJIbIO.

HaCtoaHra rapaHTnA aHHNpyeTcB clyyae, ecm TaBbI NnoPoeKdeHb CnyaHIO HNO HocctopOxHcOTnLIMAM. He ABNOIOOMMRC yNOHMOHOHHBMTOPOBBMI INI CTpAOXBMM AROTHAM Emporio BAN, a TAKKE bpeyntBaTE HepaTeoHIOHO TReHMeKcKO HIO OBOYKBAHIN MIN IPOHX pKaTOpAR, BO3MHKIXH He IIO PnIMHe DEpKtA MaTePMAI NIN KTOTOBIIHN

BbIeHOMNHyTbe rapAHTHIN n CpeCTBa IpaBOOB 3aJIHTBn RIRTOCH VICKIOHHTeBbIMM N 3AMeHHOT COBc Bce IpoHHe rAPAHTHIN, YCOBmN INIOJOKHEMN, DyTo Bn RBN IbApKHeHNBIE, NOpDAyMEBAeMBMbE INI PpeDyCMTPBHEH2 3KIOHOADTEBCTOM, NoIOOFOBNPCC, BKNIOAH, Eze 0rPAHNNBn, rAPATNIQ ROCTHn InpoJdXkN, PnIOHOCTDBn IINCIOBtOABAHn IO HAHAHNEHNO, TOOHCTb, YDooBETBPOTHPENHO KAEHTEC, PpAO BIAIDEHN OTCYCTTBHe HAPUYEHN, B OTHOOHIN KOOTbX KOMMANH He DaT KAKHX-NMO OBa3TeNCTB, KOMANHn HE Hecet OTBeCTBEHNOH 3a CNYaHHeN, NOOVAHHe, KOCBENHHe, FAKTIVCKNE MInI UNTPAAChhne yBbTKn, A TAKHE MEIK KAKNX-MNBO6tAnBnEITBn, BO3HNKAAOUK BCNEITBn MInI BCSRn C npOAKKn IINCNLOBHOAM HOHARHO N3DEHn, B CYIOTDOBOPA NIN ENKNTA (KBNQO4 JEOCTOHOXHTBC), CTPORE OTBOCTBEHNOH 3A KACHETO N 603ONACHO7 TOAAPA NINObLbX HINB NPHINOB. DAKe ECIN CHA BSNYBDEOMHHe B 030MOKHOCTN TAKHX YbBKO N HEB3IPAR HA TOT pAKT, YTO JIOBOe OPAHNeHoe CpeCTBO PABOBn 3AJIHTM, INIOJOKHHeBn HACTOUIIe PAHANT, He DCSTHTIO CBO8 OHOBH NcEL. BeCb OSeMn HauwE OTBCTBEHNOH OTpAHNBAeTGN, NO CObCTBEHMONYC mOpTPEHHO KOMANHm, 3AmeHN OYPeONTOH N3DEHn B aMpeme er 3AOKYPOOH NcEl.

B HOKOTOPbX cTPAHAX, IITATAX IMN NPOBHHHIXe H DoNYCKAGTCN KNOHNOHEH Nm ORPahAHHEH NOpDA3Y- MEBBHbRapAHTHMn INM OPAHAYEHNE NOOHOHBHX Nm KOCBENHHbX yBbTKOB; NOSTOMY BbWeyK8A3AHHbE
ORPAHMMHn INKCHINH MORYT bByb ORPAHHNH B aBaAMC city-A. B Tom city-AE, KOJIa DPOA3YBAEMBE
BcRAPAHMn MOYr BYbNoHCTBO NkIOUCHyE, OH aBYD tpy APOHHeH NnNTBHeOCTIO pIMMEHMn
NtBcMHoHn RAPAHTMn DAHAI RAHPHTN PEOOCTaBnRET BAM KOHKPTBHe NteopOHKeCKne PpRa; BbMOKETe
MeBtDyIpy PApaB a BA 8ABHCIOCTM OT MeCHTbZAKOHo. BaAMPiPAA, nIOJHOeKHBe BAM POZAKOHY, OCTaIOTCR HOHNMEHHBM.

182183

Tpe6oBaHHe rapaHTnHoro n npOyero pmoHTa qacOB:

B Cnyae Hoo60xdmoctn, OtnpaBaTe B 5nnKaiuuiin cepHNC-ueHr Tacbl, HAXOaHUNoCn Ha rapaHTNtHOM 6cOnyKbAHm, KOIO KBBaTaNiIM NINr rapAHTNHOr TanoHa, a TAKKE ONIcHMe IPO6bEmi (cm. npiTaIra- bEmi CInCK ApeCeB).

B KaheCTBE pEMCHTA, He NOKpIbABMOrO daHnro RaapAnThe, cepBnC-ueHTP MoKET PpeDctAHTb TpeDyeMble BAMN yCyTyr 3a nATy, B 3aBNCIMoCTN OT BA DA cAcOB IN TINa BILIOJIeHHNO PABOt. PaCzEHKn HA 3TN yCyTyr MOrT MEHTRcSBr.

Pocba He npncbIaTb N3dene B opHnabHo ynaKoBKe, Nockolky OHa HE Bo3paaaTcra. HactoTeBHeNo pekOMeHyOm 3actpaxOBaTb NoCBykN oObecnoHTb HaNDekAuaMe CpeDCTBa 3auNTb Yacob BO BpEma IN TpaCNOPTipOBKaM. Mbl He Hocem OTBETCBHHOCb 3a ToBap, yToPAHHb NnN NOpeKekHHB B npcepe TaHONOPTIPQkKn.

PnHnE6bOoMnCTexHHeNcKc0rO6bIyXhBaHmBaBxHx YacOB ARMANI EXCHANGE, y6dTeTbnHO pncOM CBAITCBcC oFpIaMbIyHmDJIepcOB ARMANI EXCHANGE WmBILKaiHMM CepBHK-CIEHTPMIO pemOHY cac (cm. pnpIaHaMaM cinnok AapcEo).

901 South Central Expressway, Richardson, Texas 75080 USA (CLIA)

日本語

2年間の國際保証

901 South Central Exressway, Richardson, Texas 75080 USA

中文

两（2）年国际保证

*901 South Central Expressway, Richerson, Texas 75060 USA

繁體中文

兩(2)年國際保證

*901 South Central Expressway, Richardson, Texas 75080 USA

中国

2年国

901 South Central Expressway, Richardson, Texas 75080 USA

190 191

AUTHORIZED ARMANI EXCHANGE WATCH SERVICE CENTERS

ANDORRA

Avidal, de Pesobro, 1LOC. ADO700 Escalades-Ecordygonia (2005)

E: [e-mail]

AUSTRALIA

Metro Service Centre
D.C. 66777

Frenchs Forest 2086

Australia

T:0289778086

T:1800.818.853(tollfree)

F:0299390526

E: [e-mail]

BELGIUM/LUXEMBOURG

DAC Attn. Warranty & Repair

Wolfgang Røvean 151

1831Diegem

T: [phone]

E: [e-mail]

#

BRAZE Gruen Technz

Rua Julio Gorgalz, number 132.

27th floor

Barra Funda

Sao Paulo 0156-060

Brazil 1455

1:455(II)3008-1070 2:3008-1070

1:08:00-21:08:00

Metro Service Centre - Canada

214 King Street West - Suite #601 Toronto Ontario

M51700

T：1800+1

E:service@

metroservicecentrecanada.ca

CHILE

Establecimentos California SERTEC

Attn: Carlos Rosales (manager) and

Maria Estelia Nunez

Fossil Trading (Shanghai) Co. Ltd

Km 2504, 257F Grand Gateway

Tower II

3 Hong Gao Road 1000 West 1st St

Xu Hua District, Shanghai 200030

China

1.（60）400-820-3126

Fichshobaltetemr

iifosslcom

COLOMBIA

San Jose, Costa Rica

T:222-0804

1:2256-5706T:8957-0746

1.2257-2349

F:2256-8340E-mail:[e-mail]

E: [e-mail]

DENMARK

Fossil Denmark A/S

Mdtager 29

DK-2605 Brondby

Denmark

1：445458834607

E: [e-mail]

ECUADOR

Grupo Viertina

Tomás Bermur N39-242 y Francisco

Urrutia

Quito, Ecuador

T:（593）23520537

FRANCE

54X501F

SAPV-0091746

Rue du Martelberg 2860037 Manwils

BP 80025 Monwhiler 677015 Immune Eddex

7

France

T:33.88.025252

E:[e-mail]

GERMANY

EESCQ GmbH

Service

PHLLogistikagcr/LPB

Werkstrasse 17

D-77815B0bl

T：49.8651-632.6054

1498601-62260345.10.20016007000

F:498651-6227000

E servicefossil de

GUATEMALA

Watch it!

Attn: Evelyn Guacamaya / Alfredo

Marquieu

Diagonal 13-01 zona 12 Oakland

Mall

T：50223167777

E. seroviciolacnigaiimxuaalamala

com

HONG KONG

Tsen Wan

17年5DWBulldpa

17P,CDW Building 1000-2000

388 Castle Peak Road

Tsuen Wan, New Territories

Hong Kong

T:（852）24378566

[e-mail]

192193

INDIA

Fossil India Pvt. Ltd.

621,12tn Main

HAL II Stage, Indiranagar

Bancalore 560.008

India

T：[phone]

E：+9180.35216789

F:19682321039

E:servicehttp:/cssrl.com

#

INDONESIA Watch Care Centre

Watch Care Centre 10

Menara Sudirman Level 8

JI. Menara Sudirman Kav, 60

Jakarta 12190

Indonesia

T: [phone]

E：+62.21.29272745

IRELAND

Transalliance TS

EAST (Fossil After Sales Team)

F

Eaeay Cour - Centrum 100

Parasay Coont - Centrton 100

Burton Upan Trent

DE14 2WX Safordshire

T: [phone]

F:4403444123281

E:[e-mail]

JAPAN

Fossil Japan Repair Center

Yasuda A building 2F,3-8

E:[e-mail]

KOREA

Fossil (Korea) Limited

5E Samik B/D 5Q

Nophyun-gong, Kangnam-ku

Seoul Korea

1:07-356-0509

3:02-19:0053:[e-mail]

2.1.10.10

KIMMA

ALYONFOLIOOONOOON

At Yasra Fashion Online Service

Center Marina Mall

P

Salmiya, Kuwai

T-965-2-2244515

F-9652-2249301

E: [e-mail]

LEBANON

Romance.

5.0Box773

Fattal building, Jiss el-Wati (Sin

FerEEL

1000

CebanbyBcrt

1+96151200ext337-340

E: [e-mail].1b

MACAU

Tsuwan War

17/ECDW Building

700GbpsDink

888

Iuien War, New Territories

Hong Kong

T（852）24378566

E: Fossil Asia-Altor [e-mail]

MALAYSIA

Fossil Time Malaysia - Service

Centre

CentreUnit1-7-7-7-3rd Floor

1

Wisma Kemajuan

No.2Jalan 19/13

46300 Petaling Jaya, Selangor

1:60379691900

F:60379691909

E:[e-mail]

MEXICO

Metro Service Center Mexico

Carretera Monterrey - Saltillo

1249-A

Col Bio XU

SantaCaterinaNLMexicoG

66762

685021-000376774

1.08002387745

E:[e-mail] mix

E:[e-mail]

NETHERLANDS

Team for Logistics

Att. Warranty & Repairs

Jirwen 16

2153PHNauvVannn

235PTNNEVIEH

E: [e-mail]

NEW ZEALAND

New Zealand

watch world Ltd 1stImprnncr Prcie

453 Arerway Drive

Albany

Auckland

New Zealand

T:034756193

BANAMA

EL Béglie

El Reidel

Attn: sauio

Plaza Concordia, Piso 2

Time Check Service Center

G/F 6750 Retail Arcade, Avala

Center

Avala Avenue, Makati City.

Biliprpoes

T(632)47

[phone]

F:（832）478-61895.00006750

E:timecheck6/[e-mail]

POLAND

FAST

C/O Expeditors Warehouse

AI Krakowska 106

02-256Warraw

T-482357428

F:reklamcag@foss

E. [e-mail]

PORTUGAL

Expeditors:Portugal C/D

ExceftorsPortugalC.

Estrada Nacional IO

Translational

Termnal Term

Armazem B

2815-051A

T:214232000

E:[e-mail]

PUSKI

ROSSIA

Russia

Bern-Art

Kastanaevskaja St, 42, building 2

Moscow, Russia: 12106

T：74952340017

5：7.405.799.0069

F74987999980

E:[e-mail]

SAUDI ARABIA

AlvAsraFashion(OnTime)

Prince Nasser bin Abdul A.7 Street

Behind GuthmFumiture

Bekurin Board Rules

Rhurals Road, Rawal Dis.

Riyadh, KSA

-56612572095

E:[e-mail]

SAUDI ARABIA

Al Yasra Trading

Villa No 19, Al Eya'saeyyah Dist 5

Omer Al Khayyam St.29.Near

AZ12M

dcbK5A

[phone]

14986-26987235

E: [e-mail] E-mail: [e-mail]

E:Jedanwatchworkshop.com

alyasra.com

SAUDI ARABIA

Al Yasra Trading

Rahmaniya Malli, Ground Fl., Gate

4.00

3286 Custodian of The Two Holy

• Mosqueros Rd. Al Khobar al

MOSQUES AG,APKROUER AG

Shamalia

34429 Al Khober, KSA

T：[phone]

E:[e-mail]

E:DammamWatchWorkshop@

2

SINGAPORE

Fossil Singapore Pte Ltd.

Fosn Singaore Pte Ltd. 51 Bras Basab Road

100.07Mw

408-07 MARSF CnHc6

singapore 18954

T:6564318100

E: customerservice,[e-mail]

SOUTH AFRICA

Fossil Accessories South Africa

1

O

Gnrrnre Rgnrnnnne

8005, Cape

South Africa

T:27214780045

E:[e-mail]

E:[e-mail]

SPAIN - CANARIAS

Naeko Logistics S.A. c/o Expeditors

International

Att. Reparaciones Fossil (FAST)

Marce Deu de Nuria 13-15

Taiwan Branch 5F,100,800

SF, NO.221

Zhongxiao East Rd., Soc. 4 Taizhou, Tianjin

Taipei, Taiwan

Thong Sila (Thailand) Limited

347, 349 Muang Thong Thani

Bondstreet Road

Bangpood Subdistrict, Pakkred

District

Nonthaburi III20 Thailand

-6529840888

F: [phone]

[e-mail]

UNITED ARAB EMIRATES

Al Yasra Fashion Ontime Service

Center Optima+Dubal Eventual Center

OntheDubaiFestivalCity

First Floor,shop No.5C227

Dubai

149742833453

E: [e-mail]

UNITED ARAB EMIRATES

Al Yasra Fashion Ontime Service

Center

Ontime Marina Mall

Ground Floor, Unit No 21, Marina

Mall

Abu Dhabi

1:497126818134

E:[e-mail]

UNITED ARAB EMIRATES

Time Bridge fzco

Dubai Airport Free Zone, Unit G21

PO 293706 Duba

T: [phone]

F: [phone]

E:[e-mail]

UNITED KINGDOM

Transalliance TS

FAS1 (Fossil After Sales Team)

Suite 8-9

Faraday Court - Centrum 100

Burton Upon Trent

DE14 2WX Saflordshiro

T: [phone]

F:4403444123281

E: [e-mail]

UNITED STATES OF AMERICA

Metro Service Center - Attn: Repairs

10615 Sanden Drive

Dallas, Texas 75238-1720

T:800-277-4013

E:[e-mail]

URUGUAY

Service Official

Attn: Florencia Sanchis

58 Ba Thang Hai Street, District 10

Ho Chi Minh City

T+84-839634344

T-84-902347534

E:customerservice@watchmecorp.

S8M

CERTIFICATE OF WARRANTY

The CERTIFICATE OF WARRANTY that follows below is to be completed at time of purchase by the retail store where you purchased your watch.

Disposal of Old Electrical and Electronic Equipment

The symbol indicates that this product shall not be mixed with unsorted municipal waste when disposed of. There is a separate collection system for waste electrical and electronic equipment. Usually old electrical and electronic equipment can be returned free of charge. For further information please contact the competent municipal authorities or the shop where you purchased the product. Correct disposal ensures that waste electrical and electronic equipment is recycled and reused appropriately. It helps avoid potential damage for the environment and human health and to preserve natural resources.

NOTE: Certain watch styles are fitted with lithium batteries which may contain perchlorate material. A special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

ENGLISH: Any diamonds used in our products have been purchased from legitimate sources not involved in funding conflict and in compliance with United Nations resolutions. We hereby guarantee that these diamonds are conflict free, based on personal knowledge and/or written guarantees provided by the supplier of these diamonds.
