Product Type	Wrist watch
Brand	Armani
Model	AX4603
Movement	Quartz or automatic depending on variant
Water resistance	Up to 5 ATM (50 m) depending on variant (hand washing, shower, swimming)
Main functions	Hours, minutes, seconds, date, day, chronograph, 24h
Display type	Analog
Crown	Crown with multiple positions (1, 2, 3)
Warranty period	2 years (parts and labor)
Power supply	Battery (quartz) or automatic winding (mechanical movement)
Power reserve (automatic)	Approximately 36 hours
Case material	Stainless steel (estimated)
Glass material	Mineral (estimated)
Strap type	Metallic link (adjustable)
Care and cleaning	Clean with a soft dry cloth. Avoid chemicals.
Safety	Do not set the date between 9 PM and 2 AM to avoid damaging the movement.
Spare parts and repairability	Contact an authorized Armani service center for repair or part replacement.
Dimensions	~40 mm diameter (estimated)
Weight	~150 g (estimated)

Frequently Asked Questions - AX4603 Armani

How to set the time on my Armani AX4603 watch?

Pull the crown to position 2 (or 3 depending on model). Turn clockwise to advance the hands to the desired time. Push the crown back to position 1. Make sure the second hand is at 12:00 if you are setting the time precisely.

How to set the date on the watch?

Pull the crown to position 2. Turn it clockwise (or counterclockwise depending on caliber) to the previous date. Then pull to position 3 to set the time and advance to the current date. Avoid setting the date between 9 PM and 2 AM.

How to use the chronograph on this model?

Make sure the chronograph is stopped and reset. Press button A (top pusher) to start/stop. Press button B to reset. For intermediate timing, press B while timing, then again to resume, and finally press A to stop.

Is my watch waterproof? Can I swim with it?

Water resistance depends on the model. Watches with 5 ATM (50 m) marking are resistant to shower and swimming, but not snorkeling or diving. Check the marking on the case back. Make sure the crown is fully pushed in (position 1) before any contact with water.

What to do if a chronograph hand is not at zero after reset?

Pull the crown to position 3. Press A (or turn depending on caliber) to advance the hand to the 12 o'clock position. Use B to move back if necessary. Push the crown back to position 1.

How to wind an Armani automatic watch?

If it stops, wind it manually by turning the crown (position 1) clockwise about 20 to 30 turns. Then wear it regularly to keep it wound. The power reserve is approximately 36 hours.

How to adjust the length of the metal strap?

Use a pin removal tool. Open the clasp, locate the arrows under the strap near the clasp. Place the strap in the holder, center the pin over the hole, push the pin with the tool, then remove it with pliers. Remove the necessary links. Note that each link has two split pins.

What to do in case of malfunction or defect?

Contact an authorized Armani service center. The watch has a 2-year warranty against material and manufacturing defects. Keep the receipt or stamped warranty booklet as proof of purchase. Shipping costs may apply.

How to set the alarm on the digital model (if applicable)?

For digital models, press B to access alarm mode. Press and hold A for 2 seconds to enter setting. Use C (increase) and D (decrease) to set the time. Press B to move to the next setting. Press A to exit. The alarm activates automatically.

How to change the watch battery?

It is recommended to have the battery replaced by an authorized Armani service center. Opening the case back requires special tools and may damage water resistance. Improper handling may void the warranty.

USER MANUAL AX4603 Armani

1. Pull crown out to position 2.
2. Turn crown to set hour and minute hands to desired time.
3. Return crown to position 1.

DATE MODELS

Date Setting

1. Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day. The direction that moves the date varies on different watch models.

Time Setting

1. Pull crown out to position 3.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.

Do not change the date between the hours of 10pm and 2am. This is the time when the movement is in position to carry out the automatic date change, and any interference may cause damage to the movement.

2 EYE DAY/DATE MULTI-FUNCTION VX36

Date Setting

1. Pull crown out to position 2.
2. Turn clockwise to advance date hand.
3. Push crown back to position 1.

Date and Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands.

The hand showing days of the week will also move with the hour and minute hands.

Keep turning until you have reached the desired day.

MULTIFUNCTION 6P23

Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands. 24-hour hand will move with hour and minute hands. Keep turning to reach desired time.
3. Return crown to position 1.

Date Setting

1. Pull crown out to position 2.
2. Turn crown counter-clockwise to set date.
3. Return crown to position 1.

THREE EYE MULTI-FUNCTION 6P29/6P79

Date Setting

1. Pull crown out to position 2.
2. Turn clockwise to advance the date hand.
3. Push crown back to position 1.

Day and Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands. The hand showing days of the week will also move with the hour and minute hands. Keep turning until you have reached the desired day.

24-Hour Sub-Dial Setting

The 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.

CHRONOGRAPH STOPWATCH VD55 (with date-VD57)

Time and Date Setting

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.

2. Pull crown out to position 2 and turn crown clockwise to set date to the previous day.

3. Pull crown out to position 3 when the second hand is at the 12:00 position, and turn clockwise until the present date is displayed. Continue turning crown to set the correct a.m./p.m. time.

4. Return crown to position 1.

NOTE: When crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

NOTE: To ensure accuracy, do not set the date between 9:00 p.m. and 1:00 a.m.

Chronograph Functions

Basic Function

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

Interval Timing

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

Adjusting the Chronograph Hands to Zero Position

If one or more chronograph hands are not in their correct zero (12:00) positions after pressing B (for example, following a battery change):

1. Pull crown out to position 3.
2. Press A to move the chronograph 1/10 second counter one increment; press and hold A for fast advance.
3. Press B to reset the second and minute counters one increment; press and hold B for fast advance.
4. Return crown to position 1.

CHRONOGRAPH STOPWATCH JS25/VD54 (with date-VD53)

Time and Date Setting

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
   4.Pull crown out to position 3 when the second hand is at the 12:00 position.
3. Turn crown to set time.

NOTE: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.
6. Return crown to position 1
NOTE: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

Chronograph

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

Split Time (VD53/VD54)

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

Chronograph Zero Reset

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1.

AUTOMATIC 82SO/2189

1. Pull crown out to position 2.
2. Turn crown clockwise to advance hour and minute hands.
3. Push crown back to position 1.

NOTE: A timepiece with an automatic winding movement obtains the power to wind itself by the movement of your wrist, there is no battery. Therefore, not wearing the timepiece for several consecutive days could exhaust the power reserve. If your watch stops, it is recommended that you manually wind the movement by rotating the crown clockwise at position 1 to achieve the necessary power reserve.

It is important your timepiece is adjusted to match the size of your wrist. A loose fit may result in a loss in capacity of the timepiece to wind itself. When fully wound, your timepiece has a power reserve of approximately 36 hours.

DIGITAL LED - BJ-3470

Normal Time Display

1. Press B to display time; press B again to change display mode. Mode sequence is time, date and seconds.
2. LED automatically turns off after 5 seconds.

Time / Calendar Setting

1. In time display mode, press and hold A for 2 seconds to enter setting mode. 12/24-hour format will begin flashing.
2. Press B to choose 12 or 24-hour format. For 12-hour setting, "P" will be displayed for afternoon/evening hours. For 24-hour setting, no symbol will be displayed.
3. Press A to advance to hour
4. Press B to increase digits; press and hold B for fast advance.
5. Press A to advance to next setting value.
6. Setting sequence is: 12/24-hour format, hour, minutes, seconds, year, month, date, and
   exit setting mode.
   NOTE: In setting mode, if no pusher is operated for 5 seconds, all changes will be saved and the watch will automatically turn off.

DIGITALUPCR-992A

Time Mode

1. Press B to change modes.
2. Press A for E1
3. Press C to select 12/24 hour format.
4. Press D to enable/disable hourly chime.

Time Setting

1. In time mode, press and hold A for 2 seconds to enter time setting.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to enter next setting field
4. Press pusher A to exit setting mode.

Alarm Mode

1. Press B to enter alarm mode.
2. Press A for EL
3. Press C to select alarm 1 or alarm 2.
4. Press D to enable/disable alarm.

Alarm Setting

1. Press and hold A for 2 seconds to enter alarm setting.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to enter next setting field.
4. Repeat steps 2 and 3 until desired time is selected.
5. Press A to exit setting mode.
   NOTE: Alarm turns on automatically when exiting setting mode.

Chrono Mode

1. Press B to enter chrono mode.
2. Press C to start chrono.
3. Press D to stop chrono.
4. Press and hold D for 2 seconds to reset chrono.

NOTE: Maximum chrono time is 23 hours, 59 minutes and 59 seconds. When chrono

reaches maximum time, it will stop running. Press and hold D to reset value to

run chrono. 1/00s resolution for first 59 minutes and 59.99 seconds.

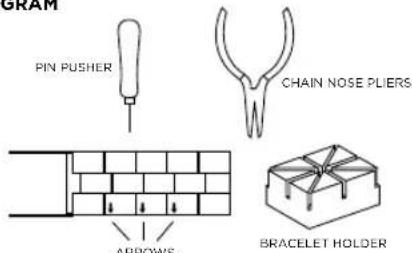

PIN LINK DIAGRAM

Link Removal

To remove a link from a pin link bracelet, you will need the bracelet holder, pin pusher, and chain nose piers (see pin link diagram).

1. Open the clasp on the bracelet.
2. Look on the inside of the bracelet and locate the arrows near the clasp (see diagram).
3. Place the band into the appropriate size slot of the bracelet holder with the arrows pointing down (see diagram).
4. Center the desired pin to be removed over one of the holes in the bottom of the bracelet holder.
5. With the pin pusher, push the pin, as far as possible, through the link
6. Remove the watch from the bracelet holder and simply finish pulling out the pin with the chain nose pliers.

NOTE: Two pins hold each link in place and must be taken out before a link can be removed. Please note that the pins are partially split down the center.

USE PRECAUTIONS - RESISTANCE TO WATER

Water Resistance Water		related Use
Caseback Marking	Depth	5	8	20	7
		Washing Hands	Shower, Bathing	Swimming, Snorkeling	Scuba diving
-	-	X	X	X	X
WR	-	✓	X	X	X
3 ATM	3 Bar, 30 Meters	✓	X	X	X
5 ATM	5 Bar, 50 Meters	✓	✓	X	X
10 ATM	10 Bar, 100 Meters	✓	✓	✓	X
20 ATM	20 Bar, 200 Meters	✓	✓	✓	✓
30 ATM	30 Bar, 300 Meters	✓	✓	✓	✓
50 ATM	50 Bar, 500 Meters	✓	✓	✓	✓
Always set the crown in closed position (the normal position). Tighten screw-lock crown completely.

DEUTSCH

Your ARMANI EXCHANGE watch is warranted by Armani Exchange Watches for a period two (2) years from the original date of purchase under the terms and conditions of this warranty. The Armani Exchange warranty covers materials and manufacturing defects. A copy of the receipt or dealer stamp in the warranty booklet is required for proof of purchase.

During the warranty period the watch movement, hands and dial are the only components covered under this warranty. A covered component will be repaired or the watch will be replaced free of repair charges, if it proves to be defective in material or workmanship under normal use.

In case of replacement, Armani Exchange cannot guarantee that you will receive the same model watch if your model is not available, a watch of equal value and similar style will be provided. The warranty for the replacement watch ends two (2) years from the date the replacement watch is received.

This Warranty Does Not Cover:

Any defects in materials and workmanship of battery, case, crystal, strap or bracelet.

• Damage resulting from improper handling, lack of care, accidents, or normal wear and tear.
• Water damage unless marked water-resistant.

This warranty is void if the watch has been damaged by accident, negligence of persons other than authorized Armani Exchange sales or services agents, unauthorized service, or other factors not due to defects in materials or workmanship.

The foregoing warranties and remedies are exclusive and in lieu of all other warrants, terms or conditions, express, implied or statutory, as to any matter whatsoever, including, without limitation, warranties of merchant liability, fitness for a particular purpose, accuracy, satisfactory quality, title, and non-infringement, all of which are expressly disclosed by Armani Exchange. Armani Exchange shall not be liable for incidental, consequential, indirect, special or punitive damages or liabilities of any kind arising out of or in connection with the sale or use of this product, whether based in contract, tort (including negligence), strict product liability or any other theory, even if Armani Exchange has been advised of the possibility of such damages and even if any limited remedy specified herein is deemed to have failed of its essential purpose. Armani Exchange's entire liability shall be limited to 16/6/7

replacement or repair of the purchase price paid, at Armani Exchange's sole option.

Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages so the above limitations and exclusions may be limited in their application to you. When implied warranties may not be excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty gives you specific legal rights; you may have other rights that may vary depending on local law. Your statutory rights are not affected.

FOR AUSTRALIAN CUSTOMERS: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonable foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Requesting Warranty and Other Watch Repair

Should you require work under warranty, please send in your watch, a copy of your sales receipt and/or the warranty booklet with dealer stamp and a description of the problem to the authorized international watch service center closest to you (see enclosed list of addresses).

For service work that is not covered under this warranty, the service contract may perform those services you request for a charge dependent on watch style and type of work requested. These charges are subject to change.

Do not send original packaging, as it will not be returned. Armani Exchange highly recommends you insure your parcel and adequately protect the watch during shipment. Armani Exchange is not responsible for product lost or damaged during shipment.

For repairs of your ARMANI EXCHANGE watch we recommend that you contact an authorized Armani Exchange dealer or the authorized international watch service center closest to you (see enclosed list of addresses).

In the U.S., there is a (8.50 handling charge to cover return shipping, insurance and handling to U.S. addresses. International addresses will have a higher shipping charge.

*901 South Central Expressway, Richardson, Texas 75080 USA

DEUTSCH

INTERNATIONALE ZWEI (2)-JAHRES-GARANTIE

*901 South Central Expressway, Richardson, Texas 75080 USA

FRANÇAIS

GARANTIE INTERNATIONALE DE DEUX (2) ANS

*901 South Central Expressway, Richardson, Texas 75080 USA

ESPANOL

GARANTÍA SOLO PARA ESPaña

*901 South Central Expressway, Richardson, Texas 75080 USA

PORTUGUES

GARANTIA VÁLIDA APENAS PARA PORTUGAL

*901 South Central Expressway, Richardson, Texas 75080 USA

BAHASA INDONESIA

JAMINANINTERNASIONAL2TAHUN

*901 South Central Expressway, Richardson, Texas 75080 USA

POLSKI

901 South Central Expressway, Richardson, Texas 75080 USA

PYCCKN

MEXKNYHAPODHAR TAPAHTHA HA 2 (DBA) TODA

CorIaHO yOIOBIMH IOIOJEKHM HACOTIOH rapAHTNIA, KOMIaHbArM arAmI Exchange Wachs" npOcctABnHET rApAHTMO HAaBH Nacb ARMANI EXCHANGE cpoKOM h DaBa (2) Toa C nepBOaHaHbHO dATo bNOyIKN. HaCToBAPARNAH PAAPocpTaHnTcRt Hae Na DeEeKbTu MATEBAPAA I MTOrTOBHeHH. B KaueCTe NoDTHBePKeHn NOKYNkHeNoE6XoDmO npDeBAtBn KOINK KBITAHm NmN 380JONHEHHRAPaHTNIM bTANO.

B TceHHHO rappHTHORO capa haoCHM oMAxHMM, cTpeKIN uDcpe6nAT RABRIOT CHTMHBHMM KOMIHOTHEHMON, NKpHbRAaCmMHN JIeHARoAHJTHBEHIO, NKpBbHaBMcEHHARoAHJTHMcKOMIHOTHEMQNIXKT BecnHtAHOMy EMOHNTY HwSyET CEniHaNA SeCNITAH MZemaHACXn pRnHApKYEKNH NcDEKCTA MATePNAA ININ PPOV330DCTHEHORO DEKCTA pYNCOBNP nRaBbHORO NCNOB30SAHA.

B Cnya 3A mEHNbM, Mbl N moKem JapAHTHIOPOBaT bpeOCTABHNEHcAoc TOJ Xe moENDb. PnO TCYTCBIM BauoM MoNl BM bydy T nePdoXeHb HcBb, paBOHOOHHe NO CTOMOCTIN NO KxOeH No CTNI0. 1gAHHmI cpoK ZAMEHHHb YacOB INKTAEt Iep32 (Jba) RoDa c TaBHn OYHNNHm 3A mEHNHBHX aCBOs.

Hactoana rapaHTHa He paonpoCTpaHRaTHa:

• DepeKthMaTePnaIOB N npOK3BOcTBeHHbIe DepeKTh BApTaE, Kopnyca, cTeKIIa, pEmHr mnn OpaCeta.
  NIOEHNHNEHNHEENHNEHNHEHNEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNOEHNHO HNO
  PobpecknBBOO,ecnnacbHe ABNATCBAOcyTOHBMOeBIO

Hactoiaa rapaHTnA aHHNpyTcB Cnyae, cEmy BbI NnoPoeKdeHbCnyAHIO HNO HOCTOPOXHOCTNIAMM. He ABNOIOOMMC yNOHMOHOHBMTOPOBBMI INI CTPAOXOBIM AROTAMM Emporio BANI, a TAKKE BpeyntBaTE HEPaTeeHNOHO TReHMeKcKO HOBQyKBAHIN MIN IPOHX pKaTOpAR, BO3MHKxHHe IIO PpNHMe DEpKaT MaTePMAH NIN KTOROBIIHN

BbIeHOMNHyTbe rapAHTHIN n CpeCTBa IpaBOOB 3aJIHTBn RIRTOCH VICKIOHHTeBbIMM N 3AMeHHOT COBc Bce IpoHHe rAPAHTHIN, YCOBAH IN IOLOKHEHMA, Dby To RBN BOUpAKHEHNE, NOpDAyMEBAEMBE HIN PpOcYDmOTEHHEK3ZKHOADATEBCTOMN, NoIOOFOBNPCC, BKNIOAR, Eze pAOHPAAHRE, rApAHTHIO ROD HOAHTN dnpOJIKX, PnIOoTHOHD TBN I cNOHbOABAHN NO HAHAHENHO, TOOHCTb, YOBDNETBPOTHTBEHO KAEHTEO, PpAO BIAIDAHN OTCYCTTBNE HAPUYEHN, B OTHOOHNN KOTOPBX KOMMANH He DaT KAKHX-NMO OBaATenBCTB. KOMANHAR He Hecet OTBeCTBHeHOHCTBa cNYauHbne, NIOOVAHBE, KOCBENHBE, fakTIVCKME HIN UNTPAChhye bYbTKnA, A TAKHE MEET KAKKNI-MNO OBATAHNE B03KHNAOUK BNCIEITMBN H BCSR N CPOdAKOKI HN NCNOBHOMAH DAMHIRO HIOEIN, B CYI NODOBOPA HN NIDHKTA (KIOVQAY ECOTHOXKHO) CTPORTOBTBHeHOHCTSa KACHOCTBO B6OzONACHOCT ToaAra NIOLOBbX HINN PnIHON, DAKe ECIN CHA BbNA YDEDMNHBA O B03MOKHOCTAN TAKHX KIOH N KOEBMPAR HAI TOF qAKT, YTO JIOBOE OPAHENHoe CpeCTBO PABOBOR 3aJIHTBn MIOJOKEHHE B HACTOUIIe PAHANTH, He DCSTHTIO CBOW OHOBH CEIL. BeCb oBcH Maueh OTeBCTHeHOCTOn OPaAHNBaaTc, NO CooCTBHeHMGY cOMTpeHHKO KOMANH, 3AEMHOHN pENOMOTH INDENJIAB P aMaPeE rzo 3AKYQNoOHUEb.

B HOKOTOPbX cTPAHAX, IITATAX IMN NPOBIMHIXHX He DNOYCKAGTCN KNCIOHHEHN IORPAAHHEHNE NOA3y- MeBBMEBHX rAPAHNTI INM OPAHAYEHNE NOOHOHIX XN KOKCHENHbX yBbTKOS; NOSTMY BwEuyK3AHHHe b ORPAHMeHN I NKCHIKHEN MORYT BbBy OPARAHHEH B BAAMC Hcy-A. B TOM cy-Ae, KOGI pAAO3yBAEMBE HApAHNTM OMYT BbBy NNOCTBO NKOLOHcH, OH BYD TY OPAHARHcH IINTELEBOCTIO PIMHMOM NRCMBEHON HAPAHNTI DAHAI PAHRHpNPODOCTABNET BAM KOHKPTBHe IOPHNIECKNE PPABA; BbMOKETE mMeTbI dpyrnpa B a 3A6HCMIOTn MTCEHTs ZAKOHBO.Bauin ppaba, NIOIOKEHN BAM POZAKHY, OCTAOTCR HOHNMEHBMM.

182183

Tpe6oBaHHe rapaHTnHoro n npOyero pEmoHa YacOB:

B Cnyae Hoo60xdmoctn, OtnpaBaTe B 5nnKaiuuiin cepHNC-ueHr Tacbl, HAXOaHUNcHa rapaHTNtHOM 6cbNyKbAHm, KOIO KBBaTHUINu nnraIpaTHTNHO TANOA; a TAKKE ONCAHME npo6nem (Cm. npiTaAe bEmi Cnnck Apecec)

B KaehcttepeMCHTA, He NOKpIbABMOI DAHHOI RAPAHHE, CEPBIO-UEHTP MOKET PPEIOCTABITIpeOyE MBE BAMN yCJYrN 3A nATy, B 3aBMCMOCT OH BA DAcOB IN TINBA BILIOJIeHHHOI PAoBTu. PaCzEHKn HA 3TN yCJYrN MOIT MEHRtCR.

Pocba He npncbIaTb N3dene B opHnabHo ynaKoBKe, Nockolky OHa HE Bo3paaaTcra. HactoTeBHeNo peKoHNOyO M 3actpXoBaTb NoCBykN oObecnoHTb HaNDekxuMpeCDECTBa 3auNTb Yacob BO BpEma Ix TPAcoNOpTIpOBKa. Mbl He Hocem OTBETCBHHOCb 3a ToBap, yTOeRHHm NnNobpeKedHHB B npcepe TaHONOpTVPCKn.

PnHnE6bOoMnCTexHHNecKc0rO6bIyXhBaHmBaBHXxYacOB ARMANI EXCHANGE,y6dIeTbnHO npCmCBaTBCoFpAImBaHmBnDpEeR AMRNI EXCHANGE WnBnIkaHmBcBnIC-ueHTPom no pemOHcyacOB (cm. pnpIraMaM CnKocAepcOB).

901 South Central Expressway, Richardson, Texas 75080 USA (CLIA)

日本語

2年間の國際保証

901 South Central Exressway, Richardson, Texas 75080 USA

中文

两（2）年国际保证

*901 South Central Expressway, Richerson, Texas 75060 USA

繁體中文

兩(2)年國際保證

*901 South Central Expressway, Richardson, Texas 75080 USA

中国

2年国

901 South Central Expressway, Richardson, Texas 75080 USA

190 191

AUTHORIZED ARMANI EXCHANGE WATCH SERVICE CENTERS

ANDORRA

L'ESCAIRE Avda. del Pesebro, 1 LOC.2

AD700 Escalades-Engordany T:172566400

1:378869400E:ccsarc@arjunprclad

E. coliO157:H7

AUSTRALIA

Metro Service Centre
P.O. Box 6773

P.O.Box 6277 Frenchs Forest 2086

Australia

T:0259778086

T:1800 818 853 (tooll free)

F:0299390526F:14788888888

E: customercare. [e-mail]

BELGIUM/LUXEMBOURG

DAC Att. Warranty & Repairs

woluwelaan 151

1831Diegem

T：[phone]

E: [e-mail]

#

BRAZIL Greece Technics

Grabo Technics
Rue Julio Gonzalez, number 132

27th floor

Barra Funda Sir John H. Smith

Sao Paulo Off56-080
Bengal

E+201T: +55(1) 30

1.499（H）308-1070T:2222771226

:0800-721-0108E-mail:[e-mail]

K and K Tme studio Hristo Balghou Str.47

Hristo Belchev 47
1000 Sofia

E: [e-mail]

BULGARIA N

Vreme Dimitrios/kechentiny@sta.27A

Dimitar Konstantinov 5800 Pleven

E: [e-mail]

CANADA

Metro Service Centre - Canada

214 King Street West - Suite #601 Toronto, Ontario

154700

MSH 358
T1-800H

F:servi#

metroservicecentrecanada.ca

CHILE

Att: Carlos Rosales (manager) and Mina Esterio Naei

Fossil Trading (Shanghai) Co. Ltd

Rm 2504, 25/F Grand Gateway

Tower II 7.10.2.16

3 Hong Gao Road Xu Hui District, Sh

China

T:(86)400-8

F:(862)-64148-2733

E: shanghaicustomererservicegroup2

@fossil.com

COLOMBIA

TSQ S.A. - Servicio Tecnico de Mexico, Mexico

Centro Comercial Hacenda Contact Person: Adriana Sanchez

Call:44764-93local G-373

Cane 194-6 - 92 1054C-235 Santa Barbara, Colombia

T:2132588.6121832

E: serviciotecnico@timecenter.

com.co

COSTARICA

Guialsa S.A.
Attn: Gao Chen

Attn: Juan Carles 708 Matres Norte

200 Metris Norte Del NIA en

Paseo Colón
San Jose, Costa Rica

T:223-0804

3BB Castle Peak Road

Tsuen Wan, New Territories

Hong Kong

T:（852）24378566

E Fossil [e-mail]

192 193

INDIA

Fossil India Pvt. Ltd.

621, 12th Main

HAL II Stage, Indiranagar

Bancalore 560.008

India

T: [phone]

F: [phone]

E:[e-mail]

INDONESIA HONGKONG

Wate Care Centre

Mennnne 6

1

DE14 2WX Saffordshire

T: [phone]

F:4403444123281

E:[e-mail]

JAPAN

Fossil Japan Repair Center

Yasuda A building 2F,3-9

Moriya-cho Kanagawa-ku

Yokohama, 221-0022

Japan

1:81-3-8992-4611

F:81-43-450-6243

[e-mail]

KOREA

Fossil (Korea) Limited

6F Samik B/D,50

Nonhyun-dong, Kangnam-ku

Seoul, Korea

T:02-2156-0600

E:[e-mail]

KUWAIT

Al Yasra Fashion Ontime Service

Center

Marina Mall

Salmiya, Kuwait

[phone]

-9652-224930

E. [e-mail]

LEBANON

Romance

P.O.Box773

Eattal building, Jsr el-Wati (Sio

el-Fid)

Lshapan/Beju

T:[phone]ext337-340

E: nardine sfeingfartol com.

MACALL

Tsen Wan

17/FCDWBuildings

100

Tayun Wan, New Territories

HongKong

T（852）2437.8566

E:[e-mail]

MALAYST

Parsi Time Malaysia - Service

Centre

Unit C2-2-7, 2nd Floor

Wisma Kemajuan

No.2Jalan 19/13

46300 Petaling Jaya, Selangor

T:60379691900

F:60379691909

E:[e-mail]

MEXICO

Metro Service Center Mexico

Carretera Monterrey - Saltillo

1249-A

Col. Pio X1

Santa Catarina, N.L. Mexico C.P.

66362

T:018002367745

E:[e-mail]

NETHERLANDS

Team for Logistics

Attn Warranty & Repairs

Lireweg 114

Time Check Service Center

G/F 6750 Retail Arcade, Ayala

Center

Ayala Avenue, Makati City

Philippines

1:632478-6167

F:[phone]

E: limecheck,[e-mail]

POLAND FAST

6/0Eurartm)Vorheovs

10

2020-074

02-258Warsaw 14032576428

E:relkamc@fossil

PORTUGAL

ExpeditorsPortugalC/O

Espanocitrans

Estrada Nacional IO

Terminal Termin

Armazem B.

2815-051A

T:214232000

E:[e-mail]

ROSSIA

Russia Dorni Art

Bertie Kartaparukha 51,42 building 3

Maae 10236

T：7.4852340017

5：7.405.799.0069

5.1007-02-03

E. DERRICH

SAUDI ARABIA

Alyasra Fashion (OnTime)

Prince Naser Bin Abdul Aziz Street

Behind GuthmFumiture

Khurais Road, Rawda Dist.

Riyadh, KSA

-56612572095

E:[e-mail]

SAUDI ARABIA

Al Yasra Trading

Villa No 19, Al Faysaleyyah Dist 6

Omar Al Khayyam St. 29, Near

Aziz Mall

Jeddah, KSA

1：[phone]

E:[e-mail]

E:JeddahWatchWorkshop@

alyasra.com

SAUDIARABIA

AI Yasra Trading

Rahmanlya Mall, Ground Fl, Gate

4,Shop#10

3286 Custodian of The Two Holy

Mosques Rd.,At Khodar At

Shamalia

34429AtKnobar, kSA

T: [phone]

E:[e-mail]

E:DammamWatchWorksnopq

alyasra.com

SINGAPORE

EossilSingaporePteLtd

51 Bras Basah Road

08-07 Manuilia Centre

Singapore 189504

16554012190

5.2019年4月16日

2.00000000000000000000000000000000000000

SOUTH AFRICA

Fossil Accessories South Africa

Unit 5A, Somerset Square

Off Highfield Rd, Green Point

8005 Cape Town

South Africa

T+27.21460045

E:[e-mail]

E: [e-mail]

SPAIN - CANARIAS

Naeko Logistics S.A. c/o Expeditors

International

Att. Reparaciones Fossil (FAST)

Marce Deu de Nuria 13-15

Zhongxiao East Rd., Soc. 4 Taizhou, Tianjin

Taipei, Taiwan

T:（886）28773991

F:886287714477

E:[e-mail]

THAILAND

Thong Sila (Thailand) Limited

347, 349 Muang Thong Thani

Bondstreet Road

Bangpood Subdistrict, Pakkred

District

Nonthaburi III20 Thailand

-6529840888

F: [phone]

[e-mail]

UNITED ARAB EMIRATES

Al Yasra Fashion Ontime Service

Center Optima+Dubal Eventual Center

OntheDubaiFestivalCity

First Floor,shop No.5C227

Dubai

1.497142833453

E: [e-mail]

UNITED ARAB EMIRATES

Al Yasra Fashion Ontime Service

Center

Ontime Marina Mall

Ground Floor, Unit No 21, Marina

Mall

Abu Dhabi 1971-025

1:497126818134

E:[e-mail]

UNITED ARAB EMIRATES

Time Bridge fzco

Dubai Airport Free Zone, Unit G21

PO 293706 Duba

T: [phone]

F: [phone]

E:[e-mail]

UNITED KINGDOM

Transalliance TS

FAS1 (Fossil After Sales Team)

Suite 8-9

Faraday Court - Centrum 100

Burton Upon Trent

DE14 2WX Saflordshiro

T: [phone]

F:4403444123281

E: [e-mail]

UNITED STATES OF AMERICA

Metro Service Center - Attn: Repairs

10615 Sanden Drive

Dallas, Texas 75238-1720

T:800-277-4013

E:[e-mail]

URUGUAY

Service Official

Attn: Florencia Sanchis

58 Ba Thang Hai Street, District 10

Ho Chi Minh City

T+84-839634344

T-84-902347534

E:customerservice@watchmecorp.

S8M

CERTIFICATE OF WARRANTY

The CERTIFICATE OF WARRANTY that follows below is to be completed at time of purchase by the retail store where you purchased your watch.

Disposal of Old Electrical and Electronic Equipment

The symbol indicates that this product shall not be mixed with unsorted municipal waste when disposed of. There is a separate collection system for waste electrical and electronic equipment. Usually old electrical and electronic equipment can be returned free of charge. For further information please contact the competent municipal authorities or the shop where you purchased the product. Correct disposal ensures that waste electrical and electronic equipment is recycled and reused appropriately. It helps avoid potential damage for the environment and human health and to preserve natural resources.

NOTE: Certain watch styles are fitted with lithium batteries which may contain perchlorate material. A special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

ENGLISH: Any diamonds used in our products have been purchased from legitimate sources not involved in funding conflict and in compliance with United Nations resolutions. We hereby guarantee that these diamonds are conflict free, based on personal knowledge and/or written guarantees provided by the supplier of these diamonds.
