FG95 - Deep fryer GIRMI - Free user manual and instructions

Product type	Air fryer
Brand	Girmi
Model	FG95
Power supply	230 V~50/60 Hz
Power	1500 W
Container capacity	3.2 L
Temperature range	80°C to 200°C
Timer	Up to 60 minutes
Preset cooking programs	8 programs (fries, bacon, chicken, shellfish, meat, dessert, vegetables, fish)
Control type	Digital with LED display and rotary knob
Special features	Automatic shut-off, resume cooking after removing basket
Container material	Non-stick
Basket material	Non-stick
Cleaning	Do not immerse; clean exterior with damp cloth; container and basket hand washable (avoid dishwasher and abrasive sponges)
Safety	Automatic shut-off when basket is removed
Usage	Household use only
Spare parts	Contact authorized after-sales service

Frequently Asked Questions - FG95 GIRMI

How to use the Girmi FG95 air fryer for the first time?

Before first use, wash the container and basket thoroughly with hot water and mild detergent. Dry them well. Run the appliance empty at maximum temperature (200°C) for about 10 minutes to eliminate odors. Let it cool, then clean again. You are now ready to cook.

What cooking programs are available?

The appliance offers 8 preset programs: fries, bacon, chicken, shellfish, meat, dessert, vegetables and fish. To select them, press the MENU button several times until the desired program blinks, then confirm by pressing the rotary button.

How to set temperature and time manually?

Press the rotary button once: the temperature blinks. Turn the knob to set the desired temperature (80°C to 200°C). Press again: the time blinks. Turn to set the time (up to 60 minutes). Press START/PAUSE to start cooking.

Can I use oil in the fryer?

No, never fill the container with oil. The fryer works by hot air circulation. You can add a small amount of oil (a teaspoon) directly on the food to make it crispier, but not in the appliance.

How to clean the container and basket?

Unplug the appliance and let it cool. Remove container and basket. Wash them by hand with hot water and dish soap, using a non-abrasive sponge. Do not put them in the dishwasher and do not use metal scouring pads to avoid damaging the non-stick coating. Dry thoroughly before reassembling.

What if my food is not cooked enough?

If after the programmed cooking time the food is not cooked to your liking, put the container back in the appliance and add a few extra minutes. You can also increase the temperature. Check the cooking in progress by removing the basket (cooking stops automatically and resumes when you put it back).

Can I cook frozen foods?

Yes, the air fryer is ideal for frozen foods. Refer to the cooking chart in the manual: for example, thin frozen fries require 18-25 minutes at 200°C. It is recommended to shake them halfway through for even results.

How to shake food during cooking?

Grip the handle, remove the container (watch out for steam) and shake it back and forth. Do not press the release button (7) during this operation. Put the container back; cooking resumes automatically where it left off.

What does automatic shut-off mean?

The appliance stops automatically when the container is removed. This is a safety and convenience feature: you can check or shake food without turning off the appliance. It resumes cooking as soon as you put the container back, without losing settings.

What to do in case of abnormal odor or noise?

During first uses, a slight odor may be released; this is normal. If the odor persists or you hear unusual noises, unplug the appliance immediately. Check that no foreign object is blocking the ventilation grill. If the problem persists, contact an authorized service center. Do not attempt to repair the appliance yourself.

USER MANUAL FG95 GIRMI

Exterior view of a modern stainless steel air fryer with a blue lid (no text or symbols visible)

Friggitrice ad aria

Air Fryer - Freidora de aire - Fritadeira a ar

Safety Instructions.... p. 9

General information.... p. 12

FG95 p. 13

Cooking.... p. 13

Control panel.... p. 13

Functioning....p. 13

Settings.... p. 14

Cleaning....p. 15

Technical features.... p. 15

Waste of electric and electronic equipment (WEEE

Directive).... p. 22

FRANCAIS:....p. 15

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

NOMENCLATURA FG95

Diagram of a hand operating a cylindrical device with an upward arrow, no text or symbols present

Fig.2

Line drawing of a portable air fryer with handle and control panel (no text or symbols)

Fig.3

Line drawing of a modern air fryer with a handle and lid, showing internal components without any text or symbols.

Fig.4

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity

grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

-Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the

appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Not for commercial use. Household use only If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty. the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

- Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements. Do not fill the pan with oil as this may cause a

fire hazard.

Do not cover the air inlet and the air outer openings while the appliance is operating. Never touch the inside of the appliance while it is operating.

GENERAL INFORMATION

The surfaces of appliance shall not be placed against a wall. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance.

Never touch the inside of the appliance while it is operating. The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

Do not place anything on top of the appliance.

Handle with care fresh-cooked food to avoid risk of burning.

Never leave the appliance unattended while it is running. Remove the plug after each use.

Do not place the oven in water or other liquids and avoid splashing of liquids on the unit.

During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from air outlet. Also be careful of hot steam when you remove the pan from appliance.

Before every use, unroll the power cord.

Do not use the appliance as a heating unit. Do not insert anything in the ventilation windows.

Before cleaning, always unplug the unit from the electrical outlet and wait for the complete cooling of each part of the appliance.

Remove all packaging materials from the cooking compartment. Put on solid and stable surfaces only.

Always leave enough space at every sides of the oven when the unit is working.

Do not use the oven as shelf support for objects or as place to store food, pots, containers, etc..

FG95

1 Working light

2 Control panel

3 Knob

4 Housing

5 Basket

6 Container

7 Basket release button

8 Handle

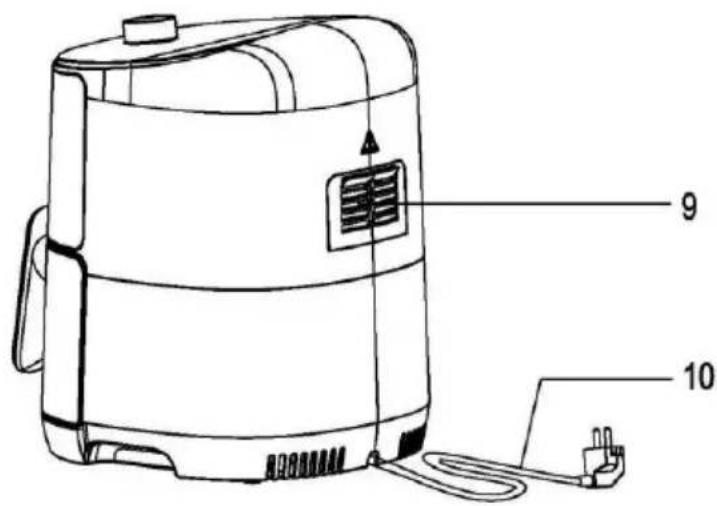

9 Air outlet

10 Power cord

COOKING

Carefully wash all accessories and the inner housing first. Allow to ventilate the internal compartment keeping the container (6) away for about 30 minutes. Before starting with the first cooking, turn on the appliance for 10 minutes at the maximum temperature.

• Connect to a suitable and earthed power socket.
• Extract container (6) with care (Fig.4).
• Insert food in the basket (5). Re-place the container (4) (Fig. 3).
• If appliance went in standby, press knob (3) for 1 second.
• Set program, temperature and time of cooking, as explained in following paragraphs. Press to start cooking.

Caution: Never use container (6) without basket (5). Do not touch container or inner parts of appliance during cooking and until complete cooling. Touch only the handle (8).

- Some foods should be mixed and shaken at half cooking. Take the handle (8) and extract container (6). Shake it, then replace in its position.

Caution: don't press button (7) on the handle during this operation. (Fig.3)

- When you ear the timer sound (5 beeps), cooking time is finished. Extract container and check if food is ready. If not ready, replace container in its position and set additional cooking of some more minutes.

Note: appliance can be switched off manually, pressing knob (3) for 1 second.

- To remove food, take out container and put on a surface that can sustain hot temperature (200°C); press button (7) and lift the basket (5).

Be careful to the hot steam when you remove container after cooking.

Don't turn the basket upside down (5) if it is linked to the container (6), because oil and cooking residues on the bottom of container could drip on the foods.

• Empty the basket in a container or in a dish.
• Once cooking finished, if you want to start another one, air fryer is immediately ready.

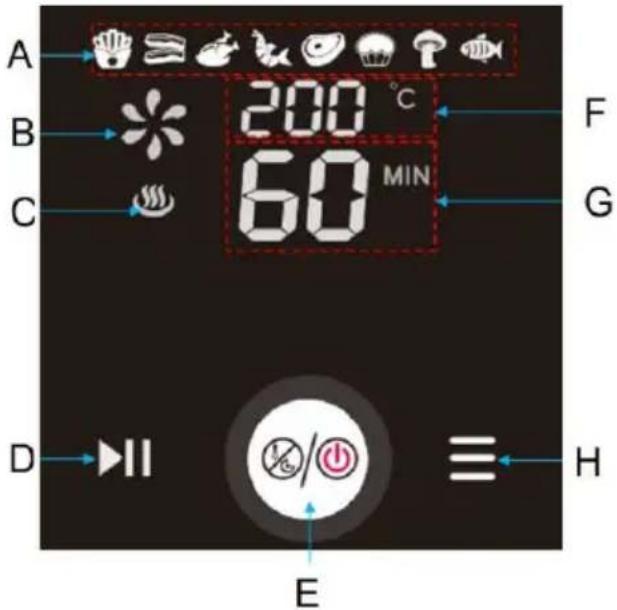

CONTROL PANEL

A. Icons for 8 preset programs
B. Icon motor working status
C. Icon heating element working status
D. Button START/PAUSE
E. Knob
F. Temperature
G. Time
H. Button MENU'

FUNCTIONING

MANUAL FUNCTION

• If appliance went in standby, press knob (E) for 1 second.
• Press knob (E) once, temperature (F) flashes. Set temperature rotating the knob (E).
• Press knob (E) a second time, minutes (G) flash. Set time rotating the knob (E).
• Press to start cooking. Icons (B e C) show the state of fan and heating element.

Diagram of a hand using a tool to press or install a cylindrical device with vertical slots, showing an upward arrow (no text or symbols present)

Fig.2

Line drawing of a portable air fryer with handle and control panel (no text or symbols)

Fig.3

Line drawing of a modern air fryer with a handle and lid, showing internal components (no text or symbols)

Fig.4

PRESET PROGRAMS FUNCTION

• If appliance went in standby, press knob (E) for 1 second.
• Press button MENU' (H) once, the first program (A, fries) flashes.
• Pressing again button Menù (H), you can choose between 8 preset programs: chips, bacon, chicken, shellfishes, meat, sweets, vegetables, fish.
• When the chosen program flashes, press knob (E); temperature (F) flashes.
• Set temperature rotating the knob (E).
• Press knob (E) a second time, minutes (G) flash. Set time rotating the knob (E).

Note. Time and temperature set on each program are studied to have correct cookings for the relative food. It is advised to change time and temperature only based on experience (eg. Previous cookings not finished or too long).

- Press to start cooking. Icons (B e C) show the state of fan and heating element.

During cooking:

• Do not extract the container if not necessary to mix or check food cooking.
• You can change time and temperature.
• You can stop appliance pressing knob (E) for 1 second.
• If you extract container (6), to mix as example, cooking goes in standby and when you the replace container it restarts from the stopping point.

SETTINGS

This table below will help you to select the basic settings for the ingredients.

Note: these settings are indications, as depend on personal taste, origin and type of food, ecc.

	Min-max Amount (g)	Time (min.)	Temp (°C)	Shake	Extra information
Potato & fries
Thin frozen fries	300-500	18-25	200	Yes
Thick frozen fries	300-500	20-25	200	Yes
Potato gratin	500	20-25	200	Yes
Meat
Steak	100-500	8-12	180	No
Pork chops	100-500	8-12	180	No
Hamburger	100-500	10-20	180	No
Chicken breast	100-500	15-20	200	No
Snacks
Frozen chicken nuggets	100-500	12-15	200	Yes	Use oven-ready
Frozen fish fingers	100-400	6-10	200	No
Frozen bread crumbed cheese snacks	100-400	8-10	180	No
Stuffed vegetables	100-400	15-18	160	No
Baking
Cake	300	8-10	190	No	Use additional baking tin
Quiche	400	20-22	180	No
Muffins	300	15-18	200	No	Use additional baking tin/oven dish
Sweet snacks	400	20	160	No

Note: Add 3 minutes to the preparation time when you start frying while the Hot-air fryer is still cold.

Tips

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time.

• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.

• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.

• Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer.
• Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients
• To reheat ingredients, set the temperature to 150 °C for up to 10 minutes.

CLEANING

Clean after every use. Unplug the unit from the electrical outlet and allow each part to cool down before starting any cleaning procedure. Remove container to make the unit cool down faster

• Do not place oven in water. In any case prevent splashes of water or other liquids from reaching the unit.
• Wipe the outside of the appliance with a moist cloth.
• Clean the heating element with a cleaning brush to remove any food residues.
• Clean the inside of the appliance with hot water and non-abrasive sponge.
• Container and basket can be washed as normal non-stick pans, but we suggest to not use dishwasher. Do not use metal kitchen utensils or abrasive sponges or abrasive cleaning materials to clean them, as this may damage the non-stick coating

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. Power: 1500W
• Non stick container and basket – Basket capacity 3,2 L
- Adjustable temperature (80° - 200°C) - Timer 60 minutes
• Digital Display - 8 preset programs

FRANÇAIS: AVERTISSEMENT

Illustration of a hand using a tool to press or install a cylindrical component with an upward arrow (no text or symbols)

Fig.2

Line drawing of a modern air fryer with handle and control panel (no text or symbols)

Fig.3

Line drawing of a mounted air fryer with handle and control knob (no text or symbols)

Fig.4

FONCTIONNEMENT MANUEL

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RÉSIDUS D'APPAREILS ELÉCTRIQUES ET ELÉCTRONIQUES

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
