Brand	Blaupunkt
Model	BP4002
Product type	Immersion blender with glass bowl
Power	Approximately 400 W (estimated)
Bowl capacity	1.5 L (estimated)
Bowl material	Glass
Blade material	Stainless steel
Speeds	Variable + Pulse/Turbo function
Control	Rotary knob: Pulse / Off / Speeds
Number of blades	4 cross blades
Lid	Removable with pouring cap
Handle	Integrated into bowl
Non-slip feet	Yes, under the motor base
Cable length	1 m (estimated)
Power supply	220-240V ~ 50/60 Hz
Dimensions (L x W x H)	20 x 18 x 40 cm (estimated)
Weight	1.5 kg (estimated)
Safety	Motor stop in case of overheating; very sharp blades
Maintenance	Blades and bowl dishwasher-safe; motor base wiped with a damp cloth
Warranty	2 years (excluding improper use)
Country of manufacture	China
Standards	CE, compliant with European directives

Frequently Asked Questions - BP4002 BLAUPUNKT

What to do if the blender does not start?

Check that the appliance is properly plugged in and that the outlet works. Make sure the bowl is correctly attached to the motor base. If the motor heats up, unplug and let it cool for 15 minutes before trying again.

Can I blend hot foods?

Yes, but with caution: do not fill the bowl beyond half and use a low speed to avoid splashing. Let very hot liquids cool before blending.

How to clean the appliance properly?

Always unplug the appliance before cleaning. The blades and bowl are dishwasher-safe. The motor base should never be immersed; wipe it with a damp cloth. For a quick bowl cleaning, fill with water up to 4 fingers deep, add a drop of dish soap, and use the Pulse function.

What does the Pulse/Turbo function mean?

The Pulse (or Turbo) function runs the motor at full speed as long as you hold the knob in the Pulse position. Release to stop. Ideal for quick chopping or dislodging stuck food.

Can I blend without liquid?

No, it is recommended to add a little water, milk, or other liquid to facilitate mixing and avoid overloading the motor. Never run the appliance empty.

Are the blades interchangeable?

This model does not include interchangeable blades. In case of wear, contact Blaupunkt technical service for compatible replacement parts.

Can I use the blender for ice cubes?

No, this blender is not designed to crush ice cubes. Use only for soft foods or liquids. Hard pieces may damage the blades.

What to do if the motor smells burnt?

Unplug the appliance immediately and let it cool completely. Check that you have not exceeded the maximum capacity or that the foods were not too hard. If the smell persists, contact technical service.

Is the glass bowl impact resistant?

The bowl is made of tempered glass, resistant to moderate thermal and mechanical shock. However, avoid drops or sudden temperature changes (do not pour boiling water into a cold bowl).

How to get a finer texture?

Blend at maximum speed for longer. For soups, blend in bursts (Pulse) then continuously. Add enough liquid to facilitate blade movement.

USER MANUAL BP4002 BLAUPUNKT

Exterior view of a modern blender with clear glass lid and black handle (no text or symbols visible)

Enjoy it.

DATOS TÉCNICOS

Front view of a modern blender with clear glass and black handle (no visible text or symbols)

Enjoy it.

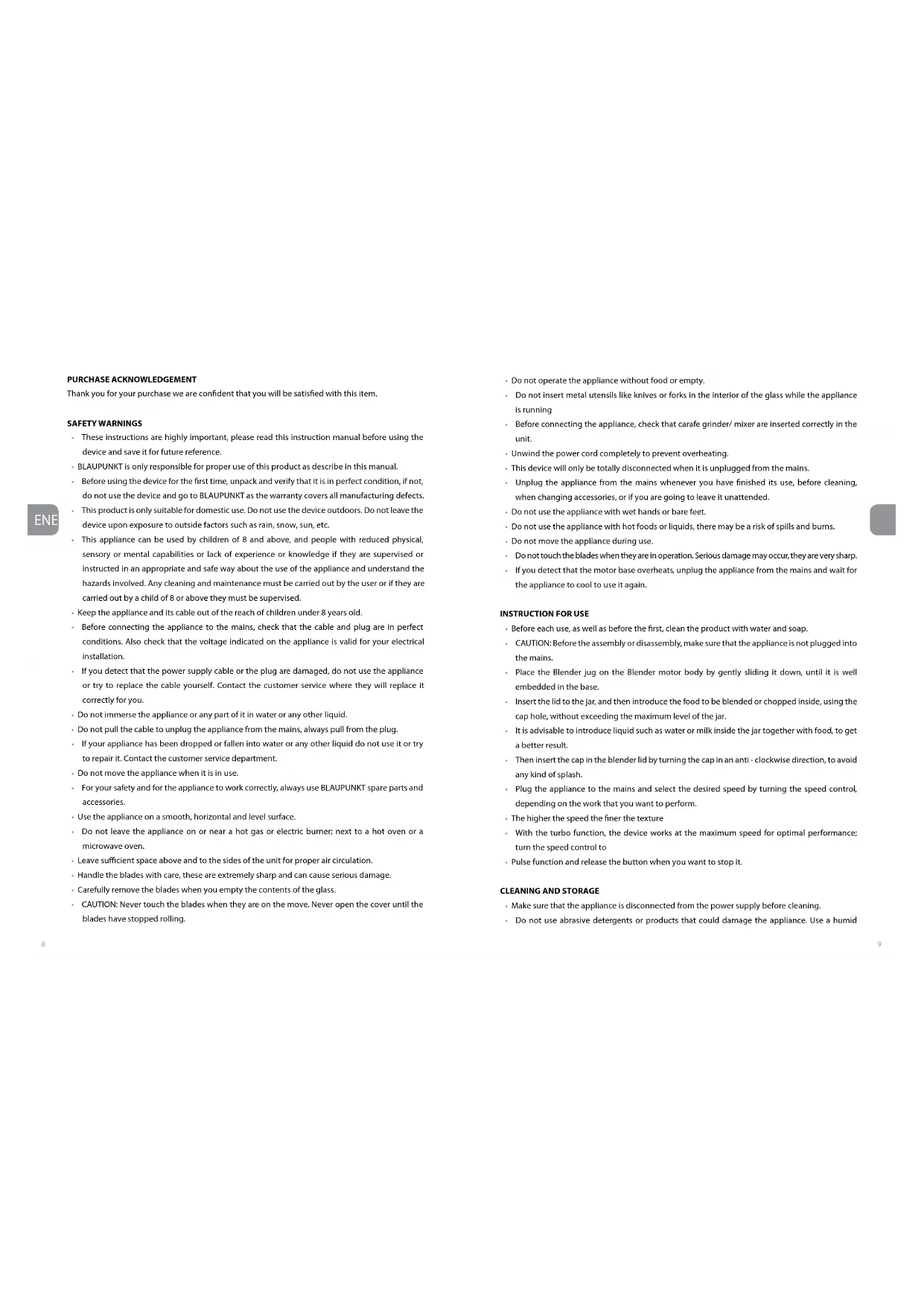

PURCHASE ACKNOWLEDGEMENT

Thank you for your purchase we are confident that you will be satisfied with this item.

SAFETY WARNINGS

• These instructions are highly important, please read this instruction manual before using the device and save it for future reference.
• BLAUPUNKT is only responsible for proper use of this product as describe in this manual.
• Before using the device for the first time, unpack and verify that it is in perfect condition, if not, do not use the device and go to BLAUPUNKT as the warranty covers all manufacturing defects.
• This product is only suitable for domestic use. Do not use the device outdoors. Do not leave the device upon exposure to outside factors such as rain, snow, sun, etc.
• This appliance can be used by children of 8 and above, and people with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they are supervised or instructed in an appropriate and safe way about the use of the appliance and understand the hazards involved. Any cleaning and maintenance must be carried out by the user or if they are carried out by a child of 8 or above they must be supervised.
• Keep the appliance and its cable out of the reach of children under 8 years old.
• Before connecting the appliance to the mains, check that the cable and plug are in perfect conditions. Also check that the voltage indicated on the appliance is valid for your electrical installation.
• If you detect that the power supply cable or the plug are damaged, do not use the appliance or try to replace the cable yourself. Contact the customer service where they will replace it correctly for you.
• Do not immerse the appliance or any part of it in water or any other liquid.
• Do not pull the cable to unplug the appliance from the mains, always pull from the plug.
• If your appliance has been dropped or fallen into water or any other liquid do not use it or try to repair it. Contact the customer service department.
• Do not move the appliance when it is in use.
• For your safety and for the appliance to work correctly, always use BLAUPUNKT spare parts and accessories.
• Use the appliance on a smooth, horizontal and level surface.
• Do not leave the appliance on or near a hot gas or electric burner; next to a hot oven or a microwave oven.
• Leave sufficient space above and to the sides of the unit for proper air circulation.
• Handle the blades with care, these are extremely sharp and can cause serious damage.
• Carefully remove the blades when you empty the contents of the glass.

• CAUTION: Never touch the blades when they are on the move. Never open the cover until the blades have stopped rolling.

• Do not operate the appliance without food or empty.

• Do not insert metal utensils like knives or forks in the interior of the glass while the appliance is running
• Before connecting the appliance, check that carafe grinder/ mixer are inserted correctly in the unit.
• Unwind the power cord completely to prevent overheating.
• This device will only be totally disconnected when it is unplugged from the mains.
• Unplug the appliance from the mains whenever you have finished its use, before cleaning, when changing accessories, or if you are going to leave it unattended.
• Do not use the appliance with wet hands or bare feet.
• Do not use the appliance with hot foods or liquids, there may be a risk of spills and burns.
• Do not move the appliance during use.
• Do not touch the blades when they are in operation. Serious damage may occur, they are very sharp.
• If you detect that the motor base overheats, unplug the appliance from the mains and wait for the appliance to cool to use it again.

INSTRUCTION FOR USE

• Before each use, as well as before the first, clean the product with water and soap.
- CAUTION: Before the assembly or disassembly, make sure that the appliance is not plugged into the mains.
- Place the Blender jug on the Blender motor body by gently sliding it down, until it is well embedded in the base.
- Insert the lid to the jar, and then introduce the food to be blended or chopped inside, using the cap hole, without exceeding the maximum level of the jar.
- It is advisable to introduce liquid such as water or milk inside the jar together with food, to get a better result.

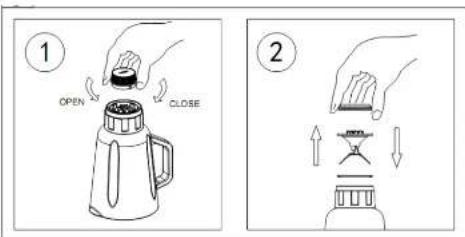

- Then insert the cap in the blender lid by turning the cap in an anti-clockwise direction, to avoid any kind of splash.
- Plug the appliance to the mains and select the desired speed by turning the speed control, depending on the work that you want to perform.
- The higher the speed the finer the texture
- With the turbo function, the device works at the maximum speed for optimal performance; turn the speed control to
- Pulse function and release the button when you want to stop it.

CLEANING AND STORAGE

• Make sure that the appliance is disconnected from the power supply before cleaning.
• Do not use abrasive detergents or products that could damage the appliance. Use a humid

cloth to clean the surface.

• NEVER IMMERSE THE BODY MOTOR IN WATER OR OTHER LIQUID, OR PUT IT UNDER THE TAP.
• Clean all the accessories under running water, rinsing them in soapy water or in the dishwasher.
• Some ingredients, such as sugar cane, carrot... can leave pigments in the glass, to remove it use a cloth dampened with a little oil.
• To remove the food that might remain in the interior, please insert 4 fingers of water into the jar, place the lid and set the speed selector in position press. This helps to remove the remains deposited in the base.
• Store the appliance in a safe place.

TECHNICAL SPECIFICATIONS

Rated voltage: 220\~240 V

Rated frequency: 50/60 Hz

Rated power: 1000 W

Rated capacity of blending jar: 1.5 L

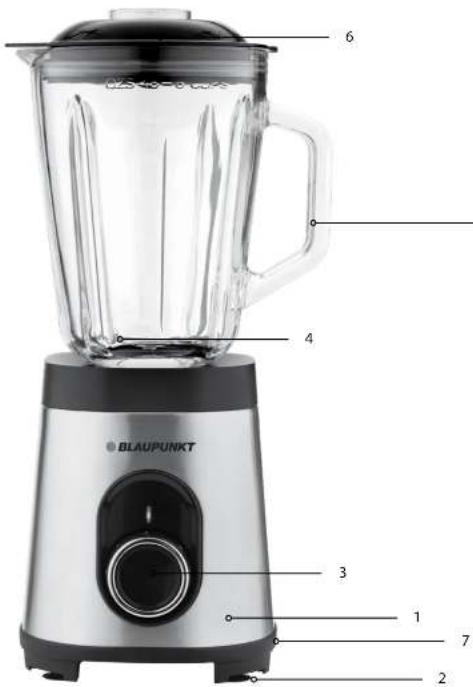

PRODUCT DESCRIPTION

1. Main power unit body
2. Non slip base
3. Pulse / off / speed control
4. Stainless steel blades
5. Decanter handle
6. Cover and cap
7. Power cable and plug

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, articles 114 to 127. R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, unless this hypothesis is incompatible with the nature or nature of the conformity defect.

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility

that the product:

Product Description: BLENDER WITH GLASS JUG

Model: BP4002

Brand: BLAUPUNKT

It complies with the European Union

legislation in compliance with the

2004/108 / EU guidelines

The standards apply: EN 55014-1:2006-A1+A2

EN 55014-2:1997+A1+A2:

EN 61000-3-2:2006+A1+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position:manager

Date:

Signature:

1 de October 2020

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with the to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BLAUPUNKT

BP 4002

MIXEUR AVEC RECIPIENT EN VERRE

MANUEL D'INSTRUCTIONS

Front view of a modern blender with clear glass and black casing (no visible text or symbols)

Enjoy it.

REMERCIEMENT D'ACHAT

CARACTÉRISTIQUES TECHNIQUES

Voltaje: 220\~240 V

DÉCLARATION DE CONFORMITÉ

Nom du fabricant: RAMSONS, S.A.

MANUAL DE INSTRUÇÕES

Front view of a modern blender with black handle and silver body (no visible text or symbols)

Enjoy it.

DATOS TÉCNICOS

Voltagem: 220–240 V
