BP4006 - Hand blender BLAUPUNKT - Free user manual and instructions

Product Type	Immersion Blender
Brand	Blaupunkt
Model	BP4006
Power Supply	220-240 V ~ 50/60 Hz
Power	300 W (estimated)
Speeds	2 speeds (switch I and II)
Main Functions	Mixing, whipping, preparing purees, sauces, soups, smoothies
Included Accessories	Blending foot (stainless steel blades)
Foot Material	Stainless steel
Motor Block Material	Plastic
Cable Length	Approx. 1 m
Weight	Approx. 0.5 kg
Dimensions (L x W x H)	Approx. 7 x 7 x 30 cm
Cleaning	Motor block: damp cloth; other parts: dishwasher
Safety	Very sharp blades, do not immerse motor, do not use with hot liquids
Warranty	2 years
Usage	Household use only
Country of Manufacture	China
Repairability	Spare parts available through authorized service

Frequently Asked Questions - BP4006 BLAUPUNKT

How to use the BP4006 immersion blender?

Attach the blending foot to the motor block until it clicks. Place the blender in the container, then press switch I or II. Make circular motions to mix. Unplug before removing the foot.

Can I blend hot foods?

Yes, but let hot foods cool off the heat before blending to avoid motor overheating. Do not immerse the motor in hot liquid.

How to clean the BP4006 blender?

Unplug the appliance. Clean the motor block with a damp cloth. Other parts (foot, blades) are dishwasher safe, but rinse immediately after blending salty or colored foods.

What to do if the blades are blocked?

Unplug the appliance immediately. Remove the foot from the motor block, then remove blocked food. Do not touch blades with bare hands.

Can I use the blender for hard foods?

No, this blender is designed for soft or liquid foods (purees, sauces, smoothies). For hard foods, use a suitable blender.

What is the power of the BP4006?

The power is not indicated on the instructions, but it is estimated at about 300 W, sufficient for household use.

Can the blender run continuously?

Do not exceed 30 seconds of continuous operation for hard foods, then let cool for 3 minutes before reuse.

How to detach the foot from the motor?

After use, unplug the appliance. Press the unlock button on the motor block and pull the foot downwards.

Where to find spare parts?

Contact Blaupunkt authorized technical service or the retailer. The blades and foot are replaceable.

Is the warranty international?

The 2-year warranty is valid in the country of purchase. Keep the invoice and the duly completed warranty certificate.

USER MANUAL BP4006 BLAUPUNKT

Exterior view of a modern stainless steel robotic pestle (no text or symbols visible)

Enjoy it.

Exterior view of a modern stainless steel robotic bread maker (no text or symbols visible)

Enjoy it.

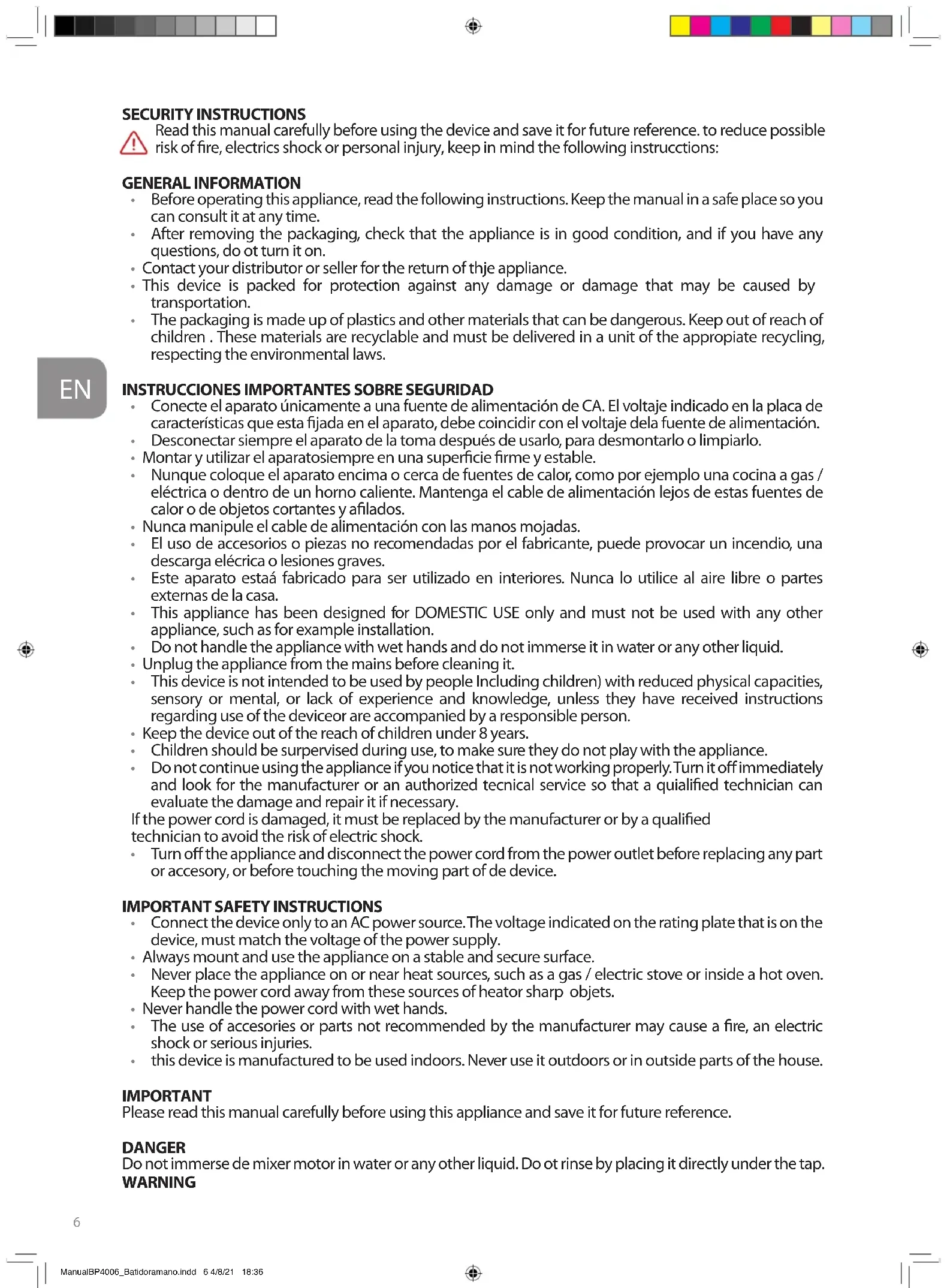

SECURITY INSTRUCTIONS

Read this manual carefully before using the device and save it for future reference. to reduce possible risk of fire, electrics shock or personal injury, keep in mind the following instructions:

GENERAL INFORMATION

• Before operating this appliance, read the following instructions. Keep the manual in a safe place so you can consult it at any time.
• After removing the packaging, check that the appliance is in good condition, and if you have any questions, do ot turn it on.
• Contact your distributor or seller for the return of thje appliance.
• This device is packed for protection against any damage or damage that may be caused by transportation.
• The packaging is made up of plastics and other materials that can be dangerous. Keep out of reach of children. These materials are recyclable and must be delivered in a unit of the appropriate recycling, respecting the environmental laws.

EN

- This appliance has been designed for DOMESTIC USE only and must not be used with any other appliance, such as for example installation.

• Do not handle the appliance with wet hands and do not immerse it in water or any other liquid.

- Unplug the appliance from the mains before cleaning it.

- This device is not intended to be used by people (Including children) with reduced physical capacities, sensory or mental, or lack of experience and knowledge, unless they have received instructions regarding use of the device or are accompanied by a responsible person.

- Keep the device out of the reach of children under 8 years.

• Children should be surpervised during use, to make sure they do not play with the appliance.

- Do not continue using the appliance if you notice that it is not working properly. Turn it off immediately and look for the manufacturer or an authorized technical service so that a qualified technician can evaluate the damage and repair it if necessary.

If the power cord is damaged, it must be replaced by the manufacturer or by a qualified technician to avoid the risk of electric shock.

- Turn off the appliance and disconnect the power cord from the power outlet before replacing any part or accesory, or before touching the moving part of de device.

IMPORTANT SAFETY INSTRUCTIONS

• Connect the device only to an AC power source. The voltage indicated on the rating plate that is on the device, must match the voltage of the power supply.
  • Always mount and use the appliance on a stable and secure surface.
• Never place the appliance on or near heat sources, such as a gas / electric stove or inside a hot oven. Keep the power cord away from these sources of heater sharp objets.
• Never handle the power cord with wet hands.
• The use of accessories or parts not recommended by the manufacturer may cause a fire, an electric shock or serious injuries.
  • this device is manufactured to be used indoors. Never use it outdoors or in outside parts of the house.

IMPORTANT

Please read this manual carefully before using this appliance and save it for future reference.

DANGER

Do not immerse de mixer motor in water or any other liquid. Do ot rinse by placing it directly under the tap.

WARNING

• Do not touch the blades, especially when the mixer stand is connected to the motor. The blades are very sharp.
• In case the blades get stuck, remove de foot separating it from de motor before removing the ingredients that may de blocking the blades.
• Keep fingers, hair, clothing and other utensils away from the moving parts of the appliance.
• Keep the appliance switched off when assembling and disassembling accessories.
• Never use a foot that is in poor condition. take it to an authorized technical service for evaluation on repair.
• Never use an unofficial accesory. In case of using said accesory or complement, your guarantee will be invalid.
• This device should not be used by people (adults or children) with reduced physical, mental or sensory capacities, or be those who do not have the necessary knowledge and experience, unless they are supervised or instructed about the use of the device bay a responsible person. Of your safety.
• Make sure that children do not play with this appliance.
• Make sure the cable is not in contact with hot surfaces or let it hang down.
• Do not use the blades to mix hot oil or grease.

CAUTION

• Never user the mixer in continuous operation with hard food for more than 30 seconds during a period of 3 minutes, since the appliance may overheat.
  • This appliance is only intended for domestic use.

HOW TO USE THE HAND MIXER

The mixer is ideal for preparing puree, sauces, jams, mayonnaise and porridge, as well as for whipping and preparing smoothies.

1. Connect the mixer stand to the motor unit until it locks.
2. Put the blender into the jar. Then press switch I or switch II.
3. Unplug the mixer and press the button to remove the stand after use.

Before using the mixer for the firts time, you must clean all accessories that come into contact with food (see Cleaning section).

The mixer is designed for:

• Wipping liquids, such as dairy products, sauces, fruit juices, drink mixes or smoothies.
• Mix soft ingredients such as dough or mayonnaise.
  • Prepare purees with cooked ingredients, such as for making porridge.
• It is not prepared to beat hard food.

IMPORTANT

• If you want to beat a food that you have just cooked. It is important that you remove the container from the cooking point (the fire) and let it cool for a while.
  Otherwise, the stand of the mixer may overheart.

- Click the motor unit into de foot.

- To avoid splashing, place it in the mix before connecting the appliance. Now connect the appliance to the power. And you can start to beat.

• No liquid should exceed the joint between the part that has the motor and the base with the blades.

- Do not leave the mixer still, make circular movements and gently.

- If the blades get stuck, disconnect the appliance from the power supply before cleaning.

• After using the mixer, disconnect the cable from the power outlet and disassemble the appliance.

CLEANING

DO NOT IMMERSE THE MIXER MOTOR IN WATER OR ANY OTHER LIQUID. CLEAN IT ONLY WITHA DAMP CLOTH.

1. All other components can be washed in the dishwasher. However, after whipping or chopping wery salty foods, should immediately rinse the blades.
2. You should also be careful not to use an excessive dose of dishwasher.
3. When you beat or chop brightly colored food, the plastic components of the appliance may become discolored. Clean these parts with vegetable oil before putting them in the dishwasher.
4. Unplug the appliance before cleaning it.
5. The blades are very sharp, please be very careful.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

We declare under our responsibility that the product:

Product Description: HAND BLENDER

Model: BP4006

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date:

Signature:

29 de July 2021

Ramsons, S.A.

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certifi cate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BLAUPUNKT

BP4006

MÉLANGEUR À MAIN

MODE D'EMPLOI

Exterior view of a modern kitchen brush (no text or symbols visible)

Enjoy it.

CONSIGNES DE SÉCURITÉ

DÉCLARATION DE CONFORMITÉ

Nom du fabricant: RAMSONS, S.A.

MANUAL DE INSTRUÇÕES

Exterior view of a modern kitchen brush (no text or symbols visible on the device body)

Enjoy it.

MANUAL DE INSTRUÇÕES

Name: Vivek Sadhwani
