USER MANUAL VIP280V LA SOMMELIERE

Three black wine cabinets with open doors, each displaying a wine bottle rack and filled with wine (no text or labels visible)

FR - MANUEL D'UTILISATION p. 2

EN - USE INSTRUCTIONS p. 27

Empty rectangular frame with black border (no text or symbols)

Diagram of a 8-wire refrigerator with labeled shelves and wine rack, showing interior structure and storage compartments.

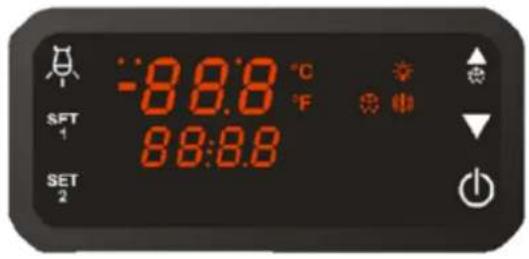

-88.8 °C SFT 1 88:6.8 SET 2

Technical diagram showing a door or cabinet with labeled parts 6 and 7, likely for engineering or manufacturing documentation.

Installation des rails coulissants

Close-up of a metal rod mounted on a vertical shelf with two metal bars in the background (no text or symbols visible)

Rail droit

Close-up of a metallic rod or bar mounted on a vertical shelf, with no visible text or symbols.

Rail gauche

(1) Tige de biais

Close-up of a black metal bracket with white cutouts, mounted on a dark surface (no text or symbols visible)

(2)

Close-up of a metallic mechanical component with a vertical metal bracket and threaded rod (no visible text or symbols)

(3)

Close-up of a black metal rod mounted on a metallic frame, no visible text or symbols

(4)

Interior view of a kitchen appliance with a black counter and a circular opening (no visible text or symbols)

(5)

Close-up of a wooden plank with a hole and textured surface, no visible text or symbols

(6)

Interior view of a wine rack with multiple bottles (no visible text or labels)

Clayette coulissante

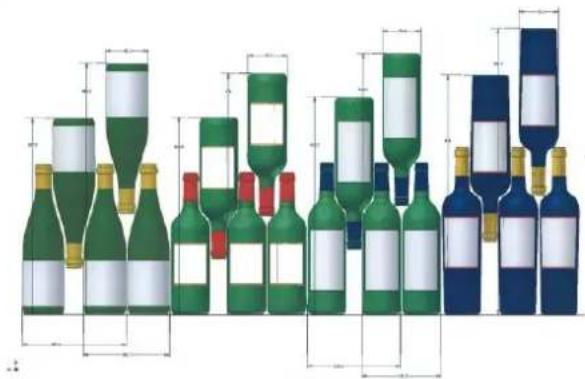

7. CHARGEMENT

Illustration of multiple wine bottles with green and blue labels, no text or symbols present

Two green plastic bottles with red connectors, no text or symbols visible

Three identical bottles with red caps, arranged in a triangular pattern (no text or symbols visible)

Before use, please read and follow the safety rules and operating instructions in this manual.

Firstly, we would like to thank you for purchasing a LA SOMMELIERE product and hope that this appliance fully lives up to your expectations.

This appliance enables you to bring your bottles at room temperature or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.

1. GENERAL SAFETY INSTRUCTIONS

Before you use your appliance for the first time, please read this user manual carefully. Store it carefully so that you can refer to it in the future, if necessary. To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions.

Generally speaking, your appliance must be maintained by a qualified professional.

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents or to avoid damage to the appliance, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on its usage and safety notices. This will ensure optimum operation of the appliance.

For the safety of life and property and to avoid any risk of injury, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

This appliance is intended exclusively for domestic use and is intended for the storage of special drink products at a storage temperature higher than that of a storage compartment for fresh

products. Under no circumstances is it intended to keep food products fresh.

Make sure that your electrical installation's voltage corresponds to that on the appliance's nameplate; the appliance must be connected to an approved, earthed system. Incorrect repairs or connections can cause safety hazards. Have your electrical installation checked by a professional, if you are in any doubt.

This unit must be correctly connected to an earthed socket for your protection. Do not cut off or remove the earth wire on the mains cable supplied.

For safety reasons, do not use an electrical extension cable.

If your appliance is damaged (e.g. a major impact) or suffers harm (power surge due to lightning, flood, fire), it may be dangerous to use. Disconnect the mains plug and have the appliance checked by an approved professional repairer.

To prevent any danger, do not replace a damaged mains cable yourself. Contact your retailer, an approved service center or professional repairer.

This appliance must be positioned such that the mains socket is accessible. Do not move the appliance once it is full: you might distort its body beyond repair. The electrical parts must not be directly accessible.

√ Keep children away from the appliance.

√ Do not use this appliance outdoors.

In the event that liquid is accidentally spilled (broken bottle, etc.) on electrical components (motor, etc.), disconnect the

mains plug immediately.

To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands.

Keep the appliance away from any source of heat and out of direct sunlight.

Do not allow the mains cable to hang from a table or be in contact with sharp edges or hot surfaces.

Do not pull on the mains cable - take hold of the plug to disconnect the appliance.

Ensure that the area where your appliance is positioned can support its weight when loaded (a 75 cl bottle weighs approximately 1.3 kg). Your cellar must be placed on a flat surface. If you have to position it on a rug or carpet, place a support underneath.

To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment.

Safety of children and other vulnerable persons

• This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are

supervised.

• Keep all packaging away from children as there is risk of suffocation.
• Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
• Keep the appliance and its power cable out of reach of children less than 8 years old.
• Before you throw away your old wine cooler: take off the door. Leave the shelves in place so that children may not easily climb inside.
• NOTE: children between 3 and 8 can load and unload the appliance.

General safety

WARNING — This appliance is intended to be used in household and similar applications such as:

√ Staff kitchen areas in shops, offices and other working environments.
√ Farm houses and by clients in hotels, motels and other residential type environments,

√ Bed and breakfast type environments,

√ Catering and similar non-retail applications.

WARNING — To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they could leak or release fluids.

WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

WARNING — The refrigerant of these appliances is R600a, flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused.

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutene (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

√ Avoid opening flames and sources of ignition.
√ Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

• We decline any liability in respect of incidents caused by poor electrical installation.
• The power cord must not be lengthened. Do not use an extension cable, or adapter, or multi-way socket.
• Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the main plug of the appliance.
• Do not pull the main cable.
• Ensure that the appliance is always electrically earthed.

• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

• You must not operate the appliance without the interior lighting lamp cover.

• Disconnect the appliance before replacing the lighting bulb.
• The cellar is only applied with power supply of single phase alternating current of 220\~240V/50Hz.
• Do not attempt to replace a damaged power cable, contact your after-sales service.
• The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician.

Daily use

• This appliance is intended to be used exclusively for the storage of wine.
• Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (electric ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket and do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• The appliance manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Keep burning candles lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping beverages in normal household as explained in this instruction booklet.
• The appliance is heavy. Care should be taken when moving it. If your appliance is equipped with castors, remember that these

are only designed to facilitate minor movements. Do not move the appliance over long distances.

• Never use the base, drawers, doors etc. to stand on or as supports.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put food into the appliance.

Caution: cleaning and servicing

• Before carrying out servicing, switch off the power supply and disconnect the appliance.
• When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not use sharp or pointed objects to remove ice. Use a plastic scraper.

Important information concerning installation

- This refrigerating appliance is not intended to be used as a built-in appliance

• Avoid locating the unit in moist areas.
• Keep the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly.
• Plug the wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any

questions concerning power and/or grounding should be directed toward a certified electrician or an authorized products service center.

• To ensure proper electrical connection, follow the recommendations given in the present manual.
• Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.
• It is recommended that the appliance be allowed to settle for at least 24 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.
• Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.
• In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.
• The appliance should not be placed close to radiators or cooking hot plates or gas rings.
• Check that electrical sockets remain accessible when the appliance is installed.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.

Power saving

To limit the electricity consumption of your appliance:

√ Install it in an appropriate place (see “Installation instructions”).
√ Leave the doors open as little time as possible.

√ Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

Trouble shooting and spare parts

• Any electrical work should be carried out by a qualified and skilled technician.
• The appliance should be repaired by an accredited repair center, using only manufacturer's original spare parts.

The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other use.

Aesthetic and functional spare parts are available to professional repairers and final consumers for a minimum period of 10 years from the date of placing the last unit in the model on the market.

The list of spare parts and the procedure for ordering them (professional access / final consumer access) are available on the following website: www.interfroidservices.fr or by post to the following address: Interfroid Services, 143 Bd Pierre Lefaucheux - 72230 ARNAGE.

All FRIO wine cellar benefit from a 1-year parts warranty.

R600a

Safety instructions

- Caution — Do not obstruct the ventilation grills on the appliance. Keep ventilation openings in the appliance enclosure or in the structure for building-in clear of obstruction.

- Caution — Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.

- Caution — Do not damage the refrigerating circuit in the appliance.

- Caution — The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate.

- Caution — Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance meets the requirements of all applicable European directives and their amendments, and notably complies with the following standards:

• 2011/65/EU (ROHS)
• 2014/35/EU on electrical safety
• 2014/30/EU on electromagnetic compatibility
• 643/2009/CE relating to energy labels

2. TECHNICAL DATA

Below is an example of the nameplate:

MODÈLE CAV196/3z		ROHS COMPLIANTMADE IN PORTUGAL
RÉFÉRENCE	VIP330V
CAPACITÉ	329 BOUTEILLES
VOL BRUT / UTILE	612 / 585 L	SERIAL N°
GAZ REFRIGERANT	R600a 0.030 kg	191400001
PUISSANCE LAMPE	21,0 W
CONSO. D'ÉNERGIE	0,56 kWh/24h	USINE N°
CLASSE CLIMATIQUE SN	230 V ~ 50 Hz73 W0,55 A	0001P19

IMPORTANT: NE PAS SITUER L'APPAREIL PROCHE D'UNE SOURCE INFLAMMABLE OU D'UN ENDROIT EXPOSÉ AUX RADIATIONS.

Frio SAS - 143 boulevard Pierre Lefaucheux - 72230 Arnage - France

The nameplate attached to the inside or rear of the appliance (depending on the model) includes the entire information specific to your appliance.

We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.).

Empty rectangular frame with black border (no text or symbols)

Once the appliance is installed and loaded, access to it is not so easy.

CAUTION: no assistance can be provided without this information.

Main characteristics

• High density insulating foam.
- Electronic thermostat: controls the temperature inside the cabinet. The compressor runs as long as the required temperature has not been attained. A very precise apparatus, it controls that the temperature remains constant.
- Wooden shelves: removable for an easy use.
- Watertight joint / magnetic door: this system ensures optimum conditions by avoiding loss of humidity and temperature.
- Tempered reversible glass door with interior lighting: the tempered glass door has UV protection.

3. PRODUCT DESCRIPTION

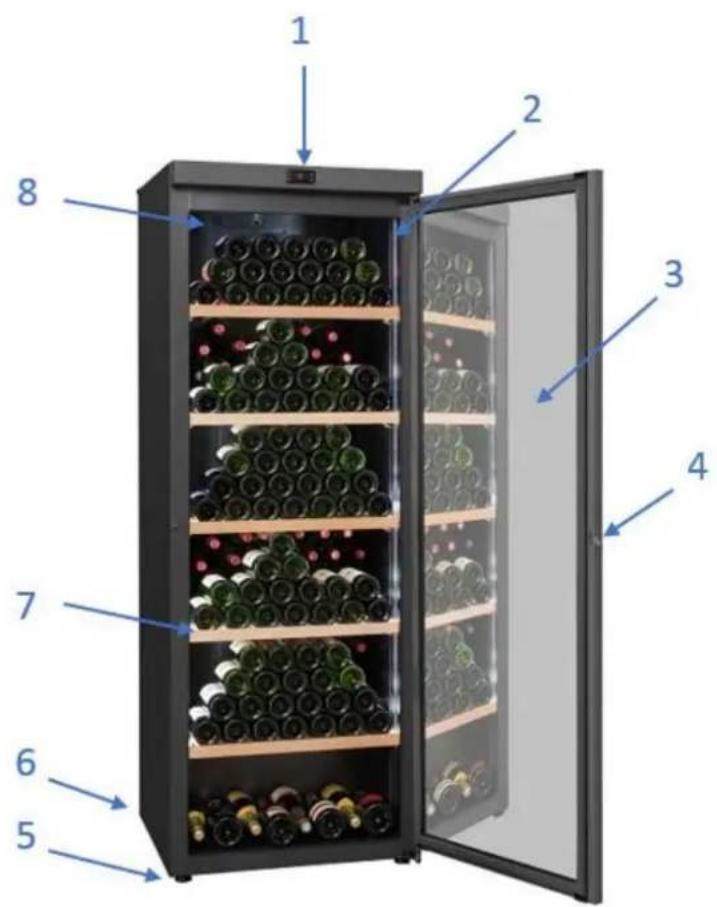

Diagram of a wine refrigerator with numbered compartments and glass doors, showing wine rack arrangement

1	Control board
2	LED light
3	Glass door with anti-UV
4	Lock
5	Adjustable feet
6	Traveling wheels
7	Wooden shelf
8	Charcoal filter

Note: The appliance you buy might not be exactly the same as shown here.

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

4. INSTALLATION INSTRUCTIONS

Before using this appliance

- Remove the exterior and interior packing.

- Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- Clean the interior surface with lukewarm water using a soft cloth.

- When disposing your appliance, please choose an authorized disposal site.

- Place your cellar on a floor that is strong enough to support it when fully loaded.

Aligned level Slight back

• Please adjust the feet of your appliance so that the front of your cellar is level and the back is tilted slightly back. This inclination keeps the drawers or shelves in place despite the weight of the bottles. Adequate ventilation is required, do not block the front air outlet.
  • Not designed for placement in adage or basement.
  • The appliance is for indoor use only.
• This wine cellar is designed for free-standing only, in no case it must be installed in a built-in or integrable way. For a good operation of the device it is imperative to leave a good air circulation all around the device. We do not accept any liability for failure to comply with the installation instructions.
  • This appliance is intended to be used exclusively for the storage of wine.
• This appliance is using flammability refrigerant. So never damage the cooling pipe work during the transportation.

Attention

• Store wine in sealed bottles.
- Do not overload the cabinet.
- Do not open the door unless necessary.
- Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
- Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors forming.

CAUTION: please keep the appliance away from substance, which can cause ignition.

Ambient room temperature limits

This appliance is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

CLASS	SYMBOL	AMBIENT TEMPERATURES RANGE (°C)
Extended temperate	SN	From +10 to +32
Temperate	N	From +16 to +32
Subtropical	ST	From +16 to +38
Tropical	T	From +16 to +43

It is recommended that you installed your appliance in a place where the ambient temperature is between 10-32°C (N class marked on the rating plate). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected and it may not be possible to obtain temperature between 5-20°C.

5. OPERATING INSTRUCTIONS

VIP280V / VIP330V : Glass door

SFT 1 SET 2 -8.8.8 °C F 8.8:8.8

The thermostat is equipped with a child-lock device. To activate this function, press the "up" ▲ and "down" ▼ keys simultaneously. After about 3 seconds, the word "Pof" flashes. Do the same operation to unlock the control panel. After approximately 3 seconds, "Pon" flashes.

Setting the temperature in the upper part of the device

To set the temperature of the upper zone, press the button for 3 seconds. The set value is displayed and the "°C" or "°F" LED starts flashing. The temperature can then be adjusted to between 17 and 19 °C. Buttons and adjust the temperature. Then press the button to memorize the chosen value.

Setting the temperature in the lower part of the device

To adjust the temperature of the lower zone Press the button for 3 seconds. The set value is displayed and the "°C" or "°F" LED starts flashing. The temperature can then be adjusted to between 7 and 9 °C. Buttons and adjust the temperature. Then press the button to memorize the chosen value.

Tip: We suggest you always have a temperature difference of 10^ C between the top and the bottom of your cellar

Lighting: Press the button once to turn on or off the light.

Power On / Off: Press the button once to turn your cellar on or off.

Meaning of the icons

Degree Celsius

Fahrenheit degree

n signal

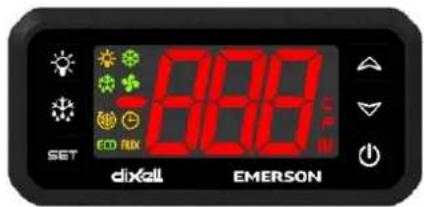

SET -8.89°F dixell EMERSON

The thermostat is equipped with a child-lock device. To activate this function, press the "up" ▲ and "down" keys simultaneously. After about 3 seconds, the word "Pof" flashes. Do the same operation to unlock the control panel. After approximately 3 seconds, "Pon" flashes.

o Setting the temperature in the device

Press the button SET for 3 seconds, the "c" on the right of the screen will then flash. You can then adjust the temperature between 5 and 20^ C with the key to increase the temperature and the key to lower the temperature.

The thermostat is equipped with a child-safety device. To activate this function, press the "up" and "down" keys simultaneously. After about 3 seconds, the word "Pof" flashes. Do the same operation to unlock the control panel.

o Power On / Off: Press the button once ⏻ to turn your cellar on or off.

o Lighting: Press the button once 🙏 to turn on or off the light.

o Key combinations

To lock and unlock the control panel SET + A To display the ambient temperature of the cellar.

o Meaning of the icons

→ Compressor on / flashing -> Cycle on

Defrost enabled

An alarm goes off

Alarm devices

There is a "sub-alarm" for the low temperature sensor and an "over-alarm" for the high temperature sensor

The alarm is indicated by a warning on the screen.

Alarm for high temperature: message "HA" on the screen alternating with the display of the current temperature.

Alarm for high temperature: message "LA" on the screen alternates with the display of the current temperature.

It is possible to set the temperature threshold that will trigger the alarm.

The temperature alarms automatically stop as soon as the temperature returns to the normal value.

-> The continuous cycle is in progress

-> Energy saving mode enabled

-> Unit of measurement indicated / flashing -> Programming phase

The appliance assures that temperature is maintained as long as it is in operation and that it is used in normal conditions of use. The temperature inside the appliance and its energy consumption can be influenced by many factors: ambient temperature, exposure to the sun, number of door openings and quantity stored... Slight changes in temperature are perfectly normal.

6. EQUIPMENT

The climate control system

According to advice from specialists, the ideal temperature for storing wine is around 12^ C, within a bracket of 10 to 14^ C. Do not confuse this with service temperature, which varies between 5 and 20^ C, depending on the specific nature of the wine.

It is especially important to avoid sudden changes in temperature. Designed by specialists for oenophiles, this appliance, unlike a simple refrigerator, takes into account the sensitivity of grand cru wines to sudden variations in temperature by ensuring the close control of a constant average temperature.

The anti-vibration system

The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines.

The anti-UV system

Light accelerates the ageing of wine. In our solid door cellars, your wines are naturally protected, on condition, of course, that the door is not opened too often. This glass-door model has been specially treated and filters out harmful ultraviolet rays, thus ensuring your wines are perfectly shielded.

The winter function

The winter function is a frost protection system which enables the cellar to operate in an environment where the temperature is between 5 and 32°C. This is a low power element to avoid sudden rises in the temperature of the wine and so avoid thermal shocks that are damaging to the preservation of the wine. The kit is intended to raise the cellar's internal temperature even before there is a thermal exchange with the bottles.

Defrosting

Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance's refrigerated surfaces are defrosted automatically. The defrost water is channeled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray.

Shelves

- To prevent damage to the door seal, ensure that the door is fully open before pulling out the shelves to add or remove bottles.

■ For easier access to the contents of the shelves, slide the shelf out approximately one third of the

way. The shelves are, however, fitted with a stop to prevent the bottles falling out.

Enhanced safety

Since this range of appliances is intended for storing items of value, we have been careful to select quality components and to design suitable manufacturing techniques to ensure optimum safety in operation.

Installing the handle (VIP330P)

Your appliance has an handle. To fit it, simply screw it onto the door with the screws supplied as per the diagram below, having first removed the seal.

Technical diagram showing a door frame with labeled parts ⑥ and ⑦, likely for architectural or mechanical design reference.

7. LOADING

The maximum recommended loading quantities for bottles are given as guidelines and are indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in liters).

They correspond to tests conducted with a standard bottle: the standard "75 cl light Bordeaux" bottle - standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height.

In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum.

Types of bottle:

Illustration of multiple wine bottles with green and red labels, shown in a stylized layout with dimension lines (no text or symbols)

We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions. There are many others of all shapes and sizes. You will note the storage differences depending on bottle heights, diameters and alternating position method.

For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.

Recommendation combination:

The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

Announced capacity

The advertised capacity is the maximum capacity calculated with a defined number of shelves which varies depending on the model. This standard is calculated with 75cl traditional Bordeaux type bottles. Any other type of bottle format as well as the addition of shelves will considerably reduce the storage capacity.

Criss-crossing types

Top-to-bottom neck-to-neck:

Note the difference in depth!

Top-to-bottom neck between bottle bodies:

Increased loading.

Two green plastic bottles with red connectors, no text or symbols visible

Three green wine bottles with red caps, arranged in a staggered layout (no text or symbols visible)

Examples of serving temperatures

Opinions vary, and the ambient temperature too, but many people agree on the following:

Prestigious Bordeaux wines – Reds	16 – 17°C
Prestigious Burgundy wines – Reds	15 – 16°C
Prestigious dry white vintages	14 – 16°C
Light, young, fruity reds	11 – 12°C
Provence rosés, primeur wines	10 – 12°C
Dry whites and vin de pays reds	10 – 12°C
Vin de pays whites	8 – 10°C
Champagnes	7 – 8°C
Sweet wines	6°C

8. CARE AND MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, side and top) with warm mixed with a gentle cleaning product. Rinse with clean water and allow drying before reconnecting. Do not use solvents or abrasives.

When the appliance is switched on for the first time, there may be a residual odor. In that case, runt the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odors.

In case of a power cut

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the

temperature in your cabinet. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

• If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re-starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the temperature requires).
• When switching on for the first time or following a prolonged shutdown, it is possible that when restarting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilize.

Vacation time

• Short vacations: leave the wine cooler operating during vacations of less than three weeks.
• Long vacations: if the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving your wine cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

9. IN THE EVENT OF A BREAKDOWN

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• The appliance is properly plugged in
  • There is not a power cut in progress
• The breakdown is not one of those described in the table at the end of this manual

IMPORTANT: if the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!

Unplug the appliance before carrying out any maintenance or repair work.

10. TROUBLE SHOOTING

You can solve many common Wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate	Not plugged inThe appliance is turned offThe circuit breaker tripped or a blown fuse
Wine cooler is not cold enough	Check the temperature control settingExternal environment may require a higher settingThe door is opened too oftenThe door is not closed completelyThe door gasket does not seal properly
Turns on and off frequently	The room temperature is hotter than normalA large amount of contents has been added to the wine cooler.The door is open too oftenThe door is not closed completelyThe temperature control is not set correctlyThe door gasket does not seal properly
The light does not work	Not plugged inThe circuit breaker tripped or a blown fuseThe bulb has burned outThe light switch is “OFF”
Vibrations	Check to assure that the wine cooler is level
The wine cooler seems to make too much noise	The rattling noise may come from the flow of the refrigerant, which is normalAs each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine coolerContraction and expansion of the inside walls may cause popping and crackling noisesThe wine cooler is not level
The door will not close properly	The wine cooler is not levelThe door was reversed and not properly installedThe gasket is dirtyThe shelves are out of position

In case of display of an error code (ie P1, LA, HA...), unplug your appliance from the main power, and contact your after sales service.

Replacing light

This appliance consists of light-emitting diodes (LEDs). This type of diode cannot be changed by the consumer. The lifetime of these LEDs is normally sufficient for no change to be made. If however, and despite all the care taken during the manufacture of your wine cellar, the LEDs were defective, please contact your after-sales service for any intervention.

11. ENVIRONMENT

This appliance is marked according to the European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this pro

The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

12. WARNING

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

Warning sign depicting a flame symbol in yellow and black on a white background

R600a

Empty rectangular frame with black border (no text or symbols)

Diagram of a 8-walled refrigerator with labeled shelves and wine rack, showing interior compartments and storage areas.

SFT 1 SET 2 -8.8.8 °C 8.8:8.8 °F SET

Technical diagram showing a window or door structure with numbered annotations (6 and 7) indicating specific components.

7. BEFÜLLUNG

Illustration of multiple wine bottles with green and white labels, arranged in rows (no text or symbols)

Two green plastic bottles with red caps, connected by a double-headed arrow (no text or symbols)

Three green wine bottles with red caps, arranged in a zigzag pattern (no text or symbols visible)

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Diagram of a 8-walled wine refrigerator with numbered compartments and glass doors open for labeling.

Empty rectangular frame with black border (no text or symbols)

SET -8.89 dixall EMERSON

Illustration of multiple wine bottles with green and white labels, arranged in rows (no text or symbols)

Warning sign depicting a flame symbol with hazard symbol inside a yellow triangle

Empty rectangular frame with black border (no text or symbols)

3. BESCHRIJVING VAN HET APPARAAT

1 2 3 4 5 6 7 8

1	Contrôle Paneel
2	LED-verlichting
3	Glazen deur behandeld anti-UV
4	Slot
5	Verstelbare voeten
6	Casters
7	Houten plank
8	Koolstofffilter

SFT 1 SET 2 -88.8 °C °F 88:8.8

-> De continue cyclus is bezig

ECO -> Energiebesparende modus ingeschakeld

Diagram showing wine bottles with labeled parts and a schematic of a processing or packaging process with numbered annotations.

Two green plastic bottles with red caps, connected by a line (no text or symbols visible)

Three green wine bottles with red caps, arranged in a triangular pattern (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

Empty rectangular frame with black border (no text or symbols)

Technical diagram showing a door frame with labeled components and directional arrows indicating movement or flow.

7. CARICO

Illustration of multiple wine bottles with green and blue colors, some labeled with white tags, shown in a grid layout (no text or symbols)

Two identical green plastic bottles with red caps, arranged in a row (no text or symbols visible)
