USER MANUAL DPX-M3300BT KENWOOD

Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents. Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User

or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.

2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with

certain objective of the Licensed Software. Article 6 Liability to Third Party If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause. Article 7 Confidentiality The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor. Article 8 Termination In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution.

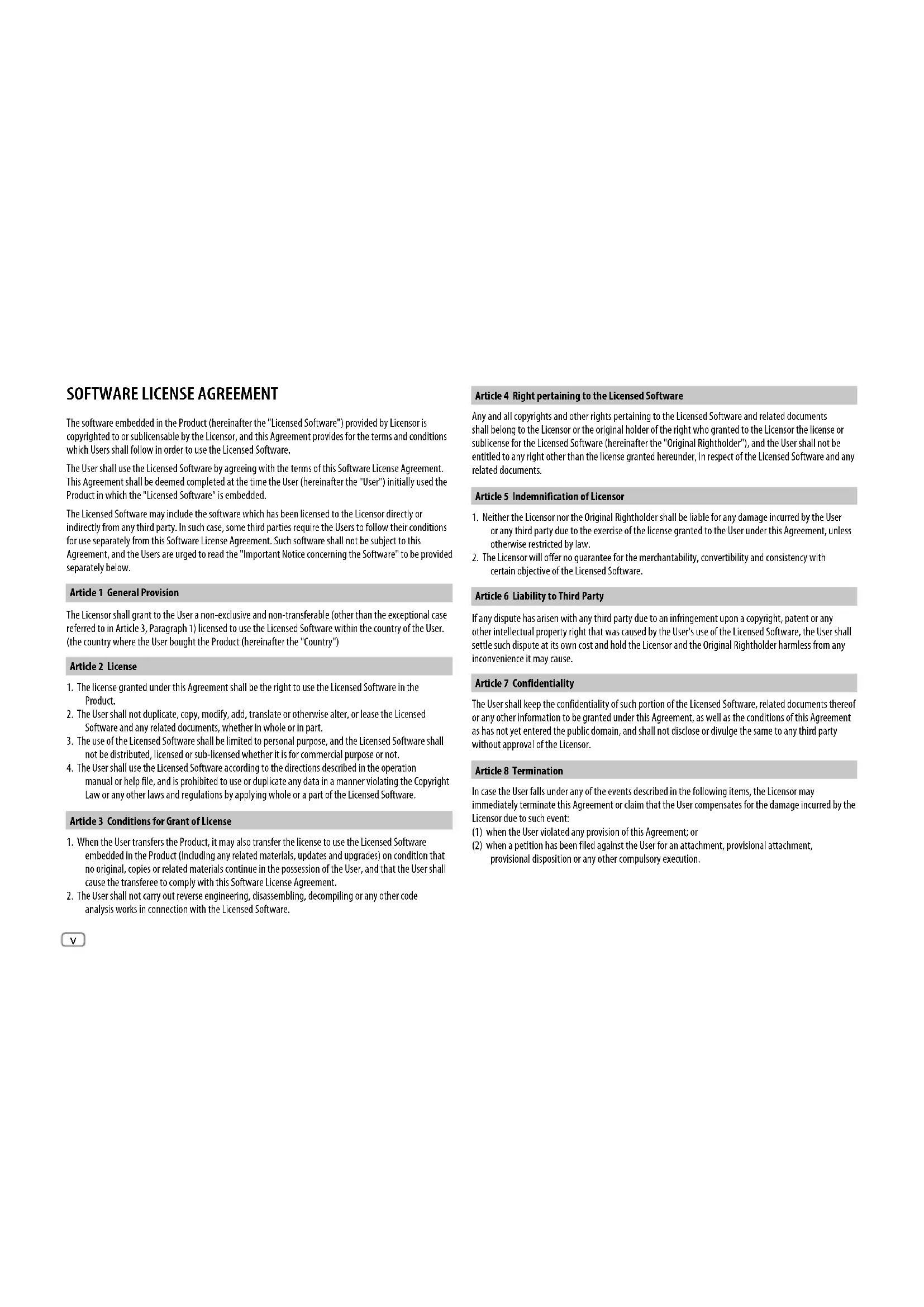

SOFTWARE LICENSE AGREEMENT

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below. Article 1 General Provision The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product (hereinafter the "Country") Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the

Software and any related documents, whether in whole or in part.

3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall

not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.

4. The User shall use the Licensed Software according to the directions described in the operation

manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software. Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software

embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.

2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code

analysis works in connection with the Licensed Software. DPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd vDPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd v 8/12/2021 9:11:48 AM8/12/2021 9:11:48 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination. Article 10 Protection of Copyright

1. The copyright and all the other intellectual property rights relating to the Licensed Software

shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.

2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the

copyright and other intellectual property rights. Article 11 Export Restriction

1. It is prohibited to export the Licensed Software and any related documents outside the country

of the User (including transmission thereof outside the country of the User via Internet of other communication tools).

2. The User shall understand that the Licensed Software shall be subject to the export restrictions

adopted by the country of User and any other countries.

3. The User shall agree that the software will be subject to any and all applicable international and

domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities). Article 12 Miscellaneous

1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions

shall continue in force.

2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of

this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.

3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and

any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance. Important Notice concerning the Software -jansson Copyright (c) 2009-2012 Petri Lehtinen <[e-mail]> Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -cJSON Copyright (c) 2009 Dave Gamble Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. DPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd viDPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd vi 8/12/2021 9:11:48 AM8/12/2021 9:11:48 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) vii sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. You may obtain a copy of the license at https://opensource.org/licenses/BSD-3-Clause THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Posix Copyright (c) 1990, 1993 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following

acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of its contributors may be used to endorse or

promote products derived from this software without specific prior written permission. Copyright (C) 1993 by Sun Microsystems, Inc. All rights reserved. Developed at SunPro, a Sun Microsystems, Inc. business. Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved. Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved. License to copy and use this software is granted provided that it is identified as the “RSA Data Security, Inc. MD4 Message-Digest Algorithm” in all material mentioning or referencing this software or this function. -CMP The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. nanopb Copyright (c) 2011 Petteri Aimonen <jpa at nanopb.mail.kapsi.fi> This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote

the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the

3. This notice may not be removed or altered from any source distribution.

• DPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd viiDPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd vii 8/12/2021 9:11:48 AM8/12/2021 9:11:48 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) viii Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. Author: Chris G. Demetriou Permission to use, copy, modify and distribute this software and its documentation is hereby granted, provided that both the copyright notice and this permission notice appear in all copies of the software, derivative works or modified versions, and any portions thereof, and that both notices appear in supporting documentation. CARNEGIE MELLON ALLOWS FREE USE OF THIS SOFTWARE IN ITS "AS IS" CONDITION. CARNEGIE MELLON DISCLAIMS ANY LIABILITY OF ANY KIND FOR ANY DAMAGES WHATSOEVER RESULTING FROM THE USE OF THIS SOFTWARE. Carnegie Mellon requests users of this software to return to Software Distribution Coordinator or [e-mail] School of Computer Science Carnegie Mellon University Pittsburgh PA 15213-3890 any improvements or extensions that they make and grant Carnegie the rights to redistribute these changes. License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc. MD4 Message-Digest Algorithm" in all material mentioning or referencing the derived work. RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability of this software for any particular purpose. It is provided "as is" without express or implied warranty of any kind. Copyright (c) 1993 Martin Birgmeier All rights reserved. You may redistribute unmodified or modified versions of this source code provided that the above copyright notice and this and the following conditions are retained. This software is provided ``as is'', and comes with no warranties of any kind. I shall in no event be liable for anything that happens to anyone/anything when using this software. These notices must be retained in any copies of any part of this documentation and/or software. T-Kernel 2.0 This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org) BSD-3-Clause Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. You may obtain a copy of the license at https://opensource.org/licenses/BSD-3-Clause THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. LFS Subsystem Copyright The Regents of the University of California. All rights reserved. You may obtain a copy of the license at https://directory.fsf.org/wiki/License:BSD-4-Clause THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Accordo2 Player Apache License Licensed under the Apache License, Version 2.0, January 2004(the "License"); You may obtain a copy of the license at http://www.apache.org/licenses/LICENSE-2.0 THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. DPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd viiiDPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd viii 8/12/2021 9:11:48 AM8/12/2021 9:11:48 AM2 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Contents Before Use p. 3
• Basics p. 3
• Getting Started p. 4
• 1 Select the display language, acknowledge the crossover type and cancel the demonstration 2 Set the clock and date 3 Set the other optional settings Radio p. 7
• USB/iPod p. 8
• AUX p. 11
• KENWOOD Remote Application p. 11
• Bluetooth® p. 12
• Bluetooth – Connection Bluetooth – Mobile phone Bluetooth – Audio Audio Settings p. 18
• Display Settings p. 23
• Installation/Connection p. 24
• References p. 27
• Maintenance More information Change the display information Troubleshooting p. 29
• Specifications How to read this manual p. 31

• The displays and faceplates shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or faceplates.

• Operations are explained mainly using buttons on the faceplate.

• English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (Page6)

[XX] indicates the selected items.

• (PageXX) indicates references are available on the stated page. This symbol on the product means there are important operating and maintenance instructions in this manual. Be sure to carefully read instructions in this manual. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 2DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 2 9/10/2021 11:53:10 AM9/10/2021 11:53:10 AMENGLISH

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual.

• Please keep the manual in a safe and accessible place for future reference. WARNING

• Do not operate any function that takes your attention away from safe driving. CAUTION Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page26). Turn off the unit or change the source to STANDBY when parking at a low ceiling area. Basics Faceplate Display window* Volume knob

• Only for illustration purpose. How to reset DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 3DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 3 9/10/2021 11:53:16 AM9/10/2021 11:53:16 AM4 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) To On the faceplate Turn on the power Press B SRC.

• Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source

• Press B SRC repeatedly.

• Press B SRC, then turn the volume knob within 2 seconds. Change the display information Press DISP repeatedly. (Page 28) Getting Started

Select the display language, acknowledge the crossover type and cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set to [YES] , see page6), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [EN] (English) / [RU] (Russian) / [SP] (Spanish) / [FR] (French) / [GE] (German), then press the knob. [EN] is selected for the initial setup. Then, the display shows: “2-WAY X ’ OVER” or “3-WAY X ’ OVER” “PRESS” “VOLUME KNOB” “TO CONFIRM”. 2 Press the volume knob to acknowledge the current crossover type.

• To change the crossover type, see “Change the crossover type” on page6. Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”. 3 Press the volume knob again. [YES] is selected for the initial setup. 4 Press the volume knob again. “DEMO OFF” appears. Basics DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 4DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 4 9/10/2021 11:53:16 AM9/10/2021 11:53:16 AMENGLISH

Set the clock and date

Set the other optional settings You can only set the following items while the unit is in STANDBY source. 1 Press B SRC repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. To return to the previous setting item, press

Getting Started Default: [XX] [AUDIO CONTROL] [SWITCH PREOUT] (Applicable only if [X’OVER] is set to [2WAY].) (Page 6) [REAR]/[SUBWOOFER]: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). (Page 27) [DISPLAY] [EASY MENU] When entering [FUNCTION]... [ON]: [LCD DISPLAY] illumination changes to white color. ; [OFF]: [LCD DISPLAY] illumination remains as [COLOR SELECT] color. (Page 23)

• [KEY 1] and [KEY 2] illuminations change to light blue color when you enter [FUNCTION], irregardless of the [EASY MENU] setting.

• Refer to the illustration on page 23 for zone identification. [TUNER SETTING] [PRESET TYPE] [NORMAL]: Memorizes one station for each preset button in each band (FM1/FM2/FM3/MW/LW). ; [MIX]: Memorizes one station for each preset button, regardless of the selected band. [SYSTEM] [KEY BEEP] (Applicable only if [X’OVER] is set to [2WAY].) (Page 6) [ON]: Activates the keypress tone. ; [OFF]: Deactivates. [SOURCE SELECT]

[ON]: Enables BT AUDIO in source selection. ; [OFF]: Disables. (Page 17) [BUILT-IN AUX] [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 11) [P-OFF WAIT] Applicable only when the demonstration mode is turned off. Sets the duration when the unit will automatically turn off (while in standby mode) to save the battery. [20M]: 20 minutes ; [40M]: 40 minutes ; [60M]: 60 minutes ; [– – –]: Cancels. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 5DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 5 9/10/2021 11:53:16 AM9/10/2021 11:53:16 AM6 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

[UPDATE SYSTEM] [F/W UP xxxx] [YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated). For details on how to update the firmware, visit <https://www.kenwood.com/cs/ce/>.

• Once you have upgraded the firmware, you are unable to downgrade the firmware. [FACTORY RESET] [YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels. [ENGLISH] Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected.

Press B SRC repeatedly to enter STANDBY. 2 Press and hold number buttons 4 and 5 to enter crossover select. The current crossover type appears. 3 Turn the volume knob to select “2WAY” or “3WAY”, then press the knob. 4 Turn the volume knob to select “YES” or “NO”, then press the knob. The selected crossover type appears.

• To adjust the selected crossover settings, see page 20. Once you have changed the crossover type, the next time when you turn on the power, the display shows: “2-WAY X ’ OVER” or “3-WAY X ’ OVER”

“PRESS” “VOLUME KNOB”

“TOCONFIRM” Press the volume knob to acknowledge in order to proceed to the next desired operation. CAUTION Select a crossover type according to how the speakers are connected. (Page26, 27) If you select a wrong type:

• The speakers may damage.

• The output sound level may be extremely high or low. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 6DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 6 9/10/2021 11:53:16 AM9/10/2021 11:53:16 AMENGLISH

• “ST” indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

• The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast. Search for a station

Press B SRC repeatedly to select RADIO. 2 Press BAND repeatedly to select FM1/FM2/FM3/MW/LW. 3 Press S / T to search for a station. You can store up to 18 stations for FM and 6 stations for MW/LW.

• To store a station: Press and hold one of the number buttons (1 to 6).

• To select a stored station: Press one of the number buttons (1 to 6). Other settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [TUNER SETTING] [SEEK MODE] Selects the searching method for

buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [LOCAL SEEK] [ON]: Searches only stations with good reception. ; [OFF]: Cancels.

• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again. [AUTO MEMORY] [YES]: Automatically starts memorizing 6 stations with good reception. ; [NO]: Cancels.

• Selectable only if [NORMAL] is selected for [PRESET TYPE]. (Page 5) [MONO SET] [ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels. [NEWS SET] [ON]: The unit will temporarily switch to News Programme if available. ; [OFF]: Cancels. [REGIONAL] [ON]: Switches to another station only in the specific region using the “AF” control. ; [OFF]: Cancels. [AF SET] [ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 7DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 7 9/10/2021 11:53:16 AM9/10/2021 11:53:16 AM8 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [TI] [ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” indicator lights up) while listening to all sources except in MW/LW. ; [OFF]: Cancels. [PTY SEARCH]

Turn the volume knob to select the available Program Type (see the following “Available Program Type for [PTY SEARCH]”), then press the knob.

to start searching. [CLOCK] [TIME SYNC] [ON]: Synchronizes the unit’s time to the Radio Data System station time. ; [OFF]: Cancels.

selectable only when the band is FM1/FM2/FM3.

• If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin is turned on. Available Program Type for [PTY SEARCH] [SPEECH]: [NEWS], [AFFAIRS], [INFO] (information), [SPORT], [EDUCATE], [DRAMA],[CULTURE], [SCIENCE], [VARIED], [WEATHER], [FINANCE], [CHILDREN], [SOCIAL],[RELIGION], [PHONE IN],

[TRAVEL], [LEISURE], [DOCUMENT]

[MUSIC]: [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music),[CLASSICS], [OTHERM] (music), [JAZZ], [COUNTRY], [NATION M] (music),[OLDIES], [FOLK M] (music) The unit will search for the Program Type categorized under [SPEECH]

[MUSIC] if selected. Radio USB/iPod Connect a USB device USB device USB input terminal USB type A cable* (general products) The source changes to USB automatically and playback starts.

• Do not leave the cable inside the car when not in use. Connect an iPod/iPhone USB input terminal KCA-iP103*1 (optional accessory) or accessory of the iPod/iPhone*2 iPod/ iPhone The source changes to iPod USB automatically and playback starts.

• You can also connect iPod/iPhone via Bluetooth. (Page13) *1 KCA-iP103: Lightning type *2 Do not leave the cable inside the car when not in use. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 8DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 8 9/10/2021 11:53:16 AM9/10/2021 11:53:16 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Basic operations Selectable source: USB/iPod USB or iPod BT For playable audio file, see “Playable files” on page 27. To On the faceplate Play back/pause Press 6 IW. Reverse/Fast-forward Press and hold S / T. Select a file Press S / T. Select a folder* Press 1 / 2 . Repeat play Press 4 repeatedly. [FILE REPEAT]

[REPEAT OFF] : iPod USB/iPod To On the faceplate Random play Press 3 repeatedly. [FOLDERRANDOM]

[SHUFFLE OFF] : iPod Press and hold 3 to select [ALL RANDOM]

• This does not work for iPod. Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives. However, this unit may take some time to read if three or more cards are connected.) You can also select the music drive from the [FUNCTION] menu. 1 Press the volume knob to enter [FUNCTION]

[DRIVE 4] ) is selected automatically and playback starts. 5 Repeat step 1 to step 4 to select the following drives. 6 Press and hold to exit. To return to the previous setting item, press

DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 9DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 9 9/10/2021 11:53:16 AM9/10/2021 11:53:16 AM10 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) USB/iPod [SKIP SEARCH] setting 1 Press the volume knob to enter [FUNCTION]

[10%] The skip search ratio is shown as a percentage of the total files. 5 Press and hold to exit. Alphabet search (applicable only for iPodUSB source and iPodBT source) You can search for a file according to the first character. 1 Press . 2 Turn the volume knob to select a list, then press the knob. 3 Turn the volume knob quickly to enter character search. 4 Turn the volume knob to select the character.

” to search for a character other than A to Z, 0 to 9. 5 Press S / T to move to the entry position.

• You can enter up to 3 characters. 6 Press the volume knob to start searching. 7 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

Select a file to play From a folder or list

Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Selected file starts playing. Quick search (applicable only for USB source) If you have many files, you can search through them quickly. 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob quickly to browse through the list quickly. 4 Turn the volume knob to select a file, then press the knob. Selected file starts playing. Skip search (applicable only for iPodUSB source and iPodBT source) If you have many files in the selected list, you can perform the following to search for a file by skipping through the list at a rate selected in [SKIP SEARCH]

• Pressing and holding S / T searches at a 10% ratio irregardless of the [SKIP SEARCH] settings. 4 Turn the volume knob to select a file, then press the knob. Selected file starts playing. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 10DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 10 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) You can listen to music from a portable audio player via the auxiliary input jack. Preparation: Select [ON] for [BUILT-IN AUX]

Connect a portable audio player (commercially available). Portable audio player

3.5 mm stereo mini plug with “L” shaped

connector (commercially available) Auxiliary input jack 2 Press B SRC repeatedly to select AUX. 3 Turn on the portable audio player and start playback. Set the name of the external device While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]

[TV] 5 Press and hold to exit. To return to the previous setting item, press

AUX KENWOOD Remote Application You can control the KENWOOD car receiver from iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth) using KENWOOD Remote application.

• For more information, visit <https://www.kenwood.com/cs/ce/>. Preparation: Install the latest version of KENWOOD Remote application on your device before connecting. Start using KENWOOD Remote application

Start up the KENWOOD Remote application on your device. 2 Connect your device.

• For Android device: Pair the Android device with this unit via Bluetooth. (Page 13)

• For iPhone/iPod touch: Connect iPhone/iPod touch to the USB input terminal. (Page 8) (or) Pair the iPhone/iPod touch with this unit via Bluetooth. (Page 13) (Make sure the USB input terminal is not connected to any device.) 3 Select the device to use from the [FUNCTION] menu. See the following “ Settings to use KENWOOD Remote application”. By default, [ANDROID] is selected. To use iPhone/iPod touch, select [YES] for [IOS]

Settings to use KENWOOD Remote application

2 Turn the volume knob to select an item (page 12), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 11DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 11 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AM12 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Default: [XX] [REMOTE APP] [SELECT] Selects the device ([IOS] or [ANDROID]) to use the application. [IOS] [YES]: Selects iPhone/iPod touch to use the application via Bluetooth or connected via USB input terminal. ; [NO]: Cancels. If [IOS] is selected, select iPod BT source (or iPod USB source if your iPhone/ iPod touch is connected via USB input terminal) to activate the application.

• The connectivity of the application will be interrupted or disconnected if: – You change from iPod BT source to any playback source connected via the USB input terminal. – You change from iPod USB source to iPod BT source. [ANDROID] [YES]: Selects Android device to use the application via Bluetooth. ; [NO]: Cancels. [ANDROID LIST] Selects the Android device to use from the list.

• Displayed only when [ANDROID] of [SELECT] is set to [YES]. [STATUS] Shows the status of the selected device. [IOS CONNECTED]: You are able to use the application using the iPhone/ iPod touch connected via Bluetooth or USB input terminal. [IOS NOT CONNECTED]: No iOS device is connected to use the application. [ANDROID CONNECTED]: You are able to use the application using the Android device connected via Bluetooth. [ANDROID NOT CONNECTED]: No Android device is connected to use the application.

• Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.

• Be sure to turn on the Bluetooth function of the device to make the following operations.

• Signal conditions vary depending on the surroundings. Bluetooth — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) Connect the microphone Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. Microphone input jack Microphone (supplied) Rear panel Bluetooth®KENWOOD Remote Application DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 12DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 12 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pair and connect a Bluetooth device for the first time

Press B SRC to turn on the unit. 2 Search and select the name of your receiver (“DPX-M3300BT”) on the Bluetooth device. “PAIRING” “PASS XXXXXX” “Device name” “PRESS” “VOLUME KNOB” appears on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed. Once pairing is completed, Bluetooth connection is established automatically.

” and/or “ ” indicator on the display window lights up.

• Depending on the settings made for [BATT/SIGNAL] (page 15), the strength of the battery and signal of the connected device are shown on the supplementary display (page 28).

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page16.

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. To connect or disconnect the registered device, see [PHONE SELECT]

[BT MODE] . (Page 16) However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page17, 18)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. Bluetooth® Auto Pairing When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to [ON] . (Page 16) Press the volume knob to pair once you have confirmed the device name. Bluetooth — Mobile phone Receive a call When there is an incoming call:

[KEY 1] zone and [KEY 2] zone illuminate in green color and flash.

• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page15) During a call:

[LCD DISPLAY] zone illuminates according to the settings made for [COLOR SELECT] (page23) while [KEY 1] zone and [KEY 2] zone illuminate in green color.

• If you turn off the unit, Bluetooth is disconnected. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 13DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 13 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AM14 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Bluetooth® The following operations may differ or be unavailable depending on the connected phone. To On the faceplate First incoming call... Answer a call Press or the volume knob or one of the number buttons (1 to 6). Reject a call Press

While talking on the first incoming call... Answer another incoming call and hold the current call Press

Reject another incoming call Press

While having two active calls... End current call and activate held call Press

Swap between the current call and held call Press

Adjust the phone volume*1 [00]

Turn the volume knob during a call. Switch between hands-free and private talk modes*2 Press 6 IW during a call. *1 This adjustment will not affect the volume of the other sources. *2 Operations may vary according to the connected Bluetooth device. Improve the voice quality While talking on the phone... 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [MIC GAIN] [LEVEL –10] to [LEVEL +10] ([LEVEL –4]): The sensitivity of the microphone increases as the number increases. [NR LEVEL] [LEVEL –5] to [LEVEL +5] ([LEVEL 0]): Adjust the noise reduction level until the least noise is being heard during a phone conversation. [ECHO CANCEL] [LEVEL –5] to [LEVEL +5] ([LEVEL 0]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

• Call quality may depend on mobile phone. Make the setting for receiving a call

Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (page 15), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 14DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 14 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Default: [XX] [SETTINGS] [AUTO ANSWER] [1] to [30]: The unit answers incoming call automatically in the selected time (in seconds). ; [OFF]: Cancels. [BATT/SIGNAL]* [AUTO]: Shows the strength of the battery and signal on the supplementary display (page 28) when the unit detects a Bluetooth device and the Bluetooth device is connected. ; [OFF]: Cancels.

• Functionality depends on the type of the phone used. Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. “(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to the other phone. “(Second device name)” appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

[CALL HISTORY] (Applicable only if the phone supports PBAP.)

• “INCOMING,” “OUTGOING” or “MISSED” is shown on the lower part of the display to indicate the previous call status.

• Press DISP to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history or call number.

Press the volume knob to call. Bluetooth® [PHONE BOOK] (Applicable only if the phone supports PBAP.)

Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears.

• To go to the other menu (LMNOPQRSTUV or WXYZ1 ), press 1 /

, then press the knob. Select “1” to search with numbers and select “ ” to search with symbols.

• For using phonebook with this unit, make sure to allow access to or transfer from your smartphone. Depending on the connected phone, the process may be different.

• Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL

• This unit can display only non-accent letters. (Accent letters such as “Ú” are shown as “U”.) [NUMBER DIAL]

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

to move the entry position. Repeat step 1 and step 2 until you finish entering the phone number.

Press the volume knob to call. [VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See also “Make a call using voice recognition” on page 16.) [LOW]/[MID]/[FULL]: Shows the strength of the battery.* [NO SIGNAL]/[LOW]/[MID]/[MAX]: Shows the strength of the current received signal.*

• Functionality depends on the type of the phone used. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 15DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 15 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AM16 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Bluetooth® Make a call using voice recognition

Press and hold VOICE to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details. Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [CALL HISTORY]

[NUMBERDIAL] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [NUMBER DIAL] in step 2, store a blank number in step 3 and proceed to step 4. Make a call to a registered number

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO MEMORY” appears if there is no contact stored. Bluetooth mode settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [BT MODE] [PHONE SELECT] Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

” appears in front of the current playback audio device.

• You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time. [AUDIO SELECT] [DEVICE DELETE]

Turn the volume knob to select a device to delete, then press the knob.

to move the entry position. Repeat step 1 and step 2 until you finish entering the PIN code.

Press the volume knob to confirm. [RECONNECT] [ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels. [AUTO PAIRING] [ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; [OFF]: Cancels. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 16DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 16 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels. Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. 2 Search and select the name of your receiver (“DPX-M3300BT”) on the Bluetooth device. 3 Operate the Bluetooth device to confirm pairing. “TESTING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CNT: Hands-Free Profile (HFP) compatibility AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility PB DL: Phonebook Access profile (PBAP) compatibility To cancel test mode, press and hold B SRC to turn off the unit. Bluetooth® Bluetooth — Audio

• Operations and display indications may differ according to their availability on the connected device.

• Depending on the connected device, some features may not work with your device. While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. Listen to the audio player via Bluetooth

Press B SRC repeatedly to select BTAUDIO.

• Pressing enters BT AUDIO directly. 2 Operate the audio player via Bluetooth to start playback. To On the faceplate Play back/pause Press 6 IW. Select group or folder Press 1 / 2 . Reverse skip/Forward skip Press S / T. Reverse/Fast-forward Press and hold S / T. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 17DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 17 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AM18 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Bluetooth® To On the faceplate Repeat play Press 4 repeatedly. [ALLREPEAT]

[REPEATOFF] Random play Press and hold 3 to select [ALLRANDOM]

Press 3 to select [RANDOMOFF]. Select a file from a folder/list Refer to “Select a file to play” on page 10. Switch between connected Bluetooth audio devices Press 5. (Pressing the “Play” key on the connected device itself also causes switching of sound output from the device.) Listen to iPod/iPhone via Bluetooth You can listen to the songs on the iPod/iPhone via Bluetooth on this unit. Press B SRC repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (Page8)

• If you plug in an iPod/iPhone to the USB input terminal while listening to iPodBT source, the source automatically changes to iPodUSB source. Press B SRC to select iPodBT source if the device is still connected via Bluetooth. Audio Settings 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [AUDIO CONTROL] [SUB-W LEVEL] [LEVEL –50] to [LEVEL +10] ([LEVEL 0]): Adjusts the subwoofer output level. [EASYEQ] Adjusts your own sound settings.

• The settings are stored to [USER] in [PRESET EQ].

• The settings made may affect the current settings of [MANUAL EQ]. [SW]: [LEVEL –50] to [LEVEL +10] (Default: [LEVEL 0] [BASS]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [MID]: [LEVEL –9] to [LEVEL +9] [LEVEL 0] [TRE]: [LEVEL –9] to [LEVEL +9] [LEVEL 0]) DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 18DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 18 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) [MANUAL EQ] Adjusts your own sound settings for each source.

• The settings are stored to [USER] in [PRESET EQ].

• The settings made may affect the current settings of [EASYEQ]. [62.5HZ] [LEVEL] [LEVEL–9] to [LEVEL+9] ([LEVEL0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [BASS EXTEND] [ON]: Turns on the extended bass. ; [OFF]: Cancels. [100HZ]/[160HZ]/ [250HZ]/[400HZ]/ [630HZ]/[1KHZ]/ [1.6KHZ]/[2.5KHZ]/ [4KHZ]/[6.3KHZ]/ [10KHZ]/[16KHZ] [LEVEL –9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) [Q FACTOR] [1.35]/[1.50]/[2.00]: Adjusts the quality factor. [PRESET EQ] [NATURAL]/[ROCK]/[POPS]/[EASY]/[TOP40]/[JAZZ]/[POWERFUL]/ [USER]: Selects a preset equalizer suitable to the music genre.

• When the display demonstration is activated ([ON] is selected initially, page 23), [ROCK] is automatically selected as the [PRESET EQ]. – If you set [DEMO MODE] to [OFF] (page 23), [NATURAL] is selected as the default setting for [PRESET EQ]. (Select [USER] to use the settings made in [EASY EQ] or [MANUALEQ].) [BASS BOOST] [LEVEL1] to [LEVEL5]: Selects your preferred bass boost level. ; [OFF]: Cancels. [LOUDNESS] [LEVEL1]/[LEVEL2]: Selects your preferred low or high frequencies boost to produce a well-balanced sound at low volume. ; [OFF]: Cancels. [SUBWOOFER SET] [ON]: Turns on the subwoofer output. ; [OFF]: Cancels. [FADER] (Not applicable if 3-way crossover is selected.) (Page 6) [R15] to [F15] ([0]): Adjusts the front and rear speaker output balance. [BALANCE] [L15] to [R15] ([0]): Adjusts the left and right speaker output balance. [VOLUME OFFSET] [–15] to [+6] ([0]): Presets the initial volume level of each source by comparing to the FM volume level. (Before adjustment, select the source you want to adjust.) [SOUND EFFECT] [SOUNDRECNSTR] (Sound reconstruction) (Not applicable for RADIO source and AUX source.) [ON]: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; [OFF]: Cancels. [SPACE ENHANCE] (Not applicable for RADIO source.) [SMALL]/[MEDIUM]/[LARGE]: Virtually enhances the sound space. ; [OFF]: Cancels. [SND REALIZER] [LEVEL1]/[LEVEL2]/[LEVEL3]: Virtually makes the sound more realistic. ; [OFF]: Cancels. [STAGE EQ] [LOW]/[MIDDLE]/[HIGH]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels. [DRIVE EQ] [ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels. [SPEAKER SIZE] Depending on the crossover type you have selected (see “Change the crossover type” on page 6), 2-way crossover or 3-way crossover setting items will be shown. (See “Crossover settings” on page 20.) By default, 2-way crossover type is selected. [X ‘ OVER] [DTA SETTINGS] For settings, see “Digital Time Alignment settings” on page 21. [CAR SETTINGS]

• For 2-way crossover: [SUB-W LEVEL]

[SUBWOOFER SET] is selectable only if [SWITCH PREOUT] is set to [SUBWOOFER] . (Page 5)

[SUB-W LEVEL] is selectable only when [SUBWOOFER SET] is set to [ON]

Audio Settings DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 19DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 19 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AM20 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Audio Settings Crossover settings Below are the available setting items for 2-way crossover and 3-way crossover. SPEAKER SIZE Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.

• If [NONE] is selected for the following speaker in [SPEAKER SIZE] , the [X ‘ OVER] setting of the selected speaker is not available. – 2-way crossover: [TWEETER]

[SUBWOOFER] – 3-way crossover: [WOOFER] X ‘ OVER (crossover)

[LPFFRQ] : Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

[THROUGH] is selected, all signals are sent to the selected speakers.

Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

[PHASE] : Selects the phase of the speaker output to be in line with the other speaker output.

[GAIN LEFT] [–8] to [0] [GAIN RIGHT] [–8] to [0]

[FRONT HPF] [F-HPF FRQ]

[F-HPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB] [F-HPF GAIN] [–8] to [0]

[REAR HPF] [R-HPF FRQ]

Configure the settings for the rear speakers similarly to the front speakers. [R-HPF SLOPE] [R-HPF GAIN] DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 20DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 20 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

[SPEAKER SIZE] and [SUBWOOFER LPF]

[X’OVER] is selectable only when [SWITCH PREOUT] is set to [SUBWOOFER] (page5) and [SUBWOOFERSET] is set to [ON] (page19). 3-way crossover setting items [SPEAKER SIZE] [TWEETER]

[HPF SLOPE] [–6DB]/[–12DB] [LPF FRQ]

[SPEAKER SIZE] and [WOOFER]

[X’OVER] is selectable only when [SUBWOOFERSET] is set to [ON] . (Page19) Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

• For more information, see “Determining the delay time automatically” on page 22. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 21DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 21 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AM22 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Audio Settings [DTA SETTINGS] [POSITION] Selects your listening position (reference point). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats

• [FRONT ALL] is displayed only when [2-WAY X’OVER] is selected. (Page 6) [DISTANCE] [0CM] to [610CM]: Fine adjust the distance to compensate. (Before making an adjustment, select the speaker you want to adjust.) [GAIN] [–8DB] to [0DB]: Fine adjust the output volume of the selected speaker. (Before making an adjustment, select the speaker you want to adjust.) [DTA RESET] [YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default. ; [NO]: Cancels. [CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS]. [CAR TYPE] [COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/ [MINIVAN(LONG)]: Selects the type of vehicle. ; [OFF]: Not compensating. [R-SP LOCATION] Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).

• [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV].

• [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

• Before making an adjustment for [DISTANCE] and [GAIN]

select the speaker you want to adjust: When 2-way crossover is selected: [FRONT LEFT]

[SUBWOOFER] – You can only select [REAR LEFT]

[REAR RIGHT] and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER]

[SUBWOOFER] is selectable only when [SWITCH PREOUT] is set to [SUBWOOFER] (page5) and [SUBWOOFERSET] is set to [ON] (page19). When 3-way crossover is selected: [TWEETER LEFT]

[WOOFER] – You can only select [WOOFER] if a setting other than [NONE] is selected for [WOOFER]

[CAR SETTINGS] is selectable only if: – 2-way crossover is selected. (Page6) – A setting other than [NONE] is selected for [REAR]

(Page20) Determining the delay time automatically If you specify the distance from the currently set listening position to every speaker, the delay time will be automatically calculated.

Set [POSITION] and determine the listening position as the reference point (the reference point for [FRONT ALL] will be the center between the right and left in the front seats).

Measure the distances from the reference point to the speakers.

Calculate the distance between the furthest speaker (subwoofer on the illustration) and other speakers.

Sets the [DISTANCE] calculated in step 3 for individual speakers.

Adjusts [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 22DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 22 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Display Settings Zone identification for color settings and brightness settings Set the dimmer Press and hold DISP to turn on or off the dimmer.

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press

Default: [XX] [DISPLAY] [COLOR SELECT] Selects illumination colors for [ALLZONE], [LCDDISPLAY], [KEY1] and [KEY2] separately.

Select a zone. (See the illustration on left column.)

Select a preset color for the selected zone. (Page 28) Default: [VARIABLE SCAN] To make your own color, select [CUSTOM R/G/B]. The color you have made will be stored in [CUSTOM R/G/B].

Press the volume knob to enter the detailed color adjustment.

to select the color ([R]/[G]/[B]) to adjust.

Turn the volume knob to adjust the level ([0] to [9]), then press the knob. [DIMMER] Dims the illumination. [ON]: Dimmer is turned on. [OFF]: Dimmer is turned off. [DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer.

[DAY]/[NIGHT]: Select day or night.

Select a zone. (See the illustration on left column.)

[LEVEL00] to [LEVEL31]: Set the brightness level. [TEXT SCROLL] [ONCE]: Scrolls the display information once. ; [AUTO]: Repeats scrolling at 5-second intervals. ; [OFF]: Cancels. [CLOCK] [CLOCK DISPLAY] [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. [DEMO MODE] [ON]: Activates the display demonstration automatically if no operation is done for about 15 seconds. ; [OFF]: Deactivates. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 23DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 23 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AM24 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. WARNING

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• To prevent short circuit: – Insulate unconnected wires with vinyl tape. – Be sure to ground this unit to the car’s chassis again after installation. – Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires. CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

• Mount the unit at an angle of less than 30°.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Installation/Connection Part list for installation (A) Mounting sleeve ( ×1 ) (B) Trim plate ( ×1 ) (C) Wiring harness ( ×1 ) (D) Extraction key ( ×2 ) Basic procedure

Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Connect the wires properly. See “Wiring connection” on page26. 3 Install the unit to your car. See “Installing the unit (in-dash mounting)” on page 25. 4 Connect the terminal of the car battery. 5 Press B SRC to turn on the power. 6 Reset the unit. (Page3) DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 24DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 24 9/10/2021 11:53:17 AM9/10/2021 11:53:17 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Installation/Connection Installing the unit (in-dash mounting) Do the required wiring. (Page 26) Dashboard of your car Bend the appropriate tabs to hold the mounting sleeve firmly in place. Installing the unit (without mounting sleeve)

Remove the mounting sleeve and trim plate from the unit before installing. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit. Removing the unit

Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out. 2 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 25DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 25 9/10/2021 11:53:18 AM9/10/2021 11:53:18 AM26 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) REMOTE CONT

: Rear speaker (right) For 3-way crossover: Tweeter (right)

: Front speaker (right) For 3-way crossover: Mid range speaker (right)

: Front speaker (left) For 3-way crossover: Mid range speaker (left)

: Rear speaker (left) For 3-way crossover: Tweeter (left)

Fuse (10 A) Antenna terminal Blue/White*2 (Power control wire/ Antenna control wire) Light blue/yellow (Steering remote control wire) To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle Brown (Mute control wire) Connect to the device equipped with muting feature to mute this unit If no connections are made, do not let the wire come out from the tab. To the steering wheel remote control adapter If your car does not have an ISO terminal: We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below. UnitVehicle A7 (Red) Ignition wire (Red) A4 (Yellow) Default wiring Battery wire (Yellow) Yellow (A4) Red (Ignition wire) Red (A7) Yellow (Battery wire) ISO connectors NOTE: Total output for Blue/White wire (*1) + (*2) is 12 V 350 mA. DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 26DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 26 9/10/2021 11:53:18 AM9/10/2021 11:53:18 AMENGLISH

Output terminals (See the following “Connect external amplifiers via output terminals”.) Connect external amplifiers via output terminals When connecting an external amplifier to the output terminals of this unit, securely connect the amplifier ground wire to the car chassis to prevent damage to the unit. Output terminals 2-way crossover 3-way crossover FRONT: Front output Mid Range output REAR / SW: Rear/subwoofer output Woofer output References Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. More information For: – Latest firmware updates and latest compatible item list – KENWOOD original application – Any other latest information Visit <https://www.kenwood.com/cs/ce/>. Playable files

• USB mass storage class device: Playable audio file: MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac) Playable file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.

• For detailed information and notes about the playable audio files, visit <https://www.kenwood.com/cs/ce/audiofile/>. About USB devices

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A. DPX-M3300BT_E_B5A-3851-00_EN_2nd Draft.indd 27DPX-M3300BT_E_B5A-3851-00_EN_2nd Draft.indd 27 10/13/2021 12:39:48 PM10/13/2021 12:39:48 PM28 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) About iPod/iPhone

• Made for – iPod touch (6th generation) – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR, 11, 11 Pro, 11 Pro MAX, SE (2nd generation), 12, 12 Mini, 12 Pro, 12 Pro MAX

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.

• If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name) appears or display will be blank. Main display Supplementary display Clock time References Source name Display information: Main display (supplementary) STANDBY Source name (Date) RADIO Frequency (Date) For FM Radio Data System stations only: Station name/Program type (Date) Radio text (Date) Radio text+ (Radio text+) Song title (Artist) Song title (Date) Frequency (Date) back to the beginning USB For MP3/WMA/AAC/WAV/FLAC files: Song title (Artist) Song title (Album title) Song title (Date) File name (Folder name) File name (Date) Playing time (Date) back to the beginning iPod USB/iPod BT Song title (Artist) Song title (Album title) Song title (Date) Playing time (Date) back to the beginning BT AUDIO Song title (Artist) Song title (Album title) Song title (Date) Playing time (Date) back to the beginning AUX Source name (Date) DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 28DPX-M3300BT_E_B5A-3851-00_EN_1st Draft.indd 28 9/10/2021 11:53:18 AM9/10/2021 11:53:18 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Troubleshooting Symptom Remedy General Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE”

appears. Send the unit to the nearest service center. Source cannot be selected. Check the [SOURCESELECT] setting. (Page 5) The unit does not work at all. Reset the unit. (Page 3) Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

• Depending on the display language you have selected (page 6), some characters may not be displayed correctly. Radio

• Radio reception is poor.

• Static noise while listening to the radio. Connect the antenna firmly. USB/iPod Playback order is not as intended. USB device, the folders are played in the order of creation (date and time). The files within each folder are played in the order of the file name (alphabet). Elapsed playing time is not correct. This depends on the recording process earlier (USB). “READING” keeps flashing. • Do not use too many hierarchical levels and folders.

• Reattach the device (USB/iPod/iPhone). “UNSUPPORTED DEVICE” appears.

• Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 27)

• Reattach the USB device. Symptom Remedy USB/iPod “UNRESPONSIVE DEVICE” appears. Make sure the USB device is not malfunction and reattach the USB device.

SUPPORTED” appears. This unit cannot support a USB device connected via a USB hub.

• The source does not change to “USB” when you connect a USB device while listening to another source.

• “USB ERROR” appears. The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device. The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone.

• Disconnect and reset the iPod/iPhone using hard reset. “LOADING” appears when you enter search mode by pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. “NA FILE” Make sure the media (USB) contain supported audio files. (Page 27) “COPY PRO” A copy-protected file is played (USB). “NO DEVICE” Connect a device (USB/iPod/iPhone), and change the source to USB or iPod USB again. “NO MUSIC” Connect a device (USB/iPod/iPhone) that contains playable audio files. “iPod ERROR” • Reconnect the iPod.

SRC to turn off the power. Turn the power on again for error recovery. “MEMORY FULL” You have reached the maximum storage limit of your iPod/iPhone. DPX-M3300BT_E_B5A-3851-00_EN_3rd Draft.indd 29DPX-M3300BT_E_B5A-3851-00_EN_3rd Draft.indd 29 1/26/2022 2:48:13 PM1/26/2022 2:48:13 PM30 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy Bluetooth® No Bluetooth device is detected.

• Search from the Bluetooth device again.

• Reset the unit. (Page 3) Bluetooth pairing cannot be made.

• Make sure you have entered the same PIN code to both the unit and Bluetooth device.

• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 13) Echo or noise is heard during a phone conversation.

• Adjust the microphone unit’s position. (Page 12)

• Check the [ECHO CANCEL] setting. (Page 14) Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth device.

• Move the car to a place where you can get a better signal reception. Phone call sound cannot be heard from the car speakers.

during a call to switch between hands-free and private talk mode. (Page 14) Voice calling method is not successful.

• Use voice calling method in a more quiet environment.

• Reduce the distance from the microphone when you speak the name.

• Make sure the same voice as the registered voice tag is used. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.

• Turn off, then turn on the unit and try to connect again.

• Other Bluetooth devices might be trying to connect to the unit. Troubleshooting Symptom Remedy Bluetooth® The connected Bluetooth audio player cannot be controlled.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

• Disconnect and connect the Bluetooth player again. “NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer. “NO ENTRY” There is no registered device connected/found via Bluetooth. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.

“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. “SWITCHING NG” The connected phones might not support phone switching feature. The Bluetooth connection between the Bluetooth device and the unit is unstable. Delete the unused registered Bluetooth device from the unit. (Page 16) DPX-M3300BT_E_B5A-3851-00_EN_3rd Draft.indd 30DPX-M3300BT_E_B5A-3851-00_EN_3rd Draft.indd 30 1/26/2022 2:48:16 PM1/26/2022 2:48:16 PMENGLISH

Quieting Sensitivity (DIN S/N = 46 dB)

(AM) Frequency Range 531 kHz — 1 611 kHz (9 kHz step) Usable Sensitivity (S/N = 20 dB)

(AM) Frequency Range 153 kHz — 279 kHz (9 kHz step) Usable Sensitivity (S/N = 20 dB) 50 μV USB USB Standard USB 1.1, USB 2.0 (High speed) File System FAT12/16/32 Maximum Supply Current DC 5 V

“PRESS” “VOLUME KNOB” “TO CONFIRM”

[SUBWOOFER] – Transition 3 voies: [WOOFER] X ‘ OVER (transition)

[FRONT HPF] [F-HPF FRQ]

[HPF SLOPE] [–6DB]/[–12DB] [LPF FRQ]

“PRESS” “VOLUME KNOB”

[FRONT HPF] [F-HPF FRQ]

[HPF SLOPE] [–6DB]/[–12DB] [LPF FRQ]

“PRESS” “VOLUME KNOB” “TO CONFIRM”

[SUBWOOFER] – 3-weg crossover: [WOOFER] X ‘ OVER (crossover)

[FRONT HPF] [F-HPF FRQ]

[HPF SLOPE] [–6DB]/[–12DB] [LPF FRQ]

• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

• Android is a trademark of Google LLC.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. DPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd 2DPX-M3300BT_E_B5A-3851-00_Cover_1st Draft.indd 2 8/12/2021 9:11:48 AM8/12/2021 9:11:48 AM
