EG-PWC-031 - Battery EnerGenie - Free user manual and instructions

Product type	External battery / portable power bank
Brand	EnerGenie
Model	EG-PWC-031
Rated capacity	10,000 mAh (typical estimate for this type)
Output voltage	5 V DC (USB standard)
Input voltage	5 V DC (charging via micro USB)
Maximum output current	2.1 A (standard port)
Battery technology	Lithium-ion (Li-ion)
Dimensions (L × W × H)	150 × 70 × 15 mm
Weight	250 g
Power supply	Via micro USB port (cable included)
Overcharge protection	Yes, built-in protection circuit
Short-circuit protection	Yes
Operating temperature	0 °C to 45 °C
Storage temperature	-10 °C to 60 °C
Housing material	Impact-resistant ABS plastic
LED charge indicator	Yes, 4 LEDs for battery level
Compatibility	Smartphones, tablets, USB devices
Maintenance and cleaning	Wipe with a dry, soft cloth. Do not immerse in water.
Safety	Do not expose to excessive heat, do not puncture, do not disassemble.
Spare parts and repairability	The battery is not user-repairable. Contact customer service for any defects.
General information	24-month warranty. Keep the receipt. Domestic use.
Package contents	Battery, micro USB cable, user manual
Certifications	CE, RoHS

Frequently Asked Questions - EG-PWC-031 EnerGenie

How to recharge the EG-PWC-031 battery?

Connect the provided micro USB cable to the battery input and to a USB power adapter (not included) or a computer. The LED indicator shows the charge level.

What is the battery capacity?

The rated capacity is 10,000 mAh, allowing you to recharge most smartphones several times.

What devices can I charge with this battery?

Any device that charges via a standard USB port: smartphone, tablet, Bluetooth earphones, etc.

How long does it take to charge the battery?

With a 2A charger, the full charge time is approximately 5 to 6 hours.

Is the battery safe to use?

Yes, it features protections against overcharging, short circuits, and overheating. Do not use if damaged.

How to clean the battery?

Unplug it and wipe it with a soft, dry cloth. Do not use chemicals.

Can I take the battery on a plane?

Lithium-ion batteries under 100 Wh (like this one) are generally allowed in carry-on luggage. Check your airline's rules.

What to do if the battery no longer charges?

Check the cable and power adapter. If the problem persists, contact customer service under warranty.

How to store the battery long-term?

Store it half-charged (about 50%), in a cool, dry place away from direct sunlight.

How to dispose of the battery at end of life?

Do not throw it in household trash. Deposit it at a collection point for batteries and accumulators in accordance with local regulations.

USER MANUAL EG-PWC-031 EnerGenie

Exterior view of a DLC-AC 150W car power invertor with black and silver casing (no visible text or symbols on body)

EG-PWC-031

12 V CAR POWER INVERTER, 150 W

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Image displaying a grid of national flags including the European Union, Germany, Switzerland, Austria, Netherlands, Belgium, Luxembourg, France, Russia, and Ukraine.

CE ReHS MADE IN CHINA

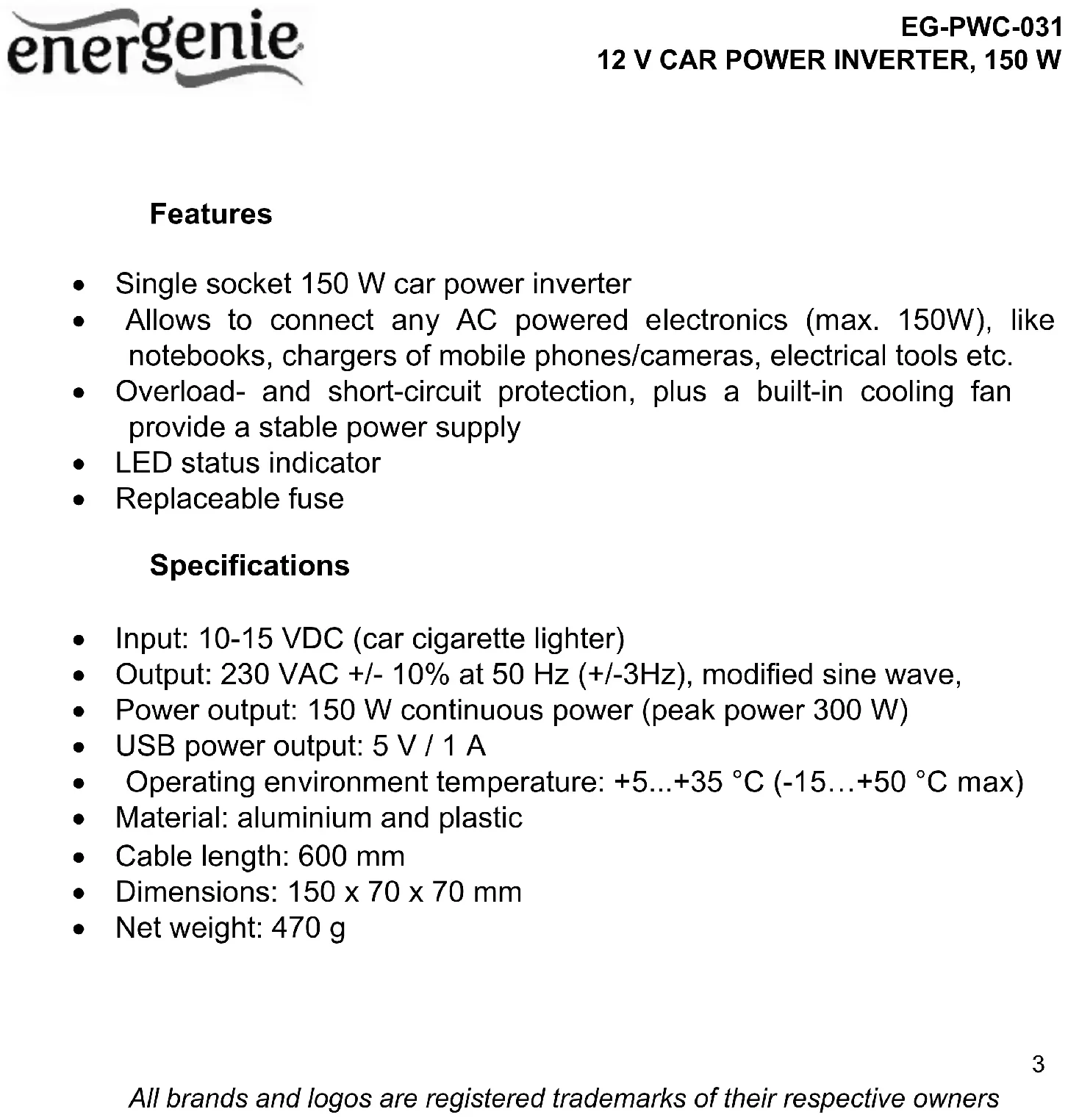

Features

• Single socket 150 W car power inverter
• Allows to connect any AC powered electronics (max. 150W), like notebooks, chargers of mobile phones/cameras, electrical tools etc.
• Overload- and short-circuit protection, plus a built-in cooling fan provide a stable power supply
  • LED status indicator
• Replaceable fuse

Specifications

• Input: 10-15 VDC (car cigarette lighter)
• Output: 230 VAC +/- 10% at 50 Hz (+/-3Hz), modified sine wave,
• Power output: 150 W continuous power (peak power 300 W)
• USB power output: 5 V / 1 A
- Operating environment temperature: +5...+35 °C (-15...+50 °C max)
• Material: aluminium and plastic
• Cable length: 600 mm
• Dimensions: 150 x 70 x 70 mm
• Net weight: 470 g

energenie

EG-PWC-031

12 V CAR POWER INVERTER, 150 W

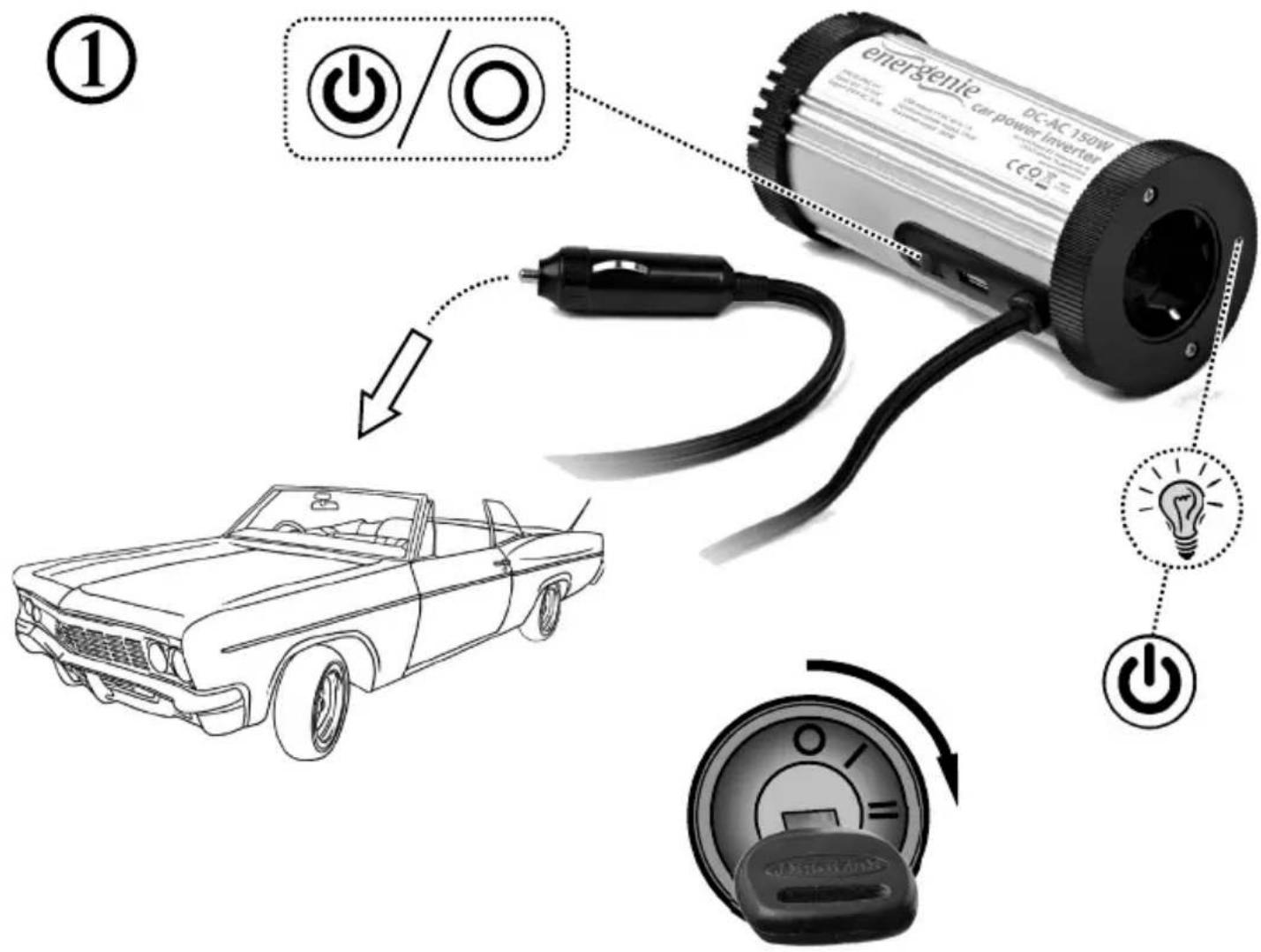

① energenic car power inverter DC-AC 150W ①

All brands and logos are registered trademarks of their respective owners

energenie

EG-PWC-031

12 V CAR POWER INVERTER, 150 W

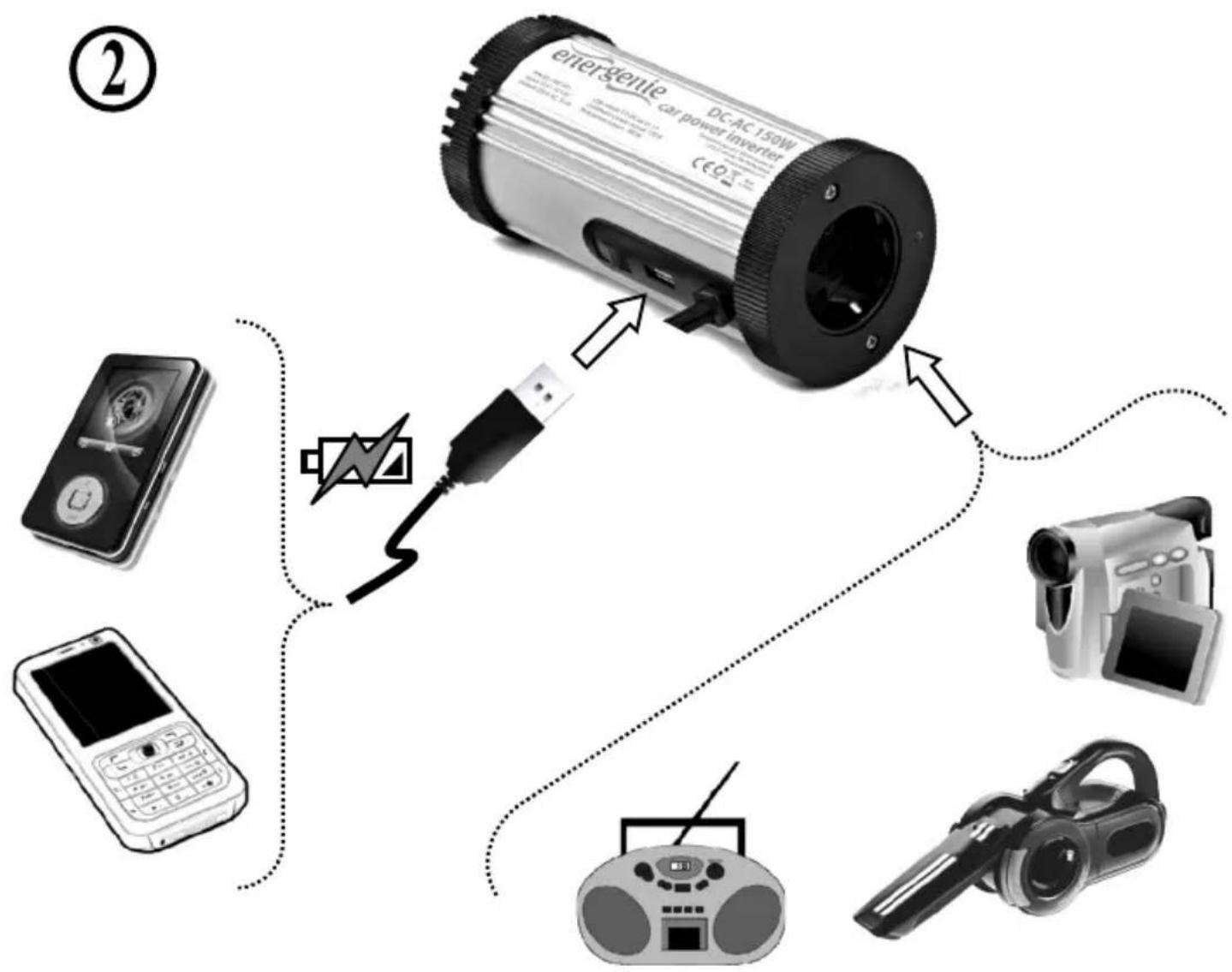


All brands and logos are registered trademarks of their respective owners

③

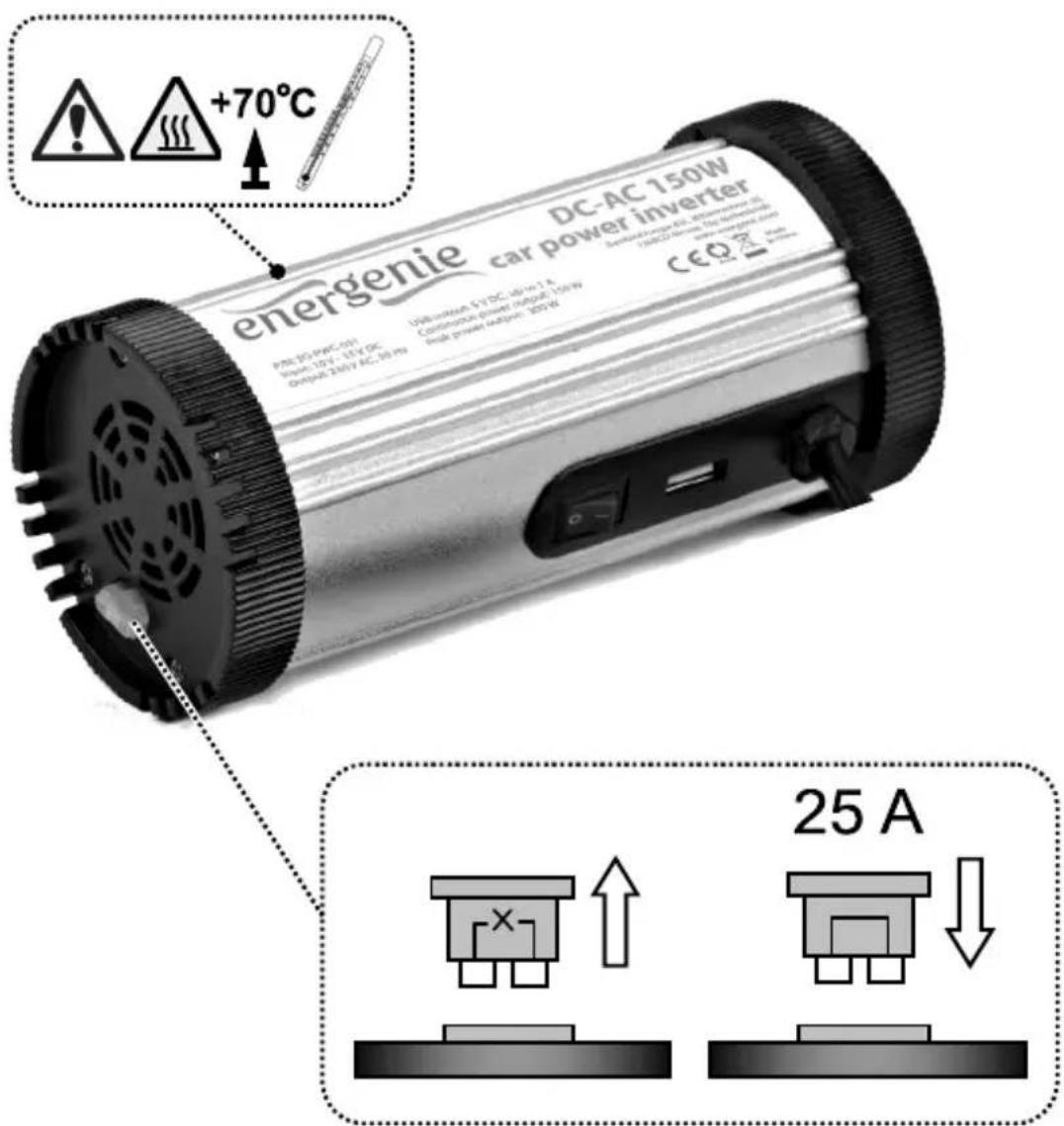

energenie DC-AC 150W car power inverter CEO 25 A

All brands and logos are registered trademarks of their respective owners

energenie

EG-PWC-031

12 V CAR POWER INVERTER, 150 W

Simple line drawing of a hand washing inside a container with water droplets falling (no text or symbols)

Simple line drawing of a sun and a person with fever, crossed by a diagonal line (no text or symbols)

Hand-drawn sketch of a hand using a tool to cut a screwdriver into a screw, with no text or symbols present.

Simple line drawing of a device with a crossed-out arrow and paperclip, no text or symbols present.

All brands and logos are registered trademarks of their respective owners

Declaration of Conformity

We,

Gembird Europe BV

Wittevrouwen 55, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

declare under our own responsibility that the product :

Model:

EG-PWC-031

Product description:

EG-PWC-031 12 V Car power inverter, 150 W

to which this declaration refers conforms with the relevant standards:

European directive(s):

IVD(2006/95/FC), FMC(2004/108/FC), FuP(2009/125/FG)

European standards:

LVD: EN 60950-1:2006+A11:2009+A1:2010+AC:2011+A12:2011

EMC: EN 55022:2010

EN 55024.2010

EN 61000-3-2.2006 +A1.2009 +A2.2009

EN 61000-3-3:2008

EuP: Regulation 270/2009

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
