| Product type | 2-door household refrigerator |
| Brand | TCL |
| Model | RP318BXF0 |
| Total volume | 318 L |
| Refrigerator volume | 219 L |
| Freezer volume | 99 L |
| Dimensions (W x D x H) | 595 x 630 x 1850 mm |
| Weight | 60 kg |
| Power supply | 220-240 V ~ 50 Hz, 0.8 A |
| Energy consumption | 309 kWh/year |
| Climate class | N/ST/T (ambient temperature 16 °C to 43 °C) |
| Defrost type | Automatic (frost-free) |
| Refrigerant | R600a (53 g) |
| Noise level | 40 dB(A) |
| Main functions | Super cool, smart mode, energy saving, door alarm, child lock, power failure memory |
| Lighting | LED lamp (2 W) |

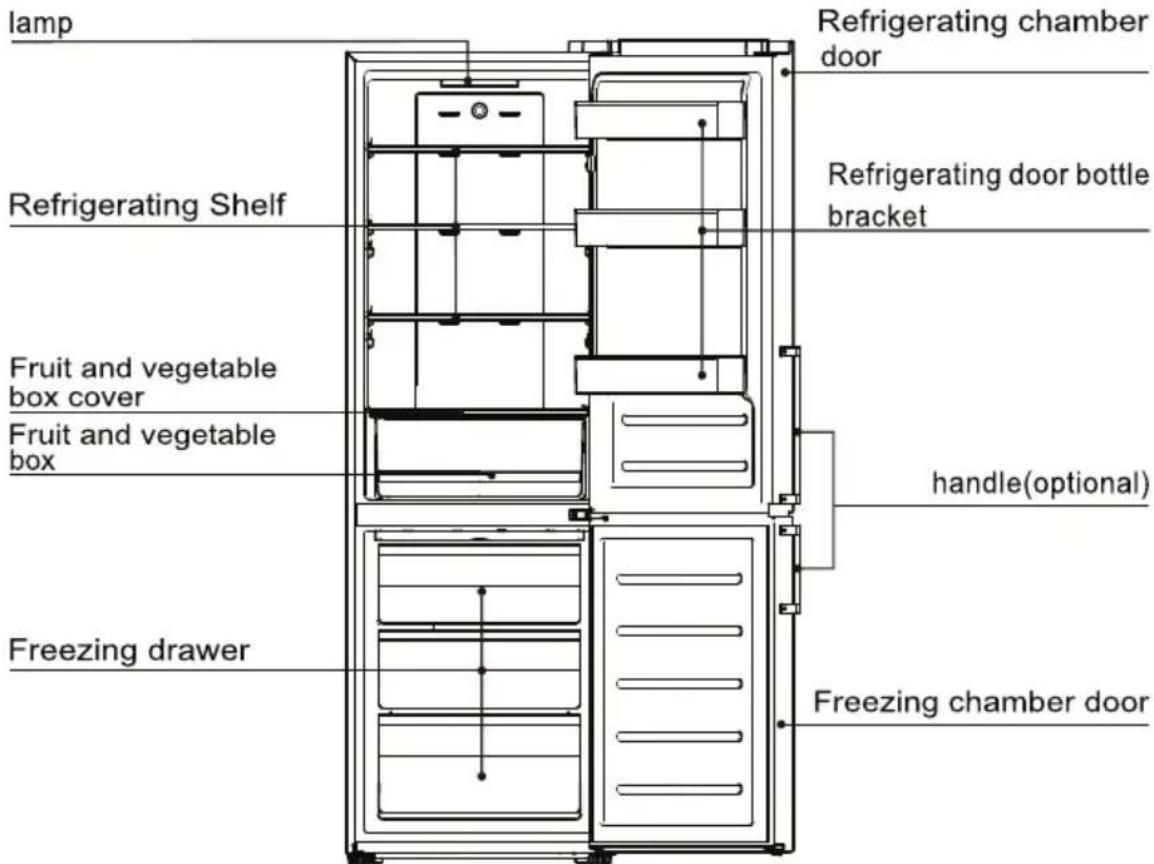

| Included accessories | 3 glass shelves, 1 fruit and vegetable crisper, 1 crisper cover, 1 ice cube tray, 1 egg holder, 3 bottle racks, 3 freezer drawers, user manual |
| Door reversibility | Yes (possibility to reverse opening direction) |
| Care and cleaning | Clean with a damp cloth and mild detergent; do not use abrasive products. Defrost manually if necessary. |
| Safety | Child lock, door alarm, overvoltage protection, automatic shutdown in case of anomaly |
| Repairability and after-sales service | Repair by a certified professional; spare parts available from the manufacturer or after-sales service |
| Warranty | See the warranty card provided |
Frequently Asked Questions - RP318BXF0 TCL

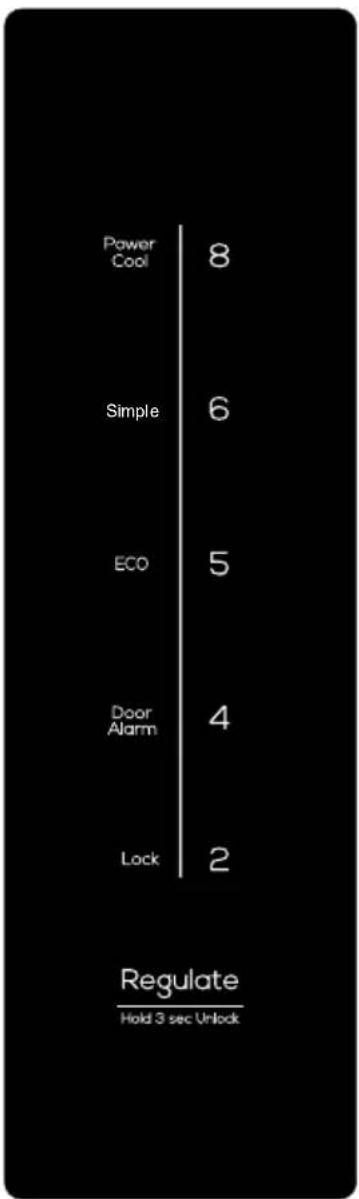

How to adjust the temperature of the TCL RP318BXF0 refrigerator?
Unlock the buttons (press 'Temperature Control' for 3 seconds), then press this button repeatedly to scroll through settings: 02, 04, 05, 06, 08, Power Cool, Smart, Energy Saving. Wait 5 seconds to confirm.
What to do if the refrigerator door does not close properly?
Check that the refrigerator is level by adjusting the feet. Make sure no food is blocking the door. If the problem persists, contact after-sales service.

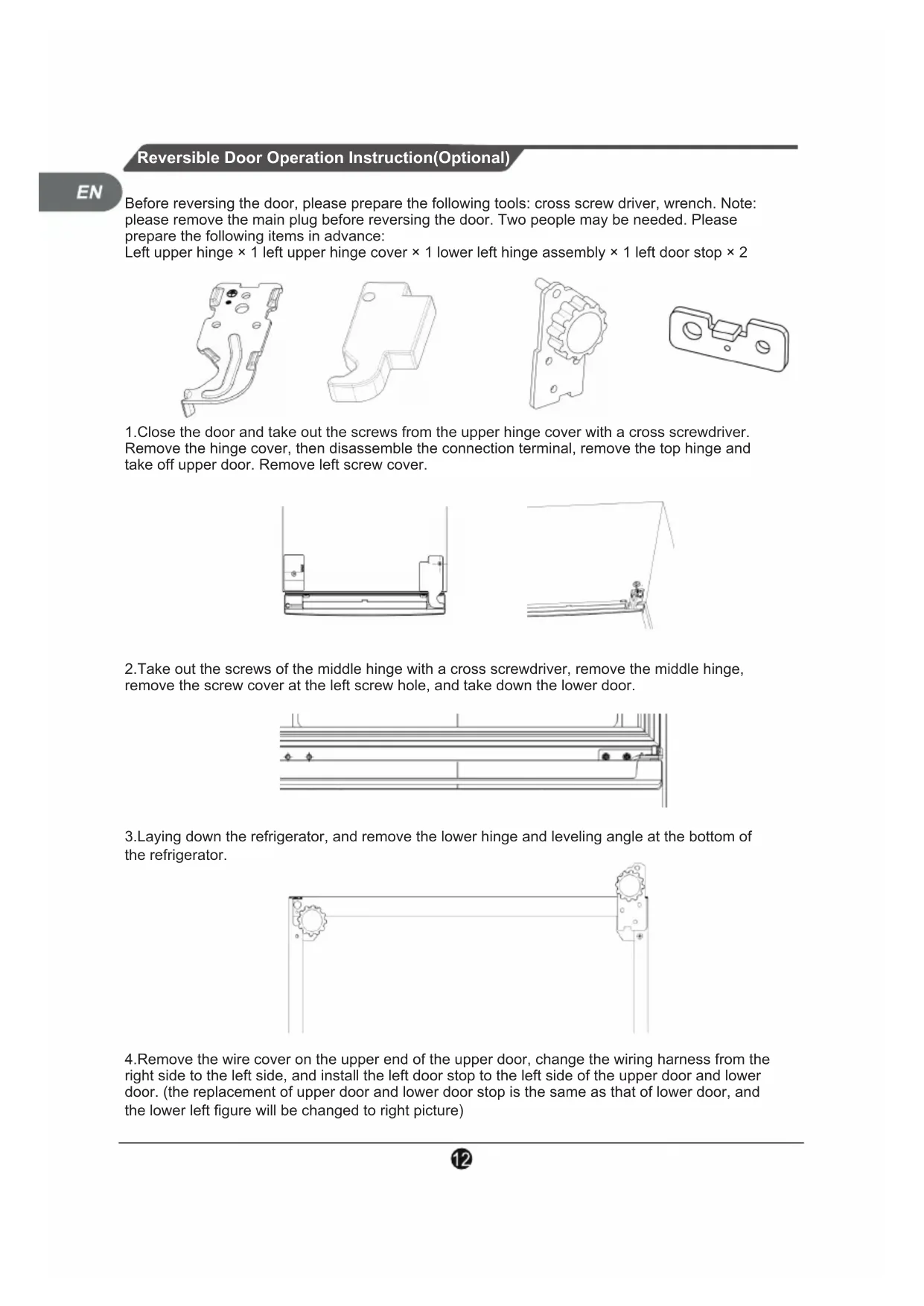

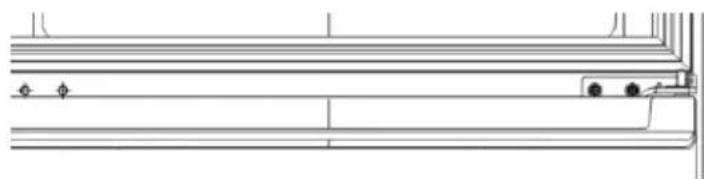

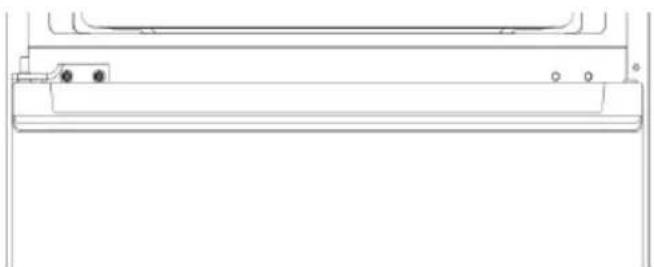

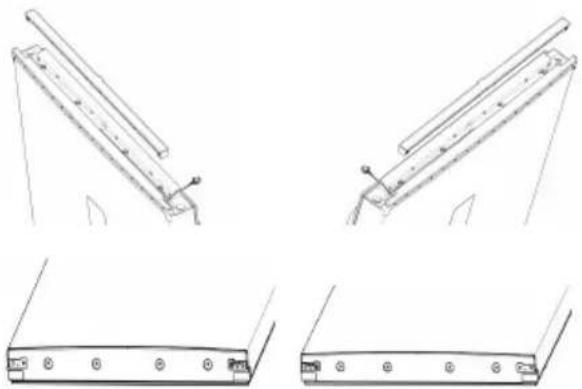

How to reverse the door opening direction?

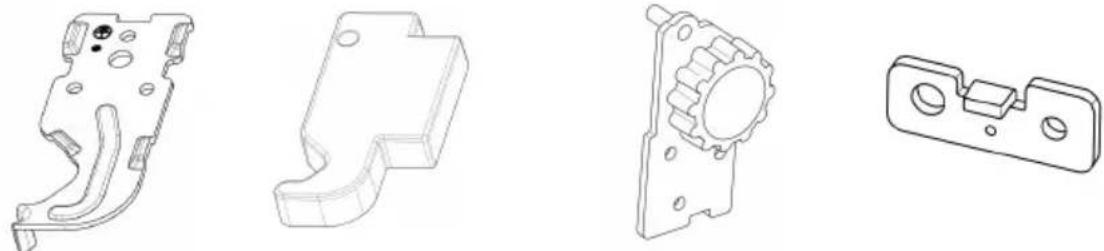

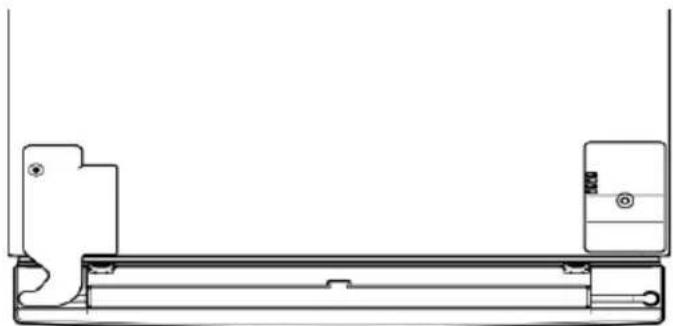

Unplug the appliance. Remove the top, middle, and bottom hinges, then reposition them on the opposite side following the instructions in the manual. Use the provided tools (Phillips screwdriver, wrench). Two people are recommended.
Why is there noise (humming, clicking, water flow)?
The noises are normal: the compressor hums, the refrigerant may flow, and the walls may click during temperature changes. If the noise is excessive, check that the appliance is level and well clear of walls.
How to clean the refrigerator?
Unplug the appliance. Use a soft cloth dampened with warm water and mild detergent. Never use abrasive products, alcohol, or gasoline. Dry thoroughly before reconnecting.
The refrigerator is not cooling enough, what to do?

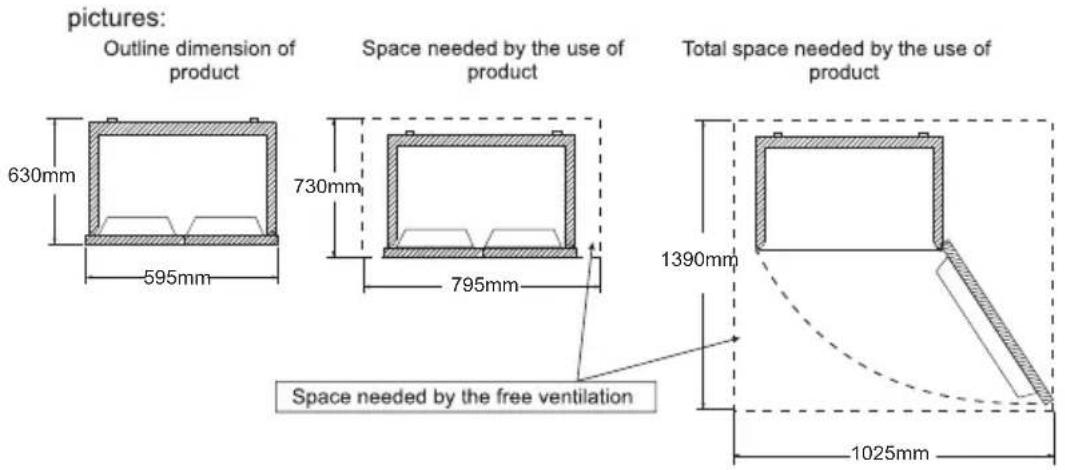

Check that the appliance is plugged in and the ambient temperature is within the allowed range (16-43 °C). Ensure a 10 cm space at the back and sides for ventilation. Clean the ventilation grilles. If the problem persists, call after-sales service.
How to activate the child lock?
The child lock activates automatically after 30 seconds of no panel touching. To unlock, press the 'Temperature Control' button for 3 seconds.
What does the audible alarm mean?
The alarm sounds if a door is left open for more than one minute. To stop it, close the door or press a button. If the door is closed but the alarm persists, contact after-sales service.
What foods can be stored in the freezer?

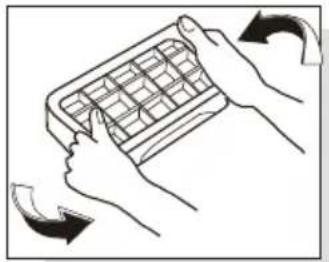

The freezer (-22 to -15 °C) is suitable for meat, fish, frozen foods, and making ice. Avoid glass containers and sealed bottle liquids. Cut meat into portions before freezing.
How to replace the (LED) bulb?
Replacement of LED lamps must be done by the manufacturer, its after-sales service, or a qualified person. Do not attempt to do it yourself.
