Brand	ASRock
Model	B550M-HVS SE
Product Type	Motherboard
Form Factor	Micro ATX
CPU Socket	AMD AM4
Chipset	AMD PRO565
Compatible Processors	Ryzen 3000, 3000 G, 4000 G, 5000 and 5000 G Series (except Athlon)
CPU Power	6 phases
Memory Type	DDR4, dual channel
Number of Memory Slots	2 x DIMM
Maximum Memory Capacity	64 GB (max 32 GB per slot)
Supported Memory Frequencies	Up to 4600+ MHz (OC) depending on CPU
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Integrated Graphics	Yes (depending on APU), HDMI 2.1 and D-Sub
Maximum HDMI Resolution	4K x 2K (4096x2160) @ 60 Hz
Audio	Realtek ALC887, 7.1 channel HD
Network	Realtek RTL8111H, Gigabit Ethernet
SATA Storage	4 x SATA3 6 Gb/s, RAID 0/1/10
M.2 Storage	1 x Ultra M.2 (PCIe Gen3 x4 and SATA)
Rear USB Ports	2 x USB 2.0, 4 x USB 3.2 Gen1
Other Rear Connectors	1 x PS/2, 1 x HDMI, 1 x D-Sub, 1 x RJ-45, 3 x audio jacks
BIOS	UEFI AMI with GUI
Supported Operating System	Windows 10 64-bit
Certifications	FCC, CE, ErP/EuP Ready

Frequently Asked Questions - B550M-HVS SE ASROCK

Which processors are compatible with the ASRock B550M-HVS SE motherboard?

The motherboard supports AMD Ryzen desktop processors of the 3000, 3000 G, 4000 G, 5000 and 5000 G series on socket AM4. It is not compatible with AMD Athlon processors.

What is the maximum RAM memory capacity?

The maximum system memory capacity is 64 GB, spread over two DDR4 DIMM slots. It supports unbuffered ECC and non-ECC memory.

What type of M.2 SSD is supported?

The motherboard has one Ultra M.2 socket that supports M.2 SATA3 6 Gb/s and M.2 PCI Express up to Gen3 x4 (32 Gb/s) modules. NVMe SSDs are supported as boot drives.

Can I use a Ryzen processor without a dedicated graphics card?

Yes, if you use a Ryzen G-series APU (with integrated graphics), the motherboard has HDMI and D-Sub outputs for display. For other Ryzen processors, a dedicated graphics card is required.

What is the PCI Express version on the x16 slot?

The PCI Express x16 slot (PCIE2) operates in PCIe 3.0 x16 mode. It supports NVMe SSDs as boot drives.

Does the motherboard support RAID?

Yes, the 4 SATA3 ports support RAID 0, RAID 1, and RAID 10 modes, as well as NCQ, AHCI, and hot plugging.

What is the recommended operating system?

The officially supported operating system is Microsoft Windows 10 64-bit.

How to update the BIOS?

The BIOS can be updated via the UEFI interface or using the ASRock Instant Flash tool. Download the latest version from the ASRock website and follow the instructions.

What to do if the motherboard does not start?

Check power connections (24-pin and 4-pin), CPU compatibility, and memory. Try restarting with a single RAM stick. Refer to the manual for beep codes.

Is the motherboard compatible with Windows 11?

Officially, only Windows 10 64-bit is certified. Windows 11 may work if the processor and TPM 2.0 are supported, but ASRock does not guarantee it.

USER MANUAL B550M-HVS SE ASROCK

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

e-mail: [e-mail]

ASRock EUROPE B.V.

e-mail: [e-mail]

ASRock America, Inc.

e-mail: [e-mail]

QR code image containing encoded data, no visible human-readable text

Scan the QR code to view more manuals and documents.

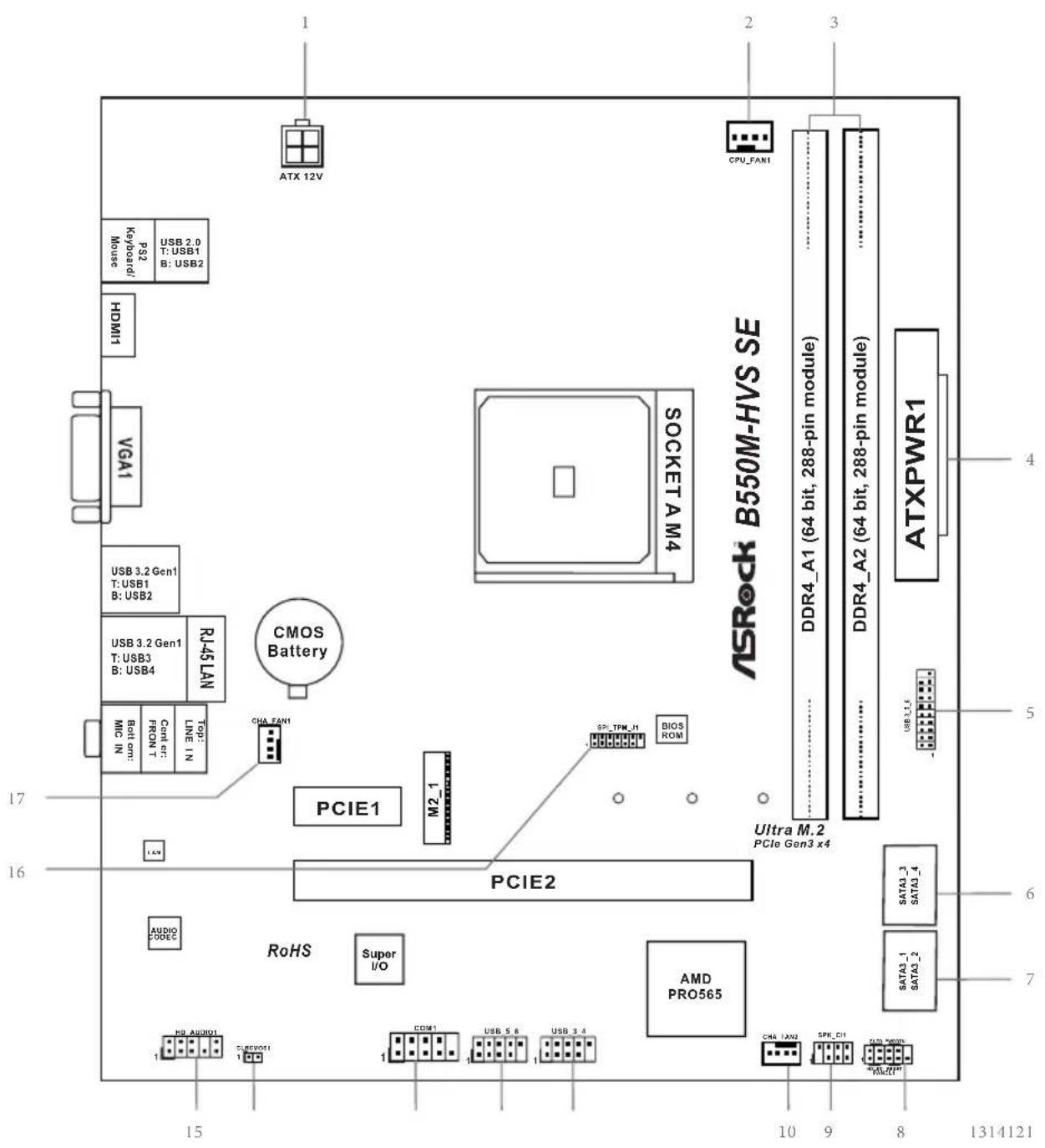

Motherboard Layout

ASRock B550M-HVS SE DDR4_A1 (64 bit, 288-pin module) DDR4_A2 (64 bit, 288-pin module) ATXPWR1 SOCKET A M4 PCIE1 PCIE2 AMD PRO565 Super I/O RoHS 1. USB Audio 1. C23001 1. USB 5.8 1. USB 1.1 10. 9 8. 7 1314121 7 6 5 4 16 17 USB3.2 Gen1 T: USB3 B: USB4 Top: LINE IN Bottom: Core RFON T Ball cone: MIC IN Ball cone: FRON T Top: Line IN RAM ZEN CMOS Battery VGA1 HDMI USB2.0 T: USB2 B: USB2 USB3.2 Gen1 T: USB1 B: USB2 USB3.2 Gen1 T: USB3 B: USB4 RJ-45LAN COM CAM Gen1 M2_1 SPTM_1 BOS PCIe Gen3.x4 Ultra M.2 PCIe Gen3.x4 SATA3_1 SATA3_2 SATA3_3 SATA3_4 ATX 12V

No. Description

1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 ATX Power Connector (ATXPWR1)
5 USB 3.2 Gen1 Header (USB3_5_6)
6 SATA3 Connector (SATA3_3) (Upper), SATA3 Connector (SATA3_4) (Lower)
7 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_2) (Lower)
8 System Panel Header (PANEL1)
9 Chassis Intrusion and Speaker Header (SPK_CI1)
10 Chassis Fan Connector (CHA_FAN2)
11 USB 2.0 Header (USB_3_4)
12 USB 2.0 Header (USB_5_6)
13 COM Port Header (COM1)
14 Clear CMOS Jumper (CLRCMOS1)
15 Front Panel Audio Header (HD_AUDIO1)

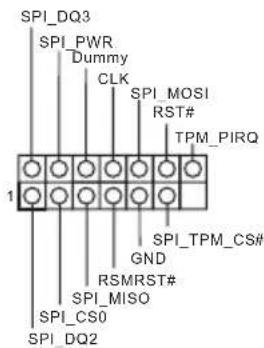

16 SPI TPM Header (SPI_TPM_J1)
17 Chassis Fan Connector (CHA_FAN1)

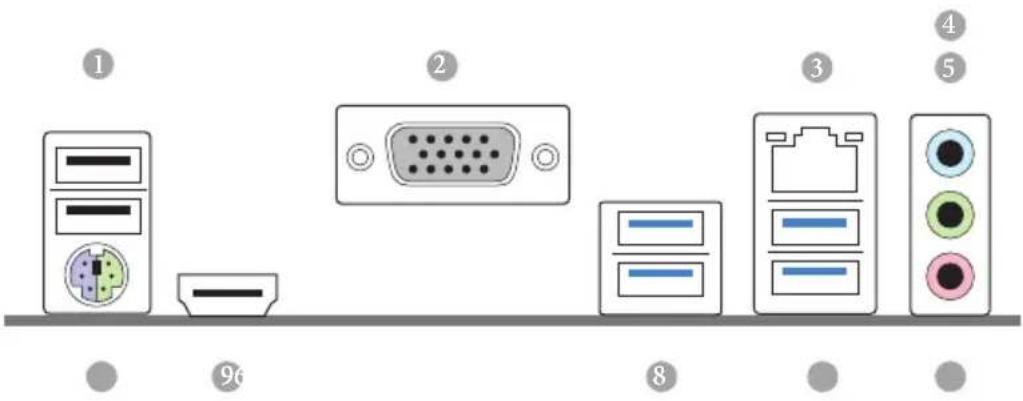

I/O Panel

Diagram showing labeled components of a computer interface, including server, port, and indicator lights with numbered labels.

No. Description No. Description

1 USB 2.0 Ports (USB_12) 6 Microphone (Pink)**
2 D-Sub Port 7 USB 3.2 Gen1 Ports (USB3_34)
3 LAN RJ-45 Port* 8 USB 3.2 Gen1 Ports (USB3_12)
4 Line In (Light Blue)** 9 HDMI Port
5 Front Speaker (Lime) ^** 10 PS/2 Mouse/Keyboard Port

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On Link Green	Gbps connection

** Function of the Audio Ports in 7.1-channel Configuration:

Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel)	Front Speaker Out
Pink (Rear panel)	Central /Subwoofer Speaker Out
Lime (Front panel)	Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock B550M-HVS SE motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock B550M-HVS SE Motherboard (Micro ATX Form Factor)
• ASRock B550M-HVS SE User Manual
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket (Optional)

1.2 Specifications

Platform

• Micro ATX Form Factor
• Solid Capacitor design

CPU

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
  * Not compatible with AMD Athlon™ Processors.
• 6 Power Phase design

Chipset

- AMD PRO565

Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466| (OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+ (OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866 (OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory*

* For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
* Please refer to page 22 for DDR4 UDIMM maximum frequency support.
• Max. capacity of system memory: 64GB
• Supports Extreme Memory Profile (XMP) memory modules
• 15μ Gold Contact in DIMM Slots

Expansion CPU:

Slot

- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode*

* Supports NVMe SSD as boot disks Chipset:

• 1 x PCIe 3.0 x1 Slot (PCIE1)

Graphics

- Integrated AMD Radeon ^TM Vega Series Graphics in Ryzen Series APU*

* Actual support may vary by CPU

• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.

* The Max shared memory 16GB requires 32GB system memory installed.

• Dual graphics output: support D-Sub and HDMI ports by independent display controllers
• Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
  • Supports HDR (High Dynamic Range) with HDMI 2.1
  • Supports HDCP 2.3 with HDMI 2.1 Port

* Picasso supports HDCP 2.2 with HDMI 2.0 Port

• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port

• Supports Microsoft PlayReady®

Audio

• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• Supports Surge Protection

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Rear Panel

• 1 x PS/2 Mouse/Keyboard Port

I/O

• 1 x D-Sub Port
• 1 x HDMI Port
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

CPU:

- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

Chipset:

• 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit

RAID

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Connector

• 1 x SPI TPM Header
• 1 x COM Port Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
* CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Hardware

Monitor

• Temperature Sensing: CPU, Chassis
• Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
• Fan Multi-Speed Control: CPU, Chassis Fans
- CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

os

- Microsoft® Windows® 10 64-bit / 11 64-bit

Certifica- tions

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.
• In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

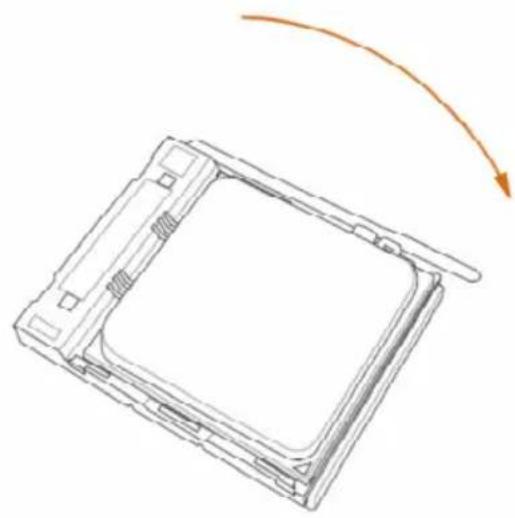

2.1 Installing the CPU

Unplug all power cables before installing the CPU.

1

Diagram of a square electronic device with a central square and antenna, showing an orange curved arrow indicating rotation or movement (no text or symbols present)

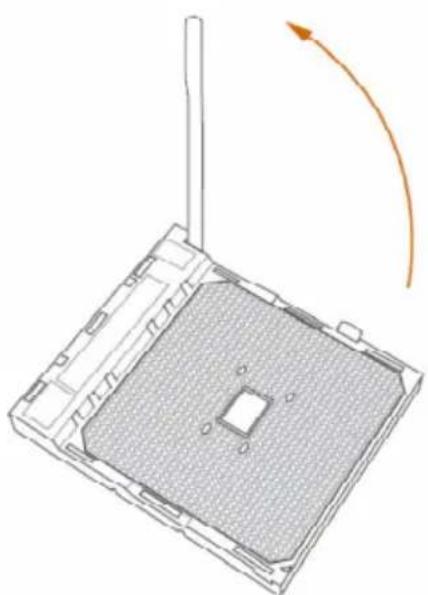

2

Technical line drawing of a mechanical component with a highlighted circular feature (no text or symbols)

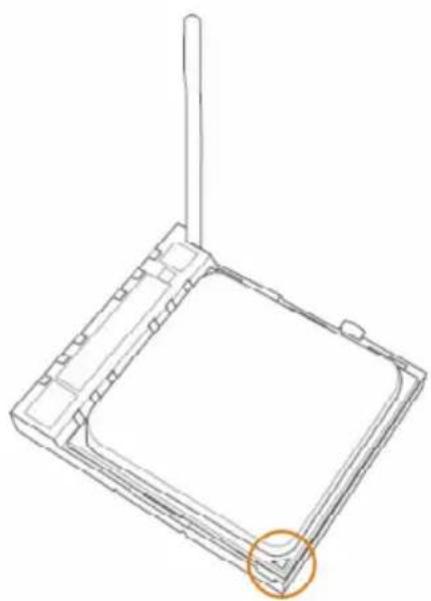

3

Line drawing of a rectangular electronic device with a scroll arrow indicating rotation (no text or symbols)

2.2 Installing the CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.

Please turn off the power or remove the power cord before changing a CPU or heatsink.

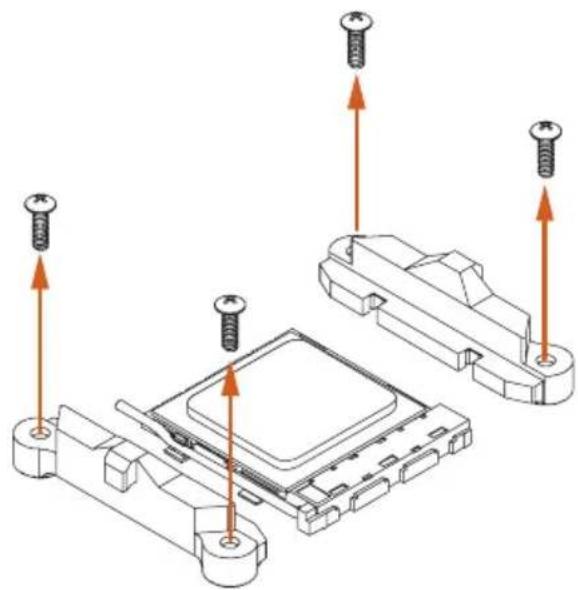

Installing the CPU Box Cooler SR1

1

Technical diagram showing screw installation on a microchip base (no text or symbols)

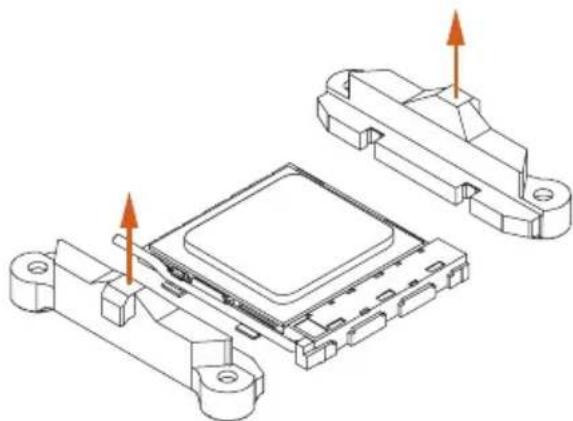

2

Technical line drawing of an electronic component with two housing parts and orange arrows indicating assembly or movement (no text or symbols)

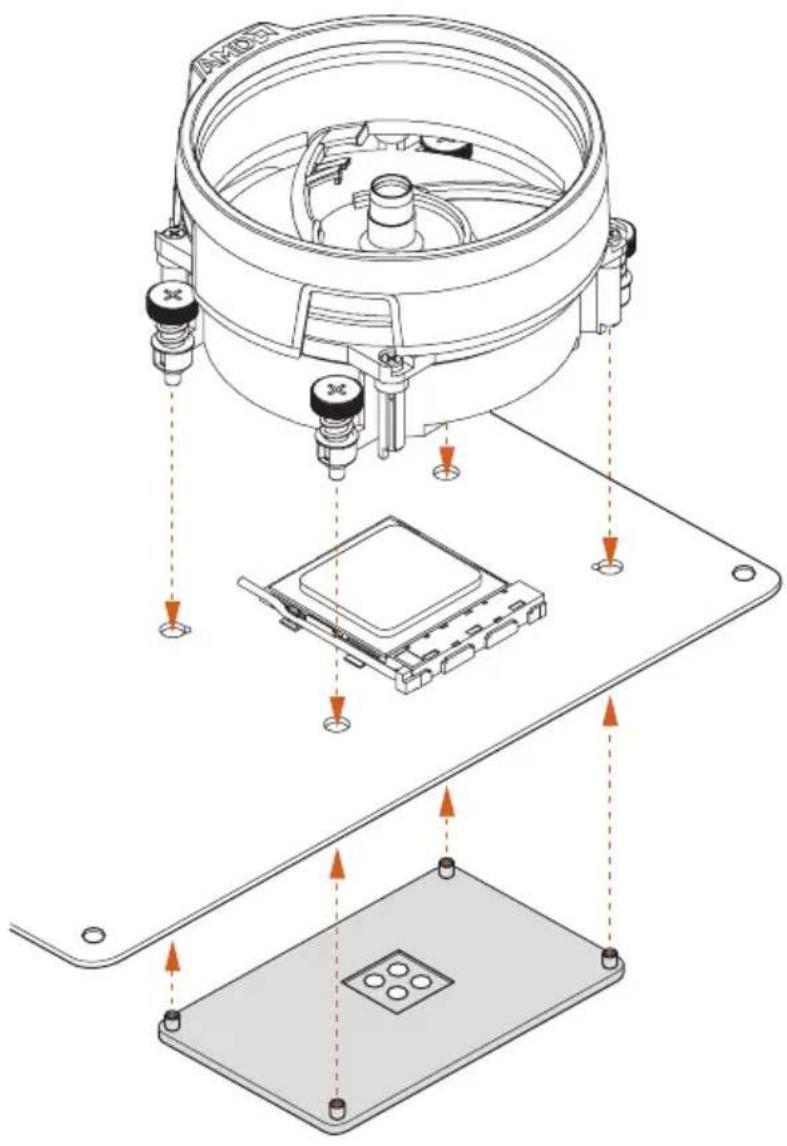

3

Technical diagram showing assembly of an accelerometer with labeled components and directional arrows indicating assembly steps.

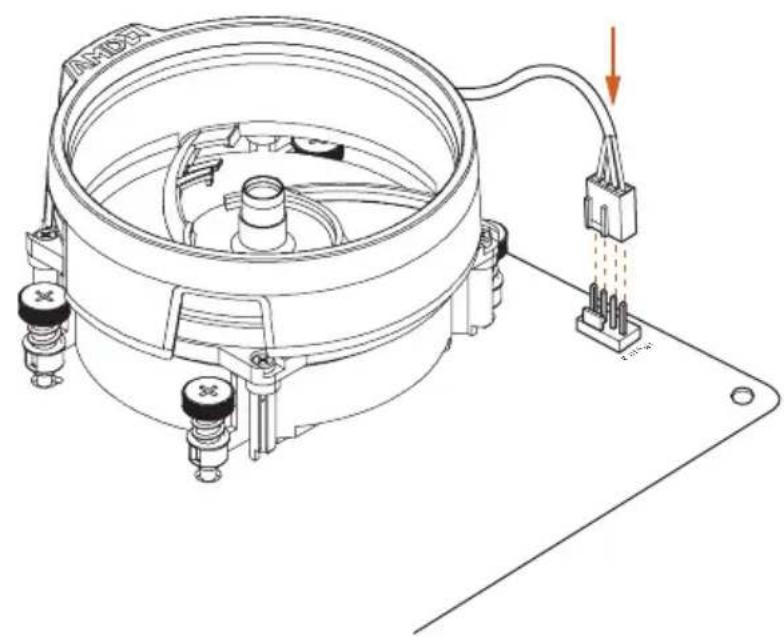

4

Technical line drawing of a mechanical device with mounting base and wiring, no visible text or symbols

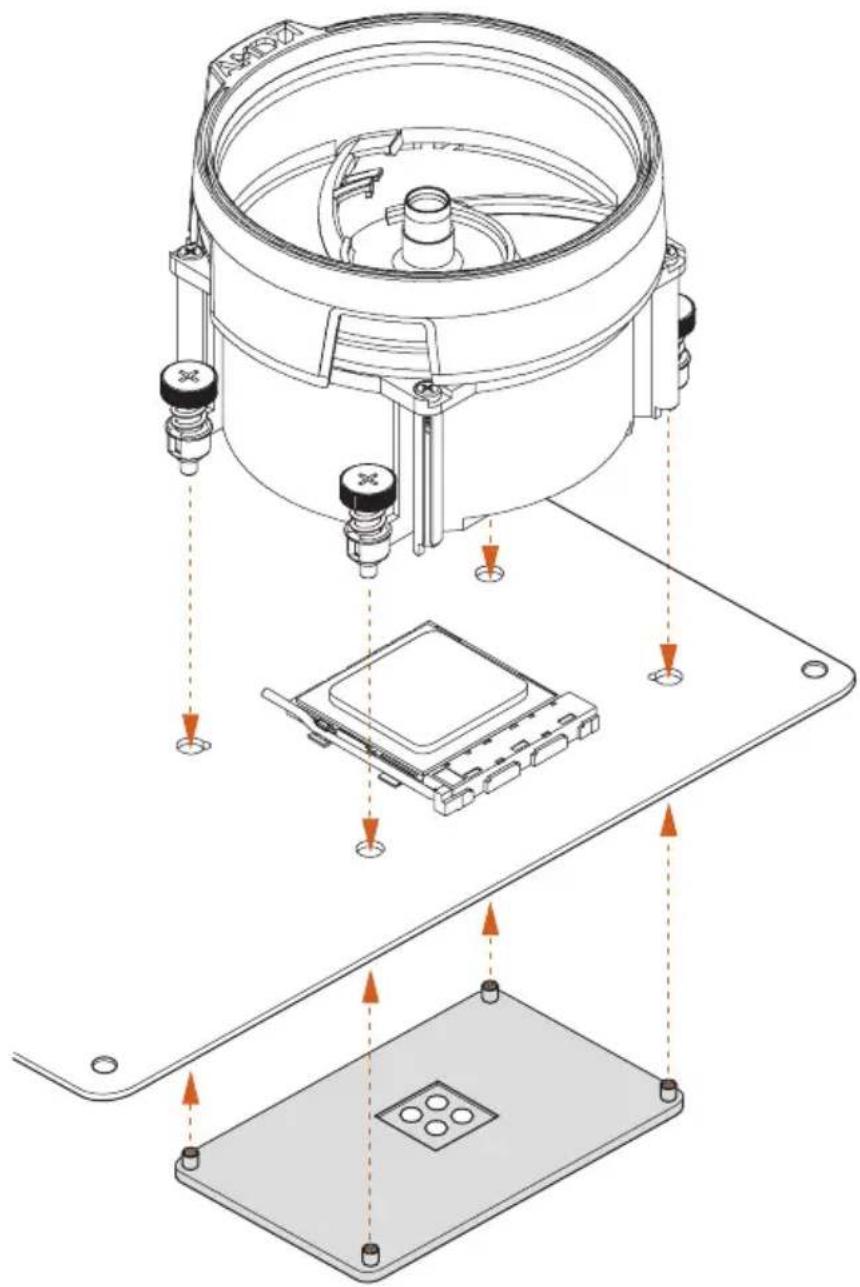

Installing the AM4 Box Cooler SR2

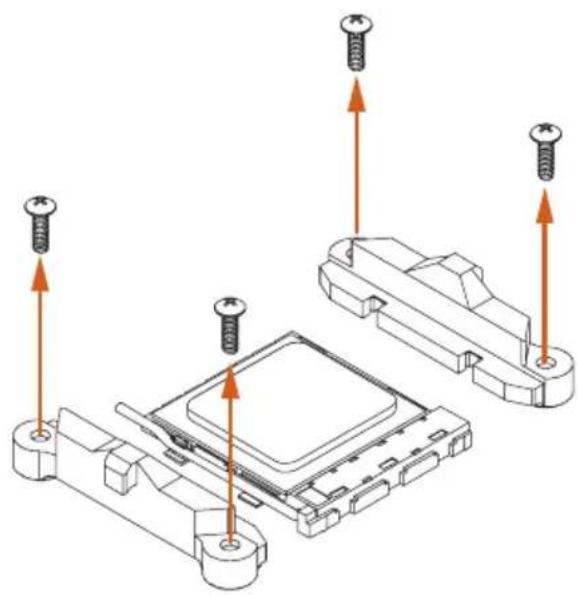

1

Technical diagram showing screw fasteners inserted into a microchip assembly (no text or labels)

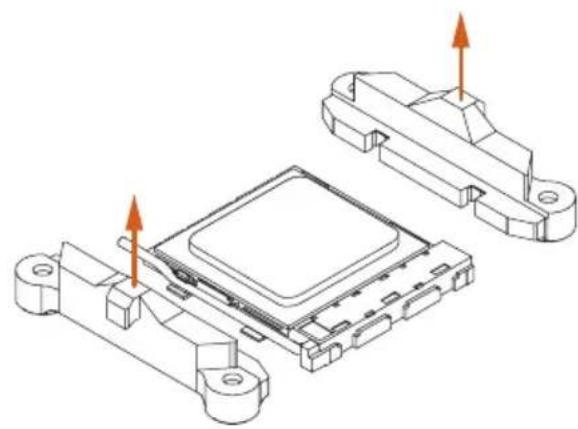

2

Technical line drawing of an electronic component with two views (top and side), showing internal structure and mounting points (no text or symbols)

3

Technical diagram showing assembly of a device with labeled components and directional arrows indicating assembly steps.

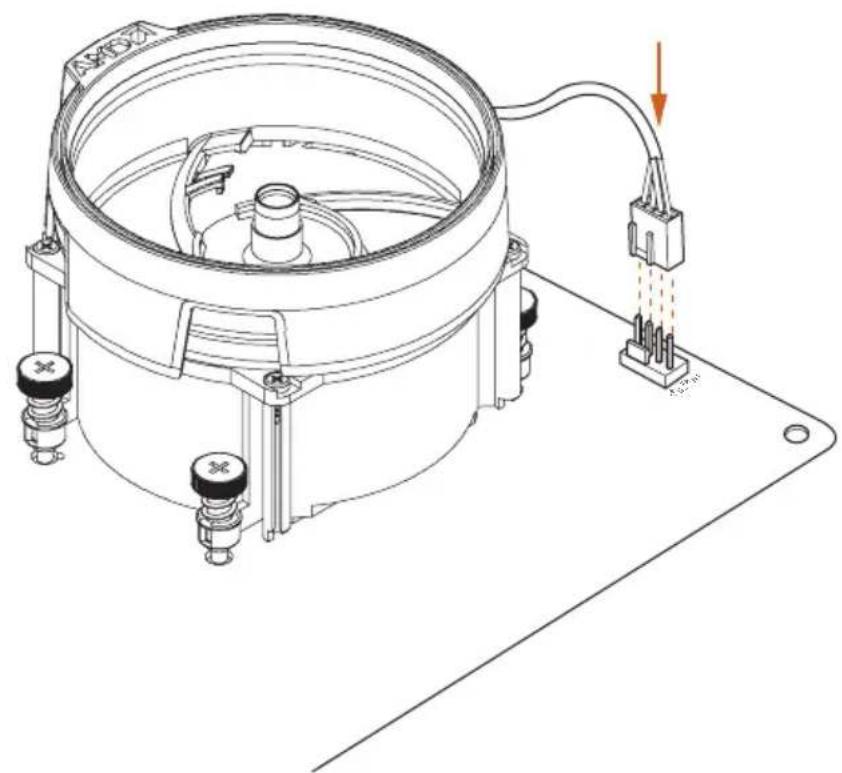

4

Technical line drawing of a mechanical device with mounting base and wiring, no visible text or symbols

*The diagrams shown here are for reference only. The headers might be in a different position on your motherboard.

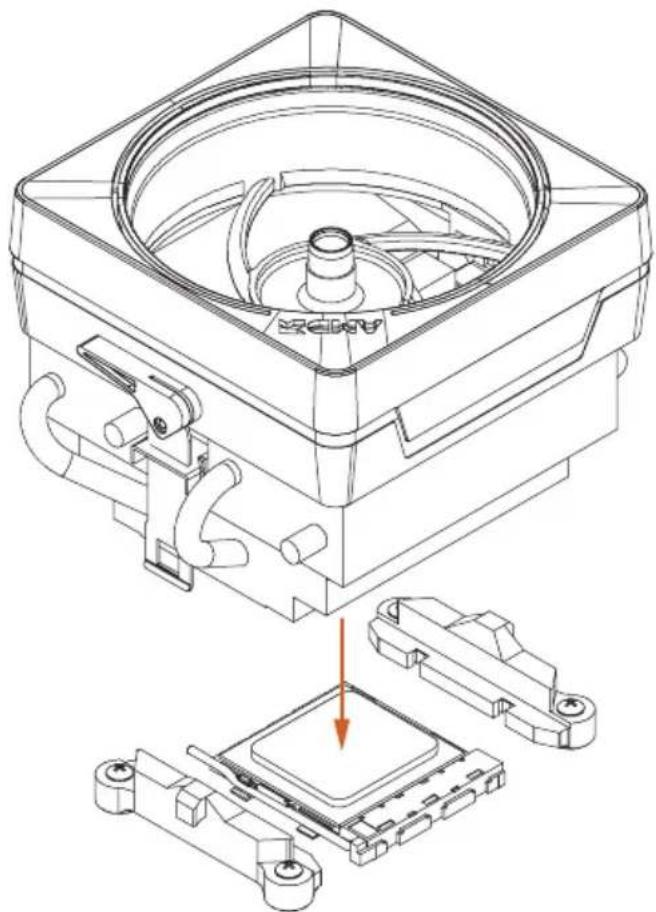

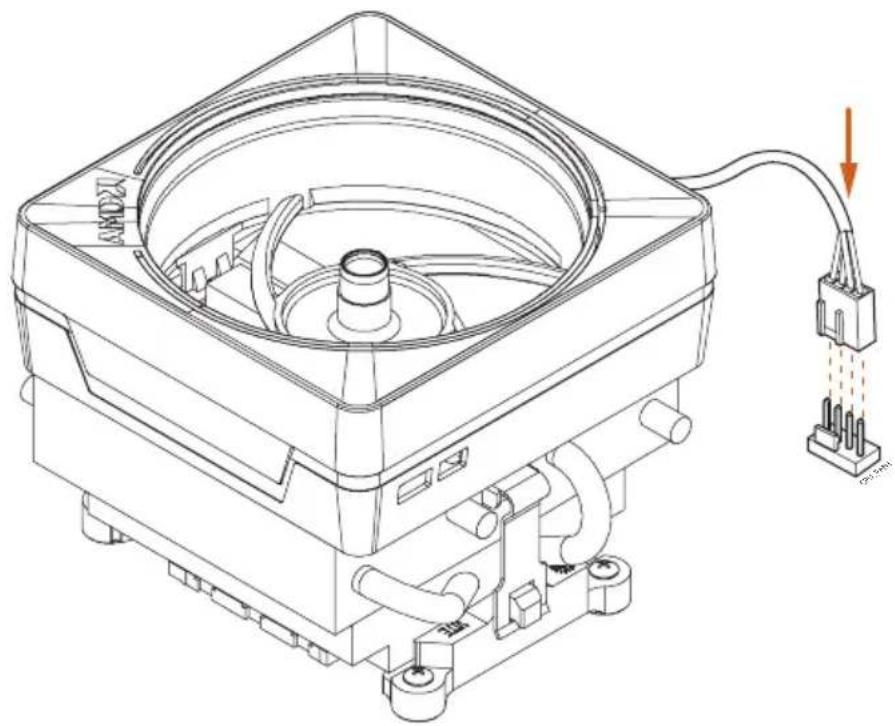

Installing the AM4 Box Cooler SR3

1

Technical line drawing of a mechanical assembly with a central component and two supporting components (no text or symbols)

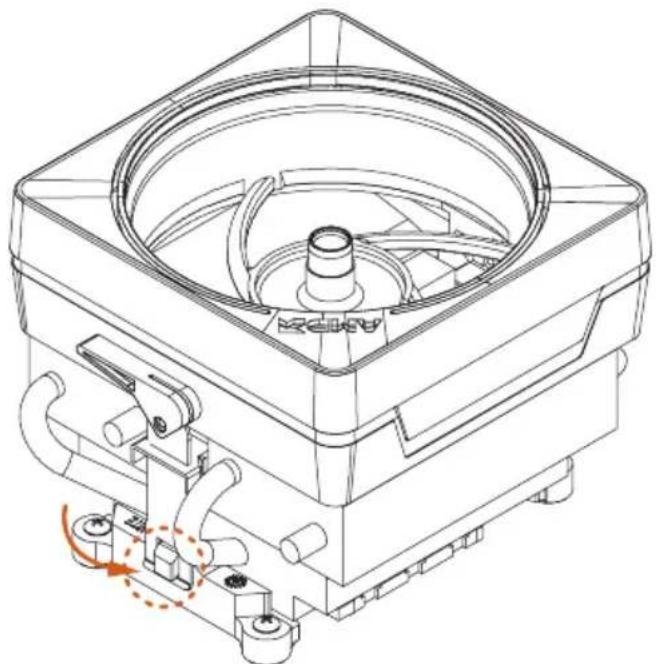

2

Technical line drawing of a mechanical device with no visible text or symbols

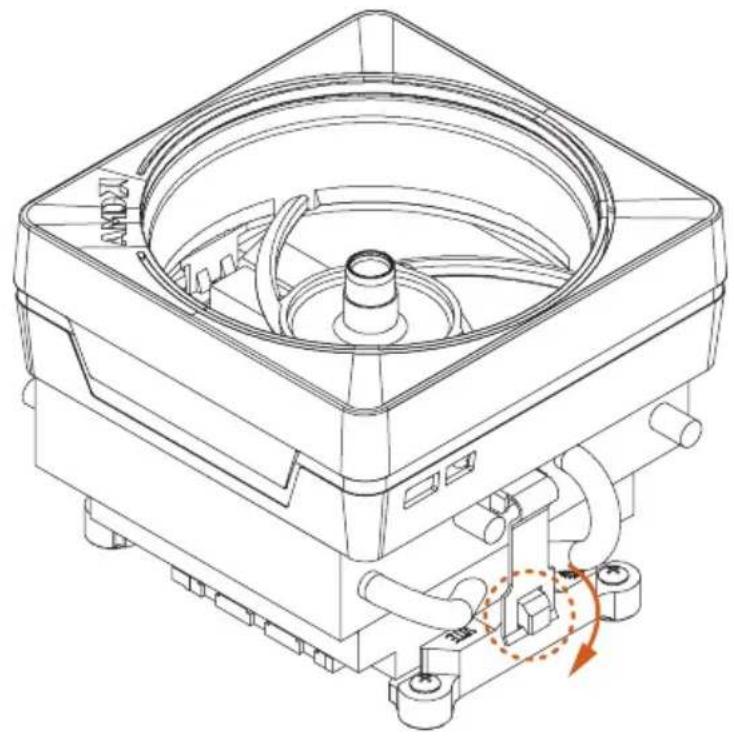

3

Technical line drawing of a mechanical device with no visible text or symbols

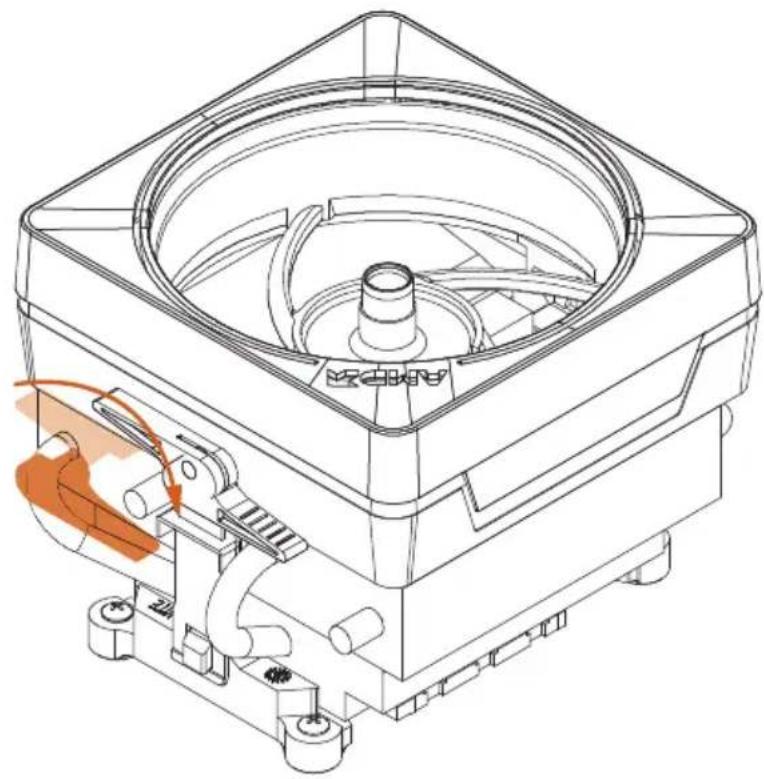

4

Technical line drawing of a mechanical device with internal components and a highlighted orange section (no text or symbols)

5

Technical line drawing of a mechanical device with mounting base and wiring, showing internal components and a terminal connector (no text or symbols)

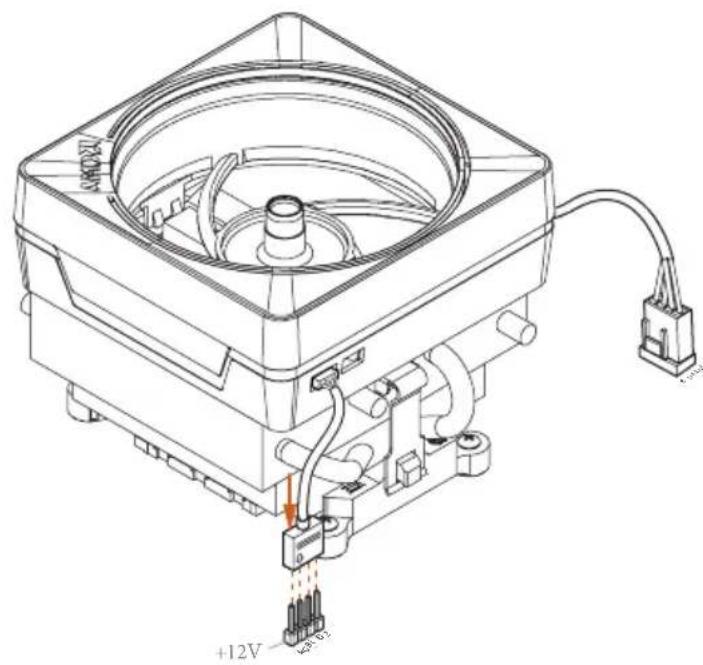

6

Technical line drawing of a mechanical device with labeled ports and wiring (no readable text or symbols)

*The diagrams shown here are for reference only. The headers might be in a different position on your motherboard.

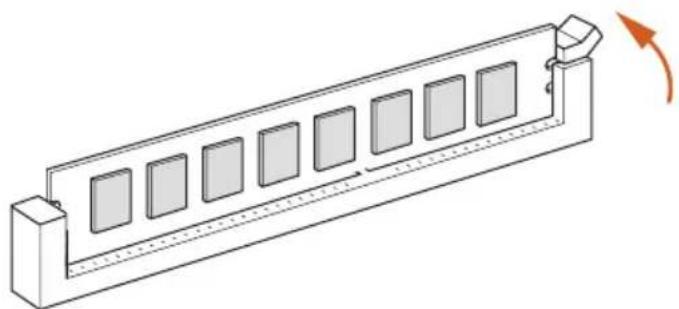

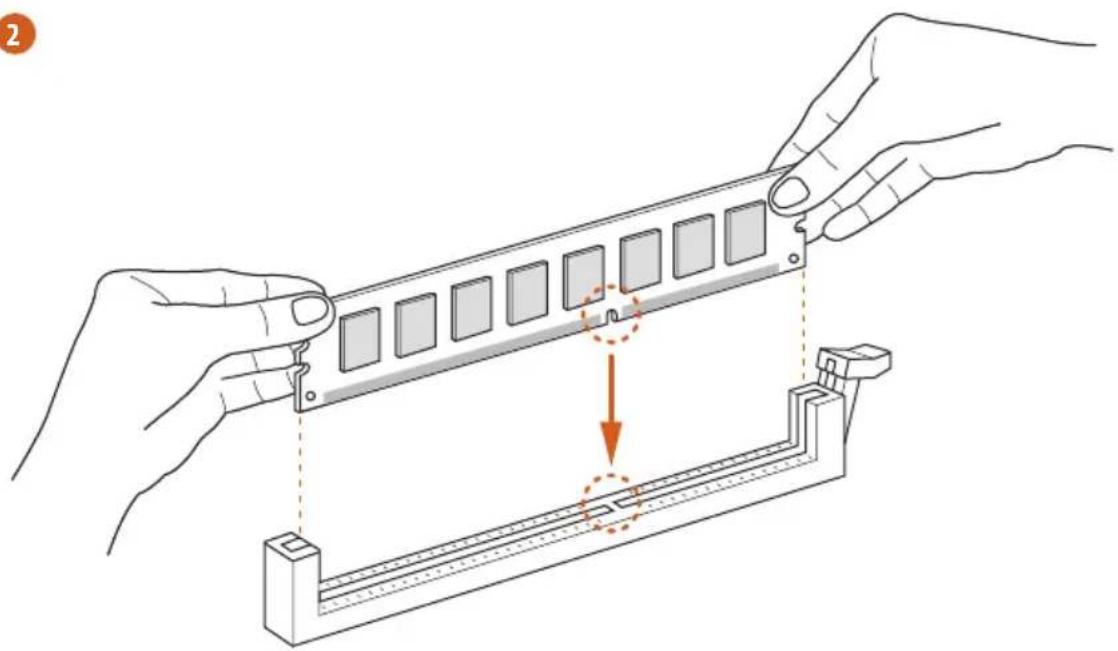

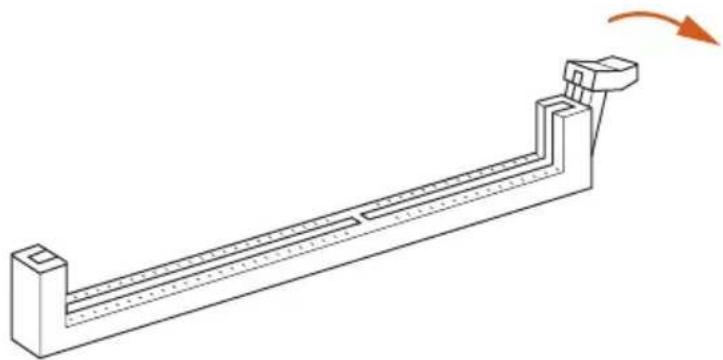

2.3 Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

AMD non-XMP Memory Frequency Support

Ryzen Series CPUs (Vermeer and Matisse):

UDIMM Memory SlotA1 B1	Frequency(Mhz)
SR - 3200
- SR 3200
DR - 3200
- DR 3200
SR SR 3200
DR DR 3200

Ryzen Series APUs (Cezanne and Renoir):

UDIMM Memory SlotA1 B1	Frequency(Mhz)
SR - 3200
- SR 3200
DR - 3200
- DR 3200
SR SR 3200
DR DR 3200

Ryzen Series APUs (Picasso):

UDIMM Memory SlotA1 B1	Frequency(Mhz)
SR - 2933
- SR 2933
DR - 2933
- DR 2933
SR SR 2933
DR DR 2933

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical lever or support structure with a rotation arrow indicating motion (no text or symbols present)

2

Illustration of hands installing a mechanical component with a highlighted section (no text or symbols)

3

Isometric line drawing of a rectangular electronic component with multiple square slots and a curved arrow indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI Express Slots)

There are 2 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1 or CHA_FAN2) when using multiple graphics cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".

Short

Open

Clear CMOS Jumper (CLRMOS1)

(see p.1, No. 14)

2-pin Jumper

Short: Clear CMOS

Open: Default

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember to remove the jumper cap after clearing the CMOS.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1, No. 8)

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 9)

Please connect the chassis intrusion and the chassis speaker to this header.

Serial ATA3 Connectors Vertical: (SATA3_1: see p.1, No. 7) (Upper) (SATA3_2: see p.1, No. 7) (Lower) (SATA3_3: see p.1, No. 6) (Upper) (SATA3_4: see p.1, No. 6) (Lower)

SATA3_1 SATA3_3 SATA3_2 SATA3_4

These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Headers (9-pin USB_3_4) (see p.1, No. 11) (9-pin USB_5_6) (see p.1, No. 12)

USB_PWR P- P+ GND DUMMY 1 GND P+ P- USB_PWR

There are two headers on this motherboard. Each USB 2.0 header can support two ports.

USB 3.2 Gen1 Header (19-pin USB3_5_6) (see p.1, No. 5)

VbusVbus IntA_PB_SSRX- IntA_PB_SSRX+ GND GND IntA_PB_SSTX- IntA_PB_SSTX+ GND GND IntA_PB_D- IntA_PB_D- IntA_PB_D+ Dummy 1

There is one header on this motherboard. This USB 3.2 Gen1 header can support two ports.

Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 15)

GND PRESENCE# MIC_RET OUT_RET 1 J_SENSE OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Fan Connectors

(4-pin CHA_FAN1)

(see p.1, No. 17)

(4-pin CHA_FAN2)

(see p.1, No. 10)

FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.1, No. 2)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector

(24-pin ATXPWR1)

(see p.1, No. 4)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power Connector (4-pin ATX12V1) (see p.1, No. 1)

Please connect an ATX 12V power supply to this connector.

*The power supply plug fits into this connector in only one orientation.

Serial Port Header (9-pin COM1) (see p.1, No. 13)

RRXD1 DDTR#1 DDSR#1 CCTS#1 RRI#1 RRTS#1 GND TTXD1 DDCD#1

This COM1 header supports a serial port module.

SPI TPM Header (13-pin SPI_TPM_J1) (see p.1, No. 16)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ 1 SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

2.7 M.2\_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1, Key M) supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes.

Installing the M.2\_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with internal features and a small protrusion (no text or symbols)

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

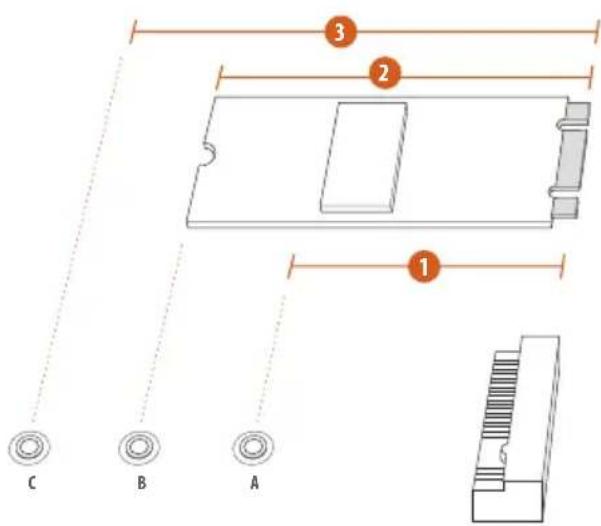

C B A 1 2 3

Step 2

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No. 1 2 3

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type Type 2242 Type2260 Type 2280

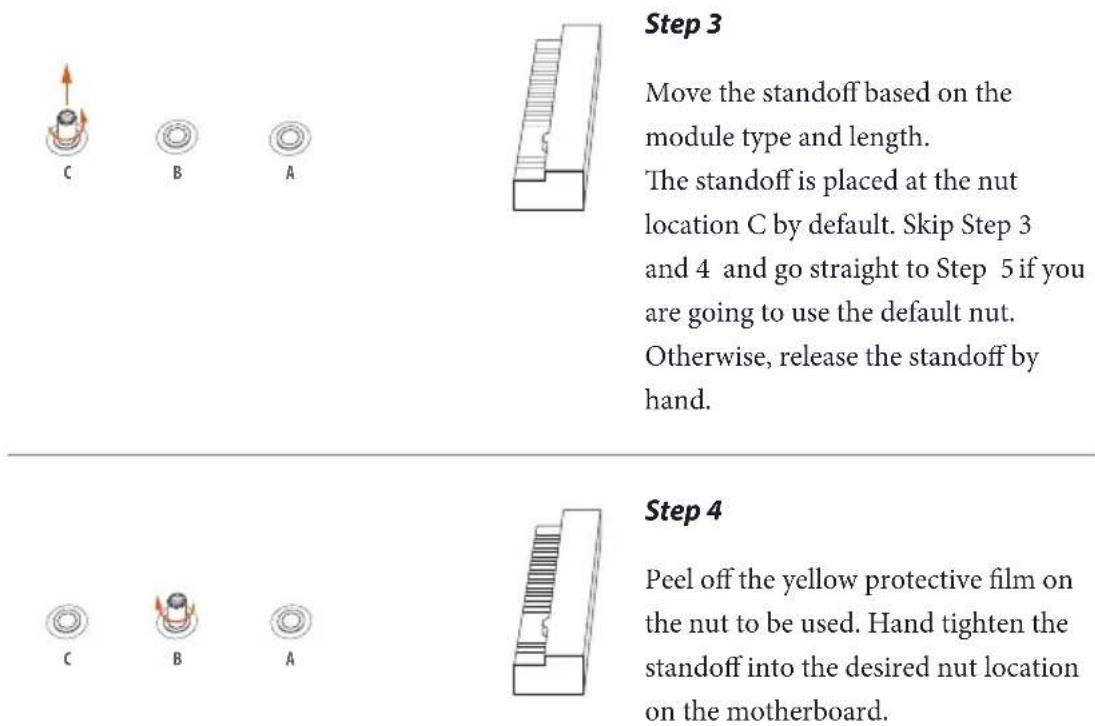

Step 3

Move the standoff based on the module type and length. The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.

Step 4

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

C

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and directional arrow (no text or symbols beyond labels)

C

B A 20°

Step 5

Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Step 6

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

M.2\_SSD (NGFF) Module Support List

Vendor Interface P/N

SanDisk PCIe SanDisk-SD6PP4M-128G( Gen2 x2)

Intel PCIe INTEL 6000P-SSDPEKKF256G7 (nvme)

Intel PCIe INTEL 6000P-SSDPEKKF512G7 (nvme)

Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4)

Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4)

ADATA SATA ADATA - AXNS381E-128GM-B

Crucial SATA Crucial-CT240M500SSD4-240GB

ezlink SATA ezlink P51B-80-120GB

Intel SATA INTEL 540S-SSDSCKKW240H6-240GB

Kingston SATA Kingston SM2280S3G2/120G - Win8.1

Kingston SATA Kingston-RBU-SNS8400S3 / 180GD

LITEON SATA LITEON LJH-256V2G-256GB (2260)

PLEXTOR SATA PLEXTOR PX-128M6G-2260-128GB

PLEXTOR SATA PLEXTOR PX-128M7VG-128GB

SanDisk SATA SanDisk X400-SD8SN8U-128G

SanDisk SATA Sandisk Z400s-SD8SNAT-128G-1122

SanDisk SATA SanDisk-SD6SN1M-128G

Transcend SATA Transcend TS256GMTS800-256GB

V-Color SATA V-Color 120G

V-Color SATA V-Color 240G

WD SATA WD GREEN WDS240G1G0B-00RC30

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

Technische Daten

Plattform

- Micro ATX Form Factor

- Obsługa "Plug and Play"

Copyright©2023 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

The terms HDMI ^® and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

WARNING

THIS PRODUCT CONTAINS A BUTTOON BATTERY

If swallowed, a button battery can cause serious injury or death.

Please keep batteries out of sight or reach of children.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

ASRock INC. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related UKCA Directives. Full text of UKCA declaration of conformity is available at: http://www.asrock.com

ASRock INC. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related Directives. Full text of EU declaration of conformity is available at: http://www.asrock.com

ASRock follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock product is in line with global environmental regulations. In addition, ASRock disclose the relevant information based on regulation requirements.

Please refer to https://www.asrock.com/general/about.asp?cat=Responsibility for information disclosure based on regulation requirements ASRock is complied with.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

电子信息产品污染控制标示
