USER MANUAL 24V-SUV1 Snow Joe

© 2022 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

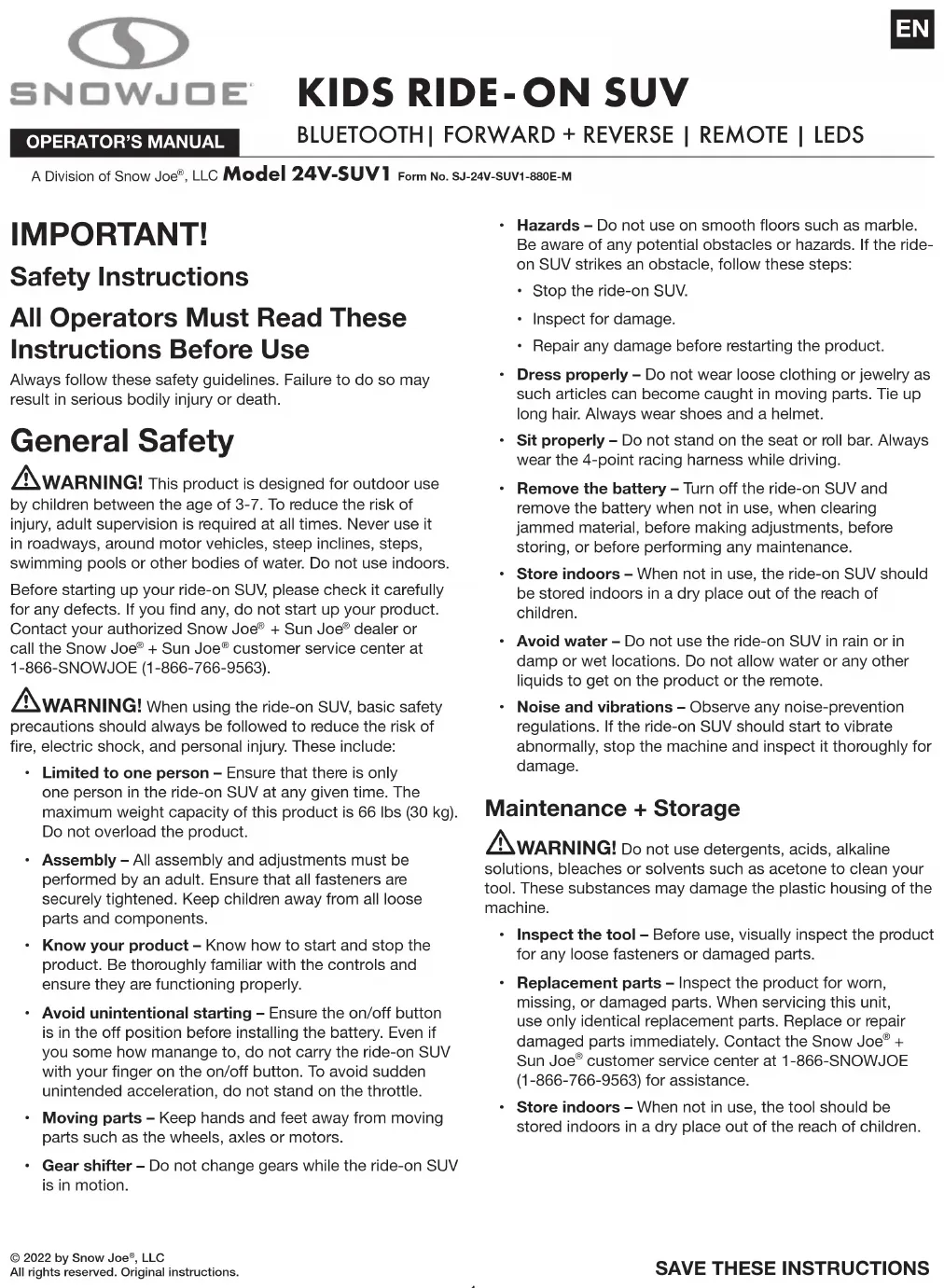

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death. General Safety

WARNING! This product is designed for outdoor use by children between the age of 3-7. To reduce the risk of injury, adult supervision is required at all times. Never use it in roadways, around motor vehicles, steep inclines, steps, swimming pools or other bodies of water. Do not use indoors. Before starting up your ride-on SUV, please check it carefully for any defects. If you find any, do not start up your product. Contact your authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). mWARNING! When using the ride-on SUV, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These include:

• Limited to one person – Ensure that there is only one person in the ride-on SUV at any given time. The maximum weight capacity of this product is 66 lbs (30 kg). Do not overload the product.

• Assembly – All assembly and adjustments must be performed by an adult. Ensure that all fasteners are securely tightened. Keep children away from all loose parts and components.

• Know your product – Know how to start and stop the product. Be thoroughly familiar with the controls and ensure they are functioning properly.

• Avoid unintentional starting – Ensure the on/off button is in the off position before installing the battery. Even if you some how manange to, do not carry the ride-on SUV with your finger on the on/off button. To avoid sudden unintended acceleration, do not stand on the throttle.

• Moving parts – Keep hands and feet away from moving parts such as the wheels, axles or motors.

• Gear shifter – Do not change gears while the ride-on SUV is in motion.

• Hazards – Do not use on smooth floors such as marble. Be aware of any potential obstacles or hazards. If the ride- on SUV strikes an obstacle, follow these steps:

• Dress properly – Do not wear loose clothing or jewelry as such articles can become caught in moving parts. Tie up long hair. Always wear shoes and a helmet.

• Sit properly – Do not stand on the seat or roll bar. Always wear the 4-point racing harness while driving.

• Remove the battery – Turn off the ride-on SUV and remove the battery when not in use, when clearing jammed material, before making adjustments, before storing, or before performing any maintenance.

• Store indoors – When not in use, the ride-on SUV should be stored indoors in a dry place out of the reach of children.

• Avoid water – Do not use the ride-on SUV in rain or in damp or wet locations. Do not allow water or any other liquids to get on the product or the remote.

• Noise and vibrations – Observe any noise-prevention regulations. If the ride-on SUV should start to vibrate abnormally, stop the machine and inspect it thoroughly for damage. Maintenance + Storage mWARNING! Do not use detergents, acids, alkaline solutions, bleaches or solvents such as acetone to clean your tool. These substances may damage the plastic housing of the machine.

• Inspect the tool – Before use, visually inspect the product for any loose fasteners or damaged parts.

• Replacement parts – Inspect the product for worn, missing, or damaged parts. When servicing this unit, useonlyidenticalreplacementparts.Replaceorrepair damaged parts immediately. Contact the Snow Joe

• Store indoors – When not in use, the tool should be stored indoors in a dry place out of the reach of children.2 Battery & Charger Safety Instructions We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage. IMPORTANT! Analysesconrmthatincorrectuseandpoor care of high-performance batteries are the main factors responsible for product damage and/or personal injury. mWARNING! Use only approved replacement batteries; other batteries may damage the product and cause it to malfunction, which can lead to serious personal injury. mWARNING! Do not use a battery pack or product that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. Do not modify or attempt to repair the product or the battery pack except as indicated in the instructions for use and care. Do not modify the electronic components of the product or the remote. Haveyourbatterypackservicedbyaqualiedrepairperson using only identical replacement parts. This will ensure that the safety of the battery pack is maintained. mCAUTION! To reduce the risk of injury, use only official 24V iON+ designated chargers with the 24V iON+ battery pack. The use of other batteries or chargers poses a risk of fire, personal injury and damage. Do not wire a battery pack to a power supply plug or car cigarette lighter, such misuse will permanently disable or damage the battery pack. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to flow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a fire.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open flames near a charging battery pack. Vented gases may explode. NOTE: The safe temperature range for the battery is 41°F (5°C) to 105°F (40.5°C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord from the receptacle to reduce the risk of damage to the power cord. Never carry the charger by its cord. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use a charger with a damaged cordorplug.Replaceadamagedchargerimmediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of fire and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers.

• Do not expose the product or battery pack to fire – Exposure to fire or temperatures above 265°F (130°C) may cause the battery pack to explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are ignited.

• Do not crush, drop or damage battery packs – Do not use the battery pack or charger if they have sustained a sharp blow, been dropped from a height of more than 3 feet (1 meter), run over or have been damaged in any way. Even if the housing of the battery pack appears to be undamaged, the battery cells inside the battery may have suffered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, fire or exposure to toxic battery chemicals. If the battery or charger is damaged, contact an authorized Snow Joe

dealer or call the Snow Joe

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If damaged, battery chemicals will react violently with air. Use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery chemicals, wash the affected area with soap and water. If eyes are exposed to battery chemicals, immediately flush with water for 20 minutes andseekmedicalattention.Removeanddisposeof contaminated clothing.3

• Risk of short circuit – A battery pack will short circuit if a metal object makes a connection between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit, such as paperclips, coins, keys, screws, nails and other metallic objects. A short-circuited battery pack poses a risk of fire and severe personal injury.

• Adults only – The battery should be handled and charged by adults only. Never allow children access to the battery.

• Store your battery pack and charger in a cool, dry place – Ideally, store the battery pack at 59°F (15°C) and charged to at least 40%. Do not store the battery pack or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle, or where temperatures may drop below 41°F (5°C). NOTE: Prevent the battery pack from freezing. Battery packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

• Charge before use – The battery pack supplied with your ride-on SUV is only partially charged. The battery pack has to be fully charged before using the product for the first time.

• Battery Aging – Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your ride- on SUV, and therefore pose a safety risk.

• Do not exhaustively discharge battery packs – A complete discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. For optimum battery performance, charge the battery pack frequently. Place the battery pack in storage only after it has been fully charged.

• Do not overload battery packs – Protect the product and batteries from overloading. Overloads will quickly result in overheating and cell damage inside the battery housing even if it is not apparent externally. For safety reasons, the integrated protective cutoff will activate to switch off the equipment. After regular use, allow the battery pack to cool to room temperature before inserting it into the charger to recharge. IMPORTANT! Do not attempt to turn on the product if the protective cut-off has been activated. This may damage the battery pack.

• Outlet voltage – Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a different mains voltage.

• Charger use – Do not use the supplied battery charger to charge other types of battery packs or tools.

• Do not overcharge battery packs – Do not exceed the maximum charging times. Frequently overcharging the battery pack will result in cell damage. Do not leave batteries in the charger for days on end.

• Battery pack abnormalities – Do not use batteries that have suffered swelling or deformation or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.).

• Electrostatic discharge – When handling batteries, be wary of electrostatic charge. Electrostatic discharges can damage the electronic protection system and the battery cells. To avoid electrostatic discharges, never touch the battery terminals.

• Battery Installation – Ensure the battery pack is properly seated in the battery compartment. If not properly installed, the battery may some how fly out of the battery compartment, out the hood, over the windshield and hit the child in the unlikely event of a rollover.4 Safety Symbols Thefollowingtabledepictsanddescribessafetysymbolsthatmayappearonthisproduct.Read,understand,andfollowall instructions on the product before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions

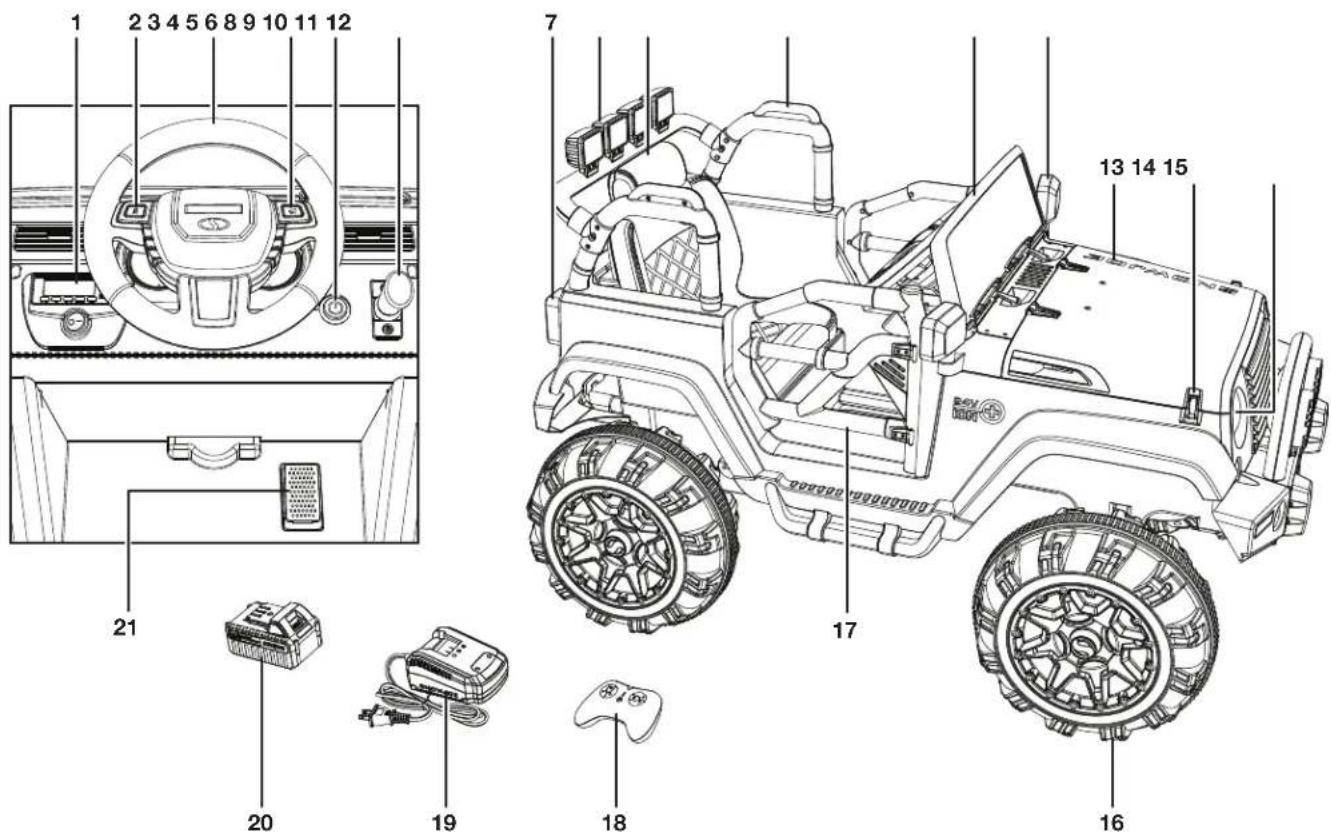

MANUAL – Read,understand, and follow all instructions in the user manual before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger. Wear a helmet while driving the ride-on SUV. WARNING! Do not expose the unit to rain or wet conditions. Keep dry. Store indoors. Never store the ride-on SUV outdoors.5 Know Your Kids Ride-On SUV Readtheowner’smanualandsafetyinstructionscarefullybeforeoperatingtheride-onSUV.Comparetheillustrationbelowto the product in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

ion battery charger (24VCHRG-QC)

20. 24V iON+ lithium-

ion battery (24VBAT) featuring exclusive EcoSharp

*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage under typical load is 21.6 volts.6 Unpacking Carton Contents

• Plastic bushing (x2)

12 round head screws (x6)

12 truss head screws (x10)

• Manual with registration card

1. Carefully remove the ride-on SUV and check to see that all

of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the ride-on SUV. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts.Theseitemscanbeswallowedandposeasuocation risk! Battery + Charger Operation The equipment is powered by a lithium-ion battery. The battery pack is completely sealed and maintenance free. Battery Charge Level Indicator The battery pack is equipped with a push button for checking thechargelevel.Simplypressthepushbuttontoreadothe battery charge level from the LEDs of the battery indicator: Lights Light Indicators Charge level button The battery is at 30% capacity The battery is at 60% capacity The battery is fully charged NOTE: If the battery indicator button does not appear to be working, charge the battery. NOTE: Immediately after using the battery pack, the battery indicator button may display a lower charge than it will if checked a few minutes later. The battery cells “recover” some of their charge after resting. mWARNING! Only charge Sun Joe

24V lithium-ion battery pack with compatible Sun Joe

24V lithium-ion chargers. Other types of chargers may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to enter into the charger. Charging the Battery

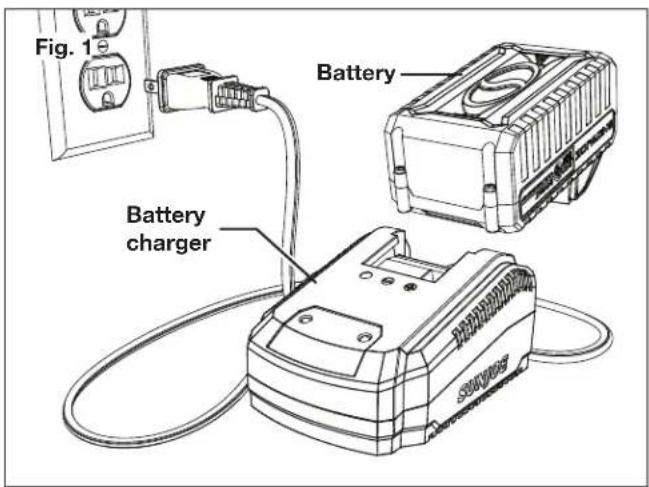

1. Check that the mains voltage is the same as that marked

on the rating label of the battery charger. Then, plug the charger into an AC power outlet. Slide the battery into the charger to commence charging (Fig. 1). NOTE: The green LED indicates either a powered on charger or a fully charged battery. The red LED indicates a charging battery.7 Power On Charging Charged Green Red Green

2. Removethebatteryoncefullycharged.

NOTE: A fully discharged battery at room temperature will fully charge in 1 hr 50 mins. IMPORTANT! Never allow the battery pack to become fully discharged as this will cause irreversible damage to the battery. Assembly Wheel Assembly Tools required: Philips head screwdriver

1. Turn the ride-on SUV upside down.

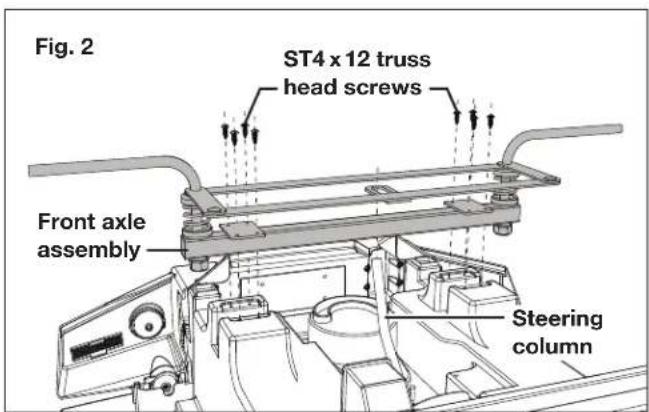

2. Fix the front axle assembly into the bottom of the ride-on

12 truss head screws. NOTE: Ensure the steering column sits inside the slot in the center of the front axle assembly (Fig. 2). Fig. 1 Battery charger Battery Fig. 2 Front axle assembly ST4

12 truss head screws Steering column

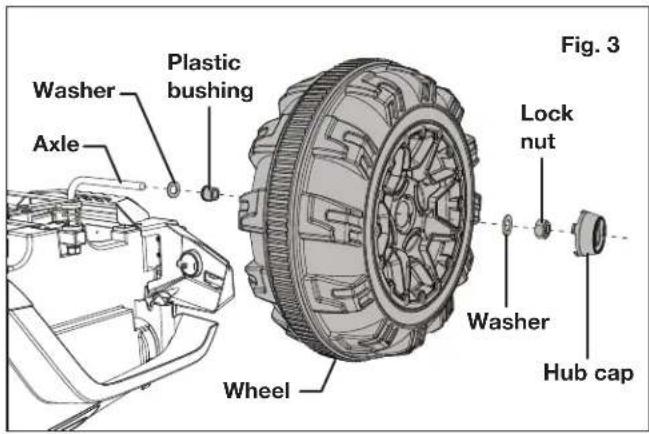

3. Slide a washer, a plastic bushing, a wheel, another washer

and finally a lock nut onto either side of the front axle. Tighten both lock nuts using the socket wrenches before installing the hub caps (Fig. 3).

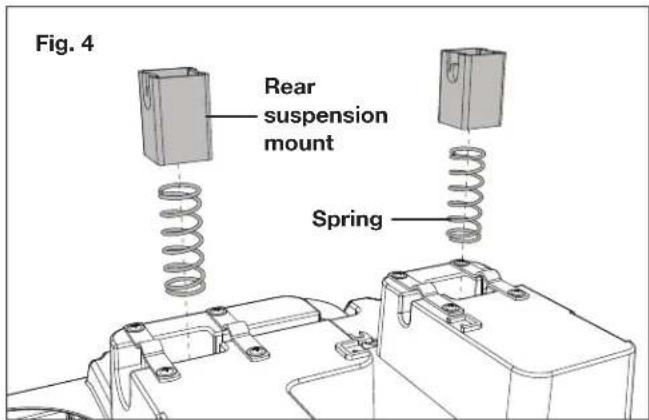

4. Insert the springs and rear suspension mounts into the

holes towards the rear of the ride-on SUV (Fig. 4).

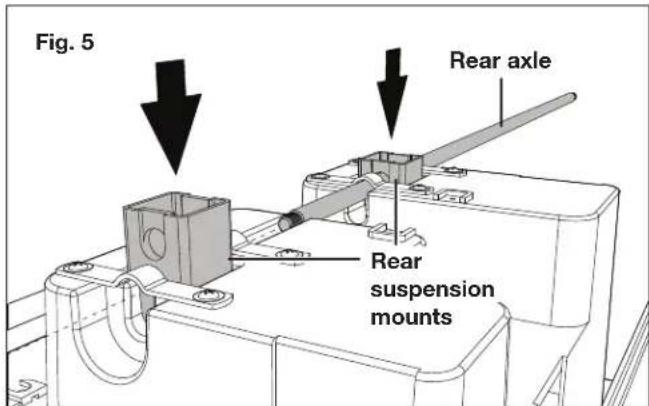

5. Push down on the rear suspension mounts and slide the

rear axle through both of them. Ensure the rear axle sits under all four steel brackets and that the rear suspension mounts are in tension (Fig. 5). Fig. 3 Plastic bushing Washer Axle Wheel Hub cap Lock nut Washer Fig. 4 Spring Rear suspension mount Fig. 5 Rear suspension mounts Rear axle8

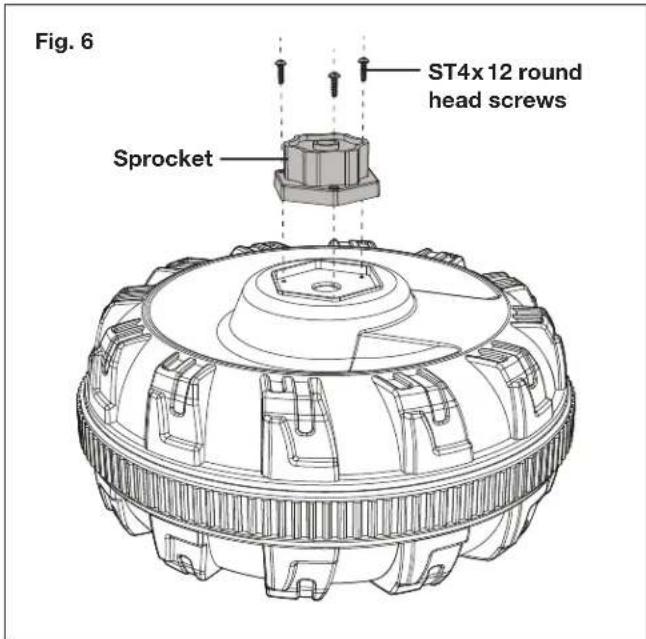

6. Screw both sprockets into the two remaining wheels using

12 round head screws for each wheel (Fig. 6).

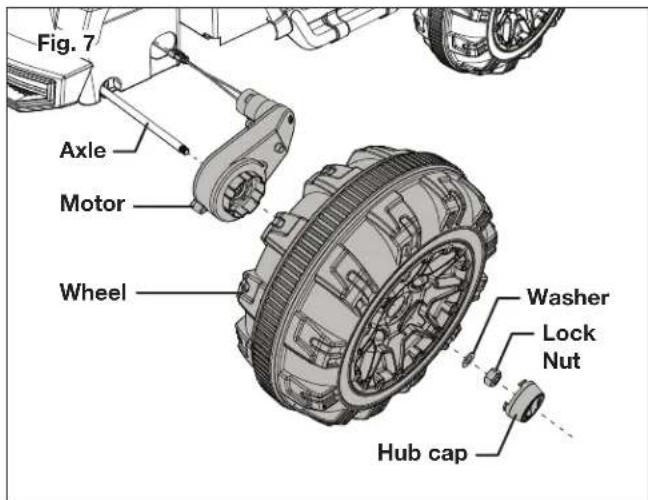

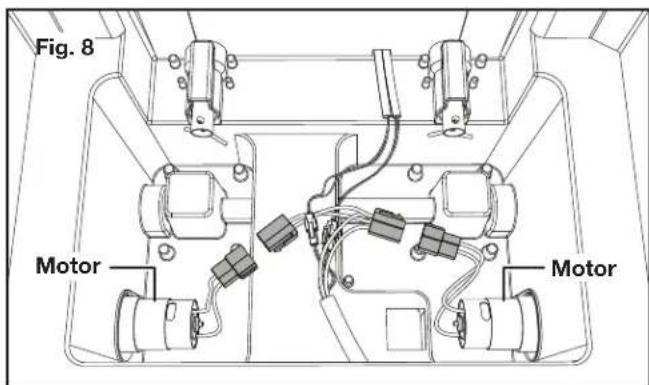

7. Slide a motor, a wheel, a washer and a lock nut onto either

sideoftherearaxle.Repeatfortheothersideandusethe pair of socket wrenches to tighten both lock nuts at the same time before installing the hub caps (Fig. 7). NOTE:Themotorsaremarked(L)forleftand(R)forright to indicate the side of the axle they need to be installed at.

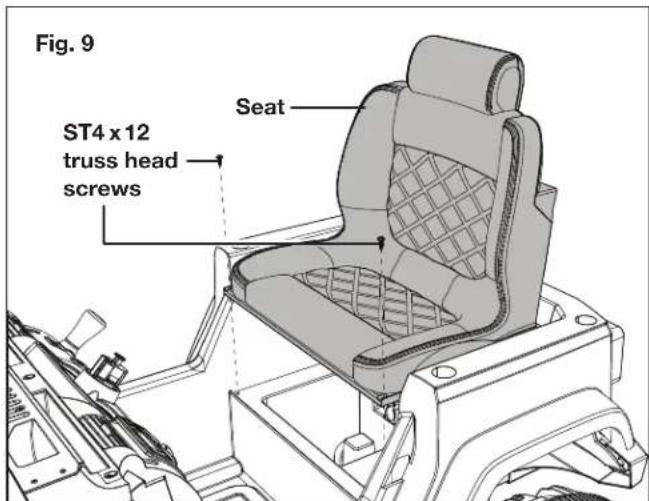

9. Place the seat over the motor compartment and secure

it on both corners using the two remaining ST4

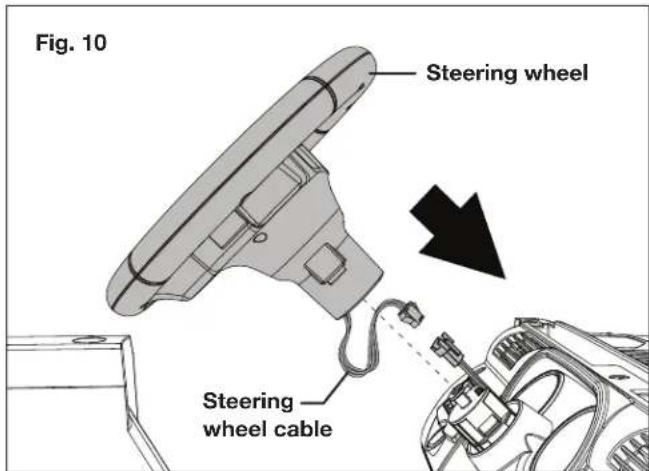

10. Connect the steering wheel cable before installing the

truss head screws Fig. 10 Steering wheel Steering wheel cable9

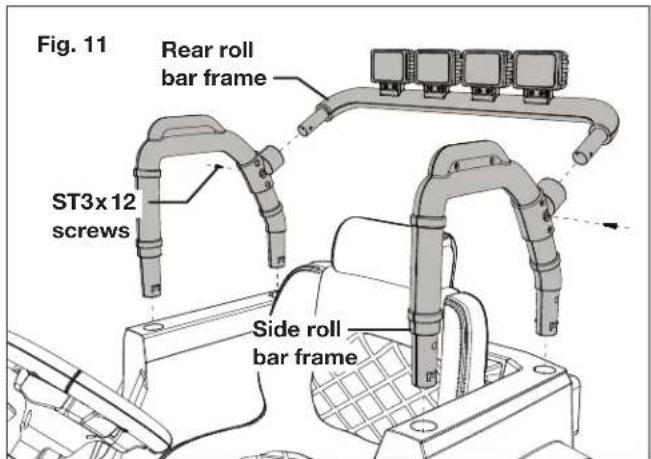

11. Connect the rear roll bar frame with both side roll bar

12 screws. Then push the entire roll bar into the four holes next to the seat (Fig. 11).

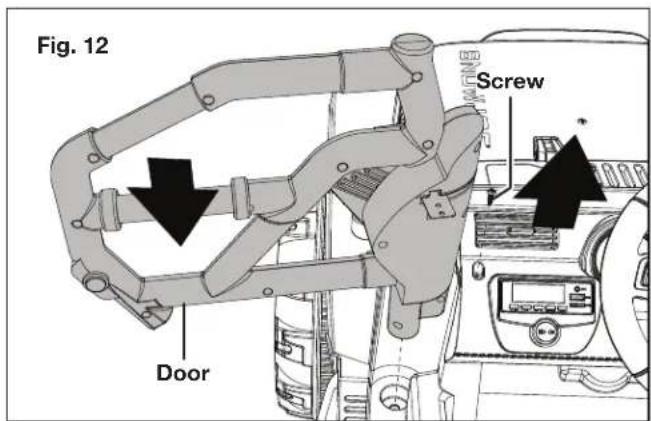

12. Unscrew the two screws on each side of the dash and

then install both doors onto the ride-on SUV (Fig. 12).

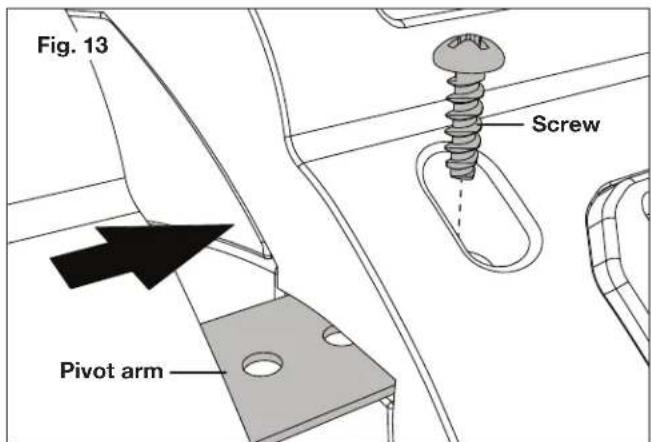

13. Push the metal pivot arm of the door into the slot adjacent

to the dash. Then secure both doors with the screws removed earlier (Fig. 13). Fig. 11 Rear roll bar frame Side roll bar frame ST3

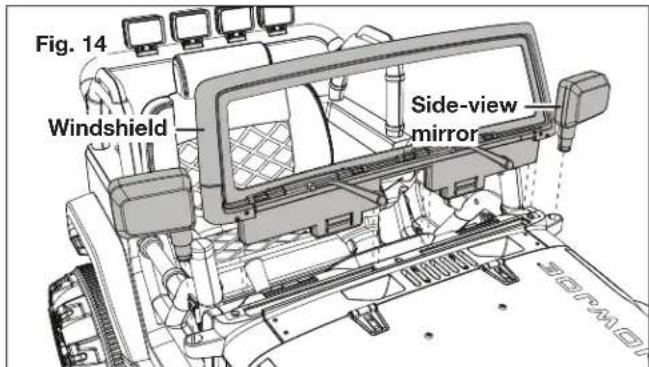

14. Insert the windshield and side-view mirrors into their

respective sockets (Fig. 14). Operation

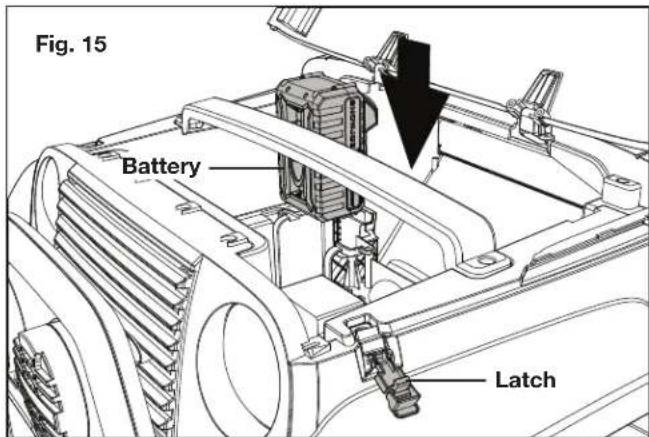

1. Unfasten both latches to open the hood. Insert the battery

into the battery compartment (Fig. 15).

2. Push the on/off button to turn on the ride-on SUV.

1. Fasten the 4-point racing harness.

2. Use the gear shift to toggle between the driving modes:

pedal to brake. Use the steering wheel to turn. Fig. 14 Side-view mirror Windshield Fig. 15 Latch Battery10 Remote Operation

1. Removethescrewonthebatterycoverandinstalltwo

AAA (1.5V) batteries. NOTE: Batteries for the remote are not included.

2. Press the pairing button to connect the remote to the

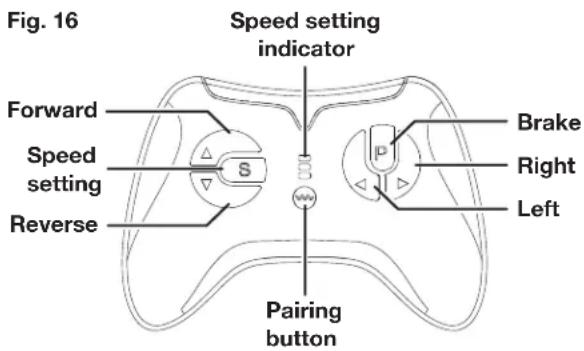

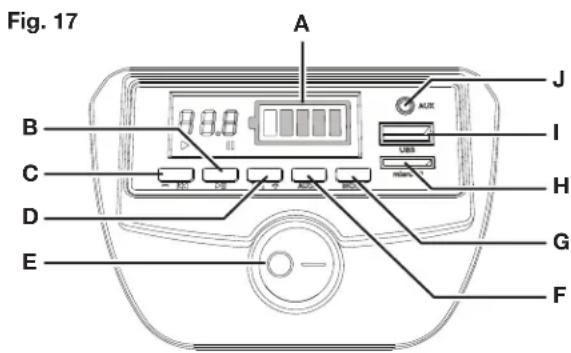

3. Referencethefigurebelowforthefunctionofthevarious

• Shortpressfornexttrack

G. Input mode – Select between the four audio inputs (AUX /USB

J. AUX jack – Audio input via 3.5mm aux Care + Maintenance mWARNING! Always switch the product off and remove the battery before inspecting, cleaning, or performing any other maintenance task. mWARNING! Only perform the repairs and maintenance work described in this manual. Any other work must be performed by a qualified technician.

• Clean the product with a damp cloth. Use a brush for areas that are hard to reach. Storage

• Removethebatteryfromthetoolbeforestoring.

• Store the tool and its accessories in a dry, frost-free, and well-ventilated place out of the reach of children.

• The ideal storage temperature is between 50ºF (10°C) and 86ºF (30°C). Battery + Charger Storage

• Store the battery pack and charger at room temperature and away from moisture. Do not store in damp locations where the terminals may corrode.

• Permanent damage may occur if the pack is stored for extended periods of time at high temperatures (over 120ºF/49ºC).

• Unplug the battery charger and battery pack when not in use.Rechargethebatterypackevery6monthsto50% capacity to maintain optimal battery performance. Battery Caution + Disposal Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which may cause a fire or explosion. mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead, or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding environment.11 Recycling + Disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioningproperly.Recyclethepackageafterwardsorkeep it for long-term storage. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling regulations. Service + Support If your Snow Joe

24V-SUV1KidsRide-OnSUVrequires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. Record the following numbers from the housing or registration card of your new product:Model #:Serial #:

4 V - S U V 1 24VCHRG-QC + 24V-SUV1 Federal Communications Commission (FCC) mWARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliancecouldvoidtheuser’sauthoritytooperatethe equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 oftheFCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipmentoandon,theuserisencouragedtotrytocorrect the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is currently connected to.

• Consult the dealer or an experienced radio/TV technician for help.12 Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacementpartsandaccessories.NEVERuse replacement parts or accessories that are not intended for use with this saw. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your saw. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. Accessories Description Model iON+ 24V 2.0 Ah Lithium-Ion Battery 24VBAT-LTE iON+ 24V 2.5 Ah Lithium-Ion Battery 24VBAT-LT iON+ 24V 4.0 Ah Lithium-Ion Battery 24VBAT iON+ 24V 5.0 Ah Lithium-Ion Battery 24VBAT-XR iON+24Vlithium-ionBatteryQuickCharger 24VCHRG-QC iON+ 24V lithium-ion Dual-port Battery Charger 24VCHRG-DPC NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

6R4_01282020 SNOW JOE

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
