TS 57-1400 KE - Saw Güde - Free user manual and instructions

Product type	Manual circular saw
Brand	Güde
Model	TS 57-1400 KE
Order number	58232
Power supply	230 V - 50 Hz
Rated power	1400 W
No-load speed	2200 - 5200 min⁻¹
Blade diameter	165 mm
Blade bore	20 mm
Max. cutting depth at 90°	57 mm
Max. cutting depth at 45°	42 mm
Weight	4.6 kg
Sound pressure level (LpA)	90.73 dB(A)
Sound power level (LWA)	101.73 dB(A)
Vibration emission value	3.249 m/s²
Protection class	II (double insulation)
Suitable materials	Solid wood, glued wood, panels, aluminium profiles, plastics
Main functions	Rip cut, cross cut, miter cut (45°), plunge cut
Safety	Lower guard, kickback protection, parallel guide, stop
Maintenance and cleaning	Clean ventilation slots, replace dull blades, have repairs done by qualified personnel
Spare parts and repairability	Available at www.guede.com, repairs by authorized service center
Warranty and general information	Use in accordance with intended purpose, CE standards, 30 mA residual current device recommended

Frequently Asked Questions - TS 57-1400 KE Güde

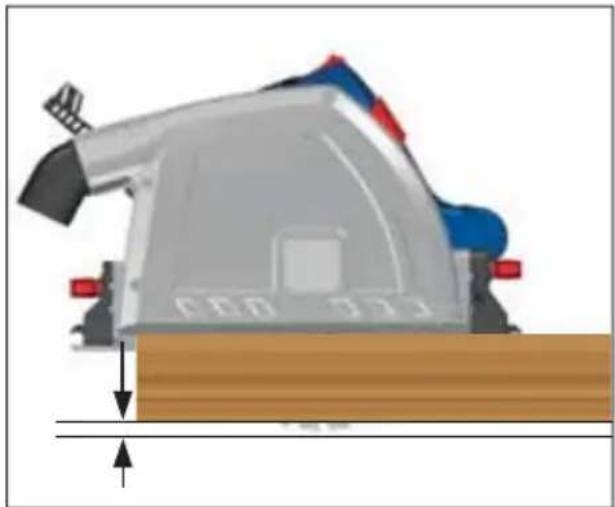

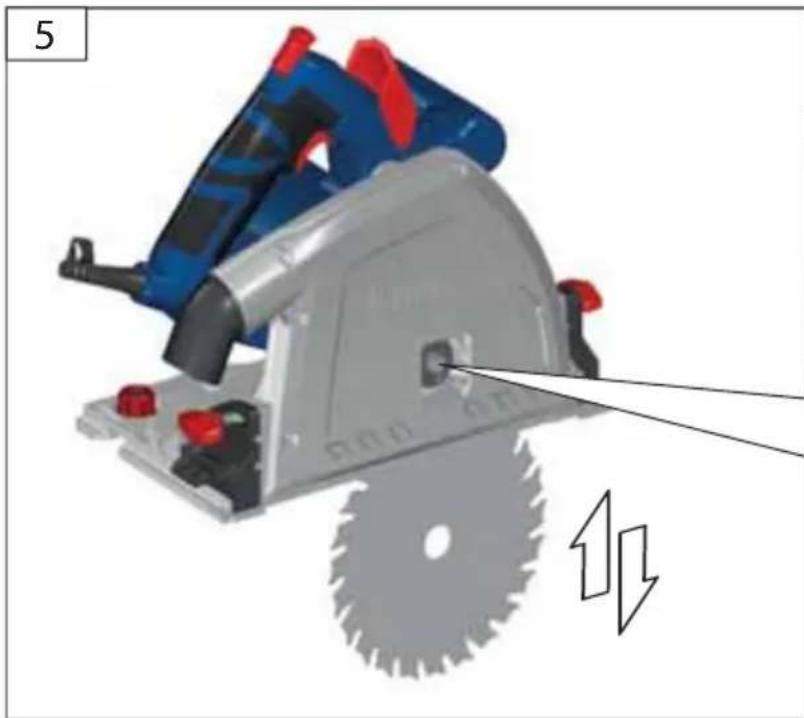

How to adjust the cutting depth on the Güde TS 57-1400 KE circular saw?

Adjust the cutting depth to the thickness of the workpiece: less than one full tooth should appear under the workpiece. Use the adjustment lever on the housing.

What is the blade speed?

The no-load speed is 2200 to 5200 min⁻¹, adjustable according to the model (electronic speed control).

Can I use this saw to cut aluminum?

Yes, it is suitable for aluminum profiles up to 15 mm thickness, as well as plastics and woods.

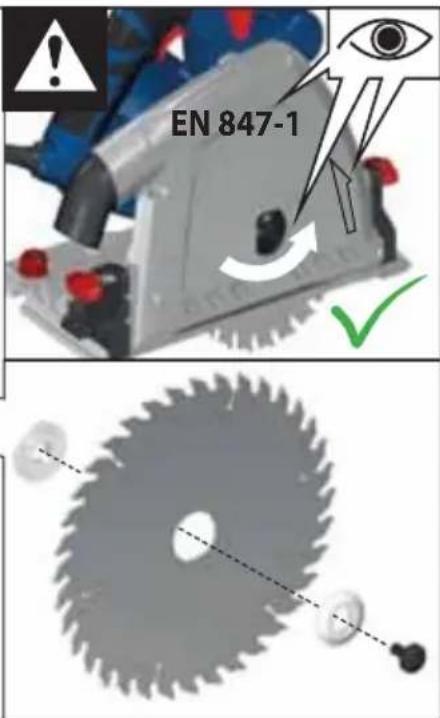

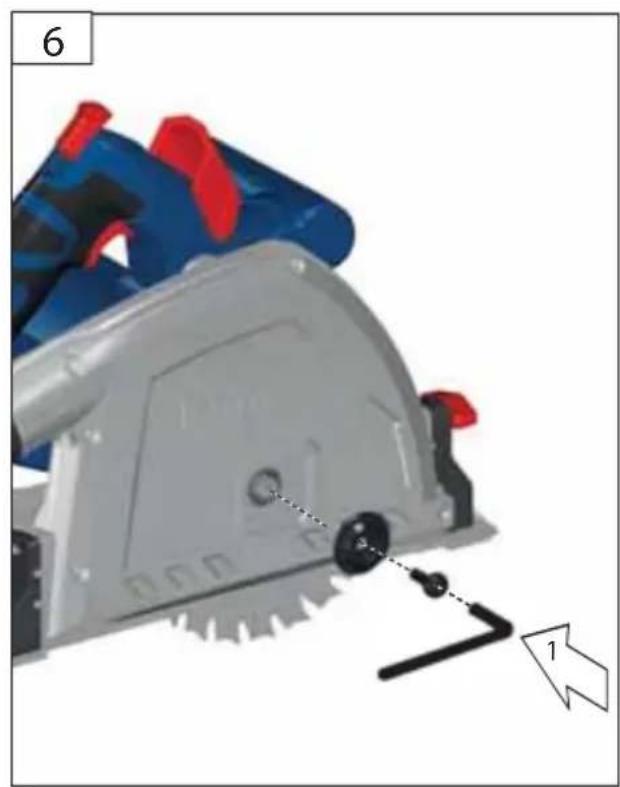

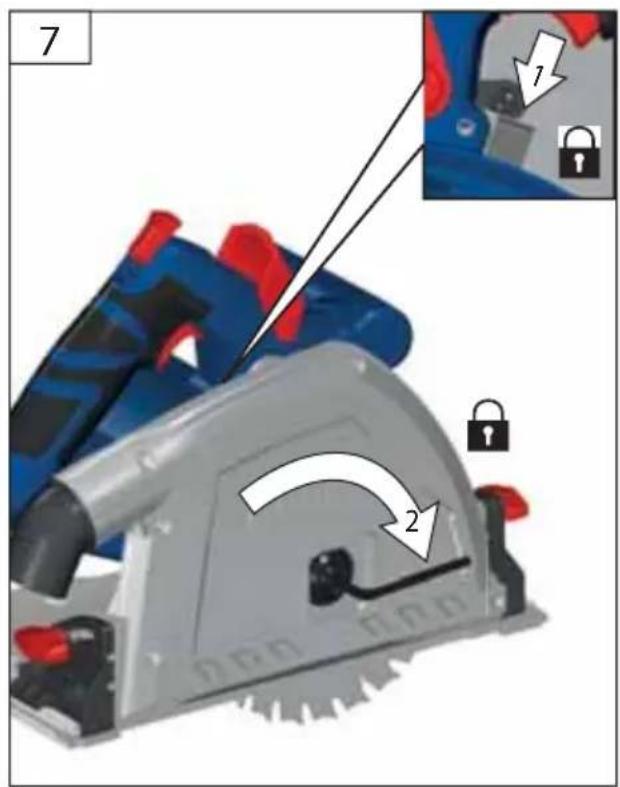

How to replace the saw blade?

Unplug the device. Use the provided wrench to loosen the blade fixing screw, remove the old blade and install the new one respecting the direction of rotation. Tighten firmly.

What safety precautions should I take?

Wear safety glasses, a dust mask, hearing protection and gloves. Always hold the saw with both hands on the insulated handles. Use a residual current device (30 mA).

How to avoid kickback?

Hold the saw firmly, position your body to the side of the blade, use a parallel guide for rip cuts, and never remove the saw while the blade is rotating. Support large workpieces.

What is the maximum cutting thickness?

The maximum cutting depth is 57 mm at 90° and 42 mm at 45°.

Is the device suitable for plumbing or electrical work?

Be careful when plunge cutting into walls: there may be cables or pipes. Use a metal detector and follow safety instructions.

How to maintain the saw?

Keep ventilation slots clean. Do not use water. Have damaged cable replaced by a professional. Sharpen or replace dull blades. Visit www.guede.com for parts.

What accessories are recommended?

Replacement blades 165 x 20 mm, a parallel guide, a chip vacuum, and appropriate guards. Consult the Güde accessories catalog.

USER MANUAL TS 57-1400 KE Güde

---- Translation of the original instructions Circular saw

TS 57-1200 SET

58138

TS 57-1400 KE SET

58232

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky

D	Betrieb	GR	Λειτουργία
GB	Operation	H	Üzemeltetés
F	Fonctionnement	SLO	Delovanje
I	Esercizio	HR	Rad
E	Funcionamiento	BG	Pábota
NL	Gebruik	RO	Funcționare
DK	Drift	TR	İşletim
CZ	Provoz	PL	Eksploatacja
SK	Prevádzka

1-12

D Inbetriebnahme

GB Starting-up the machine

F Mise en service

Messa in funzione

E Puesta en marcha

58155

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky

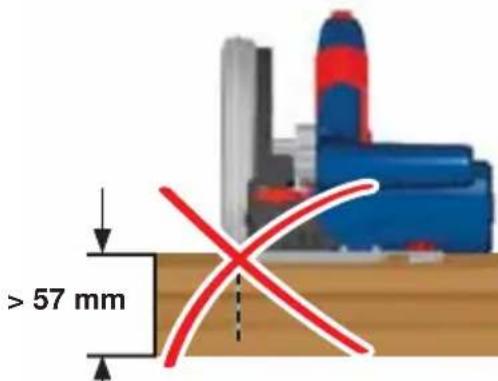

Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

D Inbetriebnahme

GB Starting-up the machine

F Mise en service

1 Messa in funzione

E Puesta en marcha

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky

GB Accessory - Not included in standard equipment, available as an accessory.

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky

D	Betrieb	GR	Λειτουργία
GB	Operation	H	Üzemeltetés
F	Fonctionnement	SLO	Delovanje
I	Esercizio	HR	Rad
E	Funcionamiento	BG	Pабота
NL	Gebruik	RO	Funcționare
DK	Drift
CZ	Provoz
SK	Prevádzka

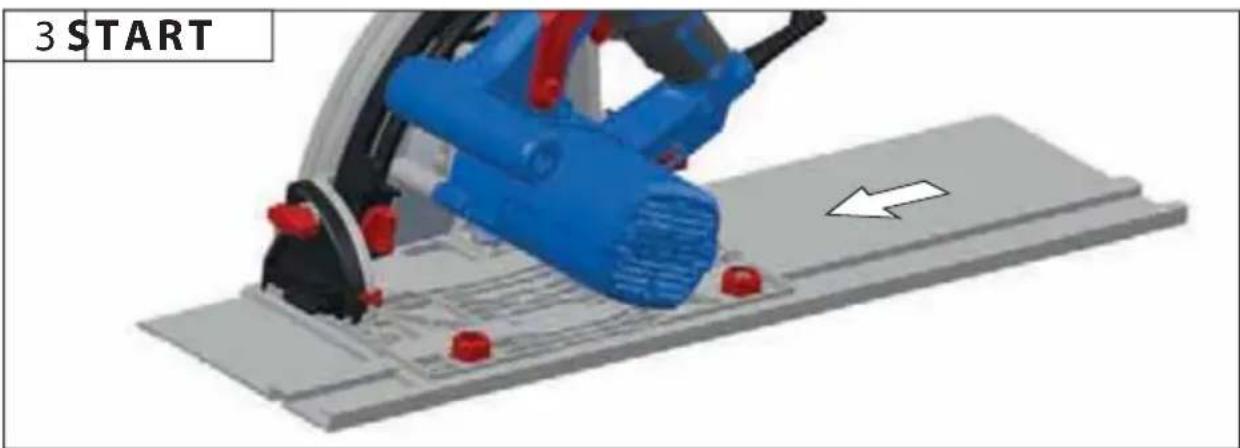

START

TS 57-1400 KE SET

58232

3-7

3-7

1-7

4-7

STOP

2

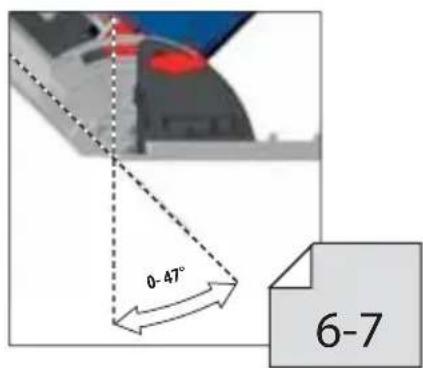

D Betrieb

GB Operation

F Fonctionnement

Esercizio

E Funcionamiento

NL Gebruik

DK Drift

CZ Provoz

SK Prevádzka

GR Λειτουργία

H Üzemeltetés

SLO Delovanje

HR Rad

BG Работа

RO Functionare

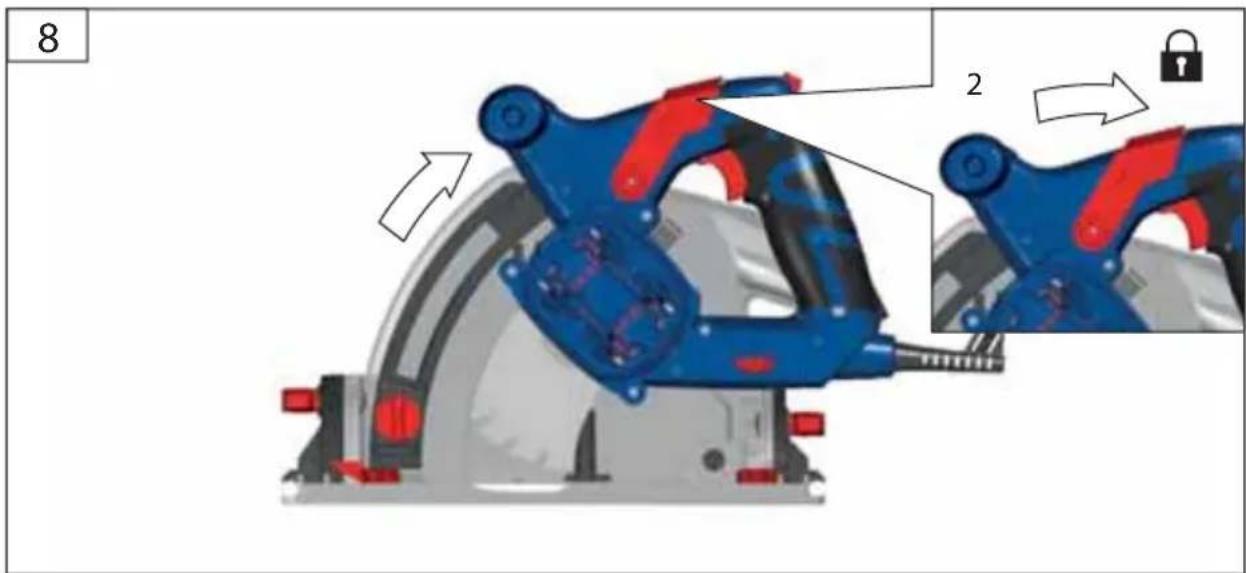

A

B

max. 57 mm

C

C

Technische Daten

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The plungecut circular saw can be used for sawing solid wood, bonded wood, glued veneer, materials similar to wood, aluminium profiles, Non-ferrous metals and plastics.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

In spite of compliance with all relevant design regulations, dangers may still present themselves when the machine is operated, e.g.:

• noise emissions
• dust emissions
  • vibrations to hand and arms

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING / Caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles! Wear ear protectors!

Wear a suitable dust protection mask.

Wear gloves!

Unplug the machine before any work on it.

Class II tool.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Solid wood (hard, soft), chipboards and hard fibre boards, laminated wood, blockboards, veneered and coated boards

Plastics, fibre-reinforced plastics paper and fabric acrylic glass

Plaster and cement-bonded fibre boards

Aluminium panels and profiles up to 15 mm

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Safety instructions for manual circular saws

Cutting procedures

a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a „live“ wire will also make exposed metal parts of the power tool „live“ and could give the operator an electric shock.
f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

Kickback causes and related warnings

– kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
- when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
– if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.

d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

Guard function

a) Check guard for proper closing before each use. Do not operate the saw if guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed. If saw is accidentally dropped, guard may be bent. Check to make sure that guard moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation and condition of the guard return spring. If the guard and the spring are not operating properly, they must be serviced before use. Guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Assure that the base plate of the saw will not shift while performing the "plunge cut" when the blade bevel setting is not at 90°. Blade shifting sideways will cause binding and likely kick back.
d) Always observe that the guard is covering the blade before placing saw down on bench or floor.

An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Additional Safety and Working Instructions

Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear and ear defenders.

The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.

Always keep the connection cable from the working area of the device. Always guide the cable backwards, away from the device!

Do not machine any materials that present a danger to health (e.g. asbestos).

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

Please turn the device immediately off when the tool used gets blocked! Do not turn the device on again when the tool is still blocked. This could cause bounce back with a high reaction moment. Determine and remove the cause of the blocking of the tool used while respecting the safety instructions.

The possible causes may be:

• it is tilted in the workpiece to be machined
• it has pierced through the material to be machined
  • the power tool is overloaded

Do not reach into the machine while it is running. Chips and splinters must not be removed while the machine is running.

WARNING! Danger of burns

The insertion tool may become hot during use.

- when changing tools

- when setting the device down

Adapt the feed speed to avoid overheating the blade tips and to avoid melting plastic materials during cutting.

Mains Connection

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II. Only plug-in when machine is switched off.

Maintenance

⚠️ Unplug the machine before any work on it.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff. Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

WAARSCHUWING / Opgelet!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
