USER MANUAL VMH350 Vornado

Exterior view of a Vortuado air conditioner unit with digital display and remote control (no text or symbols on main body)

model VMH350-AU

WHOLE ROOM HEATER OWNER'S GUIDE

READ AND SAVE THESE INSTRUCTIONS

LEER Y GUARDAR ESTAS INSTRUCCIONES

LIRE ET CONSERVER CES INSTRUCTIONS

vornado.com.au

We expect this product to be perfect.

If it is not, we will make it right.

vornado.com.au

1.800.099.012

[e-mail]

CONTENTS

Important Safety Instructions....4 Reset Heater....15

Safety Features 10 Troubleshooting 16

Controls....11 Warranty....17

How to Use 12

Remote Control....13

Cleaning 14

Storage 15

Lapach p. 10 François p. 25

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. Please refer to vornado.com.au for the most current version of our owner's guide.

The following Warning messages are throughout this owners guide:

DANGER

DANGER indicates a hazard with a HIGH level of risk which, if not avoided, will result in death or serious injury. Please pay special attention to any instructions given to avoid this threateningly dangerous risk.

WARNING

WARNING indicates a hazard with a MEDIUM level of risk which, if not avoided, could result in death, serious injury, minor or moderate injury or potential property damage.

CAUTION

CAUTION indicates a hazard with a LOW level of risk which, if not avoided, could result in minor or moderate injury or potential property damage.

IMPORTANT INSTRUCTIONS

Important Notes indicate additional information that will assist in the care of handling of the device.

INTENDED USE: This product is designed to heat and circulate the air in domestic households. This product is not intended for commercial or industrial applications. This product is not intended for outdoor use. First use of this product may result in a short-term persistent slight odor, this is normal.

This product may be used in a closed, dry room but preferably in a room with adequate ventilation.

The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

WARNING – When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

WARNING

Risk to Children and Other at Risk Groups of People.

This appliance can be used by children aged from 12 years and above. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. This product and its packaging material are not toys and should be kept out of reach of children.

⚠ WARNING: Chemical Burn Hazard. Keep batteries away from children.

WARNING: KEEP NEW AND USED BATTERIES AWAY FROM CHILDREN. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. In the AU call the Australian Poisons Information Centre immediately for

24/7 fast, expert advice at 13 11 26.

WARNING

Risk from Unintended Use and Handling. Please take care to follow these guidelines to avoid risks to people or property.

Do Not use this product outdoors or directly exposed to weather.

Do Not use this product on an elevated surface such as shelf or desktop. Use only while placed on the floor. Operate only in the upright position.
This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into bathtub, swimming pool or other water container.
Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. Do not bundle the cord when in use.
Do Not operate after the heater malfunctions, has been dropped or damaged in any manner. Discard

English

heater, or return to authorized service facility for examination and/or repair in order to avoid a hazard.
Do Not cover the heater or get the heater damp or weL.
Always unplug when not in use or when leaving the dwelling or premises for extended periods of time.
Do Not place the heater directly below a socket outlet.
- Do Not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

DANGER

Risk from Electrical Shock. Contact with wires or components that are under voltage could be potentially fatal!

Do Not use this product outdoors or exposed to weather or elements.
- Do Not use this product on wet surfaces, in bathtub or shower.

Do Not immerse this product in water or allow water to drip into the motor housing.
Do Not use this product if it has a damaged power cord or plug. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
To reduce the risk of fire or electrical shock, do not use this product with any solid state speed control device.
Do Not stretch the power cord or put the cord under strain. Never use the power cord as a handle.
Do Not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.
Always turn off and unplug the unit before cleaning. Power off and unplug during electrical storms. To disconnect from outlet, grasp and pull only the plug, not the power cord.

WARNING

Risk of burn.

Do Not use heater to dry human or animal hair or

articles of clothing.

Do Not let bare skin touch hot surfaces, this heater is hot when in use. Use handles when moving this heater.
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1m (3 feet) from the front of the heater and keep them away from the side and rear.

Warning: In order to avoid overheating, do not cover the heater.

CAUTION

Please pay attention to any instructions given to avoid personal injury or property damage.

A loose fit between wall outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact qualified electrician to replace loose or worn outlet.
Do Not use this heater on a circuit that is shared with another high power device, such as a vacuum or circular saw.

Do Not use this heater on a circuit that has a variable speed device operating, such as a blender or variable speed fan.
Do Not use this heater on a surge protected circuit
Do Not use this heater with any kind of timer designed to turn the unit on or off.
Do Not use the heater on any Ground Fault Circuit Interrupted (GFCI) circuit. A GFCI circuit has a reset button in the middle of the outlet.
Do Not use this heater in an RV, boat, or any application where a DC/AC converter is converting battery power to AC power.
Do Not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
Always unplug heater when not in use. To disconnect heater, turn controls to off, then remove plug from outlet.
Always plug heaters directly into wall outlet/receptacle. Never use with an extension cord or re-locatable power tab (outlet/power).
Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or

B English

injury to persons.

This heater is equipped with a thermal safety shut-off system, designed to turn off the heater when an internal overheating condition is detected. See How to Use "RESETTING YOUR VORNADO HEATER" to determine how to check and reset the heater.

In order to avoid a hazard due to inadvertent resetting of thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

ELECTRICAL CONNECTION: Only a proper 240V\~50Hz AC outlet may be used to connect to public power supply.

⚠️ SERVICING WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other chemicals

for cleaning. Refer to the CLEANING instructions provided.

Do not open housing. All service and/or repairs must be done by a Vornado Authorized Service Center.

WARNING: Batteries may pose a choking hazard. Do not let children handle batteries.

BATTERY DISPOSAL: Please dispose of batteries according to the local laws and regulations of your region, and while keeping them away from children. Some batteries may be recycled and accepted for disposal at your local recycling center. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK. New and used batteries may cause injury. Keep new and used cells (or batteries) away from children.

Dispose of all packaging materials in an environmentally responsible manner.

SAVE THESE INSTRUCTIONS

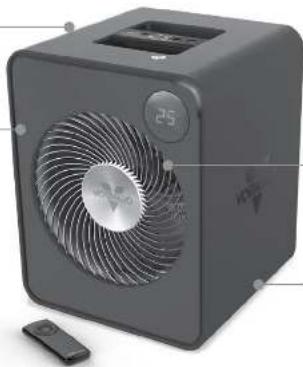

SAFETY FEATURES

METAL CONSTRUCTION

Forged from steel to be

fire-resistant, yet cool to the touch.

AUTOMATIC SAFETY

SHUT OFF SYSTEM

If 6.15W Becomes Blocked, power to heater is shut off to

prevent overheating

GROUNDED HEAVY-DUTY

POWER CORD

Ares Eureilly the A

There should be connected.

POWER CORD STORAGE

Safety store excess cord in

tray on back of heater.

10 English

Exterior view of a gray industrial fan with a digital display and control panel (no visible text or symbols)

FINGER-FRIENDLY DESIGN
Resists curious fingers

AUTOMATIC TIP-OVER PROTECTION If heater tips over, safety shut off system cuts power to heater. Position heater back in upright position. Press Power button and power is restored. Heater returns to last stored setting

CONTROLS

THERMOSTAT -/+

POWER ON/OFF

This heater has a dual display feature and both displays are synoad. One display is integrated into the carry handle. The other display is located on the front of the heater.

The disolays illuminate when powered on and as settings are adjusted. After a selection is made the disolays aim after 70 seconds.

Close-up of a black hexagonal electronic device with a circular display showing '25' and a fan (no visible text or symbols)

MAIN POWER SWITCH

MODE

High Heat (1500 watts)

Low Heat (750 watts) or Fan Only

TIMER

POWER INDICATOR LIGHT

Red light illuminates to

indicate the heater is on.

REMOTE

CONTROL

Convenience at

your finger tips.

HOW TO USE

Before use, check appliance for visible damage, DO NOT USE THIS HEATER if there is evidence of damage. If any damage is found, contact the Vornado Authorized Service Center.

1. Use integrated handles on top of heater for lifting and carrying.
2. Position heater so airflow is not obstructed.
3. Unwrap power cord from storage tray on back of heater. Plug power cord into standard grounded wall outlet.
4. Press the flower button and set mode of Fan Only (1). Room temperature will illuminate on both displays. Set thermostat to desired temperature using √+ SET TEMP numbers will flush on both displays as you adjust. Once the selection is made it will flash for five seconds, become constant for five seconds and then returns to room temperature. The display will then dim after 20 seconds. De- sal, screenshots upon first use will be High Heat and set temperature of 24 degrees.
5. Set timer to automatically power the unit off by pressing Ⓐ 0 will flash on both top and front displays. Press Ⓐ to select the amount of time in

White portable air conditioner unit with fan and logo (no visible text or symbols)

one-hour intervals, up to 12 hours. User can also use 14 to select the amount of time.
After a selection is made or after five seconds of inactivity, the number selection will stop flashing and become constant. It is then displayed for five seconds, before

room temperature is displayed again. To cancel the timer operation, select 0 hours or hold Ⓡ for three seconds.

The white indicator light on front display and TIMER on top display will illuminate to indicate the timer is on.

NOTE: To change between Celsius and Fahrenheit, press and hold the “-” and heat mode buttons at the same time for 3 seconds until display shows desired setting.

COOL DOWN

When you power off your heater which in High or Low heat mode, it automatically arises a cool down cut line in which the heating element turns off and the len exhausts remaining heat. During Cool Down, both top and front display count down before powering off completely.

REMOTE CONTROL

Screwdriver required.

Your VMH350 heater remote includes (1) coin-style CR2002 battery. Battery comes pre-installed. Remove battery pull tab before first use. The remote is located inside the LPS Styrofoam surrounding the front and back of the heater. Look for the RLMOTL (↓) stcor affixed to the remote polybag inside the EPS Styrofoam.

1. For battery replacement, the remote requires one coin-style 3V CR2052 battery. Always use the correct size and grade of battery for this product.

2. To replace battery, open battery door on the back side of the remote control you will need to loosen the small screw on door using a #1 Phillips screwdriver - screwdriver (not included). If necessary, clean the battery contacts and also these of the device prior to battery installation Remove any plastic protection from the battery and place it in the remote with the + side facing up. Replace the battery door and screw.

Note: Remove battery from the remote control when not in use for an extended period of time and always remove dead battery immediately and replace with fresh. Do not store dead battery in remote.

VORNADO

MODE

High Heat (1500 watts), Low Heat (750 watts) or Fan Only.

THERMOSTAT /+

POWER

TIMER

1. Your remote control will operate the same as the control functions located on the heater, except when changing modes. When changing modes, both displays will show either LO, HI or FA on the display as you cycle through. Once the selection is made, it will hold for eight seconds before room temperature is displayed again.

The remote requires a line-of-sight path to allow for the signal to be received by the heater. Position the heater so the receiver lens inside the display or front of heater) is visible from the remote control.

WARNING: This product contains a button battery. If swallowed, it could cause severe injury or death in just 2 hours. Seek medical attention immediately.

CLEANING

Because your heater moves a substantial amount of air, it will need regular cleaning. Cleaning the outside of the heater is recommended on a 60-weekly basis. If service is required, return your heater to Vornado. See WARRANTY for instructions.

1. Power of and unplug heater before cleaning.

2. Use brush attachment on household vacuum cleaner to vacuum any accumulated dust off Front Outlet Grills.

Illustration of a white rectangular device with a circular fan-like pattern on its front panel (no text or symbols)

You may also clean the heater with high-pressured air, as well.

1. Use brush attachment on household vacuum cleaner to vacuum any accumulated dust off Inlet Filter on back of heater.

2. Wipe down entire heater with soft, dry cloth.

Note: Inlet Filter on back of heater is not removable.

STORAGE RESET HEATER

During the off-season or after extended periods of non-use, you may choose to store your heater. To ensure long life of the product, it is recommended to store your heater by following these instructions:

Cleaning: a recommended before storage.

1. Power off and unplug power cord, wrap cord and slice inside storage tray on back of heater.
2. Cover, or place back in retail carton if available. This prevents heater from accumulating dust over time.
3. Store heater in cool and cry location.

DISPOSAL

Dispose of all packaging materials in an environmentally responsible manner.

RESETTING YOUR VORNADO HEATER
Your Vornado Heater has a multilevel safety shut-off system designed to prevent overheating. Overheating may occur when the inlets or cutlet are blocked. If this happens, the safety shut-off system cuts power to the heater and you must manually reset the heater.
1. Power heater of, then unplug power cord.
2. Remove any obstructions.
3. Wait 5-10 minutes, allowing heater to cool down.
4. Plug in power cord and place heater in desired position.
5. Power heater On: Your Vornado Heater should now function normally.

Note: If the safety shut-off system repeatedly shuts off your heater or if it will not reset after following the above procedure, contact the Vornado Authorized Service Center.

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

Unit fails to power on.

Unit is not plugged in. Plug power core into electrical outlet.

Unit has overheated. Automatic Safety Shut Off has initiated. See RESET HEATER

Internal tip-over switch has been tripped and safety shut-off system has cut power to heater. Place heater on level surface. See SAFETY FEATURES.

Heater does not turn on, make sure the main power switch on the back of the heater is on.

Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.

Unit is not producing sufficient amount of heat.

Ensure unit is set to High Heat and thermostat is set to highest temperature setting.

Close all doors and windows to trap heat.

Allow unit to fully circulate heat throughout room; may take several minutes.

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

We're Here to Help

1.800.099.012

vornado.com.au

[e-mail]

Warranty Terms and Conditions:

Please contact the retailer where purchased or contact the authorized importer before returning the product for a warranty claim. The product warranty will be honored on models that are being used in the country intended. See the silver rating label on the product to confirm the safety testing marks which identify the specific country of intended use. Please provide a copy of your receipt with the

defective product when returning to the authorized location. Repairs performed after the warranty period, are subject to a charge.

The manufacturer assumes no responsibility for damage or injury caused by failure to follow these instructions, improper product use or unauthorized product modification. Improper product use includes using an external device that alters or converts the voltage or frequency of electricity. Such use will invalidate the product warranty. The product will be considered modified if the rating label has been removed, thus making the warranty void.

Repair by an unauthorized service center or use of non-approved

replacement parts is not recommended and any consequences will not be covered by support services or product warranties.

Shipping a Vomado product to a country not intended for use, will void all warranties.

© 2012 Verrace Ar LLC Anover, © 2012 U.S. Patent pending special offers issued in change without notice. Verrace® is approved only by Verrace NV LLC

Exterior view of a modern office building (no signage)

DISEÑO FÁCIL DE MANIPULAR Resale dedos curiosos.

Close-up of a black electronic device with a fan and digital display (no visible text or symbols)

INTERRUPTOR PRINCIPAL

MODO Calor Alto (1500 vatios), Calor Bajo (750 vatics), o Sólo Ventilador

TEMPORIZADOR

Illustration of a square-shaped device with a circular fan-like pattern on its front panel (no text or symbols)

enbrave, Implementation

B. 10. 10

Is surchauffe.

CORDON D'ALIMENTATION

ROBUSTE MIS À LA TERRE

Durabilis accrue et

Exterior view of a modern office building (no signage)

Close-up of a black electronic device with a fan and digital display (no visible text or symbols)

INTERRUPTEUR

D'ALIMENTATION

PRINCIPAL

MODE

Illustration of a white rectangular device with a circular fan-like pattern on its side (no text or symbols)

CAUSE POSSIBLE ET SOLUTIONPROBLÈME

© 2022 Verrado Air LLC, Ardoos, KS 57002 E.L., Brown, an Indenta. Spots (cat) are applied in air (factual) area prazo. Torrado-D as low manque distance per Verrado Air LLC.

VORNADO®

CL3-0713 R-, V02
