605i - Measuring equipment Testo - Free user manual and instructions
Find the device manual for free 605i Testo in PDF.
| Brand | Testo |
| Model | 605i |
| Product type | Smart Probe (connected measuring probe) |
| Category | Measuring equipment |
| Measured quantities | Air temperature, relative humidity, dew point, wet bulb temperature, absolute humidity |
| Temperature measuring range | -20 to 60 °C (-4 to 140 °F) |
| Humidity measuring range | 0 to 100 %RH |
| Temperature accuracy | ±0.8 °C (-20 to 0 °C), ±0.5 °C (0 to +60 °C) |
| Humidity accuracy | ±2.0 %RH (35-65 %RH), ±3.0 %RH (10-35% and 65-90%RH) |
| Resolution | 0.1 °C / 0.1 °F / 0.1 %RH |
| Measurement rate | 1 time per second |
| Adjustable measurement units | °C, °F, %RH, td°C, td°F, wetbulb °C, wetbulb °F |
| Connectivity | Bluetooth 4.2 (Low Energy), range 15 m in free field |
| Required app | Testo SMART (iOS 12+ / Android 6.0+) |
| Dimensions | 218 x 30 x 27 mm (probe length 90 mm) |
| Power supply | 3 AAA batteries |
| Battery life | 150 hours |
| Operating temperature | -20 to +50 °C |
| Storage temperature | -20 to 60 °C |
| Maintenance | Clean with damp cloth, no solvents. Annual calibration recommended. |
| Safety | Magnetic field (distance >10 cm for pacemaker wearers). Do not expose to volatile chemicals. |
| Standards and certifications | EU Directive 2014/30/EU, RED 2014/53/EU, RoHS 2011/65/EU |
| Optional accessories | Smart Case (ref. 0516 0250) |
Frequently Asked Questions - 605i Testo
User questions about 605i Testo
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Measuring equipment in PDF format for free! Find your manual 605i - Testo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 605i by Testo.
USER MANUAL 605i Testo
1 Sommaire....3
10 Homologations.... 31
| Exportation (Export) | ||
| Rapport (Report) |


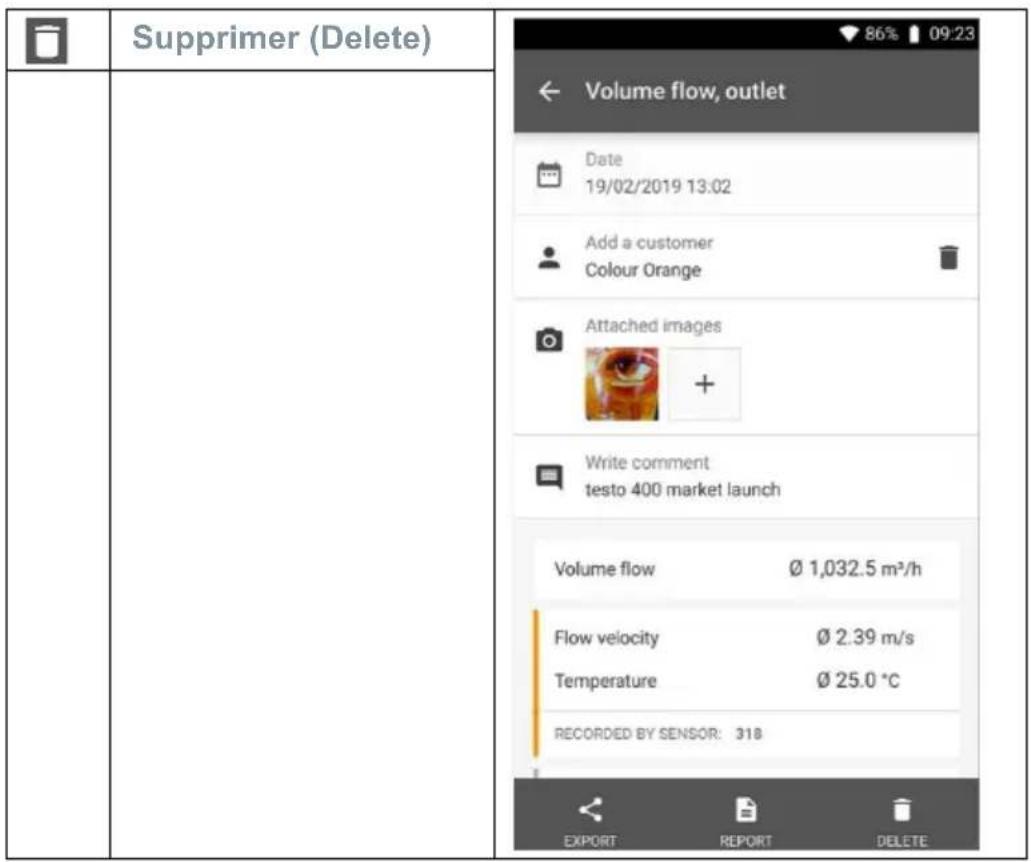

Supprimer (Delete) Volume flow, outlet Date 19/02/2019 13:02 Add a customer Colour Orange Attached images + Write comment testo 400 market launch Volume flow Ø 1,032.5 m³/h Flow velocity Ø 2.39 m/s Temperature Ø 25.0 °C RECORDED BY SENSOR: 318 EXPORT REPORT DELETE6.8.1. Exportation Excel (CSV)
This instrument complies with Part 15C of the FCC Rules and
Industry Canada RSS-210 (revision 8). Commissioning is subject to
the following two conditions:
(1) This instrument must not cause any harmful interference and
(2) this instrument must be able to cope with interference, even if
this has undesirable effects on operation.
Information from the FCC (Federal Communications Commission)
For your own safety
Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.
FCC warning statement
This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
KCC Warning
| Product | testo 115i, testo 549i, testo 605i | |
| Mat.-No. | 0560 2115, 0560 2549, 0560 2605 | |
| Date | 23.04.2021 | |
| i The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted. The user and every owner has the obligation to adhere to these regulations and prerequisites for use, and acknowledges that the re-sale, export, import etc. in particular in countries without wireless permits, is his responsibility. | ||
| Country Comments | ||
| Australia |  | E 1561 |
| Brazil | testo 605i:  testo 549i:  testo 115i  Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados | |
| Canada | Product IC ID:testo 115i: IC: 6127B-05602115testo 549i: IC: 6127B-05602549testo 605i: IC: 6127B-05602605see IC Warnings | |
| China | testo 115i: CMIIT ID: 2020DJ5843 | |
| testo 549i: CMIIT ID: 2020DJ5838testo 605i: CMIIT ID: 2020DJ5782 | ||
| Europa + EFTA |   The EU Declaration of Conformity can be found on the testohomepage www.testo.com under the product specific downloads.EU countries:Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).EFTA countries:Iceland, Liechtenstein, Norway, Switzerland WEEE Reg. no.: DE 75334352 | |
| India | Authorized | |
| Malaysia Type Approval Code:testo 115i: RGJP/21A/0321/S(21-1021)testo 549i: RGJP/19A/0321/S(21-1022)testo 605i: RGNH/02A/0321/S(21-1024) | ||
| South Africa | testo 115i: TA-2019/546testo 549i: TA-2019/548testo 605i: TA-2019/547 | |
| Turkey | Authorized | |
| UAE | testo 605i: ER78468/20 | |
| USA |  testo 115i: WAF-05602115testo 549i: WAF-05602549testo 605i: WAF-05602605see FCCWarnings | |
| Bluetooth®Information | Feature Values | |
| Bluetooth® range | Open air: typical 100 m | |
| radio type | Bluetooth® Low Energy (BLE) 4.2 | |
| Bluetooth® radio class | 1 | |
| Bluetooth® company | LSD Science & Technology Co., LtdLierda LSD4BT_S37 | |
| RF Band | BT LE: 2402 – 2480MHz | |
| power output | BT LE: 16.94dBm | |
| Bluetooth® SIGList | Feature Values | |
| Declaration ID | D043363 | |
| member company Testo SE & Co. KGaA | ||
IC Warnings
RSS-Gen & RSS-247 statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Caution: Radio Frequency Radiation Exposure
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets the IC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Information from the FCC (Federal Communications Commission)
For your own safety
Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.
FCC warning statement
This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
| Mat.-No.型号 | 0560 2115 550560 2549 550560 2605 55 | |
| Country Comments | ||
| Japan | Contains Lierda S37 BLE moduleR201-200983see Japan Information | |
| South Korea | testo 115i: R-R-TTT-testo115itesto 549i: R-R-TTT-testo549itesto 605i: R-R-TTT-testo605isee KCC Warning | |
| Bluetooth®Information | Feature Values特征与参数 数值 | |
| Bluetooth® range / 范围 | up to100m (328feet) (free field /无障碍场地) | |
| power output输出功率 | 9.37dBm | |
KCC Warning
The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted. The user and every owner has the obligation to adhere to these regulations and prerequisites for use, and acknowledges that the re-sale, export, import etc. in particular in countries without wireless permits, is his responsibility.
| Country | Comment | |
| Australia |  | E 1561 |
| Brazil |  | ANATELAgência Nacional de Telecomunicações05188-21-04701See Brazil Information |
| Canada | IC ID: 6127B-05641552See IC Warnings | |
| China | CMIIT ID: 2021DJ5269 | |
| Europa + EFTA |   | The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads.EU countries:Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), |
Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).EFTA countries:Iceland, Liechtenstein, Norway, Switzerland  WEEE Reg. no.: DE 75334352 | ||
| Hongkong | Authorized | |
| Malaysia | Type Approval Code:RGQU/01A/0321/S(21-1019) | |
| South Africa | TA-2020/8013 | |
| Turkey | Authorized | |
| USA |  FCC ID: WAF-05641552See FCC Warnings | |
| Bluetooth®Information | Feature Values特征与参数数值 | |
| Bluetooth® range / 范围 | up to150m (490feet) (free field /无障碍场地) | |
| radio type型号 | Bluetooth® LowEnergy (BLE) 4.2 | |
| company制造商 | LSD Science &Technology Co., LtdLierda LSD4BT_S37 | |
| RF Band射频频段 | 2402 – 2480MHz | |
| power output输出功率 | 15.22dBm | |
| Bluetooth®SIG Listing | Feature Values特征与参数数值 | |
| Declaration ID | D043363 | |
| member company Testo SE & Co. KGaA | ||
IC Warnings
CAN ICES-003(B)/NMB-003(B):
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Caution: Radio Frequency Radiation Exposure
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets the IC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Information from the FCC (Federal Communications Commission)
For your own safety
Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.
FCC warning statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Brazil Information
The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted. The user and every owner has the obligation to adhere to these regulations and prerequisites for use, and acknowledges that the re-sale, export, import etc. in particular in countries without wireless permits, is his responsibility.
| Country | Comments | |
| Australia |  E 1561 | |
| Brazil |  ANATELAgência Nacional de Telecomunicações14309-21-04701See Brazil Information | |
| Canada | IC ID: 6127B-05601915See ISED Warnings | |
| China | CMIIT ID: 2021DJ5252 | |
| Europa + EFTA |  The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads.EU countries:Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).EFTA countries:Iceland, Liechtenstein, Norway, Switzerland | |
  WEEE Reg. no.: DE 75334352 | ||
| Hongkong | Authorized | |
| Malaysia | Type Approval Code: RGOF/05A/0321/S(21-1025) | |
| Turkey | Authorized | |
| USA |  FCC ID: WAF-05601915 See FCC Warnings | |
| Bluetooth® Information | Feature Values特征与参数数值 | |
| Bluetooth® range / 范围 | up to150m (490 feet) (free field /无障碍场地) | |
| radio type型号 | Bluetooth® Low Energy (BLE) 4.2 | |
| company制造商 | LSD Science & Technology Co., Ltd Lierda LSD4BT_S37 | |
| RF Band射频频段 | 2402 – 2480MHz | |
| power output输出功率 | 13.70dBm | |
| Bluetooth®SIG Listing | Feature | Values | |
| 特征与参数 | 数值 | ||
| Declaration ID D043363 | |||
| member company | Testo SE & Co. KGaA |
EU SAR Information
The SAR limit of Europe is 2.0 W/kg. The highest SAR value reported for 0560 1915 under testing standard for use in hand is 0.275W/kg.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
ISED Warnings
CAN ICES-003(B)/NMB-003(B):
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
The highest SAR value reported under this standard during product certification for use in the hand is 0.450W/kg.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Information from the FCC (Federal Communications Commission)
For your own safety
Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.
FCC warning statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC SAR warning:
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification of 0560 1915 (FCC ID:WAF-05601915) for use when properly worn in the hand is 0.450 W/kg.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
