Product type	Wood stove
Brand	Wamsler
Model	Linz
Nominal output	6 kW
Dimensions (W x D x H)	588 x 531 x 904 mm
Net weight	84 kg
Gross weight	97 kg
Authorized fuels	Log wood (max 25 cm), lignite briquettes
Recommended wood moisture	Below 20%
Operating efficiency	≥ 80% (wood)
Average flue gas temperature	238 °C (wood)
Minimum draft	12 Pa
Flue outlet diameter	150 mm
Cladding material	Soapstone (natural)
Special features	Plate warming space, integrated log store
Routine maintenance	Clean glass with special product, chimney sweeping twice a year
Soapstone maintenance	Soapy water or 240-grit sandpaper for stubborn stains
Consumable parts	Vermiculite plates (6-month warranty)
Safety distances	Front: 80 cm (40 cm with protection), rear: 20 cm, sides: 30 cm
Floor protection	Non-combustible plate under the appliance and extending 50 cm in front, 30 cm on the sides
Standard	EN 13240
Warranty	Manufacturer's warranty (see conditions)

Frequently Asked Questions - Linz Wamsler

What fuels can I use in the Wamsler Linz stove?

You can use natural firewood (logs up to 25 cm) and lignite briquettes. Never use treated wood, waste, or flammable liquids.

How to perform the first lighting?

Before first lighting, remove protective elements. Open the door, adjust primary air, place firelighter paper and kindling, light and close the door. It is normal for some odor to occur during first uses: ventilate the room.

Why does my stove glass get dirty quickly?

The glass gets dirty mainly due to wood that is too moist or insufficient combustion power. Use dry wood (less than 20% moisture) and heat more strongly at the start. Clean with a special stove glass cleaner.

How to maintain the soapstone?

Clean the soapstone with soapy water. For stubborn stains, use 240-grit sandpaper. Never use aggressive detergents or abrasive sponges.

What safety distances must be observed?

In front of the stove (radiation zone): 80 cm minimum, reduced to 40 cm with protection. Rear: 20 cm, sides: 30 cm. The floor must be protected by a non-combustible plate extending 50 cm in front and 30 cm on the sides.

What to do in case of a chimney fire?

Close all stove openings and immediately alert the fire department. Do not try to extinguish the fire yourself. Then have the chimney inspected by a specialist.

How to clean the stove at the end of the heating season?

Empty the firebox and ash pan completely, close the door and primary air adjustment. You may also close the external air intake. Thorough cleaning of the flue is recommended.

Can I use demolition wood or old furniture?

No, it is strictly prohibited. Such wood may contain toxic substances and damage your appliance. Only use natural untreated wood.

Where to find spare parts?

To order parts, provide the type number, reference number, and serial number on the rating plate. Use only original Wamsler parts.

What is the heating power and efficiency?

The nominal output is 6 kW with an operating efficiency of at least 80% for wood. The flue gas temperatures are about 238 °C and the minimum required draft is 12 Pa.

USER MANUAL Linz Wamsler

GF Fireplace user instruction

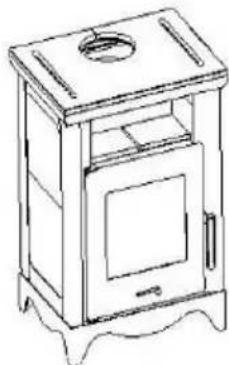

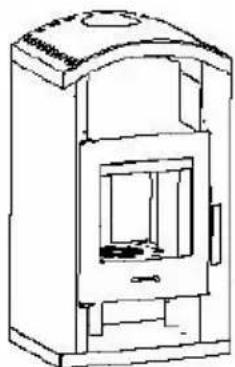

Line drawing of a cabinet with open door and internal compartments (no text or symbols)

ZÜRICH / SALZBURG

Line drawing of a portable stove or oven unit with handle and vent (no text or symbols)

EOS

MARS SATURN

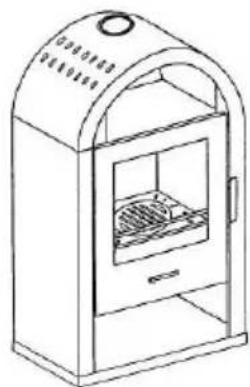

Line drawing of a simple open-bay refrigerator with arched top and side windows (no text or symbols)

RADIANT / LILITH

Line drawing of a cylindrical device with a lid and front panel, no text or symbols present

JAVA

Technical line drawing of a mechanical device with internal compartments and housing (no text or symbols)

COUNTRY

Line drawing of a small cabinet with a vent and lid (no text or symbols)

CALYPSO / ZINITH

Line drawing of a simple cabinet with open door and side panel (no text or symbols)

Line drawing of a cabinet with lid and door (no text or symbols)

Line drawing of a multi-tiered refrigerator with front panel and side door (no text or symbols)

D

Vorwort

Stacked wood logs with visible grain and texture, no text or symbols present

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

Bild 2

KH

Bild 4

Technical diagram showing a mechanical assembly with labeled component '2' and directional arrows indicating motion or force.

Bild 6

H A

Bild 3

Diagram of a mechanical assembly with two stacked compartments and directional arrows indicating motion (no text or symbols)

Bild 5

Bank: UniCredit Bank Hungary 201

105165071-203009858-725176015

Managing Director

Gábor Madaras M.Sc.

Phone: [phone]

Fax: <38/1 214 3820

research@san.14

Đếng Tunisia

TUV SÜD Group

REFIN Department

15-1042 Budapest

Dogenics u. 11.

B-520326

Seite 2/23

Geprüfter Typ:

Thank you for choosing our product!

By purchasing this product you receive guarantee for

• good quality originating from the usage of the finest and proven materials,
- operating security which is controlled according to German and European norms (Corresponds to the standards EN 13240)

- long life ensured by the robust structure.

In order to be able to use your new fireplace for a long time please read the following instructions manual. You will find all the necessary information in it and some additional advice.

PLEASE NOTE:

When ordering replacement parts, the Article No. and Serial No. shown on the identification plate must be quoted.

Contents

Foreword 23

Contents....23

SAFETY INSTRUCTIONS....24

1. Usage....26

1.1 Structure of the equipment 26

1.2 Installation....27

1.3 Putting out of operation....28

1.4 Heating instructions .... 28

1.5 Cleaning and maintenance 29

1.6 Potential problems and how to tackle them....31

1. Placing 32

2.1 Prescriptions 32

2.2 Place of installation....32

2.3 Distances 32

2.4 Connection of the fireplace 33

1. Technical specification.... 35

3.1 Dimensional drawings.... 35

3.2 Dimension 37

3.3 Datas....40

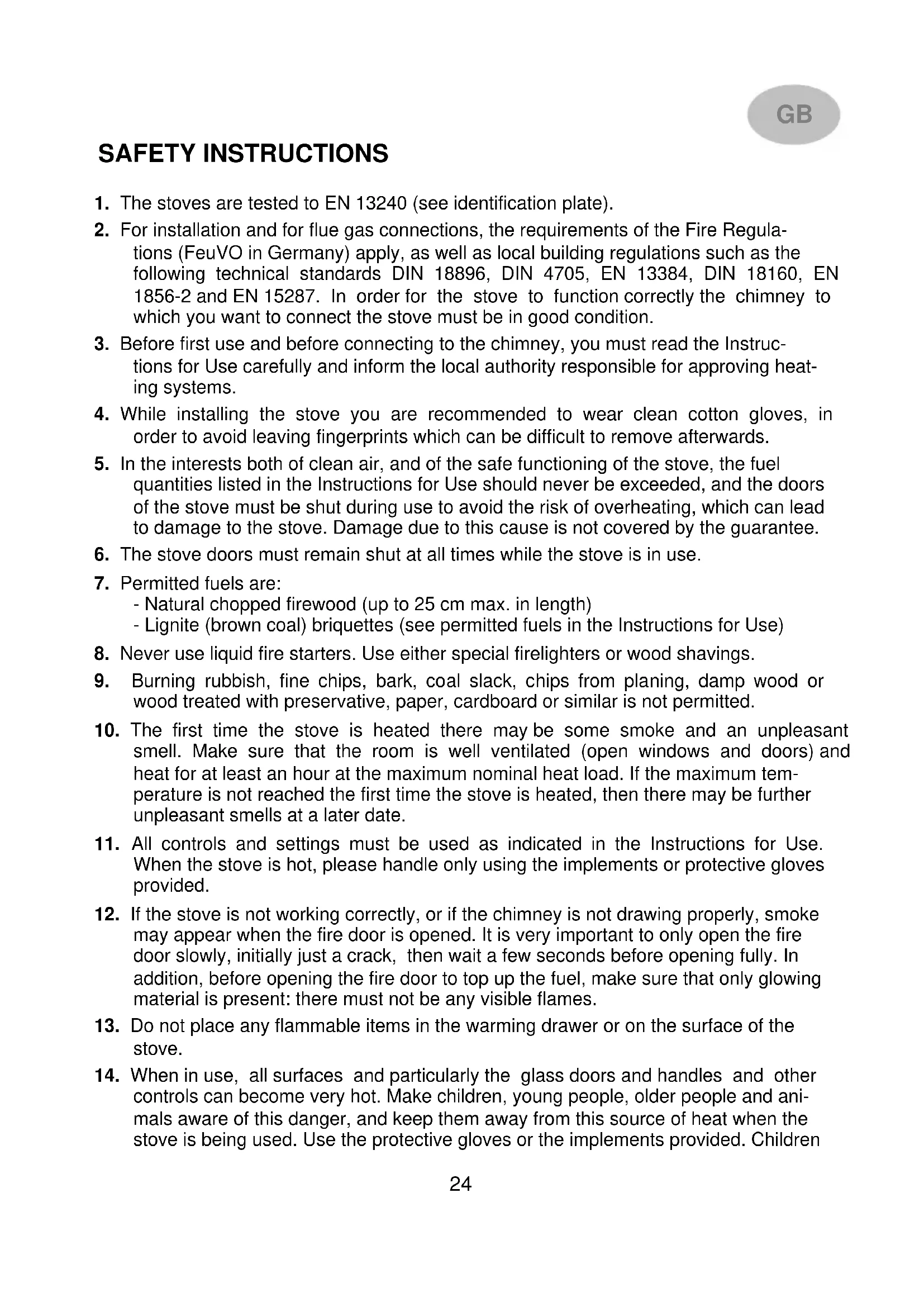

SAFETY INSTRUCTIONS

1. The stoves are tested to EN 13240 (see identification plate).
2. For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.
3. Before first use and before connecting to the chimney, you must read the Instructions for Use carefully and inform the local authority responsible for approving heating systems.
4. While installing the stove you are recommended to wear clean cotton gloves, in order to avoid leaving fingerprints which can be difficult to remove afterwards.
5. In the interests both of clean air, and of the safe functioning of the stove, the fuel quantities listed in the Instructions for Use should never be exceeded, and the doors of the stove must be shut during use to avoid the risk of overheating, which can lead to damage to the stove. Damage due to this cause is not covered by the guarantee.
6. The stove doors must remain shut at all times while the stove is in use.
7. Permitted fuels are:
8. Natural chopped firewood (up to 25 cm max. in length)
9. Lignite (brown coal) briquettes (see permitted fuels in the Instructions for Use)
10. Never use liquid fire starters. Use either special firelighters or wood shavings.
11. Burning rubbish, fine chips, bark, coal slack, chips from planing, damp wood or wood treated with preservative, paper, cardboard or similar is not permitted.
12. The first time the stove is heated there may be some smoke and an unpleasant smell. Make sure that the room is well ventilated (open windows and doors) and heat for at least an hour at the maximum nominal heat load. If the maximum temperature is not reached the first time the stove is heated, then there may be further unpleasant smells at a later date.
13. All controls and settings must be used as indicated in the Instructions for Use. When the stove is hot, please handle only using the implements or protective gloves provided.
14. If the stove is not working correctly, or if the chimney is not drawing properly, smoke may appear when the fire door is opened. It is very important to only open the fire door slowly, initially just a crack, then wait a few seconds before opening fully. In addition, before opening the fire door to top up the fuel, make sure that only glowing material is present: there must not be any visible flames.
15. Do not place any flammable items in the warming drawer or on the surface of the stove.
16. When in use, all surfaces and particularly the glass doors and handles and other controls can become very hot. Make children, young people, older people and animals aware of this danger, and keep them away from this source of heat when the stove is being used. Use the protective gloves or the implements provided. Children

and young people under 16 must not use the stove unless supervised by an adult who is responsible for them.

1. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk).
2. In spring and autumn the chimney may no longer draw correctly, so that gases produced by combustion are not completely removed. The fire chamber should then be filled with a small quantity of fuel, ideally with wood shavings, and lit under supervision, in order to stabilise the chimney draught. The grate must be clean.
3. After each prolonged period of use for heating, have the stove checked by a professional. The flues and pipes for the evacuation of fumes must also be thoroughly cleaned.
4. If repairs or replacements are necessary, please contact your supplier with the necessary article numbers and serial numbers in good time. Only original WAM-SLER replacement parts may be used.
5. Work such as installation, setup, commissioning and services, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians). Intervention by non-qualified persons invalidates the warranty and guarantee.
6. As the solid fuel oven/stove draws the air required for combustion from the surrounding room, you must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. It can be assumed that is this is provided by a room volume of at least 4 m^3 per kW nominal heat capacity. If the volume is less than this, then air vents can be used to provide access to further air in other rooms (min. 150 cm^2 ).
7. You must ensure that the correct safety distance is maintained from all flammable components and materials – to the side, rear and front. These distances can be found in the Instructions for Use or the identification plate.
8. The fire chamber must not be modified.
9. Connection to a chimney whose functional height is less than 4 m, or if multiple stoves are installed, 5 m, is not permitted. A maximum of two other fires can be connected to the chimney which is to be connected the stove.
10. If the chimney catches fire immediately close all doors and openings and call the fire brigade. Do not attempt to extinguish the fire yourself. Afterwards have the chimney thoroughly checked out by a professional.
11. Solid fuels naturally create soot, so it is always possible that the window glass will become dirty: this does not mean there is a malfunction.

1. Usage

1.1 Structure of the equipment

Fuel selector on the rear wall smoke tube end heat storage part furnance chamber door model plate on the rear wall door knob primary air regulator ash bin fuel storage

picture 1

1.2 Installation

Fuels

Low smoke, trouble-free operation of the stove and a supply of heat at the nominal level with a chimney draught of 12 Pa are only guaranteed when you use the following fuels and no others.

Only use natural, dry chopped firewood with a remaining humidity of max. 20%, and lignite (brown coal) briquettes.

Types of fuels	Heating value appr. kWh/kg
Brown-coal	5,3 – 5,5
Hard wood	4,0 – 4,2
Soft wood	4,3 – 4,5

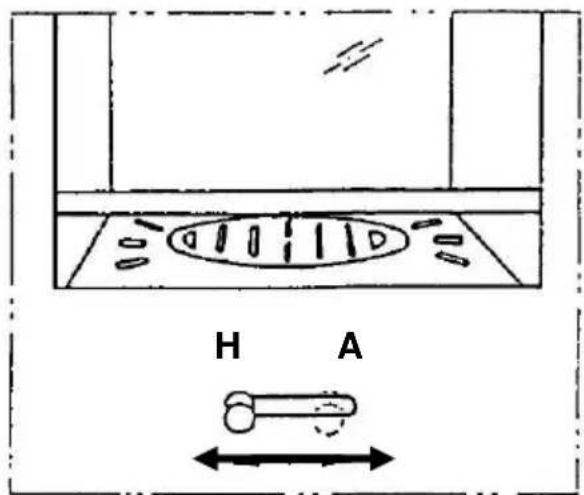

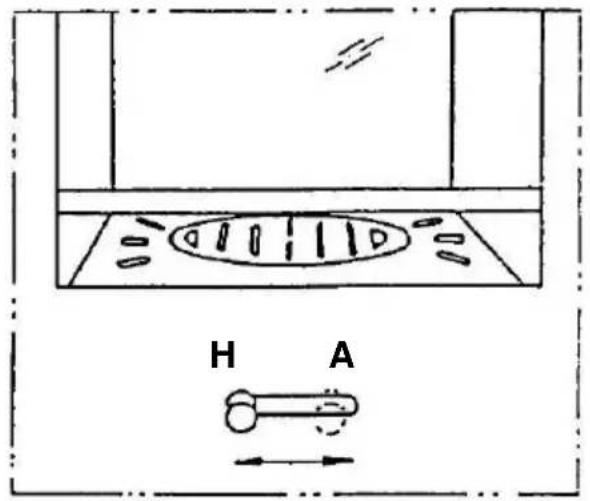

With the primary air damper, do you adjust the rated output. There may be engaged in only the settings and fuel quantities are given that correspond to your licensed or purchased device.

Adjustment:

Fuel		Setting of the primary air regulator	Setting of the fuel selector	Burning time
		6 kW
Warning up, kindling		A H -
Wood	Nominal heating performance	H H ca. 0,75 h
Brown-coal	Nominal heating performance	A K ca. 1 h
Putting out of working order		H K -

Table 2

Filling quantities 6 kW

• Split billet: max. length: 33 cm, max. 2 billets per filling, appr. 1,4 kg
• Lignite briquette: max. 1,7 kg

IT IS NOT ALLOWED to burn waste, fine chipping, bark, wood handled with preventive chemicals, furthermore paper and cardboard. For kindling please use wood scrapings or grill starter but never use liquid auxiliaries!

The first kindling

- At the first fire set-up could be a little smoke, but is not dangerous, normal! In this time, please ventilate the room carefully!

Warning! Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.

- Before installation pull out the delivery securer off the refractory brick through the furnace chamber (picture 6).

Open the door by raising the handle (picture 2). If the equipment is hot, you can use insulated gloves. Adjust the primary air regulator and the fuel switch (picture 3) according to the Table 2. Put coal lighter or wood wool onto the fire grate, followed by wood chips. First insert small pieces of wood, and then larger ones, light them and close the door again. When the wood burns quickly, and leaves sufficient glowing embers, put additional fuel on the fire. Thereafter, adjust the primary air regulator and the fuel switch according to the Table 2 („Adjustment of the burning air”). The first kindling should be performed “finely” with little fuel only, so that the parts of the fireplace are adapted to heat. During the first kindling, the generation of smell is normal and absolutely undangerous.

1.3 Putting out of operation

• Let the glowing ember burn to ashes and the fire-place get cold.
  • Empty the furnace chamber and the ash bin.
• Close the doors, and shut off the primary air regulator (position I) and the fuel switch (position K).

1.4 Heating instructions

The fireplace should be operated only with closed furnace chamber door. Fireplaces belonging to type 1 have self-locking furnace chamber doors. These doors may be opened only for kindling, loading or when cleaning the furnace chamber (otherwise draught problems may occur with other equipment connected to the same chimney).

Warning!

When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small extent, and then fully after a few seconds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

Led into the burning space in correspondence with the existing conditions, the secondary air provides for the follow-up burning of the combustible components of in the burning space. This in fact means smoke and soot-poor burning, which contributes to the protection of the environment. If you wish to commission the fireplace in a transitional period, please, please first examine the chimney draught, as it can be especially weak at high external temperatures. Towards this end, hold a burning match in the slightly opened feeding door. If the flame is not drawn significantly by the draught, then a so-called starting fire is to be set first. Towards this end, burn wood chips/wool in the fireplace or the cleaning hole of the chimney. The fire grate is to be cleaned

before every kindling to ensure the proper inflow of air for burning. The ashtray is to be emptied regularly (picture 5). Should the equipment be extremely hot, use the gloves provided. Please, be careful not to dispose glowing materials into the waste bin.

Ensure that the ashtray should be fully pushed into the equipment.

Warning! In order to keep the air clean and safeguard the fireplace, do not exceed the specified maximum fuel quantity, otherwise overheating may occur, which potentially damage the equipment. Such damage is not covered with any guarantee. Only a single layer of fuel is allowable to be prepared in the fireplace. Try to reach lower heating performance only by decreasing the quantity of fuel, and not by cutting the primary air supply.

1.5 Cleaning and maintenance

After the heating season, it is recommended to clean the fireplace and the flue gas pipes carefully. Any dropping heating performance is almost always the consequence of the strong contamination of the flues. For cleaning, the baffle plate (picture 6 No. 2) is to be pulled forward. This way, the flues can be cleaned from the inside or – after removing the flue gas pipe – from above. After cleaning, the baffle plate (picture 6 No. 2) is be pushed back fully again.

Warning!

Following every heating season you are advised to examine the fireplace thoroughly. If any repair or reconditioning is needed, please, contact your local dealer in a timely manner, and specify the model number and serial number of your equipment (as seen on the model plate). External surfaces may be maintained only after the fireplace cooled down, and following the first commissioning. Use cold water for cleaning, or soap, washing ingredient in extraordinary cases, then wipe it dry. Before its first use, clean the ROBAX inspection glass with a wet and clean cloth, and then put a few drops of glass-ceramics cleaner onto both sides of the glass, and spread them with the use of kitchen paper tissues. It provides an invisible film on the valuable surface of the Robax glass. This film helps to keep the glass clean, and facilitates regular cleaning operations. ROBAX S for slightly contaminated surfaces – a commercially available glass surface cleaning agent – may as well be used for the cleaning of the medium or strongly contaminated glass surfaces of the fireplace. Towards this end, spray small quantities of the agent to the cold surfaces, spread it, and wash it down with a wet cloth, followed by drying with a clean, soft cloth. In case there are sticky fuel deposits on these surfaces, first scale simply them with a ceramic-plate scraper held in flat angle, and then clean the surfaces as described above.

Cleaning of the ceramic surfaces dirt and grease are to be removed with soap and water.

Cleaning of the soapstone: the soapstone is a natural stone, therefore minor colour differences may occur; as it is normal, they may not serve as a basis for quality complaints! To clean the soapstone from dirt and fat with water and soap, as well as small scratches, use sand paper (grain size 240).

Warning: Under no circumstances you may use sponge, scouring, aggressive or scratching cleaning agents! If the grate is blocked so that the equipment cannot serve the intended function, the grate is to be removed for cleaning.

Simple line drawing of a window with a handle and a hanging object, no text or symbols present

picture 2

H A

picture 3

KH

picture 4

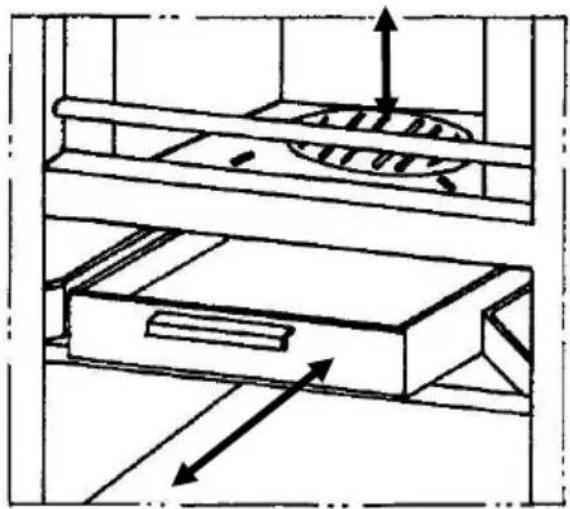

Diagram of a mechanical assembly with two stacked compartments and directional arrows indicating motion (no text or symbols)

picture 5

Protection corrugated paper for transportation

Technical diagram showing a mechanical assembly with labeled component '2' and directional arrows indicating motion or force.

picture 6

1.6 Potential problems and how to tackle them

Kind of operating problem	Possible reasons Solution
Odour formation Curing	of the applied preventive lacquer.Steaming oil remains.	Operate the fire-place on a low heating level according to the instructions manual for a few hours. Then heat up for maximal performance for a few hours.
Too little heating performance	We chose too little performanceChimney draught is slight	Have the heating requirement of the room examined by an expertChimney draught shall be at least 12 Pa, max. for a short time 18 Pa.Check the tightness of your chimney and also that the doors of other fire-places leading to the same chimney are closed and sealed properly. Make sure that the chimney-cleaning joints are sealed properly.
	Too long and leaky smoke tube	All the smoke tube joints must be well sealed and fireproof-isolated
	Leakage at the door glass	Check the sealing, close the door properly. May have to have the tightening flap re-newed.
	Usage of wet wood.	Use well dried wood only.

Actions to be in chimney fire

Chimney fire may occur upon the improper cleaning of the chimney, the use of inappropriate fuels (e.g. excessively wet wood) or the inadequate setting of the burning air. In such cases, close the burning air at the fire, and call the fire service.

Never try to extinguish the fire with water!

2. Placing

2.1 Prescriptions

For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.

2.2 Place of installation

The stove draws the air required for burning from the surrounding room. You must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. In addition you must ensure that a room volume/heat capacity ratio of at least 4 ~m^3 per kW nominal heat capacity is available. If the volume is less than this, then air vents can be used to provide access to further air supply in other rooms (connecting vents min. 150 ~cm^2 ).

2.3 Distances

All the combustible materials, furniture or e.g. decoration materials that are in the close environment of the fireplace should be protected from the heat.

Furnishing in the radiation area

Keep a minimal distance of 80 cm (A) between the front edge of the fireplace and the combustible equipment, furniture or e.g. decoration materials in the building. The security distance can be reduced to 40 cm (B) if a heat shield is placed in front of the object to be protected (see example in Picture 8).

Furnishing beyond the radiation area

The walls beside and behind the fireplace may not be made of combustible materials, and they cannot be covered with such materials if the distance on the sides is under 30 cm, or 20 cm on the rear side. Similarly, the distance to wooden and plastic furniture on the sides should be at least 30 cm (see Picture 9).

B A

picture 8

20 cm 30cm 30cm

picture 9

Floor in front of and under the fireplace

Floors made from combustible materials, such as carpets, parquet floors or cork is to be protected by a shield of non-combustible material – for example ceramics, stone, glass or steel – placed under the fireplace so that it should reach out to 50 cm in front and 30 cm besides.

2.4 Connection of the fireplace

The connection for attaching to the chimney must be able to withstand at least 400^ C.

PLEASE NOTE:

Before connecting the stove the local authority responsible for approving heating systems must be consulted!

Connection pieces must be firmly connected to the stove and to each other and must not leak. They must not project into the open diameter of the chimney. The connection piece between the stove and the chimney must have the same diameter as the pipe socket on the stove. Horizontal connection pieces of over 0.5 m must rise towards the chimney at an angle of 10 degrees. Any pipes which are not heat insulated or vertical must not be longer than 1 metre.

The requirements of the Fire Regulations (FeuVO) apply, as well as local building regulations such as for the chimney standards DIN 18896, DIN 4705, EN 13384, DIN 18160 and EN 15287. Connection pieces must be tested to EN 1856-2. Measurement X (distance from flammable construction and other materials) must be as defined by the manufacturer of the connection piece.

X

PLEASE NOTE:

Fitting to a chimney with a functional height of less than 4 m, or if several stoves are being fitted, less than 5 m, is not permitted.

(See: Data for chimney calculations / Chapter 3.) A maximum of

two other fires can be connected to the chimney to be connected to the stove.

For safety reasons it is not permitted to use a steam extractor hood to remove air when the stove is producing heat.

The fireplace can usually be connected to the chimney with an angle pipe With weak chimney draught, the fireplace is to be connected to the chimney through a vertical flue gas pipe facilitating discharge.

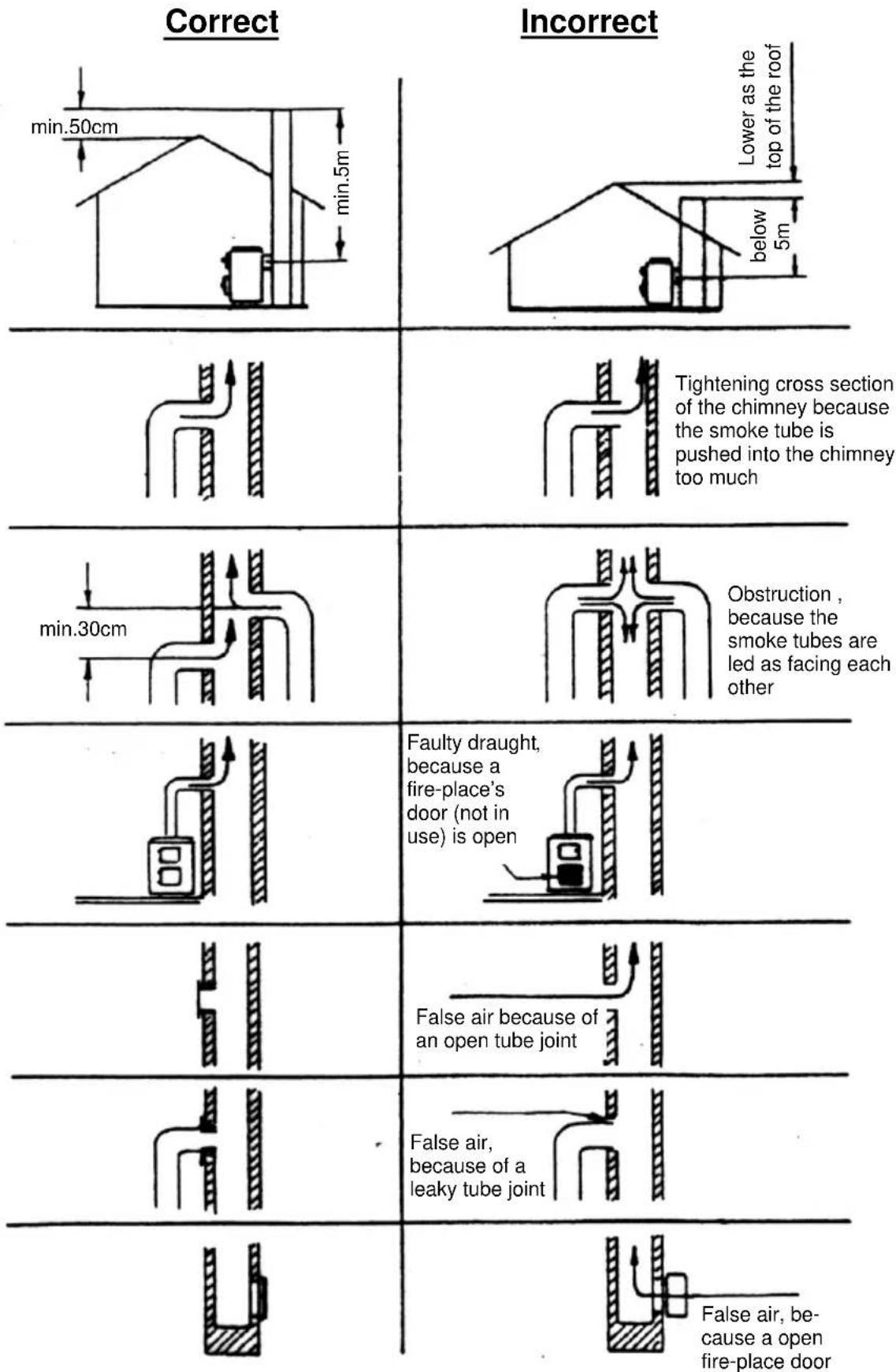

Correct Incorrect min.50cm min.5m Lower as the top of the roof below 5m Tightening cross section of the chimney because the smoke tube is pushed into the chimney too much min.30cm Obstruction, because the smoke tubes are led as facing each other Faulty draught, because a fire-place's door (not in use) is open False air because of an open tube joint False air, because of a leaky tube joint False air, be- cause a open fire-place door

3. Technical specification

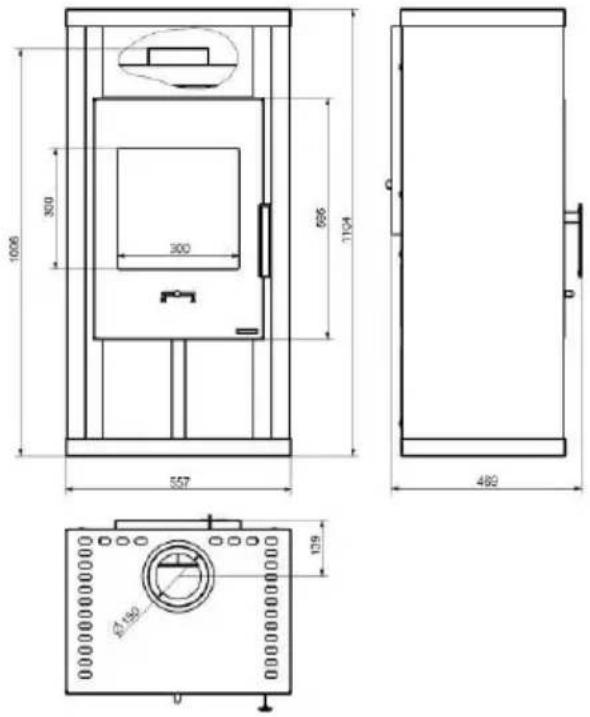

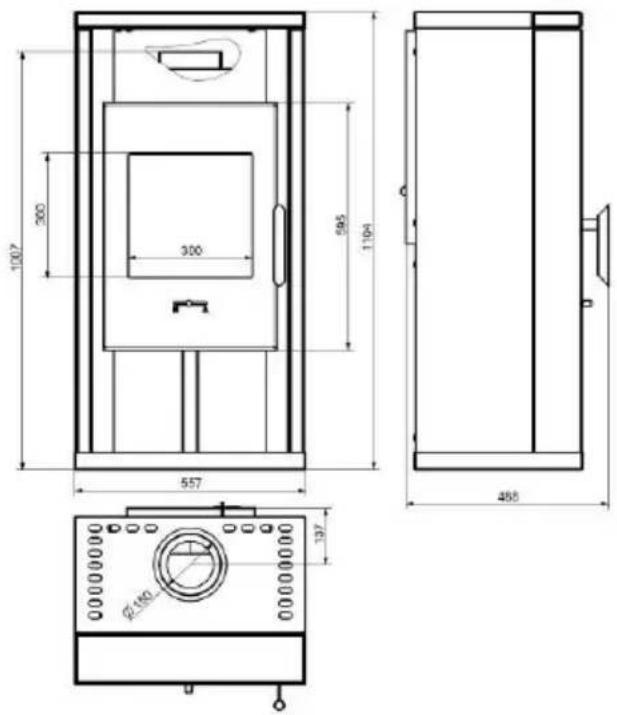

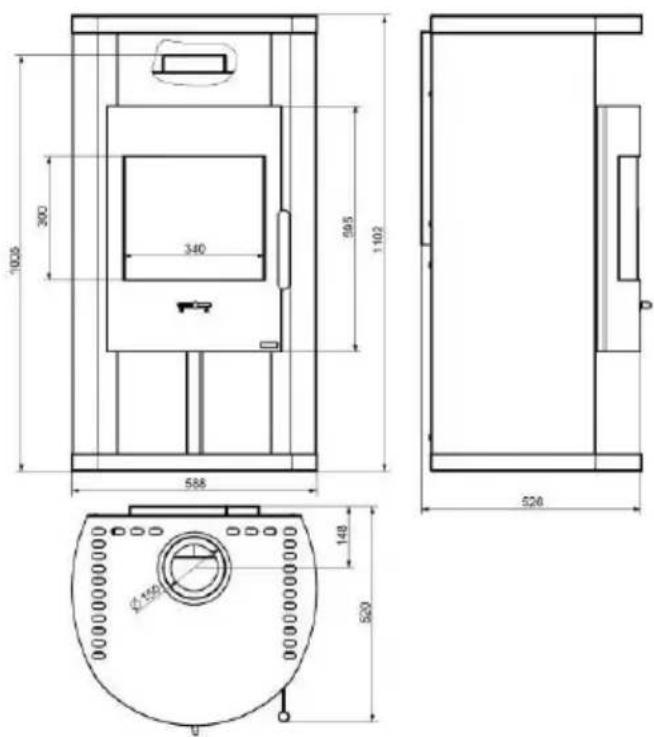

3.1 Dimensional drawings

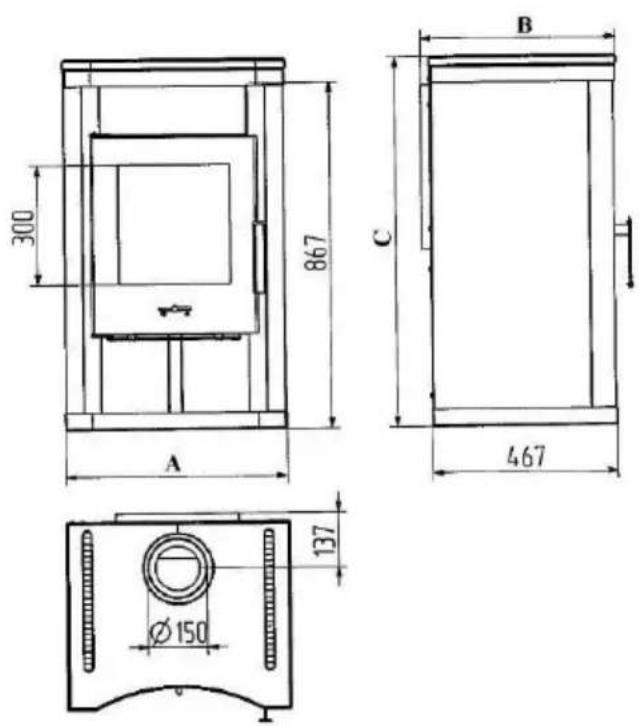

TYP 108 63 Jupiter TYP 108 65 Java

300 300 867 C A 427 B Ø150 137

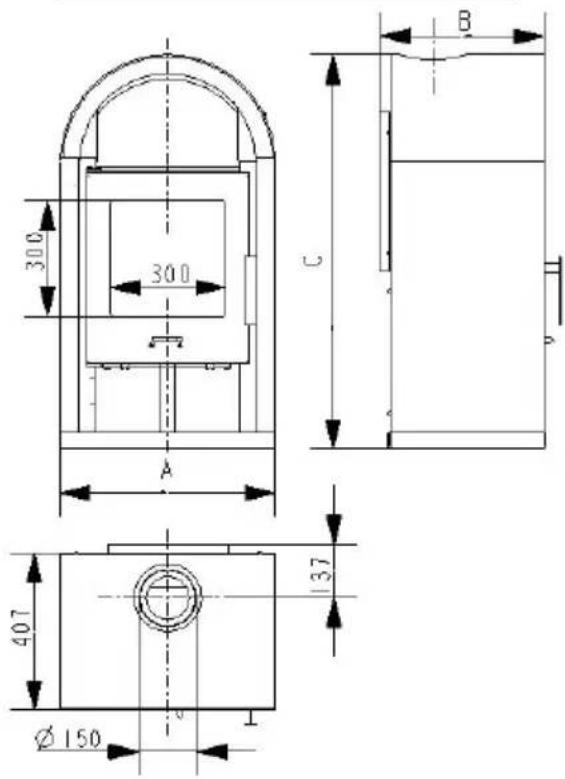

TYP 108 62 Saturn / Stella Kosmos

8.67 300 800 A B C 407 Ø150 131 Ø000000000 Ø000000000 Ø000000000 Ø000000000 Ø000000000 Ø000000000 Ø000000000 Ø000000000 Ø000000000 Ø000000000

TYP 108 61 Mars

300 300 A C B 407 Ø150 137

TYP 108 60 Radiant

300 867 A B C 507 Ø150 14.8

TYP 108 60 Zürich

337 300 867 C A Ø 150 137 B 497

TYP 108 60 Country

C 300 300 756 A 448 409 Ø150 137 B

TYP 108 66 Eos

300 867 A B C 467 Ø150 137

TYP 108 67 Calypso

300 867 A C B 491 Ø150 137 Ø

TYP 108 40 Yuna / Eres

1007 300 300 595 1104 557 337 485 Ø140

TYP 108 40 Salzburg

1907 300 233 595 1163 557 405 518 2140

TYP 108 40 Lilith

1025 300 340 568 995 1102 526 140 520 Ø150

TYP 108 43 Nino / Jupiter Grande / Taurus Grande

1006 300 300 557 556 1124 489 129 Ø190 Ø0000000000000 Ø0000000000000

TYP 108 47 Zinith

300 1007 340 995 1135 567 516 4.180 130 813

3.2 Dimension

Art.No.			width(mm)A			draugh(mm)B	height(mm)C	weightnetto:(kg)	weightbrutto:(kg)
W20001086012	588	5	31	904	84	97
W20001086032	557	5	16	919	110	122
W20001086037	557	5	16	904	81,5	93,5
W20001086045	557	4	68	904	130	140
W20001086075	557	4	27	904	104	114
W20001086076	557	4	27	1022	117	127
W20001086101	557	4	27	1022	85	100
W20001086103*	610	4	52	1050	103	118
W20001086140	557	4	27	1022	118	133
W20001086175	557	4	27	1022	103	118
W20001086200	557	4	27	980	86	88
W20001086201	557	4	27	980	86	88
W20001086241	557	4	27	980	124	126
W20001086245	557	4	27	980	124	126
W20001086271	557	4	27	940	112	127
W20001086300	557	4	27	904	83	85
W20001086301	557	4	27	904	83	85
W20001086305	557	4	27	904	88	90
W20001086308	557	4	27	904	83	92
W20001086340	557	4	27	929	152	162
W20001086344	557	4	27	904	131	133
W20001086348	557	4	68	904	118	120
W20001086500	557	4	27	904	83	85
W20001086615	557	4	92	930	113	126
W20001086715	557	5	16	929	147	160
W20001086721	557	5	16	929	112	125
W20001084012	588	5	20	1102
W20001084024	588	5	20	1122
W20001084032	557	5	18	1103
W20001084037	557	5	18	1124
W20001084050	557	4	88	1104
W20001084051	557	4	88	1104
W20001084053	557	4	88	1104
W20001084054	557	4	88	1104
W20001084300	557	4	88	1104
W20001084301	557	4	69	1104
W20001084302	557	4	88	1104
W20001084340	557	4	69	1124
W20001084721	557	5	13	1133

Basic equipment without ceramics

The specified dimensions and weights are approximate values, and thus have only informative purposes. We reserve the right to modify the designs as required in terms of technology or quality!

3.3 Datas

Type	108 60 / 61 / 62 / 63 / 65 / 66 / 67108 40 / 108 43 / 108 47
Nominal performance 6 kW
Heating capacity (m3)
-under favourable	132
-less favourable	78
-not favourable heating circumstances according to 18893/TAB2 DIN standard	52
Flue gas values: fuel:	wood / brown coal
Flue gas stream:	7,4 / 7,6 g/s
Flue gas temperature:	238 / 245 °C
Min. blast pressure at performance:	12 Pa
CO (relating to 13% O2)	≤ 40 mg/m3
dust (relating to 13% O2)	1206 / 761 mg/m30,096 / 0,061%
efficiency	≥ 80 % / 80,5 %

All information provided by the exhaust gas values are based on the EN 13240 under stationary laboratory conditions reserve the right to make changes which relate to technical advances and / or to an improvement in quality. We accept no liability for printing errors and changes which occur after printing

WAMSLER

Simple line drawing of a door with a window and a hanging tool, no text or symbols present

Fig. 2

KH

Fig. 4

H A

Fig. 3

Diagram of a mechanical assembly with two stacked compartments and directional arrows indicating movement (no text or symbols)

Fig. 5

2.3 Distances minimum

Simple line drawing of a door with a window and a lever, showing motion direction (no text or symbols)

Fig. 2

H A

Fig. 3

KH

Fig. 4

Diagram of a storage or rack system with two boxes and directional arrows indicating movement (no text or symbols)

Fig. 5

d ≥ 5m 0,50m d ≤ 5m 0,50m

Simple line drawing of a window with a handle and arrow indicating rotation or movement (no text or symbols)

2.kép

K H

4.kép

H A

3.kép

Diagram of a mechanical assembly with two stacked compartments and directional arrows indicating motion (no text or symbols)

5.kép
