HGM30 - Lawn mower Talen Tools - Free user manual and instructions

Brand	Talen Tools
Model	HGM30
Product type	Manual reel mower
Cutting width	300 mm
Cutting height	12 to 45 mm
Cutting height adjustment	Progressive by notch
Weight	6.7 kg
Power type	Manual (push)
Grass catcher capacity	Grass collection basket included
Maximum grass height to cut	Approximately 10 cm
Recommended use	Private garden around the house
Assembly required	Yes (handlebar and grass catcher)
Maintenance	Clean after use, lubricate screws and wheels, check blade
Storage	Dry place, out of reach of children
Spare parts and repairability	Replaceable cutting blade, standard fasteners
Safety	Keep distance from rotating roller, do not use without supervision, wear shoes and trousers
Warranty	Refer to the enclosed warranty conditions

Frequently Asked Questions - HGM30 Talen Tools

How to adjust the cutting height on the HGM30 mower?

Pull the spring-loaded bolt (A) outward on both sides and let it engage in the desired hole. The cutting height can be adjusted from 12 to 45 mm.

How to adjust the bed knife?

Loosen the adjustment nuts (C) on both sides and set the bed knife (B) to the desired position. Check that a piece of paper is cut cleanly between the mower blades and the bed knife by turning a wheel forward by hand.

How to attach the grass catcher?

Push the bracket into the basket tube, then press the side and bottom fixing clamps over the bracket. Then hang the basket on the roller and fasten the belt to the handlebar.

What are the important safety instructions?

Wear sturdy shoes and trousers, never mow barefoot, keep children and pets away, do not put hands near the rotating roller, and mow only in daylight or with good lighting.

How to maintain the mower after use?

Clean the machine with a brush or cloth, check that all screws and nuts are tight, lubricate threaded parts and wheels, and regularly check the blade condition.

What type of grass can be cut with the HGM30?

This manual mower is designed for private lawn grass up to about 10 cm in height. It is not suitable for sports fields or agricultural use.

How to store the mower in winter?

Store it in a dry place out of reach of children. Clean it thoroughly and lubricate all moving parts before storing.

What to do if the cut is uneven?

Check the bed knife adjustment, cutting height, and blade condition. Replace worn blades and ensure the mower is clean.

Is the HGM30 mower suitable for slopes?

Yes, but always mow across the slope, never up or down. Maintain a balanced stance and be careful when turning.

Where can I find spare parts for the HGM30?

Spare parts are available from the manufacturer or authorized dealers. The cutting blade and fasteners are replaceable.

USER MANUAL HGM30 Talen Tools

Black manual lawn mower with visible tire, blade, and handle (no text or symbols)

Technical diagram of a lawn mower with numbered parts and exploded view annotations

FR

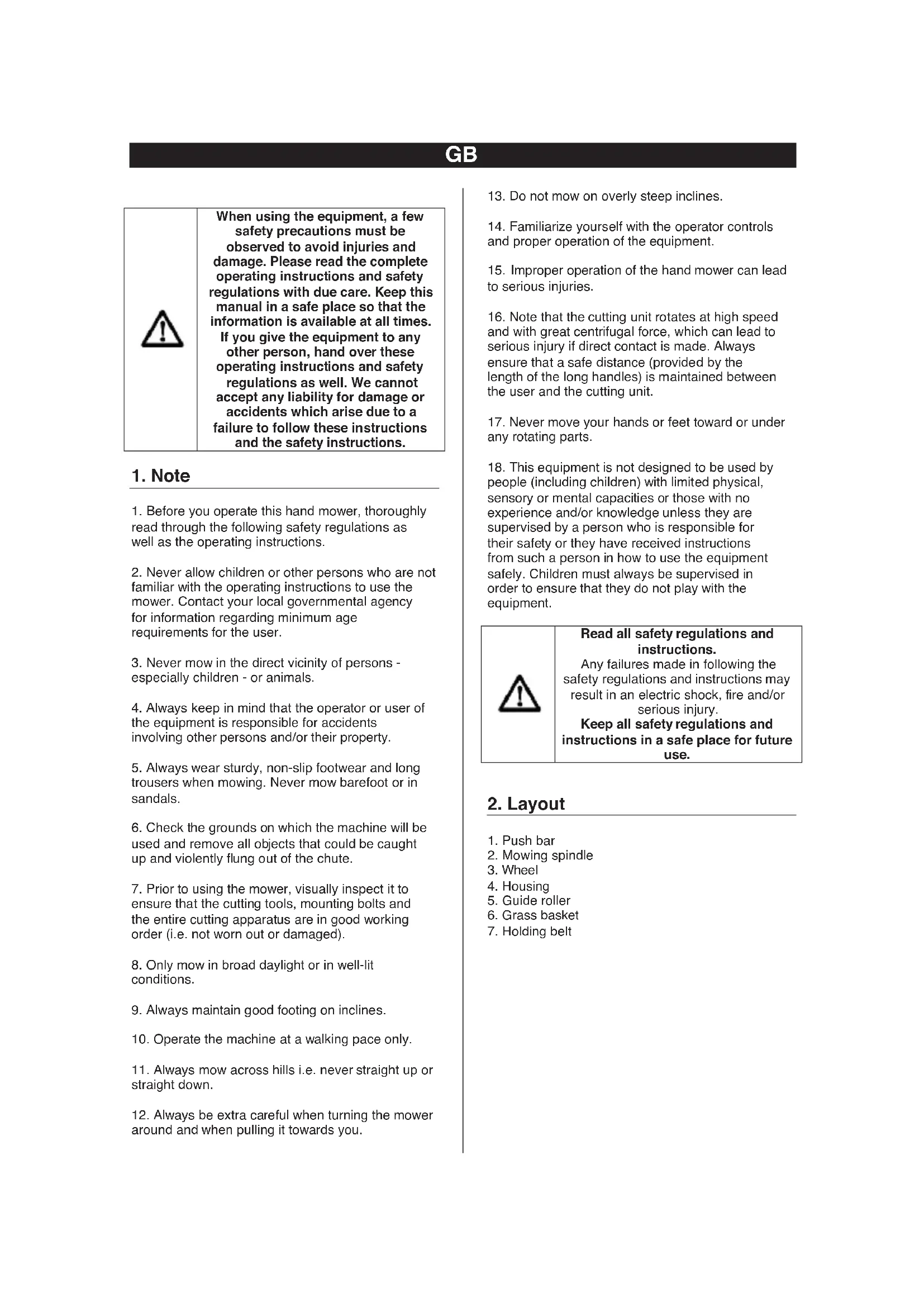

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Note

1. Before you operate this hand mower, thoroughly read through the following safety regulations as well as the operating instructions.

2. Never allow children or other persons who are not familiar with the operating instructions to use the mower. Contact your local governmental agency for information regarding minimum age requirements for the user.

3. Never mow in the direct vicinity of persons - especially children - or animals.

4. Always keep in mind that the operator or user of the equipment is responsible for accidents involving other persons and/or their property.

5. Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.

6. Check the grounds on which the machine will be used and remove all objects that could be caught up and violently flung out of the chute.

7. Prior to using the mower, visually inspect it to ensure that the cutting tools, mounting bolts and the entire cutting apparatus are in good working order (i.e. not worn out or damaged).

8. Only mow in broad daylight or in well-lit conditions.

9. Always maintain good footing on inclines.

10. Operate the machine at a walking pace only.

11. Always mow across hills i.e. never straight up or straight down.

12. Always be extra careful when turning the mower around and when pulling it towards you.

13. Do not mow on overly steep inclines.

14. Familiarize yourself with the operator controls and proper operation of the equipment.

15. Improper operation of the hand mower can lead to serious injuries.

16. Note that the cutting unit rotates at high speed and with great centrifugal force, which can lead to serious injury if direct contact is made. Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the cutting unit.

17. Never move your hands or feet toward or under any rotating parts.

18. This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

Read all safety regulations and instructions.

Any failures made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout

1. Push bar
2. Mowing spindle
3. Wheel
4. Housing
5. Guide roller
6. Grass basket
7. Holding belt

3. Intended use

The hand mower is designed for cutting grass. It is intended for private use, i.e. for use in home and gardening environments. Private use here refers to the maintenance of small-scale, residential areas and does not include public facilities, sporting halls, or agricultural/forestry applications.

Important. Due to the high risk of bodily injury to the user, the hand mower may not be used to cut scaling vegetation, planted roofs, or balconygrown grass.

The equipment may only be used for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Assembly

4.1 Mower assembly

Screw the push bar top section to the two push bar extensions. Use the two screws and two hexagonal nuts for this purpose.

Screw push bar bottom section A, push bar bottom section B and the two push bar extensions together.

First attach one push bar bottom section to the mower, then press the push bar together slightly and attach the other side.

4.2 Grass box assembly

A. Push the bar frame into the grass box tube.

B. Snap the side fastening lugs on the grass box over the bar frame.

C. Snap the bottom fastening lug on the grass box over the bar frame.

5. Adjusting the cutting height

cutting heights can be set between a range of 12 – 45 mm. To do so, pull the spring-loaded bolts (A) on both sides of out and then engage them in the required holes.

6. Adjusting the counter blade

Mechanical assembly diagram showing a lever and pivot point labeled B and C (no text or symbols beyond labels)

Note: The counter blade (B) is only be adjusted before using the machine for the first time or if the blades on the mower spindle are worn.

Undo the adjusting nuts (C) (10 mm) on both sides and adjust the counter blade to the required position.

The counter blade (B) is correctly adjusted if a piece of paper placed between the blades on the mowing spindle and the counter blade is cut if you turn one of the wheels forwards by hand.

7. Attaching the grass box

Attach the assembled grass box to the roller.

The grass box must also be secured to the push bar using the belt supplied.

8. Operation

The hand mower can cut grass up to approx. 10 cm in length. If you want your lawn to have a neat, trimmed look to it, however, you must consistently keep it cut down to a more manageable height.

When starting the mowing session (and when mowing over freshly laid sod), it is advisable to set the cutting height relatively high, then gradually work your way down.

For a well-groomed look, the cutting height should be set to approx. 2.5 cm.

For optimum results, mow your lawn on a weekly basis. Grass blades grow thicker, faster, and are more resilient when their stems are consistently kept short (unless you live in very dry conditions and do not frequently water). Always mow the lawn when it is reasonable dry. In order to ensure that your lawn has a clean, even look to it when you're finished, mow in fairly straight paths at walking pace. The cutting swaths should always overlap each other by a few centimeters in order to avoid unsightly strips of grass.

9. Maintenance and storage

_ Clean the machine with a brush or rag after each use.

_ Store the machine in a location that is dry and not accessible by children.

_ Ensure that all mounting components (i.e. screws, bolts, nuts etc.) are always tightened so that the machine can be safely operated at all times.

_ Replace excessively worn or damaged parts immediately.

_ In order to ensure that you enjoy your scarifier for many years to come, all screwed parts, as well as the wheels and axles, should be cleaned and lubricated.

_ Keeping your hand mower in good condition not only ensures a long lifespan and high performance, but also enables the machine to thoroughly cut your grass with minimal effort.

_ The blade on the mower spindle is subject to more wear and tear than any other component of the unit. Check the condition of the blade on the mowing spindle at regular

10. Guarantee

Width of cut : 300 mm

Height of cut : 12-45 mm

Adjusting the cutting height : progressive

Net Weight : 6.7kg
