USER MANUAL Ninebot KickScooter C2 Pro SEGWAY


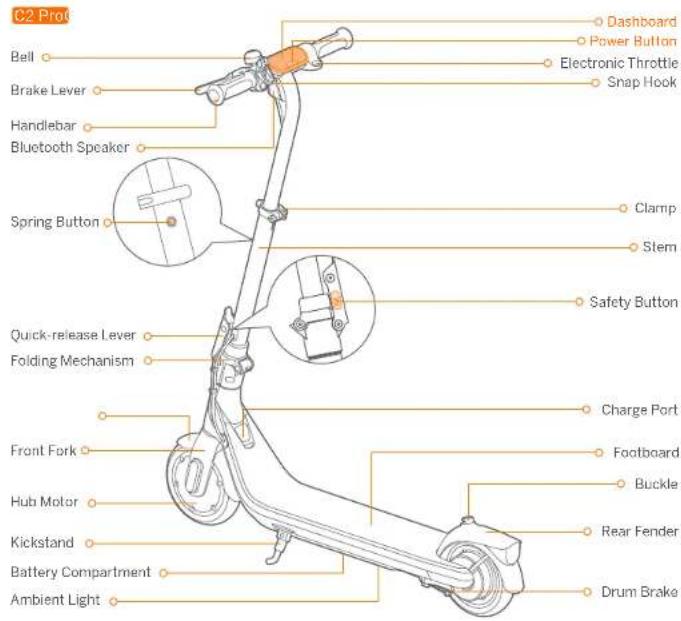

C2 Pro Bell Brake Lever Handlebar Bluetooth Speaker Spring Button Quick-release Lever Folding Mechanism Front Fork Hub Motor Kickstand Battery Compartment Ambient Light Dashboard Power Button Electronic Throttle Snap Hook Clamp Slem Safety Button Charge Port Footboard Buckle Rear Fender Drum BrakeEN EN
C2 Pro

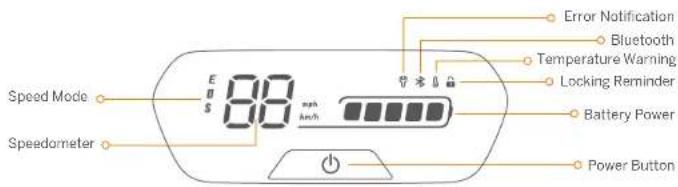

Dashboard & Power Button
Speedometer: I displays the current speed of the sample, as well as error ranges.
Speed Mode: There are three modes available. The top speed size follows:
| Mode | C2 / C2 Pro (Speed limit) | Indicator (For C2 only) |
| D (Standard mode) | 12 km/h (7.5 mph) | Fasts slowly |
| S (Sport mode) | 16 km/h (9.9 mph) | Fasts last |
| E (Power ass sting mode) | 16 km/h (9.8 mph) | always on |
Error Notification: It indicates that the error has delivered an error
Bluetooth: It indicates that the solarer has been successfully connected to the mobile device.
Temperature Warning: It includes that the battery temperature has reached 55°C (131°F) or is below 0°C (37°F).
* At this point, the vehicle cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range.
Locking Reminder: When the lean lights up, it means the scooter is looked. If abnormal movements are detected, the scooter will start being left and the tail light will fall.
Battery power: The low battery power equals 5 bps.
* The battery power is very low when the first battery bar is red. Please charge your scooter immediately.
② Specifications
| Item Parameter | |||
| Product | Name | Ninebot eK ckScooter C2 Ninebot eK ckScooter C2 Pro. | |
| Model | 051403L | 051404L | |
| Length × Width × Height | Approx. 910 × 400 × 960 mm(35.8 × 15.7 × 37.8 m) | Approx. 910 × 400× (985/260/1015)mm(35.8 × 15.7 × 34.5/37.8/40.7 m) | |
| Holed, Length × Width × Height | Approx. 910 × 400 × 600 mm (35.8 × 15.7 × 19.1 m) | ||
| Net Weight | Approx. 10.7 kg (22.9 lbs) | Approx. 10.7 kg (23.6 lbs) | |
| Rider | Max. Payload | 50 kg (110 lbs) | |
| Recommended Age | 8+ | ||
| Required Height | 120-165 cm (39" 51") | ||
| Machine | Max. Speed | Approx. 16 km/h (9.9 mp-1) | |
| Theoretical RangeIII | Approx. 11 km (6.8 miles) | Approx. 17 km (10.6 miles) | |
| Riding 1 moII | Approx. 56 mins | Approx. 1.5 m | |
| Max. Slope | Approx. 5% | ||
| Transverse Terrain | Mostly smooth roads or normal asphalt, cariac roads | ||
| Overaline Temperature | -10~40°C (14~104°) | ||
| Storage Temperature | -10~50°C (14~122°F) | ||
| P Rating | IPX4 | ||
| Duration of Charging | Approx. 3.5 h | Approx. 4 h | |
| Battery | Nominal Voltage | 21.6 V = | |
| Max. Charging Voltage | 25.2 V = | ||
| Charging Temperature | 3°C, 45°C (32 1.3°F) | ||
| Nominal Capacity | 54 Wh | 108 Wh | |
| Nominal Energy | 2500 mAh | 5000 mAh | |
| Battery Managers, System | Protection against overvoltage/undervoltage/short circuit/overcurrent/overheat | ||
| Motor | Nominal Power 130W | 150 W | |
| Max. power 160 W | 260 W | ||
| Charger | Model | NRW250201000 | NRW25020105N, FU |
| Output Power | 21.2 W | 36.3 W | |
| Input Voltage | 100-240V - 50-60 Hz | ||
| Max. Output Voltage | 25.2 V = | ||
| Rated Output | 24.2 V = 1A | 24.2 V = 1.5A | |
| Tire | Tires | 7-inch inner hollow shock-coating tires | |
[1]. Theoretical range: tested while riding with a full battery. 10 lbs (50 kg) less: 77°F (25°C); 70% of max. speed on average on pavement.
Some of the batteries that allow range to be used, less, member's share are shown, ambient refrigeration etc.
(2): Riding time under the testing conditions of theoretical range.
EN EN
③ Certifications
This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.
The battery complies with UN/DOT 38.3.
The battery complies with ANSI/CAN/UL 2271.
European Union Compliance Statement
Information on Disposal for Users of Waste Electrical & Electronic Equipment
This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.
Please contact your local authority for further details of your nearest designated collection point.
Battery recycling information for Users
This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.
there are separate collection systems for used batteries and accumulators.
Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.
Electromagnetic Compatibility Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU.
Restriction of the use of certain hazardous substances (RoHS) Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").
The Safety of Toy Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Toy Directive 2009/48/EC.
Radio Equipment Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.
EU Authorised Representative:
Segway-Ninebot Europe
Dynamostraat 7, 1014 BN Amsterdam, The Netherlands.
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E, 051404E comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility 2014/30/EU. The Radio Equipment Directive 2014/53/EU, The Safety of Toy Directive 2009/48/EC and the RohS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E Comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility 2014/30/EU, The Safety of Toy
EN EN
Directive 2009/48/EC and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.
The declaration of conformity can be viewed at the following address: https://eu-en.segway.com/instruction-manuals
UK Compliance Statement
Electromagnetic Compatibility Regulations 2016
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Electromagnetic Compatibility Regulations 2016.
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
Toys (Safety) Regulations 2011
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Toys (Safety) Regulations 2011.
Radio Equipment Regulations 2017
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.
UK Authorised Representative :
UKCA Experts Ltd.
Dept 302, 43 Owston Road Carcroft, Doncaster, DN6 8DA, United Kingdom
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E, 051404E comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016, Radio Equipment Regulations 2017, Toys (Safety) Regulations 2011 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051403E comply with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016, Toys (Safety) Regulations 2011 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations 2012.
The declaration of conformity can be viewed at the following address: https://eu-en.segway.com/instruction-manuals
FR FR

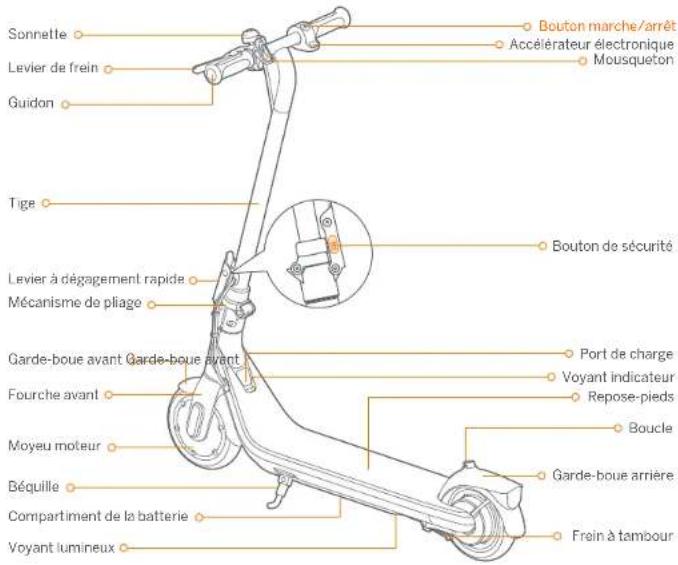

1 Diagramme
