| Product type | Grill plate (grill/griddle) |
| Brand | CHAR BROIL |
| Model | 463259023 |
| Power source | Propane gas (LPG) only |
| Usage | Outdoor, domestic use only |
| Number of burners | 3 main burners + 1 ignition burner |
| Ignition | Electronic via AAA battery (1.5V) or match |
| Main materials | Stainless steel, porcelain, plastic |
| Cooking surface | Treated steel plate (seasoning recommended) |
| Grease cup capacity | Approximately 47 cl (16 oz) |
| Side shelves | 2 removable shelves (max load 10 lb each) |
| Casters | 4 casters, 2 with brakes |
| Safety | Gas leak detection, emergency shutoff, overfill prevention device |
| Burner warranty | 2 years against perforation and manufacturing defects |
| Other parts warranty | 1 year against manufacturing defects |
| Recommended maintenance | Cleaning after each use, initial seasoning, gasket inspection |
| Cooking temperature | Adjustable from low to high via knobs |
Frequently Asked Questions - 463259023 CHAR BROIL
How to light the grill?
Open the lid, turn all knobs to OFF, open the gas tank valve. Push and turn the ignition burner knob to HIGH, then press the electronic ignition button until the burner lights. If no ignition in 5 seconds, turn off gas, wait 5 minutes, and try again.

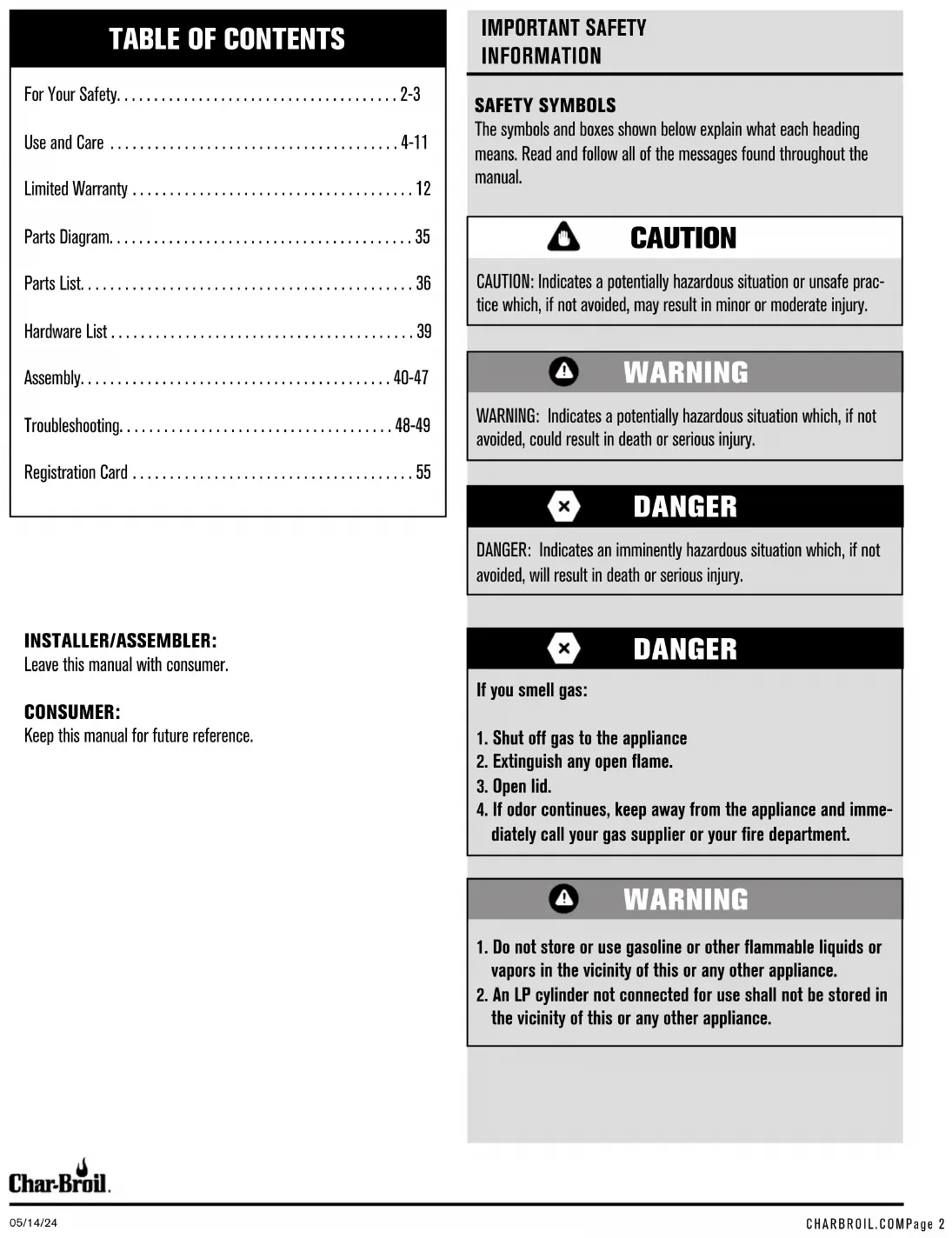

What to do if you smell gas?
Shut off gas supply, extinguish any open flame, open lid. If smell persists, move away and call gas supplier or fire department. Do not use electrical appliances nearby.
How to clean the cooking plate?
After use, scrape off residue with a spatula and wipe with a cloth. Do not use soap after initial seasoning. For stubborn stains, pour a little water on the hot plate and let it evaporate. Use a bristle brush with caution.
What is seasoning and how to do it?
Seasoning is the process of polymerizing oil on the plate to create a non-stick surface. Apply 2-3 tablespoons of oil (canola, flax, etc.) to the surface, heat burners to medium-high until oil smokes and stops smoking (25-30 min). Repeat several times. Afterwards, wipe with oil before storage.
How to detect a gas leak?
Mix water and mild soap. Apply the solution to connections (valve, hose, regulator). Open tank valve. If bubbles appear, turn off gas immediately and tighten connections. Never use an open flame to detect a leak.
How to store the grill?
Clean the plate, store the grill in a dry place. If the tank is connected, store outdoors, well-ventilated, out of reach of children. For indoor storage, tank must be closed, disconnected, and stored outside. Cover the grill if stored outdoors.
What to do if the flame is low or gas does not flow?
Check that the tank is not empty. If tank is full, the overfill valve may have engaged: turn knobs off, wait 30 seconds, then relight. If problem persists, turn everything off, disconnect and reconnect the regulator, then perform a leak test again.
How to clean the burners?
Turn off gas and disconnect tank. Remove shelves and plate. Lift burners. Clean tubes with a wire hook, pipe cleaner brush, or air jet. Use a metal brush for the exterior. Unclog orifices with a paperclip. Reassemble, checking valve alignment.
What batteries are needed for electronic ignition?
One AAA 1.5V battery. Insert it respecting polarity (positive side towards spring). If ignition doesn't work, replace with a new alkaline battery.
Can I use charcoal or briquettes in this grill?
No, this grill is designed only for propane gas. Never use charcoal, briquettes, or wood. This may damage the appliance and create fire hazards.
