| Product type | Outdoor gas grill |
| Brand | CHAR BROIL |
| Model | Performance 463229521 (also 463229021) |
| Number of main burners | 6 |
| Side burner | Yes (Saisier burner) |
| Fuel | Propane gas (LPG) only |

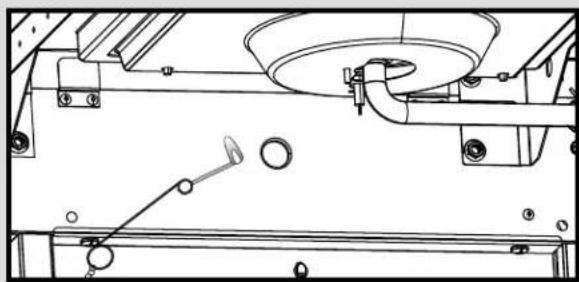

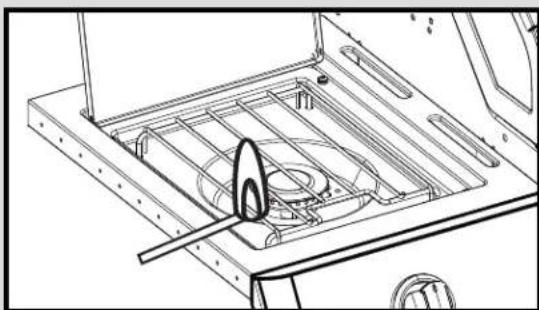

| Ignition type | Electronic and manual (by match) |
| Burner material | Stainless steel |
| Body material | Painted steel and porcelain |
| Gas tank capacity | 20 lb (9.07 kg) |
| Batteries required | 1 AAA battery (1.5 V) for electronic ignition + 4 AA batteries (1.5 V) for the ignition system |
| Dimensions (approx.) | 152 cm x 76 cm x 112 cm |
| Weight (approx.) | 45 kg |
| Burner warranty | 5 years (puncture, manufacturing defects) |
| Body/lid warranty | 2 years |
| Remaining parts warranty | 1 year |
| Use | Outdoor only |
| Safety distance | At least 1 m from walls, 3 m from flammable materials |

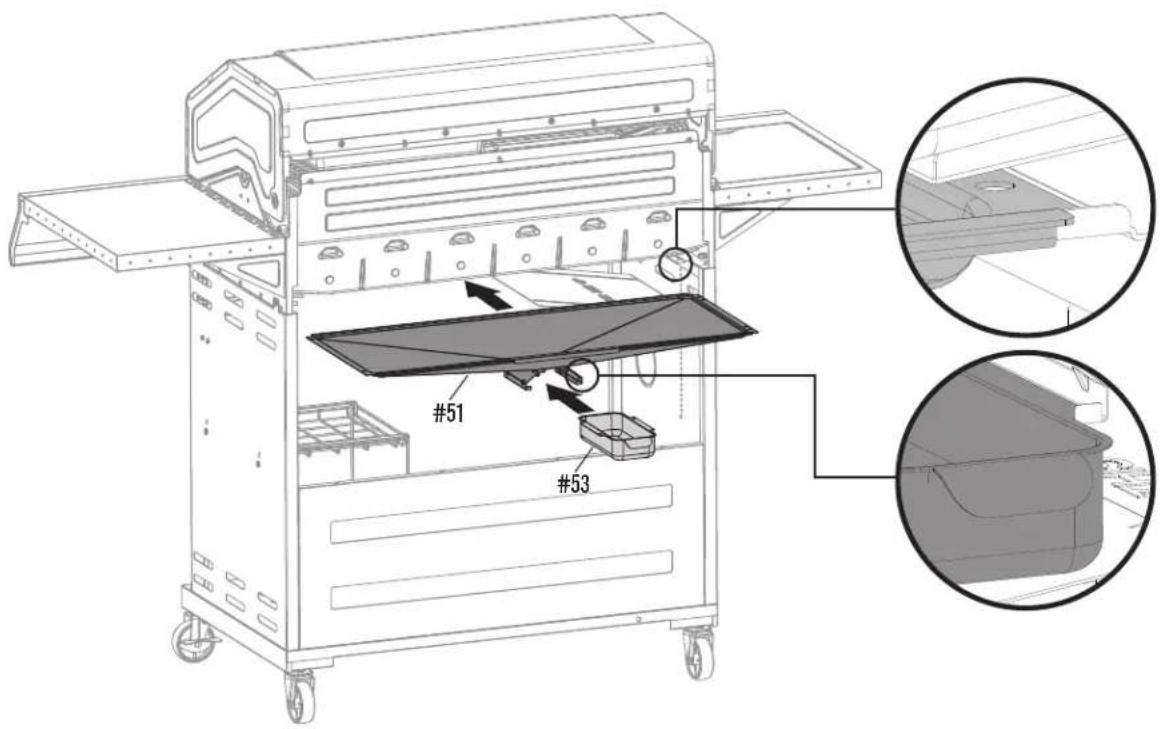

| Grease management system | Removable drip tray |
| Recommended cleaning | After each use, brush the grates; clean burners periodically |
| Compatible accessories | Gear Trax™ line |
| Country of manufacture | China |
| Certification | United States and Canada only |
Frequently Asked Questions - Performance 463229521 CHAR BROIL
How to light the grill?
Open the lid. Open the gas bottle valve. Push and turn the ignition burner knob to HIGH. Press the electronic ignition button until ignition. If no ignition in 5 seconds, turn off the knob, wait 5 minutes then try again.
What to do if you smell gas?
Immediately shut off gas supply to the appliance. Extinguish any open flame. Open the lid. If odor persists, move away and call your gas supplier or fire department.
How to clean the burners?

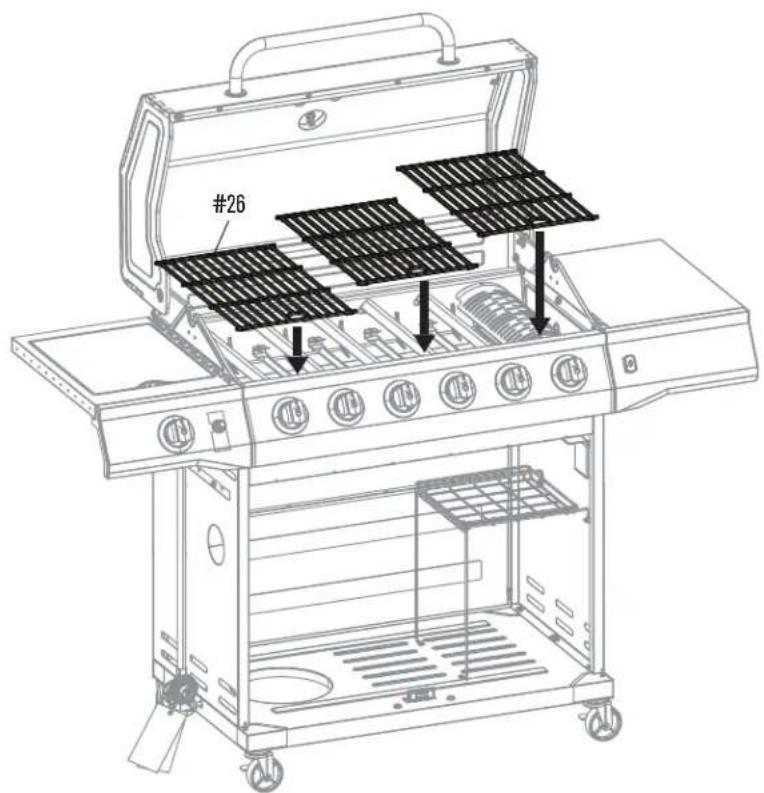

Turn off gas and disconnect tank. Remove grates and burner covers. Disconnect electrode and lift burner. Clean tubes with a wire hanger, pipe cleaner brush, or compressed air. Brush exterior. Reassemble and check for leaks.
Why is the flame low and how to reset the regulator?

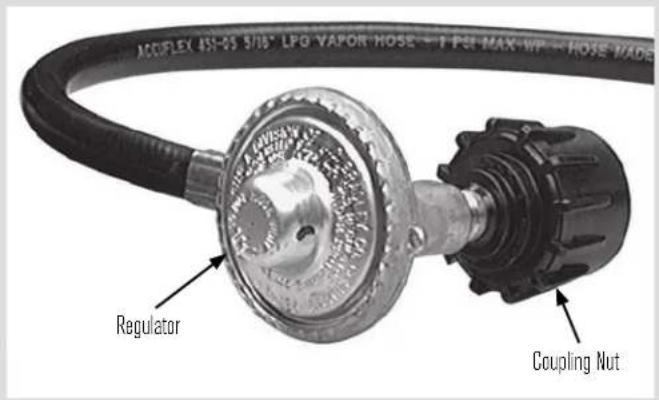

If temperature does not exceed 250-300°F, the regulator flow limiter may have activated. Close all knobs and tank valve. Disconnect regulator, wait 30 seconds, reconnect, slowly open tank valve, then relight.
What is the warranty on this grill?
The stainless steel burner is warranted 5 years against puncture and defects. The body and lid are warranted 2 years. Other parts are warranted 1 year. Warranty begins on purchase date with proof.
Can I use charcoal or briquettes in this gas grill?
No. This grill is designed only for gas. Adding lava rocks, charcoal, or briquettes will void the warranty and increase fire risk.
How to store the grill?
Clean the grates. If gas tank is attached, store the unit outdoors in a well-ventilated area. If storing grill indoors, tank must be closed, disconnected and stored outdoors. Use a protective cover.

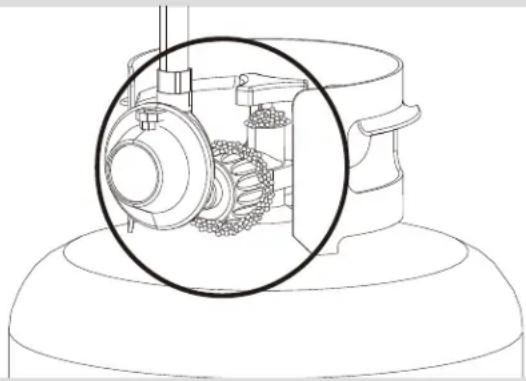

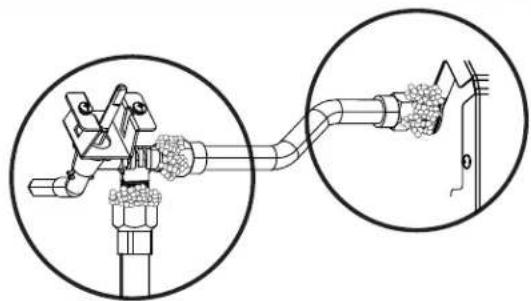

How to check for gas leaks?
Apply a solution of water and mild soap to connections (tank valve, regulator, hose). Open tank valve. If bubbles form, there is a leak. Do not use open flame. If a leak is detected, turn off gas and tighten connections or replace parts.
What batteries are needed for ignition?
The grill requires 1 AAA battery (1.5 V) for electronic ignition and 4 AA batteries (1.5 V) for the ignition system. Batteries are included with the unit.
Can I use this grill indoors or in a garage?
No. This grill is designed for outdoor use only. Never use it in an enclosed space like a garage, porch, or under an awning. Maintain a distance of at least 1 m from walls.
