USER MANUAL PLC163WH PROLINE

"HFODFNFOUSFPNNBOEÏEFTBMJNFOUT

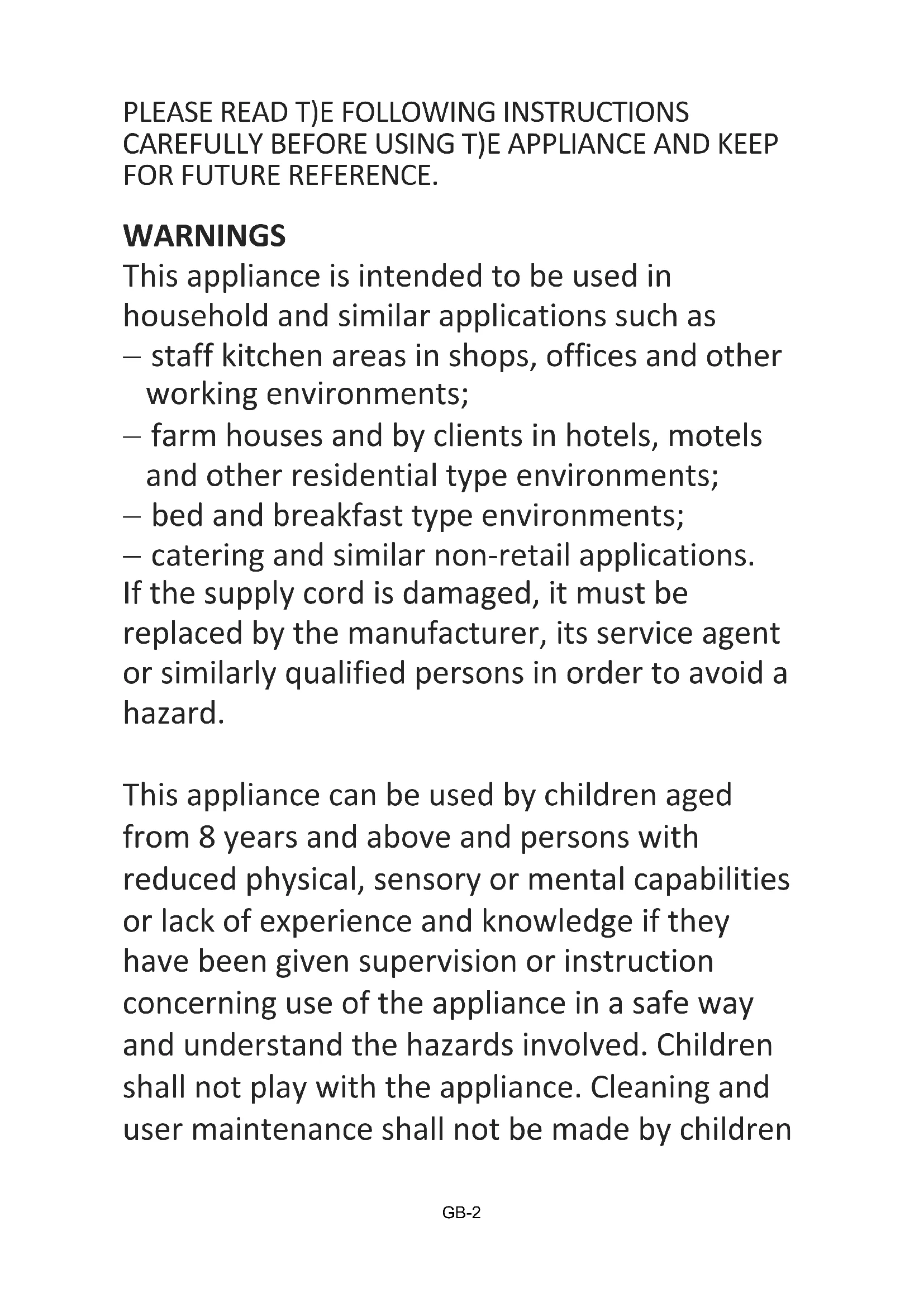

%WARNINGS This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children

GB-2without supervision.

The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant

WARNING: Do not use electrical appliances

GB-3inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

WARNING: For making ice (ice cubes), use

potable water only. CAUTION: The cooling system is under high pressure. Do not touch it. Conted maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS

APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. For disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the

gases. The disposal should only be done through GB-4

For installa on, servicing: Appliance should be placed on a horizontal floor and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage. Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

GB-5IMPORTANT SAFETY INSTRUCTIONS

x If you are discarding an old fridge freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing. x Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance. x Do not insert oversized food as this could cause incorrect operation. x Extreme caution must be used when moving the appliance. x Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper (not supplied). x Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause ‘freezer burns’ on the lips. x Do not stand or support yourself on the base or door, etc.

GB-6Dispose of your old appliance Fridge freezers contain refrigerant and gases in the insulation. Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

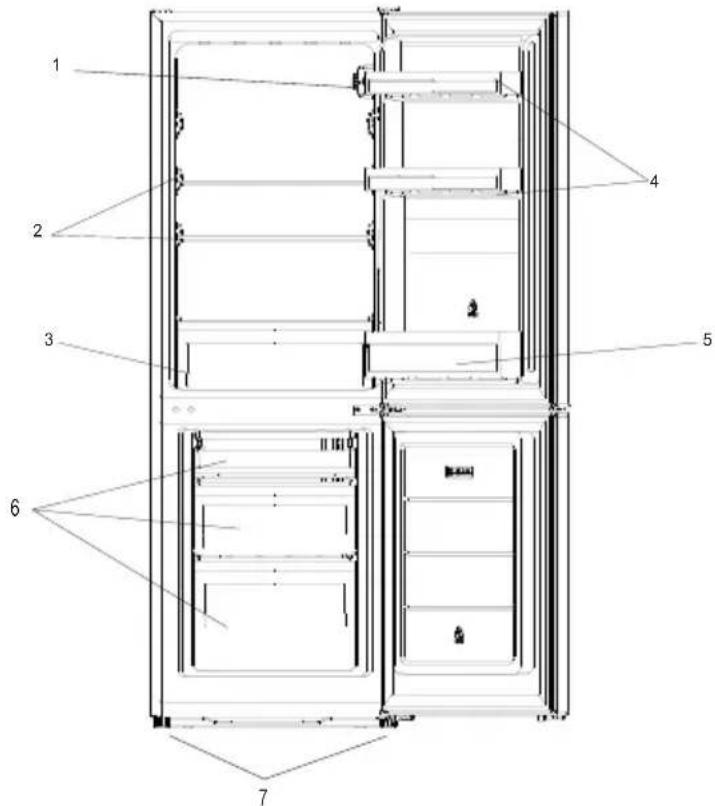

# Temperature control knob Fridge shelves ( Vegetable container % Fridge door shelves Fridge door bottle shelf + Freezer drawers Levelling feet

3FDPNNFOEFEGPPEBSSBOHFNFOU 3FGSJHFSBUPSDPNQBSUNFOU¡$_¡$$PMEBJSTJOLTTPUIFCPUUPNQBSUJTUIFDPMEFTU4UPSFZPVSGPPEJOUIFPQUJNBMTQBDFUPFOKPZUIFGSFTIUBTUF 5PQTFD UJPO.JEEMFTFDUJPO#PUUPNTFDUJPO$POUBJOFSDBOOFEGPPECSFBEDBLFyEBJSZQSPEVDUTSFBEZNBEFGPPEEFTTFSUTyNFBUNFBUQSPEVDUTEFMJDBUFTTFOyGSFTIGSVJUWFHFUBCMFTTBMBETy3FGSJHFSBUPSEPPSTIFMWFT¡$_¡$5PQTFD UJPO FHHTCVUUFSDIFFTFy.JEEMFTFDUJPO CFWFSBHFTDBOTCPUUMFTy#PUUPNTFDUJPO CFWFSBHFTDBOTCPUUMFTy'SFF[FSDPNQBSUNFOU¡$_¡$'SFF[FSESBXFST'SFF[JOHTUPSBHFPGGSP[FOGPPE GB-7manufacturing and transportation dust. POWER FAILURE If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. TEMPERATURE CONTROL The fridge freezer is controlled with a temperature control knob located inside the appliance. Adjust the control knob as desired to suit your individual preference. 0 is off setting 1 is warmest setting 7 is coldest setting

BEFORE INSTALLING THE FRIDGE

Before connecting your fridge freezer to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. INSTALLATION Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet. For uneven surfaces, front feet can be aligned. AMBIENT TEMPERATURE This appliance is designed to operate in ambient temperature between 16°C and (°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18°C and food spoilage may occur.

xRemove all packaging. xAllow the appliance to run empty for 2 – 3 hours so the compartments can cool to the appropriate temperature. xClean the inside of the appliance with warm water and a little liquid detergent to remove

GB-8MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. x Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock. x Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes. In the 0 position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted. The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in. When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

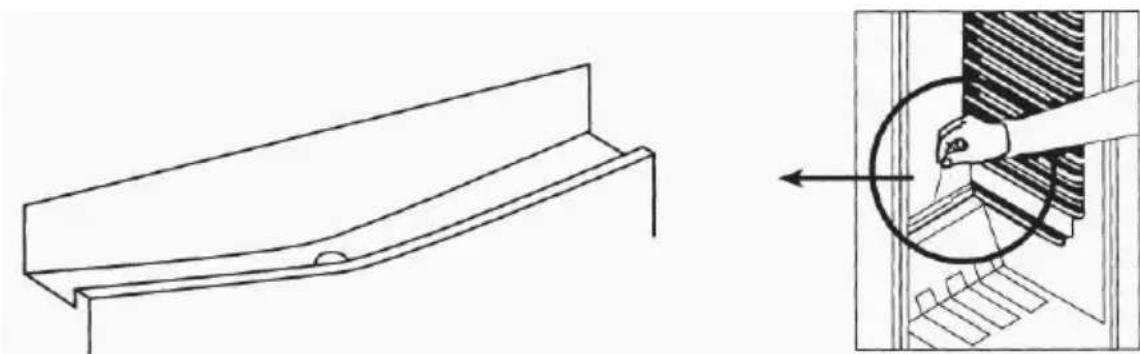

DEFROSTING Fridge compartment defrosting The fridge compartment defrosting process is carried out automatically every time the compressor stops. The defrost water is automatically routed to the drain port and into a tray placed on the top of the compressor to the rear of the appliance from which it evaporates. Make sure the drain port on the fridge compartment at the rear of the appliance is kept clear. GB-15Freezer compartment defrosting Frost will accumulate inside the freezer compartment depending upon the length of time during which the door is left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close fitting of the door seal. This might allow air to penetrate the cabinet, thus encouraging continuous running of the compressor. Thin frost formation is quite soft and can be removed with a brush or plastic scraper. Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. Remove all dislodged frost from the cabinet floor. For the removal of thin frost it is not necessary to switch off the appliance. For the removal of heavy ice deposits, disconnect the appliance from the mains supply and empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to keep them cold. Defrosting will be most effective if carried out when the freezer compartment is empty, and it should be carried out as quickly as possible. Any increase in temperature of frozen food packages during defrosting will shorten the storage life. Provided that the contents are well wrapped and placed in a cool area, they can be kept outside the appliance for several hours. Before replacing the food in the freezer compartment, check that it has not thawed out. After defrosting is finished clean the inside with a solution of warm water with a little bicarbonate of soda and then dry thoroughly. Wash all removable parts in the same way and reassemble. Reconnect the appliance to the mains supply and leave for 2 to 3 hours on the temperature setting 7 before introducing the food back into the freezer compartment and setting the temperature to your normal setting. DOOR CONVERSION If you need to hinge your doors on the opposite sides it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the doors, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

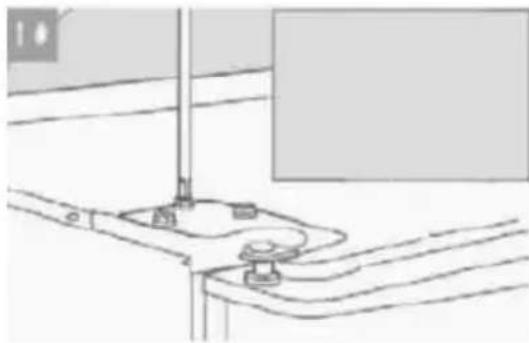

1. Remove the four screws on the top cover and

then remove the top cover.

2. Remove the three screws and then remove

the top hinge that holds the door in place. Lift the door and place it on a padded surface to prevent it from being scratched. GB-163. Support the freezer door and remove the central hinge by removing the two screws.

4. Remove the freezer door from the bottom

hinge. Place the freezer door on a padded surface to prevent it from being scratched.

5. Remove the bottom screws, bottom hinge and

adjustable foot from the bottom o f the appliance. Transfer the foot to the corresponding position on the opposite side of the bottom.

6. Remove the bottom hinge pin using a spanner.

Turn over the hinge and replace it to the corresponding position on the opposite side.

7. Remove and refit the blank plugs on the

corresponding holes in the middle of the appliance.

8. Carefully set the freezer door back into place.

Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the middle hinge. Replace the middle hinge. Do not fully tighten the screws to make the final adjustments. GB-179. Unscrew the hinge pin from the top hinge using a spanner. Turn oven the hinge and replace it to the corresponding position on the opposite side.

10. Refit the top hinge when refitting the fridge

door. Do not fully tighten the screws. Put the top cover back and fix it in place with the screws.

11. With the doors closed, check that the doors

are aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the hinges. Readjust the levelling feet as required.

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance: x Ensure your fridge freezer has adequate ventilation as recommended in the installation instructions. x Allow warm food and drinks to cool down before placing in the appliance. x Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food. x Keep door openings to a minimum. x Open the appliance as briefly as possible. x Ensure that the doors are always closed properly. OPERATING NOISES Normal noises x Motors are running. x Refrigerant is flowing through the tubing.

GB-18CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents. # Set the temperature control knob to the 0 position and disconnect the mains plug from the mains socket. Take out the food and store in a cool location. ( Clean the appliance with a soft cloth, warm water and detergent. % Wipe the door seal with clear water only and then wipe dry thoroughly. After cleaning, reconnect and adjust the temperature control knob as desired. + Put the food back into the appliance. GB-19The LED light in the fridge compartment cannot be replaced by the user. If the LED light stops working, please contact the local authorised service agent. TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting customer service. Problem Possible causes Possible solution Appliance does not operate. No electricity at power outlet. Check that the plug is correctly connected and power switched on. Appliance is noisy. Cabinet not stable or level. See installation section. Appliance not cool Temperature setting not correct. Frequent door openings. Large amount of food recently added. See temperature control section. Minimise door openings to allow temperatures to stabilise. Electric shock protection class I Rated voltage and frequency 220-240V~ 50Hz Rated current

Annual energy consumption (kWh/a) 243 Climate class: temperate/ subtropical Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Winter setting no Compartment Parameters: Compartment type Compartment parameters and values Compartment Volume (dm

Pantry no — — — — Wine storage no — — — — Cellar no — — — — Fresh food yes 121,0 4 — A Chill no — — — — GB-21Climate class: – Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’. – Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’.This refrigerating appliance is not intended to be used as a built-in appliance. 5PGJOEUIFNPEFMJOGPSNBUJPOJOUIFQSPEVDUEBUBCBTF $MJDLUIFMJOL IUUQTFQSFMFDFVSPQBFVTDSFFOQSPEVDUSFGSJHFSBUJOHBQQMJBODFT 0-star or ice-making no — — — — 1-star no — — — — 2-star no — — — — 3-star no — — — — 4-star yes 52,0 -18 2,6 M 2-star section no — — — — Variable temperature compartment no — — — — For 4-star compartments Fast freeze facility no For wine storage appliances Number of standard wine bottles — Light source parameters (

Type of light source LED Energy efficiency class — Minimum duration of the guarantee offered by the manufacturer : 24 months Additional information: Weblink to the supplier’s website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

GB-22REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at : www.darty.com

".o1. .POUP4BU Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium GB-23DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 03/03/2022 GB-24THE COLDEST PART OF THE REFRIGERATOR The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf. In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior. INSTALLING THE TEMPERATURE INDICATOR To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area. WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose. TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance. When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.If the indicator is white it means the temperature is too high, so you should increase the thermostat and wait for 12 hours before checking the indicator again.After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Correct setting Temperature too high – adjust the thermostat GB-25
