LT-24FD110 - Television JVC - Free user manual and instructions

Product type	LED TV
Brand	JVC
Model	LT-24FD110
Screen size	24 inches (60 cm)
Resolution	1366 x 768 pixels (HD)
Display technology	LED LCD
Aspect ratio	16:9
Refresh rate	60 Hz
TV reception	ATV (PAL/SECAM), DVB-T, DVB-C
Audio power	2 x 3 W RMS
Connectivity	HDMI (ARC), VGA, USB, CVBS, Coaxial, Headphone jack, CI+
Main functions	EPG, USB recording, Time Shift, Teletext
Dimensions with stand	553 x 368 x 139 mm
Dimensions without stand	553 x 331 x 66 mm
Weight with stand	2.25 kg
Weight without stand	2.12 kg
Power supply	AC 100-240 V ~ 50/60 Hz
Power consumption (SDR)	20 W
Power consumption standby	0.3 W
Energy class (SDR)	F

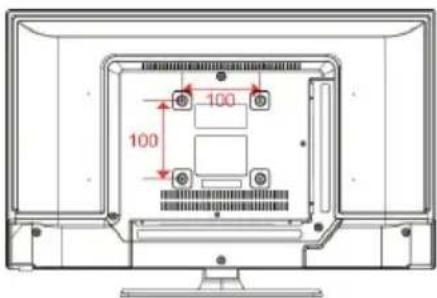

Wall mounting	VESA standard 100 x 100 mm
Operating temperature	0°C to 45°C
Care and cleaning	Unplug before cleaning, use a dry cloth, do not spray liquid
Safety	Do not obstruct ventilation, avoid heat sources, do not expose to water
Warranty	2 years
General information	Manufactured under license from JVCKENWOOD by Etablissements Darty & Fils

Frequently Asked Questions - LT-24FD110 JVC

How to assemble the legs for the JVC LT-24FD110 TV?

Place the TV screen down on a padded surface. Align the neck with the holes on the back and fix it with the two long screws provided. Then snap the neck tabs into the base slots, then fix the base to the TV with the four short screws. Finally, stand the TV upright on a flat surface.

How to connect an external device via HDMI ARC?

Use an ARC-compatible HDMI cable to connect the HDMI (ARC) port of the TV to the ARC-compatible audio device. Ensure HDMI ARC is enabled in the SETUP menu of the TV.

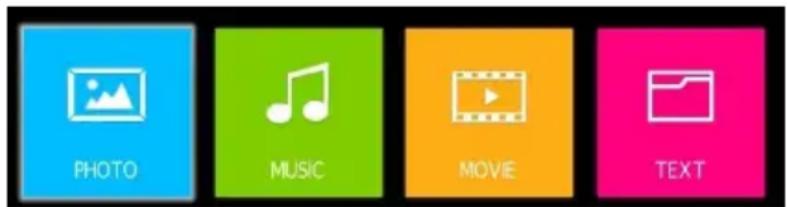

How to watch media files from a USB drive?

Plug the USB drive into the USB port of the TV. Press SOURCE, select USB (or Media). Choose the file type (Photo, Music, Movie or Text) and confirm with OK to start playback.

How to perform a first-time installation?

Turn on the TV. Follow the on-screen instructions to select language, country and usage mode (Home recommended). Then choose the tuning type (DTV+ATV) and start automatic channel search.

How to use the USB recording function?

Insert a formatted USB drive. In DTV mode, press the ● (record) button on the remote. The recording menu appears; set the duration if needed. To watch recordings, press INDEX and select the file.

How to reset the TV to factory settings?

Go to the SETTINGS menu (via the MENU button). Select Reset and confirm. All settings will be cleared.

What to do if the remote control does not work?

Check that the TV is on. Ensure the batteries are correctly installed and not depleted. Remove any obstacles between the remote and the TV sensor. If necessary, replace the batteries with two new identical ones.

How to lock a channel with parental control?

Go to the LOCK menu. Enter the default password 0000 (or 8899 if forgotten). Enable system lock, then select Channel lock and choose the channels to lock.

How to clean the TV screen?

First unplug the TV. Use a soft, dry cloth to gently wipe the screen. Never spray water or chemical directly onto the screen, as this could cause electric shock or damage the screen.

Where to find the after-sales service number?

For France, contact 0 978 970 970 (local call) 7/7 and 24/24. For Belgium, contact Vanden Borre at [phone] Monday to Saturday from 8 am to 6 pm.

USER MANUAL LT-24FD110 JVC

Operating Instructions

Front view of a black JVC computer monitor with no visible text or symbols on the screen or stand.

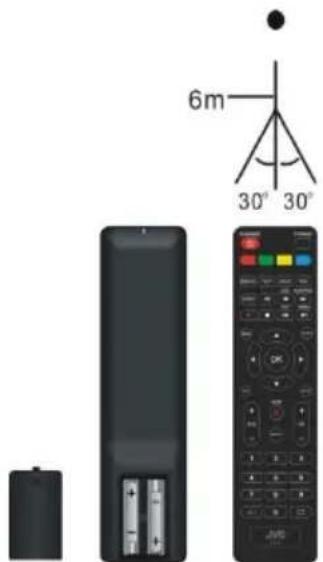

Black remote control device with labeled buttons and status indicators

DV3

Digital Video

Broadcasting

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

Dolby Audio

Abstract pattern of diagonal black and white stripes on white background (no text or symbols)

DESCRIPTION DU PRODUIT....4

ASSEMBLAGE....5

TÉLÉCOMMANDE....7

BRANCHEMENTS....8

FONCTIONS DE BASE....12

UTILISER LES MENUS....13

SPÉCIFICATIONS....18

DÉPANNAGE....21

[Union Européenne]

Cher client,

Close-up of a mechanical component with highlighted section and directional arrow (no readable text or symbols)

2

Exterior view of a server rack unit with connected components and a close-up diagram of a grid-mounted sensor or antenna (no text or symbols visible)

4

Diagram of a cable being inserted into a TV screen, showing wiring and connector (no text or symbols)

6m 30° 30° JMS

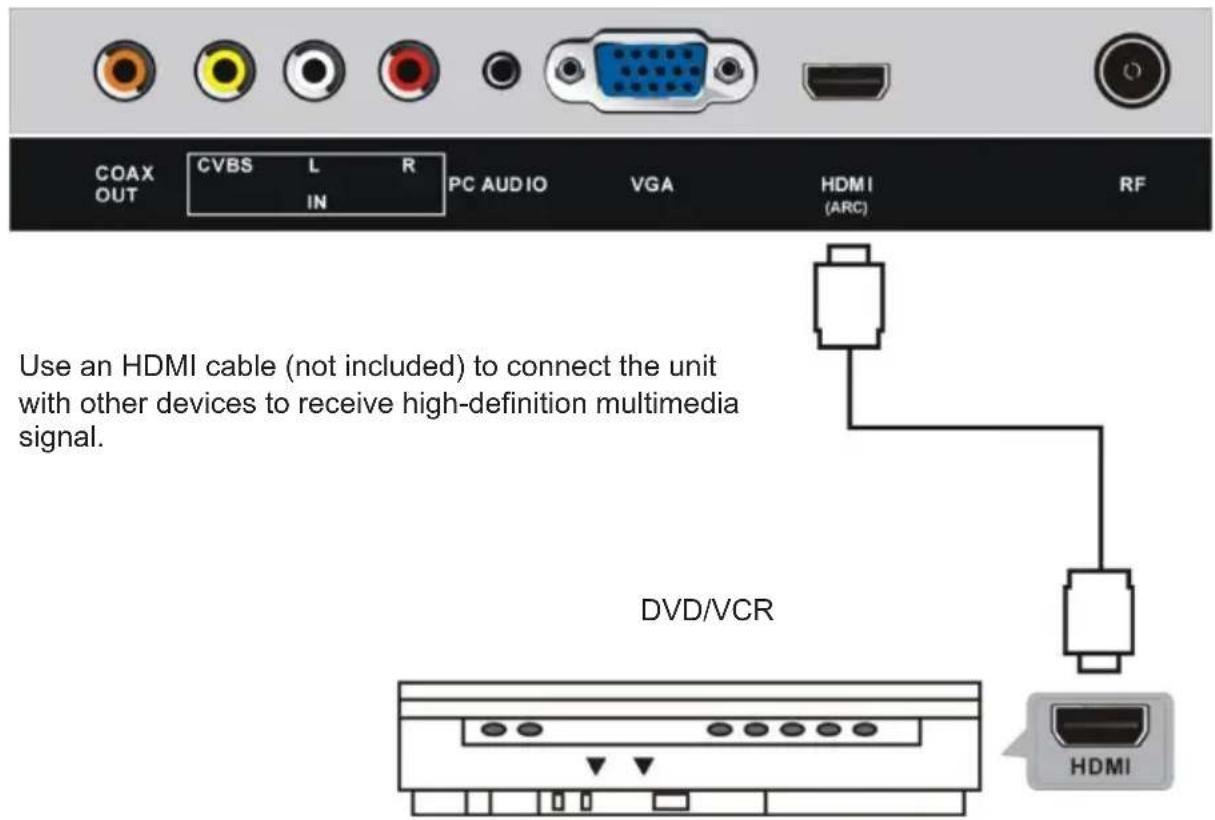

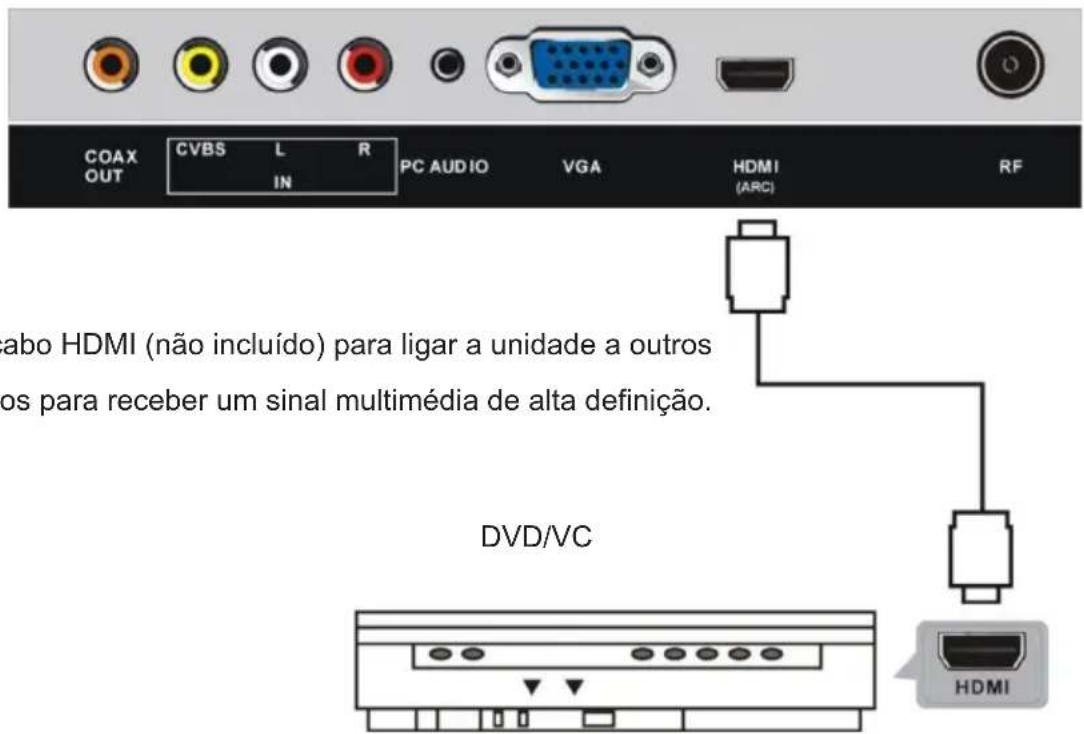

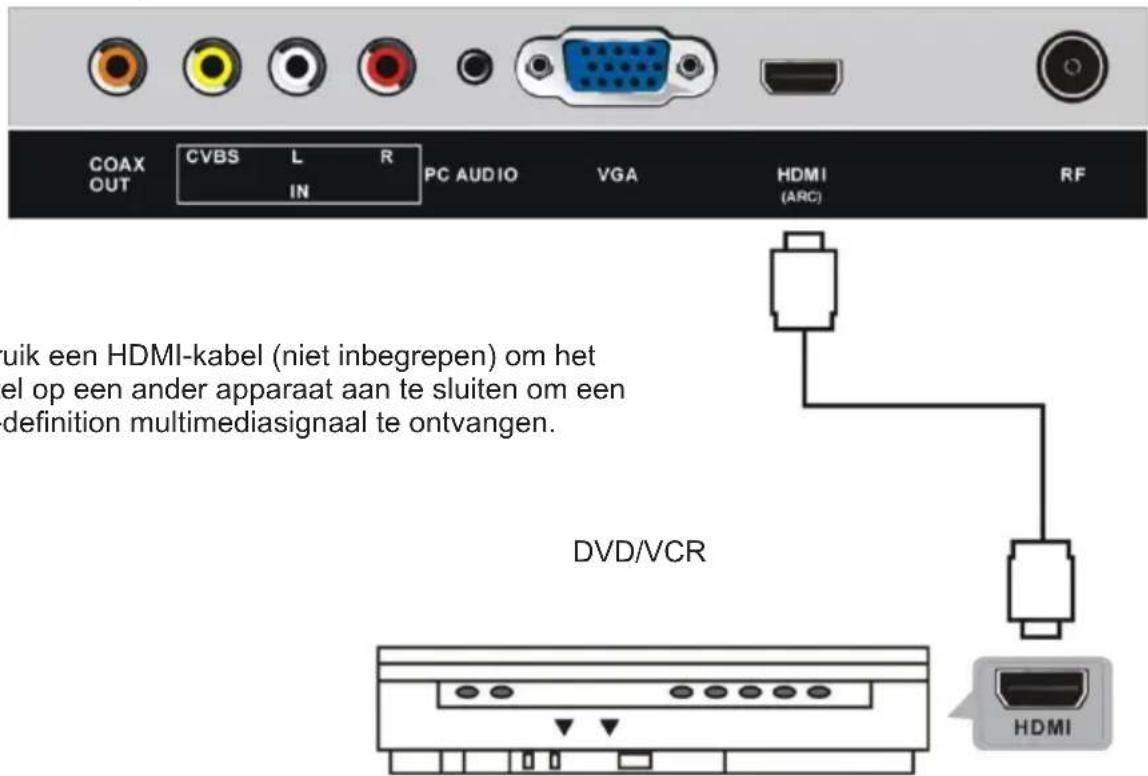

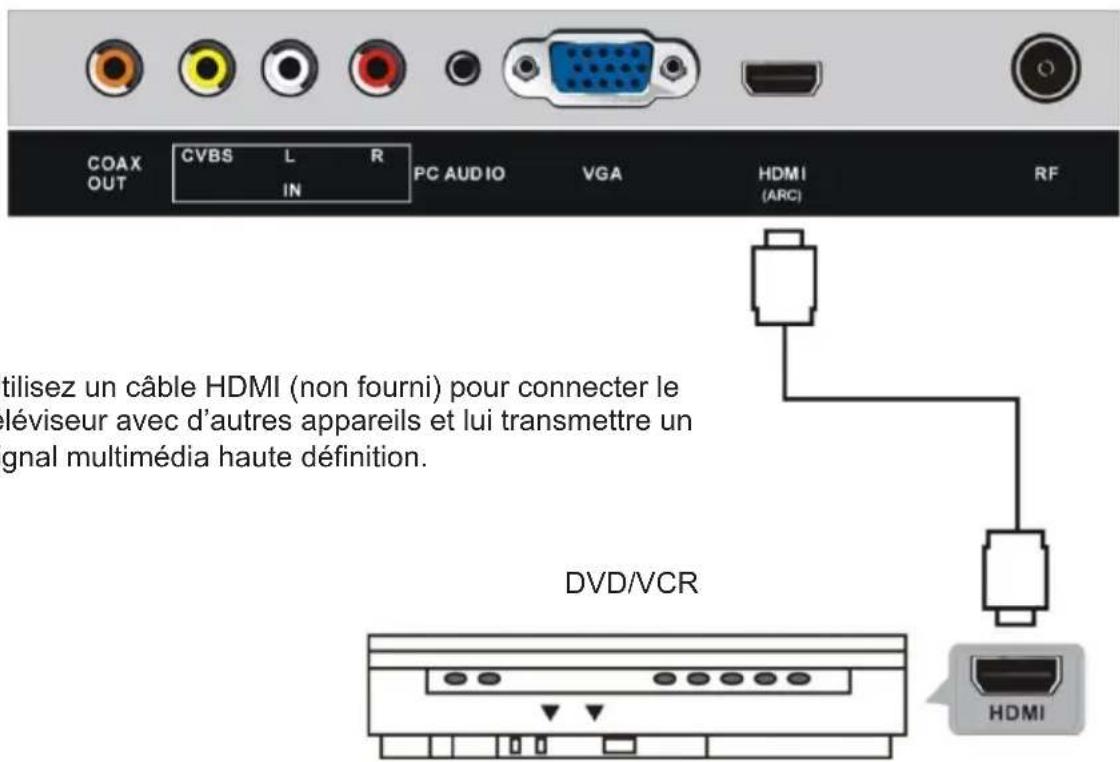

Branchement HDMI

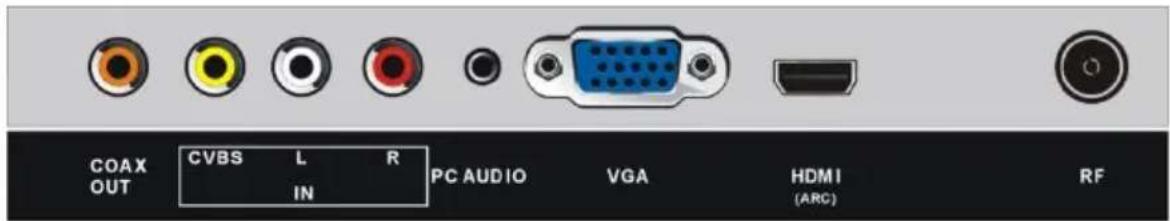

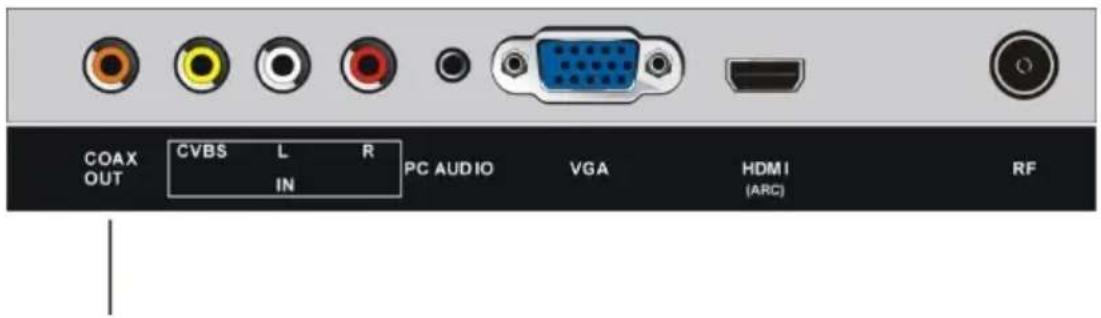

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

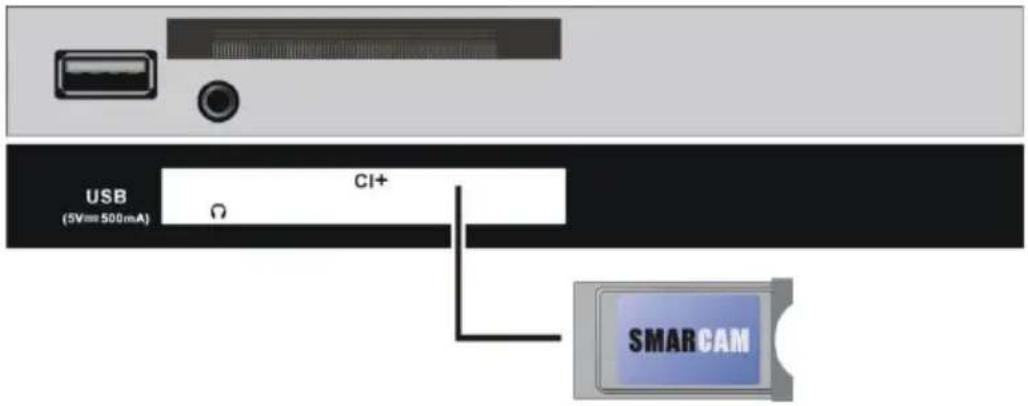

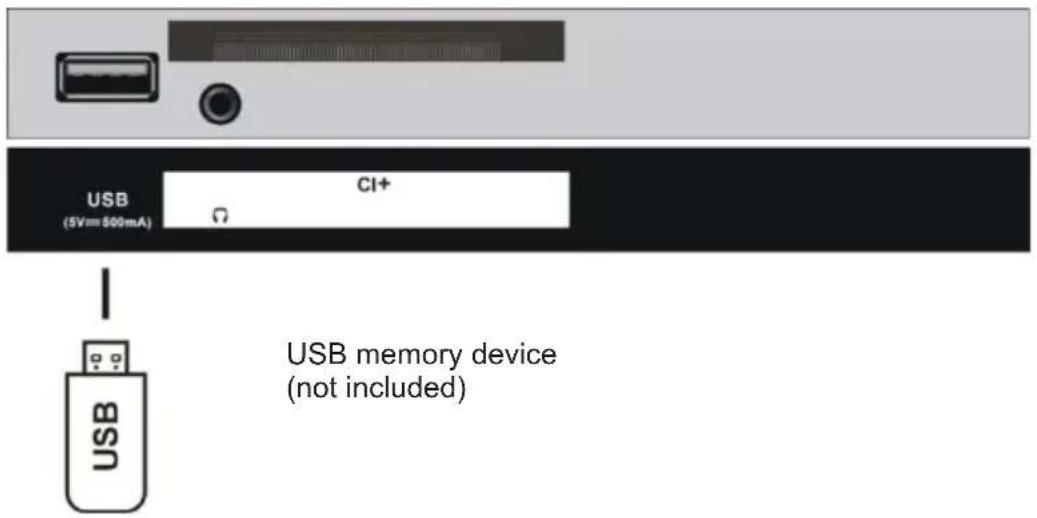

USB (5V=500mA) CI+ Ω Support de stockage USB (non fourni)

USB (5V=500mA) CI+ SMARCAM

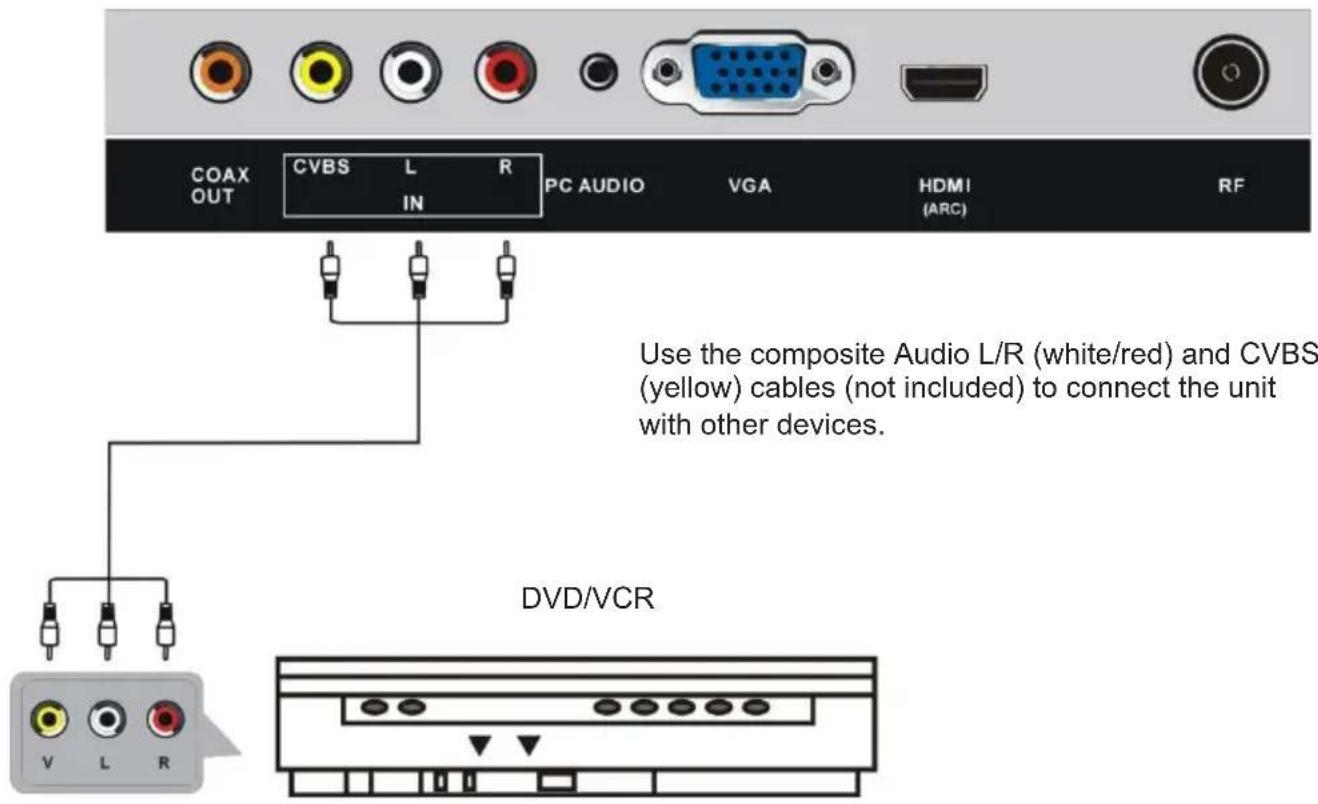

Audiodescription (AD)

20 kWh/1000h

2011年3月13日

DÉPANNAGE

Hotline Darty France

PRODUCTBESCHRIJVING....5

MONTAGE 6

AFSTANDSBEDIENING....8

AANSLUITINGEN....9

BASISWERKING.... 13

DE MENU'S GEBRUIKEN.... 14

PROBLEEMOPLOSSING....22

Exterior view of a server rack with connected cables and a wireframe diagram of a grid structure (no text or symbols)

4

Diagram of a cable being inserted into a TV screen, showing power outlet and cable (no text or symbols)

6m 30° 30°

HDMI-aansluiting

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

USB (5V=500mA) CI+ SMARCAM

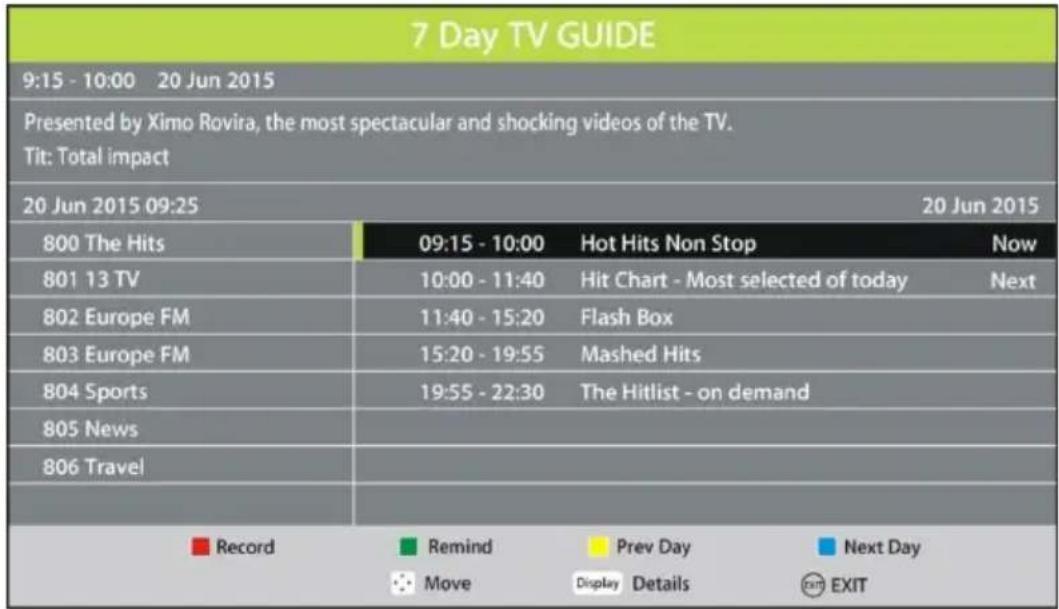

7 Day TV GUIDE 9:15 - 10:00 20 Jun 2015 Presented by Ximo Rovira, the most spectacular and shocking videos of the TV. Tit: Total impact 20 Jun 2015 09:25 800 The Hits 09:15 - 10:00 Hot Hits Non Stop Now 801 13 TV 10:00 - 11:40 Hit Chart - Most selected of today Next 802 Europe FM 11:40 - 15:20 Flash Box 803 Europe FM 15:20 - 19:55 Mashed Hits 804 Sports 19:55 - 22:30 The Hitlist - on demand 805 News 806 Travel Record Remind Prev Day Next Day Move Display Details EXIT

Recording Time: [00:00:39] Max Recording Time: Play FB FF Prev 30S Next 30S Pause Step 801 SZTVM02 16:45

[-00:01:06/01:28:10] Play FB FF Prev. 30s Next 30s Pause Stop 16:45

First Time Installation Language < English > Country < Germany > Energy Mode < Home Mode > Auto Tuning

Afstemmen

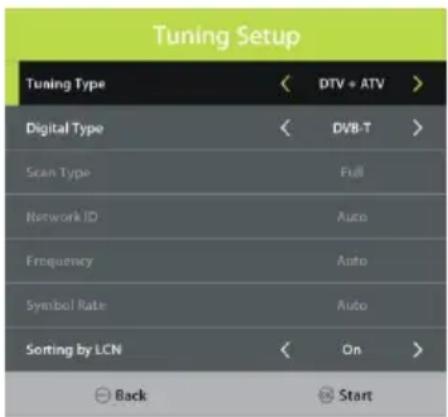

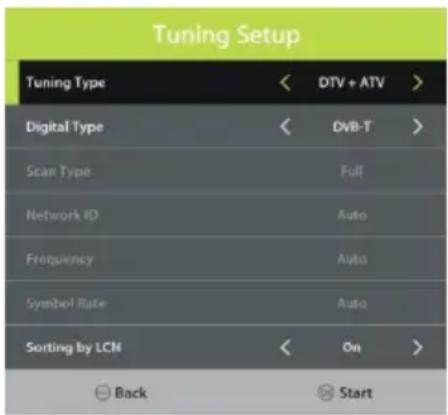

Tuning Setup Tuning Type DTV + ATV Digital Type ODB-T Scan Type Full Network ID Auto Frequency Auto Symbol Rate Auto Sorting by LCN On Back Start

1. Kanaal

Antenne

Digital Video Broadcasting

Close-up of a mechanical component with a highlighted section and mounting holes (no visible text or symbols)

2

Exterior view of a solar panel with grid and antenna array (no visible text or symbols)

4

Diagram of a cable being inserted into a TV screen, showing wiring and connector (no text or symbols)

6m 30° 30°

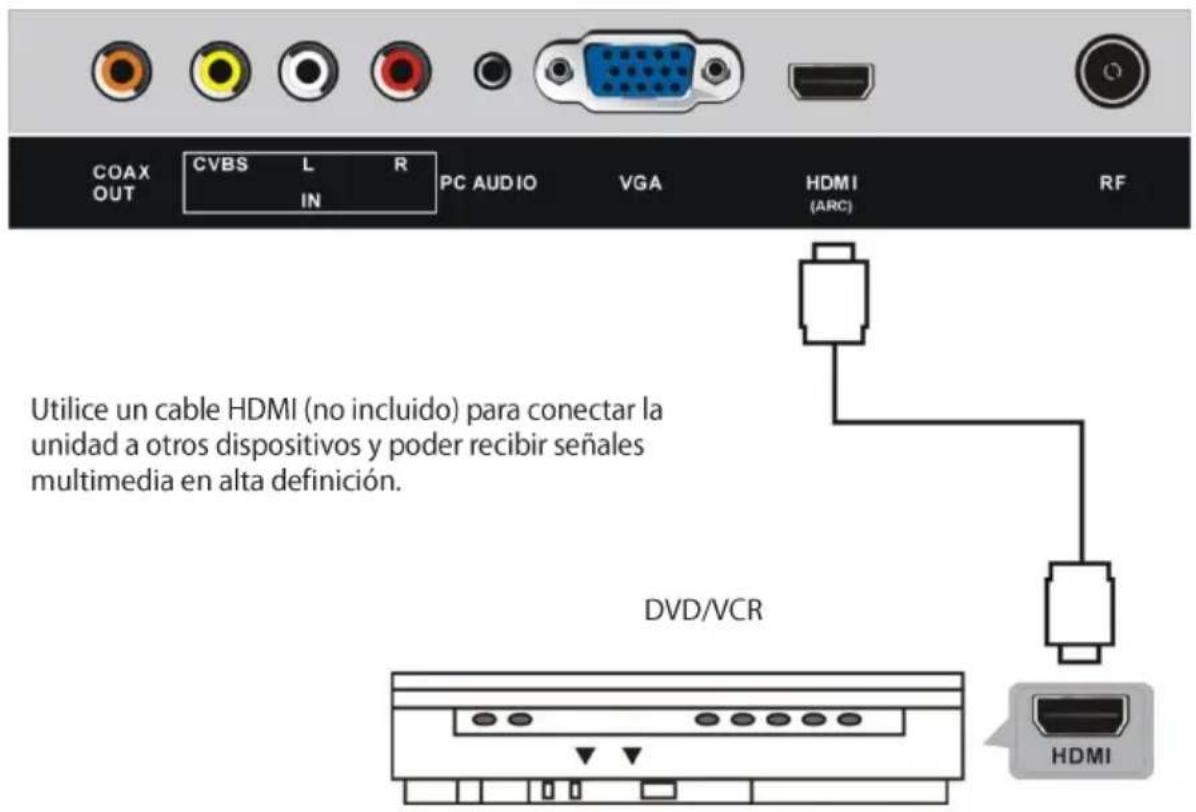

Conexión HDMI

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

USB (5V=500mA) CI+ SMARCAM

7 Day TV GUIDE
9:15 - 10:00 20 Jun 2015
Presented by Ximo Rovira, the most spectacular and shocking videos of the TV. Tit: Total impact
20 Jun 2015 09:25		20 Jun 2015
800 The Hits	09:15 - 10:00	Hot Hits Non Stop	Now
801 13 TV	10:00 - 11:40	Hit Chart - Most selected of today	Next
802 Europe FM	11:40 - 15:20	Flash Box
803 Europe FM	15:20 - 19:55	Mashed Hits
804 Sports	19:55 - 22:30	The Hitlist - on demand
805 News
806 Travel
Record	Remind	Prev Day	Next Day
	Move	Display Details	EXIT EXIT

Recording Time: [00:00:39] Max Recording Time: Play FB FF Prev 30S Next 30S Pause Stop 801 SZTVM02 16:45

Play FB FF Prev. 30s Next 30s Pause Stop [-00:01:06/01:28:10] 16:45

First Time Installation Language < English > Country < Germany > Energy Mode < Home Mode > Auto Tuning

Tuning Setup Tuning Type < DTV + ATV > Digital Type < DVB-T > Scan Type Full Network ID Auto Frequency Auto Symbol Rate Auto Sorting by LCN < On > Back Start

1. Canales

Antena

Digital Video Broadcasting

Close-up of a mechanical component with mounting holes and a highlighted section (no readable text or symbols)

2

Exterior view of a satellite or spacecraft module with antenna array and control panel (no visible text or symbols)

4

10 HOLD –Congela o teletexto.

11 AUDIO

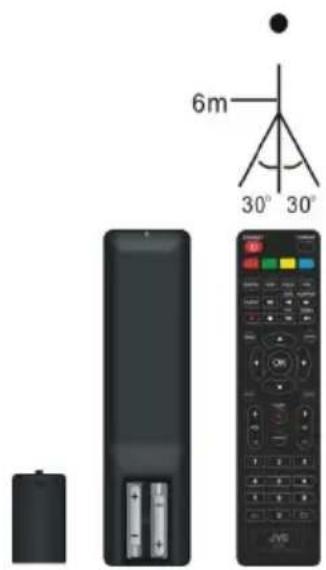

6m 30° 30°

Diagram of a cable being inserted into a computer monitor, showing wiring and power outlet (no text or symbols)

Ligação HDMI

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

USB (5V=500mA) CI+ SMARCAM

7 Day TV GUIDE 9:15 - 10:00 20 Jun 2015 Presented by Ximo Rovira, the most spectacular and shocking videos of the TV. Tit: Total impact 20 Jun 2015 09:25 800 The Hits 09:15 - 10:00 Hot Hits Non Stop Now 801 13 TV 10:00 - 11:40 Hit Chart - Most selected of today Next 802 Europe FM 11:40 - 15:20 Flash Box 803 Europe FM 15:20 - 19:55 Mashed Hits 804 Sports 19:55 - 22:30 The Hitlist - on demand 805 News 806 Travel Record Remind Prev Day Next Day Move Display Details EXIT

Recording Time: [00:00:39] Max Recording Time: Play FB FF Prev. 30S Next 30S Pause Stop 801 SZTVM02 16:45

[-00:01:06/01:28:10] Play FB FF Prev. 30s Next 30s Pause Stop 16:45

First Time Installation Language < English > Country < Germany > Energy Mode < Home Mode > Auto Tuning

Tuning Setup Tuning Type < DTV + ATV > Digital Type < DVB-T > Scan Type Full Network ID Auto Frequency Auto Symbol Rate Auto Sorting by LCN < On > Back Start

1. Canal

Antena

HDMI ARC: ligar/desligar a função ARC.

RESOLUÇ ã O DE PROBLEMAS

PRODUCT DESCRIPTION....4

ASSEMBLING 5

REMOTE CONTROL....7

CONNECTIONS....8

BASIC OPERATION....12

USING THE MENUS....13

SPECIFICATIONS....18

TROUBLESHOOTING....20

This product is manufactured, distributed, serviced and warranted exclusively by Etablissements DARTY et Fils.

"JVC" is the trademark of JVCKENWOOD Corporation, used by Etablissements DARTY et Fils under license.

[European Union]

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

DVB and the DVB logo are trademarks of the DVB project.

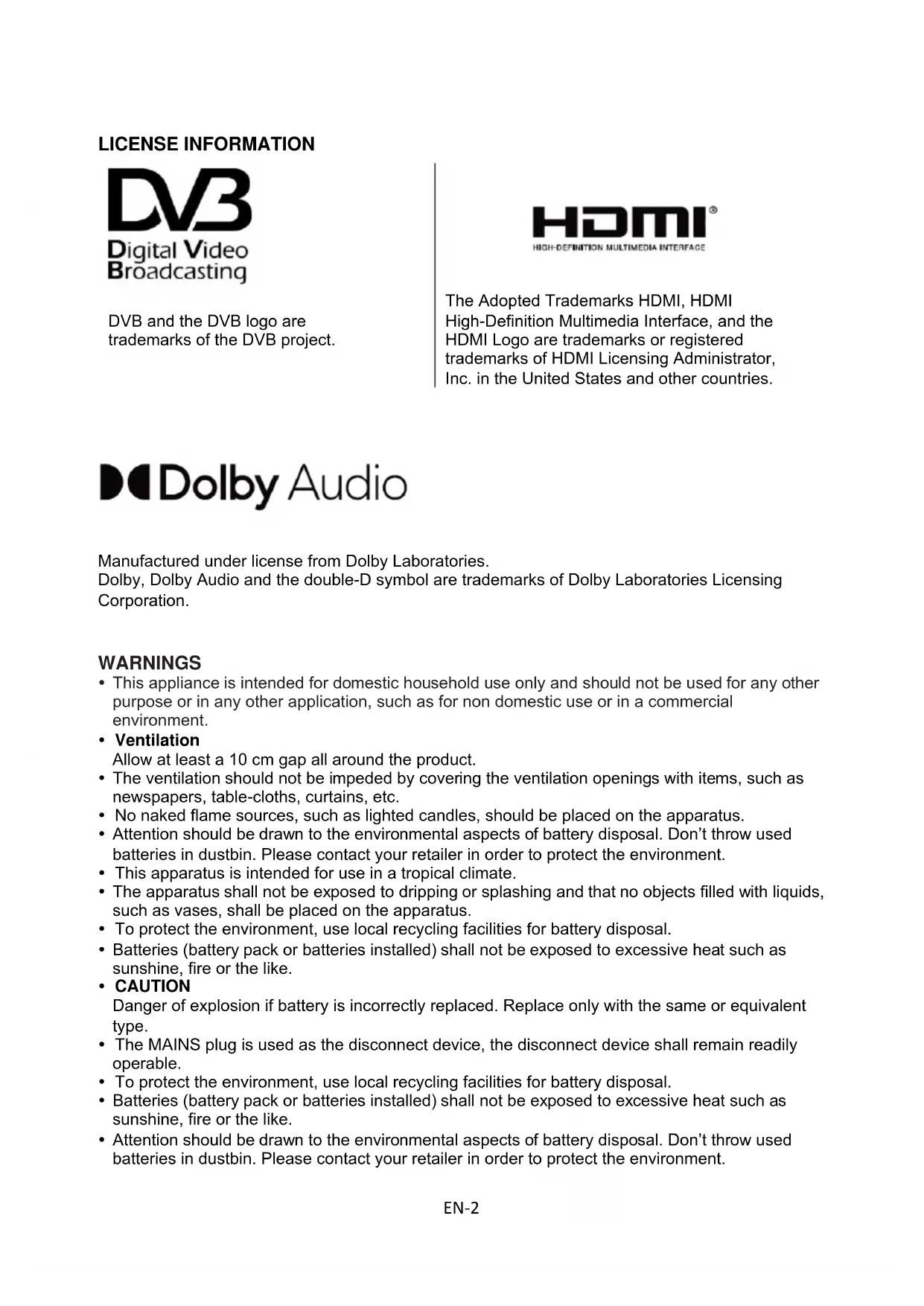

HIGH-DEFINITION MULTIMEDIA INTERFACE

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Dolby Audio

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

WARNINGS

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment.
• Ventilation

Allow at least a 10 cm gap all around the product.

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.
  • This apparatus is intended for use in a tropical climate.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • To protect the environment, use local recycling facilities for battery disposal.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
  • To protect the environment, use local recycling facilities for battery disposal.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.

• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery or expose to excessive heat such as sunshine, fire or the like that can result in an explosion.

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected in extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance.
• The supply terminal are not to be short-circuited.

- To prevent possible high sound pressure and hearing damage risk, do not listen at high volume levels for long periods.

Never place a television set in an unstable location.

A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Unplug this apparatus during lightning storms or when not in use for long periods of time.

IMPORTANT SAFETY INSTRUCTIONS

WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

This marking indicates that the unit complies with the European radio equipment directive.

This symbol indicates that the unit has double insulation.

This symbol indicates that there are important operating and maintenance instructions in the documentation accompanying this unit.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

- Read these instructions and keep them for further reference. Follow all instructions.

- Do not use this apparatus near water.

- Clean only with a dry cloth.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzine.

• Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.

- Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil or pen, or make a scratch on it.

- Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen.

PRODUCT DESCRIPTION

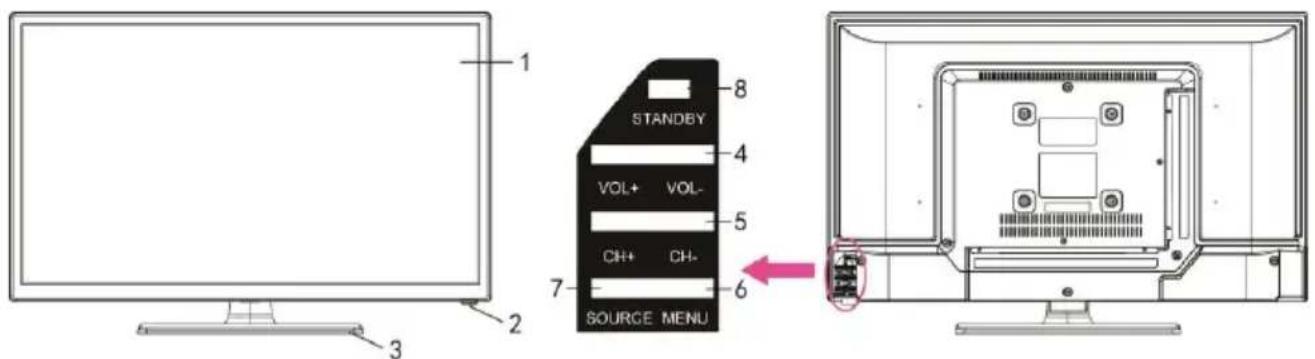

Front and Side Views

1 2 3 STANDBY 4 VOL+ VOL- 5 CH+ CH- 6 SOURCE MENU

1. Screen
2. Remote control sensor / Power indicator
3. Stand
4. VOL+/- button: Adjust the volume level
5. CH+/- button: Select previous/next channel or move up/down
6. MENU button: Access the main menu.
7. SOURCE button: Change the input source.
8. STANDBY button: Turn the power on or off.

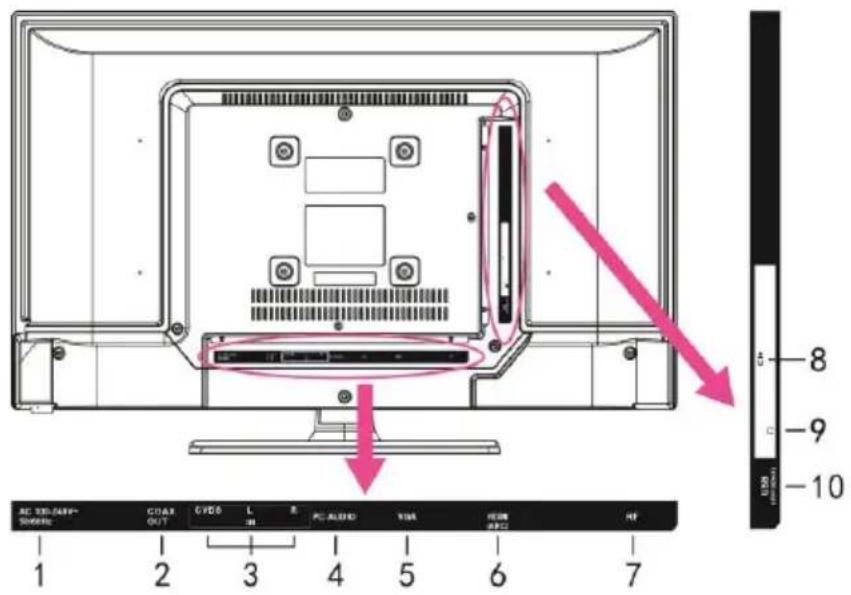

Back View

AC VDD/APP- SHORE 1 2 3 4 5 6 7 COAR OUT CVDS L B PC AUDIO TSS FLOOD RCC RF -8 -9 -10

1. Power input
2. COAXIAL output port
3. CVBS & L/R port
4. PC AUDIO port
5. VGA port
6. HDMI port
7. RF port
8. Cl+ port
9. EARPHONE jack
10. USB ports

ASSEMBLING

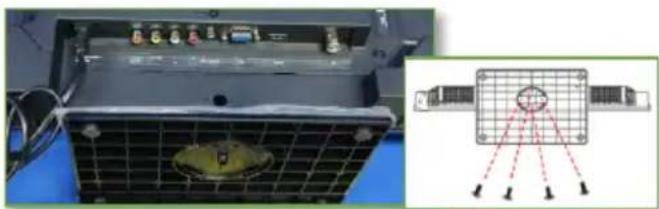

Attaching the Stand

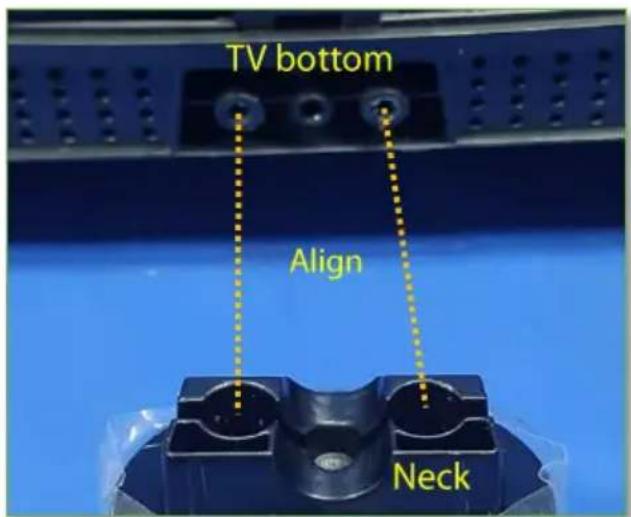

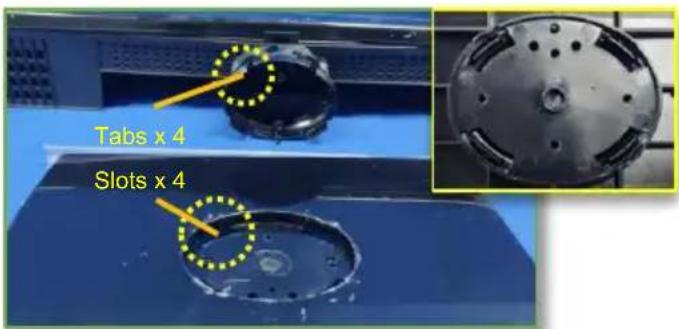

TV bottom Align Neck

1

Place the TV screen-down on a cushioned clean flat surface to prevent scratches or damage to the screen.

Align the neck with the screw holes on the bottom of your TV.

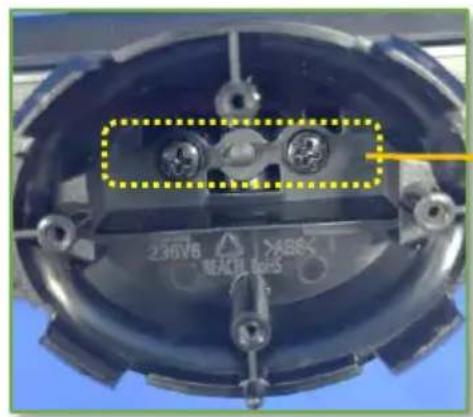

2.36V6 ABS

2

Secure the neck to your TV with the provided two long screws.

Tabs x 4 Slots x 4

3

Attach the neck to the stand by inserting and snapping the tabs on the neck into the slots in the stand.

Exterior view of a device with a grid-patterned panel and a close-up diagram showing a grid pattern with red dashed lines (no text or symbols)

4

Attach the stand to the TV using the provided four short screws.

Place the TV upright on a stable level surface.

Mounting on a Wall

100 100

CAUTION:

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• The distance between the holes is 100 x 100 mm in width and height.
• Tighten the screws (M4x10mm) firmly to prevent the TV from tilting forward. Do not over tighten.

REMOTE CONTROL

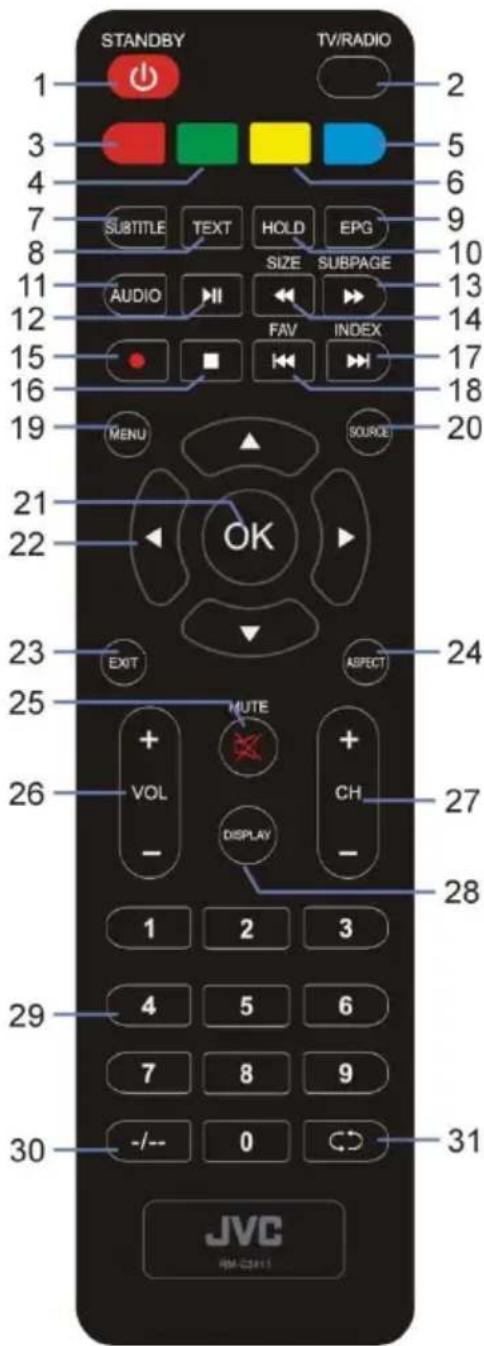

Buttons

1 POWER/Standby
2 TV/RADIO
3 RED
4 GREEN
5 BLUE
6 YELLOW
Colored buttons:
Used for the selection, navigation and
operation of various functions.

7 SUBTITLE –Enable/disable subtitles

8 TEXT –Display the available Teletext.

9 EPG – Display the electronic program guide.

10 HOLD –Hold the Teletext.

11 AUDIO

12 ▶Playback start/pause

13 SUBPAGE –Access Teletext sub-page.

Move fast forward

14 SIZE –Switch Teletext size.

Move fast backward.

15 • (DTV) – Start recording when watching available digital programs

16 Stop playing.

17 Play the next file.

INDEX – Display the record list or Teletext index.

18 Play the previous file.

FAV – Display the favorite channel list.

19 MENU

20 SOURCE – Select a desired input source.

21 OK - Confirm selection.

22 ▲/▼/◄/►

23 EXIT

24 ASPECT -Change aspect ratio.

25 MUTE

26 VOL +/-: Adjust the volume level.

27 CH +/-: Scroll through the saved channels.

28 DISPLAY – Display the available program information.

29 Numeric buttons (0-9) - Change channels.

30 -/--: Switch the digit when watching TV programs.

31 Return to previous channel.

STANDBY TV/RADIO 1 2 3 5 4 6 7 SUBTITLE TEXT HOLD EPG 8 SIZE SUBPAGE 10 11 AUDIO FAV INDEX 13 12 14 15 17 16 18 19 MENU SOURCE 20 21 OK 22 23 EXIT ASPECT 24 25 MUTE 26 VOL CH - DISPLAY - 27 - 28 1 2 3 29 4 5 6 7 8 9 30 -/-- 0 C D JVC AM-224H1

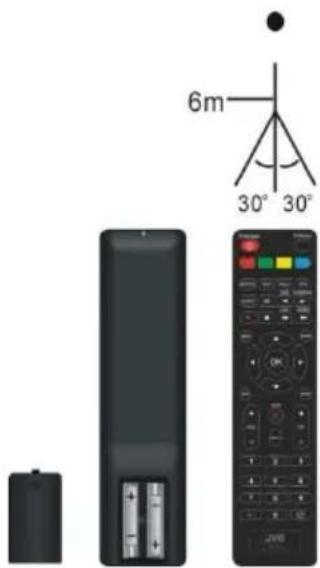

Remote control operation

1. Open the battery cover.

2. Insert two AAA size batteries (not included), observing the proper polarity markings inside the battery compartment.

3. Close the battery cover.

- CAUTION: Do not mix old and new batteries, as this may damage the remote control.

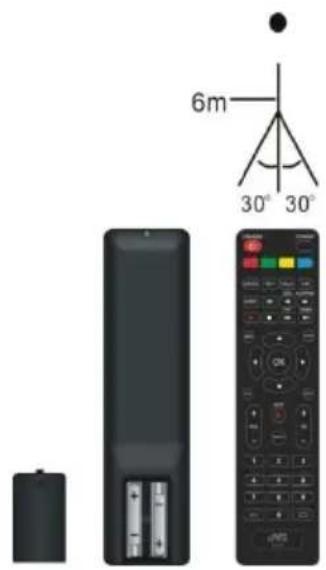

Be sure to point the remote control at the remote control sensor on the TV.

This logo means "positioning of cell".

CONNECTIONS

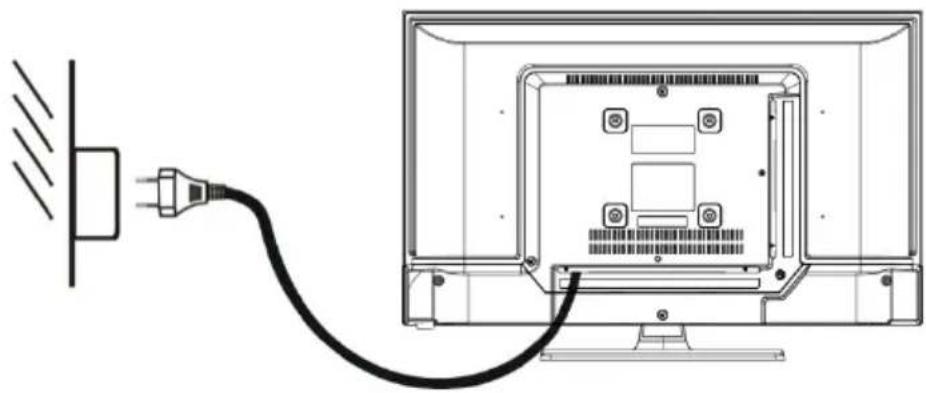

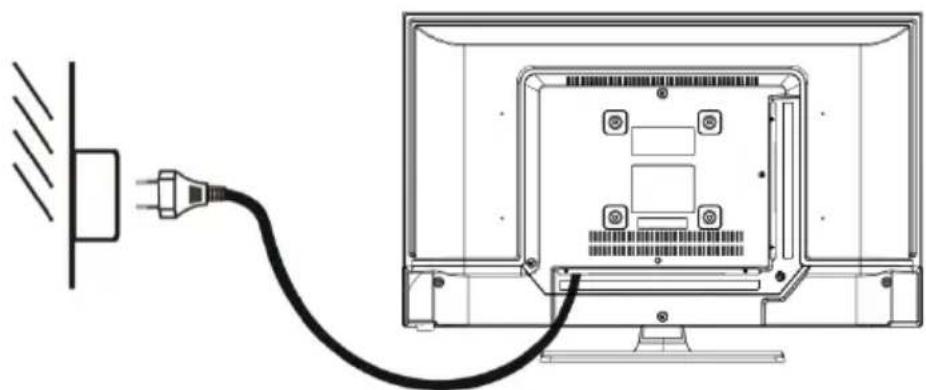

Connecting to AC power source

6m 30° 30°

Diagram of a cable being inserted into a computer monitor, showing wiring and connection (no text or symbols)

HDMI connection

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF Use an HDMI cable (not included) to connect the unit with other devices to receive high-definition multimedia signal. DVD/VCR HDMI

HDMI Connection

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF

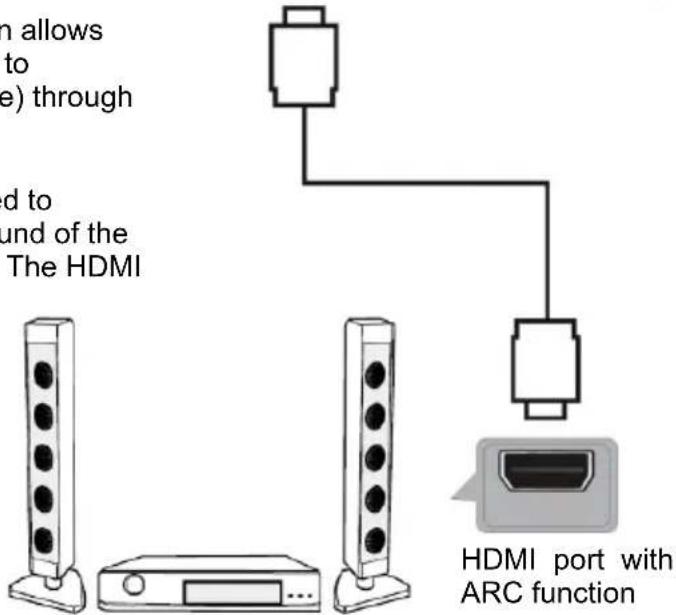

The HDMI ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to ARC-compliant audio devices (e.g. home theatre) through a single HDMI connection.

With the HDMI ARC connection, you do not need to connect the extra audio cable that sends the sound of the TV picture to the ARC-compliant audio devices. The HDMI ARC connection combines both signals.

Use an HDMI cable (not included) that supports the ARC function to connect your ARC-compliant audio devices with your ARC-compliant TV.

Ensure HDMI ARC is turned on in the SETUP menu (refer to page EN-17).

n allows to (e) through d to und of the The HDMI HDMI port with ARC function

HDMI-ARC compliant device

PC/VGA connection

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF Use VGA and Audio cables (not included) to connect the unit with TV or PC, and use this unit as a monitor. RGB-PC OUTPUT AUDIO

Use VGA and Audio cables (not included) to connect the unit with TV or PC, and use this unit as a monitor.

COAXIAL connection

COAX OUT CVBS L R IN PC AUDIO VGA HDM1 (ARC) RF

Use a coaxial cable (not included) to connect the unit with an amplifier or other audio decoding devices for coaxial audio signal output.

AV (Composite video) connection

COAX OUT CVBS L R IN PC AUDIO VGA HDMI (ARC) RF Use the composite Audio L/R (white/red) and CVBS (yellow) cables (not included) to connect the unit with other devices. DVD/VCR

USB connection

USB (5V=500mA) CI+ USB memory device (not included)

Insert a CI card

USB (5V=500mA) CI+ SMARCAM

Insert your CI card (Conditional Access Module) to watch special digital channels in your area.

BASIC OPERATION

Make sure all necessary connections are correctly made before connecting the unit to the wall socket and turning on the power.

Watching TV

1. Press the STANDBY button to power on the unit.
2. Press the SOURCE button to select analog (ATV) or digital (DTV) as input source.
3. Choose the channel by pressing CH+ or CH- or by pressing the numeric buttons (combined [-/--] if necessary) to input the channel number directly.

Electronic Program Guide (EPG)

EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and offers information about the programs to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control, the menu will appear on the screen, as below:

7 Day TV GUIDE 9:15 - 10:00 20 Jun 2015 Presented by Ximo Rovira, the most spectacular and shocking videos of the TV. Tit: Total impact 20 Jun 2015 09:25 800 The Hits 09:15 - 10:00 Hot Hits Non Stop Now 801 13 TV 10:00 - 11:40 Hit Chart - Most selected of today Next 802 Europe FM 11:40 - 15:20 Flash Box 803 Europe FM 15:20 - 19:55 Mashed Hits 804 Sports 19:55 - 22:30 The Hitlist - on demand 805 News 806 Travel Record Remind Prev Day Next Day Move Display Details EXIT

• Press ▲/▼ navigation button to select preferred program
• Press ◀/▶ navigation button to switch between left column and right column.
• Press the RED button to set a recording.
• Press the GREEN button to set a reminder.
• Press the YELLOW button to display the program guide of the previous day.
• Press the BLUE button to display the program guide of the following day.

Recording

1. In DTV mode, insert a formatted USB storage device, then press ● to record the program you are watching.

• The record menu will be showed on the screen.

Recording Time: [00:00:39] Max Recording Time: Play FB FF Prev. 30S Next 30S Pace Step 801 SZTVM02 16:45

If this menu disappears, press the EXIT or button to display it again.

1. Press / to move the cursor and press OK to confirm your setting.
2. Press ■ No initiate a dialog box and select [Yes] to stop recording. To dismiss the dialog box, select [No].

To watch recorded programs, press INDEX to initiate the Record List menu. Press ▲ / ▼ to select a recorded file and press OK to start playback.

Time-shift function

The time-shift function allows you to pause the live TV signal, then resume playback at your convenience.

1. While in DTV mode, insert a formatted USB storage device to your TV.
2. Press ▶ to initiate time-shift mode and pause the program.
3. Press ■ to stop playing and press again to initiate a dialog box. Select [Yes] to exit time-shift mode and return to live TV signal.

Play FB FF Prev. 30s Next 30s Pause Stop [-00:01:06/01:28:10] 16:45

If this menu disappears, press the EXIT button to display it again.

USING THE MENUS

The MENU button allows you to access the variety of TV settings for you to customize the settings.

Navigating through TV Menus

▲ / : Allow you to highlight options where applicable.
OK: Allow you to confirm the setting or advance to the next screen.
◀: Allow you to move back to the previous screen or adjust the value.
▶: Allow you to move to the next screen or adjust the value.

First time installation

When turning on the TV for the first time, the below installation menu will be displayed:

Language: select the on-screen menu language.

Country: select your country.

Energy Mode: select Home or Store mode. It will result in higher energy consumption if you leave Home mode.

Tuning Setup

• If above selections are finished, press OK button to call out Tuning Setup.
• Select preferred Tune Type and Digital Type using navigation buttons and press OK button to start auto tuning.

Note: Items following Digital Type are adjustable only when Digital Type is DVB-C and these items vary for different digital type.

First Time Installation Language < English > Country < Germany > Energy Mode < Home Mode > Auto Tuning

Tuning Setup Tuning Type < DTV + ATV > Digital Type < DVB-T > Scan Type Full Network ID Auto Frequency Auto Symbol Rate Auto Sorting by LCN < On > Back Start

1. Channel

Antenna

- Press LEFT/RIGHT navigation button to select DVB-T or DVB-C.

Auto Tuning

• Press the OK or RIGHT navigation button.
• Use the navigation buttons to set the Country, Tune Type and LCN.

Note: Scan type and following items are adjustable only when "Antenna" is DVB-C.

- Then press OK to start program tuning.

ATV Manual Tuning

Scan available programs manually.

DTV Manual Tuning

Scan available programs manually.

Programme Edit

Edit a program that TV received. (delete, skip or set a favorite program).

Schedule List

Schedule a recording in DTV mode.

Recorded List

Show the list or Previously recorded programs

Signal information

This item is used to display signal details, for example: signal quality and strength.

CI information

When an available CAM (Conditional Access Module) card is connected to the CI slot, the users can view related information or manage your CAM card.

2. Picture

Picture Mode

- Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option.

Picture Mode: available options: Standard, Mild, Personal, Dynamic.

Contrast / Brightness / Colour / Tint / Sharpness: adjustable value: 0-100.

Note: Contrast, Brightness, Colour and Sharpness are adjustable only when Picture Mode is "Personal". Tint is adjustable only for NTSC system.

Color Temp

This item is used to adjust the optimum color temperature for suitable viewing.

Available options: Normal, Warm, Cold.

Noise Reduction

Available options: Off, Low, Medium, High

NOTE: Noise Reduction is not available when signal source is HD, such as 1080i in DTV & USB input source.

SCREEN (for PC/VGA mode only)

Dynamic CR

Turn on/off dynamic contrast ratio.

3. Sound

Sound Mode

- Press UP/DOWN/LEFT/RIGHT navigation buttons to select an option.

Sound Mode: available options: Standard, Music, Movie, Sports, Personal.

Treble / Bass: adjustable value: 0-100.

Note: Treble and Bass are adjustable only when Sound Mode is "User".

Balance

This item is used to adjust the audio output between left and right speaker from -50 to 50.

Auto Volume

This item is used to set Auto Volume ON or OFF.

Surround Sound

Turn on/off Surround Sound for better sound experience.

SPDIF Mode

Available options: Auto, PCM, Off.

AD Switch

This item is used to turn on/off Audio Description function. For Visually Impaired users, this function can help to know a certain scene or action through the narration, instead of see it.

Notes:

• AD Switch function works only when you are viewing programs that contain related narration information.
• The users can adjust AD Volume when AD Switch is on.

4. Time

Clock

It displays current system time when an available channel was saved.

Time Zone

This item is used to select desired time zone.

Off Time

Off Time: available options: Off / Once / Every Day / Mon\~Fri / Mon\~Sat / Sat\~Sun / Sun. Hour / Minute: use navigation buttons to adjust the Hour / Minute when the Off Time is not "Off".

On Time

On Time: available options: Off / Once / Every Day / Mon\~Fri / Mon\~Sat / Sat\~Sun / Sun. Hour / Minute / Source / Channel / Volume: use navigation buttons to adjust these items when the Off Time is not "Off".

Sleep Timer

This item is used to set the automatic sleep time.

This item is used to select a desired Auto Sleep (standby) duration when no operations are done through the remote control.

Available options: Off, 3/4/5 hours. (It will result in higher energy consumption if you select more than 4 hours)

OSD Timer

This item is used to select a desired OSD menu duration.

Available options: Off, 5/10/15/20/25/30/35 seconds.

5. Lock

- When entered "Lock", input the factory default password "0000" using number buttons on remote control.

- Press UP/DOWN navigation button to select preferred item.

Note: If you forget the password, please use the universal password "8899".

System Lock

This item is used to turn on/off Lock System.

Set Password

Input a new password twice using number buttons on remote control to set a new password.

Channel Lock

Lock / unlock a channel.

Parental Guidance

This item is used to select desired program rating.

Available options: Off, 4-18.

Hotel Mode

This item is used to setup Hotel Lock.

6. Setup

Language

This item is used to select desired on-screen display language.

TT Language

This item is used to select the default teletext language.

Audio Language

• Press the RIGHT navigation button.
• Then you can select the desired primary audio language and secondary audio language.

Subtitle Language

• Press the RIGHT navigation button.
• Then you can select the preferred primary subtitle language and secondary subtitle language.

Hearing Impaired

This item is used to turn on/off the Hearing Impaired function. For Hearing Impaired users, this function provides captions to supplement the audio.

NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.

Aspect Ratio

This item is used to adjust the video size.

Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

NOTE: The available video size may be different for different input sources and it is not available when signal source is HD, such as 1080i in DTV & USB input source.

PVR File System

- Press the UP/DOWN navigation button to select a desired option, and then press the LEFT/RIGHT navigation button to adjust the selected option.

- Press the OK button to enter the submenu or confirm the setting.

In this part, you can select a desired disk, check the PVR File System, format your USB memory device and set a desired Free Record Limit time.

Blue Screen

This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition if Blue Screen is ON.

First Time Installation

This item is used to recall the First Time installation menu.

Energy Mode

This item is used to select Home or Store mode.

Reset

This item is used to recall factory default settings.

Software Update (USB)

This item is used to update software through the USB memory device.

HDMI CEC

To use the HDMI CEC function:

• Make sure the HDMI device which supports CEC function (Amplifier, etc.) is connected correctly.
• Press the SOURCE button on the remote control to select the HDMI input source.

HDMI CEC: turn on/off HDMI CEC.

HDMI ARC: turn on/off ARC function.

Auto Power: turn on/off Auto Power function.

Device Menu: display the setup menu of other device connected.

7. USB OPERATION

Plug in your USB device. Press the SOURCE button on remote control to open SOURCE list. Then press UP/DOWN navigation button to select USB (or Media) and press OK button to enter it.

PHOTO MUSIC MOVIE TEXT

Press ◀/▶ /▲button to highlight Photo, Music, Movie and Text, press OK button to confirm selection. Press ▶button on remote control to start playback.

SPECIFICATIONS

TV Broadcasting	PAL, B/G, D/K, I, SECAM
Receiving Channels	ATV (48.25MHz ~ 863.25MHz)
Number of Preset Channels	100 (ATV)
Channel Indicator	On Screen Display
RF Aerial Input	75 Ohm (unbalanced)
Operating Voltage	AC 100-240V~ 50/60Hz(~ means alternating current)
USB Output	5V =500mA(=means direct current)
Audio Output Power (WRMS.) (10% THD)	3 W
Dimensions DxLxH (with foot)	139 x 553 x 368 mm
Weight (with foot)	2.25 kg
Dimensions DxLxH (without foot)	66 x 553 x 331 mm
Weight (without foot)	2.12 kg
Surrounding temperature	Operation: 0°C ~ 45°CStorage: 5°C ~ 30°C
Operating Humidity	Less than 80 % RH
Standby Mode	After 3\4\5 hours

Digital reception

Reception range		44MHz – 862MHz
Input impedance		75 Ω
Channel bandwidth		7 MHz / 8 MHz
Modulation	DVB-T	COFDM 2K/8K, QPSK, 16QAM, 64QAM
	DVB-C	16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Video system		MPEG-2 MP@ML, MPEG-2 MP@HL, H.265
Sound system		MPEG-1 layer 1⁄2, MPEG-2 layer
Basic functions		EPG, Subtitle, LCN, TELETEXT (Europe)
Max storage channels		1000CH (DVB-T + DVB-C, dynamic)

Indoor Use only

Product Information Sheet

Parameter	Parameter value and precision			Unit
Supplier's name or trade mark	JVC
Supplier's address	Etablissements Darty & fils ©,9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine,France
Supplier's model identifier	LT-24FD110
Energy efficiency class for standard Dynamic Range (SDR)	F
On mode power demand for Standard Dynamic Range (SDR)	20			W
Off mode, power demand	N/A			W
Standby mode power demand	0,3			W
Networked standby mode power demand	N/A			W
Electronic display category	television
Size ratio	16	:	9	integer
Screen resolution (pixels) Horizontal and vertical pixels	1366	x	768	pixels
Screen diagonal	60			cm
Screen diagonal	24			inches
Visible screen area	15,3			dm^2
Panel technology used	LED LCD
Automatic Brightness Control (ABC) available	NO
Voice recognition sensor available	NO
Room presence sensor available	NO
Image refresh frequency rate	60			Hz
Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8			Years
Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7			Years
Minimum guaranteed product support	7			Years
Minimum duration of the general guarantee offered by the supplier	2			Years
Power supply type:	Internal

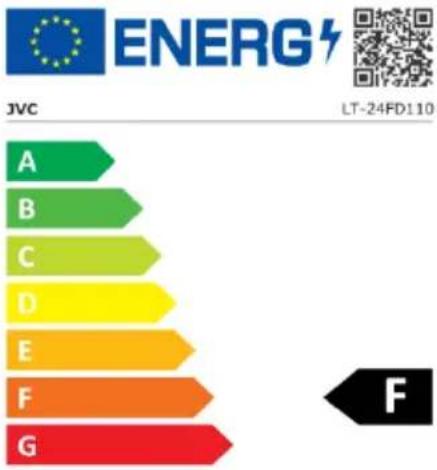

ENERG JVC LT-24FD110 A B C D E F G F

20

kWh/1000h

TROUBLESHOOTING

Problem	Possible Solution
The screen does not appear/illuminate.	1. Check that the power plug is securely into the mains socket.2. Check the power is on.
The screen appears, but there is no sound.	1. Press the MUTE button.2. Increase the sound level by pressing the volume adjustment buttons3. Check that the sound terminal of your external input is connected properly.4. Check that the audio cables are connected properly.5. Select and check any other input.
Noise or poor picture	Stop using wireless telephones, hair dryers or other electrical appliances near the TV.
The remote control does not work.	1. Check if the TV is not switched on.2. Check that the batteries of the remote control are inserted properly.3. Check for any obstacles between the TV remote sensor and the remote control. Remove them if necessary.4. If the batteries have no power, replace them with two new batteries off the same type.

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to

follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

Large CRT monitor displaying a mountain landscape with autumn foliage and a reflective lake (no text or symbols visible)

Marque - Brand / Merk/ Marca:

JVC

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Regulamento (UE) N. 2019/2013, N. 2019/2021, N. 2021/340, N. 2021/341

Software version : 20220727142700

EN IEC 62311:2020

EN 62368-1:2014+A11:2017

EN 55032:2015+A1:2020

EN 55035:2017+A11:2020

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN 303 340 V1.2.1

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

ASSURANCE SERVICE QUALITY FNAC DARTY

Place, Date / Lieu :
