USER MANUAL CUQS 58EWH CANDY

Legend General information and tips Warning – Important Safety informationEnvironmental information Disposal The symbol on the product or on its packaging indicates that this product may Thank you for purchasing this Product. Please read these instructions carefully before using this appliance. The instructions con-tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. Warning! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the Risk of injury of suffocation! in the appliance. and drawers as well as the door catch and seals to prevent children and pets to get closed iance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays refrigerant circuit is not damaged before being properly disposed of. Disconnect the appl- sional agent or our after-sale service to dispose of the appliance.Since the flammable insulation blowing gases are used, please contact the profes-usehold waste disposal service or the shop where you purchased the product.ation about recycling of this product, please contact your local city office, your ho-caused by inappropriate waste handling of this product. For more detailed inform-consequences for the environment and human health, which could otherwise be uring this product is disposed of correctly, you will help prevent potential negative ble collection point for the recycling of electrical and electronic equipment. By ens-not be treated as household waste. Instead it shall be handed over to the appliaca-

WARNING:Risk of fire/flammable material. The symbol indicates there is a risk of fire si-

nce flammable materials are used. Take care to avoid causing a fire by ingniting flammable . material.EN Content

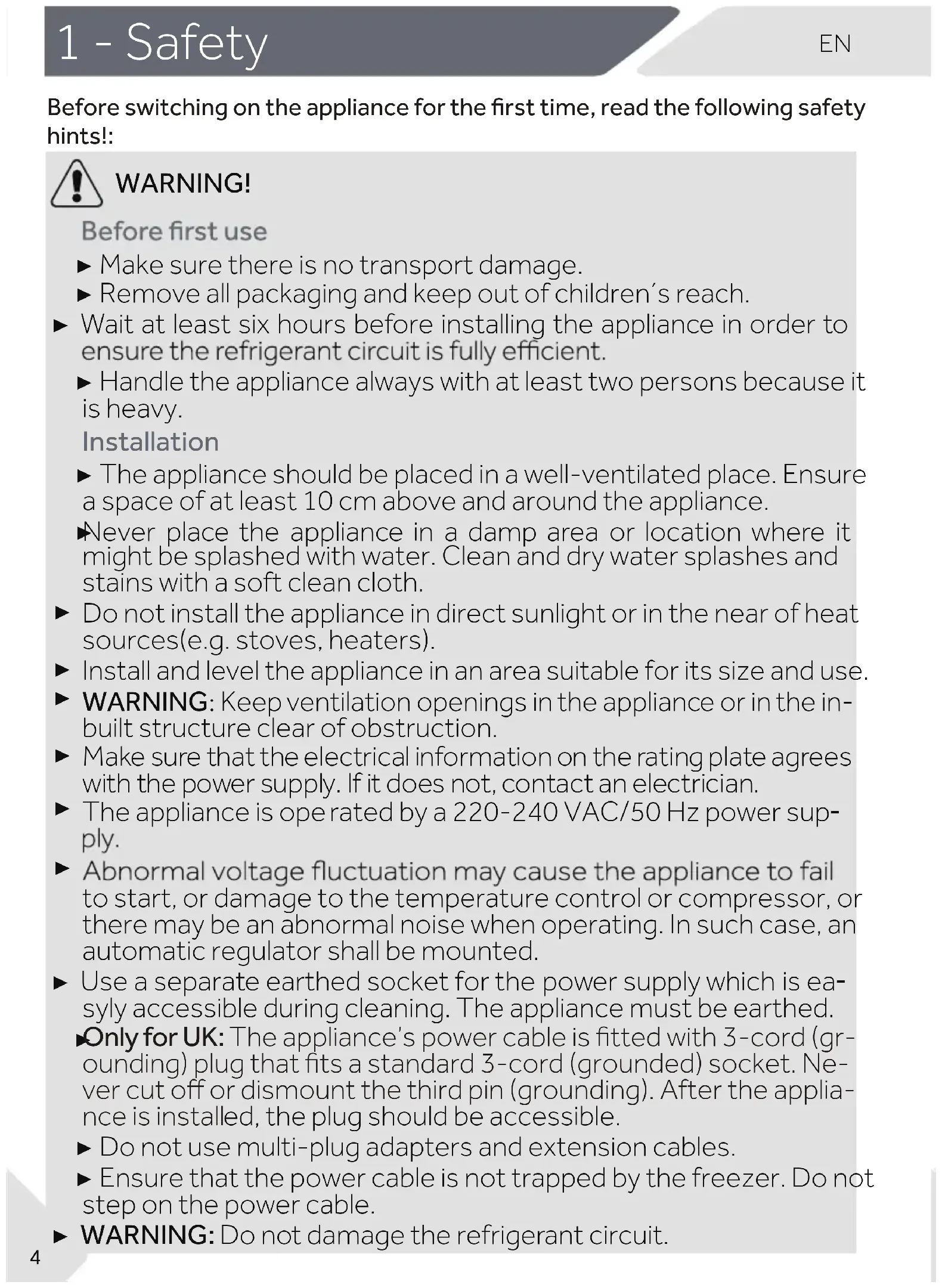

WARNING! ▶ Make sure there is no transport damage. ▶ Remove all packaging and keep out of children´s reach. ▶ Wait at least six hours before installing the appliance in order to ▶ Handle the appliance always with at least two persons because it is heavy. Installation ▶ The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.

Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.

Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

Install and level the appliance in an area suitable for its size and use.

WARNING: Keep ventilation openings in the appliance or in the in-

built structure clear of obstruction.

Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

The appliance is ope rated by a 220-240 VAC/50 Hz power sup- to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. ▶ Use a separate earthed socket for the power supply which is ea- syly accessible during cleaning. The appliance must be earthed.

nce is install ed, the plug should be accessible. ▶ Do not use multi-plug adapters and extension cables. ▶ Ensure that the power cable is not trapped by the freezer. Do not step on the power cable. ▶ WARNING: Do not damage the refrigerant circuit.

Before switching on the appliance for the first time, read the following safety hints!: Only for UK: The appliance’s power cable is fitted with 3-cord (gr- ounding) plug that fits a standard 3-cord (grounded) socket. Ne- ver cut off or dismount the third pin (grounding). After the applia-EN

If cool gas or other inflammable gas is leaking into the vicinity of the ap- pliance, turn off the valve of the leaking gas, open the doors and windo- ws and do not unplug a plug in the power cable of the freezer or any other appliance.

Notice that the appliance is set for operation at a specific ambient ra- nge between 10 and 38 °C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated ra- nge.

Do not place unstable articles (heavy objects,containers filled with wa- ter) on top of the freezer, to ovoid personal injury caused by falling or electric shock caused by contact with water.

Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the freezer doors only when there are no children standing w- ithin the range of door movement.

Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.

Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to st- ore materials that require strict temperatures.

On refrigerating mode without a 4-star compartment: this refrigerati- ng appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-star compartment: this freezing appliance is not suitable for refrigerating foodstuffs.

Never store liquids in bottles or cans (besides high percentage spirits) power supplies at the rear of the appliance.

WARNING: When positioning the appliance, ensure the supply cord is

not trapped or damaged.

Do not step on the power cable.

WARNING: Do not locate multiple portable socket outlets or portable

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under- stand the hazards involved. Children should be supervised to ensure that they do not play with the appliance.1 - Safety

WARNING! Daily use ▶ Do not touch frozen goods with wet hands (wear gloves). Espe- cially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! ▶ Do not touch the inside surface of the freezer storage compart- ment when in operation, especially with wet hands, as your hands may freeze onto the surface. ▶ Unplug the appliance in the event of a power interruption or be- fore cleaning. Allow at least 5 minutes before restarting the appli- ance, as frequent starting may damage the compressor. ▶ Do not use electrical devices inside the food storage compart- ments of the appliance, unless they are of the type recommend- ed by the manufacturer.

Keep away children under 3 years of age from the appliance unless they are constantly supervised. especially carbonated beverages in the freezer, as these will burst du- ring freezing.

Check the condition of food if a warming in the freezer has taken place.

Do not set unnecessarily low temperature in the freezer compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst. ▶ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances. Cleaning and user maintenance shall not be made by children without supervision. ▶ The appliance must be positioned so that the plug is accessible.

Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.

Never store bottled beer or beverages in the freezer, as these will burst during freezing.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: If you are unsure of the refrigerant type check the ra-

ting plate in the unit. It is hazardous for anyone other than an Aut- horized Service Person to service this appliance. Disconnect the appliance from the power supply before cleaning. ▶EN

▶ Do not try to repair, disassemble or modify the appliance by your- self. In case of repair please contact our customer service. Maintenance/cleaning ▶ Make sure children are supervised if they carry out cleaning and maintenance. ▶ Disconnect the appliance from the electrical supply before un- dertaking any routine maintenance. Allow at least 5 minutes be- fore restarting the appliance, as frequent starting may damage the compressor. ▶ Hold the plug, not the cable, when unplugging the appliance.

sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. ▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the man-

▶ Do not use water spray or steam to clean the appliance. ▶ If the supply cord is damaged, it must be replaced by the manu- avoid a hazard. ▶ Do not clean the appliance with hard brushes, wire brushes, det- ergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special fre- ezer detergent to avoid damage. ▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption. ▶ Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break. ▶ In case of heating check the condition of frozen goods. ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. ▶ Electrical equipment should be serviced only by qualifed electri- cal experts, because improper repairs can cause considerable consequential damages.1 - Safety

In case of eyes get into contact with the refrigerant, rinse immedi- ately it under running water and call immediately the eye specialist. WARNING!

▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. ▶ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ▶ Do not store explosive substances such as aerosol cans with a

ful when installing, handling, serving and recycling the appliance. ▶ Please contact to the service agent to dispose the appliance be-

WARNING: The refrigeration system is under high pressure. Do not

rvice to dispose of the appliance. struction and contact the professional agent or our after-sales se- install, handle and service the appliance strictly according to the in- tamper with it. Since the flammable refrigerants are used, please, WARNING! (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. Refrigerant gas information Intended use This appliance is intended to be used in household and similar ap- plications such as

ments; - farm houses and by clients in hotels, motels and other residen- tial type environments;EN

with this instruction for use. ▶ The details on the most appropriate part in the compartment of

sidering the distribution of temperature that can be present in of the manual. ▶ To avoid contamination of food, please respect the following in- structions:

crease of the temperature in the compartments of the appli- ance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used f water system connected to a water supply if water has not been drawn for 5 days. - Store ra ontainers in the freezer, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to pre- vent mould developing within the appliance. - bed and breakfast type environments; - catering and similar non-retail applications. ▶ If the appliance is not used for an extended period of time,and you will not use only the fridge off function for the freezer; - Take out the food. - Unplug the power cord. - Clean the appliance as described above. - Keep the doors open to prevent the creation of bad odours inside. ▶ To ensure the safe preservation of foodstuffs, please comply2 - Intended use

“This appliance is intended to be used in household and similar applications such as – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. This appliance is intended for freezing food. It has been designed exclusively for use in dry- interior house-holds. It is not intended for commercial or industrial use. On demand this appliance can be used as fresh food compartment.

ards and loss of warranty claims.

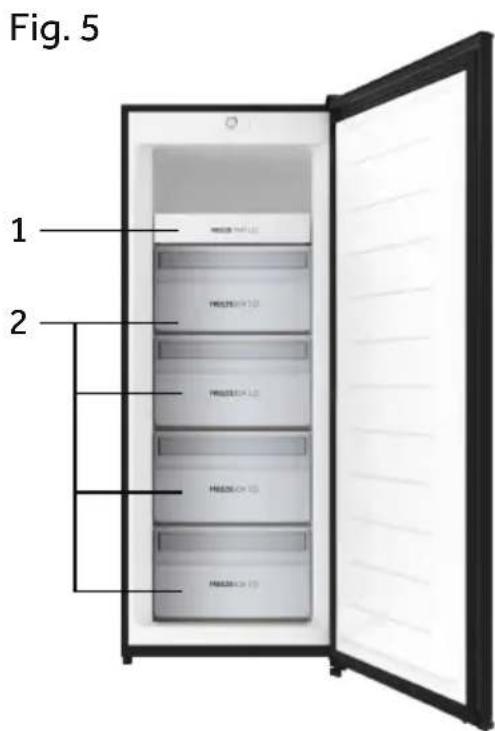

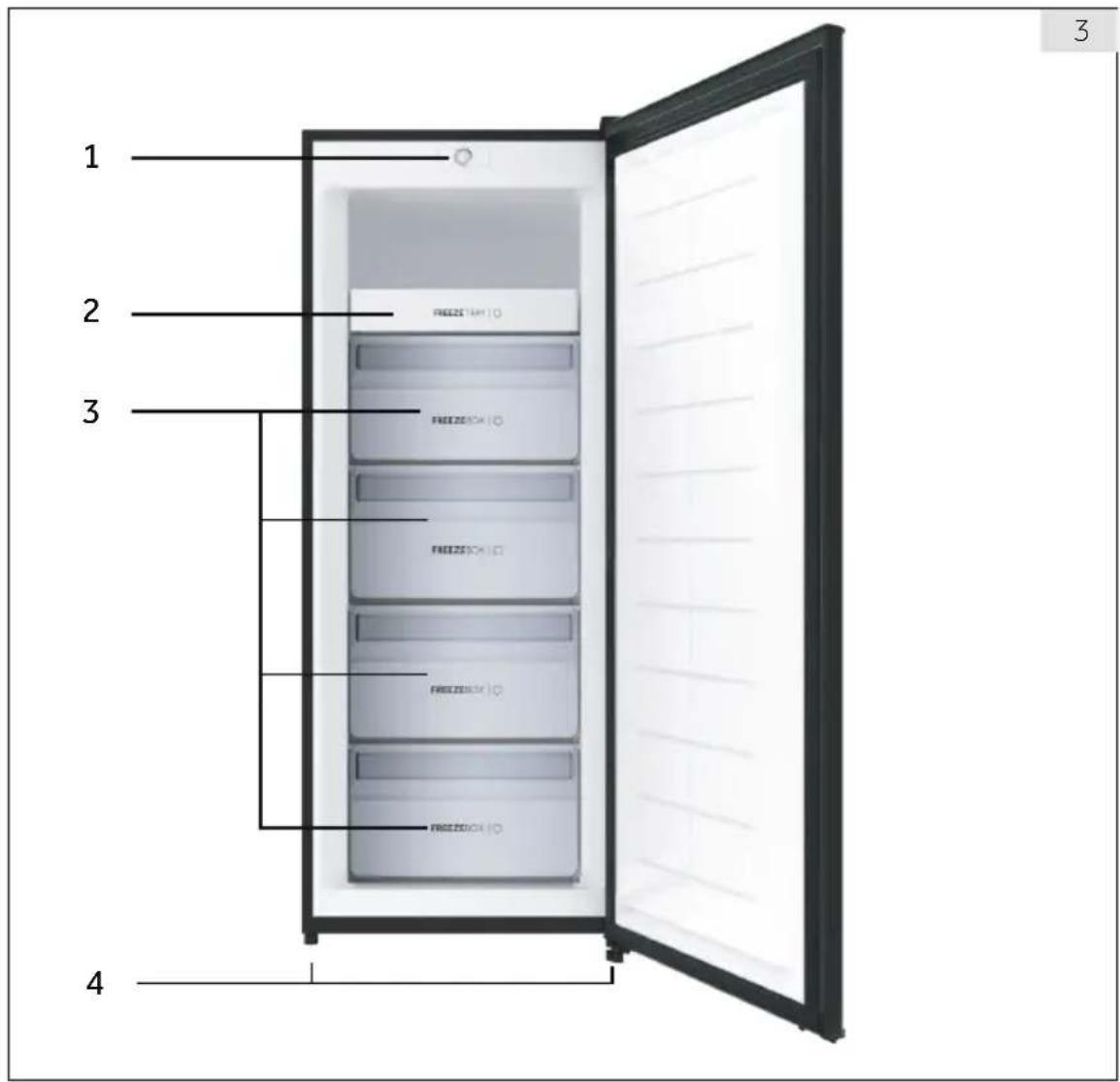

Check the accessories and literature in accordance with this list: User manual

Drawers4 - Control panel

▶ Remove all packaging materials, keep them out of childrens reach and dispose them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶ After the appliance has been levelled and cleaned, wait for at least 6 hours before con- necting it to the power supply. See Section INSTALLATION. ▶ Precool the compartment for 2 hours at high settings before loading with food. To do so, please set the temperature. Different foods should be placed in different areas according to their properties (Fig. 5). 1 Pickled foods, canned food, fruit, vegetables, salad, etc. 2 Eggs, canned food, spices, drinks, meat product, snack foods and bottled foods, etc. On refrigerating mode without a 4-star compart- ment: this refrigerating appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-st- ar compartment this freezing appliance is not sui- table for refrigerating foodstuffs. Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months). In order to avoid expiration of storage periods, please note the freezing date, time limit a- nd name of the food on the packaging according to the storage periods of different foods. Fig. 5

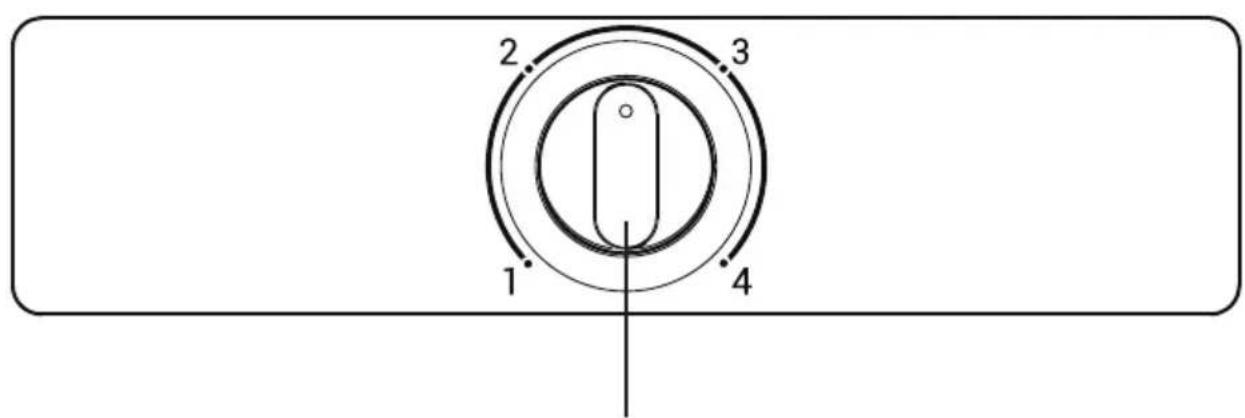

Turn thermostat to adjust the temperature between 1 (warmer) and 4 (colder). The storage temperature will be decreased from Min. setting to Max. setting.

Energy saving tips ▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in- creases the lower the temperature in the appliance is set. ▶ Allow warm food to cool down before placing it in the appliance.

▶ Make sure the door always closes correctly and unimpaired by food position. Keep door seals clean. ▶ Defreeze frozen food in a fridge.

Clean the rear of the appliance regularly. Dust increases energy consumption. The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.15

7- Care and Cleaning

WARNING! Disconnect the appliance from the power supply before cleaning.

Clean the appliance when only little or no food is stored. WARNING! ▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special freezer detergent to avoid damage.

▶ Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break . ▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. ▶ In case of heating check the condition of frozen goods. ▶ Do not try to repair the appliance by yourself. In case of repair please contact our customer service. ▶ Always keep the door gasket clean. ▶ Clean the inside and housing of the appliance with a soft cloth or sponge dampened in warm water and neutral detergent (Fig. 7.1). ▶ Rinse and dry with soft cloth. ▶ Do not clean any of the parts of the appliance in a dishwasher. ▶ Clean the accessory only with warm water and mild neutral detergent.

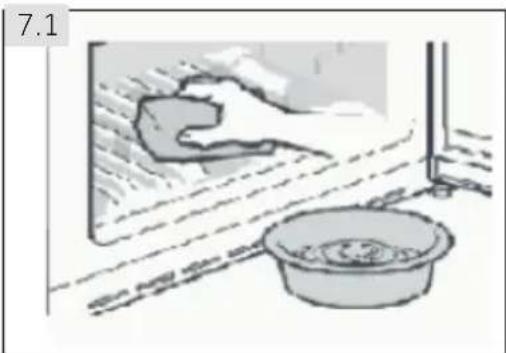

1. Please scrub the interior and exterior of the refri-

contaminated parts, put into the warm water with about 40 °C for some time, then

3. If there is spilled cream (such as the cream, melting ice cream), please remove all the

water, dry and place it back into the fridge.

2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow

onge dipped in warm water (you may add neutral shelves, boxes and so on, with a soft towel or sp- gerator, including door sealing, door rack, glass detergent into the warm water).

4. In case some small part or component gets stucked inside of the fridge (between

rinse with the flow water, dry and place it back into the fridge. shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Candy service.16

7- Care and Cleaning

The user manual includes instructions for the using and operation of multiple models. Please refer to the instructions for the purchased models. Drawer cleaning steps

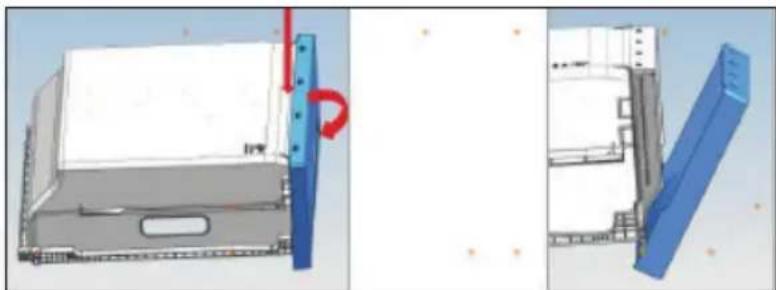

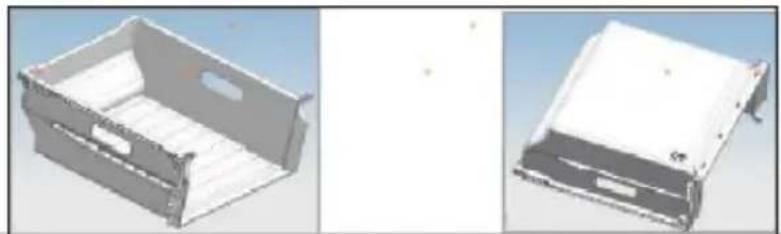

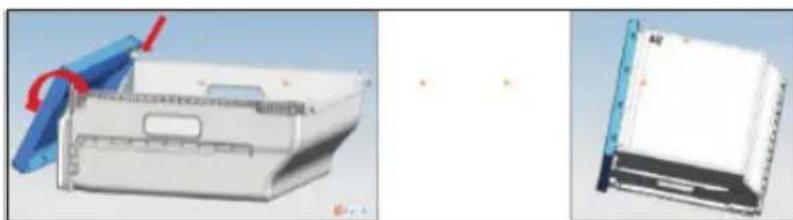

1. Remove the front cover of drawer:

Press the bottom of the drawer according to the direction of the arrow, and after rel- easing the buckle between the drawer cover and the drawer body. And rotating ac- cording to the direction of arrow to separate the drawer body from the drawer cover.

2. Cleaning of drawer body:

Wiping the interior and surface of the drawer with cloth dipping in edible grade alc- ohol, then washing with clean water.

3. Drawer cover cleaning:

Clean the flat surface with a cloth dipping in edible grade alcohol. The part of groove scrub with brush dipping in edible grade alcohol, then washing with clear water.

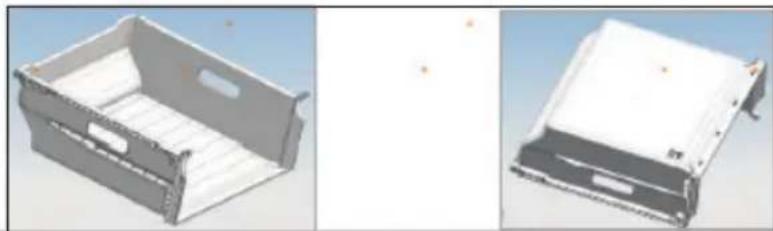

4. Assembly after cleaning:

After inserting the drawer into the hole of the front cover plate, the cover plate rot- ates around the drawer until the cover plate and the buckle of drawer are installed in place.According to the opposite sequence of disassembly to installation in place.EN

7- Care and Cleaning

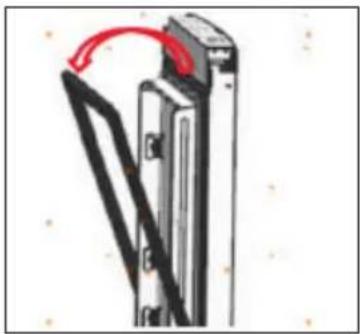

Holding the door seal by hand, pull-out according to the direction of arrow, and then remove the whole door seal.

2. Door seal cleaning

Dipping with brush in water or edible grade alcohol clear the groove of door seal,

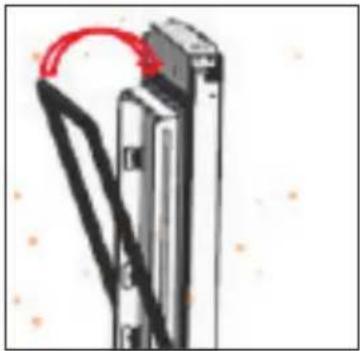

3. Installation after cleaning

Make sure that there is no residual droplet on the door seal be fore installing, insert the door seal into the groove of the door ining, and press the door seal ltightly from top to bottom by hand until the whole door seal is inserted into the groove. clean cloth. face of door seal. Finally, clean the door seal with clean water and wipe it up with and then using cloth dip in clear water or edible grade alcohol to wipe on the sur-7- Care and Cleaning

7.2 Non-use for a longer period

If the appliance is not used for an extended period of time: ▶ Take out the food. ▶ Unplug the power cord. ▶ Clean the appliance as described above. ▶ Keep the door and freezer drawers open to prevent the creation of bad odours inside. Remove the door of the appliance (open the door and hold it before removing the screws) to avoid children entering into the appliance and getting locked in.

7.3 Moving the appliance

1. Remove all food and unplug the appliance.

2. Secure shelves and other moveable parts in the freezer with adhesive tape.

3. Close the door and secure it with tape.

4. Do not tilt the freezer more than 45° to avoid damaging the refrigerating system.

forcefully. WARNING! ▶ Do not lift the appliance by its handles. ▶ Never place the appliance horizontally on the ground.EN

of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or

Problem Possible Cause Possible Solution The compressor does not work.

Mains plug is not connected in the mains socket. Connect the mains plug. The appliance runs frequently or for a too long period of time.

The indoor or outdoor tempera- ture is too high.

for a period of time. The door of the appliance is not tightly closed. The door has been opened too frequently or for too long. The temperature setting is too low.

The door gasket is dirty, worn, cracked or mis-matched. The required air circulation is not guaranteed. The interior is covered in ice. In this case, it is normal for the appliance to run longer. Normally, it takes 8 to 12 hours for the appliance to cool down completely. Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door. Do not open the door too fre- quently. Set the temperature higher un- til a satisfactory temperature is obtained. It takes 24 hours for the temperature to become stable. Clean the door gasket or re- place them by the customer service. Ensure adequate ventilation. Defrost the appliance. The appliance makes abnormal sounds. The appliance is not located on level ground. The appliance touches an object close to it. The applian ce stands on a wooden Level the appliance. Remove objects around the appliance. the appliance somewhere else.

Problem Possible Cause Possible Solution The appliance makes a clicking sound

• This is normal. It is caused by the refrigeration unit switching on or

A slight sound is to be heard similar to

• This is normal. • - The appliance makes a motor sound

• The refrigeration unit has just turned itself on. This is normal

It is not cold enough inside th e appli- ance.

• The temperature is set too high.

• Goods that are too warm have been stored.

• Too much food has been stored at a time.

• The goods are too close to each other.

• The door is not tightly closed.

• The door has been opened too frequently or for too long.

• Reset the temperature.

• Always cool down goods be- fore storing them.

• Always store small quantities of food.

• Leave a gap between several

• Do not open the door too fre- quently. It is too cold inside

• The temperature is set too low.

• Reset the temperature. Moist ure accumu- lates on the surface of the appliance

• The climate is too warm and too damp.

• This is normal in damp climate and will change when the hu- midity decreases. Wipe dry with a cloth. Strong ice and frost in the freezer com- partment.

• The goods were not adequately packaged .

• The door is not tightly closed.

• The door has been opened too frequently or for too long.

• The door gasket is dirty, worn, cracked or mis-matched.

• Something on the inside prevents the door from closing properly.

• Always pack the goods well.

• Do not open the door too fre- quently.

• Clean the door gasket or re- place them by the customer service.

• Reposition the shelves, door racks, or internal containers to allow the door to close.

e cooling system does n ot work.

• Mains plug is not connected to the mains socket.

• The power supply is not intact.

• Connect the mains plug.

• Check the electrical supply to the room. Call the local elec- tricity company!8 - Troubleshooting

Problem Possible Cause Possible Solution The sides of the cabinet and door strip get warm.

Once the appliance runs, it has an internal vacuum. Open the door seal gently to let air enter the appliacne. The door can’t be closed properly. It always leaves a gap. Because of the appliances’s low temperature, the door seal can easily get hard and deformed. Use a hair dryer or put a hot towel on the spot where the gasket is deformed. When the gasket is soft once again, close the door and com- press it tightly.

8.2 Power Interruption

In the event of a power cut, food should remain safely cold for about 18 hours. Follow these tips during a prolonged power interruption, especially in summer: ▶ Open the door as few times as possible. ▶ Do not put additional food into the freezer during a power interruption. ▶ If prior notice of a power interruption is given and the interruption duration is longer than 15 hours, make some ice and put it in a container in the top of the freezer com- partment. ▶ As temperature in the freezer will rise during a po wer interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon after- wards in order to prevent health risks. Notice: Memory function during power interruption After restoration of power the appliance continues with the settings that were set be- fore the power failure. Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 ye- ar for Morocco, 6 months for Algeria, Tunisia no legal warranty required. Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven ye- ars and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.22

WARNING! ▶ The appliance is heavy. Always handle with at least two persons. ▶ Keep all packaging materials out of childrens reach and dispose them in an environ- mentally friendly manner. Take the appliance out of the packaging. ▶ Remove all packaging materials.

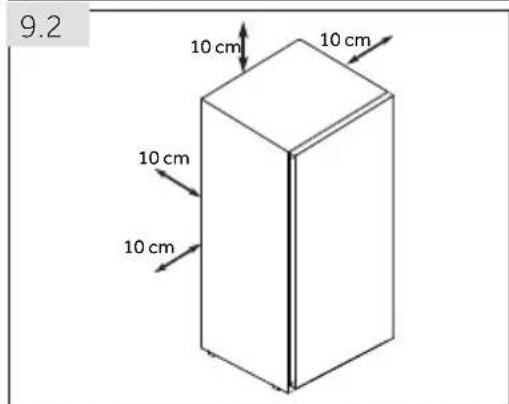

9.2 Environmental conditions

the temperature inside the appliance and its energy consumption. Do not install the appli- ance near other heat-emitting appliances (ovens, refrigerators) without isolation.

9.3 Space requirements

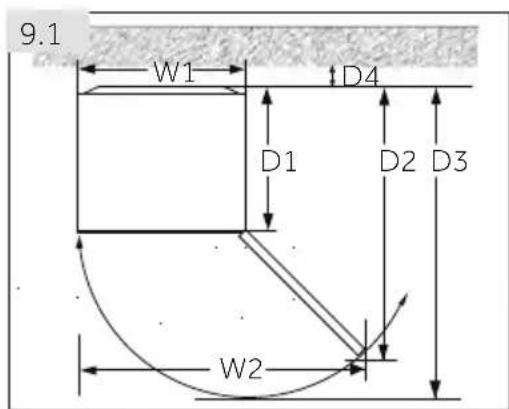

Required space to open the door (Fig. 10.1): Width in mm Depth in mm Distance to wall in mm W1 W2 D1 D2 D3 D4

FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance. safety reasons, the information of the required ventila- tion cross sections must be observed (Fig. 10.2).

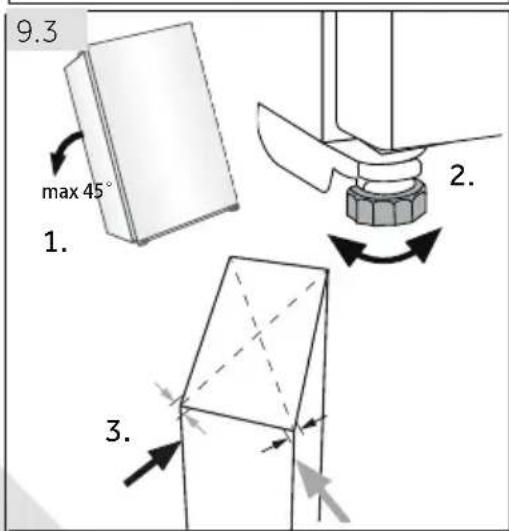

10.5 Aligning the appliance

The appliance should be placed on a at and solid sur- face. If the appliance is placed on a pedestal, strong and foam packing material as a pedestal.

1. Tilt the appliance slightly backwards (Fig. 10.3).

2. Set the feet to the desired level.

3. The stability can be checked by alternately bump-

ing on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear eases the closing of the door.

The room temperature should always be between 10 °C and 38 °C, since it can influence Model identifier CUQS 58EW* CUQS 513EW* 545 838 500 988 1066 100EN

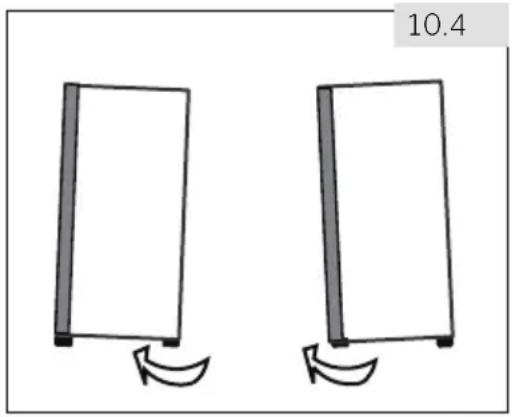

If the freezer is unstable, the feet can be adjusted: Ro- tate the adjustable feet according to the direction of arrow (Fig. 10.4) to turn them up or down: ▶ Turning the feet clockwise raises the appliance. ▶ Turning the feet counterclockwise lowers it.

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 6 hours (Fig. 10.5) so that the oil runs back into the capsule.

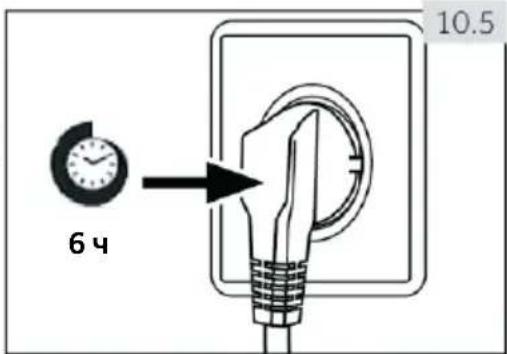

9.8 Electrical connection

Before each connection check if: ▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according. Connect the plug to a properly installed household socket. WARNING! To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability. WARNING! ▶ The appliance is heavy. You need two persons to carry out the door reversibility.

▶ Do not tilt the appliance more than 45 ° to prevent damage of the cooling system.

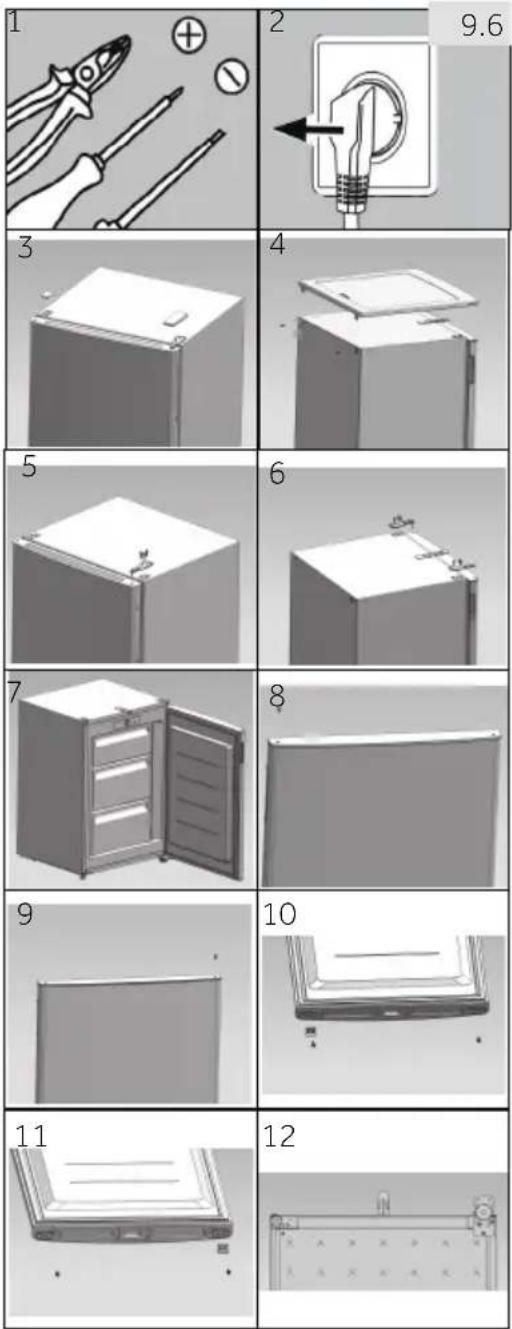

1. Provide necessary tool.

2. Unplug the appliance.

3. Remove hinge hole cover and hinge cover(available for

CUQS 513EWH/CUQS 513EW).

5. Removes 3 screws and hinge (available for CUQS

Remove cover in left side of door.

7. Open and remove the door.

4. Remove 2 screws in the back and the top cover(avail-

able forCUQS 58EWH/CUQS 58EW).

6. Removes 6 screws and 2 hinge (available for CUQS

58EWH/CUQS 58EW). 10.Turn the door upside down, remove 2 screws and door stopper at the bottom of the door.

9. Fix the cover in right side of door.

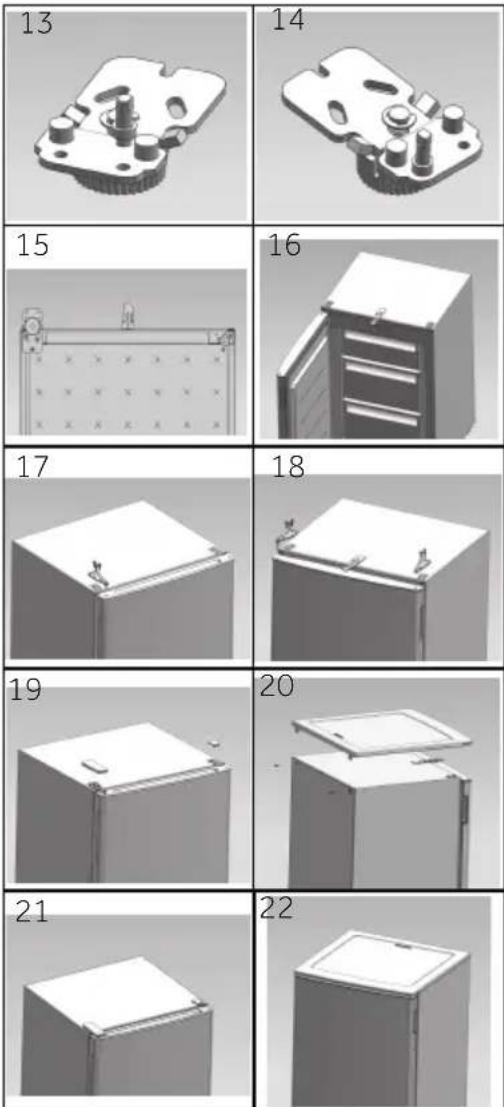

12.Tilt slightly backwards the cabinet, remove 3 screws, the lower hinge and adjustable feet. 11.Fix door stopper dismounted last step to the other side and 2 screws.EN

15. Fix the hinge to the opposite position of the cabinet

with 4 screws and adjustable feet. 16.Mount the door.

1. Remove 2 handle covers, 2 screws and handle

assembly from left side of door. Remove 2 hole plugs from right side of door.

Fix handle assembly with 2 screws to right side of door and2handle covers. Fix 2 hole plugs to left side of door. Assembly steps (Fig. 9.7):

Trade mark Candy CUQS 58EW* Category of the model Upright freezer E E Annual energy consumption (kWh/year)

Storage volume cooling (L) not applicable Storage volume freezing (L) **** 85 163 Star rating */*** Temperature of other compartments > 14 °C not applicable Frostfree system no Power cut safe (h) 13

Climate class This appliance is intended to be used at an am- bient temperature between 10 °C and 38°C.

based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. Regarding specification details, please consult the rating plate and energy label inside the product. This appliance is intended to be used at an ambilent temperature indicated below:

10.2 Additional Technical Data

10.1 Product fiche according to regulation EU No. 2019/2016

11- Customer Service

10.3 AFTER-SALE SERVICE

1. Resolving faults by yourself

If you suspect any fault, before contacting the approved after-sales service directly or via your dealer, make sure you have observed all instructions and advice in this user ma- nual.

2. After-sales service

Consult the enclosed warranty card for available after-sales services. In order to receive immediate help, make sure you have ready the following essential data to identify your appliance: Brand of appliance Model Serial number The problem or reason Date of purchase Purchased from/supplier

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section “website”, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

AVAILABILITY OF SPARE PARTS

Thermostats, temperature sensors, printed circuit boards and light sources are availa- ble for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market. GUARANTEE Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required. PRECAUTIONS If your cabinet is to be discard, you must remove the door and leave the shelves in place. This will reduce the possibility of danger to children. And the flammable foaming needs to be disposed by professional persons.Ръководство за потребителя Вертикален фризер CUQS 58EW CUQS 58EWH CUQS 513EW CUQS 513EWH BGБлагодарим ви

(CUQS 513EWH / CUQS 58EWH
