Video Doorbell WiFi - Doorbells REOLINK - Free user manual and instructions

USER MANUAL Video Doorbell WiFi REOLINK

If you need any technical help, please visit our official support site and contact our support team before returning the products. https://support.reolink.com.

EC REP CET PRODUCT SERVICE SP. Z O.O.

Ul. Dluga 33 102 Zgierz, Polen

UK REP CET PRODUCT SERVICE LTD.

January 2024

Beacon House Stokenchurch Business Park, Ibstone

QSG1_A

Rd, Stokenchurch High Wycombe, HP14 3FE, UK

58.03.006.0104A

EN/DE/FR/IT/ES

Item No.: D340P/D340W

Operational Instruction

Apply to: Reolink Video Doorbell WiFi / PoE

@ReolinkTech https://reolink.com

EN

Content

What's in the Box 2

Doorbell Introduction 3

Set up the Doorbell 5

Install the Doorbell 9

Remove the Doorbell 15

Specification 16

Notification of Compliance 16

What's in the Box

Doorbell Chime

•

Corner Wedge

Mounting Plate

Mounting Hole Template

1m Ethernet Cable

Extension Cable

Jumper Cable

Power Adapter ^+

Power Extension Cable*

Pack of Screws

Quick Start Guide

NOTE: The Reolink Video Doorbell PoE doesn't come with a power adapter and power extension cable.

Doorbell Introduction

Video Doorbell PoE

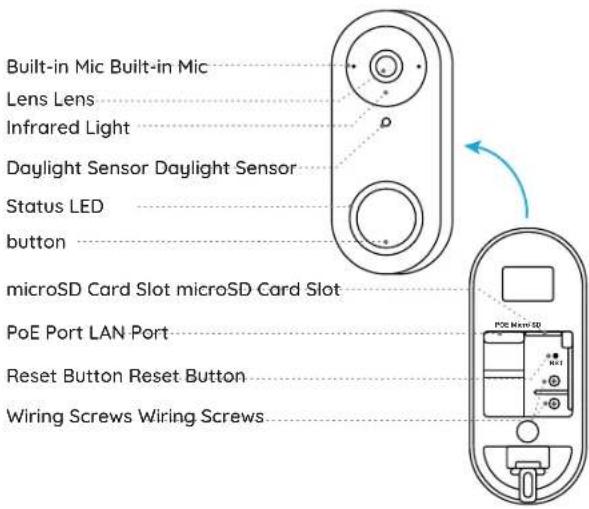

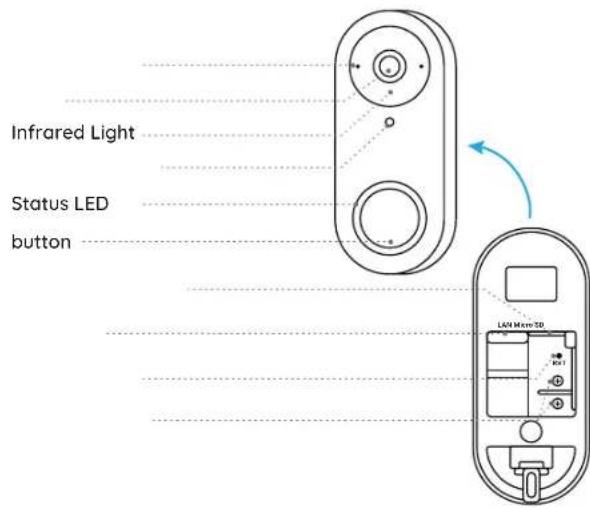

Built-in Mic Built-in Mic Lens Lens Infrared Light Daylight Sensor Daylight Sensor Status LED button microSD Card Slot microSD Card Slot PoE Port LAN Port Reset Button Reset Button Wiring Screws Wiring Screws

Video Doorbell WiFi

Infrared Light Status LED button LAN Max-SD

Set up the Doorbell

Set up the Doorbell on Phone

Step 1

Scan to download the Reolink App from the App Store or Google Play Store.

NOTE: If the Reolink App is already existed, please check if it is the newest; if no, please update it.

Step 2

Power on the video doorbell.

PoE Version:

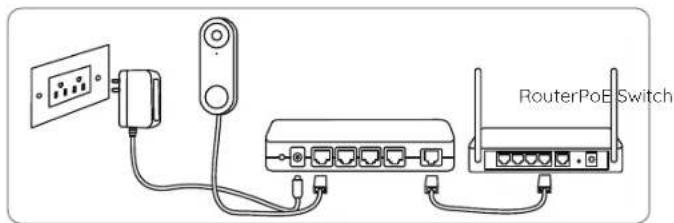

1. Power the doorbell on by connecting it to a PoE Switch/Injector or a Reolink PoE NVR (not included in the package).

2. Connect the PoE Switch/Injector/Reolink PoE NVR to the LAN Port on the router.

NOTE: The Reolink NVR should be upgraded to the latest firmware version.

EnglishEnglish5 6

RouterPoE Switch

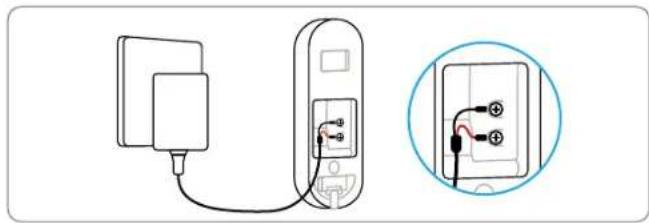

WiFi Version: Connect the Y-shape plugs to the screws on the back of the doorbell, then power it on with the power adapter.

Diagram showing a plug connected to a remote control panel and its close-up view of the internal socket (no text or symbols)

NOTE: It is recommended to setup the Internet before the installation. Make sure the Y-shape plugs are separate from each other.

Step 3

Launch the Reolink App. Click the “+” button in the top right corner and scan the QR code on the doorbell and follow the onscreen instructions to finish the initial setup.

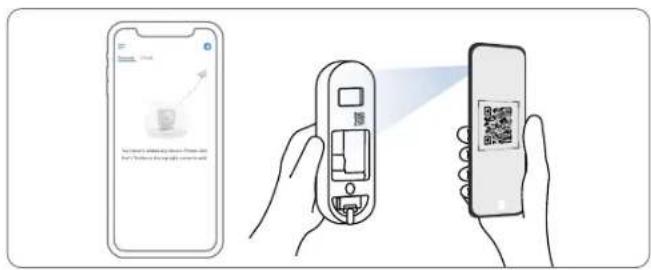

Illustration showing three smartphone scanning methods: displaying a QR code, using a handheld device, and scanning a smartphone with a QR code.

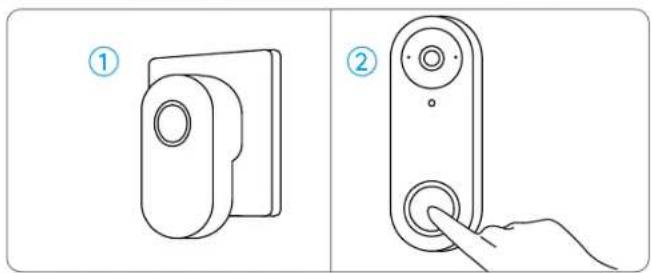

Diagram showing two-step device insertion: one with a button labeled ①, the other with a button labeled ②, indicating step ②.

EnglishEnglish7 8

Set up the Doorbell on PC (Optional)

Step 1

Download and install the Reolink Client. Go to https://reolink.com > Support > App & Client

Step 2

Power on the video doorbell.

Step 3

Launch the Reollink Client. Click the " + " button and input the UID number of the doorbell to add it.

Step 4

Follow the onscreen instructions to finish the initial setup.

Install the Doorbell

Step 1

Put the mounting hole template on the wall by the door and drill holes as shown.

Step 2

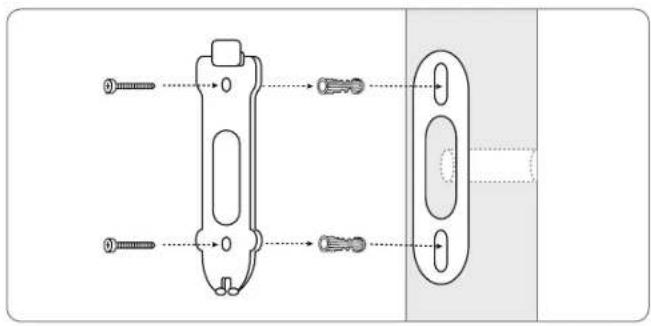

Install the mounting plate using the long screws provided through the two holes.

Technical line drawing of a mechanical component with threaded fasteners and a side view showing internal components (no text or symbols)

EnglishEnglish9 10

For the PoE Version:

Step 3

Run the Ethernet cable through the mounting plate and the hole on the wall to connect it to the doorbell, then attach the doorbell to the plate.

Step 4

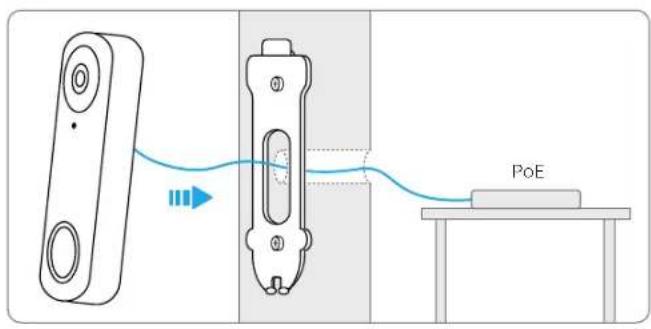

The doorbell is powered by connecting the other end of the Ethernet cable to a PoE device.

Diagram showing a device connected to a table with a PoE (Point of Electricity) sensor, indicating signal transmission or measurement.

For the WiFi Version:

Step 3

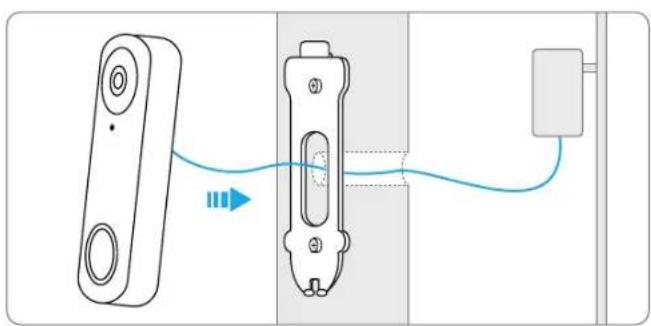

Run the power adapter through the mounting plate and the hole on the wall to connect it to the doorbell, then attach the doorbell to the plate.

Step 4

Plug the power adapter into a socket near the door. Use the long power extension cable if the socket is too far away from your doorbell.

Diagram showing a remote control device connected to a wall-mounted device via cable (no text or symbols present)

EnglishEnglish11 12

NOTE: Reolink Video Doorbell PoE&WiFi can also be powered by the existing doorbell wiring system. In such case, you are required to first bypass the existing mechanical chime with the jumper cable to get sufficient power. Without sufficient power, the doorbell may restart and has an unstable connection, and the mechanical chime may vibrate and generate noise. If the wire is not long enough, use the extension cable, as shown below. After the installation, the existing mechanical chime will not ring anymore. Use the extension cable to extend the length of the existing power cable for the doorbell, as shown below.

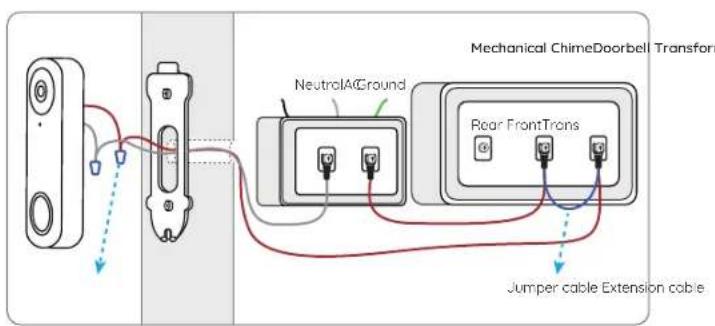

Mechanical ChimeDoorbell Transformer NeutralACGround Rear FrontTrans Jumper cable Extension cable

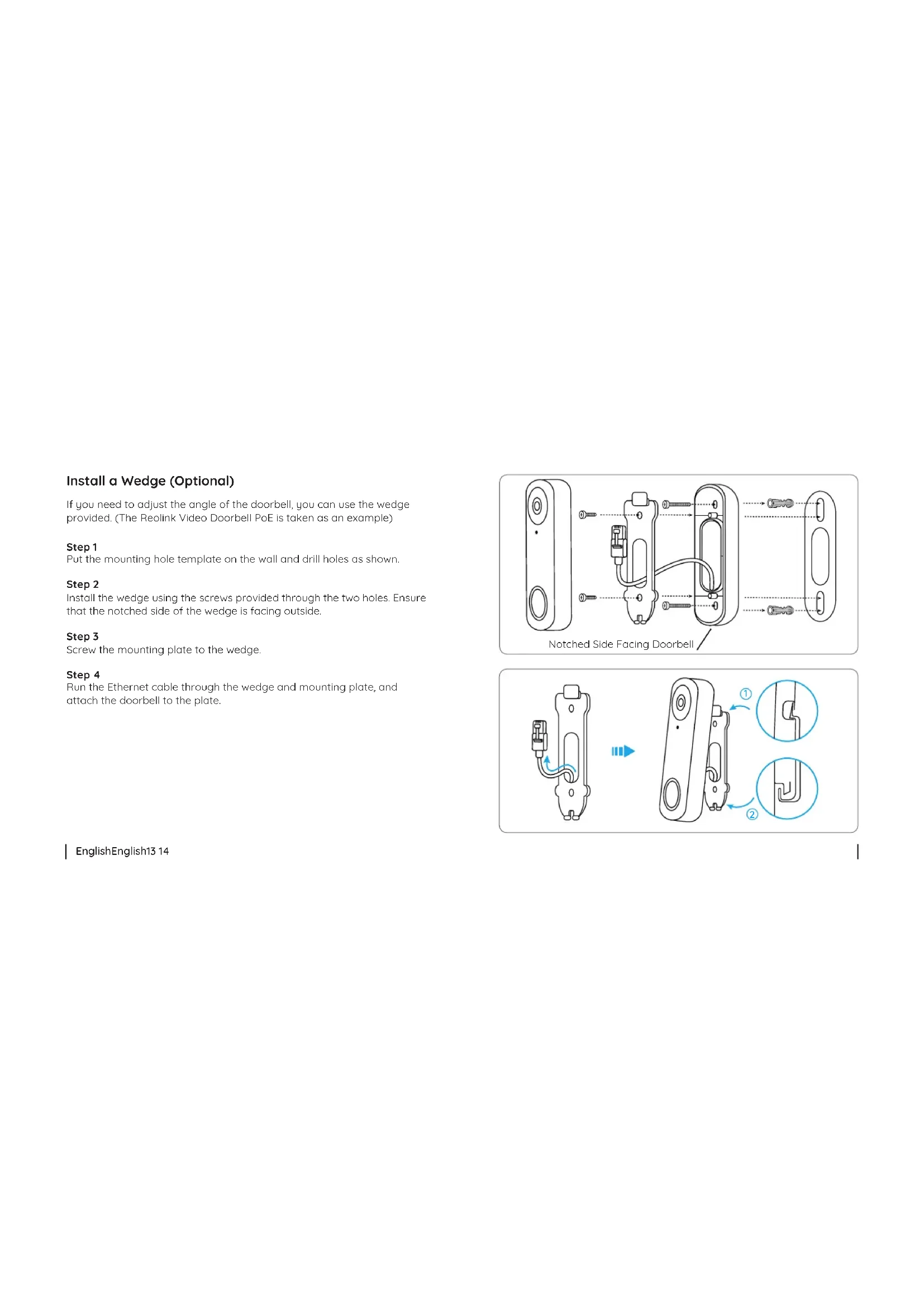

Install a Wedge (Optional)

If you need to adjust the angle of the doorbell, you can use the wedge provided. (The Realink Video Doorbell PoE is taken as an example)

Step 1

Put the mounting hole template on the wall and drill holes as shown.

Step 2

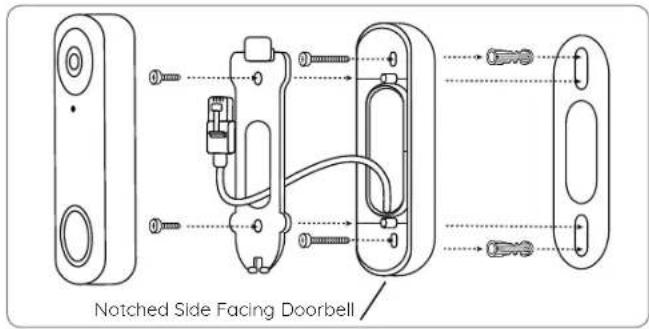

Install the wedge using the screws provided through the two holes. Ensure that the notched side of the wedge is facing outside.

Step 3

Screw the mounting plate to the wedge.

Step 4

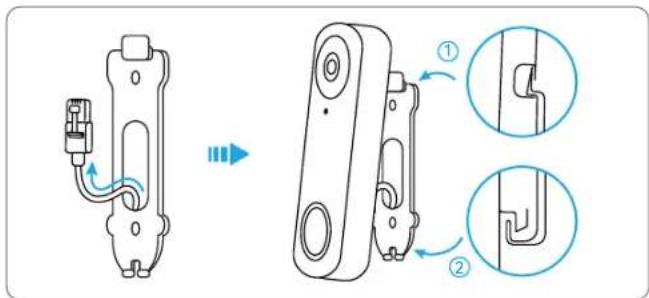

Run the Ethernet cable through the wedge and mounting plate, and attach the doorbell to the plate.

Notched Side Facing Doorbell

Technical diagram showing a device with labeled parts and directional arrows indicating assembly or transformation.

Remove the Doorbell

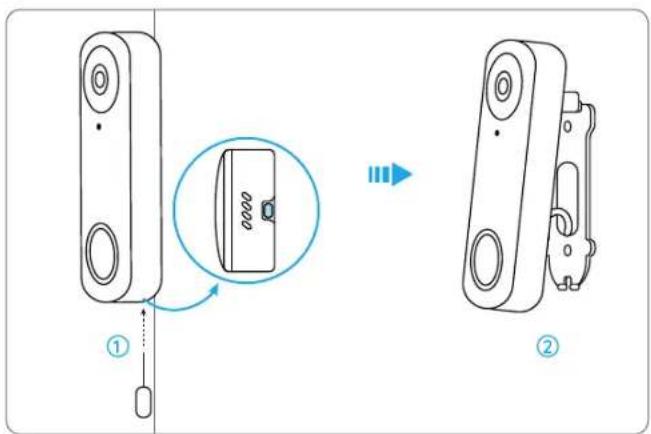

If you want to remove the doorbell from the mounting plate, you may use the reset needle to poke the bottom.

Diagram showing two views of a device with labeled components and a magnified inset highlighting a component.

EnglishEnglish15 16

Specification

Field of View:

Black Version: 135° Horizontal, 100° Vertical, 180° Diagonal White Version: 100° Horizontal, 135° Vertical, 180° Diagonal Dimension: 133 x 48 x 23mm Weight: 96g

Notification of Compliance

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Exposure Warning Statements

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.

Simplified EU Declaration of Conformity

Reolink declares that the WIFI camera is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU, the

EnglishEnglish17 18

PoE camera is in compliance with Directive 2014/30/EU.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes. throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Limited Warranty

This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/.

NOTE: We hope that you enjoy the new purchase. But if you are not satisfied with the product and plan to return, we strongly suggest that you reset the camera to factory default settings before returning.

Terms and Privacy

Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children.

End User License Agreement

By using the Product Software that is embedded on the Reolink product, you agree to the terms of this End User License Agreement ("EULA") between you and Reolink. Learn more: https://reolink.com/eula/.

ISED Statements

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency Exposure Statement for IC

The device has been evaluated to meet general RF exposure requirements. The device can be used in mobile exposure conditions. The min separation distance is 20cm.

OPERATING FREQUENCY (For WiFi Version) (the maximum transmitted power)

2.4 GHz EIRP<20dBm
5 GHz EIRP<23dBm
5.8GHz EIRP<14dBm
868MHz EIRP<14dbm

The functions of Wireless Access Systems Including Radio Local Area Networks(WAS/RLANs) within the band 5150-5350 MHz for this device are restricted to indoor use only within all European countries (BE/BG/CZ/DK/DE/EE/IE/EL/ES/FR/HR/IT/CY/LV/LT/MT/NL/AT/PL/PT/RO/SI/SK/FI/SE/TR/N O/CH/IS/LI/UK(NI))

Technical Support

If you need any technical help, please visit our official support site and contact our support team before returning the products: https://support.reolink.com.
