FS-250 - Slicer Nesco - Free user manual and instructions

Product Type	Electric Round Blade Slicer
Brand	Nesco
Model	FS-250
Intended Use	Household use only, for slicing non-frozen, boneless foods
Blade Diameter	8.7 inches (22.1 cm)
Power Supply	120 V AC, 60 Hz (polarized plug)
Power	Approximately 120 W (estimated)
Dimensions (approx.)	35.6 × 25.4 × 22.9 cm (14 × 10 × 9 in)
Weight (approx.)	2.7 kg (6 lb)
Cutting Thickness Adjustment	Dial from 0 (fine) to 12 (9/16 in / 14 mm)
Maximum Continuous Running Time	10 minutes, then cool down for at least 1 hour
Food Carriage	Removable, tiltable, with pusher rod
Blade Guard	Movable support plate protects the cutting edge during storage ("P" position)
Safety Devices	On/off switch, blade locking screw, carriage and blade guard required for operation
Cleaning of Blade and Accessories	Hand wash in warm soapy water; blade is very sharp, handle with care
Cleaning the Base	Wipe with a damp cloth; never immerse in water
Removable Parts for Cleaning	Blade, carriage, blade guard, pusher rod
Warranty	1 year against defects in material and workmanship (household use only)
After-Sales Service	Call 1-800-288-4545 for a return authorization number before shipping
Country of Manufacture	United States (The Metal Ware Corporation, Wisconsin)

Frequently Asked Questions - FS-250 Nesco

How do I adjust the slice thickness on the Nesco FS-250 slicer?

Turn the thickness control dial located on the side of the appliance. The positions range from 0 (very thin slice) to 12 (approximately 9/16 inch or 14 mm). After use, return the dial to the "P" position to protect the blade's cutting edge during storage.

Can I slice frozen foods or bones with this slicer?

No, the appliance is designed only for non-frozen and boneless foods. Attempting to cut frozen foods or bones can damage the blade and motor, and presents a risk of injury.

How long can I use the slicer continuously?

Do not operate the appliance for more than 10 minutes at a time. Allow it to cool down for at least 1 hour before using again to avoid overheating.

How to safely clean the blade and accessories?

Always unplug the appliance before cleaning. Remove the blade by unscrewing the locking screw (turn clockwise). Wash the blade, carriage, and blade guard by hand in warm soapy water. Be extremely careful as the blade is very sharp. Do not let the blade soak in water. Wipe the base with a damp cloth; never immerse it.

What if the blade does not turn after turning on the appliance?

Make sure the appliance is plugged in and the switch is set to "ON". Check that all parts are properly installed, especially the blade and carriage. The appliance will only operate if all components are in place and locked. If the problem persists, contact customer service at 1-800-288-4545.

How to replace or reinstall the blade after cleaning?

Carefully place the blade onto the motor coupling hub aligning the locking screw tabs with the corresponding slots. Press firmly, then turn the locking screw counterclockwise until it is tight to lock the blade.

The plug does not fit into the outlet. What to do?

The plug is polarized (one prong wider than the other). If it does not fit, try turning it over. If it still does not fit, have the outlet checked by a qualified electrician. Never modify the plug.

Can I use an extension cord with the slicer?

Yes, but with caution. Use an extension cord with electrical ratings at least equal to those of the appliance (120 V, 10 A). Do not let the extension cord hang over the counter to avoid tripping hazards.

How to obtain warranty service?

For a covered defect, call 1-800-288-4545 to obtain a return authorization number. Carefully pack the appliance with a copy of the proof of purchase and a letter describing the problem. Ship it prepaid to: The Metal Ware Corporation, 1700 Monroe Street, Two Rivers, WI 54241, USA.

Why does the blade continue to spin after turning off the appliance?

This is normal: the blade continues to spin for a short time after power off due to inertia. Wait for it to stop completely before removing food or cleaning the blade. Keep hands and utensils away from the blade until it is stationary.

USER MANUAL FS-250 Nesco

Exterior view of a modern stainless steel food processor with a circular blade and control panel (no text or symbols visible on the device itself)

IMPORTANT SAFEGUARDS .... 1
FEATURES....2
BEFORE FIRST USE 2
OPERATION 2
CARE AND CLEANING INSTRUCTIONS.... 3
RECIPIES....3
ONE YEAR LIMITED WARRANTY.... 4

MESURES DE PRÉCAUTION IMPORTANTES .... 5

CARACTÉRISTIQUES 6

AVANT LA PREMIÈRE UTILISATION 6

OPÉRATION 6

RECETTE 7

GARANTIE LIMITÉE D'UN AN 8

Technical Specifications:

Nominal voltage: 120V, 60Hz,

Power rating: 180 W

Cutting blade: reinforced, non-rusting fine blade, 19cm

“NESCO®” is a registered trademark of The Metal Ware Corporation.

The Metal Ware Corporation

1700 Monroe St., P.O. Box 237

Two Rivers, WI 54241-0237

Phone: [phone]

Part no.: 67520

FOR ACCESSORIES AND

ADDITIONAL PRODUCTS

nesco.com

IMPORTANT SAFEGUARDS

THIS PRODUCT IS DESIGNED FOR HOUSEHOLD USE ONLY. When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock and personal injury, do not immerse this appliance, including cord and plug, in water or other liquid.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts, and before cleaning.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. To avoid hazards, return appliance to NESCO® Factory Service Department for examination, repair or adjustment.
8. The use of accessory attachments not recommended by the manufacturer may result in fire, electric shock or injury to persons.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electrical burner or in a heated oven.
12. Do not use appliance for other than its intended use, as described in this manual.
13. Operate appliance only when all parts are fully engaged and secured.
14. Do not operate the appliance continuously for more than 10 minutes. Allow the appliance to cool down for one hour before second operation.
15. Do not use appliance to cut deep frozen food or bones.
16. Operate appliance only when Blade Locking Screw is properly engaged and tightened.
17. Handle Blade carefully when cleaning, removing and inserting, as blade is extremely sharp. Do not touch sharp edge of Blade.
18. Be careful, the Blade continues to turn for a while after the appliance has been turned off.
19. To avoid danger of injury, always cut food with this appliance fully assembled. The Food Carriage and Slicing Guard must always be used.
20. Adjust the supporting plate to position "0" after use and before cleaning..

SAVE THESE INSTRUCTIONS

Polarized Plug: This appliance has a polarized plug (one blade is wider than the other). To reduce risk of electric shock, plug is intended to fit into polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not try to modify the plug in any way.

Short Cord Instructions: A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the cord should be at least as great as the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the tabletop where it can be pulled on by children or tripped over unintentionally.

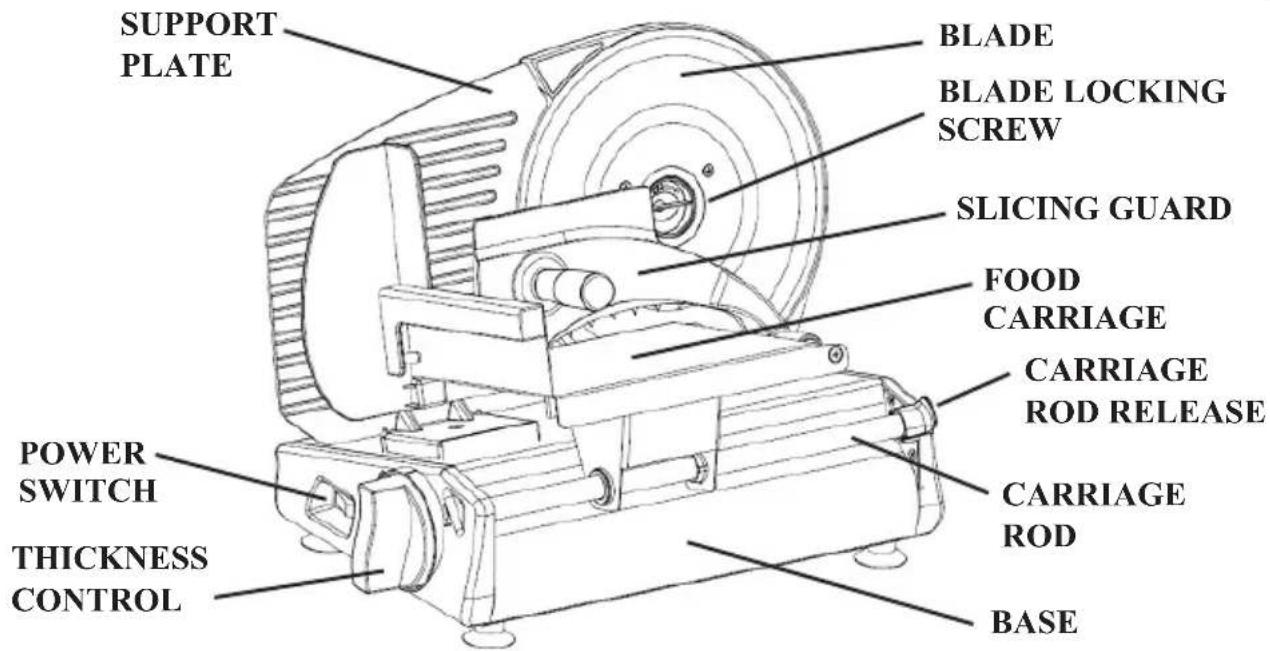

FEATURES

BEFORE FIRST USE

1. Read and understand all instructions and components described in this manual. Keep for future reference.
2. Remove all packaging and save for storage.
3. Remove and wash the Blade, Food Carriage and Slicing Guard in warm soapy water. (follow Care and Cleaning Instructions).
4. Wipe the Base with a damp cloth. DO NOT IMMERSE THE BASE IN WATER OR ANY OTHER LIQUID! (follow Care and Cleaning Instructions).

OPERATION

1. Place appliance on a flat, dry and stable surface.
2. Be sure power switch is 'OFF', then plug into a standard 120V AC electrical outlet.
3. Place a suitable tray or plate behind slicer to collect the sliced food.
4. Place food onto food carriage between support plate and slicing guard. To avoid danger of injury, always use food carriage and slicing guard while cutting.
5. Adjust the slice thickness by turning the thickness control to desired thickness between 0 and 12 (Deli thin to 9/16").
6. Slide food carriage back so food is clear of blade. Press power switch to start the slicer. Keep left hand clear, place near the power switch, and grasp the slicing guard with the other hand.
7. To begin slicing, push food in towards support plate while holding the slicing guard and slide food into blade. Slide food carriage back and repeat until you have sliced the desired amount of food.
8. When finished, press power switch to turn OFF unit. Note: Blade will continue to move for a short time. Always keep hands away from blade! Remove plug from electrical outlet before cleaning.
9. For safety, always return thickness control to 'P' after use to shield sharp edge of blade during storage.

CARE AND CLEANING INSTRUCTIONS

1. Always unplug the appliance from electrical outlet before cleaning.

2. Never immerse the base of this appliance in water or other liquid.

3. The blade, slicing guard and food carriage can all be removed and hand washed in warm soapy water. Be careful when cleaning the blade, as it is extremely sharp. Do not leave blade under water; trying to handle sharp objects in water can be hazardous.

4. Set thickness control to "P". This will keep the blade edge covered by support plate.

5. For ease of cleaning, the food carriage can be tilted up or completely removed.

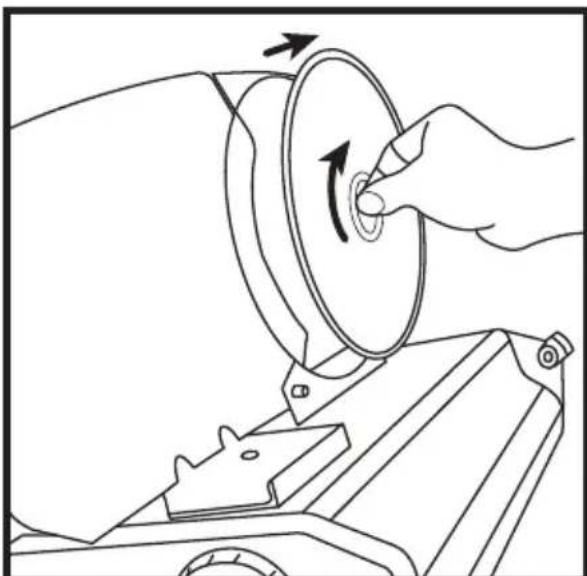

6. Remove blade by holding the blade with one hand and using two fingers to pinch and turn blade locking screw. Unlock blade by turning screw clockwise. Carefully remove blade and hold by using the blade locking screw.

7. Clean outer surfaces with a damp cloth. Mild detergent or plain water can be used to dampen cloth. Never immerse base in water or any other liquid. Do not use steel wool, abrasive cleaners or sharp utensils to clean any part of this appliance.

8. After cleaning and drying, install blade to base in reverse order of Step 6. Carefully place blade on mating hub of motor. Align the locking screw tabs with the mating slots in the hub of motor and press in until seated. Rotate locking screw counter-clockwise until seated to lock blade in place.

Mechanical assembly diagram showing a shaft and housing with directional arrows indicating motion (no text or symbols)

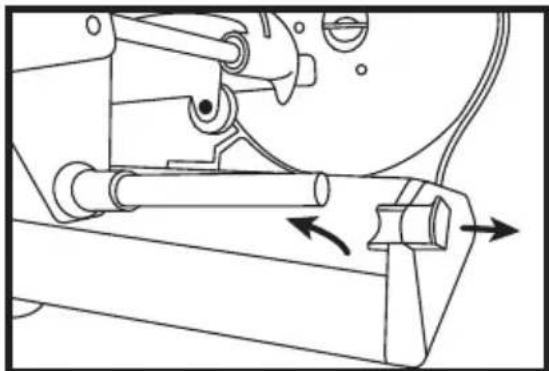

CARRIAGE REMOVAL

Line drawing of a mechanical device with an arrow indicating rotation or movement (no text or symbols)

Line drawing of a hand operating a mechanical device with a rotating wheel (no text or symbols)

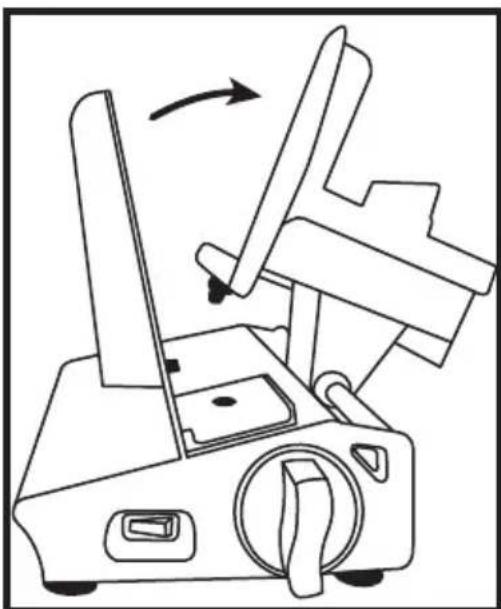

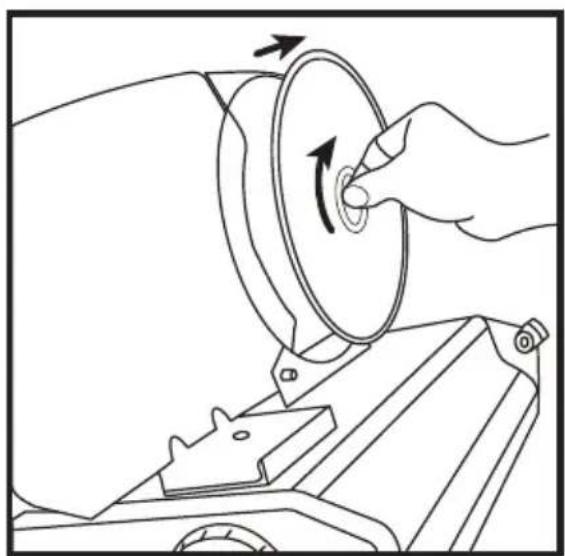

CARRIAGE TILT BLADE REMOVAL

ONE YEAR LIMITED WARRANTY

This appliance is warranted for one year from date of original purchase against defects in material and workmanship. This warranty does not cover transportation damage, misuse, accident or similar incident. This warranty gives you specific legal rights and you may have other rights, which vary from state to state. This product is intended for household use only, not for commercial use. Warranty does not cover commercial use.

Your new NESCO® appliance comes equipped with numerous safety features. Any attempt to interfere with the operation of these safety features makes this warranty null and void. In the event we receive an appliance for service that has been tampered with, we reserve the right to restore it to its original state and charge for the repair.

For service in warranty - Defective products may be returned, postage prepaid, with a description of the defect to: The Metal Ware Corporation, 1700 Monroe Street, Two Rivers, Wisconsin 54241, for no-charge repair or replacement at our option.

Must include proof of purchase or copy of original bill of sale when returning product for warranty service.

Please call Customer Satisfaction at 1-800-288-4545 to obtain a Return Authorization before shipping.

• For service in warranty, follow instructions set forth in warranty. When ordering new parts, make sure that you always mention the model number of the product.
• Call us on our toll free number, 1-800-288-4545 and tell us about your problem.
• If we instruct you to send all or part of your appliance to us for repair or replacement, our Customer Satisfaction representative will provide a Return Authorization number (this number notifies our receiving department to expedite your repair). Pack your unit carefully in a sturdy carton with sufficient padding to prevent damage because any damage caused in shipping is not covered by the warranty.
• Print your name, address and Return Authorization number on the carton.
• Write a letter explaining the problem. Include the following: your name, address and telephone number and a copy of the original bill of sale.
• Attach the sealed envelope containing the letter inside the carton. Insure the package for the value of the NESCO® appliance and ship prepaid to:

Attn: Factory Service Dept.

The Metal Ware Corporation

1700 Monroe Street

Two Rivers, WI 54241

MESURES DE PRÉCAUTION IMPORTANTES

Technical line drawing of a mechanical assembly with no visible text or symbols

CARRIAGE RETRAITS

Line drawing of a mechanical device with an arrow indicating rotation or assembly (no text or symbols)

Line drawing of a hand operating a mechanical component with a rotating wheel (no text or symbols)

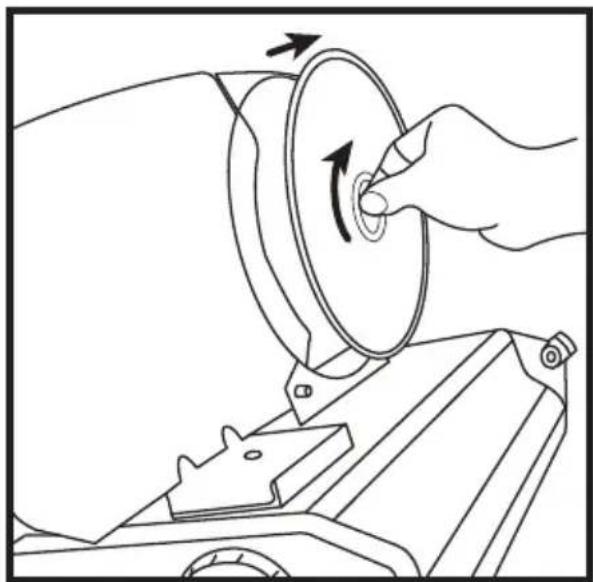

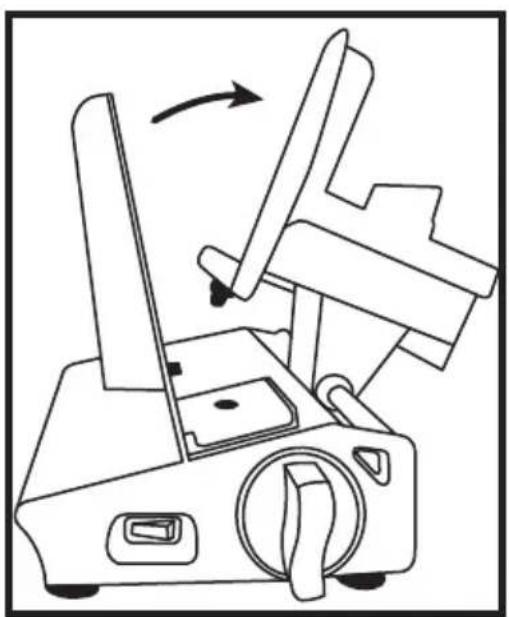

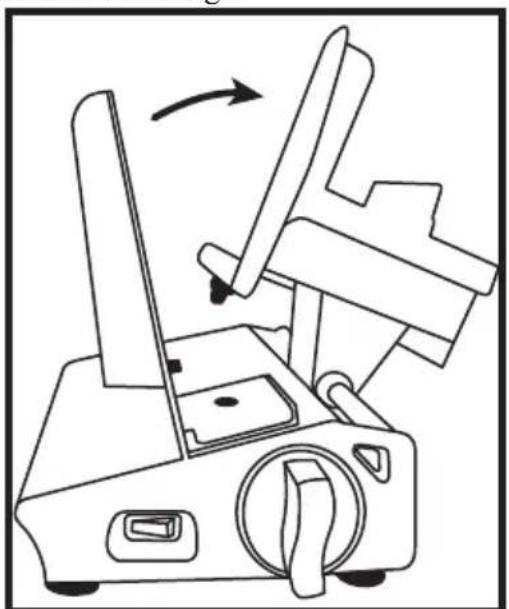

CARRIAGE TILT BLADE RETRAITS

GARANTIE LIMITÉE D'UN AN

Attn: Factory Service Dept.

The Metal Ware Corporation

1700 Monroe Street

Two Rivers, WI 54241

Technical line drawing of a mechanical assembly with no visible text or symbols

CARRIAGE REMOCIÓN

Line drawing of a mechanical device with an arrow indicating rotation or movement (no text or symbols)

Line drawing of a hand operating a mechanical component with a rotating wheel (no text or symbols)

1 - 800 - 288 - 4545
