USER MANUAL OMR555RR0X WHIRLPOOL

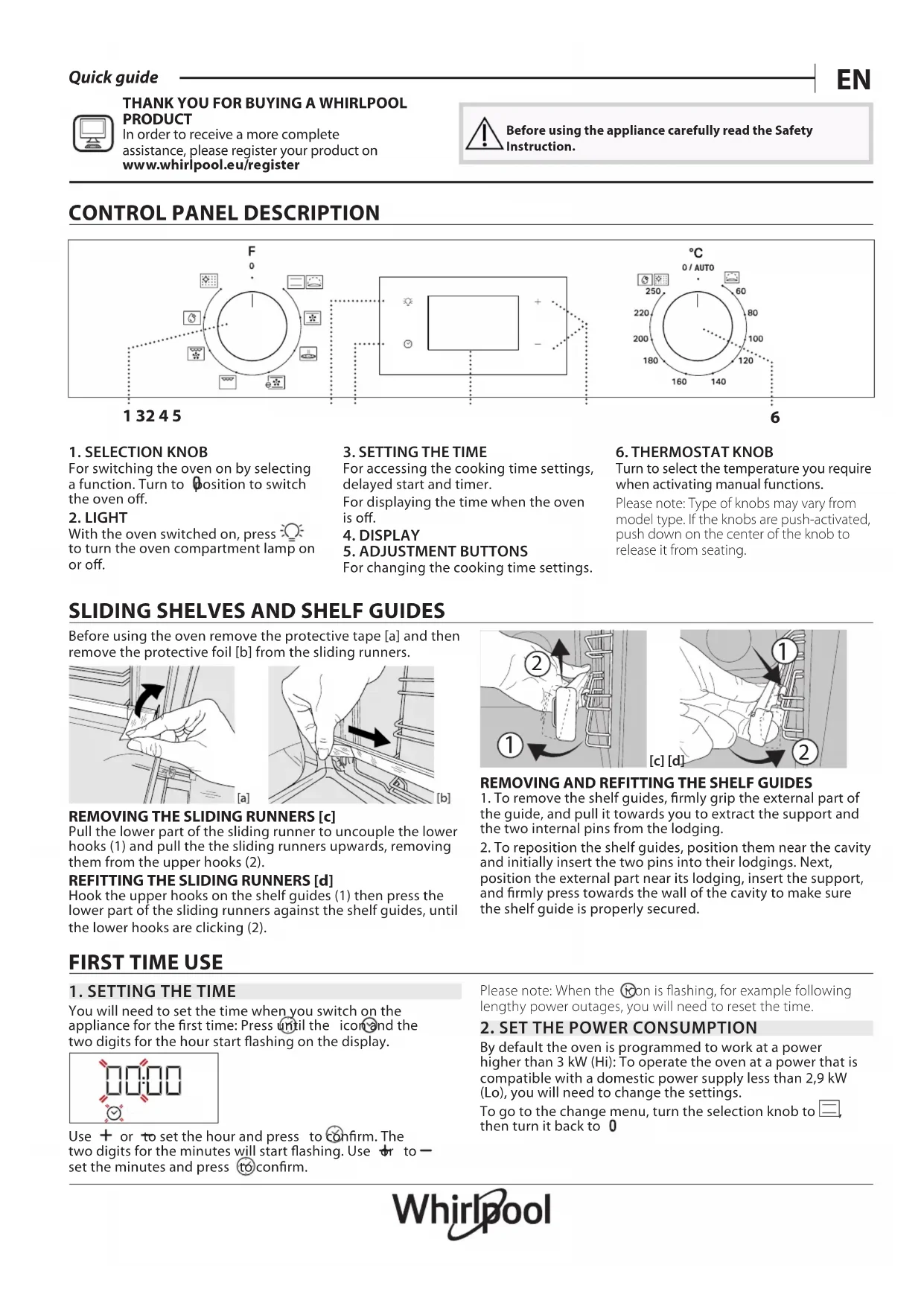

Quick guideSLIDING SHELVES AND SHELF GUIDESBefore using the oven remove the protective tape [a] and then remove the protective foil [b] from the sliding runners.REMOVING THE SLIDING RUNNERS [c]Pull the lower part of the sliding runner to uncouple the lower hooks (1) and pull the the sliding runners upwards, removing them from the upper hooks (2).REFITTING THE SLIDING RUNNERS [d]Hook the upper hooks on the shelf guides (1) then press the lower part of the sliding runners against the shelf guides, until the lower hooks are clicking (2).

[c] [d]REMOVING AND REFITTING THE SHELF GUIDES1. To remove the shelf guides, rmly grip the external part of the guide, and pull it towards you to extract the support and the two internal pins from the lodging.2. To reposition the shelf guides, position them near the cavity and initially insert the two pins into their lodgings. Next, position the external part near its lodging, insert the support, and rmly press towards the wall of the cavity to make sure the shelf guide is properly secured.FIRST TIME USE1. SETTING THE TIMEYou will need to set the time when you switch on the appliance for the rst time: Press until the icon and the two digits for the hour start ashing on the display. Use or to set the hour and press to conrm. The two digits for the minutes will start ashing. Use or to set the minutes and press to conrm.Please note: When the icon is ashing, for example following lengthy power outages, you will need to reset the time.2. SET THE POWER CONSUMPTIONBy default the oven is programmed to work at a power higher than 3 kW (Hi): To operate the oven at a power that is compatible with a domestic power supply less than 2,9 kW (Lo), you will need to change the settings.To go to the change menu, turn the selection knob to then turn it back to .CONTROL PANEL DESCRIPTION1 32 4 5 1. SELECTION KNOBFor switching the oven on by selecting a function. Turn to position to switch the oven o.2. LIGHTWith the oven switched on, press to turn the oven compartment lamp on or o.3. SETTING THE TIMEFor accessing the cooking time settings, delayed start and timer.For displaying the time when the oven is o.4. DISPLAY 5. ADJUSTMENT BUTTONSFor changing the cooking time settings.6. THERMOSTAT KNOBTurn to select the temperature you require when activating manual functions.Please note: Type of knobs may vary from model type. If the knobs are push-activated, push down on the center of the knob to release it from seating.THANK YOU FOR BUYING A WHIRLPOOL PRODUCTIn order to receive a more complete assistance, please register your product on ww w . whirlpool . eu/register Before using the appliance carefully read the Safety Instruction.FUNCTIONS & DAILY USE CONVENTIONAL For cooking any kind of dish on one shelf only. RISING For helping sweet or savoury dough to rise eectively. Turn the thermostat knob to the icon to activate this function. CONVECTION BAKE For cooking dierent foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook dierent foods without odours being transferred from one food to another. PIZZA For baking dierent types and sizes of pizza and bread. It is a good idea to swap the position of the baking trays halfway through cooking.

For cooking roasts and stued roasting joints on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this ECO function is in use, the light will remain switched o during cooking but can be switched on again by pressing

GRILL For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a DRIP TRAY to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water. TURBO GRILL For roasting large joints of meat (legs, roast beef, chicken). We recommend using a DRIP TRAY to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

SMARTCLEAN The action of the steam released during this special low-temperature cleaning cycle allows dirt and food residues to be removed with ease. To activate the “Smart Clean” function, pour 100-120ml of drinking water on the bottom of the oven and only then turn the selection knob and the thermostat knob to the icon. Activate the function when the oven is cold. The position of the icon . Does not correspond to the temperature reached during the cleaning cycle.

AUTOMATIC CLEANING - PYRO

For eliminating cooking spatters using a cycle at very high temperature. To activate this function move thermostat knob to . The position of the icon does not correspond to the real temperature reached during the cleaning cycle.

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require: the display will light up and an audible signal will sound.

2. ACTIVATE A FUNCTION

MANUAL To start the function you have selected, turn the thermostat knob to set the temperature you require. Please note: During cooking you can change the function by turning the selection knob or adjust the temperature by turning the thermostat knob. The function will not start if the thermostat knob will be on position. You can set the cooking time, cooking end time (only if you set a cooking time) and a timer. RISING To start the “Rising” function, turn the thermostat knob to Rising position (40 deg) and put function knob in Conventional position; if the oven is set to a dierent temperature, the function will not start. Please note: You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

3. PREHEATING AND RESIDUAL HEAT

Once the function starts, an audible signal and a ashing icon on the display indicate that the preheating phase has been activated. At the end of this phase, an audible signal and the xed icon on the display will indicate that the oven has reached the set temperature: at this point, place the food inside and proceed with cooking. Please note: Placing the food in the oven before preheating has nished may have an adverse eect on the nal cooking result. Press and hold and for ve seconds immediately afterwards. Use or to change the setting, then press and hold for at least two seconds to conrm.

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours. Remove any protective cardboard or transparent lm from the oven and remove any accessories from inside it. Heat the oven to 250 °C for about one hour. The oven must be empty during this time. Please note: It is recommended to ventilate the room after using the appliance for the rst time.After cooking and with the function deactivated, the icon may continue to remain visible on the display even after the cooling fan has switched o to indicate that there is residual heat in the compartment. Please note: The time after which the icon switches o varies because it depends on a series of factors such as ambient temperature and function used. In any case, the product should be considered to be o when the pointer on the selection knob is at “0”.

4. PROGRAMMING COOKING

You will need to select a function before you can start programming cooking. DURATION Keep pressing until the icon and “00:00” start ashing on the display. Use or to set the cooking time you require, then press to conrm. Activate the function by turning the thermostat knob to the temperature you require: an audible signal will sound and the display will indicate that cooking is complete. Please note: To cancel the cooking time you have set, keep pressing until the icon starts ashing on the display, then use to reset the cooking time to “00:00”. This cooking time includes a preheating phase.

PROGRAMMING THE END COOKING TIME/

DELAYED START After a cooking time has been set, starting the function can be delayed by programming its end time: press until the icon and the current time start ashing on the display. Use or to set the time you want cooking to end and press to conrm. Activate the function by turning the thermostat knob to the temperature you require: the function will remain paused until it starts automatically in time calculated based on selected cooking end time. Please note: To cancel the setting, switch the oven o by turning the selection knob to position. Delay to start functionality is not available for Grill and Turbo Grill functions.

An audible signal will sound and the display will indicate that the function has nished. Turn the selection knob to select a dierent function or to to switch the oven o. Please note: If the timer is active, the display will show “END” alternately with the remaining time.

5. SETTING THE TIMER

This option does not interrupt or program cooking but allows you to use the display as a timer, either during while a function is active or when the oven is o. Keep pressing until the icon and “00:00” start ashing on the display. Use or to set the time you require and press to conrm. An audible signal will sound once the timer has nished counting down the selected time. Notes: To cancel the timer, keep pressing until the icon starts ashing, then use to reset the time to “00:00”.

6. AUTOMATIC CLEANING FUNCTION – PYRO

Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven during and after running the Pyro cycle, until the room has nished airing. Remove all accessories - including shelf guides - from the oven before activating the function. If the oven is installed below a hob, make sure that all the burners or electric hotplates are switched o while running the selfcleaning cycle. For optimum cleaning results, remove excessive residuals inside the cavity and clean the inner door glass before using the pyrolytic function. Avoid activating the pyro cycle cleaning in the presence of limescale residues. We recommend only running the Pyro function if the appliance contains heavy soiling or gives o bad odours during cooking. To activate the automatic cleaning function, turn the selection knob and the thermostat knob to the icon. The function will be activated automatically, the door locked and the light inside the oven switched o: The display will show the time remaining to the end, alternating with “Pyro”. Once the cycle has been completed, the door remains locked until the temperature inside the oven has returned to a safe level. Air the room during and after running the Pyro cycle.COOKING TABLE RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (MIN) LEVEL AND ACCESSORIES Leavened cakes Yes 170 30 - 50

Toasted bread 5' 250 2 - 6

ACCESSORIES Wire shelf Baking dish or cake tin on the wire shelf Baking tray/Drip tray or Baking dish on the wire shelf Drip tray / Baking tray ** Turn food two thirds of the way through cooking (if necessary). The level is indicated on the wall of the cooking compartment. The time indicated does not include the preheating phase: we recommend placing the food in the oven and setting the cooking time only after the required temperature has been reached.Policies, standard documentation and additional product information can be found by:
