XF8mmF3.5 R WR - Camera FUJIFILM - Free user manual and instructions

Product Type	Ultra-wide angle lens for Fujifilm X mount
Focal Length	8 mm (equivalent 12 mm in 35 mm format)
Maximum Aperture	f/3.5
Minimum Aperture	f/22
Optical Construction	12 elements in 9 groups (3 aspherical, 2 ED)
Angle of View	121°
Minimum Focusing Distance	0.18 m (from focal plane)
Maximum Magnification	0.07×
Aperture Control	9 blades, circular diaphragm, 1/3-stop increments (17 stops)
Filter Diameter	62 mm
Dimensions (diameter × length)	∅68 × 52.8 mm
Weight (without caps or hood)	215 g
Mount	Fujifilm X
Weather Sealing	Splash-resistant (rubber gasket at mount)
Hood supplied	Yes, removable
Caps supplied	Front and rear
Protective case supplied	No (protective cloth included)
Maintenance	Clean with blower and soft cloth, no organic solvents
Safety Instructions	Do not immerse, do not disassemble, avoid high temperatures
Compatibility	Exclusively for Fujifilm X-mount cameras (incompatible with G mount)
Warranty	Refer to the supplied FUJIFILM Worldwide Network document

Frequently Asked Questions - XF8mmF3.5 R WR FUJIFILM

What is the actual focal length of the lens?

The actual focal length is 8 mm, which is equivalent to 12 mm in full-frame 35 mm format.

Is this lens compatible with Fujifilm X-mount cameras?

Yes, it is designed exclusively for the Fujifilm X mount. It is not compatible with the G mount or with X-mount film cameras.

Is the lens weather-sealed?

It is splash-resistant thanks to a rubber gasket on the mount. It is not designed for immersion.

What is the filter diameter?

The filter diameter is 62 mm.

What is the minimum focusing distance?

The minimum distance is 0.18 m (measured from the focal plane), providing a maximum magnification of 0.07×.

How to clean the lens?

Use a blower to remove dust, then a soft cloth with a little optical cleaner in circular motions. Never use organic solvents.

Can I use a tripod with this lens?

Yes, but do not carry the camera with the lens attached to a tripod to avoid drops.

Is the lens hood included?

Yes, a removable lens hood is supplied to reduce flare and protect the front element.

Should I update the firmware?

It is recommended to keep the lens and camera firmware updated via the Fujifilm website.

Where can I find the complete manual?

The detailed manual is available for free download in PDF format on notice-facile.com in several languages.

USER MANUAL XF8mmF3.5 R WR FUJIFILM

① レンズフード

② 取り付け指標

③ フォーカスリング

④ 絞りリングロック解除ボタン

⑤ 取り付け指標（焦点距離）

⑥ 絞りリング

⑦ レンズ信号接点

⑧ レンズフロントキャップ

⑨ レンズリアキャップ

レンズフードの取り付け方

付属品一覧

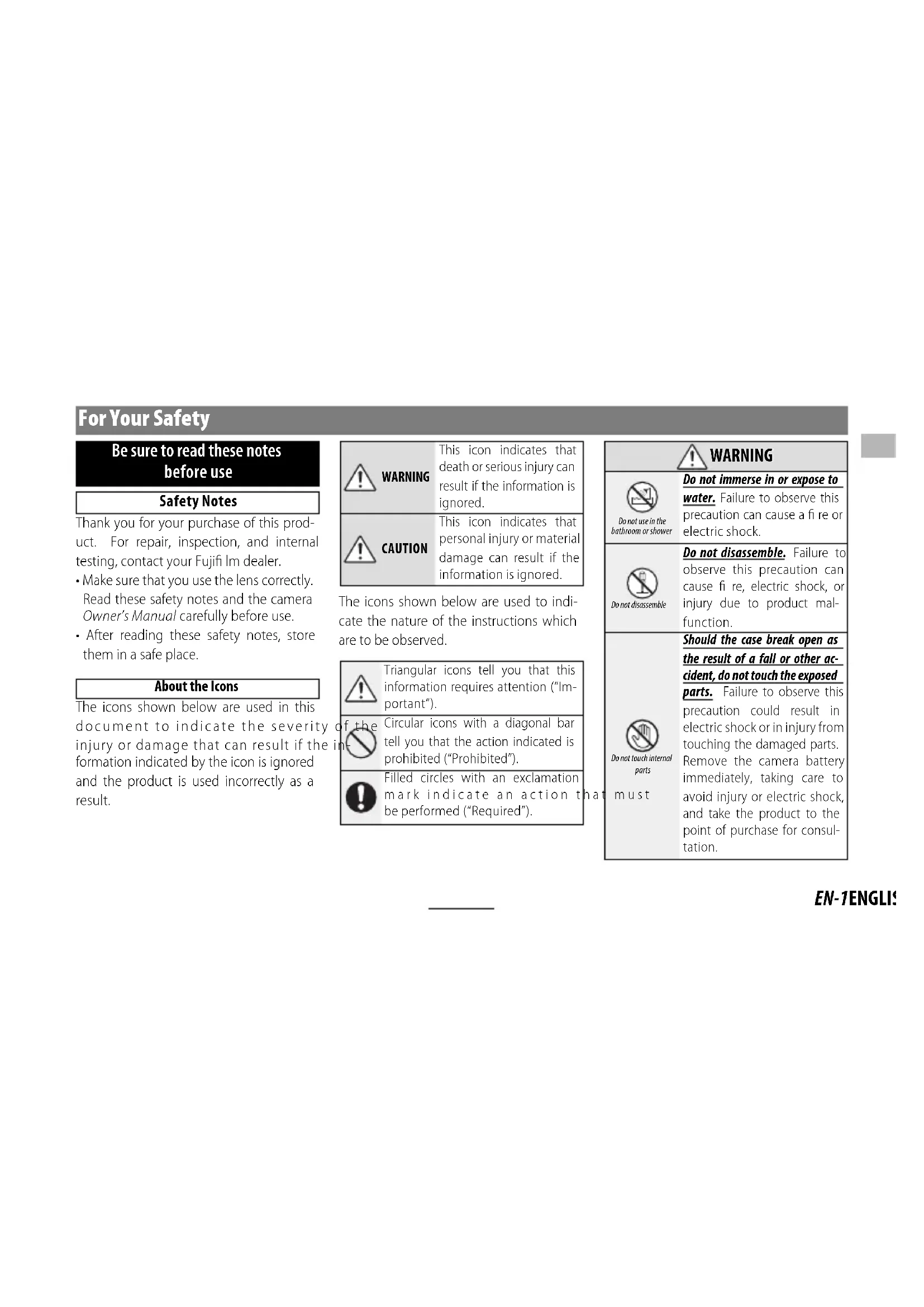

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your Fujifi lm dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

	This icon indicates that death or serious injury can result if the information is ignored.
	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
if the n-	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action t be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble.Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
	Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera view fi ndFailure to observe this precaution can cause permanent visual impairment.
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

	CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

	CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-003 (B)/NMB-003(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as ra-

diators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

U.K. Importer:

FUJIFILM UK Ltd.

Fujifi Im House, Whitbread Way, Bedford,

Bedfordshire, MK42 0ZE, United Kingdom

EU Importer:

FUJIFILM Germany GmbH

Balcke-Dürr-Allee 6, 40882 Ratingen, Germany

Australian RCM

EN-3ENGLI

Before Using This Product

The lens may not perform as expected and some features may not be available with outdated lens or camera fi rmware. Be sure to update the lens and camera fi rmware to the latest versions. Instructions on viewing fi rmware version information and updating fi rmware are available from the following website:

https://fujifilm-x.com/support/download/firmware/

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.

• Keep the lens signal contacts clean.

• Use a blower to remove dust and lint from the glass surfaces of the lens or fi lter. To remove smudges and fi ingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and filter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
  • Leaving the lens in extremely hot locations could cause damage or warping.

Parts of the Lens

XF8mmF3.5 R WR

① Lens hood
② Mounting marks
③ Focus ring
④ Aperture ring lock release
⑤ Mounting marks (focal length)
⑥ Aperture ring
⑦ Lens signal contacts

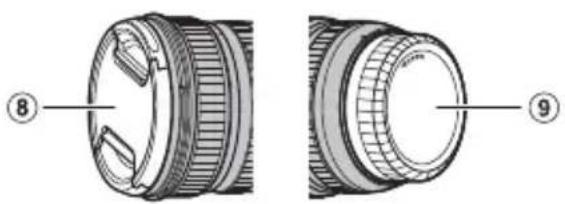

⑧ Front lens cap
⑨ Rear lens cap

①The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any Fujifi lm service center.

Attaching the Lens

See the camera manual for information on attaching and removing lenses.

① This product is for use exclusively with the FUJIFILM X mount. It is not compatible with the G mount or with X mount film cameras.

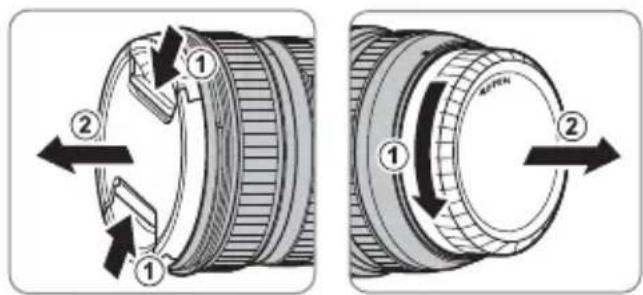

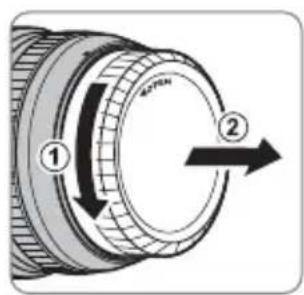

Removing the Caps

Remove the caps as shown.

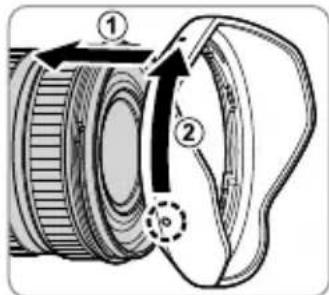

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

Supplied Accessories

• Front lens cap
• Rear lens cap
• Lens hood
• Lens wrapping cloth

The Aperture Ring

Rotate the lens aperture ring to choose the aperture (f-number).

① A (A): Set aperture to the value chosen automatically by the camera.

② Other values (2): Set aperture to the selected value.

To select A, or to select another value after selecting A, press the aperture ring lock release while rotating the aperture ring.

Aperture ring lock release Aperture ring

Specifications

Type	XF8mmF3.5 R WR
Lens construction	12 elements in 9 groups (3 aspherical elements, 2 ED elements)
Focal length (35 mm format equivalent)	f=8 mm (12 mm)
Angle of view 121°
Max. aperture f/3.5
Min. aperture f/22
Aperture controlNumber of blades 9 (rounded diaphragm opening)Stop size	1/3 EV (17 stops)
Minimum focus distance (measured from focal plane)	0.18 m
Max. magnifi cation 0.07 ×
External dimensions: Diameter × Length* (approx.)* distance from front of lens to lens mount fl ange	∅68 × 52.8 mm
Weight* (approx.) * excluding caps and hoods	215 g
Filter size	∅62 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

Pour votre sécurité

https://fujifilm-x.com/support/download/firmware/

Accessoires fournis

https://fujifilm-x.com/support/download/firmware/

https://fujifilm-x.com/support/download/firmware/

De zonnekap bevestigen

Meegeleverde accessoires

Ontgrendeling diafragmaring Diafragmaring

Technische gegevens

https://fujifilm-x.com/support/download/firmware/

https://fujifilm-x.com/support/download/firmware/

① Solblender
② Monteringsmerker
③ Fokusring
④ Utløs lås for blenderåpningsring
⑤ Monteringsmerker (brennvidde)
⑥ Blenderring
⑦ Objektivets signalkontakter
⑧ Fremre objektivdeksel
⑨ Bakre objektivdeksel

https://fujifilm-x.com/support/download/firmware/

https://fujifilm-x.com/support/download/firmware/

Установка бленды

https://fujifilm-x.com/support/download/firmware/

Montaggio paraluce

https://fujifilm-x.com/support/download/firmware/

https://fujifilm-x.com/support/download/firmware/

Dołączone akcesoria

https://fujifilm-x.com/support/download/firmware/

安装遮光罩

附带配件

https://fujifilm-x.com/support/download/firmware/

安裝遮光罩

隨附配件

光圈環鎖定釋放鈕 光圈環

規格

후드부착

제공되는 액세리

조리개 링 잠금 해제
조리개 링

한글

KO-7

사양

الإكسسوارات المرفقة

تركيب العدسة

XF8mmF3.5 R WR

① واقية العدسة

② علامات التركيب

③ حلقة tanker
