USER MANUAL POWXG2033 PowerPlus

9.2 Nettoyage/stockage

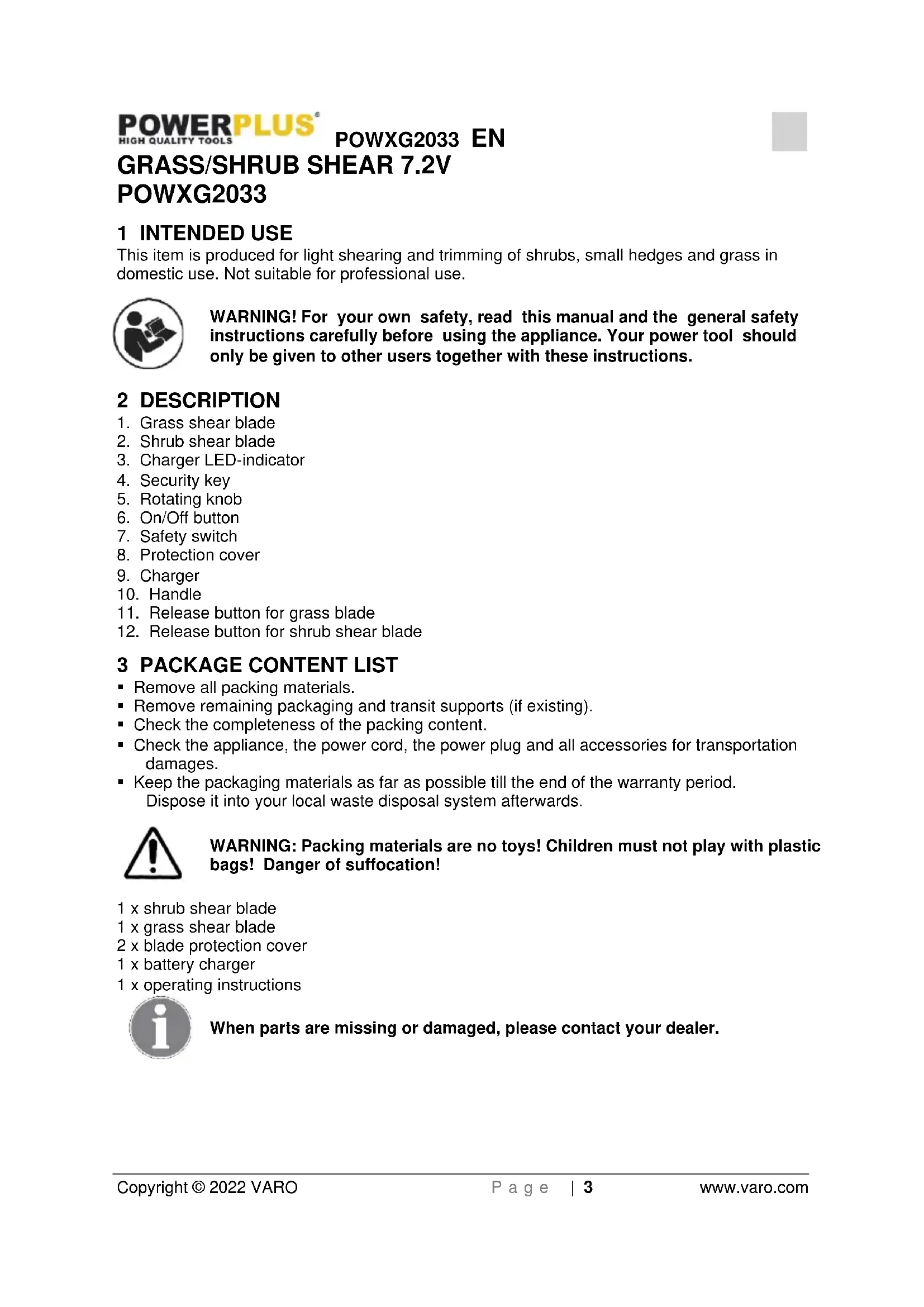

POWXG2033 1 INTENDED USE This item is produced for light shearing and trimming of shrubs, small hedges and grass in domestic use. Not suitable for professional use. WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. 2 DESCRIPTION

12. Release button for shrub shear blade

3 PACKAGE CONTENT LIST

• Remove all packing materials.

• Remove remaining packaging and transit supports (if existing).

• Check the completeness of the packing content.

• Check the appliance, the power cord, the power plug and all accessories for transportation damages.

• Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packing materials are no toys! Children must not play with plastic

bags! Danger of suffocation! 1 x shrub shear blade 1 x grass shear blade 2 x blade protection cover 1 x battery charger 1 x operating instructions When parts are missing or damaged, please contact your dealer.POWXG2033 EN Copyright © 2022 VARO P a g e | 4 www.varo.com

Denotes risk of personal injury or damage to the tool.

Read manual before use

In accordance with essential safety standards of applicable European directives

Mandatory use of eye protection.

Battery charger contains a safety transformer.

Never operate the machine in the rain or in damp or wet condition. Moisture is a shock hazard.

Only use the battery charger indoors.

Warning! The cutting means continues to move after the motor is switched off.

Warning! Flying objects

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.POWXG2033 EN Copyright © 2022 VARO P a g e | 5 www.varo.com

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

• Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

• Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.POWXG2033 EN Copyright © 2022 VARO P a g e | 6 www.varo.com

• Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 6 SPECIAL SAFETY REGULATIONS FOR CORDLESS GRASS/HEDGE SHEAR

6.1 Shrub shears safety warning

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving.

• Make sure the switch is off when clearing jammed material. A moment of inattention while operating the machine may result in serious personal injury.

• Carry the machine by the handle with the cutter blade stopped. When transporting or storing the machine always fit the cutting device cover. Proper handling of the machine will reduce possible personal injury from the cutter blades.

• Keep cables away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

6.2 Grass shears safety warning

• Keep supply and extension cords away from cutting means.

• Use the machine only in daylight or good artificial light.

• Never operate the machine with damaged guards or shields or without guards or shields in place.

• Switch on the motor only when the hands and feet are away from the cutting means.

• Always disconnect the machine from the power supply (i. e. remove the plug from the mains or remove the disabling device) − whenever leaving the machine unattended − before clearing a blockage − before checking, cleaning or working on the unit − after striking a foreign object − whenever the machine starts vibrating abnormally

• Take care against injury to feet and hands from the cutting means.

• Always ensure that the ventilation openings are kept clear of debris.

6.3 Battery/Battery charger safety warnings

• Protect the battery charger from rain and moisture. The penetration of water in a battery charger increases the risk of electric shock.

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Do not charge other batteries. The battery charger is suitable only for charging lithium ion batteries of POWXG2033. Otherwise danger, fire and explosion may occur.

• Keep the battery charger clean. Contamination may cause the danger of electric shock.

• Check the battery charger, cable and plug each time before using. Do not use the battery charger when defects are detected. Do not open the battery charger yourself and have it repaired only by qualified personnel using original spare parts. Damaged battery chargers, cables and plugs increase the risk of electric shock.

• Do not operate the battery charger on easily inflammable surfaces (e. g. paper, textiles, etc.) or in combustible environments. There is danger of fire due to the heating of the battery charger during charging.POWXG2033 EN Copyright © 2022 VARO P a g e | 7 www.varo.com

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not open the battery yourself. There is danger of a short circuit.

• Protect the battery against heat, e.g., including against continuous sun irradiation and fire. There is a danger of explosion.

• Do not short-circuit the battery. There is a danger of explosion.

• In case of damage and improper use of the battery, vapours may be emitted. In case of complaints, provide for fresh air and consult a physician. The vapours can irritate the respiratory system. 7 OPERATION

7.1 Charging procedure

The battery charger supplied matches only to the Li-ion battery installed in POWXG2033. Do not use other battery chargers. The Li-ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The blade no longer moves and a slight whistling sound can be heard.

7.2 Charging the battery

The charging process starts as soon as the small plug is inserted in the machine and when the mains plug of the battery charger is inserted in the socket. Before the charge, make sure the current does not exceed 1.5 An and the voltage does not exceed 9 V. During the charging procedure, the handle of the machine warms up. This is normal. When not using for extended periods, disconnect the battery charger from the socket. Do not use the machine during the charging procedure.

7.3 Switching on/off

7.3.1 Security key（4）

Pull out the security key before you replace the blades! (Fig. 1) Do not pull out the security key during working. The security key (4)controls the on/off stand.

• When the security key is pulled out: the machine doesn’t work. (Fig. 1)

• When the security key is plugged in: the machine works normal. (Fig. 2)POWXG2033 EN Copyright © 2022 VARO P a g e | 8 www.varo.com

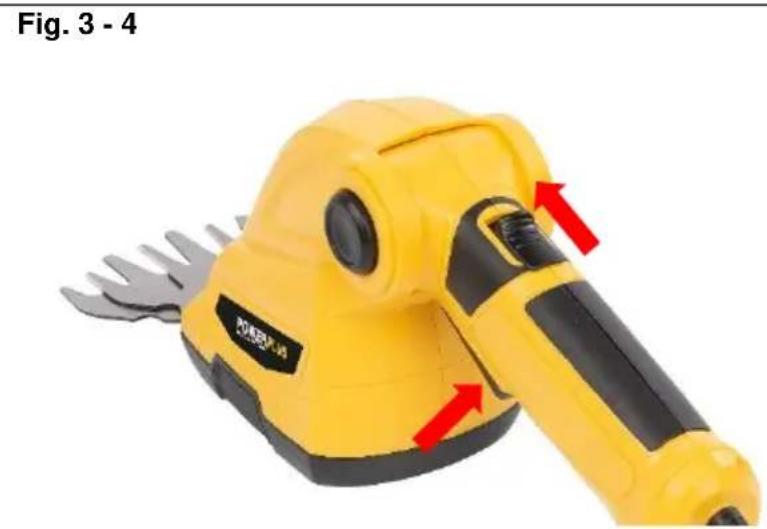

• Slide the safety switch (7) forward. (Fig. 3)

• Press the on/Off button (6) and hold them simultaneously. (Fig. 4)

• Release the safety switch（7) and just hold the on/off switch during operation.

• Release the On/Off button 6.

• Release the rotating knob.

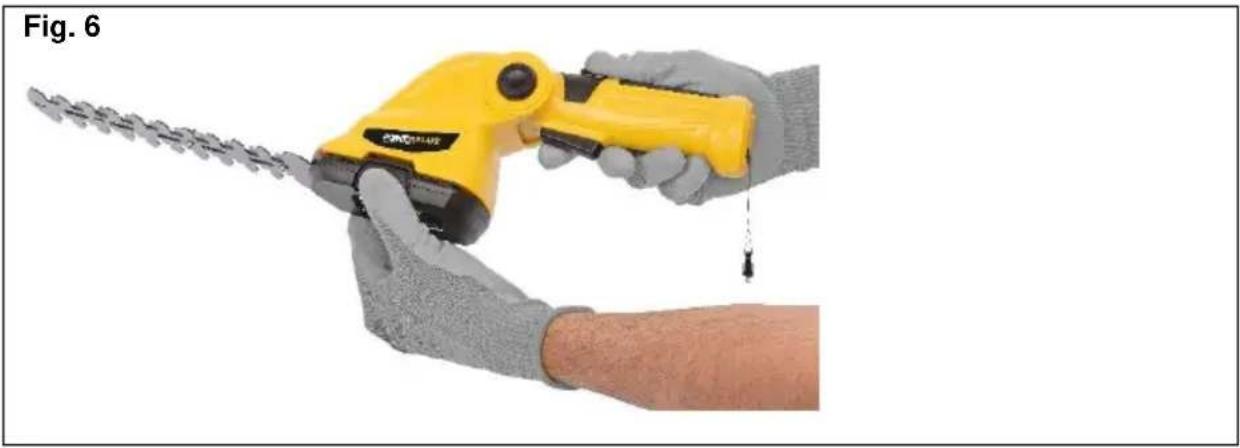

7.5 Changing the blade

• Lift the grass shear blade cover (14) away from the housing. (Fig. 7)

• Take the shrub shear blade cover (13), align the holes in the blade cover onto the drive pins.

• Push the cover onto the machine housing. 8 WORKING INSTRUCTIONS Keep your fingers away from the blades.

8.1.1 Cutting hedges

Before cutting check the hedge for foreign objects e. g. wire fences. Cut stems up to 8 mm in thickness. When cutting, move steadily along the line of cut, so that stems are fed directly into the cutter blades. The double edge of the cutting blade enables cutting to either direction, or with a side to side motion. After use replace the blade transport guard.

Guide the machine along the edge of the lawn. Do not allow the blade to contact paved surfaces, stones or garden walls, since this will wear the blade rapidly.POWXG2033 EN Copyright © 2022 VARO P a g e | 9 www.varo.com 9 MAINTENANCE Note: To ensure long and reliable service, carry out the following maintenance regularly.

• Check for obvious defects such as loose, dislodged or damaged blade, loose fixings and worn or damaged components.

• Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

• If the machine should happen to fail despite the care taken in manufacturing and testing, repair should be carried out by our technical department.

9.1 Blade maintenance

Always clean the cutting blades after operation and lubricate with oil. During longer cutting jobs, we recommend periodically lubricating the cutting blade. Visually check the condition of the cutting edges of the cutting blade. Ensure that the blade is covered with the blade guard supplied when not in use.

9.2 Cleaning / storage

Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots. Store the machine in a secure dry place out of reach of children. Do not place other objects on top of the machine.

9.3 Service department

• Damaged switches must be replaced by our after-sales service department.

• If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician). 10 TECHNICAL DATA Type POWXG2033 No load speed 1200 min

Running time 35min Battery type Li-Ion Battery voltage 7.2V Battery capacity 1.5Ah Charging time (empty battery) 180min 11 NOISE The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. The vibration emission during actual use of power tool can differ from the declared total value depending on the ways in which the tool is used. The safety measures to protect the operator are identified based on an estimation of exposure in the actual conditions of use. Noise emission values measured according to relevant standard. (K=3)POWXG2033 EN Copyright © 2022 VARO P a g e | 10 www.varo.com Acoustic pressure level LpA 73dB(A) Acoustic power level LwA 88dB(A) ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A). aw (Vibration) 2.1m/s² K = 1.5 m/s² 12 WARRANTY

• This product is warranted for a 36-month period effective from the date of purchase by the first user.

• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

• We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

• Repairs may only be carried out by an authorized customer service centre for Powerplus tools.

• You can always obtain more information at the number 00 32 3 292 92 90.

• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

• Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

• Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

• Your purchase receipt must be kept as proof of date of purchase.

• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-molded case if applicable to the unit), accompanied by proof of purchase.

• Your tool must be charged at least 1x per month to ensure optimal operation of this tool. 13 ENVIRONMENT Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.POWXG2033 EN Copyright © 2022 VARO P a g e | 11 www.varo.com

This product contains Li-ion. To preserve natural resources, please recycle or dispose of batteries properly. Local, state or federal laws may prohibit disposal of Li-ion batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.

14 DECLARATION OF CONFORMITY

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, Product: Lithium Ion Grass/Hedge shear 7.2V trade mark: PowerPlus model: POWXG2033 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. European Directives (including, if applicable, their amendments up to the date of signature): 2011/65/EU 2006/42/EC 2014/30/EU 2000/14/EC Annex V LwA Measured 85 dB(A) Guaranteed 88 dB(A) European harmonized standards (including, if applicable, their amendments up to the date of signature): EN60335-1 : 2012 EN50636-2-94 : 2014 EN60745-1 : 2009 EN60745-2-15 : 2009 EN55014-1 : 2017 EN55014-2 : 2015 Keeper of the Technical Documentation: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V. The undersigned acts on behalf of the company CEO, Philippe Vankerkhove Regulatory Affairs – Compliance Manager 08/10/2021, Lier - BelgiumPOWXG2033 DE Copyright © 2022 VARO Seite | 1 www.varo.com
