USER MANUAL FlyCamOne 3 ACME
Please read carefully before using the camera!
- FCO≡ Transmitter Set (optional)
- FCOE 433MHz LinX (optional)
Copyright ©2010 by ACME the game company GmbH
Packungsinhalt FCO≡ Core Set V2
Close-up of hands holding a black flip-flop device with a yellow lens (no visible text or symbols)natural_image
Black mechanical component with a rod and circular base (no visible text or symbols)natural_image
Black handheld device with a screen displaying a landscape photo, labeled 'mW' in the top-left corner (no other text or symbols visible)natural_image
Two black electronic devices with visible internal components and wiring, no text or symbols present.natural_image
Black plastic electronic device casing with ports and connectors (no visible text or symbols)natural_image
Man wearing VR headset and holding a walkie-talkie, with a black electronic device in the background (no visible text or symbols)natural_image
Black smartwatch with attached antenna and cable, no visible text or symbolsThank you for purchasing the FCOIII. Enjoy the countless features of the camera. Find most answers for support a tour Homepage: www.FlyCamOne.com

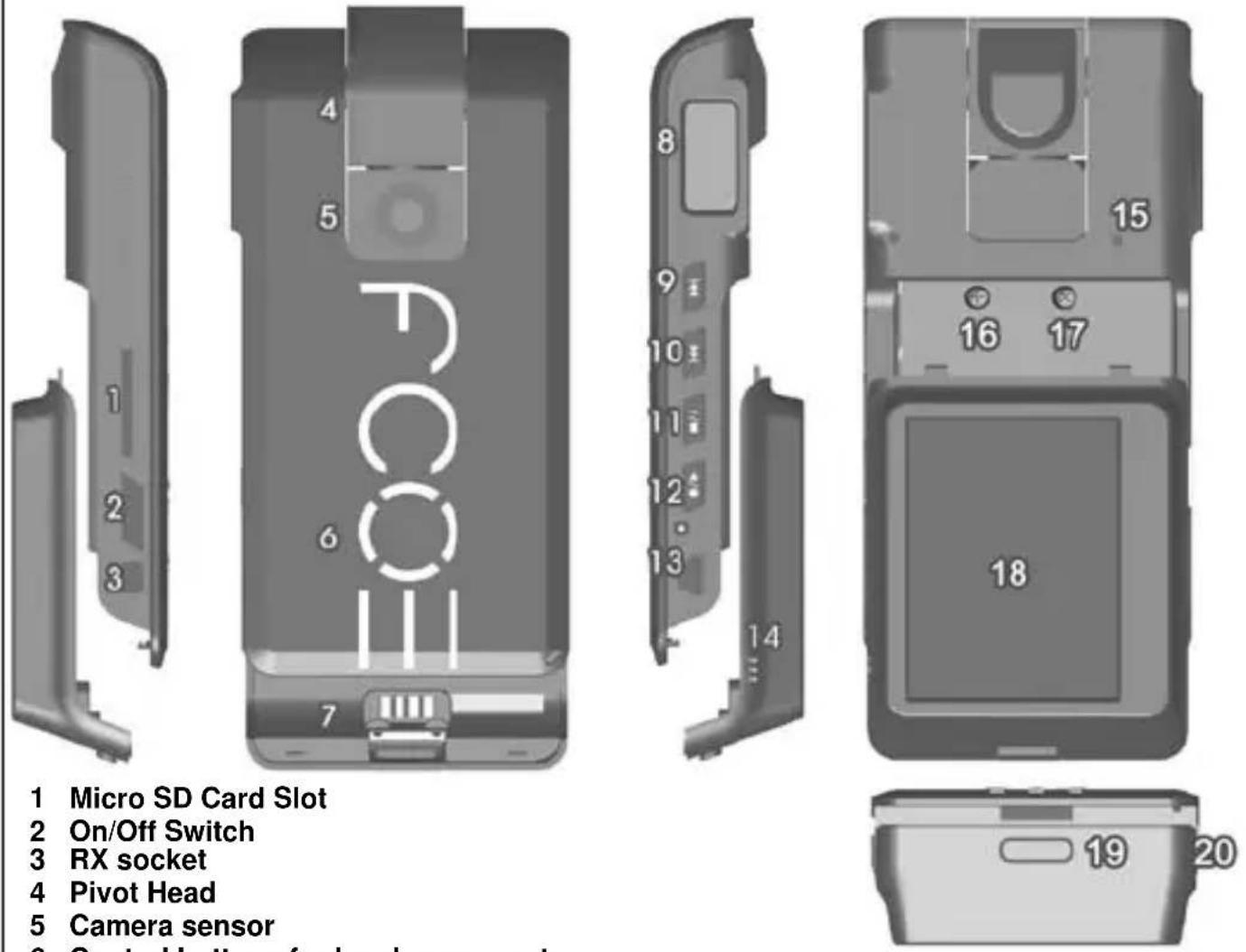

Functions of the FCOIII
1 Micro SD Card Slot
2 On/Off Switch
3 RX socket
4 Pivot Head
5 Camera sensor
6 Control buttons for head movement
7 Contacts at the screen module
8 LCD panel
9 forward (right)
11 Stop/down
13 Mini USB socket
14 Internal loudspeaker
16 Trim poti tilt
18 TFT 2" Screen
20 Safety eyelet
10 back (left) | Speaker on/off
12 Record/Play | Screen flip (1 Sec.) | Icons on/off (3 Sec)
15 Microphone
17 Trim poti pan
19 Screen release
Preparation
Charge the Camera with the power adaptor or with the USB-lead at your PC before use! Please note that the menu of the Camera is locked once connected!
Remove the protection film in front of the lens. It surface is high glossy when removed!
Insert a suitable SD-Card (e.g. FCOIII Micro SD Rapid Rush 8GB) into the card slot of the FCOIII. Use flat item to let it get in to the click. The writing speed should be minimum 6MB/Sec.!

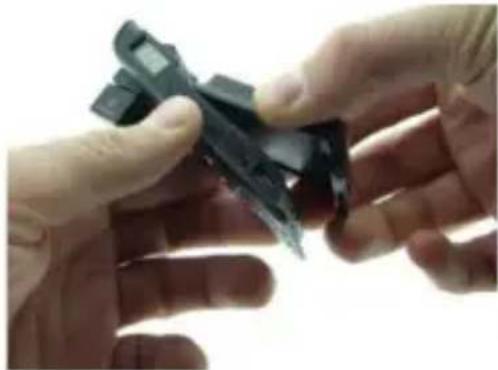

Connect the screen module to the cam. Remove the protection foil of the screen (optional). The screen is matt once the foil is removed!
Switch on your FCOIII. The head moves 90° out of the shell and does a self adjustment. Move the head with the buttons of the logo. Never turn the head by hand. It will damage the gear set and manipulates the adjustment!
Due to its setup, the Camera is showing the live picture 90° turned. A comfortable control function will be given, using the FCOIII Transmission Set.

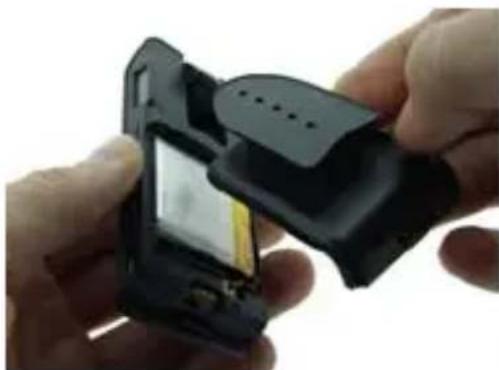

Replace the screen by the battery cover plate with base. Depending on how you are going to use the Camera, standing on the base or hanging on it, it is necessary to turn the picture. Press the
button for 1 second. The LCD-screen shows "Flip" to indicate, the picture is turned.
After switch on the camera, "VID" appears on the LCD-Panel. Press the button
▶▶▶ once to get to the sub menu where „REC“ is displayed. Press the button to start recording, indicated by turning bars in the LDC-Panel. Press the □/↓ button to stop the recording and return back to the main menu by pressing the ◀◀◀ button. Press the □/↓ button to move through the main menu, up to „PLY“ in the display. Replace the battery cover again by the screen and press the ●/▶ button to start the last video. Do so as well with all other modes!
Download the Videos onto the Computer
To enjoy the just recorded video at your PC, select „PC“ at the LCD-Panel first. Connect the Camera to the USB-Port. The known jingle indicates the known unit. In common, a new opened window will show the card and its files or your PC
suggests different programs to open the files. Select the file explorer if you are not sure which one to take. To watch the videos always copy the files to your computer before playing. It might be possible that the movies stops or the player shut down. Do so as well with photos or audio files. In case no window appears, click to „computer“ to find the camera as a drive there.
Using at a model
To fix the camera to a model exchange the screen again by the battery cover. Save the cam, fixing it to the model using the eyelet (20) as well.
Live Video transmission
Video signal up to a range of 300m
Due to the application; interferences may cause
the live stream. The recorded video stored at the card will not be affected! The signals of the cameras sender might interfere the control signals of other units. (2,4GHz Transmission Set and use of
2,4GHz RC-Set).
Avoid errors by doing a range test and make sure not to affect other systems!
The Camera sender has the same base and will be fixed in the same way.
Remote the FCOIII:

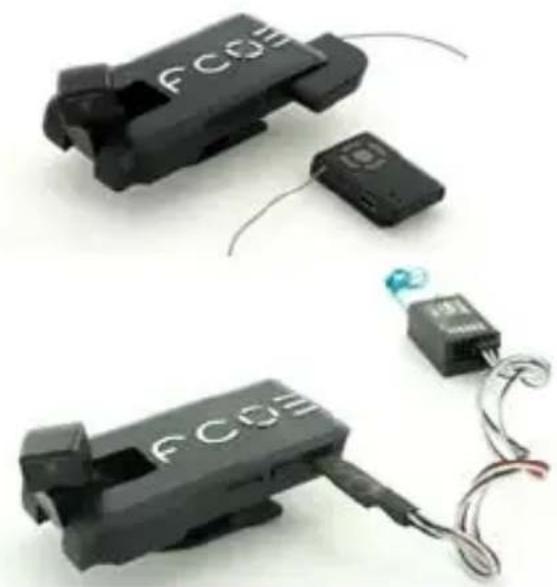

The cameras head can be controlled in two ways: The FCOIII LinX is a tiny remote controller, moves the head and starts and stops the selected mode.
The FCOIII RX Cable will be connected to the models receiver, occupying up to 3 channels; two to move the head pan and tilt, one to release the selected mode.
Both of them will be connected to the RX-port of the camera.
To have the best viewing direction set a new Zero Position: move the head to the the selected place and press the left and right button of the logo for 5 seconds. Connect the FCOIII RX-Cable or the receiver of the FCOIII LinX after that.
FPV / First Person View with FCOIII
Complete the FCOIII Set by the FCOIII V-Eyes! Look to the ground out of the cockpit of your own model! Fitted with sensors for pan and tilt, your own head movement will be transferred to the movement of the camera head!
With its VGA Resolution the V-Eyes offers a first
class live experience. The play mode of the FCOIII offers an exciting flight again and again to you or your friends!


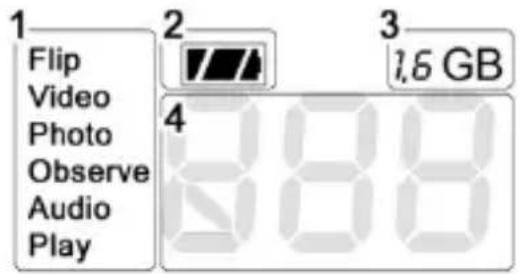

The panel is divided into 1 main menu, 2 battery status, and 3 memory status of the SD-card 4 the sub menu.
Select the image orientation turned 180^ by pressing first. Switch on/off the loudspeaker with
Using the buttons /▶ □/↓ ◀◀

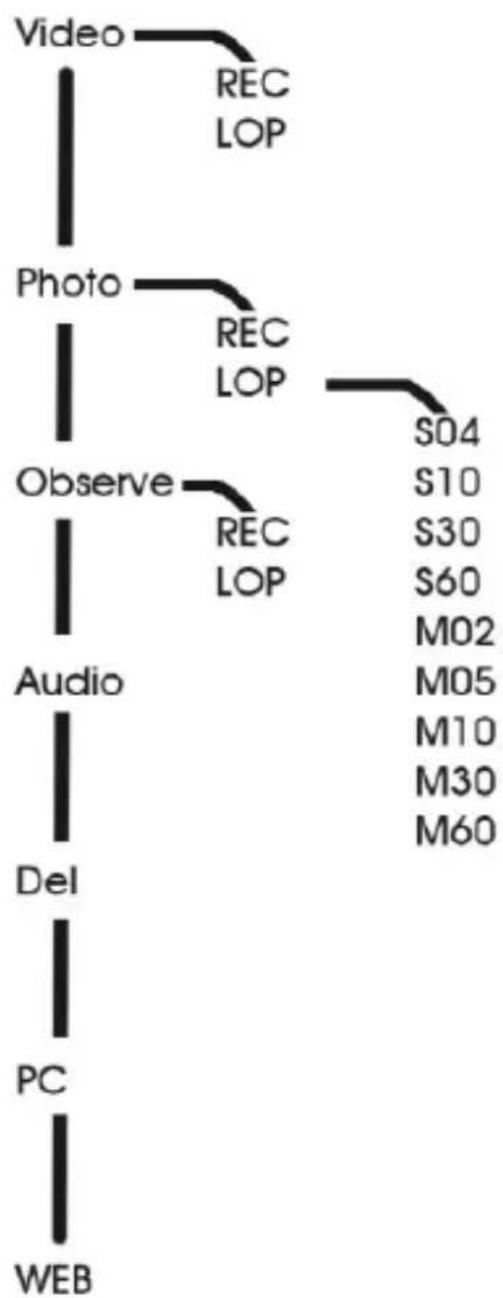

you will move through the menu displayed at the LCD panel. The structure is similar to the known tree structures of your PC's file browser (e.g. Windows-Explorer):
Video is displayed in the main menu.
Press to get to the sub menu of this point. "REC" will be displayed. Use to get the second available mode: „LOP" for loop recordings. Learn more about this in "Modes overview". Start the elected mode pressing the recording button. Stop it with the stop button. Pressing return you will get back into the main menu.
Modes overview
Within the main menu following elections can be done:
Video Video recording with 30FPS/VGA (Avi)
Photo still photo taking VGA (Jpeg)
Observe Video recording with 30BPS/VGA (Avi) controlled by the motion detection
Audio Audio only
Play Displays videos, photos and starts audio files
Del Deletes the last file
PC Configures the cam as disc drive at you computer
WEB Let the cam work as web cam. Drivers to be downloaded at www.FlyCamOne.com
CH blinking indicates to charge the battery
In the sub menu find the following:
REC Regular recording
LOP Loop recording where the memory will be divided and the oldest
file will be deleted. In the photo mode the "LOP" will have another
sub menu where you select the time between two pictures starting
from S04 for 4 seconds, S10 for 10 seconds, ..., M02 for 2 minutes, ..
First picture will be taken after 10 seconds. Use external power for longer periods of recording!
The recoding will be displayed by moving bars in video mode, by a frame in photo mode.
Software update
Update your FCO3 with software updates from www.FlyCamOne.com
Limited warranty of the LiPo battery.
The included LiPo battery's capacity is reduced due every discharge /charging circle and belongs to the wearing parts. Improper use storage and handling as well as wearing and consumption is not covered by the warranty.
Modes detailed
Video recording REC
The recording takes place with 30 pictures per second (30 FPS) with 720x480 px and a consumption of storage of approx. 70 MB/min.
Recording is indicated by running dots" "FPS rate can be reduced by a dark or indoor environment.
Video loop LOP
Recording as above – however the free storage (min. 200 MB) of the SD-card is shared and the old part will be overwritten consecutively.
The recording will be stopped not until gets pressed.
Photo REC
The recording takes place with 720x480 px, one photo needs approx. 120 KB storage on the SD-card. The FCOIII indicates the recording with a frame," [ ]".
Photo Loop 504 - 1960
The FCOIII takes pictures every 4 seconds to 60 minutes. Modes displayed as follows S04, S10, S20, S30, S60, M02, M10, M30, and M60 while S is for seconds, M for minutes.
Observation REC
The motion detection of the FCOIII activates the recording as long motion can be detected in front. Please note that different Voltage Hertz-Systems need different firmware – default Setup is 50Hz for Europe and 60 Hz for America.
Observation LOP
Recording as above – however the free storage (min. 200MB) of the SD-card is shared and the old part will be overwritten consecutively. The recording will be stopped not until
gets pressed.
Audio recording AUD
Records sound only.
Play PLY
Will allow watching the recorded videos and photos. Use and play ▶/▶, stop □/↓ in this mode.
Detele Files DEL
Will delete the last file by pressing
Downloading files and simultaneously charging PC
Connection to the PC in drive mode. FCOIII will be charged coevally when connected – charging will take approximately 5 hours.
Web Cam WC
Use FCOIII as Webcam. Download drivers before: www.FlyCamOne.com
Control the FCOIII's head
Three different solutions to move the head:
A The circle „○“ of the FCOIII logo controls the head.
B It can be controlled by the optional available FCOIII LinX hand sender (Art.No: FC3005). Insert the receiver into the RX socket.
C With the optional FCOIII RX cable (Art.No: FC3009).
You need up to three free channels at your R/C receiver for head movement (Pan/Tilt) and shutter release.
Charging the FCOIII
Charge the camera at your computer's USB-Port (5h) or with the included adaptor (2h). Charging will be indicated by a pulsing battery symbol in the LCD panel. Charging is finished when all elements of the symbol are filled.
Using FCOIII Transmitter Sets (Art.No: FC3002)
Adding the FCOIII Transmitter Set the video signal will be transferred to the receiver at 2.4GHz up to a range of 300m/980ft. The screen module will be exchanged against the sender, and the screen will be fixed to the receiver now. Interferences will not be recorded because the camera will record, not the ground station.

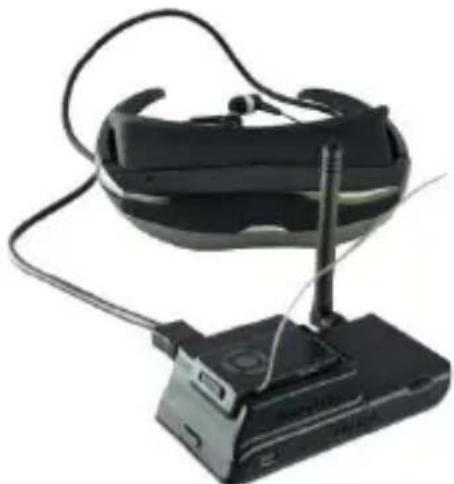

The FCOIII V-Eyes Video glasses
(Art.No.FC3004)
Instead of the screen, the V-eyes battery pack will be fixed to the receiver now. See the picture on two screens in front of your eyes now. The integrated Head Tracking System combined with a R/C controller is moving the camera's head now.
Lift the battery and disconnect the plug. Insert the
new one. Dispose empty Batteries at a recycling centre.
Important! Only use the original FCOIII LiPo battery 600mAh with integrated LiPo-Saver!
ATTENTION!
Through a collision at a high speed, the record can be deleted.
Please note!
The privacy of others is protected by law and should be taboo. The recording of third party can be an illegal act. You are responsible for your acting.
Warnings Lithium Polymer Battery Pack
- Mishandling may occur explosion, fire and smoke including damage of health or goods. It will also reduce battery performance.
- Capacity of the LiPo battery pack will be reduced with every discharging circle. After 50 circles the capacity is reduced to 60-80%.
- Charge and store the LiPo battery pack at a temperature of 0^ C to 40^ C – avoid a temperature higher than 65^ C when discharging.
- Never charge a damaged LiPo battery pack. Stop charging if the LiPo battery packs is getting deformed (blown up).
- Never charge with reversed polarity – permanent damage, fire and smoke may occur!
- Do not shortcut – Risk of explosion and fire!
- Never carry a LiPo in pockets of your trousers or jacket – in case of fire, taking them out will not be in time!
- Avoid contact to any kind of liquids.
• The LiPo battery pack is not a toy! Keep away from children! - If electrolyte contacts your skin or eyes, immediately wash it off using plenty of clean water. Consult a doctor!
• Note that deep-discharged batteries will be damaged permanent. Charge in time! - Dispose used batteries in the appropriate manner.
Note:
ACME the game company is unable to ensure correct use according to these instructions. For this reason ACME the game company is obliged to refute any claim under guarantee.
Information for disposal of crossed Bin marked products
This symbol is marked on a product or packaging, it means that the product must not be disposed of with your general household waste. Only discard electrical/electronic items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.
Contenu de la FCO≡ Core Set
Close-up of hands holding a black electronic device with a yellow lens, no visible text or symbolsnatural_image
Black mechanical component with a triangular shaft and engraved markings (no readable text or symbols)natural_image
Two black electronic devices with visible internal components connected by wires, no text or symbols present.natural_image
Black plastic electronic device casing with visible ports and internal slots (no text or symbols)natural_image
Man wearing VR headset and holding a walkie-talkie, standing in front of a large industrial machine (no visible text or symbols)natural_image
Black VR headset with attached antenna and cable, no visible text or symbolsnatural_image
Close-up of hands holding a black plastic clip and a small electronic device (no visible text or symbols)natural_image
Close-up of hands holding a black handheld device with a yellow screen, no visible text or symbolsPrimera grabación
Two black electronic components with visible wiring and connectors, no text or symbols present.natural_image
Black plastic electronic device casing with ports and connectors (no visible text or symbols)natural_image
Man wearing VR headset and holding remote control device, standing in front of a black electronic device (no visible text or symbols)natural_image
Black VR headset with wireless antenna and attached device (no visible text or symbols)natural_image
Black smart glasses connected to a handheld device (no text or symbols visible)Herewith we declare that this item is in accordance with the essential requirements and other relevant regulations of the directive 1999/5/EC. A copy of the original declaration of conformity can be obtained at the following address.
ACME the game company GmbH
Industriestr. 10A
33397 Rietberg – Germany
© copyright 2010 ACME the game company
