USER MANUAL DBAF03224BD11 DANBY
Do the right thing.*
OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO
AIR FRYER
Owner's Manual....1 - 10
FRITEUSE À AIR
Welcome to the Danby family.
We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.
You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.
- Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
- Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION after fi lling out a product survey, at www.danby.com/support/product-registration/
Model Number:
Serial Number:
Date of Purchase:
Need Help?
- Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
- Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
- For the Quickest Customer Service, please fill out the web form at www.danby.com/support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
- Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.
SAFETY REQUIREMENTS
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock do not immerse the cord, plugs or any other part of the appliance in water or any other liquid.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Consult a qualified technician for examination, repair or electrical or mechanical adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let the power cord hang over the edge of a table or counter or to touch a hot surface.
- Do not place the appliance on or near a hot gas or electrical burner or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- To disconnect the appliance, turn both the timer dial and the temperature dial to off, then remove the plug from the outlet.
- Do not use the appliance for anything other than its intended use.
SAFETY REQUIREMENTS
- Make sure the frying basket is locked into the front of the drawer. Both frying basket handle tabs must be fully inserted into the grooves on the top of the basket drawer.
- Always make sure the frying basket drawer is fully closed with the frying basket handle locked securely in the drawer while the appliance is in operation.
- WARNING: The air fryer will not operate unless the frying basket dryer is fully closed.
- CAUTION: After air frying, the frying basket, the frying drawer and the cooked foods are hot. Extreme caution must be used when handling the hot basket, drawer and cooked food.
- CAUTION HOT SURFACES: This appliance generates heat and escaping steam during operation. Proper precautions must be taken to prevent the risk of burns, fi res or other injury to persons or damage to property.
- CAUTION: This appliance is hot during operation and retains heat for some time after being turned off. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Do not place anything on top of the appliance while it is operating or still hot.
- All users of this appliance must read and understand this instruction manual before operating or cleaning this appliance.
- Do not leave this appliance unattended during use.
- Do not immerse the power cord in any liquid. If the power cord of the appliance is damaged it must be replaced by a qualified technician.
- Keep the power cord out of reach of children and infants to avoid the risk of electric shock and choking.
SAFETY REQUIREMENTS
- Place the appliance on a flat, heat-resistant work area.
- Do not obstruct the air outlet on the back side and the air inlet on the top.
- Keep the appliance at least 4 inches away from walls or other objects during operation.
- Always use the frying basket handle to open the frying basket drawer.
- Do not replace the empty frying basket drawer without the frying basket into the air fryer cabinet. Check to make sure the frying basket is locked into position in the drawer.
- WARNING: After air frying, place the basket drawer on a fl at, heat-resistant surface before pressing the basket release button.
- WARNING: Under or over fi lling the frying basket may damage the air fryer and could result in serious personal injury.
- Never move a hot air fryer or an air fryer containing hot food. Allow to cool completely before moving.
- CAUTION: To prevent plasticizers from migrating to the fi nish of the counter top or table top or other furniture, place a non-plastic coaster or place mat between the appliance and the counter or table top. Failure to do so may cause the fi nish to darken. Permanent blemishes may occur or stains can appear on the cabinet.
This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.
This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.
WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord.
Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
Have a qualified electrician install a grounded outlet near the appliance if the power cord is too short. A short power supply cord is provided to reduce the risks resulting from becoming entangled or tripping over a longer power cord.
OPERATING INSTRUCTIONS

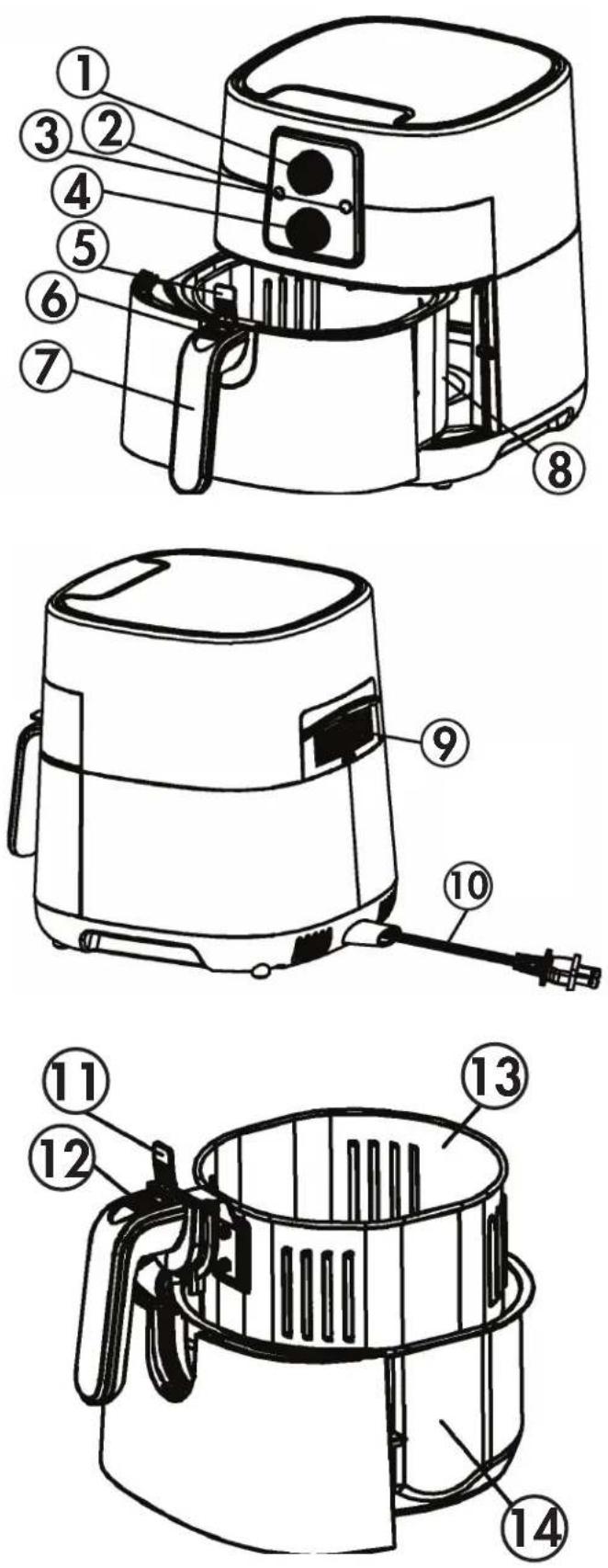

FEATURES
- Timer dial
- Red power light
- Green heat light
- Temperature control dial
- Clear button cover
- Basket release button
- Frying basket handle
- Frying basket drawer
- Air outlet
- Power cord
- Clear button cover
- Basket release button
13.Frying basket - Frying basket drawer
OPERATING INSTRUCTIONS
BEFORE FIRST TIME USE
- The appliance is shipped with the frying basket locked into the drawer, inside the cabinet. Firmly grasp and gently pull the frying basket handle to open the frying basket drawer and then remove the drawer from the cabinet and place it on a flat, clean work area.
- Unlock and remove the frying basket from the drawer. Open the clear button cover to expose the basket release button and then press the basket release button while pulling the frying basket straight up and out of the drawer.
- Remove all packing material and labels from the inside and outside of the appliance before use. Check that there is no packaging underneath or around the frying basket and drawer.
- Wash frying basket and drawer in hot, soapy water.
- DO NOT IMMERSE THE BODY OF THE APPLIANCE IN WATER. Wipe the air fryer body with a damp cloth. Dry all parts thoroughly.
- Lock the frying basket into the drawer. There are 2 tabs on either side of the handle. Slide the handle tabs into the grooves on the top of the basket drawer. An audible click will be heard as the handle locks into place.
IMPORTANT: Ensure the clear button cover is over the basket release button to prevent accidental fryer basket release.
WARNING: This appliance should not be used to boil water.
NOTE: During first use the appliance may emit a slight odor. This is normal.
OPERATING INSTRUCTIONS
- Place the appliance on a flat, heat-resistant work area close to an electrical outlet.
- Open the frying basket drawer, remove the drawer from the cabinet and place it on a flat, clean surface.
- Place food into the frying basket. Do not overfi ll the basket. To ensure proper cooking and air circulation, never fi ll the frying basket more than 2/3 full. When air frying fresh vegetables, it is not recommended to add more than 3 cups of vegetables to the basket.
- Insert the frying basket drawer into the cabinet. Always make sure the drawer is fully closed.
- Plug the power cord into the wall outlet.
- Turn the temperature control dial to select the desired cooking temperature. The temperature can be adjusted at any time. The temperature range is 280^ F to 400^ F ( 140^ C to 200^ C).
- Turn the timer dial to select the desired cooking time. Add fi ve minutes to the cooking time to account for preheating time if the appliance is cold. The red power light will illuminate and the appliance will begin heating.
- The green heat light will turn on while the appliance is heating and will turn off once the set temperature is reached. The green heat light will cycle on and off with the heating element during operation to maintain the selected temperature.
IMPORTANT: The appliance will not begin heating if the timer button has not been set. The appliance will not begin heating if the frying basket is not fully closed.
OPERATING INSTRUCTIONS
COOKING NOTES
- To ensure even cooking, open the frying basket halfway through the cooking time. Check, turn or vigorously shake foods in the frying basket.
- IMPORTANT: When the basket is removed from the cabinet, the red power light and the air frying will turn off. Operation will resume and the timer will continue once the basket is replaced in the cabinet.
- CAUTION: Make sure the basket is in the locked position when shaking foods in the basket. To avoid damage to persons or property, do not press the basket release button while shaking the frying basket.
- WARNING: Extreme caution must be used when handling the hot frying basket and drawer. Avoid escaping steam from the frying basket and hot food.
- CAUTION: Always use oven mitts when handling the hot air frying basket.
- CAUTION: Hot oil can collect in the base of the drawer. To avoid the risk of burns or personal injury or to avoid oil contaminating other foods, always unlock and remove the frying basket from the drawer before emptying.
- NEVER turn the drawer upside down with the frying basket attached.
- One beep will sound when the timer reaches 0. The air fryer will turn off automatically. Both the red power light and the green heat light will turn off.
- If additional cooking is needed at the end of the timer, adjust the temperature if desired and then set the timer for 5 minute increments until the food is fully cooked.
COOKING NOTES
- Allow cooked food to rest for 5 to 10 seconds before removing the basket drawer from the cabinet.
- When the air frying is finished, remove the drawer from the cabinet and place it on a flat, heat-resistant surface. Then remove the frying basket from the drawer.
- Shake foods onto the serving area. Promptly return the frying basket to the drawer and lock into place. Continue with subsequent batches, if any.
- IMPORTANT: When cooking is completed, turn both the temperature dial and the timer dial to 0 and unplug the air fryer when not in use.
- Olive oil spray or vegetable oil work well for air frying.
- When cooking prepackaged foods, as a general rule, lower the baking temperature by 25^ F and reduce the cooking time by 30 - 50% depending on the type of food and amount.
- This appliance can be used to reheat food. Set the temperature to 280^ F for up to 10 minutes.
- Pat food dry before cooking to encourage browning and avoid excess smoke.
- When cooking high fat foods such as chicken wings or sausages, it may be necessary to empty fat from the frying basket between batches to avoid excess smoke.
- Freshly breaded food items should be cooked in small batches. Ensure the items are not touching to allow air flow on all surfaces.
OPERATING INSTRUCTIONS
AIR FRYING CHART
WARNING: ALWAYS USE A MEAT THERMOMETER TO ENSURE THAT MEAT, POULTRY AND FISH ARE COOKED THOROUGHLY BEFORE EATING.
The following chart is intended as a guide only. The quantity of food cooked at one time, the thickness or density of the food and whether the food is fresh, thawed or frozen may alter the cooking time necessary.
To ensure even cooking, open the frying basket halfway through the cooking time. Check, turn or vigorously shake foods in the frying basket. This chart lists average cooking times and what action should be taken for best results.
Frying in smaller batches will result in shorter cooking times and higher food quality. Adjust cooking times and temperatures as desired.
IMPORTANT NOTE: Unless food is prepackaged and oiled, all food should be lightly oiled before air frying for browned and crispy results. Oil may be sprayed or brushed onto foods. Make sure food is dry before adding oil. Cut food into smaller pieces to create more surface area and achieve crispier results.
NOTE: Blanching is a term that refers to cooking foods at a lower temperature before the final air fry.
Add 5 minutes to the air frying time to allow the appliance to preheat.
Important Temperature Notes
The USDA recommends that meats should be cooked to the following internal temperatures to ensure food is cooked thoroughly.
- Beef / lamb: 145°F
- Pork: 160^ F
- Poultry: 170 - 180°F
• Reheating poultry: 165°F
OPERATING INSTRUCTIONS
AIR FRYING CHART
| FOOD TEMPERATURE (°F) COOK TIME (MINS) ACTION | |||
| Mixed vegetables (roasted) 400 15 - 20 | shake | ||
| Broccoli (roasted) 400 15 - 20 shake | |||
| Onion rings (frozen) 400 12 - 18 shake | |||
| Cheese sticks (frozen) 360 8 - 12 - | |||
| Fried sweet potato chips (fresh, hand cut, 1/8 to 1/6 inches thick) | |||
| Step 1: Blanch 320 15 shake | |||
| Step 2: Air fry | 360 10 - 15 shake | ||
| French fries (fresh, hand cut, 1/4 to 1/3 inches thick) | |||
| Step 1: Blanch 320 15 shake | |||
| Step 2: Air fry | 360 10 - 15 shake | ||
| French fries, thin (frozen, 3 cups) | 400 12 - 16 shake | ||
| Meatloaf, 1 lb | 360 35 - 40 shake | ||
| Hamburgers, 1/4 lb, up to 4 | 360 10 - 14 - | ||
| Hot dogs / sausages | 360 10 - 15 - | ||
| Chicken wings (fresh / thawed) | |||
| Step 1: Blanch 320 15 shake | |||
| Step 2: Air fry | 360 10 shake | ||
| Chicken tenders / fingers | |||
| Step 1: Blanch 360 13 turn over | |||
| Step 2: Air fry | 400 5 | shake | |
| Chicken pieces | 360 20 - 30 turn over | ||
| Chicken nuggets (frozen) | 360 10 - 15 shake | ||
| Catfish fingers (thawed, battered) | 400 | 10 - 15 | turn over |
| Fish sticks (frozen) | 400 10 - 15 turn over | ||
| Apple turnovers | 400 10 - | ||
| Donuts | 360 8 | turn over | |
| Fried cookies | 360 8 | turn over | |
| Shrimp | 360 10 - 18 turn over | ||
CARE & MAINTENANCE
MAINTENANCE
This appliance requires very little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Contact a qualified appliance repair technician if the product requires servicing.
CLEANING
WARNING: Allow the appliance to cool fully before cleaning.
The appliance should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.
- Remove the plug from the electrical outlet. Allow the appliance to cool fully before completing any cleaning.
- Wash the basket drawer and frying basket with hot, soapy water. Do not use metal kitchen utensils or abrasive cleaners or cleaning products that may damage the non-stick coating.
- The frying basket and drawer are dishwasher safe. For best results, place them in the top rack of the dishwasher.
- Wipe the outside of the appliance with a damp cloth.
CAUTION - Do not use abrasive cleaners, scrubbing brushes or chemical cleaners as this will damage the non-stick coating.
LONG-TERM STORAGE
Allow the appliance to completely cool and dry before placing into storage.
If storing the appliance for long periods of time make certain that the appliance is clean and free of food particles.
Store the appliance in a dry location such as on a table or counter top or cupboard shelf.
Other than recommended cleaning, no further user maintenance should be necessary. Any other servicing should be performed by an authorized service representative.
LIMITED "CARRY IN" WARRANTY
This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.
First 12 months
During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.
To obtain service
Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.
It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot.
Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.
Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.
EXCLUSIONS
Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (i.e. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).
Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.
Warranty Service
Carry In
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: |519| 837-0920 FAX: |519| 837-0449
1-800-263-2629
04/17
Danby Products Inc
PO Box 669, Findlay, Ohio, U.S.A. 45840
Telephone: (419) 425-8627 FAX: (419) 425-8629
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: (519) 837-0920 FAX: (519) 837-0449
1-800-263-2629
04/17
Danby Products Inc.
PO Box 669, Findlay, Ohio, U.S.A. 45840
Telephone: (419) 425-8627 FAX: (419) 425-8629
Danby Products Limited, Guelph, ON, Canada N1H 6Z9 Danby Products Inc., Findlay, Ohio, USA 45840
