SV3056 - Toaster Concept - Free user manual and instructions

Product type	Sandwich maker / Multifunction toaster
Brand	Concept
Model	SV3056
Rated voltage	220-240 V ~ 50/60 Hz
Power	700 W
Removable plates	Yes (sandwich, waffle, grill)
Indicator lights	Power on and ready to cook
Closing clip	Yes
Plate release buttons	Yes
Handle	Yes
Exterior material	Heat-resistant plastic
Plate coating	Non-stick
Plate cleaning	Hand wash or dishwasher safe
Exterior cleaning	Damp cloth, do not immerse
Safety precautions	Hot surfaces, do not touch; do not use without crumb tray; do not use metal utensils
Intended use	Household use only
Included accessories	Sandwich, waffle, grill plates; crumb tray
Warranty	Warranty void if recommendations not followed
After-sales service	Authorized service center
Recycling	Appliance and packaging recyclable per local regulations

Frequently Asked Questions - SV3056 Concept

How to install the plates on the Concept SV3056?

Make sure the appliance is unplugged and cool. Open the lid, insert the lower plate into the grooves and push gently. Repeat for the upper plate.

How to remove the plates after use?

Unplug the appliance and let it cool. Press the release button, lift the plate and slide it out of the tabs. Repeat for the other plate.

Can I use metal utensils on the plates?

No, use only plastic or wooden utensils to avoid damaging the non-stick coating.

How long does it take to cook a sandwich?

The sandwich is ready in about 4 minutes, but time may vary depending on your preference.

What if the green ready-to-cook indicator light does not turn off?

The green light turns off when the appliance is at temperature. If it stays on, check that the appliance is plugged in and the plates are properly in place. If the problem persists, contact after-sales service.

How to clean the exterior of the appliance?

Wipe with a damp cloth. Never immerse the appliance in water and avoid liquids entering the interior.

Can I wash the plates in the dishwasher?

Yes, the removable plates are dishwasher safe. Wash them by hand if you prefer.

Does the appliance heat from both sides?

Yes, the upper and lower plates heat to cook food evenly.

What safety precautions should I follow?

Do not touch hot surfaces, use handles. Do not leave the appliance unattended. Keep out of reach of children. Do not use metal utensils.

Can I make waffles with this model?

Yes, the SV3056 model comes with waffle plates. Replace the sandwich plates with the waffle plates to make waffles.

USER MANUAL SV3056 Concept

Black concept grater with a handle and control knob, shown against a plain gray background (no text or symbols visible on the device itself)

SV3050, SV3055, SV3056

CZ

HULVDEFR ENSKPL

ITES

RO

concept

CZ

PODEKOVANI

Exterior view of a 3D-printed flattex grater with internal compartments and labeled parts (no text or symbols beyond labels)

Diagram of three electronic component modules with numbered labels pointing to different internal structures.

NIKDY NEPONORUJTE SPOTREBIĆ DO VODY ANI DO ŽADNÉ JINÉ KAPALINYI

Black square device with water drop symbol above it, crossed by diagonal lines (no text or symbols)

NÁVOD K OBSLUZE

Black rectangular device with a handle and scroll, showing internal components and directional arrows (no text or symbols)

bezpečnostní uzávěr

concept

concept

Montáž desek

Open battery pack with internal compartments and labeled parts (no text or symbols visible)

Diagram of a multi-chamber battery pack with labeled components including two circular compartments and three rectangular compartments.

NIKDY NEPONÁRAJTE SPOTREBIĆ DO VODY ANI DO ŽIADNEJ INEJ KVAPALINY!

Black square electronic device with water droplets and a faucet symbol above it, crossed by diagonal lines (no text or labels)

NĂVOD NA OBSLUHU

Illustration of a microwave oven with internal compartments and labeled parts (no text or symbols present)

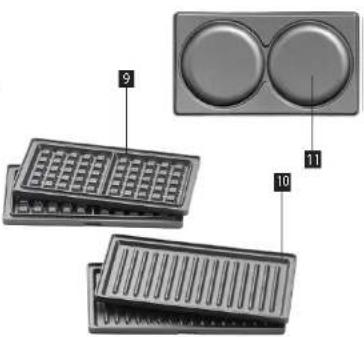

Diagram of three labeled electronic components with numbered parts, likely for assembly or component identification.

NIGDY NIA ZANURZAĆ URZĄDZENIA W WODZIE LUB INNYM PŁYNIE!

Black square electronic device with water drop symbol above it, crossed by diagonal lines (no text or labels)

INSTRUKCJA OBSŁUGI

Black rectangular device with labeled parts and directional arrows indicating rotation (no text or symbols on body)

Exterior view of a portable toaster oven with internal compartments and labeled parts (no text or symbols visible)

Diagram of three labeled electronic components with numbered parts, likely illustrating a circuit or component layout.

A KÉSZÜLÉKET SOHA NE TEGYE VÍZBE VAGY MÁS FOLYADÉKBA!

Black square device with water drop symbol above it, crossed by diagonal lines (no text or symbols)

HASZNÁLATI ÚTMUTATÓ

Black rectangular device with a scroll and directional arrows indicating motion (no text or symbols)

biztonsági zár

30

HU

concept

concept

HU

A lapok behelyezése

Open battery pack with internal triangular die structure, labeled parts 7 and 8 (no text or symbols on the device itself)

Diagram of a multi-tiered battery pack with labeled components 9, 10, and 11

NEIEGREMDĘJIET IERİCI ÜDENİ VAI CITÄ ŠKIDRUMÄI

Black square electronic device with water drop symbol above it, no visible text or labels

EKSPLUATĀCIJAS NORĀDĪJUMI

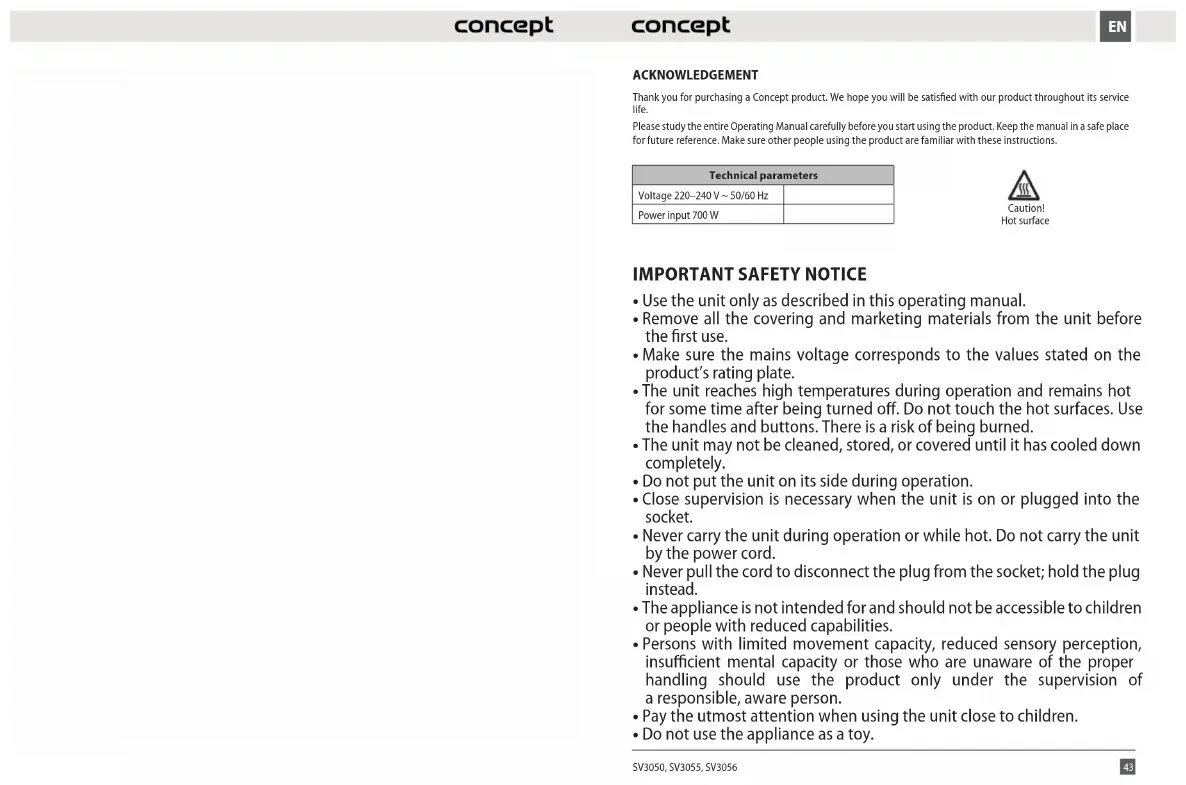

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220–240 V ~ 50/60 Hz
Power input 700 W

Caution! Hot surface

IMPORTANT SAFETY NOTICE

• Use the unit only as described in this operating manual.
• Remove all the covering and marketing materials from the unit before the first use.
• Make sure the mains voltage corresponds to the values stated on the product's rating plate.
• The unit reaches high temperatures during operation and remains hot for some time after being turned off. Do not touch the hot surfaces. Use the handles and buttons. There is a risk of being burned.
• The unit may not be cleaned, stored, or covered until it has cooled down completely.
• Do not put the unit on its side during operation.
• Close supervision is necessary when the unit is on or plugged into the socket.
• Never carry the unit during operation or while hot. Do not carry the unit by the power cord.
• Never pull the cord to disconnect the plug from the socket; hold the plug instead.
• The appliance is not intended for and should not be accessible to children or people with reduced capabilities.
• Persons with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible, aware person.
• Pay the utmost attention when using the unit close to children.
• Do not use the appliance as a toy.

EN

concept

concept

EN

• Turn the unit off, disconnect the power cord from the wall outlet, and allow the unit to cool before cleaning.
• Do not let the power cord hang loosely over the edge of a table. Make sure the power cord does not touch hot surfaces.
• The unit may only be installed on a stable surface resistant to high temperature, away from other heat sources, such as heating bodies, ovens, etc. Do not expose the unit to direct sunlight or moisture.
• Do not use the unit in an environment with explosive gases or flammable substances (solvents, varnishes, adhesives, etc.).
• Caution – Bread may ignite! When using the unit, keep a sufficient space around and above the unit to ensure sufficient air circulation. Do not let the unit come into contact with curtains, wall linings, textile, paper, or other combustible materials while in operation. In addition, it is not recommended to install the unit near or under the above materials. Do not put any of these materials on top of the unit.
• Do not use the unit without the removable crumb tray. The tray shall be cleaned regularly. Do not allow crumbs to accumulate on the tray. They could touch the heating body and ignite.
• Do not insert any metal objects into the unit.
• Do not insert excessively big pieces of food into the unit.
  • The unit is not designed for outdoor use.
  • The appliance is intended for domestic use only, not for commercial use.
• When unplugging the unit from the wall outlet, make sure the unit has been turned off (bread lowering lever in the upper position), then disconnect the plug from the wall outlet.
• Never operate the appliance with wet hands.
• Do not immerse the power cord, plug, or appliance in water or any other liquid.
• Use manufacturer-recommended accessories only.
• Do not try to repair the appliance; instead, refer to an authorised service centre.

- This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

EN

concept

concept

EN

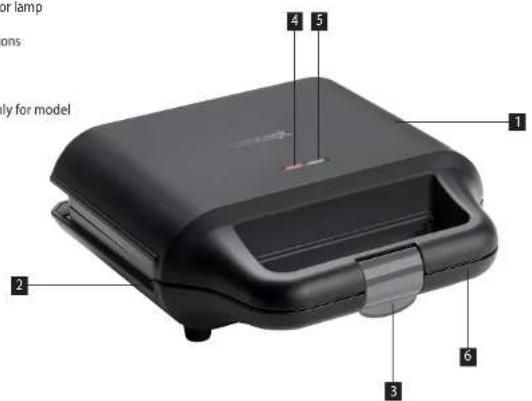

PRODUCT DESCRIPTION

1. Hinged top cover
2. Bottom cover
3. Safety closure
4. "Power On" indicator lamp
5. "Heat On" indicator lamp
6. Grip handle
7. Plate release buttons
8. Sandwich plate

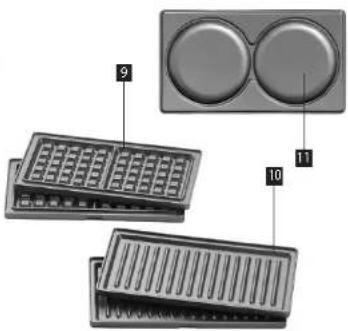

9. Waffle plate
10. Grill plate
11. Pancake plate (only for model SV3055)

or lamp ons ly for model 1 2 3 4 5 6

Open battery pack with internal compartments and labeled parts (no text or symbols visible)

Diagram of three labeled electronic components with numbered parts, likely for assembly or labeling purposes.

NEVER IMMERSE THE APPLIANCE INTO WATER OR OTHER LIQUID!

Black square electronic device with water drop symbol above it, crossed by diagonal lines (no text or labels)

OPERATING INSTRUCTIONS

Before using the appliance for the first time, wash the toasting surfaces using a wet cloth; in spite of that, we recommend that the first two pairs of sandwiches should not be eaten.

Food preparation procedure

1. Plug the appliance into a socket. Make sure that the mains voltage conforms to the voltage of the appliance. Both the "Power On" indicator lamp and "Heat On" indicator lamp will be on.
2. Close the top cover of the sandwich maker (during its warming-up, you can prepare your food).
3. When the green "Heat On" indicator lamp goes off, the sandwich maker is ready.
4. Open the top cover of the sandwich maker and put sandwiches on the lower part of the sandwich maker.
5. Your food will be ready to be served in approximately 4 minutes or longer as per your taste.

NOTE

• Do not close the sandwich maker by force. A cloud of steam may rise from in between the toasting surfaces during the toasting process.
• During the toasting process, the sandwich maker must be closed using the safety closure. Keep in mind that the "Heat On" indicator lamp will go on and off as the thermostat keeps the sandwich maker at proper temperature.
• Open the sandwich maker and remove the sandwiches using a plastic or wooden spatula. Never use a metal knife as it might damage the non-adhesive coating.
• Close the top cover in order keep the surfaces hot for further toasting.
  • During the toasting process, you can prepare your food.
  • After finishing the toasting, unplug the appliance.

4 5 safety closure

46

EN

concept

concept

EN

Mounting the plates

1. Make sure the product is unplugged.
2. Select the plate you want to use.
3. Position the sandwich maker so that the controls are facing you. Open the sandwich maker by lifting the handle.
4. Insert the plate into the holes in the covers and push gently. It will snap into place. Repeat the procedure with the second plate.

Removing the plates

1. Make sure the product is unplugged and completely cool.
2. Press the plate release button (7)
3. Pressing the button causes the plate to pop up slightly from the base. Lift the plate and slide it out of the tabs. Repeat the procedure with the second plate.
4. Plates can be washed by hand or in a dishwasher

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and let it cool down.
- Wipe the inner parts and edges of grating using a paper towel or soft cloth. Wipe the sandwich maker surface only using a slightly wet cloth and prevent water, grease or oil from entering the cooling openings.
- Do not clean the inner and outer parts using a rough sponge or pot scourer, as this might damage the parts.

SERVICE

Any extensive maintenance or repair requiring access to the internal parts of the product shall be performed by an authorized service center.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
  • Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

DANKSAGUNG

Open battery pack with internal triangular die structure, labeled parts 7 and 8 (no text or symbols on the device itself)

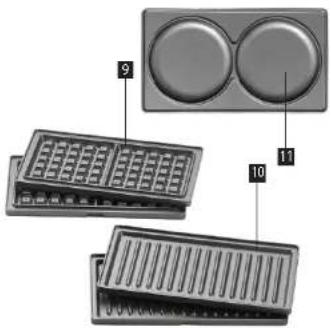

Diagram of a multi-layered battery pack with labeled components 9, 10, and 11

TAUCHEN SIE DAS GERÄT NIEMALS INS WASSER ODER ANDERE FLÜSSIGKEITEN!

Black square electronic device with a faucet symbol above it and two crossed lines below (no text or symbols visible)

BEDIENUNGSANLEITUNG

Black rectangular device with labeled parts and directional arrows indicating rotation (no text or symbols on body)

Open waffle grill with labeled parts (no text or symbols visible)

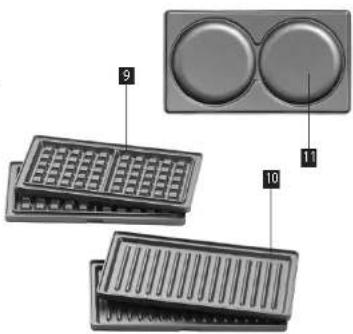

Diagram of a multi-layer battery pack with labeled components 9, 10, and 11

NE JAMAIS IMMERGER L'APPAREIL A L'EAU OU TOUT AUTRE LIQUIDE!

Black square electronic device with water drop symbol above it, no visible text or labels

MODE D'EMPLOI

Open battery pack with internal compartments and labeled parts (no text or symbols visible)

Diagram of a multi-layered battery pack with labeled components 9, 10, and 11

NON IMMERGERE MAI L'APPARECCHIO NELL'ACQUA NE' IN ALTRI LIQUIDI!

Black square electronic device with water drop symbol above it, crossed by diagonal lines (no text or labels)

MANUALE D'USO

Exterior view of a waffle grill with labeled parts (no text or symbols visible)

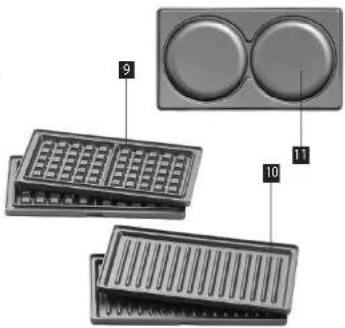

Diagram of three labeled electronic components with numbered parts, likely illustrating a circuit or component layout.
