USER MANUAL DD132 PROLINE

Front view of a white rectangular refrigerator with no visible text or symbols on the body (pure image)

CONTENU

ATTENTION....2

IDENTIFICATION DES PIÈCES....7

INFORMATIONS IMPORTANTES DE SÉCURITÉ....8

INSTALLATION....9

Simple line drawing of a rectangular frame with a small central object, no text or symbols present.

Line drawing of a hand using a tool to lift or install a component on a surface (no text or symbols)

Illustration showing a hand placing a small object into a tray with a magnified inset showing a mechanical device (no text or symbols)

Line drawing of a person standing near a ladder inside a cabinet (no text or symbols)

Simple line drawing of a person holding a tool, with an inset showing a close-up of the tool (no text or symbols)

Illustration of a hand using a wrench to adjust or repair a piece of material, with no visible text or symbols.

Line drawing of a hand pressing down on a small cylindrical object on a wooden surface, with no visible text or symbols.

Line drawing of a medical device with a handle and cup (no text or symbols)

Two technical diagrams showing a mechanical component with pins and mounting points, no text or symbols present.

Simple line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a rectangular frame with a horizontal line at the center (no text or symbols)

Warning symbol with exclamation mark inside a shield shape (no text or numbers)

Diagram showing a refrigerator with an open door and a labeled component, illustrating the internal structure and assembly.

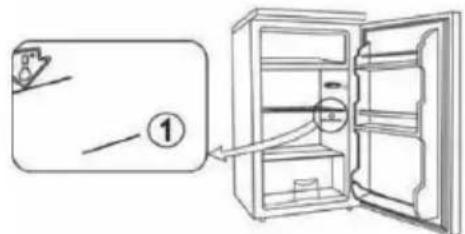

VERIFICATION DE LA TEMPERATURE DANS LA ZONE LA PLUS FROIDE

IMPORTANT SAFETY INSTRUCTIONS....6

INSTALLATION 8

Thermostat temperature control panel....9

Thermostat setting....9

Noise from your appliance....9

Shopping for frozen food....9

Storage of fresh food in your refrigerator compartment.... 10

Storing frozen food....11

How to thaw frozen food....11

Thawing frozen vegetables....11

Freezing fresh food....12

Defrosting....13

Prolonged off periods.... 13

Power failure.... 13

Reversing the doors....14

CLEANING AND MAINTENACE....16

TROUBLESHOOTING....17

DO AND DO NOT'S....17

TECHNICA DATA 18

PRODUCT INFORMATION SHEET 19

REPAIR AND SPARE PARTS SERVICE 21

DISPOSAL 22

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNINGS

• This appliance is intended to be used in household and similar applications such as
  – staff kitchen areas in shops, offices and other working environments;
  — farm houses and by clients in hotels, motels and other residential type environments;
  — bed and breakfast type environments; catering and similar non-retail applications.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The appliance shall not be exposed to rain.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- WARNING: For making ice (ice cubes), use potable water only.

- CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.

- INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

- Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

• For disposal of the appliance:

- To prevent possible harm to the environment or human health from uncontrolled waste disposal, the refrigerants and the flammable insulation blowing gases, please recycle the appliance responsibly to promote the sustainable reuse of material resources. The disposal should only be done through public collection points; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

• For installation, servicing:
- Appliance should be placed on a horizontal floor and keep the ventilation freely.
- Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.
- For handling:
• Always handle the appliance to avoid any damage.
- Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “Cleaning and Maintenance” in page GB-16&17.

Warning; Risk of fire / flammable materials
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

– Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

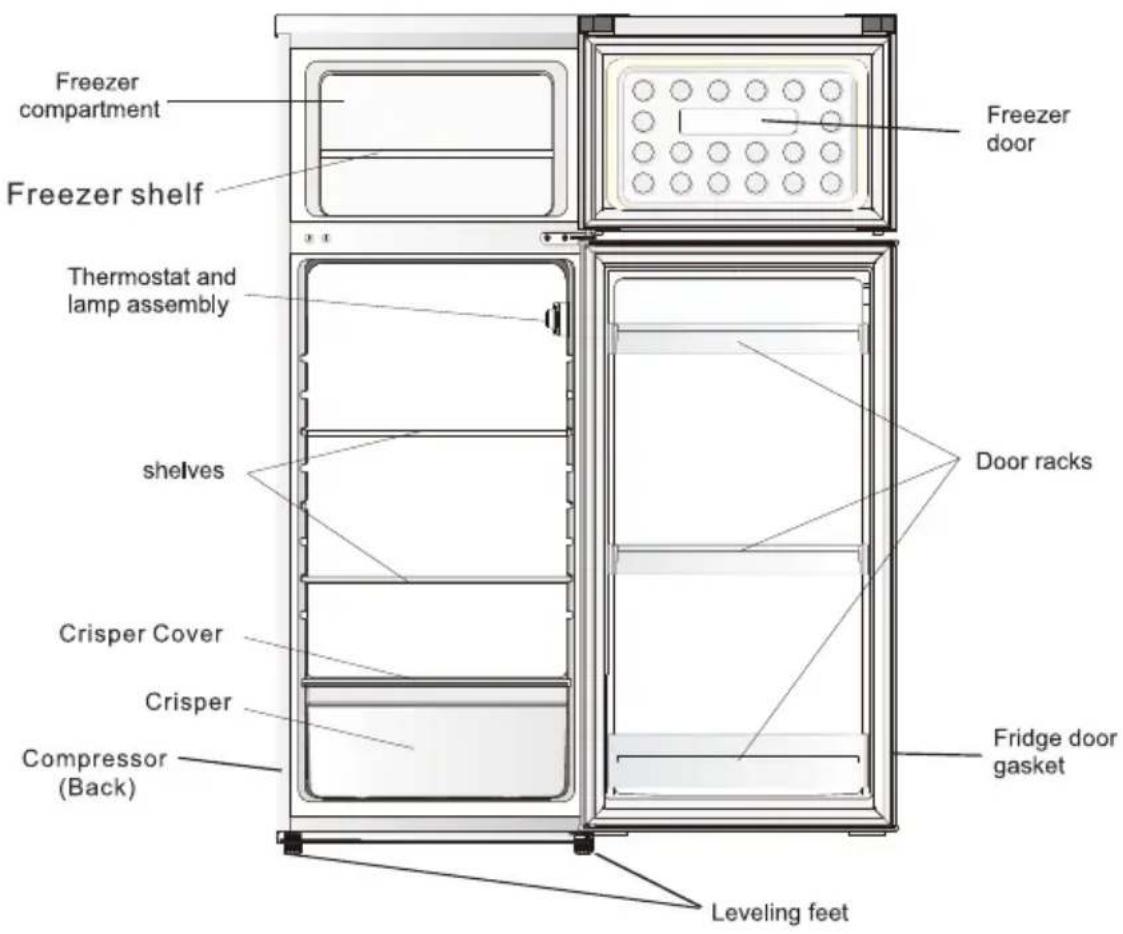

NAMES OF PARTS

Freezer compartment Freezer shelf Thermostat and lamp assembly shelves Crisper Cover Crisper Compressor (Back) Leveling feet Freezer door Door racks Fridge door gasket

Note: Compartment design may change due to product improvement, No prior notice will be given.

Recommended food arrangement

Freezer compartment (-1°C \~ -22°C)

Freezing, storage of frozen food

Refrigerator compartment (2°C \~8°C)

Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.

Top section:	canned food, bread, cake...
Middle section:	dairy products, readymade food, desserts...
Bottom section:	meat, meat products, delicatessen ...
Container:	fresh fruit, vegetables, salads...

Refrigerator door shelves (2°C \~ 8°C)

Top section: eggs, butter, cheese...

Middle section: beverages, cans, bottles...

Bottom section: beverages, cans, bottles...

IMPORTANT SAFETY INSTRUCTIONS

Before using this appliance please read these instructions carefully and retain for future use.

• This appliance is designed to operate at a voltage between 220 - 240 volts. Please check that the voltage matches that of your local supply. Failure to use the correct voltage will render the correct output and maintenance the appliance.
• This appliance must only be used for its intended purpose i.e. the freezing or storage of domestic edible foodstuffs and should not be used for any other purpose.
• Extreme caution must be used when moving an appliance as it is heavy and may have sharp edges under the base.
• This appliance is intended for indoor use only. Do not use or store outdoors (this appliance shall not be exposed to rain).
• Disconnect from the mains supply by removing the plug from the mains outlet socket before any maintenance or if the appliance is not going to be use for a long period of time.
• Do not position this appliance near hot surfaces, or in direct sunlight.
  • This appliance is used for the storage of fresh food, freezing of fresh food and the storing of pre frozen food.
• If you are discarding an old refrigerating appliance with a lock or catch fitted to the door or lid, ensure that it is left in a disabled condition to avoid the entrapment of children when they are playing.

This appliance might not operate consistently (possibility of defrosting of the contents or the temperature becoming too warm in the frozen food compartment) when sited for an extended period below the cold end of the range of temperatures for which the appliance is designed. Food to be frozen is not to be placed in direct contact with food already in storage.

Effervescent drinks should not be stored in the freezer compartment.

IMPORTANT INFORMATION:

• This appliance is designed to operate in ambient temperatures (surrounding air temperature) between 16°C and 32°C. If these temperatures are exceeded i.e. colder or warmer, the appliance will not operate correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the freezer section will rise above -18°C and food spoilage may occur.
• Remove all packaging materials from the appliance. Wash the inside of the cabinet with lukewarm water and bicarbonate of soda (5ml to 0.5 litre of water). Dry the appliance thoroughly.
• When using the appliance for the first time or after defrosting, turn the thermostat control to the maximum position for at least 2 hours before introducing food to be stored, and then readjust to the normal position.
• If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 9,5 hrs. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

INSTALLATION:

This appliance must be position on a flat stable surface; any unevenness can be rectified by adjusting the two front feet by screwing them in or out.

Do not position this appliance in an excessively cold our damp areas such as a garage or cellar etc.

Do not locate your fridge / freezer near a heat source, EG cooker, boiler or radiator. Also avoid direct sunlight.

Position the appliance and allow to stand for two to three hours before it is turned on for the first time to allow the system to settle.

A clearance of 10 cm must be left between the sides of the appliance and any adjacent cabinets or walls to allow for adequate air circulation. The appliance is not designed for recessed installation (“building in”).

NOTE: If the appliance is positioned on a carpet, soft floor covering you should readjust the front feet once the appliance has had time to settle.

DISPOSAL: As old refrigeration appliances may contain CFC's which will damage the ozone layer, when disposing of any refrigeration appliance please contact your local waste disposal department for advice on the correct method of disposal.

The refrigerating gas contained in the circuit of this appliance is Isobutene (R600a); it causes a low level of pollution but is inflammable. please contact your local disposal department for advice on the correct method of disposal.

THERMOSTAT TEMPERATURE CONTROL PANEL:

The thermostat temperature control is situated inside the fridge compartment on the right which regulates the temperature of the fridge / freezer.

THERMOSTAT SETTINGS:

The appliance is designed to maintain an internal storage temperature in the refrigerator compartment between 2^ C to +8^ C.

To enable adjustment of the temperature in the appliance it is fitted with an adjustable thermostat located in the fridge compartment, which can be adjusted from setting 1 (warmest) to 7 (coldest). For normal working temperature it is recommended to adjust the thermostat control to the position 4.5, after a few hours readjust the thermostat to the desired temperature. There is also an off position "0", which turns OFF the refrigerator and freezer compartments. Please note this does not disconnect the appliance from the mains supply. To do this you must remove the mains plug from the wall outlet. To obtain a lower internal temperature turn the thermostat temperature control to a higher number. To obtain a higher internal temperature turn the thermostat control to a lower number.

Please Note: if the appliance is switched off our unplugged you must wait at least 5 minutes before restarting the appliance or re-connecting the plug into the wall outlet.

This is to allow the protection device in the compressor to reset.

If the compressor fails to start correctly remove the plug and wait 5 minutes before you try again then the compressor should restart normally.

The storage temperature may be affected by:

• The room temperature
• How often the door is opened
• How much food is stored
- Position of the appliance

In determining the correct thermostat temperature control setting, all these factors have to be considered and readjustment of the thermostat temperature control may be necessary.

NOISE FROM YOUR APPLIANCE:

You may notice some rather unusual Noises. The noises are caused by circulation of refrigerant in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your freezer.

SHOPPING FOR FROZEN FOODS:

The appliance is rated as a 4 star freezer and can freeze fresh food and store pre frozen food.

When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating.

STORAGE OF FRESH FOOD IN THE REFRIGERATOR COMPARTMENT:

- Food should always be covered tightly with foil, plastic film, placed in plastic bags or stored in airtight freezer containers. This will prevent food from dehydrating and to prevent any strong odours of some foods transferring to milder ones.

• To store raw meat in the refrigerator compartment wrap in plastic bags or in airtight containers and place on the lowest shelf to

avoid cross contamination.

- Do not allow raw meat to come into contact with cooked foods. For safety, only store raw meat for two or three days. Fruit and vegetables should be thoroughly cleaned and placed In the vegetable / salad crisper bin provided.

- Milk and other liquids should be sealed with lids and placed in the bottle shelf in the door. - Please Note: The ambient temperature of the freshly stored food and how often the door is opened, affects the temperature in the

refrigerator and freezer compartments. If required, change the thermostat temperature settings

STORING FROZEN FOOD:

When using the freezer compartment for the first time or after defrosting, turn the thermostat control to the maximum position for at least 2 hours before introducing food to be stored, and then readjust to the normal position.

HOW TO THAW FROZEN FOOD:

• Thaw at room temperatures. Don’t forget that thawing in a warm area encourages the growth of bacteria.
• Always make sure there are no ice crystals in the food before cooking, particularly with meat and fish. These crystals indicate that the food is not fully thawed and may result in lower temperatures when cooking. Lower cooking temperatures may not destroy bacteria.
• Cook food as soon as possible after thawing.
• Drain off and throw away any liquid lost during thawing.

THAWING FROZEN VEGETABLES:

- For some food, it is unnecessary to thaw food before cooking. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.

FREEZING FRESH FOOD:

- Ensure that your freezing operations are carried out under the most hygienic conditions, as freezing alone does not improve the food.

Never put hot or even warm foodstuffs into the freezer compartment. Prior to storing the food, pack it in plastic bags, aluminium foil or food freezer containers and place into the freezer compartment without placing them in contact with food that has already been frozen. See the technical data sheet at the rear of this

instruction book for the maximum amount in kilograms of fresh food that can be frozen in any 24 hour period.

Never freeze more than the maximum permissible.

- It could be necessary to reduce the quantity to be frozen if freezing every day is anticipated.

- To make ice cubes, fill a ice cube tray with clean water to 34 full and place in the freezer compartment

- When the ice is made, you can remove the ice cubes by holding the tray under cold running water to help remove the cubes.

- All fresh food to be frozen should be placed in the top of the freezer compartment if possible.

DEFROSTING:

REFRIGERATOR COMPARTMENT DEFROST PROCESS:

• The refrigerator compartment defrost process is carried out automatically every time the compressor stops.
• The defrost water drains from the cabinet into a tray placed on the top of the compressor to the rear of the unit where it evaporates from the heat of the compressor.

FREEZER COMPARTMENT DEFROST PROCESS:

• Over time frost will accumulate inside the freezer compartment depending upon the length of time during which the door is left open or the amount of moisture introduced.

It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close fitting of the door seal.

This might allow air to penetrate the cabinet, thus encouraging continuous running of the compressor. Thin frost formation is quite soft and can be removed with a brush or plastic scraper.

• For the removal of thin frost it is not necessary to switch off the appliance.
• For the removal of heavy ice deposits disconnect the appliance from the mains supply and empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to keep them cold.
• Defrosting should be undertaken when the freezer compartment is nearly empty, and it should be carried out as quickly as possible to prevent undue increase in temperature of the contents.
• Providing that the contents are well wrapped and placed in a cool location they should keep for several hours.
• Examine the contents when replacing them in the freezer compartment and if some of the packages have thawed out it should not be re frozen but eaten within 24 hours or cooked and refrozen.
• After defrosting has finished clean the inside of the fridge /freezer with a solution of warm water with a little bicarbonate of soda and then dried thoroughly.

Wash all removable parts in the same way and reassemble replace the drain pipe to it normal position and replace the bottom draw.

• Reconnect the appliance the main supply and turn the thermostat up to maximum.
• Re introduce the frozen food and keep the door closed until the appliance has reached the correct operating temperature.

PROLONGED OFF PERIODS:

• If the appliance is not in use for a long period of time, proceed as follows:
- Disconnect from the main supply by removing the plug from the mains supply outlet.
- Clean and dry the inside as instructed under the heading of cleaning the appliance.
- Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.

POWER FAILURE:

• If there is a power failure for less than 9,5 hours keep the door closed. The frozen food should not be affected if the failure lasts for less than this time.
  • Extra protection can be given by covering the appliance with two or three thick blankets.
• If a long power failure is anticipated, try to get the foodstuff into another appliance or cold store, if possible.
• If the power cut is longer than 9,5 hrs then check the content of the freezer compartment. If the food has defrosted, cook and refreeze the food or it should be eaten immediately. Never refreeze food that has been defrosted.

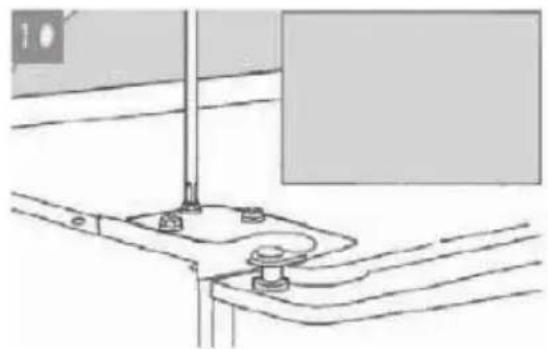

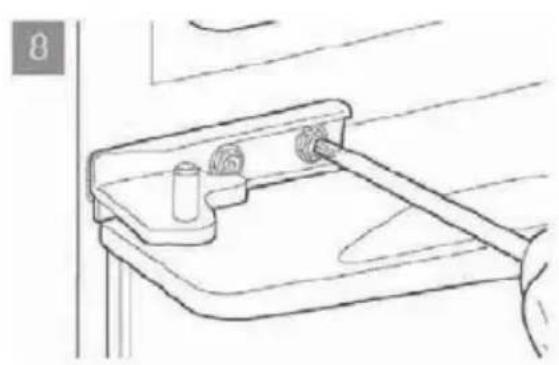

Reversing The Doors

Before you reverse the appliance doors, you should ensure the appliance is unplugged and empty and have someone to help you. You will need a cross head screwdriver and adjustable spanner.

Simple line drawing of a rectangular frame with a small circular object on the side (no text or symbols)

Remove the screws on the top cover then remove the top cover.

Line drawing of a hand using a screwdriver to work on a mechanical component (no text or symbols)

Remove the retaining screws and the top hinge, then remove the upper door and put it in a safe place.

Illustration of a hand cleaning a window with a close-up of a device (no text or symbols visible)

While supporting the lower door, remove the central hinge by removing the two screws.

Illustration of a person standing near a bookshelf (no text or symbols visible)

Remove the lower door from the lower hinge pin. Tilt the fridge backwards and rest it on a firm surface.

Simple line drawing of a mechanical device with a magnified inset showing a cylindrical component (no text or symbols)

Remove the lower hinge by removing the screws. Re-fit the adjustable foot from left side to right side.

Illustration of a hand using a wrench to adjust a mechanical component, with an inset showing a tool interacting with a bracket (no text or symbols visible)

Remove the lower hinge pin using a spanner. Turn the hinge over and replace the hinge pin in the same hole. (Reversed)Replace the lower hinge on the other side and then stand the refrigerator upright.

Hand holding a small object on a wooden surface, with two circular buttons and a magnified inset showing the contact area (no text or symbols visible)

Remove and re-fit the blanking plugs on the middle steel plate from right side to left side. Remove the door hinge cap in the top of the freezer door and insert it on the opposite side of the door.

Line drawing of a hand holding a tray with a cup and two cups, no text or symbols present

Replace the central hinge after refitting the lower door, to assist final adjustment, do not fully tighten the hinge screws.

Two technical diagrams showing a mechanical component with three protruding pins and a curved base, no text or symbols present.

Unscrow the hinge pin from the top hinge using the spanner. Turn the hinge over and replace it in the same slot. (Reversed)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Re-fit the top hinge while refitting the upper door. Do not fully tighten the screws.

Simple line drawing of a vertical rectangular frame with a horizontal line inside (no text or symbols)

Check that doors are aligned horizontally and vertically and that all seals make good contact with the cavity all the way around the cavity opening before finally tightening the hinges. Re-fit the plastic insert on the top cover from left side to right side before re-fitting the top cover. Re-adjust the leveling feet, if necessary.

CLEANING AND MAINTENANCE:

- Before any cleaning or maintenance is carried out you must disconnect the appliance from the mains outlet socket by removing the plug.

- It is recommended that when cleaning the appliance, both the inside and outside, can be cleaned using warm water and a little bicarbonate of soda. (5ml to 0.5 litre of water). Dry the appliance thoroughly before reintroducing the food.

- External Cleaning: wash the outer cabinet with warm soapy water ensure you do not use water near any electrical component to the rear of the cabinet.

- There may be sharp edges on the underside of the product so care should be taken when cleaning.

Cleaning Tips

• Remove all shelves, door shelves, vegetable containers, removable accessories (such as egg tray and ice cube tray if included) and/or drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch, temperature control knob and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wetsponge and soft brush (such as toothbrush) to remove any stuck-on food.

The LED lights in the fridge compartment cannot be replaced by the user. If the LED lights stop working, please contact the local authorised service agent.

TROUBLESHOOTING:

Before calling for service please check the following points.

The appliance is not working

• Check the plug is inserted correctly into the mains outlet socket.
• Check there is power to the mains outlet socket by plugging in another appliance.

The appliance is noisy when running

- Check the appliance is level and it is not in contact with another appliance or kitchen furniture.

The appliance does not cool sufficiently

If the door has been opened too often, or it has been left open for a while it will take time for the appliance to reach its set temperature.
- Check the airflow over the rear of the appliance has not been reduced due to insufficient clearance.
- If a large quantity of fresh food has been introduced

Do and Do Not's:

Do- Clean and defrost your appliance regularly (See "Defrosting")

Do- Check contents of the compartments every so often.

Do- Store commercially prepared food in accordance with the instructions given on the packets.

Do- Choose high quality fresh food and be sure it is thoroughly clean before freezing it.

Do- Wrap all food in food quality polythene bags or air tight containers and make sure any air is excluded.

Do Not- Store poisonous or any dangerous substances in your freezer. It has been designed for the freezing of edible foodstuffs only.

Do Not- Consume food which has been frozen for an excessive length of time.

Do Not- Leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.

Do Not- Use sharp objects such as knives to remove the ice from the appliance.

Only use a plastic scraper

Do Not- Put hot food into the appliance. Let it cool down to room temperature.

Do Not- Put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.

Do Not- Give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freezer burns' on the lips.

Do Not- Try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.

TECHNICAL DATA:

Freezing capacity	2.4kg/24h
Maximum rated wattage of lamp	2W
Rated power input	100W
Rated current	0.6A
Supply voltage	220-240V~, 50Hz
Refrigerant/Amount	R600a/41g
Insulation blowing gas	Cyclopentane
Net weight	28kg

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | Proline
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: DD132
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		freestanding
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1150	Total volume (dm3 or l)		117
	Width	480
	Depth 530
EEI		125	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		206	Climate class:		temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		32
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	yes	89,0	4	—	M
Chill	no	—	—	—	—
0-star or ice-making	no —	— — —
1-star no — —	— —
2-star no — —	— —
3-star no — —	— —
4-star	yes	28,0	-18	2,4	M
2-star section	no —	— — —
Variable temperature compartment	no	— —		—	—
For 4-star compartments
Fast freeze facility			no
For wine storage appliances
Number of standard wine bottles —
Light source parameters (a) :
Type of light source			LED
Energy efficiency class			—
Minimum duration of the guarantee offered by the manufacturer : 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

^(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

- Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/468512

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

www.darty.com240978 970 97024 Hours7 Days a week9 Rue des Bateaux-Lavoirs,94200 Ivry-sur-Seine,France

Vanden Borrein alle vertrouwenwww.vandenborre.be02 334 00 008 AM – 6 PMMon to Sat[CBS1]Slesbroekstraat 1011600 Sint-Pieters-LeeuwBelgium

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Warning symbol with exclamation mark and circular dot (no text or numbers)

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

Diagram showing a refrigerator interior with a door and labeled component, illustrating the open door's internal structure.

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should

increase the thermostat and wait for 12 hours before checking the indicator

again.

After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Correct setting

Temperature too high – adjust the thermostat

INHOUDSOPGAVE

WAARSCHUWINGE 2

B ENAMING VAN DE ONDERDELEN....6

BELANGRIJKE INFORMATIE 7

INSTALLATIE 8

DIEPVRIESPRODUCTEN INKOPEN:

DIEPVRIESPRODUCTEN BEWAREN:

Simple line drawing of a rectangular frame with a small central object, no text or symbols present.

Line drawing of a hand using a tool to lift a small component on a wooden surface (no text or symbols)

Illustration showing a hand holding a small appliance next to a window, alongside a close-up of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a person standing beside a cabinet with a door open (no text or symbols)

Simple line drawing of a person using a camera to observe a mechanical component (no text or symbols)

Illustration of a hand using a wrench to adjust a mechanical component, with an inset showing a close-up of the tool (no text or symbols present)

Hand placing a small object onto a wooden surface, with no visible text or symbols

Line drawing of a medical or laboratory equipment setup with a tray, cup, and stand (no text or symbols)

Two technical diagrams showing a mechanical component with pins and mounting holes, no text or symbols present.

Simple line drawing of a mechanical assembly with a vertical rod and base plate (no text or symbols)

Simple vertical panel with a horizontal line and a small rectangular object on the left side (no text or symbols)

Warning symbol with exclamation mark and circular dot (no text or numbers)

Diagram showing a refrigerator with an open door and a labeled component, illustrating the internal structure and assembly.

VERIFICATIE VAN DE TEMPERATUUR IN DE KOUDSTE ZONE

EU Declaration of Conformity

Product Description:

Blank white image with no visible text, symbols, or markings

Marque –

Brand /Merk /Marca:

Proline

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019

LVD :

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 60335-2-24:2010+A1:2019+A2:2019

EN 62233:2008

ErP :

(EU) 2019/2016

(EU) 2019/2019

(EU) 2021/340

(EU)2021/341

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

EN 60704-1:2010+A11:2012

EN 60704-2-14:2013+A11:2015+A1:2019

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mars 3, 2022

DocuSigned by:

Prndrag Petricavic

EA30F3FB8F314D0...

CE

ASSURANCE SERVICE QUALITY FNAC DARTY
