Product type	Air compressor
Brand	Güde
Model	Airpower 2311024
Order number	50113
Power supply	230 V ~ 50 Hz
Motor power (S3/60%)	1.5 kW
Suction capacity	206 l/min
Effective flow rate	140 l/min
Max operating pressure	10 bar
Tank volume	24 L
Weight	25 kg
Protection rating	IP 20
Protection class	Class I
Sound pressure level (L_WA)	94 dB(A)
Intended use	Compressed air production for domestic and DIY use
Required safety device	Residual current circuit breaker 30 mA
Motor protection	Thermal protection with automatic restart
Regular maintenance	Drain condensation water after 2-4 hours of operation
Warranty	24 months end consumer, 12 months industrial use
Operating temperature	+5°C to +35°C
Duty cycle	S3 60% (e.g., 2.5 min operation, 1.6 min stop)

Frequently Asked Questions - Airpower 2311024 Güde

How to drain condensation water from the tank?

After about 2 to 4 hours of operation, open the drain valve located under the tank to remove condensation water. Perform this operation regularly to prevent tank corrosion.

What type of oil to use for the compressor?

Use a special compressor oil, for example 5W30 in case of low temperatures. For oil changes, consult the after-sales service.

Can I use the compressor for painting?

Yes, but you must use a filtered water separator to prevent contamination of the paint by moisture or oil.

What to do if the compressor does not start?

Check that the pressure in the tank is not higher than the start pressure. If so, empty the tank. Also check the power supply and the condition of the pressure switch.

What is the maximum operating pressure?

The maximum operating pressure is 10 bar. Never exceed this value.

How to adjust the output pressure?

Use the pressure regulator (manometer) located on the compressor to adjust the output pressure according to the tool used. Turn the knob to increase or decrease the pressure.

Can I use an extension cord?

Yes, but only an extension cord of maximum 5 meters with a cable cross-section of at least 1.5 mm². Longer or smaller cross-section extension cords are not recommended.

How to clean the intake filter?

Unplug the device, then remove the intake filter. Clean it with compressed air or replace it if it is very dirty. This helps prevent overheating.

What is the lifespan of the tank?

The lifespan depends on maintenance. If you regularly drain condensation water and follow safety instructions, the tank can last many years. In case of corrosion, have it checked by a professional.

What to do if the safety valve leaks?

If the safety valve continuously leaks air during operation, it may be dirty. Clean it or replace it. If the problem persists, contact Güde service.

USER MANUAL Airpower 2311024 Güde

Blue KOMPRESSOR air compressor with visible branding and control panel (no text or symbols on the device itself)

231/10/24

50113

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY \_\_\_\_ 21

Français CARACTÉRISTIQUES TECHNIQUES | UTILISATION CONFORME À LA DESTINATION | CONSIGNES DE SÉCURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE \_\_\_\_ 26

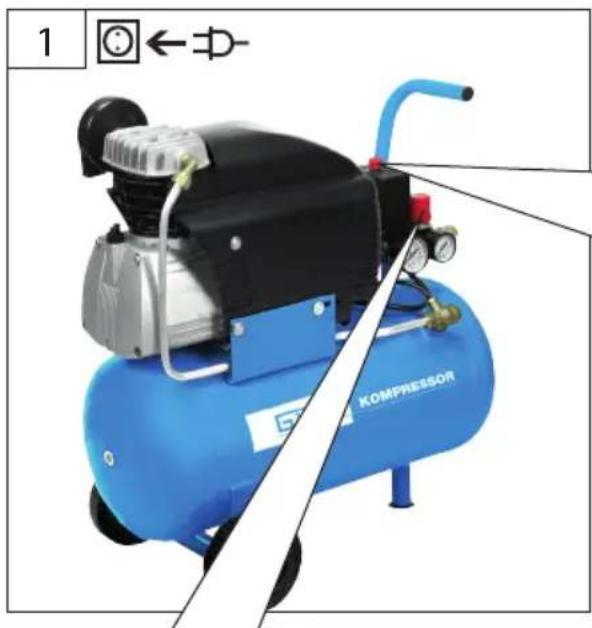

Blue KOMPRESSOR air compressor with black and silver casing, no visible text or symbols on the device itself

DE Montage

GB Assembly

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

1

6

DE Inbetriebnahme

GB Starting-up the machine

FR mise en service

GB Cleaning / Maintenance

FR Nettoyage / Entretien

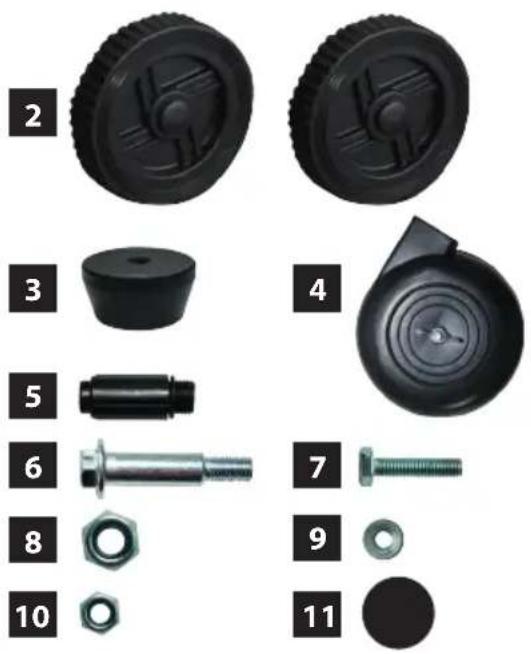

Product assembly diagram showing a cardboard box, a blue air compressor, and various mechanical parts (no text or symbols)

DE	Inbetriebnahme
GB	Starting-up the machine
FR	mise en service
IT	Messa in funzione
NL	Inbedrijfstelling
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
HU	Üzembe helyezés

Two identical diagrams showing a red and gray device with lock icons, no text or symbols present.

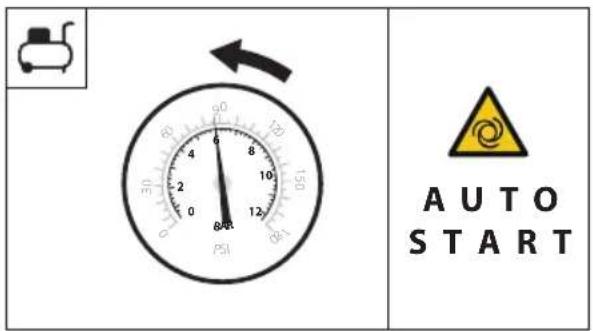

DE Betrieb
GB Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
HU Üzemeltetés

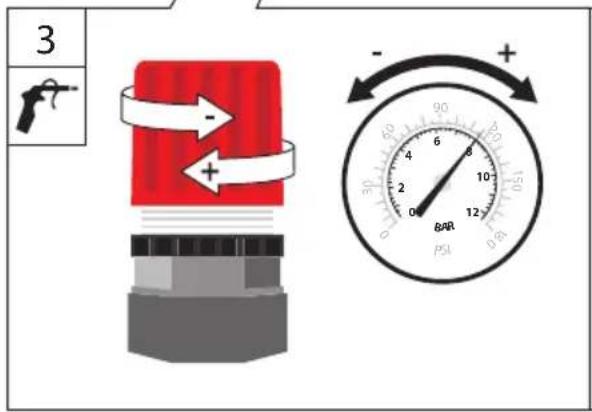

Illustration of a spray gun emitting smoke with motion arrows indicating airflow (no text or symbols)

MAX bar

2 3 1 / 1 0 / 2 4 = 1 0 bar

DE Kondensat ablassen

GB Drain the condensate

FR Videz le condensat

IT Scaricare la condensa

NL Condens aftappen

GB After approx. 2-4 hours of use, the condensate that has formed must be drained from the receiver.

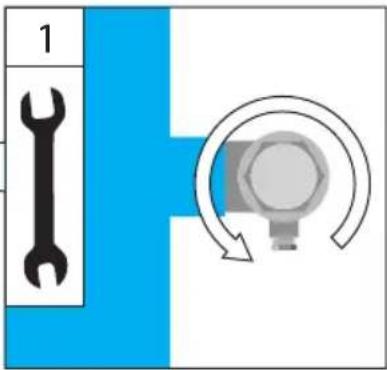

Blue industrial air compressor tank with visible branding and mounting base (no readable text or symbols)

3

Illustration of a faucet dispensing liquid into a bowl of water (no text or symbols)

4

Illustration of a blue mechanical component with a lock icon and circular arrow, no text or symbols present.

DE Wartung-Luftfilter
GB Maintenance-Air filter
FR Entretien-Filtre à air
IT Manutenzione-Filtro d'aria
NL Onderhoud-Luchtfilter
cz Údržba-Vzduchový filtr
SK Údrzba-Vzduchový filter
HU Karbantartás-Levegőszűrő

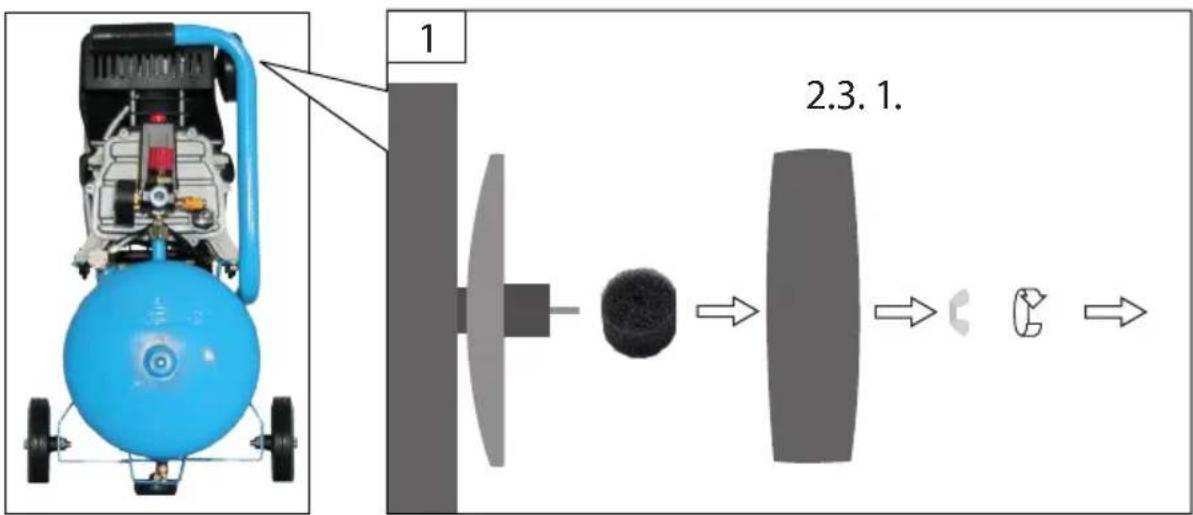

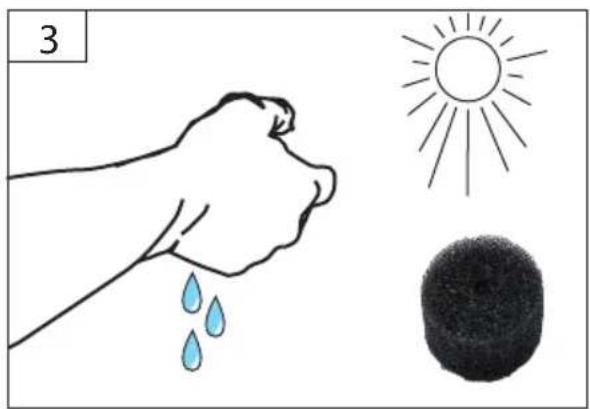

Illustration showing a hand holding water droplets, sun rays, and a dark circular shape (no text or symbols)

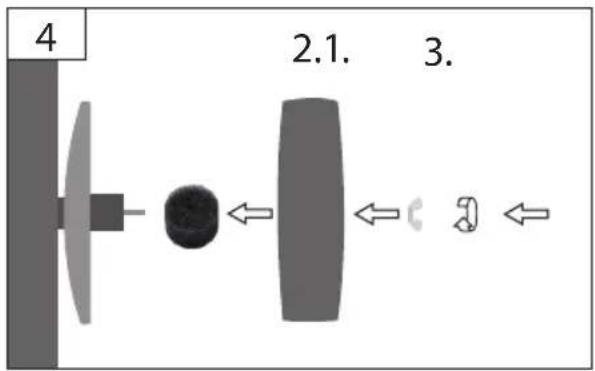


DE Rückschlagventil prüfen
GB Check valve inspection
FR Contrôle de la soupape de retenue
IT Controllo della valvola di ritegno
NL Terugslagventiel controleren
CZ Kontrola zpětného ventilu
SK Kontrola spätného ventilu
HU Visszacsapó szelep ellenőrzése

4

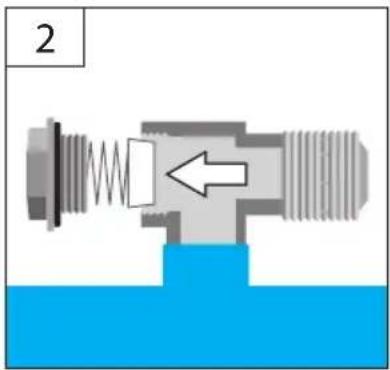

Cross-sectional diagram of a mechanical valve or fitting with internal components and a blue base (no text or symbols)

Technische Daten

Kompressor

231/10/24

Artikel-Nr. 50113

Number of cylinders ....1

Suction capacity 206 l/min

Free air delivery....140 l/min

Max. working pressure....10 bar

tank capacity 24 l

Weight....25 kg

Degree of protection....IP 20

Protection class....1

Sound power level L_WA^* 94 db(A)

*Measured according to 2006/42/EC

Read and understand the operating instructions before using the appliance. Abide by all

the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Preserve all the documentation so that anyone who uses the compressor can consult this beforehand.

Specified Conditions Of Use

The compressor can only be used for the production of compressed air to be used at home and by handymen. – Respecting technical data and safety precautions.

The compressed air produced by the pressor cannot not be used for pharmaceuti- food or medical purposes or to fill the air tles of scuba divers.

The compressor must be used in a suitable environment (well ventilated with an ambient temperature of between +5°C and +40°C) and over in places with dust, acids, vapors, explosive flammable gases.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Safety instructions

WARNING! Electric shock! There is a risk of injury caused by electric shock!

Operation is only allowed with a safety itch against stray current (RCD max. stray rent of 30mA).

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Use extension cables with a maximum length of 5 meters and with a cable cross-section of not less than 1.5 mm2. Use of extension cables of different length and cross-section and also of adapters and multiple sockets should be avoided.

Check the cable and/or socket for damages before the appliance putting into operation.

To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.

Never let the compressor come into contact with water or other liquids and never direct the jet of liquids sprayed by tools connected to the compressor towards the compressor: as the appliance is live, this could cause electrocution or short-circuits.

Never use the appliance with bare feet or wet hands or feet.

Never yank the power cable to disconnect the plug from the power outlet or to move the compressor.

Warning: the compressor may restart when power is restored following a blackout.

Compressed air is a potentially dangerous form of energy; always take great care when using the compressor and its accessories.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Children should be supervised to ensure that they do not play with the device. Always keep children and unauthorised persons out of reach of the appliance.

Never use the compressor without being supervised.

Never direct the jet of air towards persons, animals or your body.

Never keep the air flow in body holes as that could lead to fatal injuries!

Keep the work area free.

When operating, the compressor must be placed on a stable surface.

The compressor must be used in a vertical position only.

Caution! The compressor may only be used with appropriate wheels and rubber bumps.

Safety goggles should be worn when using the compressor in order to protect the eyes against any foreign bodies lifted by the jet of air.

If possible, when using air-powered accessories, wear safety clothing.

Always maintain a safety distance of at least 4 meters between the compressor and the work area.

Caution! The pneumatic hose may lash you when the quick-acting coupling is opened! The pneumatic hose should be held by hand.

Always use the handle to move the compressor.

When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, airpowered tools, painting, washing with water-based detergents only, clinching, etc.).

When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, airpowered tools, painting, washing with water-based detergents only, clinching, etc.).

Caution! Never switch the compressor on or off using the plug. Pressure switch to be pressed at all times.

Do not leave the compressor on over night as it could become a source of danger.

At the end of your working day, switch the appliance off, release the air jet and unplug the compressor.

Warning: if the water that condenses is not drained, it may corrode the receiver, reducing its capacity and impairing safety.

Never leave the appliance exposed to adverse weather conditions (rain, sun, fog, snow).

If this compressor is used outdoors, always remember to stow it after use in a covered or closed place.

Never use the compressor outdoors in rain or bad weather.

Do not place flammable or nylon/fabric objects close to and/or on the compressor.

Do not cover the air inlets on the compressor.

The compressor must not be fitted in a vehicle for industrial purposes without an inspection by an expert! If the compressor is used for industrial purposes, it must be checked by an expert before putting into operation for the first time. Such check must be ordered by the operator (under BetrSichV Section 17 No. 25 – operation safety regulation)

Caution! When fitted in automatic equipment, it is necessary to install appropriate alarm or warning devices in case of power outage or malfunction or compressor (e.g. feed line, etc.) failure.

Operation at lower temperatures

At lower temperatures, below 5^irc C, problems may be experienced when starting. They are manifested by growling of the electric motor. In such a case, the appliance must be immediately switched off and oil (5W30) changed in warmer conditions.

To guarantee perfect and reliable operation of the rotary and percussive pneumatic tools such as impact wrenches, staplers or nailers, etc., the compressed air must be supplied filtered - with oil via the lubricator or maintenance unit

A filtered water separator should be used for varnishing in any case.

To select a suitable pneumatic tool, the tool air

consumption and the compressor effective amount delivered must necessarily be considered.

(Pneumatic tools and accessory equipment can be found at www.guede.com)

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Before carrying out any work on the machine, connect the plug from the socket.

Run the accessory connected dry until there is no more air in the receiver.

Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.

Safety valve Functional check

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

Use only original accessories and original spare parts.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Symbols

Read the Operating Instructions!

Before carrying out any work on the machine, disconnect the plug from the socket.

Wear eye protective goggles! Wear ear protectors!

Protect against humidity Never expose tool to rain.

Cable pulling / transport prohibited

Warning/caution!

Dangerous voltage

Caution - hot surface! Warning, hot surfaces!

Danger - automatic control (closed loop)

Warning against thrown-off items

Keep distance of persons! Observe to keep out of dangerous zone

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

Failure removal

Defect Causes Measure
Compressor not starting after being switched on	Pressure in the air jet exceeds the closing pressure	Release the pressure in the air jet so that the pressure switch gets automatically switched on
	Defective supply Have the current supply checked by an authorised person
	Defective pressure switch Have the pressure switch replaced by an authorised person (Güde service centre)
After reaching the closed pressure, the compressor runs or buzzes for a short time and then switches off automatically	Electric cable is too long or its cross section is too small	Check the length and cross section of the electric cable
Compressor running constantly Suction filter is very dirty Clean or replace the suction filter → 14
			Drain valve is open or missing Close or insert the drain valve
Compressed air is released from the discharge valve under the pressure switch when the appliance is being operated	Discharge valve is leaking Clean or replace the discharge valve
After reaching the cut-off pressure, air is released from the discharge valve under the pressure switch until the closing pressure is reached	Check valve insert is leaking or defective	Clean or replace the check valve insert → 15
	Check valve is damaged Replace the check valve
Compressor gets started too often Too much condensate in the air jet	Drain the condensate → 13
	Compressor is overloaded
Safety valve blowing off Pressure in the air jet exceeds the set cut-off pressure	Have the pressure switch adjusted/replaced by an authorised person (Güde service centre)
	Safety valve is defective Replace the safety valve or contact the Güde service centre
Compressor getting warm too much	Air supply is not sufficient	Make sure sufficient air supply and outlet (minimum distance from wall is 40 cm) is provided
	Cooling fins on the cylinder (cylinder head) are dirty	Clean the cooling fins on the cylinder (cylinder head)
	Too long time of appliance operation	Switch the compressor off
Compressor being overheated and keeps switching off	Compressor is overloaded	Contact the Güde service centre
	Compressor is defective Contact the Güde service centre
	Compressor under undervoltage Contact the Güde service centre
	Outdoor temperature of 35°C

*Misurato conf. 2006/42/EC

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
