USER MANUAL FP 7351 MOULINEX

Thank you for choosing a product from the MOULINEX range, exclusively designed for the preparation of foodstuffs.

i2. bowl j. Grinder j1. lid j2. bowl k. blender with or without tap k1. measuring cap k2. lid k3. jug k4. removable handle k4-1. knob for unclipping the handle k5. seal pour tap k6. tap k7. stopper l. “Maxipress” l1. rotor blade l2-1. disc for purée l2-2. disc for coulis m. Centrifugal juice extractor with pouring spout or filter basket m1. food pusher m2. lid m3. rotary filter m4. pulp collector m5. pouring spout m6. locking lever m7. food pusher m8. lid m9. filter crown m10. filter basket n. Geared reducer for mincer head o. Mincer head o1. Body o2. Removable tray o3. Screw o4. 4 blade cutter o5. Discs o5-1. Small hole disc: fine mincing o5-2.Large hole disc: coarse mincing o6. Nut o7. Food pusher p. Sausage nozzle q. Cake nozzle q1. Support q2. Mould r. Kebbe accessory r1. Ring r2. Nozzle s. Spatula t. Storage unit

Description a. Motor unit a1. upper drive cover a2. upper drive a3. lower drive a4. release button of the cover (a1) and unclipping of the accessory on the upper drive a5. electronic speed variator from 1 to 5 (depending on model) a6. knob for Operation/Stop and Pulse (intermittent operation) a7. 1-2 and Pulse speed selector

Accessories depending on model: b. Bowl assembly b1. pusher-measure b2. lid with standard feed tube b3. bowl (see figure1) b3-1. drive rod b3-2. rubber seal b3-3. nut b4. removable handle b4-1. knob for unclipping the handle c. Spindle d. Vegetable cutter d1. discs A/D: fine slicing / grating C/H: thick slicing / grating E: chip cutter G: parmesan grater B/G: parmesan scraper / shaver d2. small food pusher d3. large food pusher d4. lid with large feed tube d5. disc support e. Cutters e1. metal blade e2. plastic kneader f. Whisk f1. drive housing f2. whisk g. Emulsifying disc h. Citrus press h1. cone h2. filter basket h3. drive rod i. Mini-chopper i1. lid

The accessories supplied with the model you have purchased are shown on the label on the top of the packaging.

assembly (m9+m10) are damaged. - For your safety, only use MOULINEX accessories and spare parts adapted to your appliance. - Switch off the appliance and unplug it before changing the accessories or contact with the parts which move during operation. - Only use one accessory at a time. - Always use the food pushers to guide the foodstuffs in the feed tubes, never use your fingers, or a fork, spoon, knife or other objects. - Handle the metal cutter, the blender cutter, the mini chopper, the grinder and the vegetable cutter discs with care: they are extremely sharp. You must holding the metal cutter (e1) by holding its spindle (c) before emptying the contents from the bowl. - Empty the contents of the bowl and the blender before removing the handle. - Do not operate your appliance when empty. - Always use your blender with its cover. - Do not touch the moving parts, wait until the appliance has stopped completely before removing the accessories. - Ensure that long hair, scarves, ties, etc. are kept away from the top of the moving accessories. - Do not use the accessories as containers for (freezing – cooking – hot sterilisation). This appliance is not intended for use by children or persons who may suffer from a mental and/or physical impairment unless they are adequately supervised in its operation and use by an adult responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

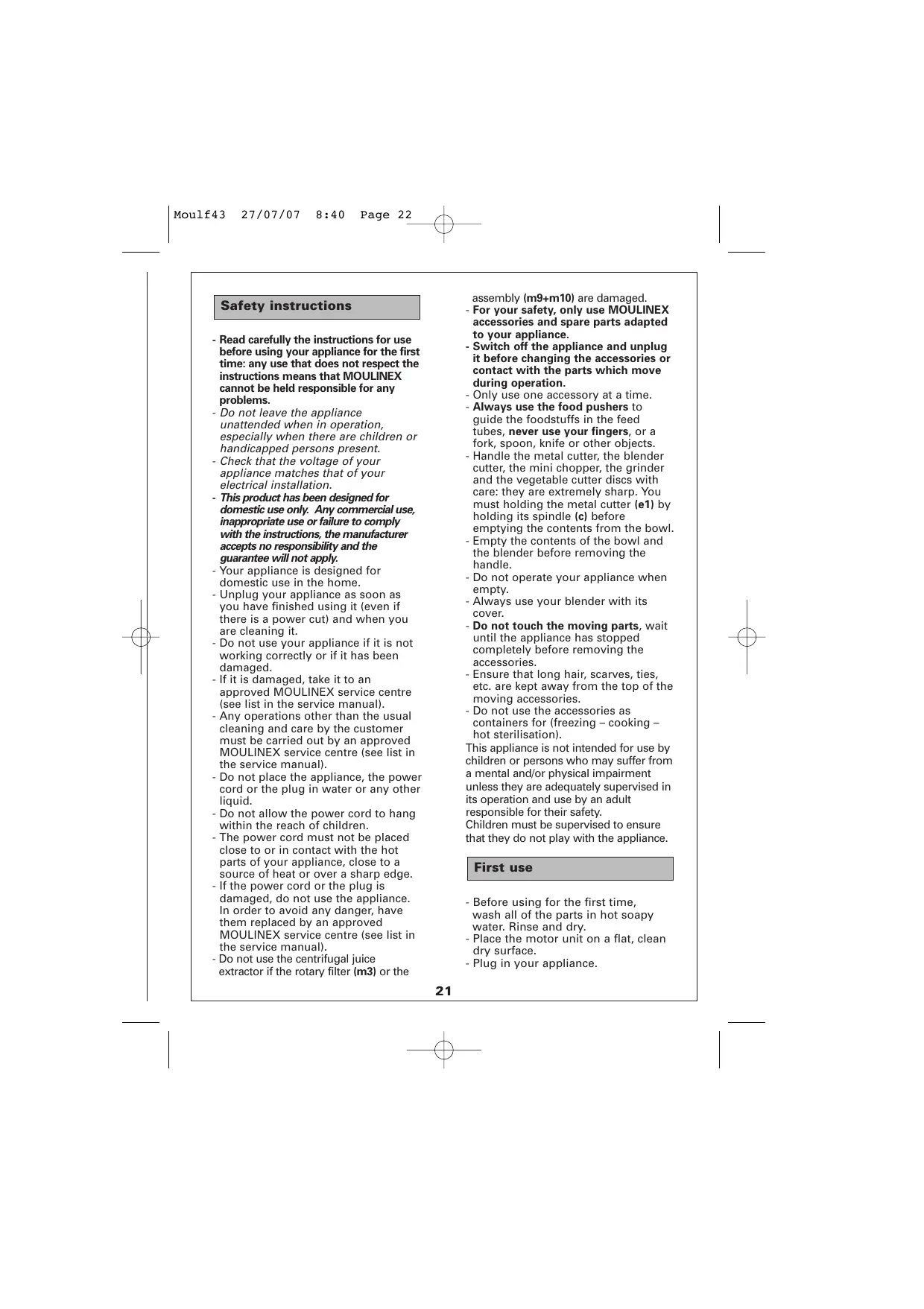

Safety instructions - Read carefully the instructions for use before using your appliance for the first time: any use that does not respect the instructions means that MOULINEX cannot be held responsible for any problems. - Do not leave the appliance unattended when in operation, especially when there are children or handicapped persons present. - Check that the voltage of your appliance matches that of your electrical installation. - This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. - Your appliance is designed for domestic use in the home. - Unplug your appliance as soon as you have finished using it (even if there is a power cut) and when you are cleaning it. - Do not use your appliance if it is not working correctly or if it has been damaged. - If it is damaged, take it to an approved MOULINEX service centre (see list in the service manual). - Any operations other than the usual cleaning and care by the customer must be carried out by an approved MOULINEX service centre (see list in the service manual). - Do not place the appliance, the power cord or the plug in water or any other liquid. - Do not allow the power cord to hang within the reach of children. - The power cord must not be placed close to or in contact with the hot parts of your appliance, close to a source of heat or over a sharp edge. - If the power cord or the plug is damaged, do not use the appliance. In order to avoid any danger, have them replaced by an approved MOULINEX service centre (see list in the service manual). - Do not use the centrifugal juice extractor if the rotary filter (m3) or the

First use - Before using for the first time, wash all of the parts in hot soapy water. Rinse and dry. - Place the motor unit on a flat, clean dry surface. - Plug in your appliance.

Starting your appliance

the clips of the bowl. - Slide the handle upwards until it clicks into place. - To remove the handle, press the release knob (b4-1) or (k4-1) and slide it downwards. (Note: the lid of the blender must be removed to allow the handle (k4) to be taken off. The handle (b4) must be fitted to the bowl so that the upper drive cover (a1) may be locked

Electronic model: - Pulse (intermittent operation): turn the knob (a6) to the "Pulse" position By pressing successively for better control of some preparations. - Continuous operation: turn the knob (a6) to the "1" position. - Stop: turn the knob (a6) to the "0" position. - Speed variator (a5): select the speed indicated or vary it during the preparation. Two-Speed Model: - Pulse (intermittent operation): turn the knob (a7) to the "Pulse" position by pressing successively for better control of some preparations. - Continuous operation: turn the knob (a7) to the "1" or " 2 " position depending on the preparation - Stop: turn the knob (a7) to the "0" position. - Using the upper drive (a2): check that no accessories are attached to the lower drive.

2 MIXING / BLENDING / MINCING /

KNEADING ACCESSORIES USED (depending on model) - Bowl assembly (b), spindle (c), and cutters (e): • metal blade (e1) for blending and chopping. • plastic kneader (e2) for kneading or mixing. FITTING THE ACCESSORIES Press the release button (a4) to open the upper drive (a1) cover. - Place the bowl (b3) on the lower drive (a3). - Place the spindle (c) on the bowl drive (b3-1). - Slide the metal blade(e1) or the plastic kneader (e2) onto the spindle (c), to the bottom of the bowl. - Place the ingredients in the bowl. - Fit the lid (b2) or (d4) onto the bowl. - Close the upper drive cover (a1). You should hear it "click" shut. To release the cutters (e) from the spindle (c): - Place the assembly on a stable surface. - Turn the spindle (c) in a clockwise direction while holding the cutter (e) at the top.

The functions of your food processor

1 ASSEMBLING THE REMOVABLE PARTS - Fitting / removing the bowl (b3) The bowl is used with the following accessories (depending on model): - Cutters (e), vegetable cutters (d), whisk (f), emulsifier (g), citrus press (h), centrifugal juice extractor with filter basket (m10) "Maxipress" (l). - If it is not already fitted, fit the seal (b3-2) onto the bottom of the bowl.The lip of the seal must be facing upwards. - Fit the drive rod (b3-1) onto the seal (b3-2). - Lock the assembly with the nut (b3-3) until it locks. - Dismantle the assembly and clean it after each use. - Fitting / removing the handles (b4) of the bowl and (k4) the blender - For easier cleaning and storage, the handle of the bowl (b4) and the blender (k4) can be removed. - To fit the handle, position it opposite

Recommended speeds Function

Tips Blending - You can blend up to 1 litre of stew, soup, or purée in 20 s. Chopping - In 15 to 30 s, you can chop up to 600 g of foodstuffs: • hard foodstuffs: cheese, dry fruits, certain vegetables (carrots, celery...). • tender foodstuffs: certain vegetables (onions, spinach...). • raw or cooked meats (bones and nerves removed and cut into cubes). • raw or cooked fish... Kneading / mixing - With the kneading function, stop the appliance as soon as you see the ball of pastry form. You can: . knead up to 1.2 kg of heavy dough (rich shortcrust, shortcrust, bread dough) in approximately 60 sec. . mix up to 1 litre of pancake or waffle batter, etc. in 1 to 1 min. . mix 1.5 kg of light mixture (biscuits, cakes) in 1 to 3 min.

the disc (d1). You have to turn it clockwise to lock the spindle in place. - Place the assembly onto the bowl drive (b3-1), this assembly should rest on the disc support (d5) - Fit the lid (d4) on the bowl. - Close the upper drive cover (a1). You should hear it click shut. - Insert the foodstuffs into the tube and guide them with the food pushers (d2) or (d3). - To guide small vegetables (carrots, courgettes…), place the large food pusher (d3) inside the feed tube and push the vegetables down with the small food pusher (d2).

Recommended speeds Electronic Model

3 GRATING / SLICING ACCESSORIES USED - Bowl assembly (b), spindle (c) and vegetable cutter (d). FITTING THE ACCESSORIES Press the release button (a4) To open the upper drive cover (a1). - Place the bowl (b3) onto the lower drive (a3). With the discs (d1): 3a Model with lid with standard feed tube (b2) and food pusher (b1): - Place the spindle (c) in the central hole of the disc (d1). You have to turn clockwise to lock in place. - Place the assembly onto the bowl drive (b3-1). - Fit the cover (b2) on the bowl. - Close the upper drive cover (a1). You should hear it click shut. - Insert the foodstuffs into the tube and guide them with the food pusher (b1). 3b Model with lid with large feed tube (d4) and the (d2) and (d3) food pushers: Place the disc support (d5) inside of the bowl. - Place the spindle (c) in the central hole of

4 BEATING / WHISKING / EMULSIFYING ACCESSORIES USED (depending on model) - Bowl assembly (b) and whisk (f) or - Bowl assembly (b), emulsifier (g) and spindle (c). FITTING THE ACCESSORIES Press the release button (a4) to open the upper drive cover (a1). - Place the bowl (b3) onto the lower drive (a3). 4a With the whisk (f): - Place it onto the bowl drive (b3-1). 4b With the emulsifier(g):

- Place the spindle (c) onto the bowl drive (b3-1). - Slide the emulsifier onto the spindle. Then: - Place the ingredients into the bowl. - Fit the lid (b2) or (d4) on the bowl. - Close the upper drive cover (a1). You should hear it click shut.

(h1). You can make up to 1 litre of juice without emptying the bowl. 6 SMOOTHIES / BLENDING / FINE BLENDING ACCESSORY USED - blender (k). FITTING THE ACCESSORY Press the release button (a4) to open the upper drive cover (a1).

Recommended speeds Function

Beating / Whisking / Emulsifying

6a Direct Service Model with tap: 6a1 Cleaning the tap (k6)

Tips - Do not use these accessories to knead heavy dough or to mix sponges. You can prepare: mayonnaise, aioli, sauces, whisked egg whites (1 to 6), whipped cream, Chantilly cream (up to 0.5 litre).

To make the tap (k6) easier to clean, it can be dismantled into two parts: Press " push ", and release the cover (fig. 6a-1). Clean the tap (k6) under running water. Fit the cover by pressing the middle of it, then clip on the metal pin underneath the hooks (fig. 6a-1). 6a2 Fitting the tap (k6) onto the blender (k3)

Push the seal (k5) as far as possible onto the neck of the jug, then lock the assembled tap (k6 with a quarter turn). Tips : this blender, fitted with its tap, allows you to pour your preparation, directly into glasses (cocktails), onto plates or into bowls (soups) or into the pan (pancakes). Speed 1 helps you to serve thick preparations (milkshakes or smoothies). Stop the appliance as soon as it has finished. Clean the assembled tap each time after each use. If you do not need the tap, you can replace it with the stopper (k7) (see fig 6a-1), equipped with the seal (k5).

5 SQUEEZING FRUIT JUICES

(depending on model) ACCESSORIES USED - bowl (b3) and citrus press (h). FITTING THE ACCESSORIES Press the release button (a4) to open the upper drive cover (a1). - Place the bowl onto the lower drive (a3). - Place the drive rod (h3) of the citrus press onto the bowl drive. - Place the filter basket (h2) on the bowl. - Place the cone (h1) in the hole of the filter basket. - Close the upper drive cover (a1). You should hear it click shut

6b For the two models:

- Place the ingredients in the blender (k3), then lock the lid (k2) onto the jug. - Place the blender assembly (k) onto the upper drive (a2). You should hear a click.

Recommended speeds Function

Recommended speeds Electronic Two-Speed Function Model Model Smoothing / mixing / 1 to 5 - Pulse 1 to 2 - Pulse blending

Tips - Place half a citrus fruit on the cone

Tips You can add ingredients via the hole of the cap (k1) during the preparation. Always use your blender (k) with its cover (k2) fitted. - Do not fill the blender with a boiling liquid. - Do not use the blender with dry foodstuffs (walnuts, almonds, peanuts…). You can: - prepare up to 1.5 litres of finely blended stews or soups, creams, purées, milk-shakes, cocktails. - blend any liquid preparations (pancakes, doughnuts, clafoutis). - crush ice at max. speed To remove the blender, hold it by the handle and press the release button (a4).

- Grapes, quinces or redcurrants: to obtain better results, clean the filter after every 300g of ingredients. - Important: When the pulp collector is full, stop the appliance, and empty the collector. - Wait until the rotary filter has completely stopped before removing the assembly To remove the centrifugal juice extractor (m5), press the release button (a4), and lift off the assembly. The locking lever (m6) returns automatically to the open padlock position . 7b Model with the filter basket (m10)

Press the release button (a4) to open the upper drive cover (a1). - Place the bowl (b3) onto the lower drive (a3). Assemble the filter basket (m10) with its filter crown (m9): lower it into the filter basket to clip it onto the assembly. - Lower the filter basket assembly (m9+m10) onto the bowl drive (b3-1) - Fit the lid (m8) onto the bowl. - Close the upper drive cover (a1). You should hear a click. - Insert the foodstuffs into the tube and slowly press down using the food pusher (m7). - Empty the waste regularly from the filter - basket. - Do not use more than 250 g of ingredients (apples, carrots, grapes) for each operation.

7 CENTRIFUGING FRUITS and

VEGETABLES (depending on model) ACCESSORIES USED Centrifugal juice extractor with pouring spout (m) or Bowl (b3) and centrifugal juice extractor with filter basket (m) FITTING THE ACCESSORIES 7a Direct Service Model with pouring

spout (m5) Press the release button (a4) to open the upper drive cover (a1). Place the filter (m3) in the centre of the pulp collector (m4), turn and lock the lid (m2) onto the pulp collector (m4). Hold the locking lever (m6) in the closed padlock position then fit the assembly, onto the upper drive (a2). You should hear a click. Slide the pouring spout (m5) onto the pulp collector (m4). Tips - Insert the foodstuffs into the tube and press them down slowly using the food pusher (m1). - Chop the fruits into pieces and place a large glass underneath the spout (m5). Do not process more than 0.5 kg of fruits (apples, carrots, grapes) 5 times consecutively, without allowing your appliance to cool down completely.

For the two models: Recommended speeds Function

Tips - Peel fruits with thick skins; remove stones and the core of pineapples. - It is not possible to extract the juice from certain fruits and vegetables: bananas, avocado pears, blackberries, etc... - You can prepare juices with different

fruits and vegetables without having to clean the centrifugal juice extractor every time, the flavours will not be mixed. - Drink the juices immediately after preparation or add lemon juice to prevent them from browning for a few hours.

9 PUREEING/ PRESSING / MASHING

(depending on model) ACCESSORIES USED - Bowl assembly (b), spindle (c),et "Maxipress" (l) FITTING THE ACCESSORY Press the release button (a4) to open the upper drive cover (a1). - Place the bowl (b3) onto the lower drive (a3). - Place the spindle (c) on the bowl drive (b3-1). - Slide the desired disc (l2) onto the spindle (c) whilst turning it slightly so that the slots under the disc come to a stop against the inside ribs of the bowl. - Place the rotor (l1) in the central hole of the disc (l2) and push it in until it clicks into place. - Fit the lid (b2) or (d4) onto the bowl. - Close the upper drive cover (a1). You should hear a click.

8 FINELY CHOPPING SMALL QUANTITIES (depending on model) ACCESSORY USED - Mini-chopper (i) or Grinder (j). FITTING THE ACCESSORY Press the release button (a4) to open the upper drive cover (a1). Place the ingredients inside the bowl (i2 or j2), then lock the lid (i1 or j1) onto the bowl . - Place the accessory on the upper drive (a2) (you should hear a click). If the lid is missing or incorrectly fitted, the food processor will not operate.

Recommended speeds Function

Tips With the mini-chopper you can: • Chop in a few seconds: cloves of garlic, fresh herbs, parsley, nuts, bread, crackers for breadcrumbs, ham, ... • Prepare purées for baby. Maximum quantity of nuts (walnuts, almonds, ...): 80 g. This mini-chopper is not designed for hard foodstuffs such as tea, coffee. With the grinder you can: • Grind in a few seconds: coriander, pepper, Cayenne peppers, dried apricots,.... • Maximum quantity/time dried apricots: 140 g / 10s. dried figs: 90g / 8s To remove the accessory, press the release button (a4).

Tips You can prepare with the disc: • Large holes (l2-1): purées (up to 1 kg of cooked fruits or vegetables): potatoes, carrots, cauliflowers. • Small holes(l2-2): coulis or compotes with cored fruits (up to 500 g): tomatoes, grapes, strawberries, raspberries, redcurrants, apricots, peaches. Remark: If the rotor comes unclipped from the disc, check that you have fitted the correct disc for the type of preparation and that your food is fully thawed or fully cooked. 10 CLEANING AND REMOVING THE

"MAXIPRESS" - Remove the disc / rotor assembly from the spindle (c). - Press the clips on either side of the rotor to free the disc.

bones, nerves and cartilages. - Cut the meat into pieces (approximately 2 x 2 cm) and place them on the tray (o2). - Place a bowl underneath the mincer head.

11 MINCING HEAD(depending on model)

ACCESSORIES USED - Geared reducer assembly (n) and mincer head (o). BEFORE FIRST USE - Wash the mincer head in hot soapy water and dry it carefully immediately.

Recommended speeds Function

USE 11a Fitting the geared reducer onto the

food processor. - Press the release button (a4) to open the upper drive cover (a1). - Place the geared reducer onto the lower drive (a3): - Close the upper drive cover (a1). 11b Assembling the mincer head: - Hold the body (o1) by the tube with the largest opening at the top.Next insert the screw (o3) (longest pin first) into the body (o1). - Fit the cutter (o4) onto the short pin with the cutting edges towards the outside. - Place the selected disc (o5-1 or o5-2) on the cutter (o4) by aligning the hooks with the slots. - Tighten the nut (o6) completely onto the body (o1) in a clockwise direction, without jamming it. - Check the assembly. The pin must not have any play or be able to spin. If this is not the case, repeat the above operations. 11c Fitting the mincer head onto the appliance. - Opposite the geared reducer (food processor motor unit unplugged), place the mincer head (o) with the tube angled towards the right. Insert the mincer head completely into the geared reducer (n). - Bring the tube back to the vertical position until it is locked in place.The mincer head (o) will automatically lock onto the geared reducer (n), as soon as it is operated. - Insert the removable tray (o2) onto the tube. - Plug in the appliance. USE - Prepare the entire quantity of foodstuffs to be minced.Remove the

Tips - Insert the meat into the tube piece by piece using the food pusher (o7). - Do not push with your fingers or any other utensil. - Do not use your appliance for more than 15 minutes when you are mincing meat. - Check that the meat is fully thawed. Tip: at the end of the operation, you can process a few small pieces of bread to clear out all of the mince. Cleaning the mincer head - Before any cleaning operation, unplug your appliance. - Release the mincer head by tilting it to the right to remove it from the geared reducer unit. - To remove the mincer head, remove the tray (o2) from the tube, and unscrew the nut (o6), remove the disc (o5), the cutter (o4) and the screw (o3). - Handle all sharp parts with care. - Wash all parts in hot soapy water, Rinse them and dry them carefully. - The disc (o5) and the cutter (o4) must remain oiled. Coat them with oil. - Do not allow water to enter the geared reduced. Simply wipe it using a soft cloth. - Do not place the mincer head (o) in the dishwasher, which is to say the body (o1), the screw (o3), the cutter (o4), the discs (o5) and the nut (o6). 12 SAUSAGE FUNNEL

(depending on model) This accessory, which fits onto the metal mincer head allows you to

make any kinds of sausages.

(depending on model) This accessory which fits onto the metal mincer head allows you to make small biscuits.

ACCESSORIES USED - Sausage funnel (p), geared reducer assembly (n) and mincer head (o).

ACCESSORIES USED - Biscuit nozzle (q), geared reducer assembly (n) and mincer head (o)

ASSEMBLY - Fit the screws (o3) to the body (o1) of the mincer head metal. - Place the funnel (p) then the nut (o6) and tighten fully. - Place the assembled head onto the geared reducer (n). Remark: this accessory is used without a disc or cutter. USE This accessory is to be used once the meat has been minced and you have seasoned the mince to your taste. - After leaving the sausage skin to soak in warm water so that it becomes elastic again, slide it onto the funnel (p) and leave approximately 5 cm overhang. - Fill the tube with mince (o1), start and press with the food pusher so as to push the mince to the end of the funnel. - Stop the appliance. - Make a knot 5 cm from the end of the sausage skin. Slide it onto the sausage funnel and push the knot onto the end of the funnel to avoid trapping air in the skin. - Start the operation again and continue to supply the mince. The skin fills up. - When all of the mince has been used, stop the appliance, and remove the remaining skin from the funnel and make a knot. Tips To avoid the skin being too tight, do not make sausages that are too big. - It is easier when working with someone else: one supplies the mince and the other holds the skin while it fills up. - Make the sausages as long as you want by pinching and turning the skin at the desired lengths. The speeds used are those of paragraph 11.

ASSEMBLY - Fit the screws (o3) to the body (o1) of the metal mincer head. - Place the mould (q2) in the support (q1). - Align the two support hooks (q1) with the two slots on the mincer head (o1). - Tighten fully, without locking it, the nut (o6) onto the body (o1). - Place this head assembly onto the geared reducer (n). Remark: this accessory is used without a disc or a cutter. USE - Prepare the biscuit dough (you will obtain better results with a soft dough). - Choose the pattern by aligning the arrow with the chosen shape. - Process until you have obtained the quantity of biscuits desired. Tips The speeds used are those of paragraph 11. 14 KEBBE ACCESSORY

(depending on model) ACCESSORIES USED - Kebbe accessory (r), geared reducer assembly (n) and mincer head (o). ASSEMBLY - Fit the screws (o3) to the body (o1) of the metal mincer head. - Place the nozzle (r2) on the head aligning the two hooks with the two slots on the mincer head. - Place the ring (r1) on the nozzle (r2) then the nut (o6) and tighten fully. - Place this head assembly onto the geared reducer (n). Remark: this accessory is used without a disc or a cutter.

Tips The speeds used are those of paragraph 11.

kneader (e2) and the spindle (c) in it. - a cord storage recess inside the motor unit: Store and adjust the length of the power cord to suit your requirements by pushing or pulling the cord.

Cleaning - Unplug the appliance. - To make cleaning easier, rinse the accessories quickly after use. - Wash and dry the accessories, they are all dishwasher proof except for: • the whisk drive body (f1) • the pulp collector of the centrifugal juice extractor (m4). • the mincer head assembly (o). For specific cleaning instructions for the mincer head, refer to paragraph 11c. - Pour hot water and a few drops of washing up liquid into the blender (k). Close the lid. Pulse a few times using the pulse button. Unplug the appliance. Rinse the bowl under running water and leave to dry. - The bowl (b3) has a seal (b3-2). To clean it, you can put it in the dishwasher or wash it in hot water. To fit the seal back onto the bowl, check that the lip of the seal is always facing upwards. - To make cleaning and storage easier, the handle of the bowl (b4) and that of the blender (k4) can be removed (they are dishwasher proof). - In the event of your accessories being stained by foodstuffs (carrots, oranges...), wipe them with a cloth dipped in cooking oil, then clean as usual. - Do not place the motor unit (a), the whisk drive body (f1), or the geared reducer (n) in water or under running water. Wipe them with a damp sponge. - The blades of the accessories are very sharp. Handle them with care.

If your appliance will not operate, what should you do? - Check: • it is plugged in correctly • that the accessories are correctly positioned on the motor unit. • that the covers are correctly fitted. • when the bowl assembly (b) or the mincer geared reducer (n) are used, that the upper drive cover (a1) is correctly closed. Your appliance will still not operate? Contact an approved Moulinex service centre (see list in the “Moulinex Service” manual).

Disposal of packaging and the appliance The packaging is entirely composed of materials that are environmentally friendly, that may be disposed of in compliance with the recycling guidelines in force. To dispose of the appliance, contact the appropriate local council department.

Electronic or electrical products to be disposed of Help to protect the environment! Your appliance contains a number of materials that can be revalorized or recycled. Take them to a collection point so that they can be processed.

Storage Your Odacio food processor is equipped depending on the model: - With a storage unit (t), which is housed inside the bowl assembly (b). You can store the vegetable cutter discs (d1), the disc support (d5), the metal cutter (e1), the plastic

Accessories You can personalise your appliance and obtain from your usual dealer or an approved MOULINEX service centre the following accessories:

Moulinex approved accessory Service centre Stainless steel chip cutter disc (disc E) Stainless steel grater disc (disc G) Stainless steel parmesan shaving / scraping disc (disc B/G) Stainless steel thick slicing / grating disc (disc C/H) Stainless steel thin slicing / grating disc (disc A/D) Mini-chopper Grinder Blender Blender with tap Transparent bowl assembly Metal blade Plastic kneader Whisk Emulsifier Citrus press Maxipress (only for electronic version) Centrifugal juice extractor with pouring spout Centrifugal juice extractor with filter basket Spatula Mincer assembly • Geared reducer • Cutter • Discs • Sausage funnel • Biscuit nozzle • Kebbé accessory If you have any product problems or queries please contact our Customer Relations Team first on: 0845 602 1454 - UK (01) 401 8448 - Ireland or consult our website: www.moulinex.co.uk
