WT 344 - Alarm clock radio TECHNOLINE - Free user manual and instructions

Product type	Radio alarm clock
Brand	TECHNOLINE
Model	WT 344
Power supply	2 AAA LR03 1.5 V batteries (not included)
Display	Digital with adjustable backlight
Main functions	Time display (12/24h), alarm, stopwatch, temperature (°C/°F)
Time mode	Setting of hour, month, date and year
Alarm mode	Setting hours and minutes, activation/deactivation
Stopwatch mode	Countdown adjustable in minutes and seconds
Temperature mode	Display in Celsius or Fahrenheit
Approximate dimensions	10 x 5 x 10 cm
Approximate weight	200 g (with batteries)
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water, shocks, extreme temperatures or fire. Use only alkaline batteries.
Batteries	Use only AAA alkaline batteries. Do not recharge. Remove if not used for a long time.
Repairability	Do not open the casing. No detachable parts available separately.
General information	Compliant with European directives. Recyclable at end of life.

Frequently Asked Questions - WT 344 TECHNOLINE

How to set the time on the WT 344?

Place the device in time mode (clock symbol). Press the SET button to enter setting, then use UP to change hours, minutes, month, day and year. Press SET again to confirm.

How to set the alarm?

Place the device in alarm mode. Press SET to enter setting, then use UP to set hours and minutes. The setting completed automatically activates the alarm. To deactivate it, press SET again.

How to switch between 12h and 24h display?

In time mode, press the UP button to toggle between 12-hour and 24-hour format.

How to change the temperature unit?

Place the device in temperature mode (thermometer symbol). Press the UP button to toggle between °C and °F.

How to use the stopwatch?

Place the device in stopwatch mode. Press SET to set minutes and seconds for the countdown. The stopwatch starts automatically after setting and beeps at the end.

What batteries to use and how to install them?

Use 2 AAA LR03 alkaline batteries of 1.5 V. Open the battery compartment cover on the back, insert batteries respecting polarity (+/-), then close. Do not use rechargeable batteries.

What to do if the display is dim or the device does not turn on?

Check that the batteries are correctly installed and in good condition. Replace batteries if necessary. Make sure the cover is properly closed.

How to clean the alarm clock?

Use a soft, dry cloth to wipe the surface. Never use chemicals, solvents or water. Avoid touching internal components.

Can I use the device outdoors?

No, this device is designed for indoor use only. Avoid exposure to humidity, dust and direct sunlight.

What to do in case of malfunction?

First check the batteries and settings. If the problem persists, contact TECHNOLINE after-sales service. Do not attempt to open or repair the device yourself.

USER MANUAL WT 344 TECHNOLINE

1 2 3 4 1/1 2019 MONTH DATE 12:00 SUN MON TUE WED THU FRI SAT 5 6 7

SET 8 9 10

1 2 3 4 1/1 2019 MONTH DATE 12:00 SUN MON TUE WED THU FRI SAT 5 6 7

SET 8 9 10

1 – Time mode icon
2 – Month and date
3 – Alarm mode icon
4 – Timer mode icon
5 – Year
6 – Temperature mode icon
7 – Weekday

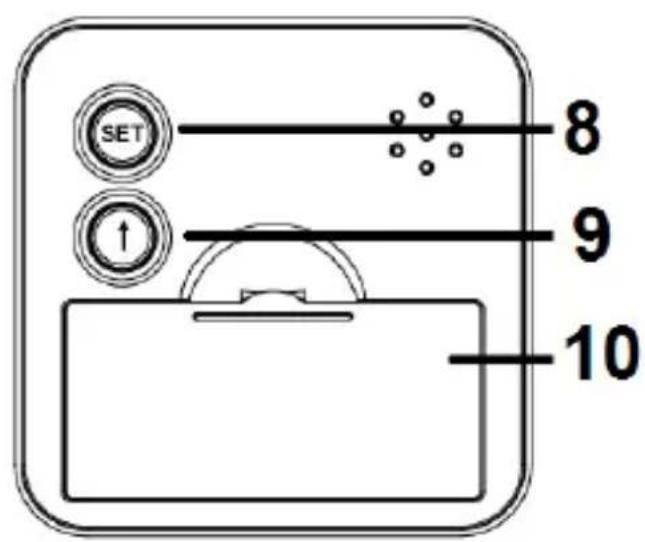

8 - SET button
9 - UP button
10 – Battery compartment cover

Getting started

Open the battery compartment cover and insert 2 x AAA LR03 1.5V batteries accordingly to correct polarity (+/-) into the battery compartment. Close the battery compartment again and the product will make an alarming sound and enter the normal display interface. This product has four laying directions

EN1

corresponding to four functions, whenever the function is selected, different colors of backlight will be lit at the same time.

Time mode

Put the side with the icon up to get into the time mode. At this time, you can switch the 12/24 system by UP button or press SET button to enter the time setting mode. The time setting mode can adjust hours, minutes, months, days and years.

Temperature mode

Put the side with the icon up to get into the temperature mode. At this time, you can switch the temperature unit through the UP button.

Timer mode

Put the side with the led up to get into the timer mode. At this time, the countdown minutes and seconds can be set by SET button. The countdown timer will start automatically after the setup, and the prompt will be issued after the countdown time runs.

Alarm mode

Put the side with the

up to get into the alarm mode. Press SET

button to enter the alarm setting mode. In the alarm setting mode, the alarm hours and minutes can be adjusted by using the UP button. After setting, the alarm function can be automatically turned on. Pressing SET button again can turn off the alarm function.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.

• Remove exhausted batteries immediately.

• Remove batteries when not in use.

• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
