USER MANUAL S330 eufyCam Anker

eufy

SECURITY

Line drawing of a cylindrical device with ventilation grille and labeled 'oufy' logo (no text beyond branding)

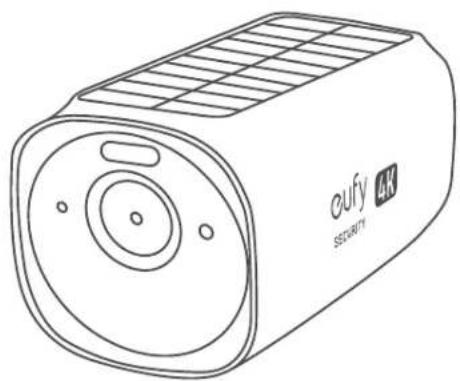

S330 eufyCam

QUICK START GUIDE

English

Deutsch

Español

Français

Italiano

Nederlands

Portuguese

لعربيّة

85

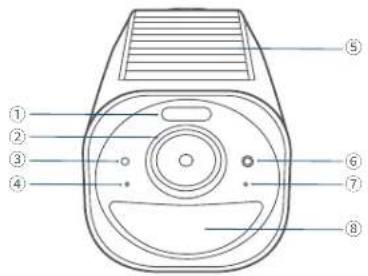

AT A GLANCE

S330 eufyCam

Model: T8160

①Spotlight
② Camera Lens
③ Photosensitive Sensor
④ Microphone 1

⑤ Solar Panel
⑥ LED Indicator
⑦ Microphone 2
⑧ Motion Sensor

⑨Speaker
⑩ SYNC Button
⑪ Mounting Hole
⑫ USB-C Charging Port

ADDING S330 EUFYCAM

On eufy Security app, follow the onscreen instructions to add your eufy Security devices. Choose Add Device, then select S330 eufyCam to add it to your system.

Illustration of a hand holding a smartphone with a blue app icon on the screen (no text or symbols)

Line drawing of two compact electronic devices, one cylindrical and one rectangular, with no visible text or symbols.

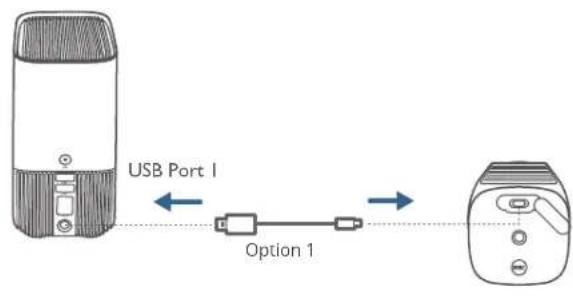

CHARGING S330 EUFYCAM

Option 1

Option 2

LED Indicator Description
Steady Blue Charging
OFF Fully Charged
Charging Time 8 Hours

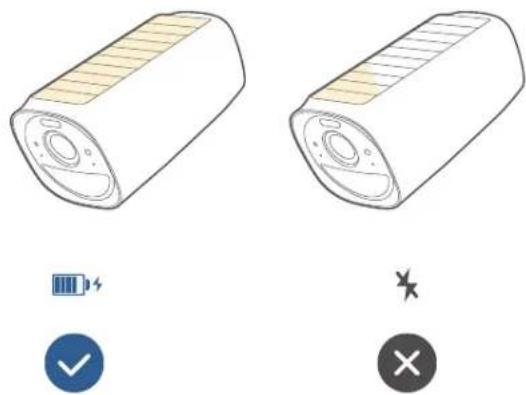

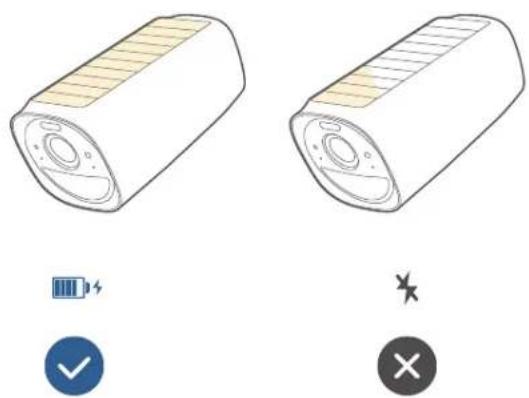

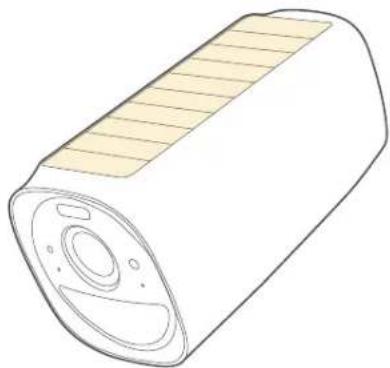

S330 eufyCam includes a solar panel that converts sunlight into electrical energy and keeps the built-in battery charged every day.

The charging efficiency fluctuates according to the intensity of the sunlight.

Don't worry when the battery level goes down. It happens when there isn't enough sunlight or the camera is consuming more power than usual.

You don't need to charge the camera with a cable until a low battery alarm goes off.

Illustration of a cylindrical device with a textured top and internal components (no text or symbols)

2 HOURS PER DAY\*

* Make sure the solar panel can be fully exposed to direct sunlight for at least 2 hours per day.

MOUNTING THE CAMERA

Select a Location

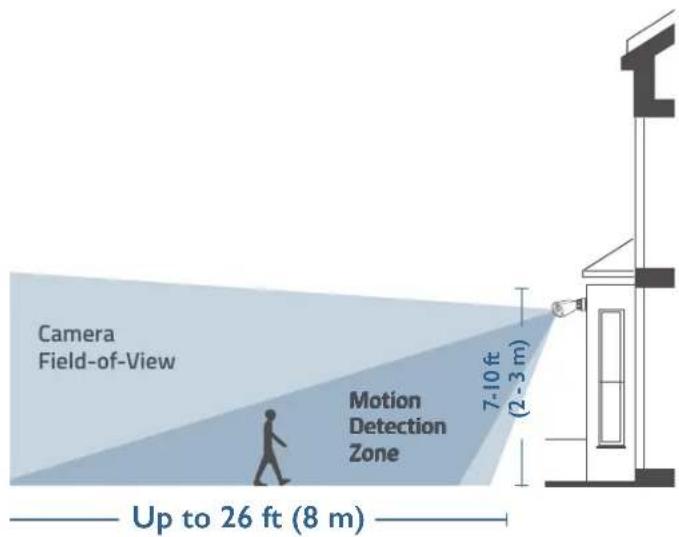

Select a location where you can get the desired view. We recommend hanging the camera 7-10 ft (2-3 m) above the ground.

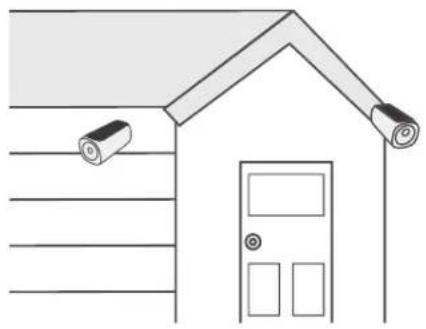

Simple line drawing of a house with ceiling-mounted sensors and a door (no text or symbols)

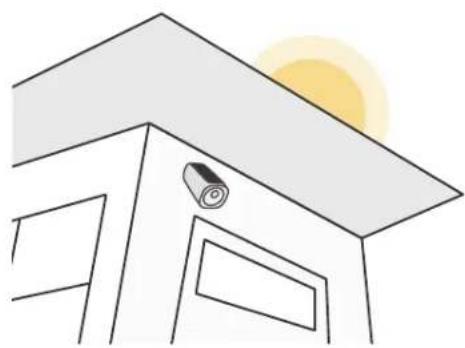

Best places to install:

- Wall without eaves - A pole or fence where sunlight is not blocked - Over eaves, if the eaves are below 3 m high

Simple line drawing of a house with a camera on the roof and sun in the sky (no text or symbols)

Places not to install:

- Inside your home or under the porch - Under or on a tree - Under slanted eaves

Mount the Camera

1. Turn the knob of the mounting bracket counterclockwise to loosen and disassemble it.

Diagram of a mechanical component with a conical top and threaded base, showing a rotation arrow (no text or symbols)

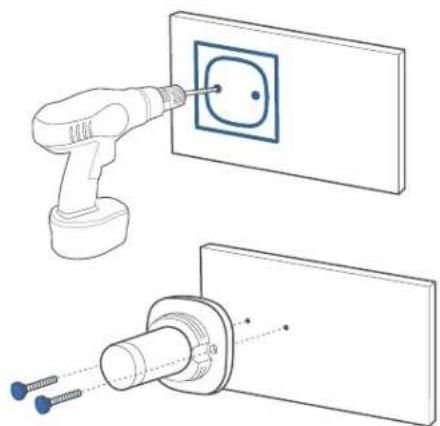

1. Drill holes with a 15/64 inch (6 mm) drill bit, then insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco.

Technical illustration of a tool inserting into a wall-mounted socket, showing mechanical assembly (no text or symbols)

1. Firmly screw the knob of the mounting bracket into the mounting hole.

Line drawing of a device with a bulb inserted into a cylindrical port (no text or symbols)

1. Hold and screw the camera to the mounting bracket. Rotate the camera to adjust the view and check it using the live stream, which you can access in the eufy Security app.

Simple line drawing of a funnel-shaped object with a handle and internal structure (no text or symbols)

For troubleshooting, check Help on the eufy Security app. Refer to the app page for LED Indicator status.

SAFETY

• Do not use the device in the environment at a too high or too low temperature, never expose the device to strong sunshine or too wet environment.
• The suitable temperature for T8160 and accessories is -20^ to 50^ (Charging temperature is 0^ to 45^ ).
• It is recommended to supply the device in an environment with a temperature that ranges from 5°C\~25°C.
• When supplying, please place the device in an environment that has a normal room temperature and good ventilation.

Warning:

• Replacement of a battery with an incorrect type can defeat a safeguard;
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion;
  • Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas; and
• A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

NOTICE

NOTICE (Europe and United Kingdom)

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the website: https://uk.eufylife.com.

This product complies with the radio interference requirements of the United Kingdom

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with Radio Equipment Regulations 2017(SI 2017/1206). The full text of the UK declaration of conformity is available at the following internet address: https://uk.eufylife.com.

RF exposure information:

The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use products that maintain a 20cm distance between the device and human body.

Frequency bands and power as below:

Function Bandes Operation Frequency Max.Power
Wi-Fi for T8160 2	4GHz 2412-24	72MHz EIRP 19.86 dBm

The following importer is the responsible party (contract for EU matters): Anker Innovations Deutschland GmbH I Georg-Muche-Strasse 3, 80807 Munich, Germany

The following importer is the responsible party (contract for UK matters): Anker Technology (UK) Limited I GNR8, 49 Clarendon Road, Watford, Hertfordshire, WD17 1HP, United Kingdom

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

AUF EINEN BLICK

S330 eufyCam

Modell: T8160

① Scheinwerfer

② Kameraobjektiv

Illustration of a hand holding a smartphone with a blue app icon and wireless signal waves (no text or symbols)

Line drawing of two compact electronic devices, one cylindrical and one rectangular, with no visible text or symbols.

AUFLADEN DER S330 EUFYCAM

Illustration of a cylindrical device with a lid and internal components (no text or symbols)

2 HOURS PER DAY\*

Simple line drawing of a house with ceiling-mounted sensors and a door (no text or symbols)

Simple line drawing of a house roof with a sun and a rolled-up cable (no text or symbols)

Diagram of a mechanical component with a conical top and threaded end, showing a rotation arrow (no text or symbols)

Technical illustration of a tool inserting into a wall-mounted socket (no text or symbols present)

20 DE

Line drawing of a device with a bulb inserted into a cylindrical port (no text or symbols)

Simple line drawing of a funnel-shaped object with a handle and internal structure (no text or symbols)

Illustration of a hand holding a smartphone with a blue app icon and wireless signal waves (no text or symbols)

Line drawing of two compact electronic devices, one cylindrical and one rectangular, with no visible text or symbols.

CARGA DE LA S330 EUFYCAM

Partial view of a yellow circular shape with a light beige border (no text or symbols)

Illustration of a cylindrical device with a lid and internal components (no text or symbols)

2 HOURS PER DAY\*

Simple line drawing of a house with roof and door, no text or symbols present

Simple line drawing of a house with a camera on the roof and sun in the sky (no text or symbols)

Lugares no recomendados:

Diagram of a mechanical component with a conical top and threaded base, showing a rotation arrow (no text or symbols)

Technical illustration of a tool inserting into a wall-mounted socket, showing mechanical assembly (no text or symbols)

32 ES

Line drawing of a device with a bulb inserted into a cylindrical port (no text or symbols)

Simple line drawing of a funnel-shaped object with a handle and internal structure (no text or symbols)

Anker Technology (UK) Limited I GNR8, 49 Clarendon Road, Watford, Hertfordshire, WD17 1HP, United Kingdom

Illustration of a hand holding a smartphone with a blue app icon and wireless signal waves (no text or symbols)

Line drawing of two compact electronic devices, one cylindrical and one rectangular, with no visible text or symbols.

CHARGE DE L'S330 EUFYCAM

Illustration of a cylindrical device with a textured top and central hub (no text or symbols)

2 HOURS PER DAY\*

Simple line drawing of a house with ceiling-mounted sensors and a door (no text or symbols)

Meilleurs

emplacements

d'installation :

Simple line drawing of a house roof with a sun and a rolled-up cable (no text or symbols)

Emplacements

d'installation à

éviter :

Diagram of a mechanical component with a conical top and threaded base, showing a rotation arrow (no text or symbols)

Technical illustration of a tool inserting into a wall-mounted socket, showing mechanical assembly (no text or symbols)

Line drawing of a device with a bulb inserted into a cylindrical port (no text or symbols)

Simple line drawing of a funnel-shaped object with a handle and internal structure (no text or symbols)

Anker Technology (UK) Limited | GNR8, 49 Clarendon Road, Watford, Hertfordshire, WD17 1HP, United Kingdom

① Riflettore

⑤ Pannello solare

⑨ Altoparlante

Illustration of a hand holding a smartphone with a blue app icon and wireless signal waves (no text or symbols)

Line drawing of two compact electronic devices, one cylindrical and one rectangular, with no visible text or symbols.

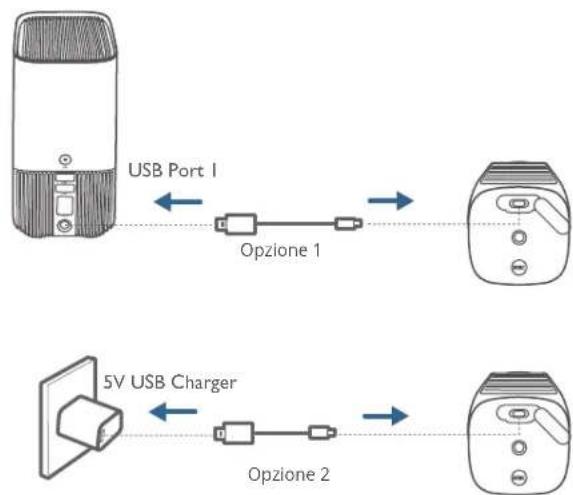

RICARICA DI S330 EUFYCAM
