Product Type	Wireless Surveillance Camera
Brand	Anker
Model	T88003D3 (kit with HomeBase T8001 and T8111 camera)
Camera Power Supply	Rechargeable lithium-ion battery (charges via micro-USB cable or HomeBase charging port)
Charging Time	Less than 4 hours (via HomeBase)
Estimated Battery Life	Up to 6 months (depending on usage)
Video Resolution	1080p Full HD
Night Vision	Yes, infrared
Viewing Angle	140°
Connectivity	Wi-Fi 2.4 GHz (802.11 b/g/n)
Protection Rating	IP65 (weather resistant)
Storage	microSD card (included) and cloud (via subscription)
Main Features	Motion detection, push alerts, two-way audio, night vision
Installation	Indoor or outdoor wall mount (bracket included)
Camera Dimensions	Approximately 8.2 x 5.2 x 5.2 cm
Camera Weight	Approximately 131 g
Package Contents	HomeBase, camera, Ethernet cable, micro-USB cable, mounting brackets, screws and anchors, microSD card
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use chemical products.
Safety	Complies with Industry Canada CNR and CE standards. Battery: do not expose to heat.
Spare Parts and Repairability	Built-in battery not replaceable. No spare parts available.

Frequently Asked Questions - T88003D3 Anker

How to install the eufyCam camera?

To install the camera, start by plugging in the HomeBase using the Ethernet cable and power adapter. Download the eufy Security app from the App Store or Google Play, create an account, and follow the on-screen instructions. Mount the camera using the included bracket, indoors or outdoors, and use the 'Mounting Guide' feature to check the Wi-Fi signal quality.

How to connect the HomeBase to the Internet?

Turn on the HomeBase and connect it to your router using the included Ethernet cable. The LED light turns white (this may take up to 1 minute) when the connection is established. Make sure your router is on and the cable is properly connected.

How to charge the camera?

Use the included micro-USB cable to connect the camera to the charging port on the back of the HomeBase. Fast charging takes less than 4 hours. The LED light turns solid red during charging and turns off once the battery is full. You can also use a 5V USB charger, but the charging time will be longer.

Where to mount the camera for best detection?

Mount the camera at a height of 2 to 3 meters from the ground. This optimizes the detection range of the motion sensor. Avoid exposing the camera to direct sunlight. Use the 'Mounting Guide' feature in the app to test the wireless signal strength at the chosen location.

What to do if the Wi-Fi signal is weak?

If the wireless signal strength is weak, move the camera as close to the HomeBase as possible. You can also use a Wi-Fi extender or move the HomeBase for better coverage. Check that the distance between the camera and HomeBase does not exceed the recommended range (usually 30 meters outdoors).

How to download the eufy Security app?

The eufy Security app is available for free on the App Store for iOS devices and Google Play for Android devices. Download it, create an account, and then follow the instructions to set up your camera system.

Is the camera waterproof?

Yes, the eufyCam has an IP65 protection rating, making it resistant to rain and dust. It can be installed outdoors, but avoid exposing it to direct water jets or submersion.

How to mount the camera outdoors?

Use the included outdoor bracket. Drill holes with a 6 mm drill bit, insert the anchors (required for hard walls like concrete), then screw in the bracket base. Attach the ball joint bracket, then the eufyCam. Adjust the viewing angle by checking the live feed on the app.

How to mount the camera indoors?

For indoor mounting, you can attach the camera directly to a flat metal surface or use the indoor bracket. Drill a hole (use the drywall anchor), secure the hook, hang the bracket, then attach the camera. Adjust the viewing angle via the app.

What to do if there is a problem with the camera?

Consult the 'Help' section in the eufy Security app for troubleshooting. Check that the camera is charged and that the HomeBase is turned on and connected to the Internet. If the LED light does not come on, contact Anker customer service. The warranty covers manufacturing defects.

USER MANUAL T88003D3 Anker

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

5100500XXXX V01

Two white outdoor devices with 'oufy' branding, one larger and one smaller, shown without any visible text or symbols.

Quick Start Guide

eufyCam Wire-Free HD Security Camera Set

For HomeBase Installation: 02

For eufyCam Installation: 02

Connect the HomeBase to the Internet 03

Get the App and Setup the System 04

Find a Good Mounting Spot 05

Mounting the Camera Outdoors 07

Mounting the Camera Indoors 08

Charging eufyCam 09

Safety

10

For HomeBase Installation:

HomeBase (T8001)

HomeBase Power Adapter

Ethernet Cable microSD Card

(Inserted into HomeBase)

For eufyCam Installation:

eufyCam (T8111)

Micro-USB Charging Cable

Outdoor Mount Mounting Screws and Anchors

Indoor Mount Hook

(for Indoor Mount)

1. Camera quantity and accessories vary by bundle package.
2. HomeBase power adapter varies by region.
3. Keep the camera at least 1 ft away from your internal / external hard drives.

02 English English

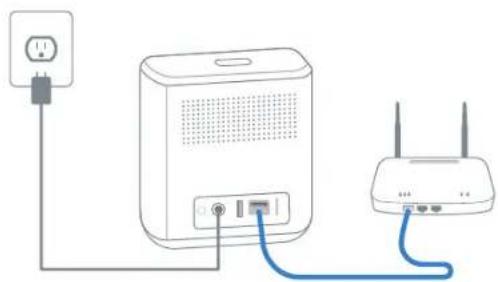

Connect the HomeBase to the Internet

1. Power on the HomeBase, then use the ethernet cable provided to connect the HomeBase.

Simple line drawing of a network device with power outlet, connected to a router and two wireless antennas (no text or symbols)

1. The LED indicator turns to white (this may take up to 1min) when HomeBase is ready for setup.

Illustration of a smartphone with a sun icon and a speech bubble (no text or symbols)

Get the App and Setup the System

Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

Sign up for a eufy Security account, then follow the onscreen instructions to complete the setup.

Line drawings of a smartphone and a rectangular device (no text or symbols)

Find a Good Mounting Spot

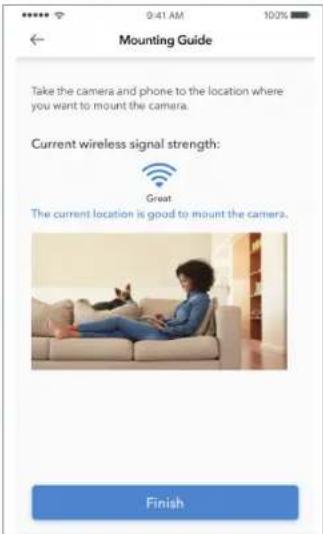

Signal Strength

Use the "Mounting Guide" function, found at the end of the setup process or under Camera Settings > Mounting Guide, to test the wireless signal strength of eufyCam at the location you wish to mount the camera. Move the camera as close to the HomeBase as possible if the wireless signal strength is poor.

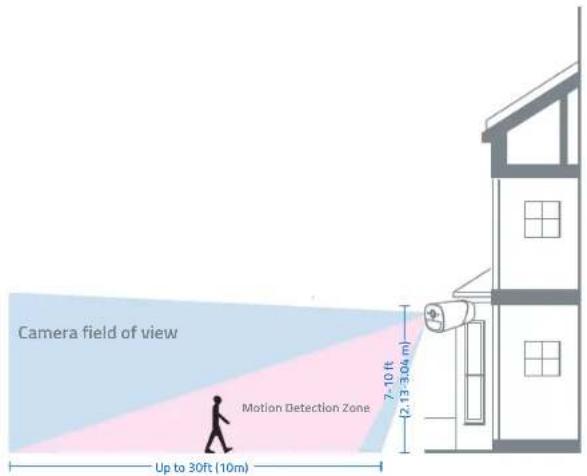

Height and Location

Hang eufyCam 7-10 ft (2-3 m) above the ground. This height maximizes the detection range of the motion sensor of eufyCam. Avoid placing eufyCam under direct sunlight.

Mounting the Camera Outdoors

Outdoor mount is designed specifically for outdoor environment.

Drill holes with a 15/64 in (6 mm) drill bit, then insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco.

Screw the base of the outdoor mount onto the wall. Fasten the ball bracket of the outdoor mount to the base of the outdoor mount.

Diagram of a camera module with blue arrows indicating motion, no text or symbols present

Fasten eufyCam to the outdoor mount and adjust the viewing angle by checking the live stream feed in the eufy Security app.

Mounting the Camera Indoors

Stick the camera directly to any flat surface made out of iron. Or you can use the indoor mount to mount the camera:

Drill a hole. Use the included anchor if it's drywall and fasten the hook.

Hang the indoor mount on the hook.

Simple line drawing of a cylindrical device with a circular button, connected by an arrow (no text or symbols)

Attach eufyCam to the indoor mount and adjust the viewing angle.

08 English English

Charging eufyCam

Fast charging (<4Hr)

Simple line drawing of a device connected to a plug and cable, no text or symbols present

Normal charging

Simple line drawing of a plug and plug connecting a power outlet (no text or symbols)

Use the provided micro-USB charging cable to connect eufyCam to the camera charging port on the backside of the HomeBase. Charging a camera takes approximately 4 hours; it will take longer if you charge the camera via a universal 5V USB charger.

The LED indicator turns solid red during charging, and goes off once eufyCam is fully charged.

For troubleshooting, check Help on the eufy Security app. Refer to app page for LED indicator status.

Safety

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541

Telephone: [phone]

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site www.eufylife.com

Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited.

English English

A statement regarding the AC/DC adapter as disconnect device is missing in the user manual.

The statement shall require a socket outlet that is installed near equipment and that shall be easily accessible.

The adapter shall be installed near the equipment and shall be easily accessible.

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for HomeBase E and accessories is -10^ - 50^ (Max. ambient for only charging mode: 45^ ).

The suitable temperature for eufyCam E and accessories is -20°C-50°C.

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ C\~ 25^ C.

Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the projector and the guarantee article.

This charger is for indoor use only

The charger output voltage/current is 5Vdc/2A. The plug considered as disconnect device of adapter RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintains a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Wi-Fi Operating Frequency Range:2412\~2472MHz for EU;

SUB-1G Frequency range:866\~866.BMHz, 868.2\~869MHz

is product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device."

Simple line drawing of a network device with two wireless units connected by a cable (no text or symbols)

Illustration of a smartphone with a sun icon and speech bubble (no text or symbols)

Line drawings of a smartphone and two connected devices (no text or symbols)

Höhe und Position

Deutsch Deutsch

Diagram of a screw and nut assembly with labeled points (no text or symbols present)

Diagram of a device with a sensor and connector, showing directional arrows (no text or symbols)

Simple line drawing of a cylindrical device with a circular button, connected by an arrow (no text or symbols)

Simple line drawing of a device connected to a plug and cable, no text or symbols present

Normales Laden

Simple line drawing of a plug connected to a battery (no text or symbols)

Simple line drawing of a network device with two wireless antennas connected to a power outlet (no text or symbols)

Illustration of a smartphone with a sun icon and speech bubble (no text or symbols)

Line drawings of a smartphone and a rectangular device with a camera module (no text or symbols)

Altura y ubicación

Diagram showing a device being inserted into a plug, with arrows indicating direction (no text or symbols present)

Simple line drawing of a cylindrical device with a circular button, connected by a blue arrow (no text or symbols)

Simple line drawing of a network device with two connected devices (no text or symbols)

Illustration of a smartphone with a sun icon and speech bubble (no text or symbols)

Line drawings of a smartphone and a rectangular device (no text or symbols)

Français Français

Français Français

Diagram of a device with a cylindrical component connected to a plug, showing directional arrows (no text or symbols)

Simple line drawing of a cylindrical device with a circular button, connected by an arrow (no text or symbols)

Simple line drawing of a device connected to a plug and cable (no text or symbols)

Charge normale

Simple line drawing of a plug connected to a battery (no text or symbols)

Operation is subject to the following two conditions :

Simple line drawing of a network device with two wireless units connected by a cable (no text or symbols)

Illustration of a smartphone with a sun icon and speech bubble (no text or symbols)

Line drawings of a smartphone and a rectangular device (no text or symbols)

Altezza e posizione

Diagram of a device with a cable being inserted into a socket (no text or symbols present)

Simple line drawing of a cylindrical device with a circular button, connected by an arrow (no text or symbols)

Diagram showing connection between a device and a plug, with no visible text or symbols

Ricarica normale

Simple line drawing of a plug connected to a cylindrical device (no text or symbols)
