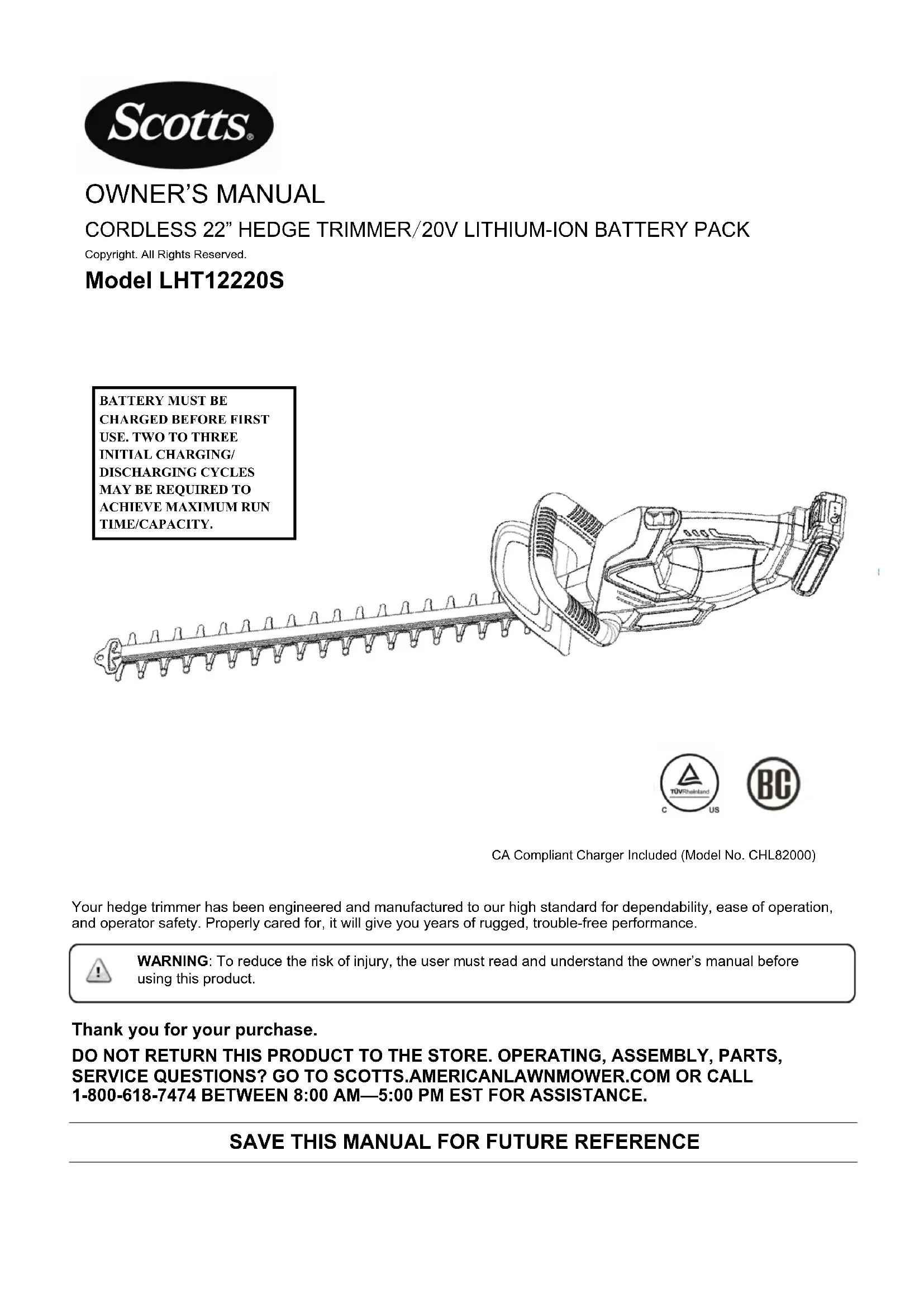

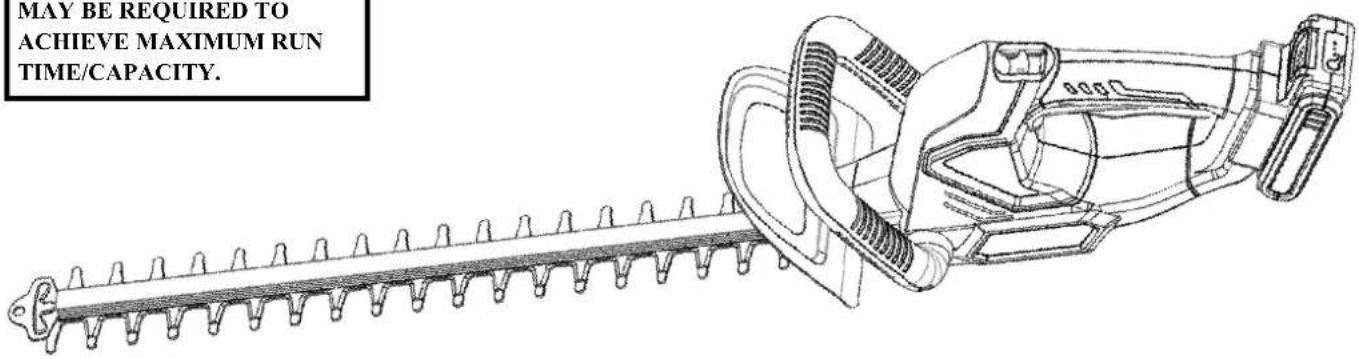

CORDLESS 22” HEDGE TRIMMER/20V LITHIUM-ION BATTERY PACK Copyright. All Rights Reserved. Model LHT12220S Your hedge trimmer has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the owner’s manual before

using this product. Thank you for your purchase. DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PARTS, SERVICE QUESTIONS? GO TO SCOTTS.AMERICANLAWNMOWER.COM OR CALL 1-800-618-7474 BETWEEN 8:00 AM—5:00 PM EST FOR ASSISTANCE.

SAVE THIS MANUAL FOR FUTURE REFERENCE

WARNING: Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock. Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Power tool use and care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. TO REDUCE RISK OF INJURY: Before any use, be sure everyone using this tool reads and understands all safety instructions and other information contained in this manual. CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss. Save these instructions and review frequently prior to use and in instructing others.

WARNING: When using electric gardening appliances, basic

safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following:

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Battery tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. When servicing a power tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.

HEDGE TRIMMER SAFETY WARNINGS

DANGER – Keep hands away from blade. Contact with blade will result in serious personal injury. Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury. Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the hedge trimmer may result in serious personal injury. Carry the hedge trimmer by the handle with the cutter blade stopped. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades. Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade. WARNING – Only use with handle and guard properly assembled to hedge trimmer. The use of the hedge trimmer without the proper guard or handle provided may result in serious personal injury.

WARNING: DO NOT USE ON A LADDER OR UNSTABLE

SUPPORT. Stable footing on a solid surface enables better control of the power tool in unexpected situations. CAUTION: Use only the following type and size battery (ies): BL82120.

WARNING: California Proposition 65: This product

contains chemicals known to the State of California to cause cancer, birth defect or other reproductive harm.

WARNING: Some dust and debris created by the use of

this tool could contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are: Chemicals in fertilizers Compounds in insecticides, herbicides and pesticides Arsenic and chromium from chemically treated lumber Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

WARNING: Cancer and Reproductive Harm -

WARNING: Do not allow familiarity with this type of product

to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. UNPACKING This product requires no assembly. Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. If any parts are damaged or missing, please call 1-800-618-7474 for assistance. PACKING LIST Hedge Trimmer—Charger and Battery Pack Blade Cover—Owner’s Manual

WARNING: If any parts are damaged or missing do not

operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury. OPERATING

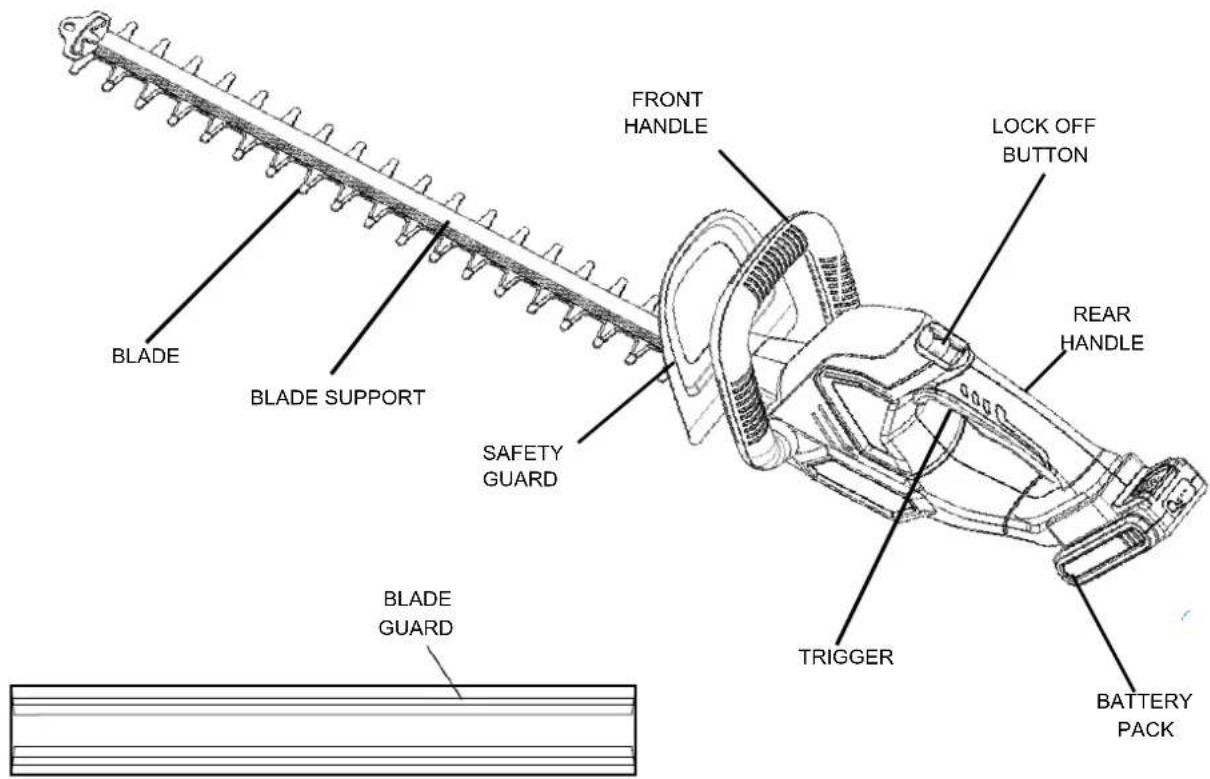

Pull the lock button backwards with your thumb and then squeeze the trigger with your fingers. (Once the tool is running, you can release the lock button). To turn the tool OFF, release the trigger. CAUTION: Blade coasts after turned off. Do not use under wet conditions. Do not store with switch locked on. TRIMMING INSTRUCTIONS

1. WORKING POSITION– Maintain proper footing

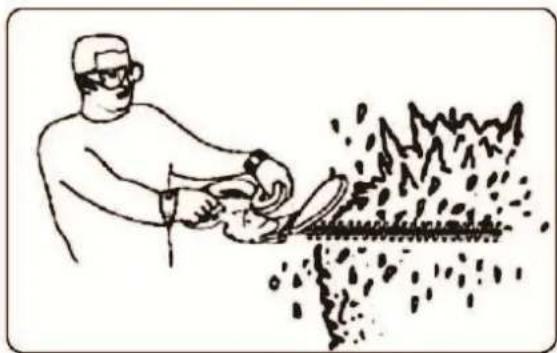

and balance and do not overreach. Wear safety goggles, non--skid footwear and rubber gloves when trimming. Hold the tool firmly in both hands and turn the tool ON. Always hold the trimmer, as shown, with right hand on the switch handle and left hand on the front. Never hold the tool by the blade guard. Keep unit below waist level.

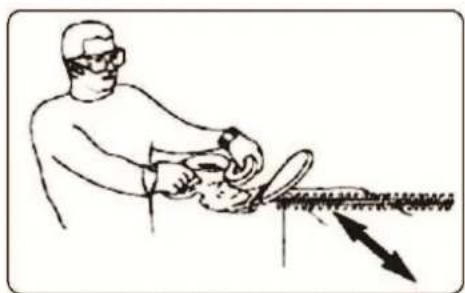

3. TRIMMING NEW GROWTH—A wide, sweeping

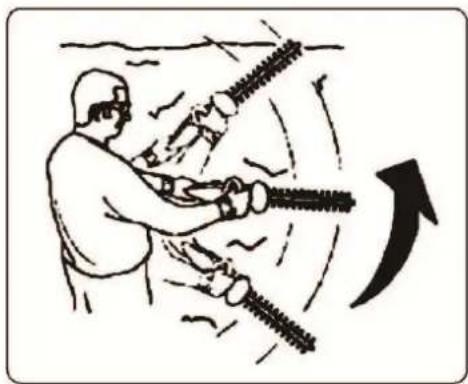

motion, feeding the blade teeth through the twigs is most effective. A slight downward tilt of the blade in the direction of the motion gives the best cutting.

2. LEVEL HEDGES—To obtain exceptionally level

hedges, a piece of string can be stretched along the length of the hedge as a guide. CAUTION: Do not use the trimmer for cutting stems greater than 3/4”. Use the trimmer only for cutting normal shrubbery found around houses and buildings.

4. SIDE-TRIMMING HEDGES—Begin at the bottom

and sweep up. ASSEMBLY

WARNING: Always remove the battery pack from the

product when you are assembling parts, making adjustments, cleaning, or when not in use. Removing the battery pack will prevent accidental starting that could cause serious personal injury. Slide the battery pack into the string trimmer. Ensure the battery is securely connected. To remove the battery, depress the release button and slide battery pack out of tool.CHARGING THE BATTERY PACK

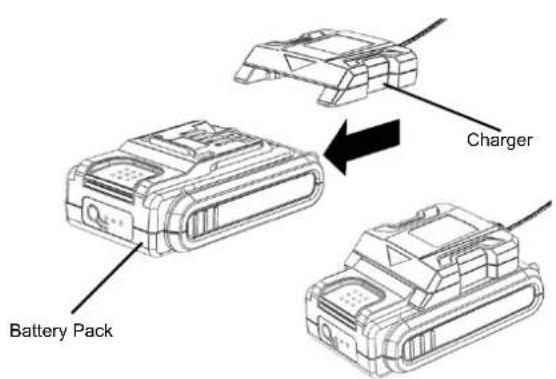

LHT12220S Charge the battery pack only with the charger provided. Allow at least 60 minutes of charge time before initial use of the hedge trimmer. Make sure the power supply is normal household voltage, 120 volts, 60Hz, AC only. The battery charger should be operated in temperatures between 39 and 104 degrees F The battery should be charged in a cool, dry place. Two to three initial charging/discharging cycles may be required to achieve maximum run time/capacity. DO NOT attempt to open the charger or the unit. There are no customer serviceable parts inside. Call customer service helpline at 1-800-618-7474 for assistance. DO NOT incinerate battery packs even if they are severely damaged or completely worn out. They can explode in a fire causing injury. DO NOT charge appliance in rain, or in wet locations. Use the battery charger indoors only. Disconnect charger from the power supply when not in use to prevent damage to the charger during a power surge. When fully charged, the battery can be safely stored in temperatures down to -4 degrees F for a period of up to four weeks, before requiring charging. Fully charge battery pack every 90 days. If over a period of time the battery pack quickly runs down after a full 60 minutes charging period, a replacement battery pack is needed. To prevent permanent damage to the battery, never store in a discharged condition. WINTER STORAGE - Fully recharge before storage and then again every 90 days. Since the battery will not develop a memory, it does not have to be fully discharged before recharging. A small leakage of liquid from the battery cells may occur under extreme usage, charging or temperature conditions. This does not indicate a failure. However, if the outer seal is broken and this leakage gets on your skin. a. Wash quickly with soap and water. b. Neutralize with a mild acid such as lemon juice of vinegar. c. If the battery liquid gets in your eyes, flush them with clean water for a minimum of 10 minutes and seek immediate medical attention. TO CHARGE - SEE CHARGER MANUAL FOR COMPLETE INSTRUCTIONS BATTERY DISPOSAL Remove the battery pack from the Cordless Hedge Trimmer, cover the terminals with heavy duty adhesive tape. Do not attempt to destroy or disassemble battery pack or remove any components. This product contains lithium-ion batteries which must be recycled or disposed of properly. Local, state or federal laws may prohibit disposal of these batteries in the municipal solid waste or rural trash pick up systems. The RBRC seal on the Li-Ion battery pack indicates that the cost to recycle the battery pack at the end of its useful life has already been paid by The Great States Corporation/American Lawn Mower Company. It is illegal to place spent Li-Ion batteries in the local municipal solid waste or in the trash. RBRC in cooperation with The Great States Corporation/American Lawn Mower Company has provided an environmentally friendly and easy way to recycle spent Li-Ion batteries. Just contact your local recycling center or call

1.800.8.BATTERY for information on where to drop off the spent battery.

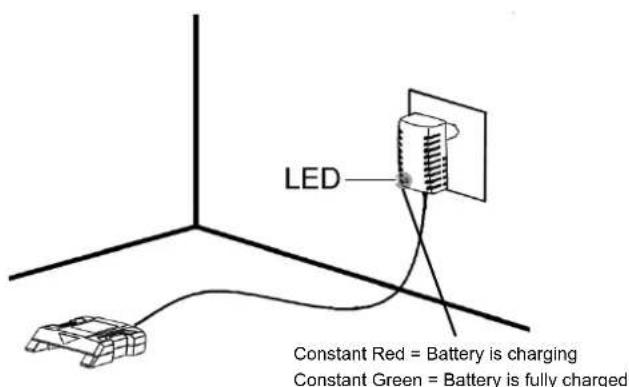

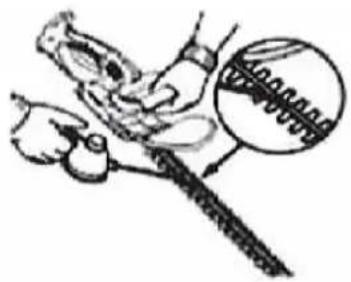

Battery Pack Charger Constant Red = Battery is charging Constant Green = Battery is fully chargedIf you drop the trimmer, carefully inspect it for damage. If the blade is bent or cracked, handles broken or if you see any other condition that may affect the trimmer’s operation, it must be repaired before putting it back into use. Call our customer service help line at 1-800-618-7474 for assistance. CAUTION: Do not at any time let brake fluids, gasoline, petroleum based products, penetrating oils, etc., come in contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic. Make sure the battery is detached from the unit, then use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by a qualified individual using only identical replacement parts. The cutting blades are made from high quality, hardened steel and with normal usage, they will not require re-sharpening. However, if you accidentally hit a wire fence, stones, glass or other hard objects, you may put a nick in the blade. There is no need to remove this nick as long as it doesn’t interfere with the movement of the blade. If it does interfere, make sure the battery is detached from the unit and use a fine toothed file or sharpening stone to remove the nick. Fertilizers and other garden chemicals contain agents which greatly accelerate the corrosion of metals Do not store the tool on or adjacent to fertilizers or chemicals. LUBRICATE BLADES - Stop the unit and remove the battery pack. Then remove any debris on blades. Apply a light machine oil along the edge of the top and bottom blade supports. Make sure handles remain clean and dry. TROUBLESHOOTING Call us first with questions about operating or maintaining your hedge trimmer at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on scotts.americanlawnmower.com. CALL US FIRST !! MAINTENANCE Problem Possible Cause Possible Solution Unit does not run Battery not making contact Check battery is fully inserted Trigger switch not operational Check that lock off button is fully depressed before moving trigger Battery not installed properly Check battery installation Battery not charged Check battery charging requirements Slow running, noisy or hot blades Dry, corroded blades Lubricate blades Blades or blade support bent Straighten blade or blade support Bent or damaged teeth Straighten teeth Loose blade bolts Tighten blade bolts Battery will not charge Battery not inserted into charger Insert battery into charger until red LED appears Charger not plugged in Plug charger into a working outlet Check current at receptacle by plugging in a lamp or other appliance Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. Surrounding air temperature too hot or too cold Move charger and tool to a surrounding air temperature of about 39° F (4° C) or below 104° F (40°C)

LHT12220SCALL US FIRST !! Call us first with questions about operating or maintaining your hedge trimmer at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on scotts.americanlawnmower.com.

Always mention the model number when ordering kits/items for this tool. No. Kit/Item Number Description QTY 1 LHT20S-SGK-1 Safety Guard Kit 1 2 BL82120 20V battery 1

CHL82000 20V charger 1 For parts or service, please call 1-800-618-7474 or visit us online at SCOTTS.AMERICANLAWNMOWER.COM. Be sure to provide all relevant information when you call or visit. REPAIR PARTS (KITS/ ITEMS) The model/serial number of this tool is found on a plate or label attached to the housing. Please record the serial number in the space provided below.

In a continued commitment to improve quality, the Manufacturer reserves the right to make component changes or design changes when necessary. Rev. 11/21/2019 3 Year limited warranty on all Scotts 20V lithium ion power tools from date of purchase when used for personal, household, or family use. 1 Year limited warranty on all Scotts 20V lithium ion batteries and chargers from date of purchase when used for personal, household, or family use. The Great States Corp. (GSC) warrants to the original owner that this Scotts product and service part is free from defects in materials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above. Warranty voided if used for commercial or industrial purposes or any other improper use as determined by GSC. Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the product beyond capacity or immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in the owner’s manual. This warranty does not cover Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains, mulching blades, blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure hoses, wheels, handles, augers, worn bags, power cables, and other items subject to wear over time. Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme temperature swings (hot or cold), battery left on charger too long, battery left uncharged for too long, and misuse or abuse of the battery. This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental extremes. This warranty does not cover normal deterioration of the exterior finish or normal wear and tear on the products including, but not limited to scratches, cracks, dents, or damage caused by outside chemicals. This warranty is not transferable and only applies to new products sold directly from an authorized retailer. This warranty does not apply to any product, new or used, purchased through unauthorized third-party channels. For information on authorized dealers, contact our customer support hotline at 1-800-618-7474 (Mon-Fri 8am-5pm Est) Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction of the products is not covered by the warranty. The warranty does not include installation, assembly or normal adjustments explained in the operator’s manual. The expense of delivering the product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the warranty. Additional Warranty Limitations Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to you. Products sold damaged or incomplete, sold ―as is, or sold as reconditioned are not covered under the warranty. Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper maintenance, improper modification or the use of accessories and/or attachments not specifically recommended is not covered by this warranty. Proof of purchase, original dated sales receipt, must accompany all warranty claims. For claims go to scotts.americanlawnmower.com or call our customer support hotline from 8am-5pm EST, Mon-Fri at 1-800-618-7474 American Lawn Mower Company The Great States Corporation 7444 Shadeland Station Way Indianapolis, IN 46256 USA Phone [phone] scotts.americanlawnmower.comGUARDE ESTE MANUAL PARA CONSULTAS FUTURAS ADVERTENCIA: Para reducir el riesgo de sufrir alguna lesión, el usuario debe leer y comprender el manual del operario antes de usar este producto.
