Studio Born for DJ - Earphones OneOdio - Free user manual and instructions

Brand	OneOdio
Model	Studio Born for DJ
Product Type	Circumaural (over-ear) headphone
Transducer	Dynamic
Speaker Size	50 mm neodymium
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Sensitivity	110 dB ± 3 dB
Maximum Input Power	300 mW
Magnet	NdFeB
Soundproof Film	PET
Plug(s)	3.5 mm and 6.35 mm stereo jack
Cable 1	Coiled 2-3 m (without mic)
Cable 2	Straight 1.2 m with microphone and remote control
Earcups	90° swiveling, rotatable for single-ear monitoring
Padding	Soft PU leather, soundproof
Compatibility	Smartphones, mixer, guitar, digital piano, etc.
Warranty	1 year (after registration at www.oneodio.com/sign)
Customer Service	[e-mail], phone [phone]

Frequently Asked Questions - Studio Born for DJ OneOdio

Why are there two jacks on the earcups, one 3.5 mm and one 6.35 mm?

To connect the headphone to different devices: use the 6.35 mm jack with consumer devices (smartphones, iPad, iPod) and the 3.5 mm jack with professional instruments (mixer, guitar). Both cables are provided.

What are the cable lengths and does one of them have a microphone?

Two cables are provided: a coiled 2-3 m cable without microphone, and a straight 1.2 m cable with built-in microphone and remote control.

Can this headphone be plugged into a digital keyboard (electronic piano) without an adapter?

Yes, you can plug it directly into a digital keyboard without an adapter, thanks to the 6.35 mm or 3.5 mm jack depending on your keyboard.

Is this headphone in-ear or over-ear?

It is over-ear (circumaural): the wide earcups and thick cushions completely surround your ears for optimal comfort and isolation.

Is the headphone open-back or closed-back?

It is closed-back, which provides good sound isolation and prevents sound leakage, ideal for mixing and listening in noisy environments.

Is the headphone foldable for travel?

Yes, the earcups swivel 90° and the headphone can be laid flat (flat mode), making it easy to transport and store.

Can I use this headphone for music production or mixing?

Absolutely. The 50 mm neodymium drivers deliver high-resolution sound with precise bass, perfect for DJs and audiophiles in production or mixing.

Are the cables detachable?

Yes, both cables are detachable and plug directly into the earcups via the jack sockets. You can easily replace them if needed.

How to maintain the ear cushions?

Clean them with a soft, dry cloth or slightly damp. Avoid harsh chemicals. The soft PU leather is easy to clean for lasting comfort.

Does the warranty cover accidental damage?

The warranty does not cover damage resulting from improper use, accident, excessive humidity, or unauthorized modifications. It is valid for one year for manufacturing defects after registration at www.oneodio.com/sign.

USER MANUAL Studio Born for DJ OneOdio

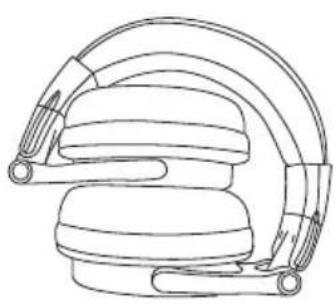

Line drawing of a pair of hardcover headsets with speaker grille (no text or symbols)

OneOdio

Thank you for choosingOneOdio Studio. Please follow all sides of this user guide to ensure proper use.

Specifications

Speaker:	50mm neodymium driver
Frequency Response:	20Hz-20KHz
Impedance:	32 Ohms
Magnet Type:	NdFeB magnet
Sensitivity:	110dB ± 3dB
Sound-insulating Film:	PET
Max Input Power:	300 mW
Plug Type:	3.5mm/6.3mm stereo jack
Cable 1:	2m-3m coiled cable
Cable 2: 1.2m straight cable with microphone

Features

● High-resoluting and deep-reaching sound

The 50mm large neodymium driver and innovative technology deliver high definition sound in new perfection and reproduces all your music's dynamics and controlled bass that DJs and audiophiles need.

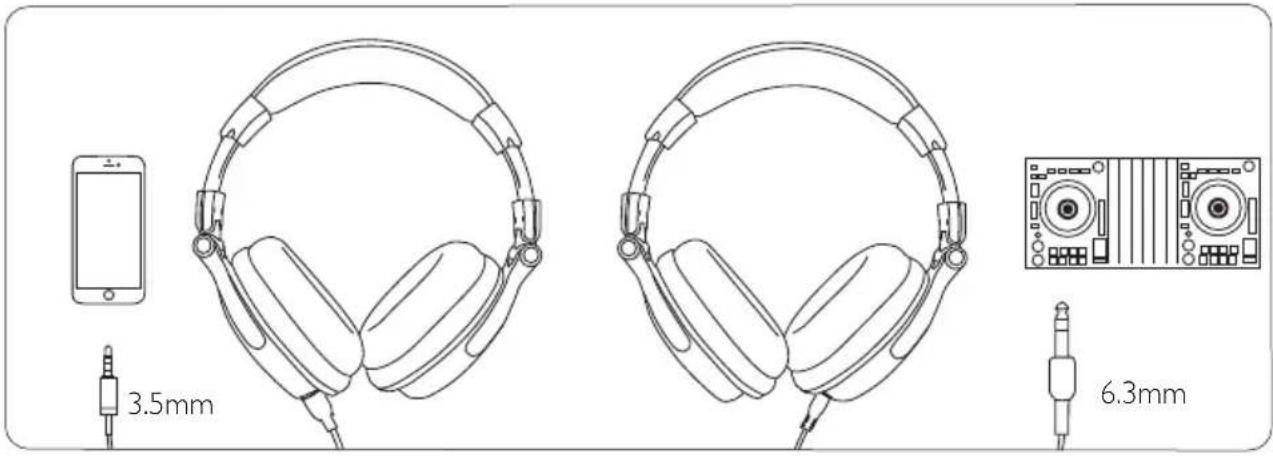

6.3mm & 3.5mm Audio Jack Design

Our solution for the adapter-free headphones. They come with a detachable spring cable that with 3.5mm & 6.3mm plug on each end. For connecting to ordinary audio devices, such as, mobile phone, iPad, iPod, etc., you can plug the 6.3mm side into the headphones, the other side to your music player device; For connecting to professional musical instruments, such as Mixer, Turntable, you can plug the 3.5mm side into the headphones, and the other side to your Mixer, guitar, etc.

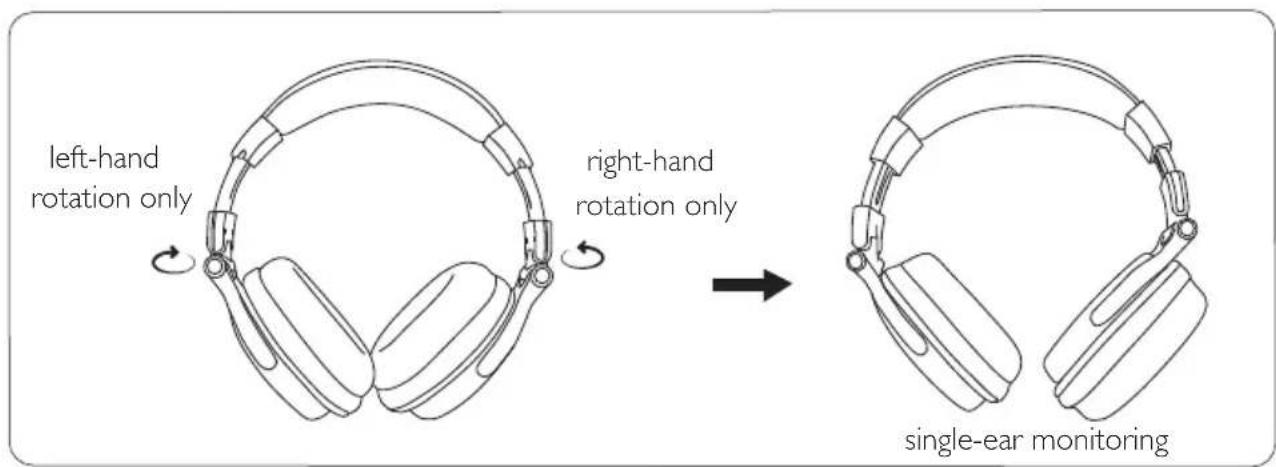

- 90°Rotating Ear Cups

The ear cups pivots for a personalized fit, and rotates 90 degrees to lay flat. The lay-flat design makes them easier to transport and more comfortable when resting around the neck. Besides, the ear-cups can be rotated both left and right for single-ear monitoring.

● Premium Comfort Ear Pads and Excellent Noise-cancelling Performance

The over ear pads are covered with premium soft PU leather for extended comfort and added noise isolation.

- Stretchable Coiled Cable

The static 2m cable can be stretched up to 3m for extended use.

● 1.2m standard cable with mic

Remote control function

- Foldable and Portable

OneOdio Studio are flexible headphones that can be naturally adjusted to fit any sized head.

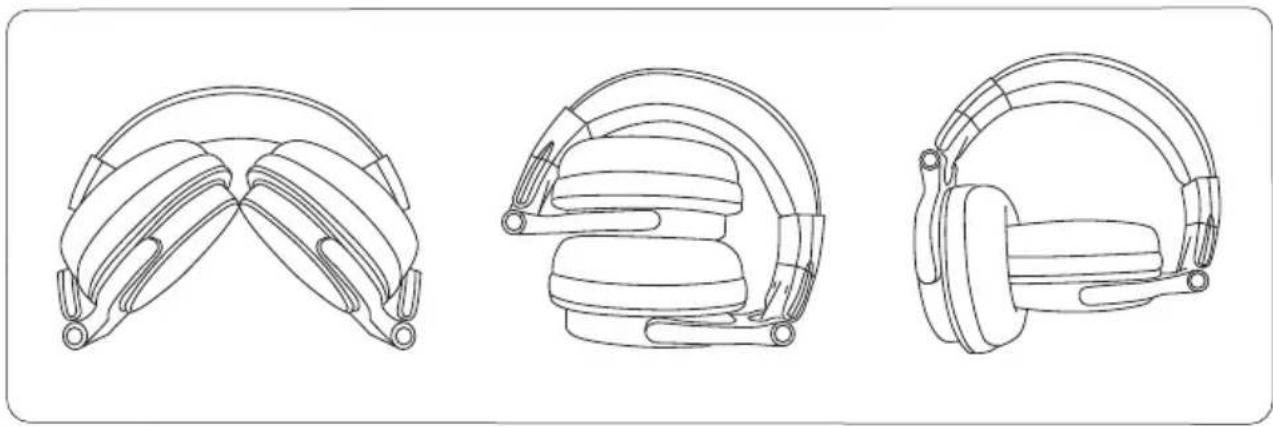

Three line drawings of a pair of headsets in different angles, shown from front to side (no text or symbols)

Limited Warranty

Please sign up for OneOdio warranty service at www.oneodio.com /sign.

OneOdio warrants that this product, for a period of 2 years from the date of retail purchase by the original end-use purchaser, when delivered to you in new condition, in original package, from an OneOdio authorized reseller and used in normal conditions, is free from any defects in manufacturing and workmanship. We will, at our sole option, repair or replace (using new or refurbished replacement parts) any defective parts within a reasonable period of time and free of charge.

24/7 Customer Service | Telephone:[phone] Email: [e-mail]

What is not Covered

This warranty does not cover defects resulting from improper or unreasonable use or maintenance; failure to follow operating instructions; accidents; excess moistures; insects; lightning; unauthorized alteration or modification of original condition; damage caused by inadequate packing or shipping procedures; loss of, damage to or corruption of stored data; damage caused by use with non-OneOdio products; product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by there modifications; and products purchase form unauthorized dealers.

How to Make a Claim

In the event damage has occurred to products, you must follow these instructions:

- Within two months, contact [e-mail] with order number in e-commerce website after you discover a product defect (or should have discovered it, if such product defect was obvious);

- In order to get professional solutions of OneOdio, please give a detailed explanation of how the damage occurred.

- Return the products. OneOdio will, at our sole option, repair or replace (using new or refurbished replacement parts) any defective parts within a reasonable period of time and free of charge.

Other Legal rights

This limited warranty gives you specific legal rights, and you also may have other rights that vary from state to state or country to country. Some places do not allow limitations on implied warranties or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

FAQ

Q: Why do you have 2 plugs on the headphones, one for 6.3mm and one for 3.5mm?

A: For connecting to ordinary audio devices, such as, mobile phone, iPad, iPod, etc., you can plug the 6.3mm jack into the headphones, the other side to your music player device; For connecting to professional musical instruments, such as Mixer, Turntable, you can plug the 3.5mm jack into the headphones, and the other side to your Mixer, guitar, etc. which means it is free from using the 6.3mm (1/4 inch) to 3.5 mm male to female stereo adapter.

Q: How long is the cord? Does the cord have a built in mic?

A: The headphones are attached with two cables:

Cable 1: 2m-3m coiled cable / Cable 2: 1.2m straight cable with microphone

Q: Can you play these with a keyboard? Or do you need an adapter?

A: Yes, they can play with electronic keyboard (electronic piano), no adapter needed.

Q: Are they on-ear or over-ear?

A: They are over-ear. The headphones are larger in diameter than the average person's ear, and the cushioned edge of headphones fit around the outside edge of your ear.

Q: Are these "open back" or "closed back" headphones?

A: They are closed-back headphones.

OneOdio

Three line drawings of a multi-head automotive headgear (no text or symbols)

- 90度の反転モニター構造

- 折り畳み可能なデザイン

Three line drawings of a pair of smart headsets with exposed internal components, shown from front, side, and top views (no text or symbols present)

保証書

- Pliable et transportable

Line drawing of a pair of curved, segmented objects resembling stylized fans or lenses (no text or symbols)

Line drawing of a mechanical device with curved and straight sections (no text or symbols)

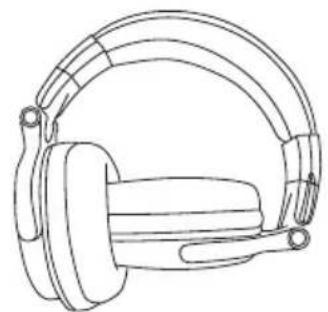

Line drawing of a pair of headphones with no text or symbols

Limite de garantie

The power of music !
