Product type	Built-in electric oven
Brand	Amica
Model	EH 923 605 SM
Dimensions (W x H x D)	59.5 x 59.5 x 57.5 cm
Voltage	230/400 V ~ 50 Hz (three-phase or single-phase)
Maximum power	3.5 kW
Heating functions	Rapid heating, Defrost, Enhanced grill, Grill, Bottom heat, Top+bottom heat, Fan heat, Lighting, ECO
Electronic timer	Yes (clock, timer, cooking duration, automatic stop)
Interior lighting	Yes (25W bulb, E14 base or G9 halogen)
Cleaning	Steam cleaning (Steam Clean)
Oven door	Removable, inner glass removable
Rails	Wire shelf or telescopic (depending on model)
Oven capacity	Approximately 70 L (estimation)
Weight	Approximately 35 kg (estimation)
Energy class	Not specified

Frequently Asked Questions - EH 923 605 SM AMICA

How to set the time on the electronic timer?

After power on, the screen displays '0.00' flashing. Press and hold the MENU sensor until the clock symbol appears. Use the < and > sensors to set the time. Settings are saved after about 7 seconds.

How to use the timer function?

Press the MENU sensor until the timer symbol appears. Use the < and > sensors to set the time (from 1 min to 23h59). At the end of the countdown, an audible signal sounds. To stop it, press MENU or simultaneously < and >.

What to do if the display shows '0.00' flashing?

This means the appliance has been unplugged or experienced a power outage. Simply reset the current time as described in the manual. Without this setting, the oven will not work.

How to clean the oven easily?

Use the Steam Clean function: pour 0.25 L of water into a container on the bottom shelf. Close the door, set the temperature to 50°C and the function to the steam symbol for 30 minutes. Then wipe the cavity with a damp cloth.

How to change the oven light bulb?

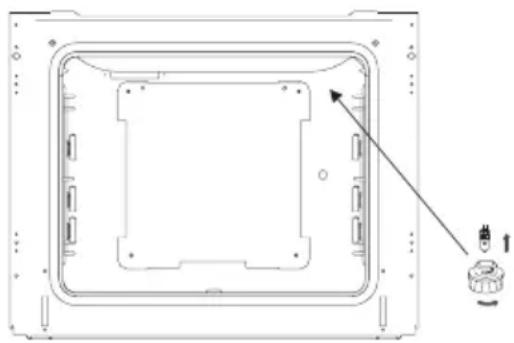

Ensure the appliance is off and unplugged. Remove the glass cover, unscrew the defective bulb and replace it with a bulb of 25 W, E14 base or G9 halogen (230 V). Do not touch the halogen bulb with your fingers.

How to remove the oven door for cleaning?

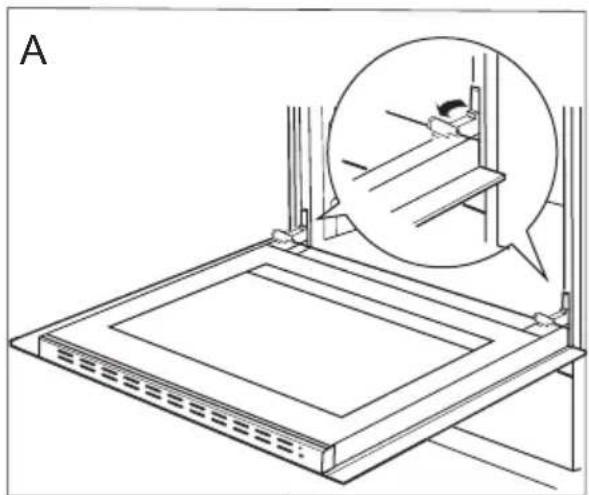

Open the door and lift the locking devices on the hinges (fig. A). Slightly lift the door and pull it towards you at about a 45° angle. To reassemble, proceed in reverse order and lower the locks after putting it back.

What are the available cooking functions?

The oven offers: rapid heating, defrosting (fan only), enhanced grill (grill + top heat), grill, bottom heat, top+bottom heat (conventional), fan heat (fan + heating elements), lighting only, and ECO (energy saving).

How to use the grill?

Select the grill function (symbol) and set the temperature to 250°C for classic or enhanced grill. Preheat for 5 minutes with the door closed. Place the food on the grill rack with a drip tray below. The door must remain closed during cooking.

What to do if the oven does not heat?

First check the circuit breaker of your installation. If the display is off, there may be a power outage. If the display works but the oven does not heat, contact after-sales service. Do not attempt any repairs yourself.

How to save energy with this oven?

Use the ECO function when appropriate (e.g., pastries). Avoid opening the door unnecessarily, turn off the oven 10 minutes before the end of cooking to use residual heat, and clean the door gaskets regularly to prevent heat loss.

USER MANUAL EH 923 605 SM AMICA

Line drawing of a standard oven with control knobs and a digital display (no text or symbols)

3022C2.334eEHiTsDHbSm / EH 923 605 SM

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Isometric line drawing of a square frame with rounded corners and a central hole (no text or symbols)

Backblech*

Technical line drawing of a rectangular metal grate or rack structure (no text or symbols)

Line drawing of a rectangular tray or container with a recessed slot (no text or symbols)

Bratblech*

Top-down schematic of a cabinet or enclosure with directional arrows indicating movement or force (no text or symbols)

Abb. C

Achtung!

Diagram of a rotary knob with directional arrow, no text or symbols present

Wichtig!

Technical line drawing of a rectangular electronic device casing with internal components and a small component at the bottom (no text or symbols)

Technical line drawing of a rectangular electronic device casing with internal components and an arrow pointing to a component (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

Diagram showing three stages of a mechanical or electrical setup with rotating components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Diagram of a rectangular electronic component with mounting brackets and a separate 3D panel below showing internal structure (no text or symbols)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Isometric line drawing of a square frame with rounded corners and a small circular hole at the top (no text or symbols)

Technical line drawing of a rectangular metal grate or rack structure (no text or symbols)

(grille à gratiner)

Line drawing of a rectangular tray or container with a recessed slot (no text or symbols)

Plat à rôtissage*

Schéma B

Diagram of a cabinet or enclosure with arrows pointing to the front panel (no text or symbols)

Schéma C

Attention!

Diagram of a cylindrical device with a rotating arrow, no text or symbols present

Technical line drawing of a rectangular electronic device casing with internal components and a small connector (no text or symbols)

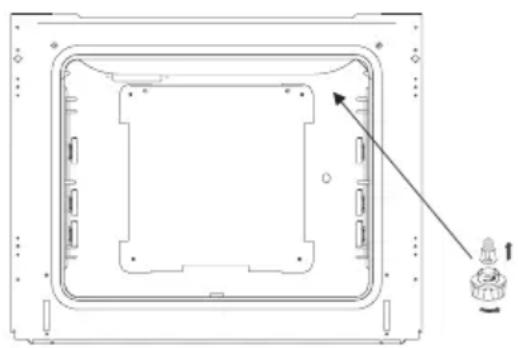

Lampe du four

Technical line drawing of a rectangular electronic device casing with internal components and a small component inserted (no text or symbols)

Lampe du four

Three sequential diagrams showing a mechanical or electrical component with rotating arrows, no text or symbols present.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a rectangular electronic component with mounting holes and a separate panel below showing internal structure (no text or symbols)

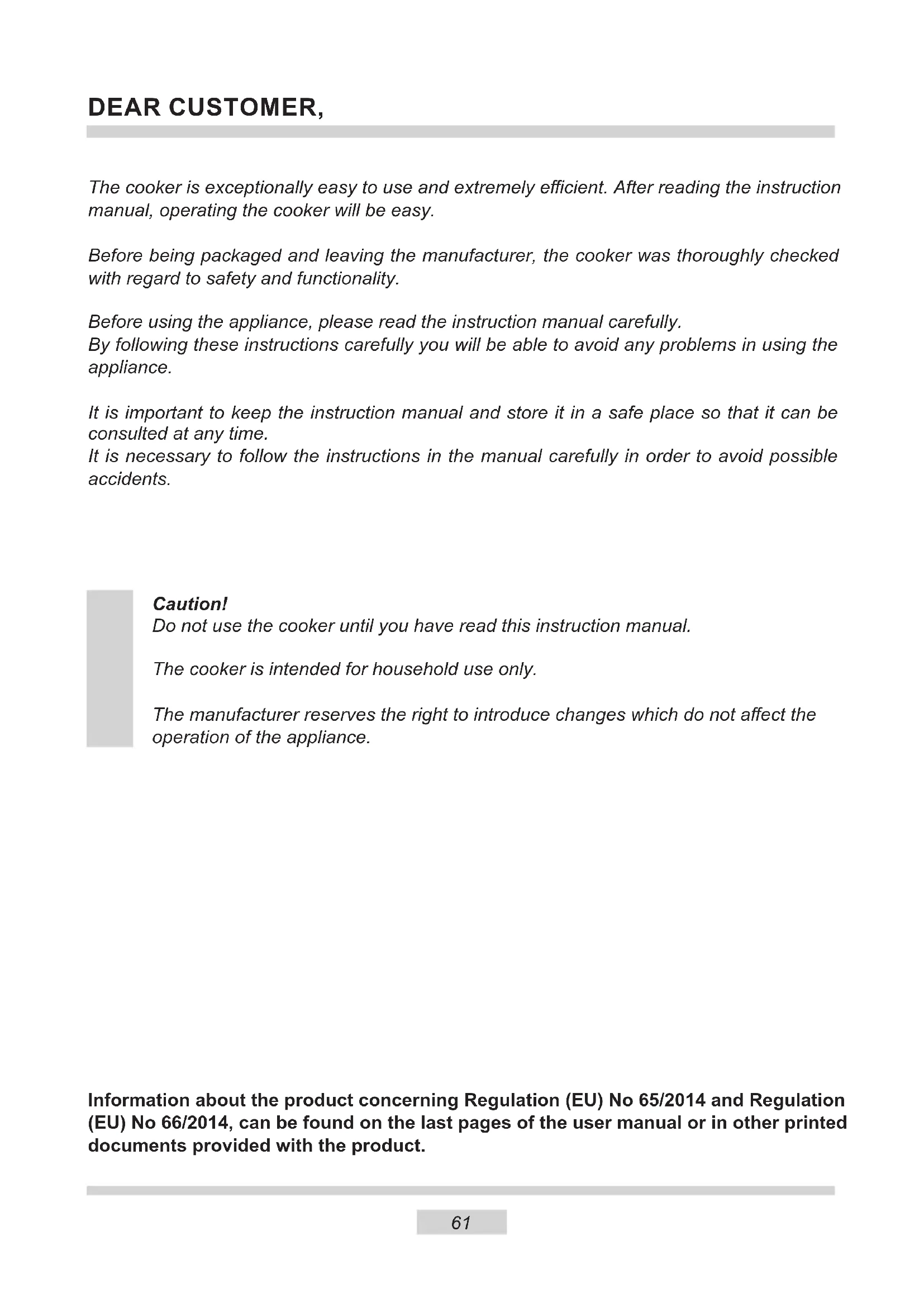

NETTOYAGE ET ENTRETIEN DE LA CUISINIÈRE

The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy.

Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the cooker until you have read this instruction manual.

The cooker is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

Information about the product concerning Regulation (EU) No 65/2014 and Regulation (EU) No 66/2014, can be found on the last pages of the user manual or in other printed documents provided with the product.

Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Accessible parts may become hot during use. Young children should be kept away.

Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

You should not use steam cleaning devices to clean the appliance.

Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.

Caution! The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Warning! Use only hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• Ensure that small items of household equipment, including connection leads, do not touch the hot oven as the insulation material of this equipment is usually not resistant to high temperatures.
• Do not leave the oven unattended when frying. Oils and fats may catch fire due to overheating or boiling over.
• Do not put pans weighing over 15 kg on the opened door of the oven.
• Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
• Do not use the oven in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
• In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
• The rules and provisions contained in this instruction manual should be strictly observed. Do not allow anybody who is not familiar with the contents of this instruction manual to operate the oven.
• The appliance has been designed only for cooking. Any other use (for example for heating) does not comply with its operating profile and may cause danger.

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

- Do not uncover the pan too often (a watched pot never boils!).

Do not open the oven door unnecessarily often.

- Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

● Make use of residual heat from the oven.

If the cooking time is greater than 40 minutes switch off the oven 10 minutes before the end time.

● Make sure the oven door is properly closed.

Heat can leak through spillages on the door seals. Clean up any spillages immediately.

- Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

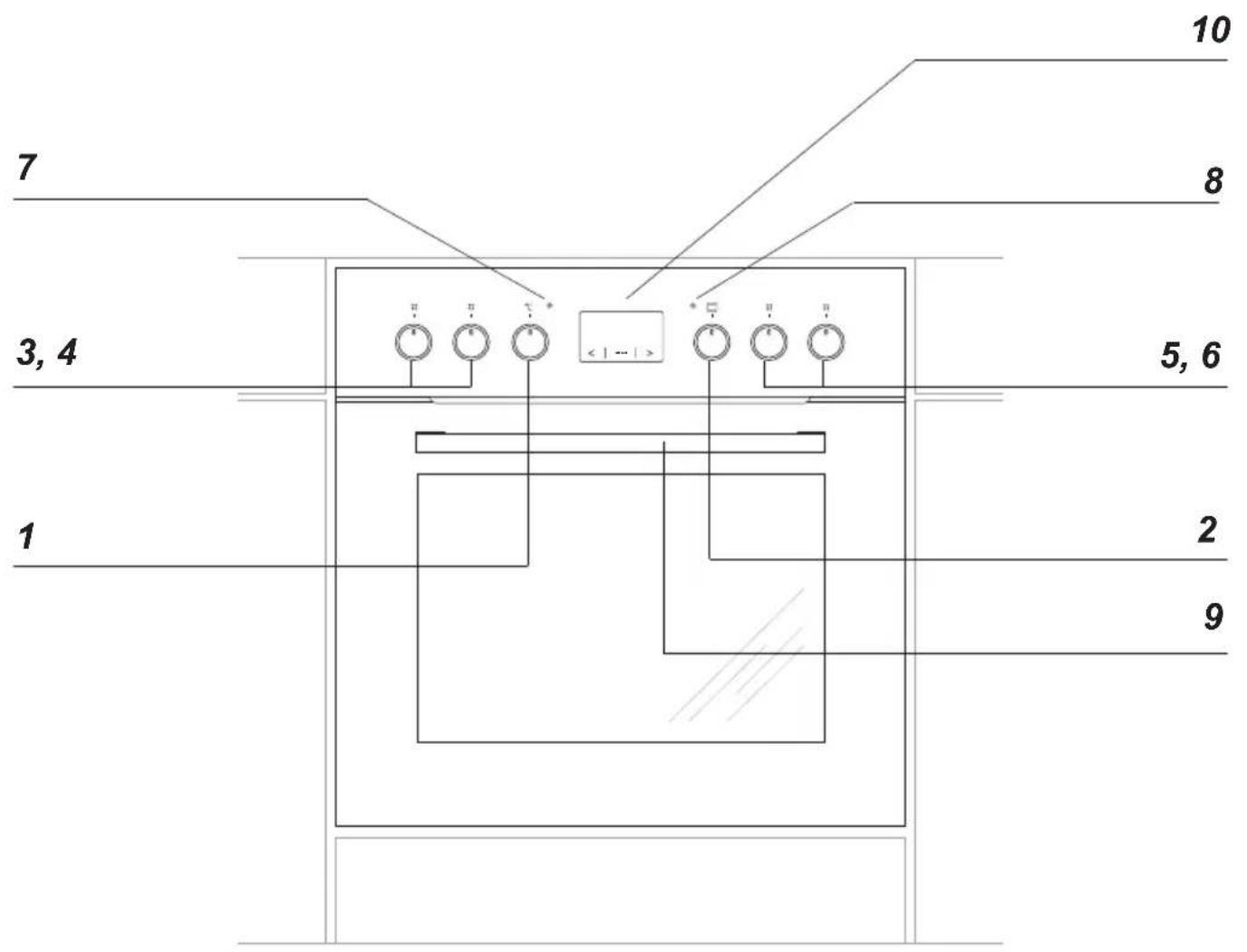

DESCRIPTION OF THE APPLIANCE

1 Temperature control knob
2 Oven function selection knob
3, 4, 5, 6 Heating zone control knobs
7 Temperatureregulatorsignal light L
8 Cooker operation signal light R
9 Oven door handle
10 Electronic programmer

Cooker fittings:

Isometric line drawing of a square frame with rounded corners and a central hole (no text or symbols)

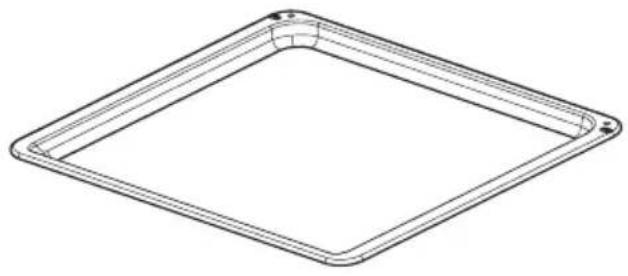

Baking tray*

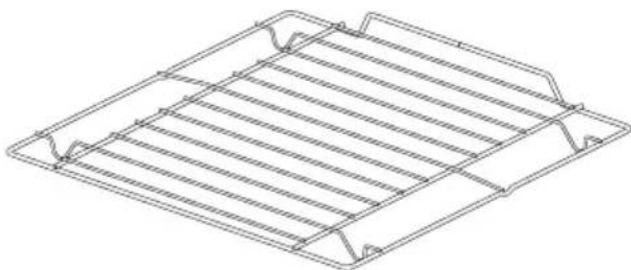

Technical line drawing of a rectangular metal grate or rack structure (no text or symbols)

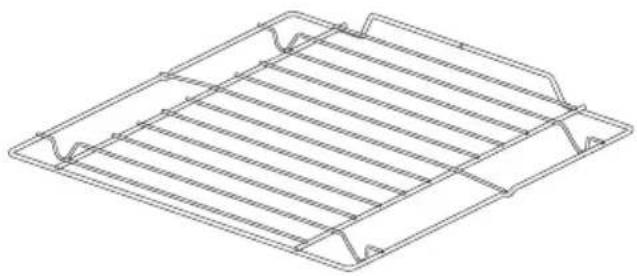

Grill grate (drying rack)

Line drawing of a rectangular tray or container with a recessed slot (no text or symbols)

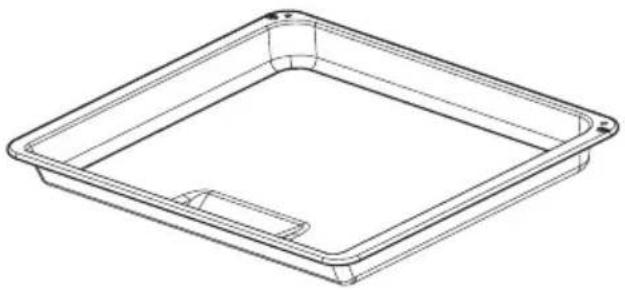

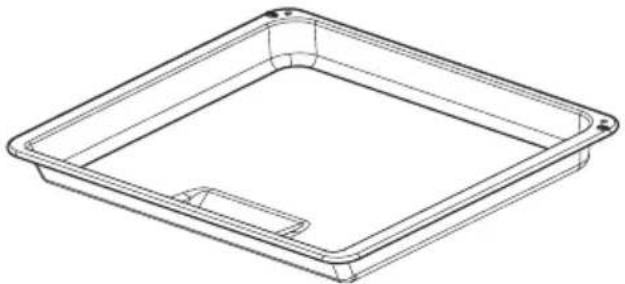

Roasting tray*

*optional

Installing the oven

• The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the oven, easy access to all control elements should be ensured.
• This is a Y-type design built-in oven, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall. Coating or veneer used on fitted furniture must be applied with a heat-resistant adhesive (100°C). This prevents surface deformation or detachment of the coating.
• Hoods should be installed according to the manufacturer's instructions.

Assembly of the oven:

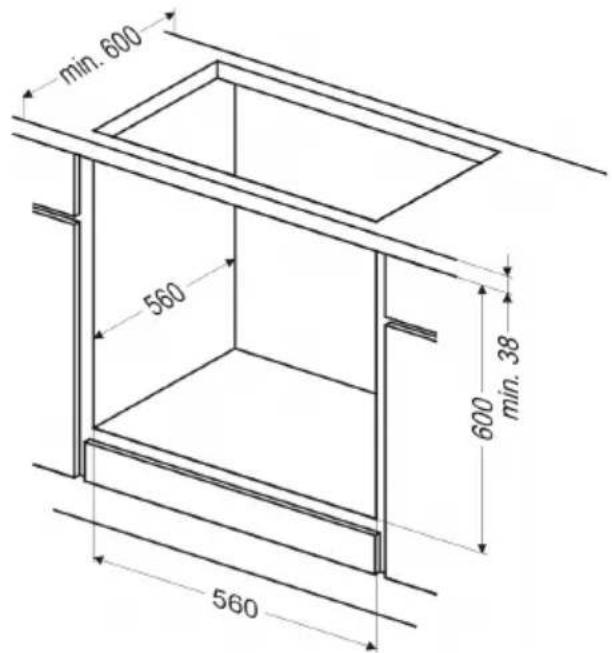

● Make an opening with the dimensions given in the diagram for the oven to be fitted.(Fig.A)

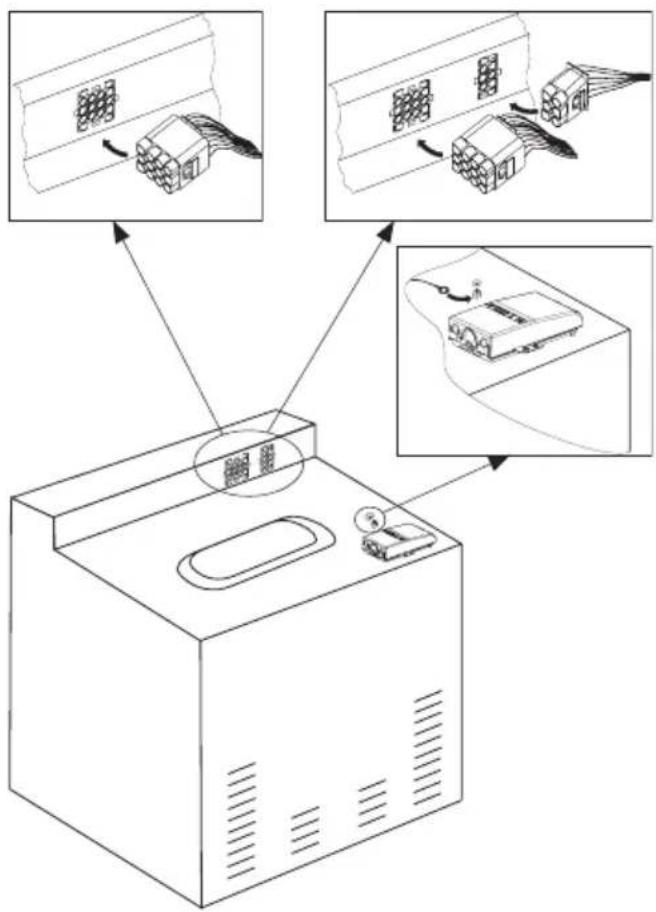

● Make sure the mains plug is disconnected and then connect the oven to the mains supply.
- Partially insert the oven into the prepared opening and connect the oven to the hob. (Fig.B)
- The appliance must be earthed. Connect the earth lead of the hob (yellow-green) with the earth terminal of the oven (marked) which is located near the connection box

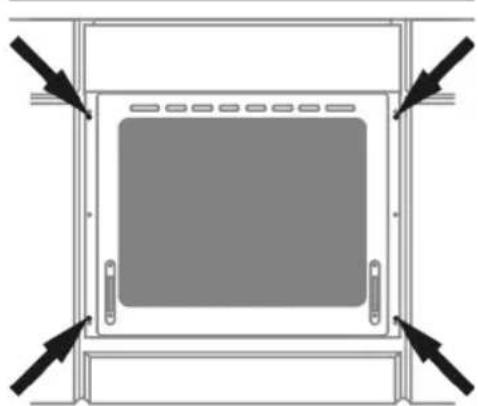

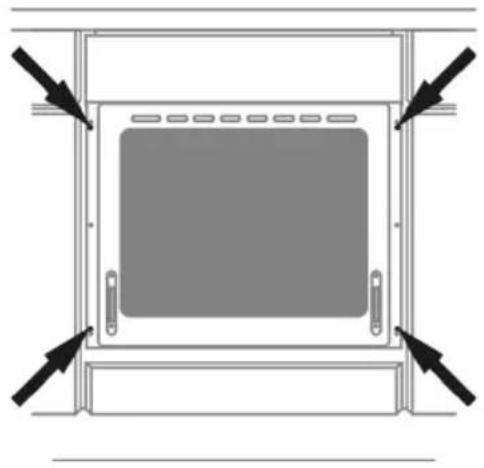

- Insert the oven completely into the opening without allowing the four screws in the places shown in the diagram to fall out. (Fig.C)

Fig. A


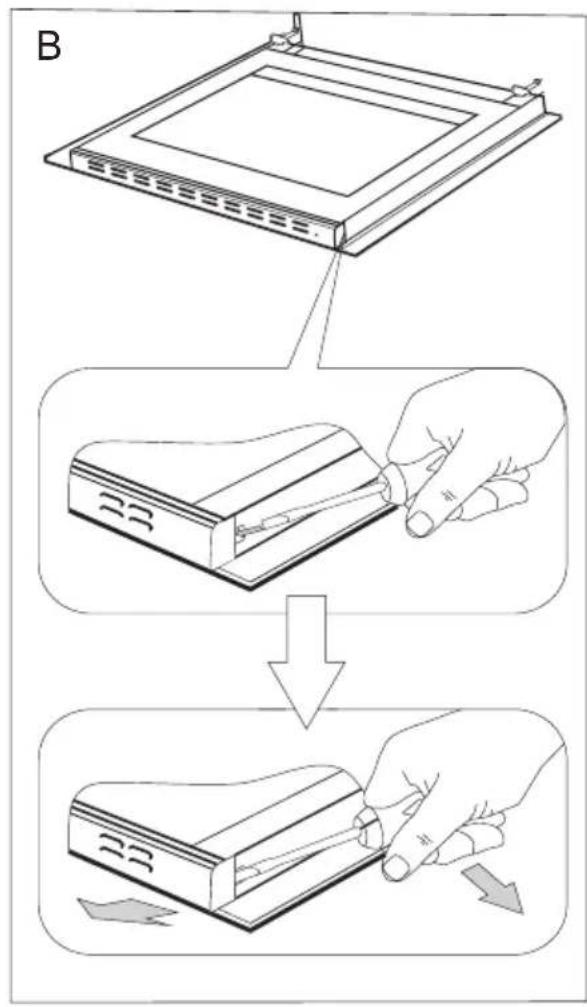

Fig. B

Diagram of a cabinet or enclosure with directional arrows indicating movement or force (no text or symbols)

Fig. C

The connection cable must be secured in a strain-relief clamp.

Warning!

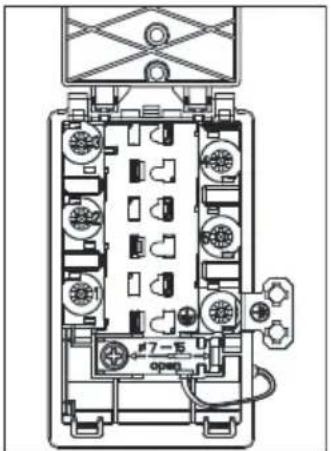

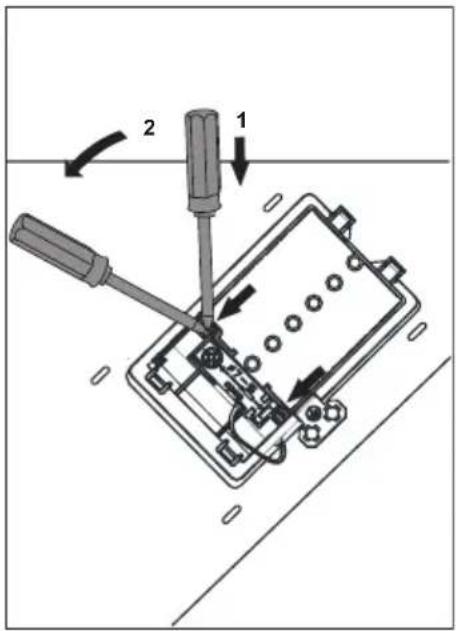

Remember to connect the safety circuit to the connection box terminal marked with 12 The electricity supply for the cooker must have a safety switch which enables the power to be cut off in case of emergency. The distance between the working contacts of the safety switch must be at least 3 mm.

Before connecting the cooker to the power supply it is important to read the information on the data plate and the connection diagram.

Electrical connection

Warning!

All electrical work should be carried out by a suitably qualified and authorised electrician. No alterations or wilful changes in the electricity supply should be carried out.

Fitting guidelines

The cooker is manufactured to work with three-phase alternating current (400V 3N\~50Hz). The voltage rating of the cooker heating elements is 230V. Adapting the cooker to operate with one-phase current is possible by appropriate bridging in the connection box according to the connection diagram below. The connection diagram is also found on the cover of the connection box. Remember that the connection wire should match the connection type and the power rating of the cooker.

CONNECTION DIAGRAMCaution! Voltage of heating elements 230V					Recommended type of connection lead
1 For 230 V earthed one-phase connection, bridges connect 1-2-3 terminals and 4-5 terminals, safety wire to [IMAGE]					H05VV-F3G4
2 For 400/230 V earthed two-phase connection, bridges connect 2-3 terminals and 4-5 terminals, the safety wire to [IMAGE]					H05VV-F4G4
3 For 400/230V earthed three-phase connection, bridges connect 4-5 terminals, phases in succession 1,2 and 3, earth to 4-5, the safety wire to [IMAGE]					H05VV-F5G1,5
L1=R, L2=S, L3=T, N=earth terminal, PE= safety wire terminal

Before first use

• Remove packaging, clean the interior of the oven.
• Take out and wash the oven fittings with warm water and a little washing-up liquid.
• Switch on the ventilation in the room or open a window.
• Heat the oven (to a temperature of 250^ C, for approx. 30 min.), remove any stains and wash carefully.

Important!

The inside of the oven should only be washed with warm water and a small amount of washing-up liquid.

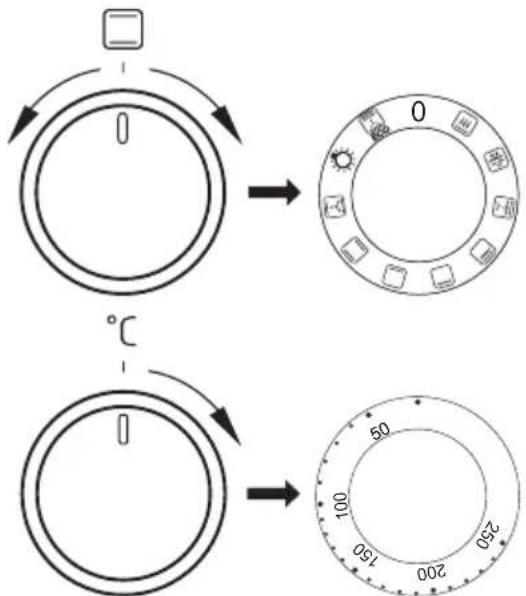

The oven is equipped with a retractable knobs. In order to select a function do the following:

1. Gently press and release a knob which will pop out,
2. Turn the oven functions selection knob to the desired function.
   Symbols printed around the knob indicate available oven functions.

Diagram of a cylindrical device with a rotating arrow and base plate, no text or symbols present

Important!

In ovens equipped with the electronic programmer Ts, the time "0.00" will start flashing in the display field upon connection to the power supply.

The programmer should be set with the current time. (See Electronic programmer). If the current time is not set operation of the oven is impossible.

The electronic programmer Ts is equipped with electronic sensors which are switched on by touching or pressing the sensor surface for at least one second.

Each sensor reaction is confirmed by the beep. Keep the sensor surface clean at all times.

Heat level selection

The heating zones have different levels of heat. The level of heat can be adjusted gradually by turning the appropriate knob to the right or left.

Examples of knob settings

0 Switch off
- MIN. Warming up
1 Stewing vegetables, slow cooking
• Cooking soups, larger dishes
2 Slow frying
- Grilling meat, fish
3 MAX. Fast heating up, fast cooking, frying

Switching on the wider heating zone

Important!

Only switch on a heating zone by turning the knob clockwise. Turning the knob in the opposite direction can cause damage to the switch.

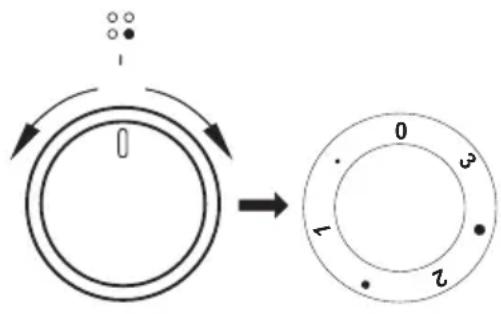

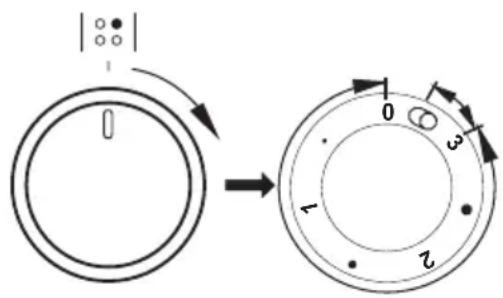

With the settings 0 ● 1 ● 2 ● 3 the knob operates the internal heating zone and it is possible to smoothly control the amount of heat transferred to a pan. Turning the knob temporarily to the position marked causes the external heating zone to be switched on. From that point, you can smoothly control the amount of heat trasferred to a pan by both heating zones (internal and external) as the internal switch will switch both zones off only after the knob is set to position 0.

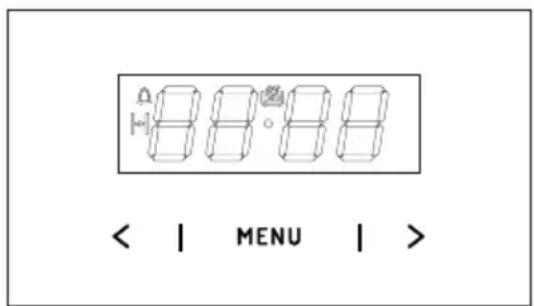

Electronic timer\*

MENU — select the mode of operation

— higher setting sensor

< — lower setting sensor

— appliance on indicator

— Kitchen timer

|←| — Duration

Setting the time

When the appliance is plugged into the electrical mains supply, or when power is restored after power outage, the digital display will show flashing 0.00.

• Touch and hold MENU ((or simultaneously touch < / > ) until you will see 📋 on the display and the dot below the symbol is flashing,
• Touch < / > within 7 seconds to set the current time.

To store the new time setting, wait approximately 7 seconds after time has been set. The dot below the symbol will stop flashing.

You can adjust the time later. To do this touch < / > simultaneously and adjust the current time while the dot below the symbol is flashing.

Note:

The oven can be turned on when you see the symbol on the display.

*optional

Kitchen Timer

You can active the Kitchen Timer at any time, regardless of the status of other functions. The Kitchen Timer can be set from 1 minute up to 23 hours and 59 minutes.

To set the Kitchen Timer:

• Touch MENU, then the display will show blinking 🔒
• Use the < / > , sensors to set the Kitchen Timer. The display will show the set time and Kitchen Timer symbol ⚙ Once the set time elapses, alarm sounds and the 🔊 icon flashes,
• Touch and hold MENU or simultaneously touch and hold < / > to mute the alarm, the will be off and the display will show the current time.

Note!

If no button is touched, alarm will turn off automatically after approximately 7 minutes.

Timed operation

To set the appliance to switch off after a specific duration:

• Set the operation mode knob and the temperature control knob to your preferred settings.
• Touch MENU repeatedly until the display shows dur (duration) briefly and the H symbol will be flashing,
• Set the desired duration from 1 minute to 10 hours using the
  </> sensors.

The set duration will be memorised after about 7 seconds. The display will show the current time and the symbol.

Once the Duration has elapsed the oven will turn off automatically. You will hear an alarm and the ⏻ symbol will be flashing.

• Set the oven function selector knob and the temperature selector knob in off position.,
• Touch and hold MENU or simultaneously touch and hold < / > to mute the alarm, the will be off and the display will show the current time.

Cancel settings

Timer and Timed operation settings may be cancelled at any time.

Cancel Timed operation settings:

- Simultaneously touch and hold the < /> sensors.

Cancel timer settings:

• Touch the MENU sensor to select the Kitchen Timer,
• simultaneously touch the < / > sensors

Change the beep tone

You can change the beep tones as follows:

• Simultaneously touch the < / > , sensors
• Touch MENU repeatedly to select the ton (tone). The display will be flashing:
• Use the < / > sensors to select your preferred tone:

Use > to select the setting 1 to 3

Use < to select the setting 3 to 1

Adjust display brightness

You can adjust display brightness 1 to 9, where 1 is the darkest and 9 is the brightest. The brightness setting applies to an inactive control panel, i.e. when no controls are touched for 7 seconds.

You can adjust display brightness as follows:

• Simultaneously touch the < / > sensors,
• Touch MENU repeatedly to select the bri (brightness) setting — the settings can be accessed in sequence ton (tone) and bri (brightness).

- Use the < / > sensors to select your preferred brightness:

Use > to select the setting 1 to 9

Use < to select the setting 9 to 1

Note:

The display is at its brightest setting when active, i.e. a control was touched within the last 7 seconds.

Night Mode

The display is dimmed during the night hours 22:00 — 06:00.

Oven functions and operation.

Oven with automatic air circulation (including a fan and top and bottom heaters)

The oven can be warmed up using the bottom and top heaters, as well as the grill. Operation of the oven is controlled by the oven function knob – to set a required function you should turn the knob to the selected position, as well as the temperature regulator knob – to set a required function you should turn the knob to the selected position.

The oven is equipped with a retractable knobs. In order to select a function do the following:

• Gently press and release a knob which will pop out,
• Turn the oven functions selection knob to the desired function.

Symbols printed around the knob indicate available oven functions.

The oven can be switched off by setting both of these knobs to the position “●”/“0”.

Caution!

When selecting any heating function (switching a heater on etc.) the oven will only be switched on after the temperature has been set by the temperature regulator knob.

0 Oven is off

Rapid Preheating

Top and bottom heater, roaster and fan on. Use to preheat the oven.

Defrosting

Only fan is on and all heaters are off.

Fan and combined grill on

When the knob is turned to this position, the oven activates the combined grill and fan function. In practice, this function allows the grilling process to be speeded up and an improvement in the taste of the dish. You should only use the grill with the oven door shut.

Enhanced roaster (super roaster)

In this setting both roaster and top heater are on. This increases temperature in the top part of the oven's interior, which makes it suitable for browning and roasting of larger portions of food.

Roaster on.

Roasting is used for cooking of small portions of meat: steaks, schnitzel, fish, toasts, Frankfurter sausages, (thickness of roasted dish should not exceed 2-3 cm and should be turned over during roasting).

Bottom heater on

When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes with fruit stuffing).

Top and bottom heaters on

Set the knob in this position for conventional baking. This setting is ideal for baking cakes, meat, fish, bread and pizza (it is necessary to preheat the oven and use a baking tray) on one oven level.

Top heater, bottom heater and fan are on.

This knob setting is most suitable for baking cakes. Convection baking (recommended for baking).

When the functions have been selected but the temperature knob is set to zero only the fan will be on. With this function you can cool the dish or the oven chamber.

Independent oven lighting

Set the knob in this position to light up the oven interior.

ECO Heating

This is an optimised heating function designed to save energy when preparing food. At this knob position, the oven lighting is off.

Switching on the oven is indicated by two signal lights, R, L, turning on. The R light turned on means the oven is working. If the L light goes out, it means the oven has reached the set temperature. If a recipe recommends placing dishes in a warmed-up oven, this should be not done before the L light goes out for the first time. When baking, the L light will temporarily come on and go out (to maintain the temperature inside the oven). The R signal light may also turn on at the knob position of “oven chamber lighting”.

Use of the grill

The grilling process operates through infrared rays emitted onto the dish by the incandescent grill heater.

In order to switch on the grill you need to:

• Set the oven knob to the position marked grill,
• Heat the oven for approx. 5 minutes (with the oven door shut).
• Insert a tray with a dish onto the appropriate cooking level; and if you are grilling on the grate insert a tray for dripping on the level immediately below (under the grate).
• Close the oven door.

For grilling with the function grill and combined grill the temperature must be set to 250^ C, but for the function fan and grill it must be set to a maximum of 190^ C.

Warning!

When using function grill it is recommended that the oven door is closed.

When the grill is in use accessible parts can become hot.

It is best to keep children away from the oven.

Baking

• we recommend using the baking trays which were provided with your cooker;
• it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;
• shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters), use of such tins can result in undercooking the base of cakes;
• when using the ultra-fan function it is not necessary to initially heat up the oven chamber, for other types of heating you should warm up the oven chamber before the cake is inserted;
• before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake);
• after switching off the oven it is advisable to leave the cake inside for about 5 min.;
• temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees lower than in normal baking (using top and bottom heaters);
• the baking parameters given in Table are approximate and can be corrected based on your own experience and cooking preferences;
• if information given in recipe books is significantly different from the values included in this instruction manual, please apply the instructions from the manual.

Roasting meat

• cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners.
• use heatproof ovenware for roasting, with handles that are also resistant to high temperatures;
• when roasting on the drying rack or the grate we recommend that you place a baking tray with a small amount of water on the lowest level of the oven;
• it is advisable to turn the meat over at least once during the roasting time and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.

ECO Heating

• ECO Heating an optimised heating function designed to save energy when preparing food.
• You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended.
• Do not change the temperature setting and do not open the oven door during cooking.

Recommended setting for ECO Heating

Type of dish	Oven functions	Temperature (°C)	Level Time	in minutes
Sponge cake 180 - 200 2 50 - 70
Yeast cake/ Pound cake		180 - 200 2 50	- 70
Fish 190 - 210 2 - 3 60
Beef 200 - 220 2 90 0
Pork 200 - 220 2 90 0
Chicken 180 - 200 2 80 00

Oven with automatic air circulation (including a fan and top and bottom heaters)

Type of dish	Type of heating	Temperature (°C)	Level Time	(min.)
Sponge cake 160 - 200 2-3 30 - 50
Sponge cake 150 3 25 - 35
Yeast cake/ Pound cake		160 - 170 1)	3 25 - 40	2)
Yeast cake/ Pound cake		155 - 170 1)	3 25 - 40	2)
Pizza 220 - 240		1)	2 15 - 25
Fish 210 - 220 2 45 - 60
Fish 190 2 - 3 60 - 70
Sausages 230 - 250 4 14 - 18
Beef 225 - 250 2 120 - 150
Pork 160 - 230 2 90 - 120
Chicken		180 - 190	2 70 - 90
Chicken		160 - 180 2 45 - 60
Vegetables		190 - 210 2 40 - 50
Vegetables		170 - 190 3 40 - 50

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

^1) Preheat

^2) Baking smaller items

Note: The figures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.

Baking

Type of dish Accessory Level Type			of heating	Temperature (°C)	Baking time 2) (min.)
Small cakes	Baking tray 3	160 - 170		1)	25 - 40 2)
	Baking tray 3	155 - 170		1)	25 - 40 2)
	Baking tray 3	155 - 170		1)	25 - 40 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		155 - 170 1)	25 - 50 2)
Shortbread	Baking tray 3	150 - 160		1)	30 - 40 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		160 - 175 1)	25 - 35 2)
Fatless sponge cake	Wire rack + black baking tin diameter 26cm	3 170 - 180		1)	30 - 45 2)
Apple pie	Wire rack + 2 black baking tins diameter 20cm	2black baking tins placed after the diagonal, back right, front left		180 - 200 1)	50 - 70 2)

^1) Preheat, do not use Rapid preheat function.
^2) The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

TEST DISHES. According to standard EN 60350-1.

Grilling

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
White bread toast	Wire rack 4 250		(HYWX)	1)	1,5 - 2,5
	Wire rack 4 250		(KG3W)	2)	2 - 3
Beef burgers	Wire rack + roasting tray (to gather drops)	4 - wire rack 3 - roasting tray	(ZW63)	250 1)	1st side 10 - 152nd side 8 - 13

^1) Preheat for 5 minutes, do not use Rapid preheat function.
^2) Preheat for 8 minutes, do not use Rapid preheat function.

Roasting

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
Whole chicken	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 70	- 90
	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray	[03DG]	180 - 190 80	- 100

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

By ensuring proper cleaning and maintenance of your cooker you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the cooker must be switched off and you should ensure that all knobs are set to the “●”/“0” position. Do not start cleaning until the cooker has completely cooled.

Oven

• The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better.
• The oven chamber should only be washed with warm water and a small amount of washing-up liquid.
  ● After cleaning the oven chamber wipe it dry.

- Steam Cleaning function:

-pour 250ml of water (1 glass) into a bowl placed in the oven on the first level from the bottom,
- close the oven door,
- set the temperature knob to 50^ C, and the function knob to the bottom heater position ☐

- heat the oven chamber for approximately 30 minutes,

- open the oven door, wipe the chamber inside with a cloth or sponge and wash using warm water with washing-up liquid.,

- After cleaning the oven chamber wipe it dry.

Caution!

Do not use cleaning products containing abrasive materials for the cleaning and maintenance of the glass front panel.

Replacement of the oven light bulb\*

In order to avoid the possibility of an electric shock ensure that the appliance is switched off before replacing the bulb.

• Set all control knobs to the position “●”/“0” and disconnect the mains plug,
• unscrew and wash the lamp cover and then wipe it dry.

• unscrew the light bulb from the socket, replace the bulb with a new one – a high temperature bulb (300°C) with the following parameters:

• voltage 230 V

• power 25 W

• thread E14.

• Screw the bulb in, making sure it is properly inserted into the ceramic socket.

• Screw in the lamp cover.

Technical line drawing of a rectangular electronic device casing with internal components and a small component on the right side (no text or symbols)

Oven light

Replacing the halogen bulb in the oven\*

Before replacing the halogen bulb, make sure the appliance is disconnected from the electric mains to avoid a possible electric shock.

• Set all control knobs to the position “●”/“0” and disconnect the mains plug,
• Unscrew and wash the lamp cover and then wipe it dry.

• Pull the halogen bulb out using a cloth or paper. If necessary, replace the halogen bulb with a new one.

• voltage 230V

• power 25W

• G9

• Replace the halogen bulb in its socket.

• Screw in the lamp cover.

Technical line drawing of a rectangular electronic device casing with internal components and a small component on the right side (no text or symbols)

Oven lighting

Note! Make sure not to touch the halogen directly with your fingers.

*optional

CLEANING AND MAINTENANCE

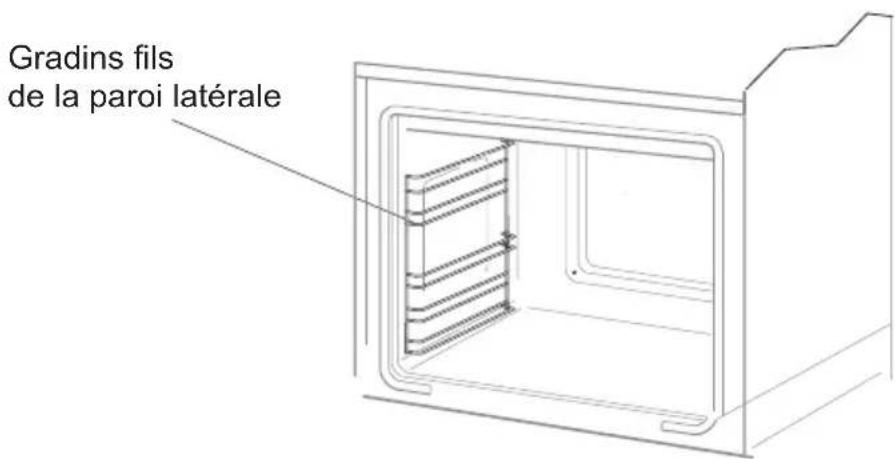

- Ovens in cookers marked with the letter D are equipped with easily removable wire shelf supports. To remove them for washing, pull the front catch, then tilt the support and remove from the rear catch.

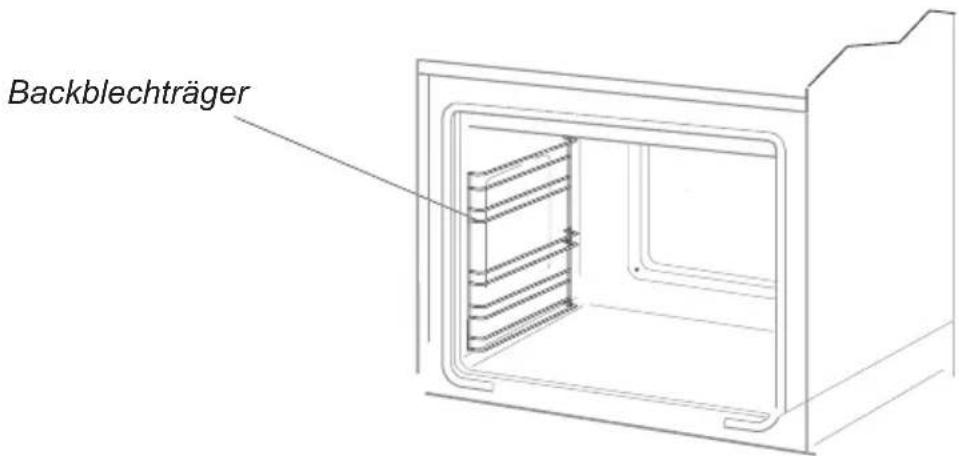

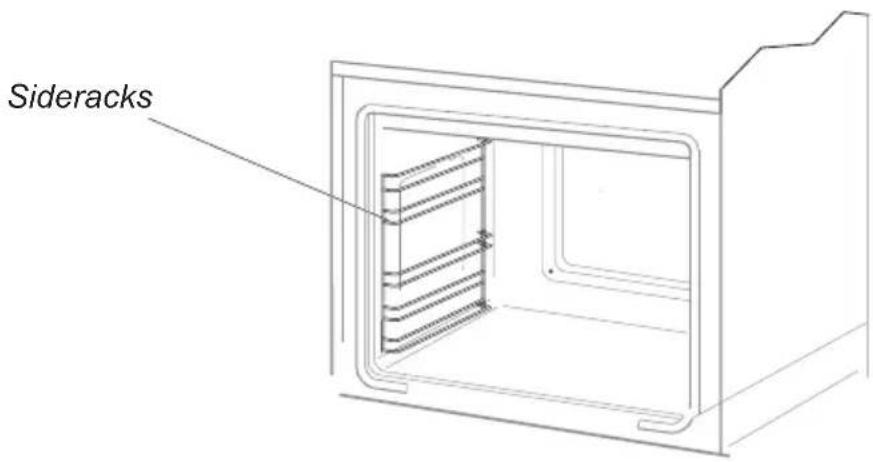

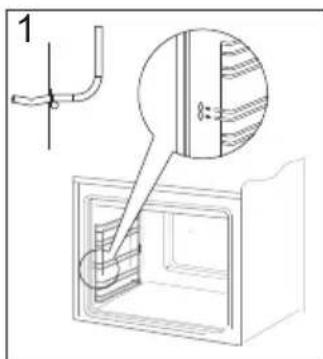

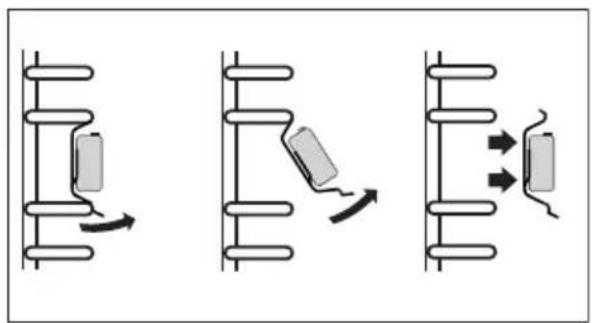

Removing wire shelf supports

- Ovens in cookers marked with the letters Dp* have stainless steel sliding telescopic runners attached to the wire shelf supports. The telescopic runners should be removed and cleaned together with the wire shelf supports. Before you put the baking tray on the telescopic runners, they should be pulled out (if the oven is hot, pull out the telescopic runners by hooking the back edge of the baking tray on the bumpers in the front part of the telescopic runners) and then insert them together with the tray.

Important!

Do not wash telescopic runners in a dishwasher.

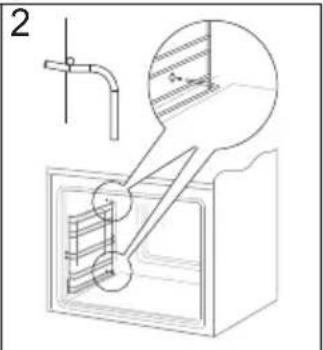

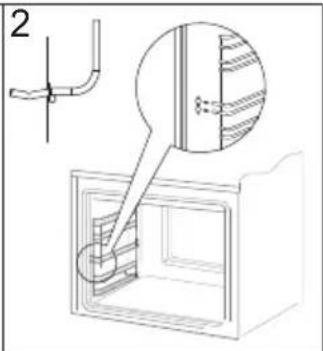

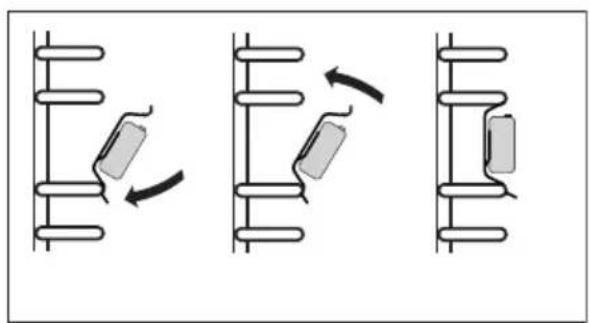

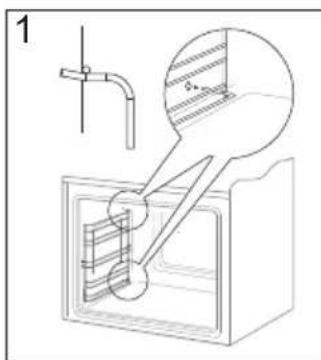

Installing wire shelf supports

Three diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present

Removing telescopic runners

Three sequential diagrams showing mechanical or electrical components with arrows indicating motion (no text or symbols)

Installing telescopic runners

*optional

Door removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig. A). Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the cooker, do the inverse. When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder. After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Tilting the hinge safety catches

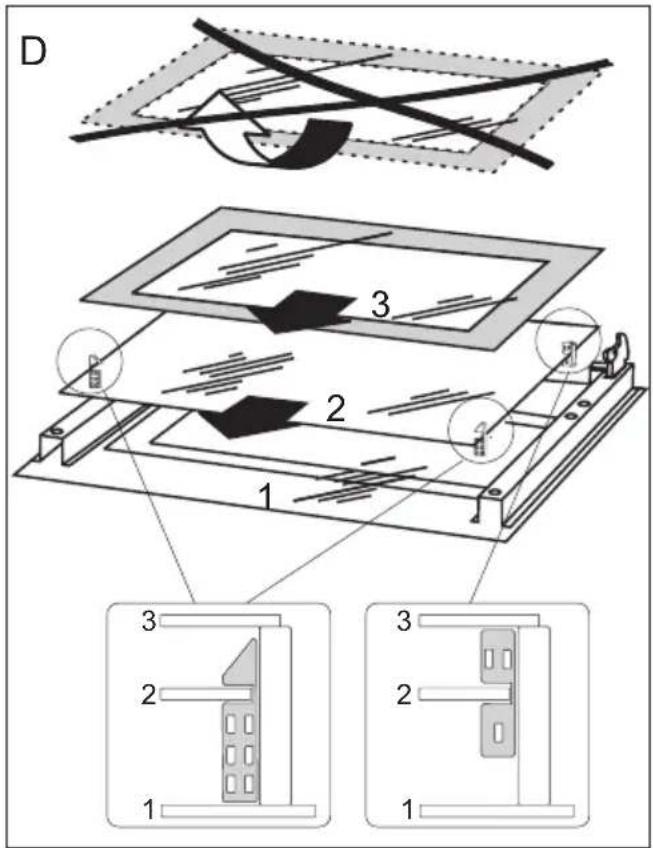

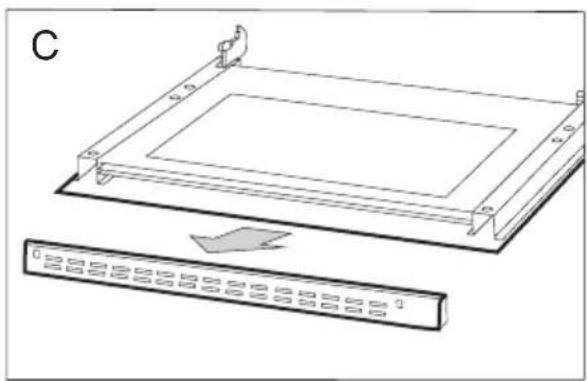

Removing the inner panel

1. Using a flat screwdriver unhook the upper door slat, prying it gently on the sides (fig. B).
2. Pull the upper door slat loose. (fig. B, C)

Technical line drawing of a rectangular electronic component with mounting brackets and a separate panel labeled C (no text or symbols on the diagram itself)

1. Pull the inner glass panel from its seat (in the lower section of the door). Remove the inner panel (fig. D).
2. Clean the panel with warm water with some cleaning agent added.

Carry out the same in reverse order to reassemble the inner glass panel. Its smooth surface shall be pointed upwards.

Important! Do not force the upper strip in on both sides of the door at the same time. In order to correctly fit the top door strip, first put the left end of the strip on the door and then press the right end in until you hear a "click". Then press the left end in until you hear a "click".

Removal of the internal glass panel

Regular inspections

Besides keeping the oven clean, you should:

• carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years,
• fix any operational faults,
• carry out periodical maintenance of the cooking units of the oven.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorised fitter.

Regular inspections

Besides keeping the oven clean, you should:

- carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years,

• fix any operational faults,
  ● carry out periodical maintenance of the cooking units of the oven.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorised fitter.

OPERATION IN CASE OF EMERGENCY

In the event of an emergency, you should:

• switch off all working units of the oven
• disconnect the mains plug
• call the service centre
• some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.

PROBLEM REASON ACTION
1. The appliance does not work.	Break in power supply. Check the household fuse box; if there is a blown fuse replace it with a new one.
2. The programmer display shows “0:00”.	The appliance was disconnected from the mains or there was a temporary power cut.	Set the current time (see ‘Use of the programmer’).
3. The oven lighting does not work.	The bulb is loose or damaged.	Tighten up or replace the blown bulb (see ‘Cleaning and Maintenance’).

Voltage rating 230/400V\~50 Hz

Power rating max. 3,5 kW

Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm

The product meets the requirements of European standards EN 60335-1; EN60335-2-6.

The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1. These values are defined with a standard workload a with the functions active: bottom and top heaters (conventional heating) and fan assisted heating (forced air heating), if these functions are available.

The energy efficiency class was assigned depending on the function available in the product in accordance with the priority below:

Forced air circulation ECO (ring heater + fan)
Forced air circulation ECO (bottom heater + top + roaster + fan)
Conventional mode ECO (bottom heater + top)

During energy consumption test, remove the telescopic runners (if the product is fitted with any).

Certificate of compliance CE

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives:

● The Low Voltage Directive 2014/35/EC,
● Electromagnetic Compatibility Directive 2014/30/EC,
● ErP Directive 2009/125/EC,

and therefore the product has been marked with the symbol and the Declaration of Conformity has been issued to the manufacturer and is available to the competent authorities regulating the market.

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Isometric line drawing of a square frame with rounded corners and a central hole (no text or symbols)

Technical line drawing of a rectangular metal grate or rack structure (no text or symbols)

Line drawing of a rectangular tray or container with a recessed slot (no text or symbols)

Top-down schematic of a cabinet or enclosure with directional arrows indicating movement or force (no text or symbols)

Fig. C

Diagram of a cylindrical device with a rotating arrow and base, no text or symbols present

Attentie!

Technical line drawing of a rectangular electronic device casing with internal components and a small component on the right side (no text or symbols)

Ovenverlichting

Technical line drawing of a rectangular electronic device casing with internal components and a small component on the right side (no text or symbols)

Ovenverlichting

Three diagrams showing mechanical or electrical components with directional arrows, no text or symbols present.

Three sequential diagrams showing mechanical or electrical components with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Wegnemen van de deur

Technical line drawing of a rectangular electronic component with mounting brackets and a separate panel labeled C (no text or symbols on the component itself)

REINIGING EN ONDERHOUD VAN HET FORNUIS

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
