USER MANUAL Artisan Series Burr Grinder CRUX

CRUX Artisan series kitchen grater with handle and control knob (no visible text or symbols on the device itself)

BURR GRINDER

MOLINILLO DE FRESA

MOULIN À MEULES

Instruction manual and recipes / Manual de instrucciones y recetas / Manuel d'instructions et recettes

www.cruxkitchen.com

Register your product and get support

Abstract black X-shaped symbol with a white circular 'C' at center (no text or symbols)

Contents

Índice

Table des matières

Table of Contents

Important Safeguards....2

Additional Important Safeguards....3

Notes on the Plug ....3

Notes on the Cord 3

Electric Power....3

Plasticizer Warning....3

Getting to Know Your CRUX Burr Grinder 4

Before Using For The First Time....5

Operating Instructions....5

Coffee Bean Grinding Chart....6

Grind Size Settings....6

Hints For Best Results....6

User Maintenance Instructions....6

Storing Instructions....6

Care & Cleaning Instructions....7

Troubleshooting....7

Warranty 8

Índice

WARNING: When using electrical appliances, basic safety precautions should always be followed, including the following:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.

1. To protect against risk of electrical shock do not put cord, plugs, or the Burr Grinder in water or other liquid.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Adding: Children should be supervised to ensure that they do not play with the appliance.
3. Close supervision is necessary when any appliance is used by or near children.
4. Turn the appliance OFF, unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact Consumer Service for examination, repair or mechanical or electrical adjustment.
7. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter.
10. Do not let cord contact hot surfaces, including the stove.
11. Check the coffee bean hopper for presence of foreign objects before using.

CAUTION: Do not immerse Burr Grinder housing in water!

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

ADDITIONAL IMPORTANT SAFEGUARDS

All users of this appliance must read and understand this instruction manual before operating or cleaning this appliance.

1. The cord to this appliance should be plugged into a 120V AC electrical outlet only.
2. Do not leave this appliance unattended during use.
3. If this appliance begins to malfunction during use, immediately press the ON/OFF button to turn the unit OFF and unplug the cord. Do not use or attempt to repair the malfunctioning appliance.
4. If this appliance falls or accidentally becomes immersed in water, unplug it immediately. Do not reach into the water! Do not use this appliance after it has fallen into or becomes immersed in water.
5. To reduce the risk of injury to persons or property, never use this appliance in an unstable position.
6. Do not use this appliance for other than its intended use.

NOTES ON THE PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

NOTES ON THE CORD

a) A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
b) A longer power-supply cord or extension cords are available and may be used if care is exercised in their use.
c) If a longer power-supply cord or extension cord is used:

1) The marked electrical rating of the power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

PLASTICIZER WARNING

CAUTION: To prevent Plasticizers from migrating to the finish of the counter top or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the finish of the counter top or table top. Failure to do so may cause the finish to darken; permanent blemishes may occur or stains can appear.

ELECTRIC POWER

If the electrical circuit is overloaded with other appliances, your Burr Grinder may not operate properly. It should be operated on a separate electrical circuit from other appliances.

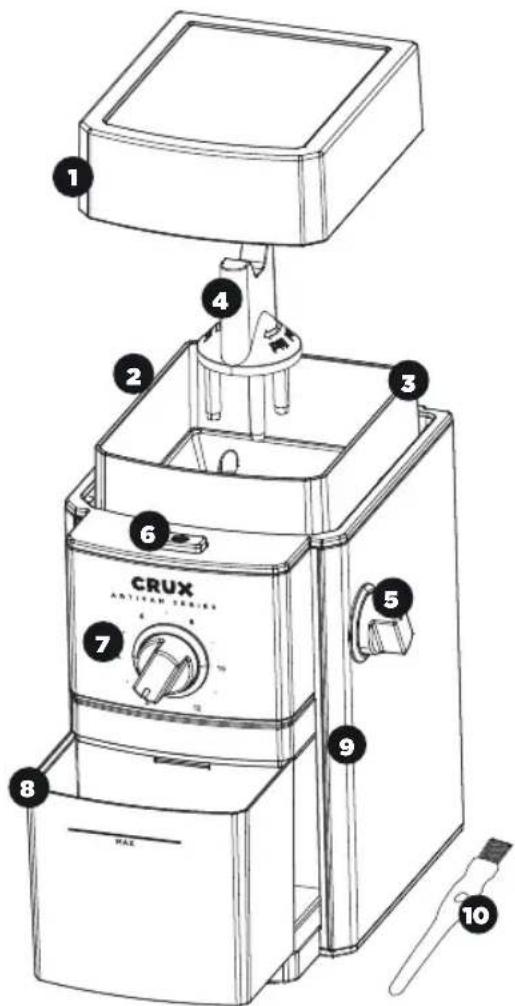

GETTING TO KNOW YOUR CRUX BURR GRINDER

Product may vary slightly from illustration

Figure 1

1. Hopper Lid
2. Coffee Bean Hopper
3. Burr Grinding Chamber
4. Burr Grinder Blade
5. Grinding Dial
6. ON/OFF Button
7. Ground Coffee CUPS Dial
8. Removable Ground Coffee Drawer with Lid
9. Housing
10. Brush
11. Polarized Plug (not shown)
12. Non-Skid Feet (not shown)
13. Cord Storage (not shown)

1 2 3 4 5 6 7 CRUX ANTI-TANIC BANANA 8 9 10

BEFORE USING FOR THE FIRST TIME

1. Unpack the Burr Grinder and remove all packaging materials.
2. Wipe the hopper and lid with a damp cloth.
3. Make sure the inside parts are completely dry before using.
4. Remove the coffee drawer and wash with warm soapy water. Dry thoroughly before using.
5. Make sure the removable coffee drawer is in position at the base of the unit.

OPERATING INSTRUCTIONS

1. Add the Beans: Remove the hopper lid. Add whole roasted coffee beans to the MAX mark on the hopper. Replace the hopper lid. Do not overfill the hopper past the max line. This can cause the unit to jam, or cause the unit to stop functioning.
2. Select Grind Size: Following the markings on the dial, turn the grinding dial to one of grinding level needed for optimal brewing.
3. Select number of cups: Turn the ground coffee CUPS dial to the desired number of cups of coffee (2 to 12) to be brewed.
4. Grind: Plug the cord into a 120V AC electrical outlet. Press the ON/OFF Button.

IMPORTANT! The Burr Grinder will NOT operate unless the removable ground coffee drawer and the hopper lid is in proper position.

The Burr Grinder will begin operation; ground coffee will begin to drop into the removable ground coffee drawer. When the pre-set amount of ground coffee is produced, the Burr Grinder will automatically turn OFF.

1. Remove the grounds: Grasp the ground coffee drawer by the side handle. Pull straight out of the side housing. Pour ground coffee directly into any coffee maker filter basket. Make sure you do not overfill the ground coffee drawer beyond the max line. The maximum capacity is 100g. If the drawer is overfilled it can cause the machine to clog up and stop functioning.

Store unused ground coffee in an airtight container for future use.

Clean the Burr Grinder according to the Care & Cleaning Instructions described in this instruction manual.

NOTE: Tap the removable ground coffee drawer on the counter a few times to help reduce static before opening the lid.

COFFEE BEAN GRINDING CHART

GrInd Suggested Use	GrInd Size
Coarse French Press/Cold Brew Approx. 1.5 mm
Medium Percolator/Pour Over, Automatic Drip/Filtered		Approx. 0.75 - 1.0 mm
Fine Espresso, Turkish, Mocha Approx. 0.20 - 0.38 mm

GRIND SIZE SETTINGS

The Burr Grinder can grind enough coffee for up to 20 cups (100g) at a time when set on coarse settings. More time is required for a finer grind, therefore when set on finer settings the yield will be less than 12 cups. Use the below chart as a reference for how much ground coffee you can expect on the various grind settings, even when 12 cups is selected on the dial.

Coarse Settings Approx. 100g = Aprox. 20 Cups
Medium Settings Approx. 70g = Aprox. 14 Cups
Fine Settings Approx. 50g = Aprox. 10 Cups

*Based on 5g per cup

HINTS FOR BEST RESULTS

• Fresh beans will yield the best flavor and aroma.
• Keep coffee beans in an airtight container.
• Smaller grinds have a greater surface area and extraction happens more quickly.

Larger grinds have less surface area and extraction happens more slowly.

For optimum extraction match the grind size to contact time and brew method.

Examples: Finer grinds for espresso, medium grinds for drip and pour over coffee, and coarser grinds for French press and cold brew.

NOT RECOMMENDED

This Burr Grinder is NOT suitable for grinding herbs and spices.

This Burr Grinder WILL NOT GRIND anything which is moist, gummy or extremely hard: ice, chocolate, whole nutmeg, candied ginger, etc.

• This Burr Grinder will NOT make pastes of any kind from seeds such as sunflower or sesame.
• Grinding cinnamon, cloves and nutmeg is not advised as the oils and hardness can cause the hopper to discolor or crack.
• Never add oils or liquids while grinding.
• Chopping, mincing or pureeing of soft foods is not recommended.

USER MAINTENANCE INSTRUCTIONS

This appliance requires little maintenance. It contains no user-serviceable parts. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician.

STORING INSTRUCTIONS

1. Unplug the Electric Burr Grinder from electrical outlet.

WARNING: Never store the Electric Burr Grinder while it is plugged in.

1. Store unit fully assembled in its box or in a clean, dry place.

CARE & CLEANING INSTRUCTIONS

WARNING: DO NOT IMMERSE THE MOTOR BASE IN WATER. DO NOT PLACE HANDHELD BURR COFFEE GRINDER IN THE DISHWASHER!

1. Unplug the Burr Grinder.
2. Wipe the exterior with a damp cloth or paper towel to remove any excess ground coffee. Wash in warm, soapy water, rinse and dry completely.
   NOTE: The ground coffee drawer and lid, coffee bean hopper lid are top rack dishwasher-safe.
3. Make sure to clean completely after each use.
4. It is recommended to clean out the coffee bean hopper after every few uses, so coffee grounds do not build up.
5. Turn the unit upside-down and gently tap the bottom of the unit over a garbage can to remove any built-up ground coffee. It is recommended to clean out the coffee bean hopper with the cleaning brush provided, after every few uses, so coffee grounds do not buildup
6. After removing the bean hopper lid, remove the burr blade by unlocking and pulling it straight out. Make sure to clean this part with the cleaning brush before securing it back into the unit.
7. Ground coffee can also build up in the chute that delivers the grinds to the Removable Ground Coffee Drawer. To release these grounds, remove the drawer and gently tap the top of the unit a few times. The build-up should fall out easily. Never stick any objects, including fingers up the chute to try and remove any built-up coffee.

TROUBLESHOOTING:

Problem Solution
Grinder stops working during use	Grinder overheats. If the motor shuts down, unplug the coffee grinder and empty the coffee grounds from the ground coffee drawer. Once the drawer is empty, let the motor rest for approximately 30 minutes. Once the 30-minute reset is complete, plug the power cord back into the 120V AC electrical outlet and continue grinding.
Grinder clogs When grinding on the fine setting for 12 cups, never grind more than two times before emptying the ground coffee drawer. At the medium and coarse grind settings, empty the ground coffee drawer after every 12-cup coffee grind.
The grinder does not operate when the ON/OFF button is pressed.	Ensure the power plug is correctly inserted into the 120V AC electrical outlet.
	Ensure the hopper lid is placed in the correct position.
	Ensure the removable ground coffee drawer with lid is placed correctly on the base.

Limited TWO-YEAR Warranty

SENSIO Inc. hereby warrants that for a period of TWO YEARS from the date of purchase, this product will be free from mechanical defects in material and workmanship, and for 90 days in respect to non-mechanical parts. At its sole discretion, SENSIO Inc. will either repair or replace the product found to be defective, or issue a refund on the product during the warranty period.

The warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty.

EXCLUSIONS:

The warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use of the product, use of improper voltage or current, improper routine maintenance, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than qualified SENSIO Inc. personnel. Also, the warranty does not cover Acts of God such as fire, floods, hurricanes, or tornadoes.

SENSIO Inc. shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Apart from the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in time to the duration of the warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, and therefore, the above exclusions or limitations may not apply to you. The warranty covers specific legal rights which may vary by state, province and/or jurisdiction.

HOW TO OBTAIN WARRANTY SERVICE:

You must contact Customer Service at our toll-free number: 1-866-832-4843. A Customer Service Representative will attempt to resolve warranty issues over the phone. If the Customer Service Representative is unable to resolve the problem, you will be provided with a case number and asked to return the product to SENSIO Inc. Attach a tag to the product that includes: your name, address, daytime contact telephone number, case number, and description of the problem. Also, include a copy of the original sales receipt. Carefully package the tagged product with the sales receipt, and send it (with shipping and insurance prepaid) to SENSIO Inc.'s address. SENSIO Inc. shall bear no responsibility or liability for the returned product while in transit to SENSIO Inc.'s Customer Service Center.

For customer service questions or comments: 1-866-832-4843

For Recipes and Cooking tips cruxkitchen.com

Sensio Inc.

New York, NY 10016/USA

17163 Rev. 11
