USER MANUAL PL1800 PROLINE

Black PROLINE grater on a wooden table in a kitchen setting, with no visible text or symbols on the device itself.

MANUEL D'UTILISATION HANDLEIDING

TABLE DES MATIÈRES

MISES EN GARDE IMPORTANTES......p. 02
CONSIGNES DE SÉCURITÉ....p. 04
DESCRIPTION DU PRODUIT......p. 05
NETTOYAGE ET ENTRETIEN....p. 07
SPÉCIFICATIONS......p. 08
MISE AU REBUT....p. 09

MISES EN GARDE IMPORTANTES

MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.

AVERTISSEMENTS

Close-up of a black mechanical component with a circular knob (no visible text or symbols)

Plate of cooked fish fillets with sauce in a small bowl (no text or symbols visible)

REMARQUE :

Hotline Darty France

Close-up of a black mechanical component with a circular hole and curved base (no visible text or symbols)

Plated dish with sliced meat and sauce, no visible text or symbols

OPMERKING:

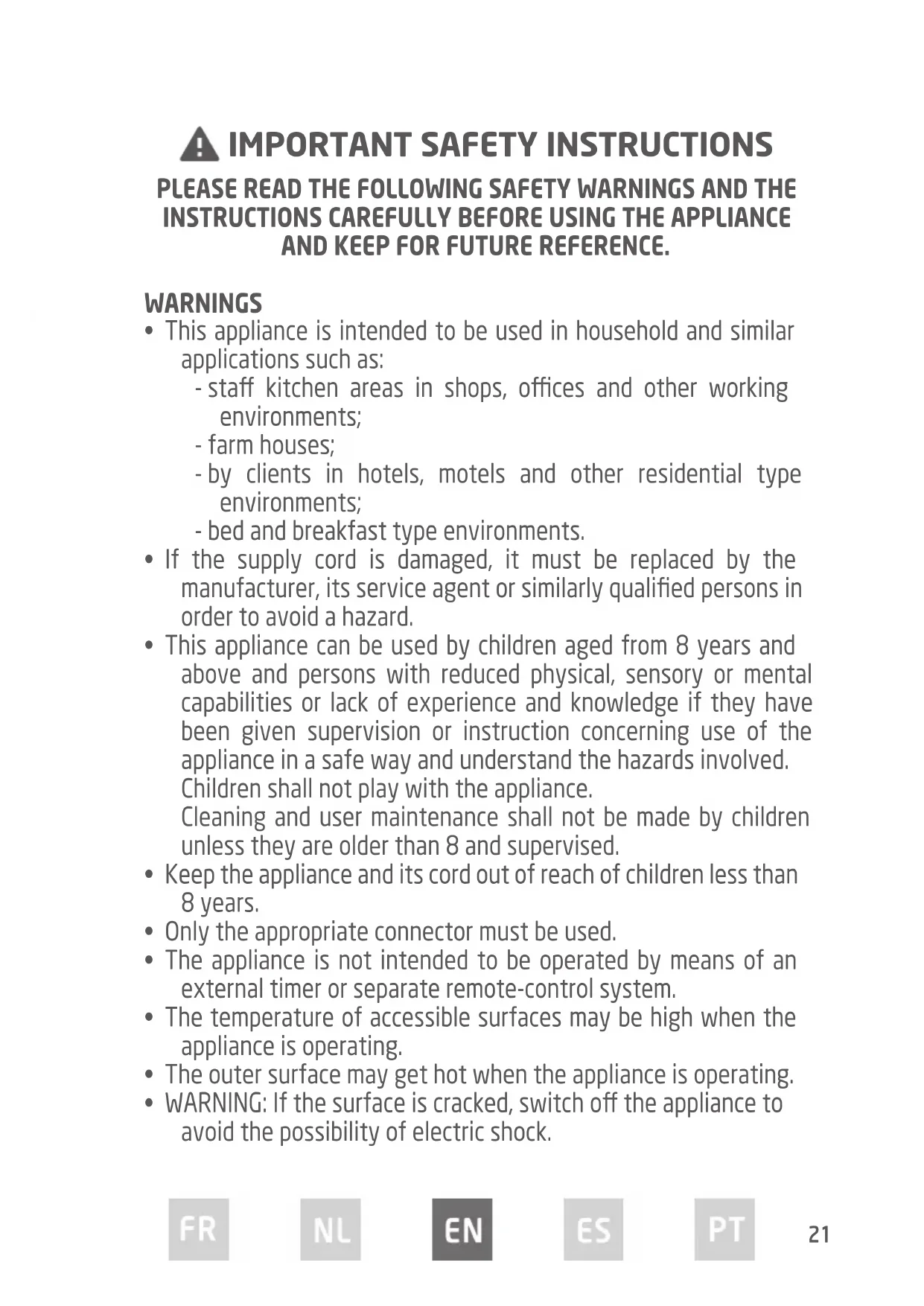

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNINGS

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Only the appropriate connector must be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The outer surface may get hot when the appliance is operating.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not place the appliance in or near hot gas or electric burner, or permit to touch a heated oven or mini oven.

• Regarding the instructions for cleaning surfaces in contact with food, refer to the section "CLEANING AND MAINTENANCE" on page 26 of the manual.

• Caution: Hot Surface. The surfaces are liable to get hot during use.

SAFETY INFORMATION

• Before using this appliance, ensure that the voltage indicated on the product corresponds with the main voltage in your home.
• Warning: This appliance must be earthed.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use outdoors.
• The appliance is for household use only. Do not use the appliance for anything other than its intended use.
• Unplug the appliance from the mains socket when not in use, before attaching or removing accessories, and before cleaning.
• Do not immerse the appliance in water or other liquids.
• Do not let the cord hang over edge of a table or counter, or touch hot surfaces.
• Do not leave the appliance unattended when in operation.
• Do not touch hot surfaces.
• Ensure adequate ventilation and keep an open space of approximately 15 cm all around the appliance.
• Do not operate the appliance on or near combustible materials, such as tablecloths and curtains.
• When moving the appliance, always hold it by the handles.

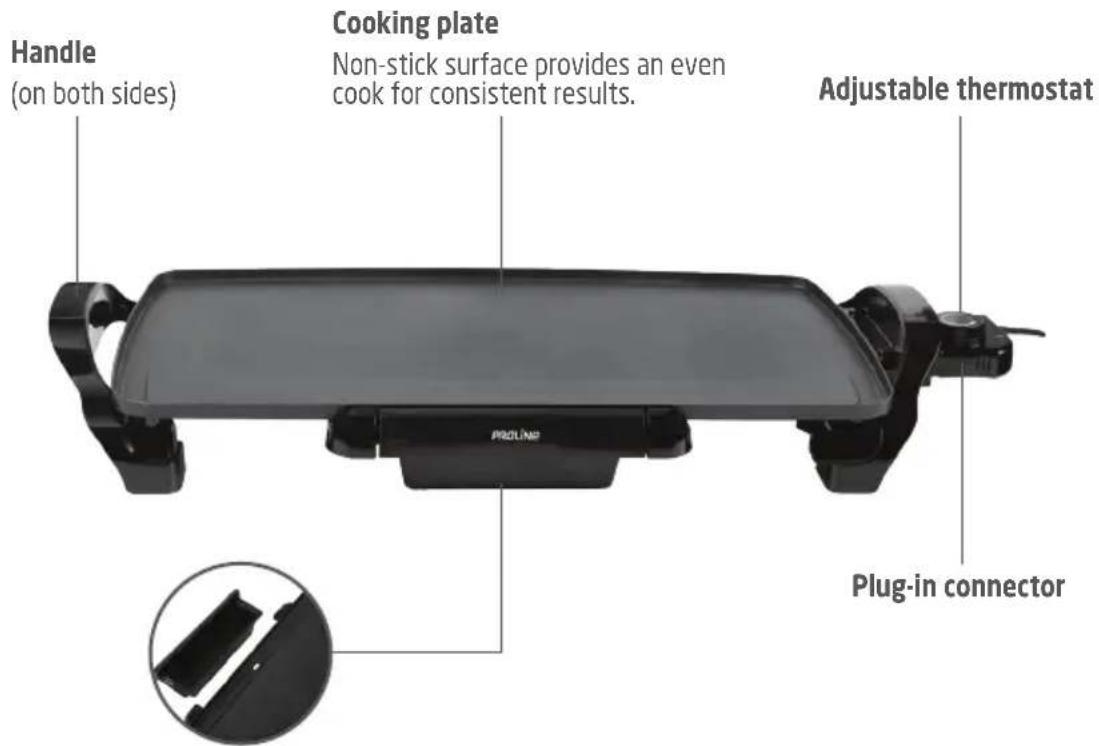

PRODUCT OVERVIEW

Handle (on both sides) Cooking plate Non-stick surface provides an even cook for consistent results. Adjustable thermostat Proclining Plug-in connector

Drip tray
Catch oil and grease for easy disposal.

BEFORE FIRST USE

• Remove packaging material and wipe the appliance with a slightly damp cloth.
• Clean the cooking plate with a soft moist cloth or sponge with a little mild detergent. Wipe with a damp cloth or sponge. Never immerse the appliance in water.
• Insert the drip tray into the appliance.

PREHEATING

1. Place the appliance on a flat stable and heat-resistant surface.

2. Pour a little cooking oil onto the cooking plate and wipe with a soft cloth or paper kitchen towel.

3. Set the thermostat of the plug-in connector to the "MIN" position.

Close-up of a black mechanical component with a circular knob and handle (no visible text or symbols)

1. Connect the plug-in connector to the pins of the appliance and then connect the cord to the mains socket.

- When using the appliance for the first time, there maybe a slight odour and a little smoke during the first few minutes.

1. Preheat the appliance for about 5 minutes on the maximum setting.

• The indicator light will illuminate.

COOKING

After preheating, the appliance is ready for cooking.

• Set the thermostat to the desired position.
• Leave to cook depending on your taste.
• When you finish cooking, set the thermosat to the "MIN" position.

Plate of cooked meat with sauce in a small bowl (no text or symbols visible)

NOTE :

• Never cut directly on the appliance.
• Always use a wooden spatula to avoid damging the cooking surface.
- Do not touch the metal parts of the appliance when it is operating, as they are very hot.

CLEANING AND MAINTENANCE

Unplug the plug-in connector from the mains socket and then remove it from the appliance.

- NOTE: When removing the plug from the main socket, be sure to grab the entire plug and do not pull the cord.

Allow the appliance to cool down before cleaning.

Do not immerse the cooking plate and plug-in connector in water. Clean them with a slightly damp cloth.

Carefully remove the drip tray and dispose of the collected oil. NOTE: Do not pour the oil down the drain, as it may solidify and cause blockages.

Clean the drip tray in warm soapy water. Rinse thoroughly.

Clean the outer surface of the appliance with a slightly damp cloth.

Remove excess oil from the cooking plate with a piece of kitchen paper and then clean it using a damp cloth or sponge with a little mild detergent. Dry with a soft cloth.

Clean the cooking plate after each use.

Caution! Never use abrasive or chemical cleaning agents, as they could damage the appliance and the non-stick coating of the cooking plate.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of a damp cloth is advisable when dealing with surfaces that come into contact with food.

Correct food hygiene practices should always be followed at all times to avoid possibility of food poisoning / cross contamination.

The plug-in connector must be completely dry before you insert it into the connecting socket of the appliance.

PECIFICATIONS

Ratings: 220-240V\~ 50-60Hz

1800W

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Etablissements Darty & fils ©, 129 Avenue Gallieni, 93140 Bondy, France 02/08/2021

ÍNDICE DE MATERIAS

Close-up of a black plastic mechanical component with a circular hole and curved base (no text or symbols visible)

Plate of cooked fish with sauce in the corner (no text or symbols visible)

NOTA:

PAGLINE Conetor de engate

Close-up of a black mechanical component with a circular knob and curved handle (no visible text or symbols)

Plate of cooked flatbread with sauce in a small cup (no text or symbols visible)

NOTA:

Exterior view of a black rectangular electronic device with connectors and a flat top (no visible text or symbols)

Marque – Brand /Merk /Marca:

Proline

We declare that the above product has been evaluated and deemed to comply with the requirements of the listed European Directives and standards:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1

LVD :

EN 60335-1:2012+AC:2014+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 60335-2-9:2003+A1+A2+A12+A13

EN 62233:2008

ErP :

(EC) No 1275/2008

(EU) No 801/2013

EN 50564:2011

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Fonction - Position: General Manager Direct Sourcing

Place, Date / Lieu :

Bondy, août 2, 2021

-DocuSigned by:

Hémé Hedouis

EB110BB7CA6C45A...

ASSURANCE QUALITY SERVICE FNAC DARTY

PROLINE

Etablissements Darty & fils ©, 129 Avenue Gallieni, 93140 Bondy, France
