TPKI2000 - Hob PROLINE - Free user manual and instructions

Product type	Teppanyaki cooking plate
Brand	Proline
Model	TPKI2000
Power supply	220-240 V~, 50/60 Hz
Power	2000 W
Temperature control	Yes, thermostat with levels 1 to 5
Plate material	Non-stick coating
Drip tray	Yes, removable
Handle	Yes, for transport
Recommended use	Domestic and similar (staff kitchens, farms, hotels, bed and breakfasts)
Maintenance and cleaning	Clean with a damp cloth and mild detergent; do not immerse
Safety	Do not touch hot surfaces; do not use near flammable materials
Safety distance	30 cm around the appliance
Child compatibility	Use by children aged 8+ under supervision
After-sales service (France)	Darty: 0 978 970 970 (24/7)
After-sales service (Belgium)	Vanden Borre: [phone] (Mon-Fri 8am-6pm, Sat 9am-6pm)
Reparability	Contact after-sales service; power cable replaceable by a professional
Disposal	Consult local authorities for recycling
Instructions available in	French, English, Dutch

Frequently Asked Questions - TPKI2000 PROLINE

How to connect the temperature regulator?

First connect the regulator to the appliance connection socket, then plug the appliance into a mains socket. Before any operation, make sure the thermostat is on the 0 position.

What is the power of the TPKI2000 cooking plate?

The Proline TPKI2000 cooking plate has a power of 2000 W, with a power supply of 220-240 V~, 50/60 Hz.

Can I use metal utensils on the plate?

No, it is recommended to use a wooden or heat-resistant plastic spatula to avoid damaging the non-stick coating of the plate.

How to clean the drip tray?

Wash the tray in warm soapy water. Do not pour cooking juices down the sink as fats can clog the pipes.

Is the temperature regulator waterproof?

No, the regulator must not be immersed in water or any other liquid. Clean it with a slightly damp cloth.

What is the safety distance around the appliance?

No object should be within 30 cm of the appliance to ensure adequate ventilation.

What to do if the power cable is damaged?

The cable must be replaced by the manufacturer, its after-sales service or a qualified person. Do not use the appliance with a damaged cable.

Can I leave the appliance unattended during use?

No, never leave the appliance unattended while it is operating.

How to properly turn off the appliance?

Set the thermostat to 0, disconnect the regulator from the appliance, then unplug the mains plug. Let it cool before cleaning.

Can children use this appliance?

Yes, from 8 years old under supervision. Children under 8 must not clean the appliance or approach it unattended.

USER MANUAL TPKI2000 PROLINE

Black rectangular flatboard with metal handles and a small side-mounted device, shown against a white background (no text or symbols visible)

Catalogue

Language of introduction

Downloaded from www.vandenborre.be

English GB1-GB5

French FR6-FR12

Dutch ---- NL13-NL18

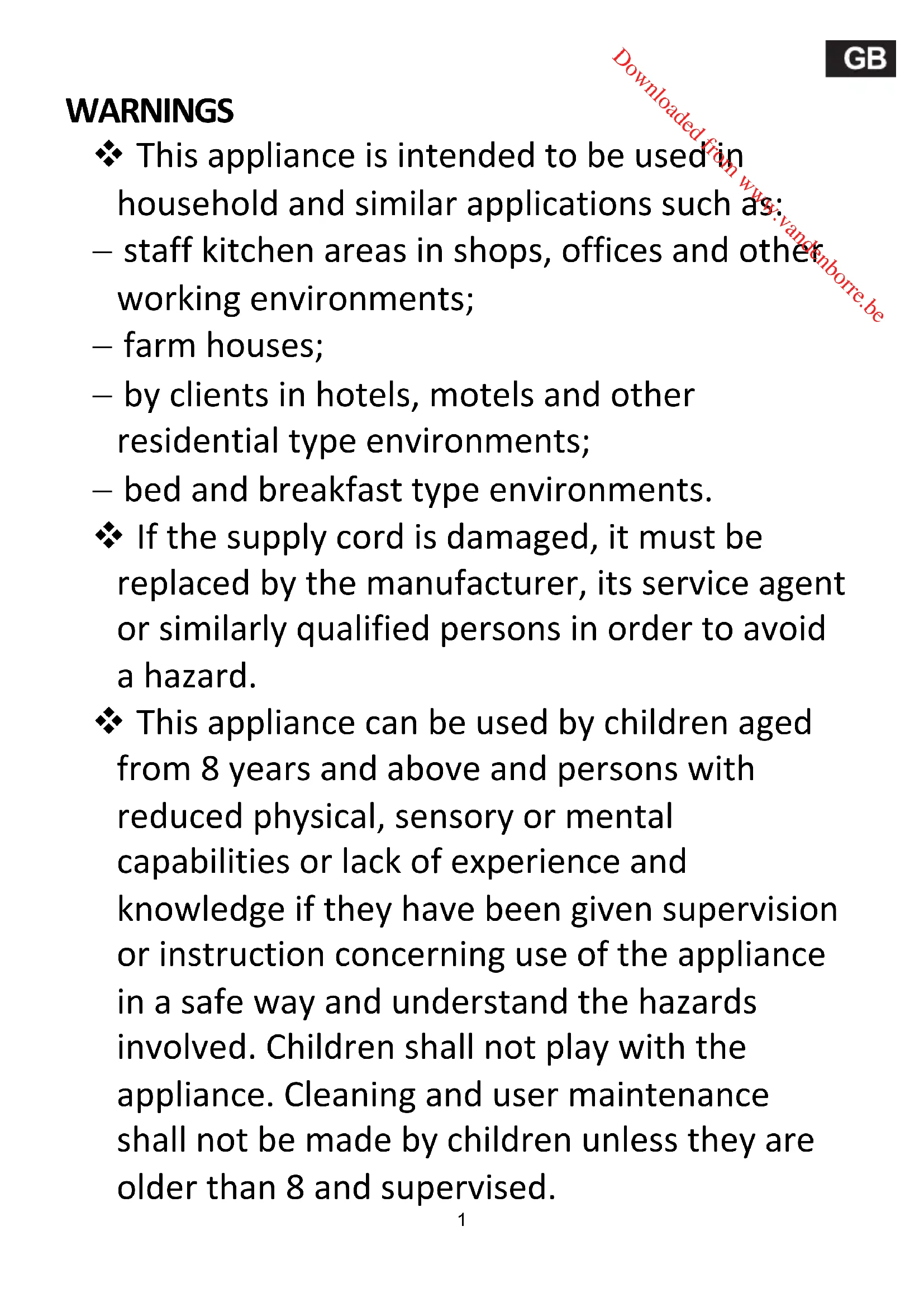

WARNINGS

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

– by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

The connector must be removed before the appliance is cleaned.

The appliance inlet must be dried before the appliance is used again.

Only the appropriate connector must be used.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Regarding the instructions for cleaning surfaces in contact with food, refer to the section “Cleaning and Maintenance” on page 4 of the manual.

The outer surface may get hot when the appliance is operating.

The surfaces are liable to get hot during use.

The temperature of accessible surfaces may be high when the appliance is operating.

Do not touch hot surface. Use the handle while moving the product.

Do not place the appliance in or near hot gas

or electric burner, or permit to touch a heated oven or mini oven.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the appliance and keep them for future reference.

• Always plug the temperature regulator into the appliance first, and then plug the power cord into mains socket.
• Always turn the temperature regulator to "0" and then disconnect the plug from the mains socket when not in use and before cleaning. Always let the appliance cool down before cleaning it.
• Do not leave the appliance unattended when it is operating.
• The appliance shall only be used on a firm, level, dry and non-flammable surface.
• Maintain a distance of at least 30 cm from other objects to ensure sufficient ventilation.
• Do not move the appliance when it is in use and do not touch the teppanyaki plate.
• Use oven gloves when cooking food at a high temperature. Splashed fat may otherwise cause burns.
• Allow fat in the drip tray to cool before removing it.
• Never use the appliance near curtains and other flammable materials.

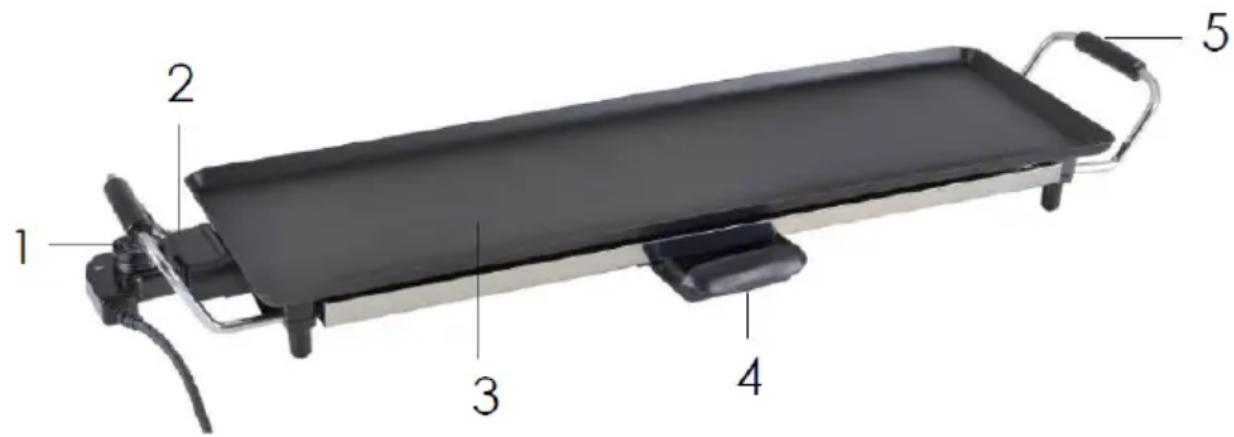

PARTS

1 2 3 4 5

1. Temperature regulator

• used to switch the appliance on and off
• and to control the cooking temperature

2. Connection socket for the temperature regulator

3. Teppanyaki plate

4. Drip tray

• to catch excess fat

5. Handle

BEFORE USING FOR THE FIRST TIME

Remove all packaging materials and clean the appliance before using it for the first time (See the chapter "Cleaning and Maintenance").

Before using the appliance for the first time, heat it up without any food so that any residues can evaporate. Make sure the room is adequately ventilated.

OPERATION

1. Turn the temperature regulator to "0".
2. Plug the temperature regulator into the connection socket.
3. Slide the drip tray into position.

4. Plug the mains plug into the mains socket.

5. Turn the temperature regulator to the desired temperature.

6. The indicator light on the temperature regulator will illuminate and the appliance will heat up.

7. "1" to "4": low and medium temperatures for cooking fish fillets, vegetables and other grilled food.
   Note: It is recommended that when cooking vegetables, the plate can be lightly oiled.

8. "5": maximum temperature for thin slices of meat or poultry.

9. When the selected temperature has been reached, the indicator light will go out.

- Warning! Danger of burns: the grill pate gets very hot, do not touch!

1. Put the food to be cooked onto the teppanyaki plate.
2. After a time, turn the food with a wooden spatula (not supplied).
3. When the food is cooked, remove it from the teppanyaki plate with the wooden spatula.
4. To switch off the appliance, turn the temperature regulator to "0" when you have finished cooking. Pull out the mains plug from the mains socket.

CLEANING AND MAINTENANCE

Unplug the temperature regulator from the appliance and then the mains socket. Allow the appliance to cool down before cleaning.

Do not immerse the appliance and temperature regulator in water or any other liquid.

Clean the outside of the appliance with a damp cloth.

Clean the temperature regulator with a slightly damp cloth.

Carefully remove the drip tray and dispose of the collected fat.

NOTE: Do not pour the fat down the drain, as it may solidify and cause blockages.

Clean the drip tray in hot, soapy water.

Remove excess oil from the teppanyaki plate with a piece of kitchen paper and then clean it using a damp cloth or sponge with a little mild detergent in order to help remove fatty deposits.

Caution! Never use caustic or abrasive cleaning agents, as they could damage the appliance and the nonstick coating of the grill plate.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of hot clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food.

Correct food hygiene practises should always be followed at all times to avoid possibility of food poisoning /cross contamination.

Use the appliance only again if the temperature regulator and connection socket are completely dry after cleaning.

SPECIFICATIONS

Ratings: 220-240 V\~, 50/60Hz 2000W

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 21 / 01 / 2016
